Sim-Racing Chassis Manual ver 1.1
GT2 sim-racing chassis manual VER 1.1
sim racing chassis
2
Sim-Racing Chassis Manual ver 1.1
Contents
1. Intro.......................................................................................................................... 3
2. Before starting ......................................................................................................... 4
3. Aluminium profile system - The Basics .................................................................... 5
4. Assembly ................................................................................................................. 6
4.1 General dimensions .................................................................................. 6
4.2 Base.......................................................................................................... 7
4.3 Dashboard bracket assembly .................................................................... 8
4.4 Pedal deck................................................................................................. 9
4.5 Dashboard................................................................................................. 10
5. Parts list................................................................................................................... 11
3
Sim-Racing Chassis Manual ver 1.1
1. Intro

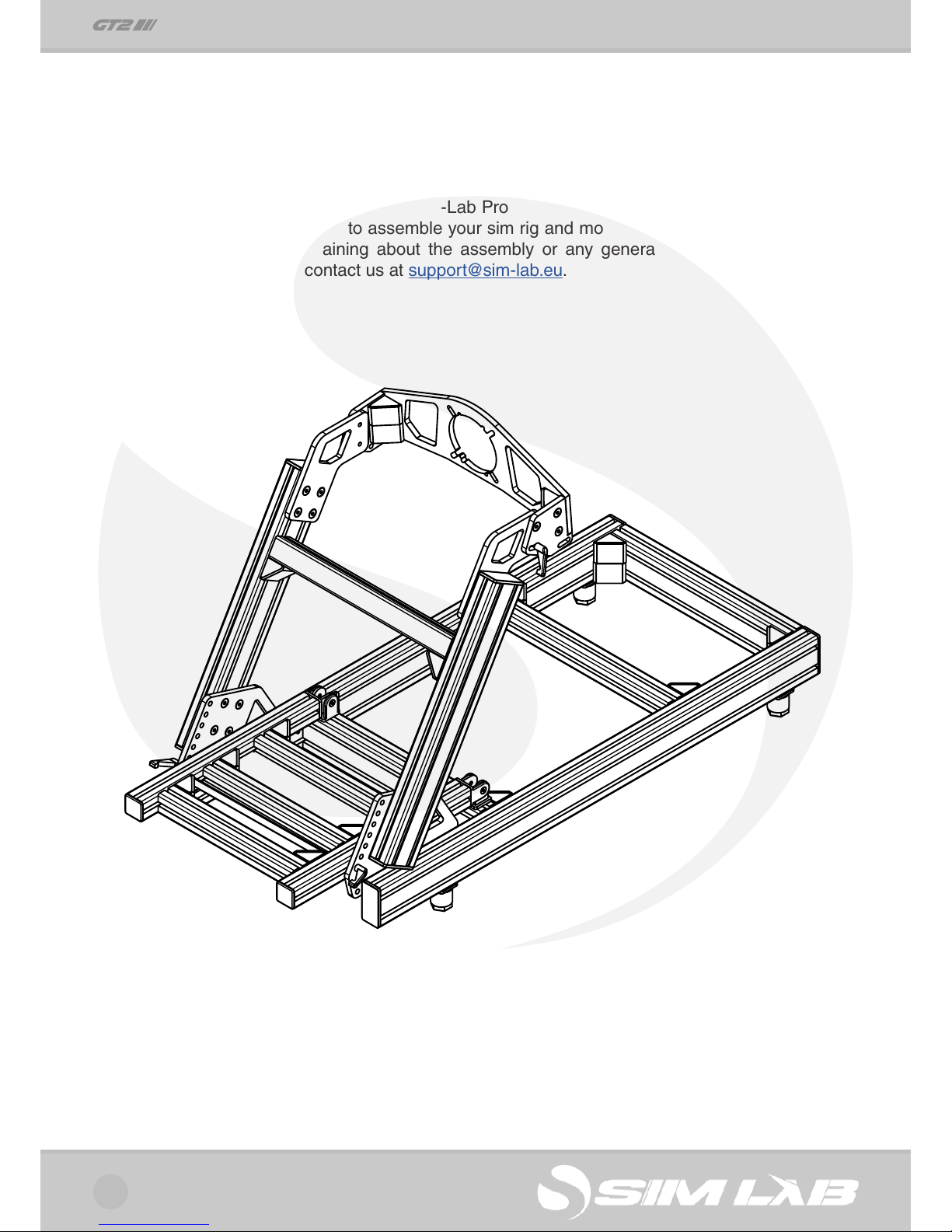

Thank you for purchasing the Sim-Lab Products GT2 sim-racing chassis! This kit
contains all you need to assemble your sim rig and mount your gear to it. If there
are questions remaining about the assembly or any general questions, please
don’t hesitate to contact us at support@sim-lab.eu.
4
Sim-Racing Chassis Manual ver 1.1
2. Before starting
Some tips before starting the build. Use section 5. Parts list to check if you received
all parts. When unpacking, make sure you got all materials sorted and organized,
as it will help with providing an overview of the build. Tools needed for assemby
are a set of Allen-keys and a wrench to tighten the nuts. It is advised to use a
measuring device to double-check your progress and get the chassis assembled
symmetrically.

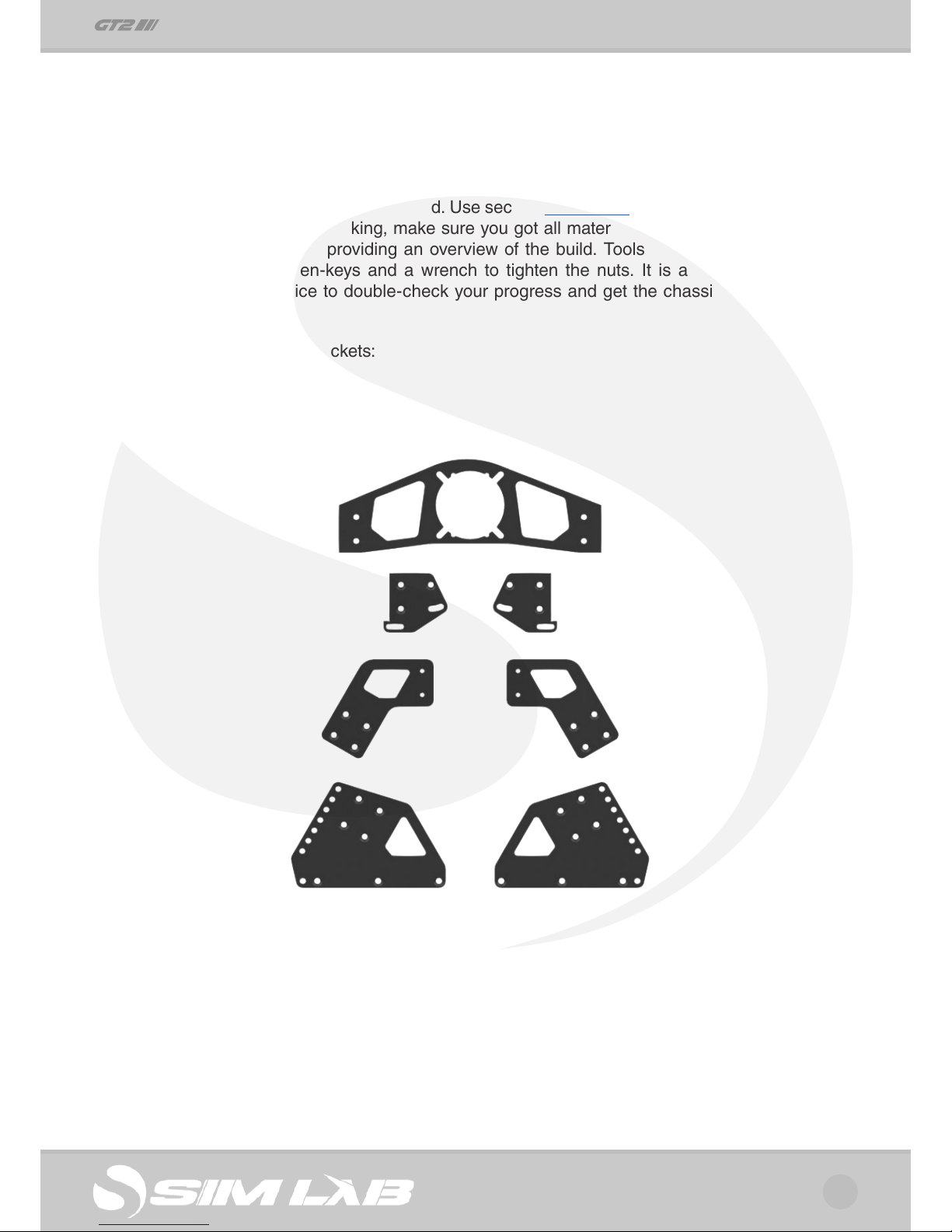

Overview of the brackets:
5
Sim-Racing Chassis Manual ver 1.1
3. Aluminium profile system - The Basics
If you are new to working with aluminium profiles, here a couple of tips to start off
with. The logic of aluminium profiles revolves around the slots the profiles have
and in a lesser degree the cores which can be provided with a thread. The slots
(grooves) facilitate nuts to be slotted into them. They have threaded holes in them,
which come in different sizes. For our profile system, M8 (8mm thread) is used
to build the general structure. Hardware or, for example, corner brackets can be
fixated, and later loosened up to change the position of them. This versatility makes
aluminium profiles very fit to build a sim-racing chassis.

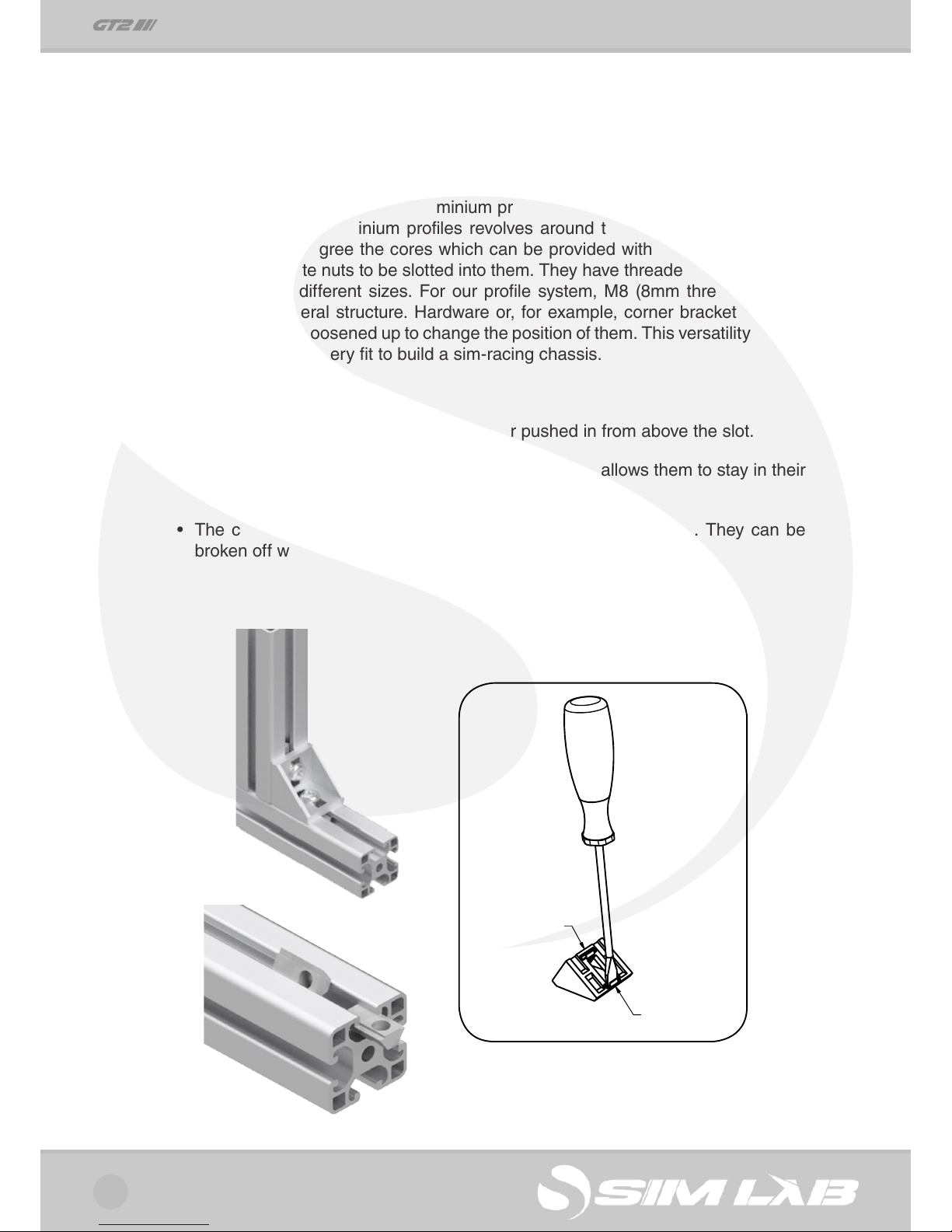

Corner bracket assembly:
• T-slot nut can be inserted from outside, or pushed in from above the slot.
• T-slot nuts have a spring ball, and are guided, which allows them to stay in their
place when pushed into a vertical profile.
• The corner brackets have guided lips to lock them into the slot. They can be
broken off with the tip of a screwdriver where needed (figure 1).
BREAK OFF LIP
BREAK OFF LIP
Figure 1: Breaking the lip off
6
Sim-Racing Chassis Manual ver 1.1
4. Assembly

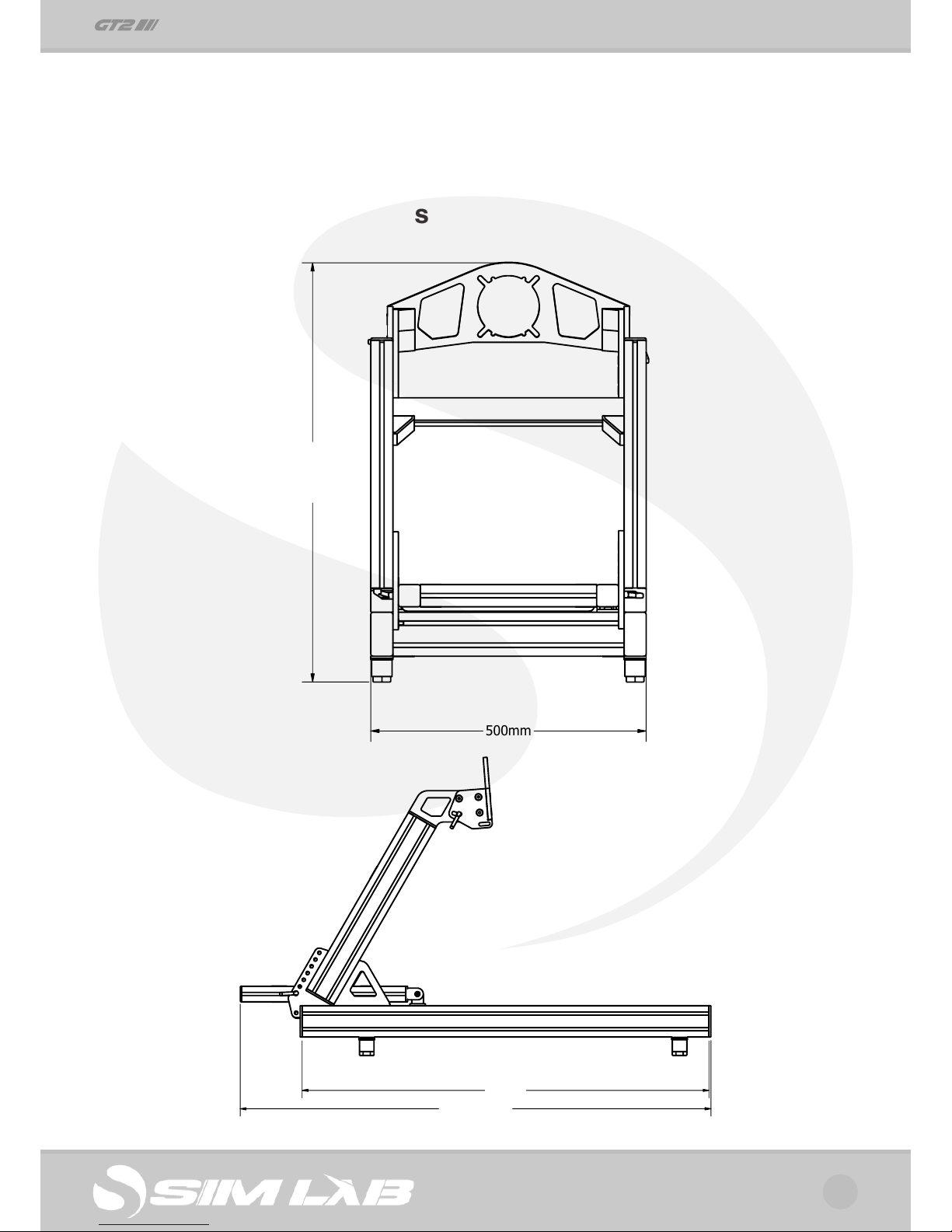

4.1 General dimensions
±750mm
500mm
1100mm
~1200-1300mm
7
Sim-Racing Chassis Manual ver 1.1
The upright brackets are fixated with counter sunk M8x20 mm (black steel) bolts.
The countersunk holes for the uprights are kept on the inside. Positioning them
symmetricaly is very important, so we suggest using a measuring device.
IMPORTANT: 2 profiles with length 420 mm have a threaded hole on 1 side. These
are needed for the pedal deck!
4.2 Base
8
Sim-Racing Chassis Manual ver 1.1
4.3 Dashboard bracket assembly

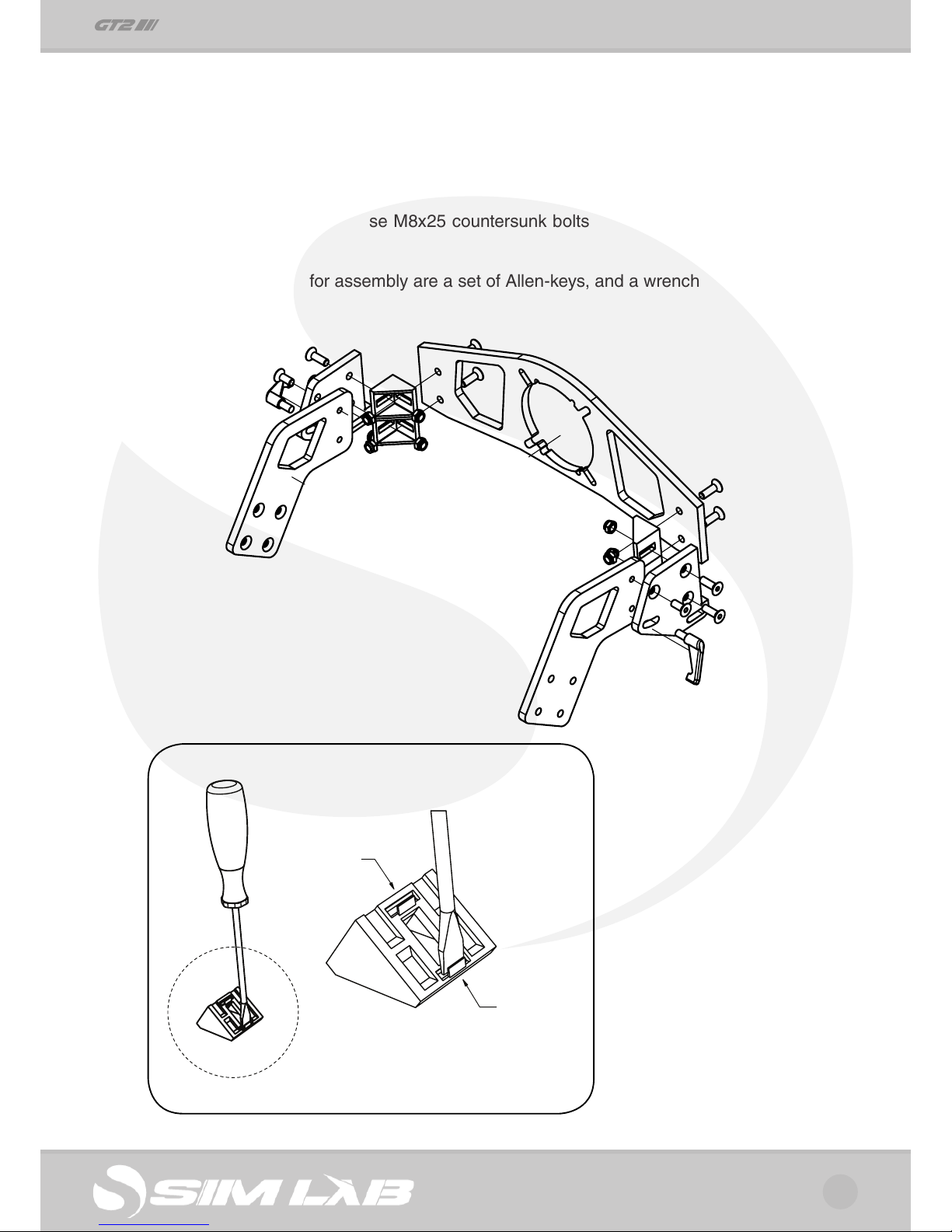

The lips of the corner brackets are broken off to be mounted flush with the
brackets (Figure 2). Use M8x25 countersunk bolts (8x) + M8 nut to mount the
corner brackets.
Tools needed for assembly are a set of Allen-keys, and a wrench to tighten the
nuts.
BREAK OFF LIP
BREAK OFF LIP
Figure 2 - Breaking off the lip
9
Sim-Racing Chassis Manual ver 1.1
4.4 Pedal deck

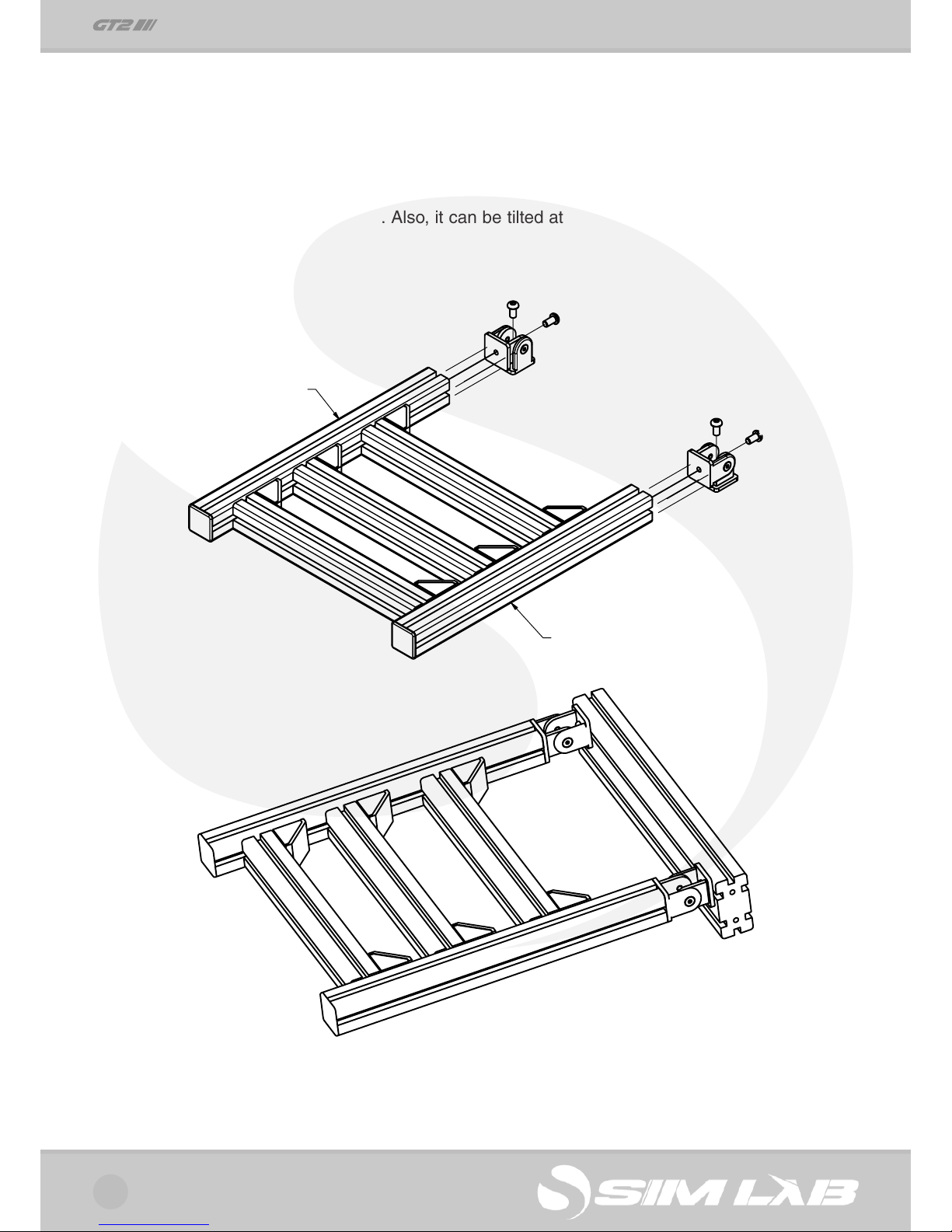

The pedal deck section can be configured in verious ways. It is adjustable in height
while remaining horizontal. Also, it can be tilted at an angle to achieve the desired
pedal inclination.
420mm
420mm
10
Sim-Racing Chassis Manual ver 1.1
4.5 Dashboard

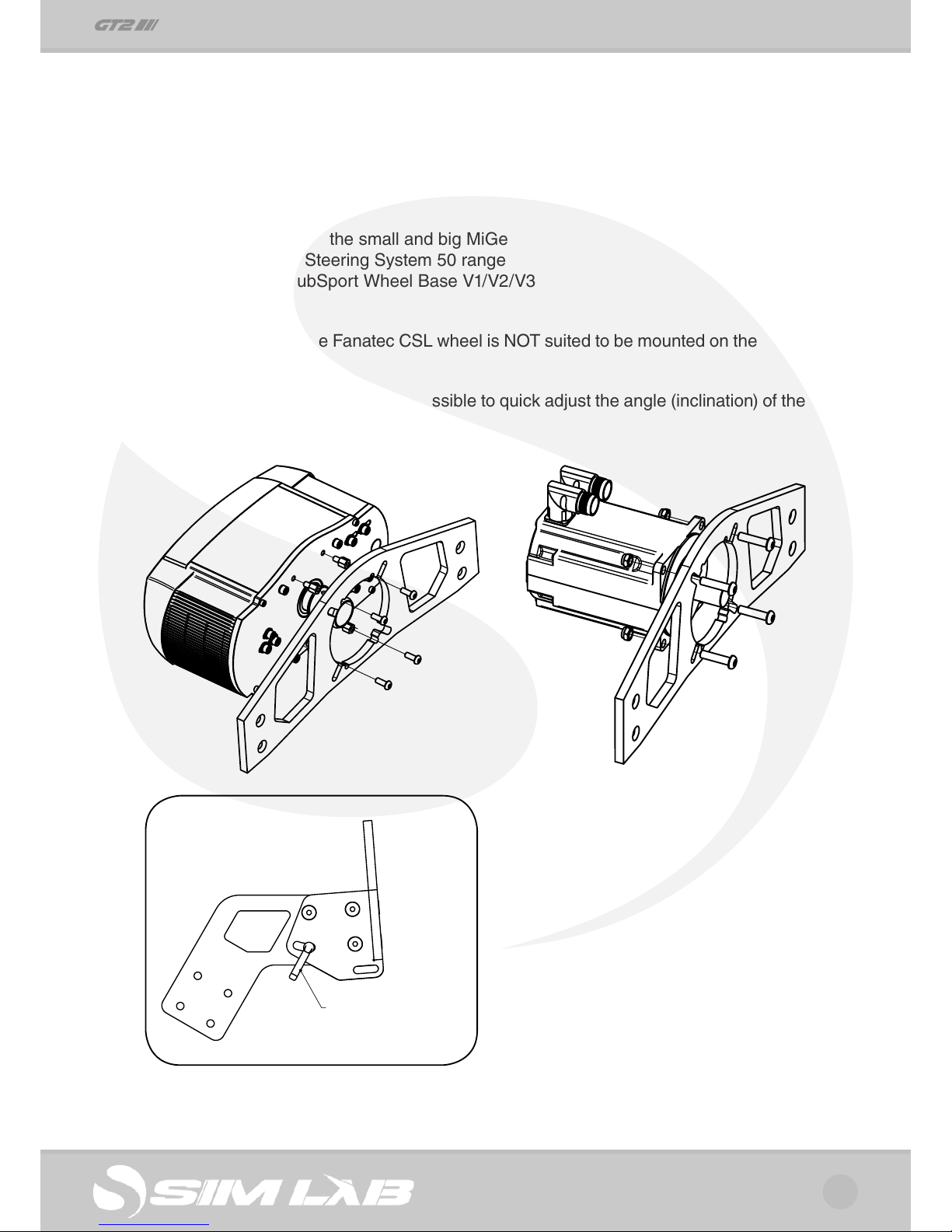

The dashboard bracket is suited for the following wheels:
• MiGe (ST130), the small and big MiGe
• Bodnar SimSteering System 50 range
• Fanatec ClubSport Wheel Base V1/V2/V3
IMPORTANT: the Fanatec CSL wheel is NOT suited to be mounted on the dash-
board bracket!
With the clamping lever, it is possible to quick adjust the angle (inclination) of the
wheel. (Figure 3)
LEVER HANDLE TO ADJUST ANGLE
OF THE DASHBOARD
Figure 3: Adjusting angle of the dashboard by using lever handle
