Silverline 4226 Manuel utilisateur
4226
Please Read The User Manual Carefully!
2
1 Safety instructions 4
1.1 Operating instructions 4
1.2 Instructions employed 4
1.3 Children, persons with special needs 5
1.4 Intended use 5
2 Unpacking and assembly 7
2.1 Unpacking 7
2.2 Assembly and electrical connection 7
3 Operation 13
3.1 Performance level select fan 13
3.2 Automatic trailing system 13
4.1 General maintenance instructions 15
4.5 Maintenance intervals 19
4 Malfunctions 20
5 Malfunctions/Causes/Solutions 21
3

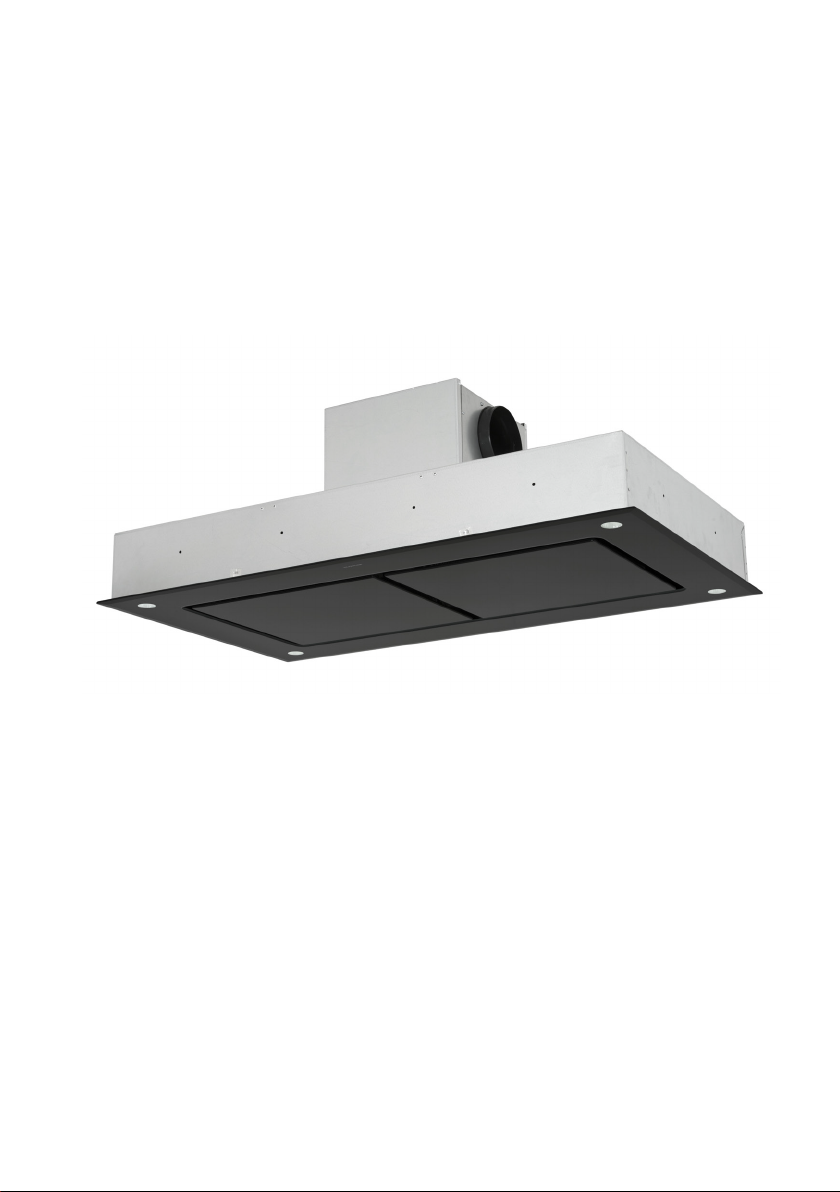

Overv�ew of extract�on hood
F�gure 1: Overv�ew 1 Motor box
2 Power plug
3 Cover hous�ng
4 L�ght�ng
5 S�de suct�on-plate �s removable.
7 L�ght d�odes of hood remote control
1
2
3
4
5
6
7
4
Read through these operat�ng �nstruct�ons
completely before work�ng w�th the extract�on
hood.
Store these operat�ng �nstruct�ons carefully.
When forward�ng the equ�pment to a th�rd
party, del�ver the operat�ng �nstruct�ons.
It �s �mperat�ve to respect �nstruct�ons to avo�d
�njur�es to persons and damage to equ�pment.
No l�ab�l�ty �s assumed of the manufacturer
for damages ar�s�ng from non-compl�ance of
these operat�ng �nstruct�ons.
Important �nstruct�ons for your safety are spe-
�nstruct�ons to avo�d acc�dents and damage to
equ�pment.
1 Safety �nstruct�ons
WARNING!
Warns of r�sks to health and shows potent�al
r�sks of �njury.
CAUTION!
Ind�cates the dangers of the dev�ce or other
objects
CAUTION!
Ind�cates a potent�al danger, wh�ch can lead to
mater�al damage �f �t �s not avo�ded.
INSTRUCTION!
Shows t�ps and �nformat�on.
Refers to another chapter, a sect�on or �nst-
ruct�on.
1.1 Operat�ng �nstruct�ons
1.2 Instruct�ons employed
5
1 Safety �nstruct�ons
Persons (�nclud�ng ch�ldren), who are not ca-
pable of us�ng the equ�pment safely (persons
w�th spec�al needs) due to mental, phys�cal or
motor capac�t�es, may not use the equ�pment
w�thout the superv�s�on or only w�th the �nst-
ruct�ons of a competent person.
Do not leave the equ�pment unattended. Use
�s only w�th greatest caut�on when ch�ldren
or persons w�th spec�al needs, who cannot
assess the r�sks correctly, are �n the v�c�n�ty.
Packag�ng mater�al:
- not used for games. There are
R�sk of suffocat�on.
-Appropr�ate packag�ng mater�al
d�spose of ( spare parts and d�sposal).
The extract�on hood �s only �ntended for
clean�ng of cook�ng vapours r�s�ng from
the cook�ng s�te and for pr�vate use �n the
household.
- Only use the equ�pment �n the household.
-The equ�pment �s not �ntended for commer-
c�al
use.
- Extract�on hood only for the use over
electr�cal or gas cook�ng s�tes.
-Any other use �s not cons�dered as
cond�t�onal and �s proh�b�ted.
In part�cular, refra�n from:
- Operat�ng the extract�on hood w�thout the
to mass�ve grease accumulat�on �n the extrac-
t�on hood and the exhaust ducts.
- Flames under the extract�on hood. It
may result �n �gn�t�on of the grease accumu-
lat�on
.
-The operat�on of the cook�ng pot (all types of
heat�ng: gas, electr�c�c, etc.) w�thout
cookware.
1.3 Ch�ldren, persons w�th spe-
c�al needs
1.4 Intended use
6
1 Safety �nstruct�ons
�n the extract�on hood.
- Clean�ng the extract�on hood w�th
unapproved means or
equ�pment, e. g. w�th a steam cleaner
( Ma�ntenance).
- Repa�rs by an
unauthor�sed person ( Customer ser-
v�ce).
WARNING!
R�sk of combust�on Combust�on may result
dur�ng faulty operat�on of the extract�on
hood.
-Ma�ntenance and clean�ng �nstruct�ons are
correctly compl�ed w�th ( 4.6 Ma�ntenance
�ntervals).
Bas�cally refra�n from:
- cook, roast and gr�ll w�th open
In the case unauthor�sed personnel �nter-
vene, warranty and guarantee cla�ms exp�re (
Warranty)
1.7 Defect�ve equ�pment
WARNING!
Electr�c shock The extract�on hood �s opera-
ted w�th electr�c�ty. If the assembly, handl�ng
and operat�on are wrong, �t can result �n
severe or fatal �njury. Observe safety �nstruc-
t�ons.
1.6 Power supply
CAUTION!
Do not �nstall or operate a defect�ve extrac-
t�on hood. Repa�rs are performed by spec�a-
l�sed personnel author�sed by the manufactu-
rer ( Customer serv�ce).
7
2 Unpack�ng and assembly
The packag�ng mater�al �s recyclable. Save
the raw mater�al and reduce the volume of
waste. Resupply package �n the mater�al cyc-
le. Your techn�c�an w�ll revoke the packag�ng.
( 6.2 D�sposal).
Observe the safety �nstruct�ons for the as-
sembly and electr�cal connect�on ( Safety
�nstruct�ons). Read the assembly �nstruct�ons
completely before assembl�ng.
It �s �mperat�ve to respect �nstruct�ons to
avo�d �njur�es to persons and damage to
equ�pment.
No l�ab�l�ty �s assumed of the manufacturer
for damages ar�s�ng from non-compl�ance of
these assembly �nstruct�ons.
2.1 Unpack�ng
2.2 Assembly and electr�cal con-
nect�on
2.3.1 Test�ng the extract�on hood
parts
These cons�st of:
- Extract�on hood w�th motor box
Accessor�es:
- 10 screws and washers
8
2.3.2 General �nformat�on on
assembly
WARNING!
R�sk to l�fe due to damage of supply l�nes. Du-
r�ng bor�ng, supply l�nes (electr�c�ty, gas and/
or water l�nes) can be damaged. Before bor�ng
be �nformed of the route of the supply l�nes (e.
g. w�th a search tool for metal and l�v w�res).
2 Unpack�ng and assembly
mounted at the surface �n the centre over the
cooktop.
9
2.3.3 Assembly d�agrams
F�gure M3
F�gure
M2a
F�gure M1
F�gure
M2b
2 Unpack�ng and assembly
10
2 Unpack�ng and assembly
2.3.4 Preparat�ons for hood as-
sembly
-They requ�re a ce�l�ng sect�on w�th a stable
wooden frame made of square t�mber or the
l�ke.
The sect�on d�mens�ons are:
Vega �nter�or: 1000 mm
(VGID 104) 958 mm x 656 mm
Vega �nter�or: 1200 mm
(VGID 124) 1158 mm x 656 mm
-They can connect the exhaust a�r �n all d�rec-
motor box, you br�ng the a�r vents w�th a Ø
of 150 mm �n the des�red d�rect�on to the wall
sleeve or other part.
- Before �nstall�ng the hood, transfer and jo�n
the exhaust duct w�th a d�ameter of 150 mm
up to the wall sleeve or other part
1. Ce�l�ng sect�on
2. Exhaust a�r duct connect�on
d�rect�on
3. Installat�on of the exhaust a�r
duct from the hood to the wall slee-
ve or the l�ke
