SERVICE MANUAL

WP16-6

16L RECHARGABLE

BACKPACK SPRAYER

SERVWP16-6 REV B – 9/11/2019

FOR SERVICE SUPPORT PH 1300745826 (AUST) OR 0508 745826 (N.Z)

email: i[email protected]

website: www.silvan.com.au/bunnings-support

Problem Solution

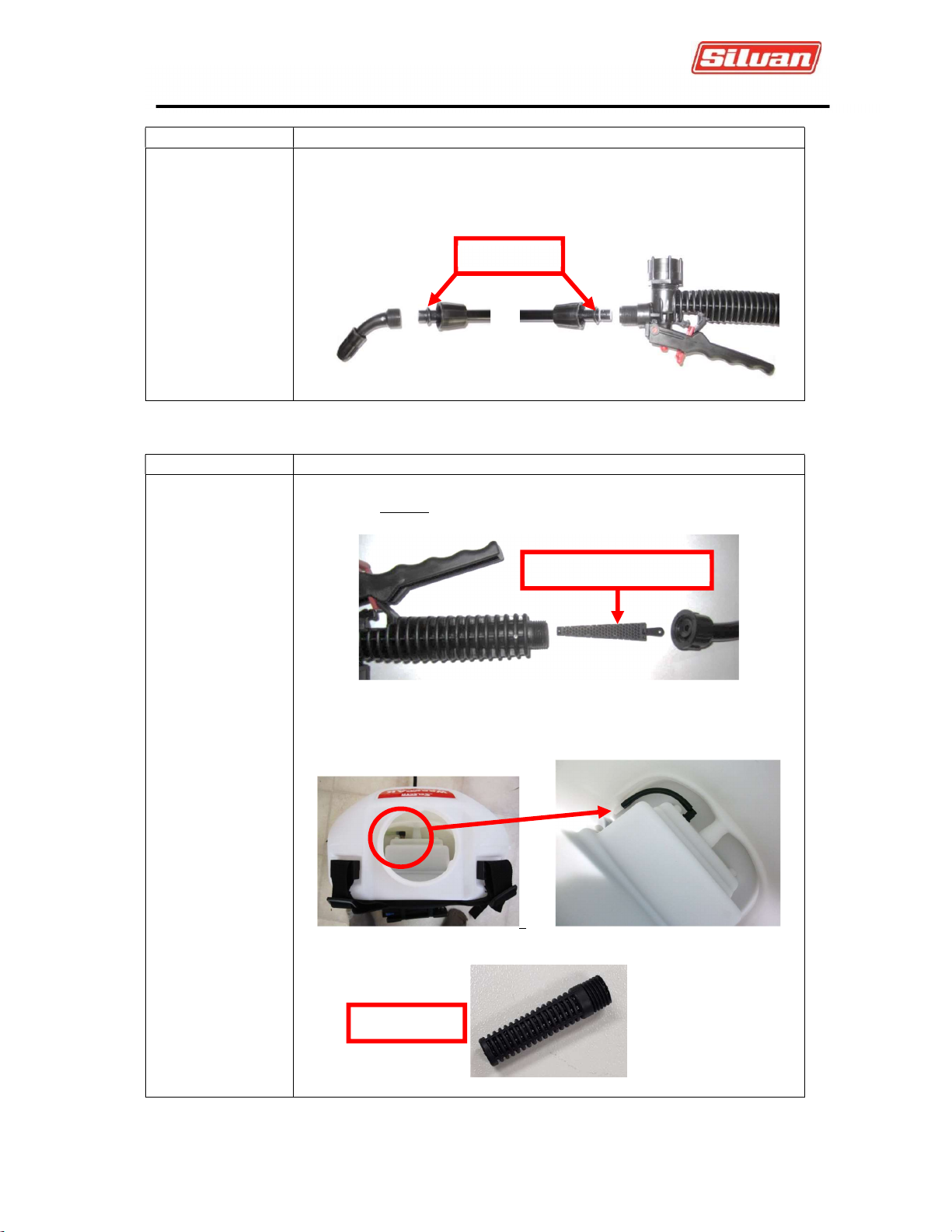

Spray lance Leaking

 Check O-Ring is fitted

Problem Solution

Checking Blocked

Filters

 There are 2 filters in the sprayer. One in the handle.

 The other is on the end of the suction hose inside the tank.

TROUBLE SHOOTING GUIDE

Ring

Filter Inside Gun Handle

Suction Filter

Problem Solution

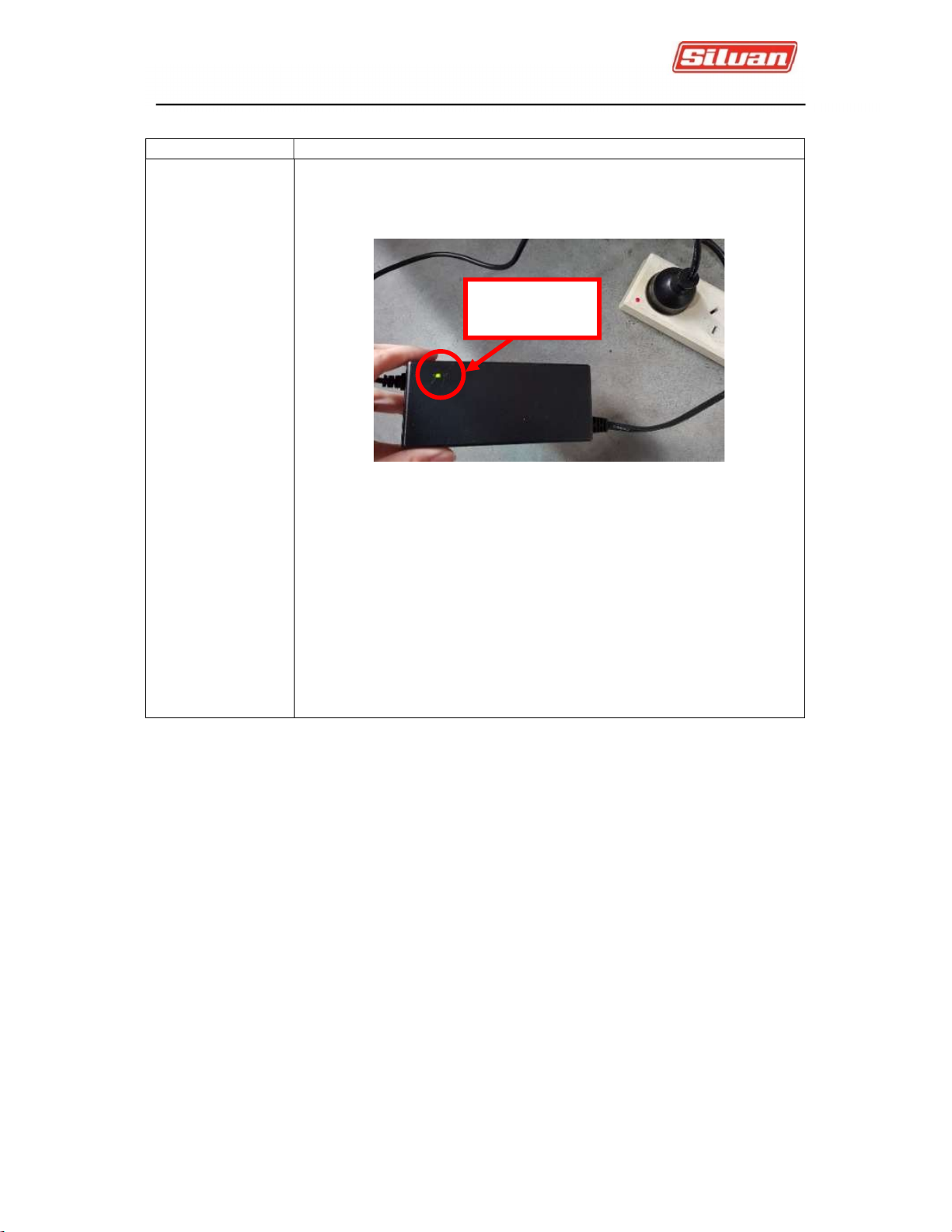

Battery charger is

not charging or

battery related

issues

 Connect the charger to the 240V power supply but do not connect the

charger to the sprayer. The light on the charger should be GREEN.

 Now connect charger to sprayer.

-RED colour is normal and indicates the battery is now charging.

-GREEN colour indicates the battery is fully charged. To confirm the

battery is fully charged run the pump and the charger light will then

change from GREEN to RED

If the charger light remains green and the battery is not fully charged

then the battery box must be removed to check the fuse and any loose

wires.

TROUBLESHOOTING GUIDE

Charge Indicator

Light

Problem Solution

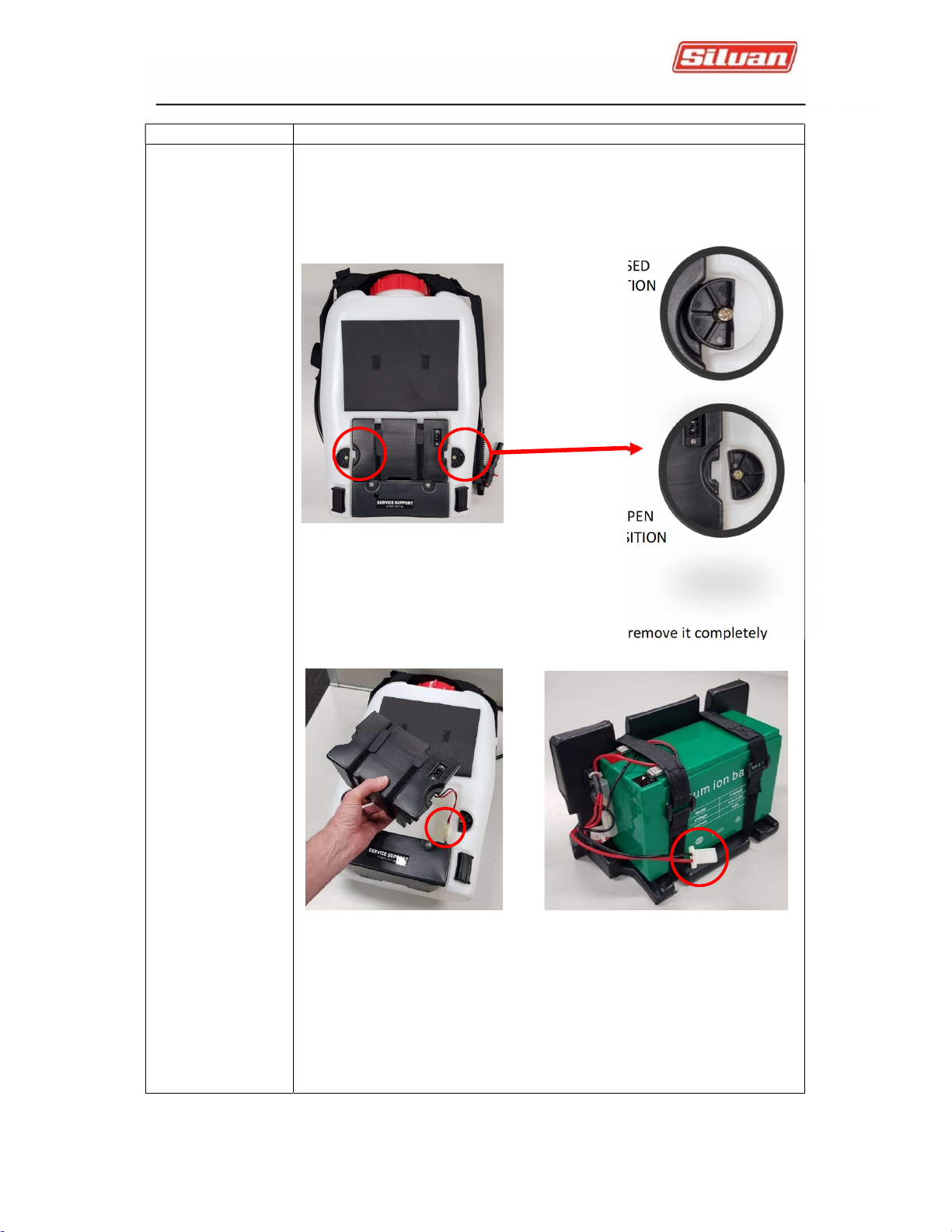

Removing the

battery box

 Unbuckle the harness to make it easier to access the battery box. Turn

the retaining clips to allow the battery box to be removed

 Disconnect the battery box plug if you need to remove it completely

TROUBLESHOOTING GUIDE

OPEN

POSITION

CLOSED

POSITION

BATTERY BOX

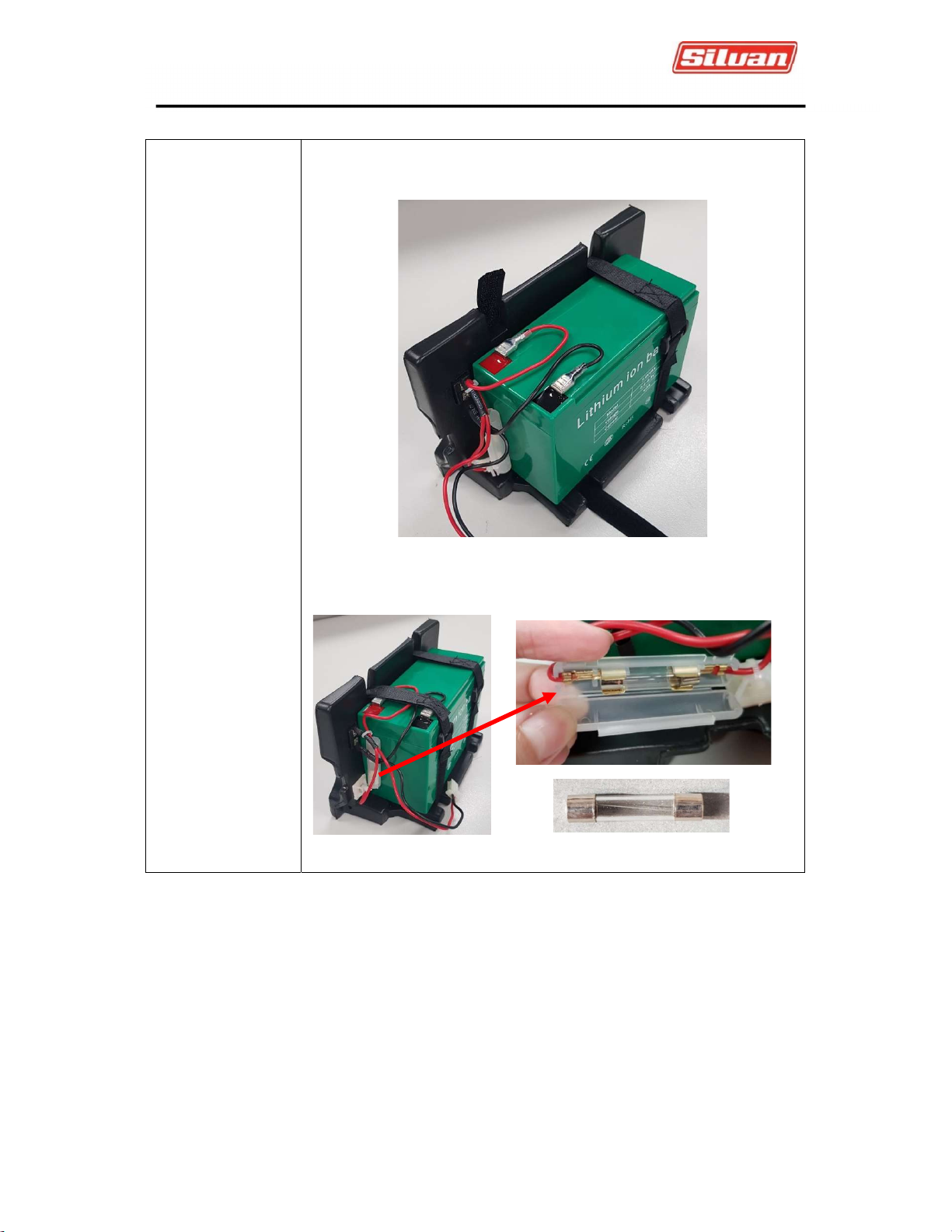

Checking the battery

connection and fuse

 Ensure wires are connected to the battery properly

 Check inline fuse has not blow. Replace if required.

TROUBLESHOOTING GUIDE

Pump operates

with no flow rate or

reduced flow

 The pump will not prime unless the gun trigger is ON

 Check filter, nozzles and spray lines for any blockages

 If the sprayer has not been used for some time or has been left with

chemical in it, then the pump valves may become stuck. If this happens

the pump will run but no liquid is pumped.

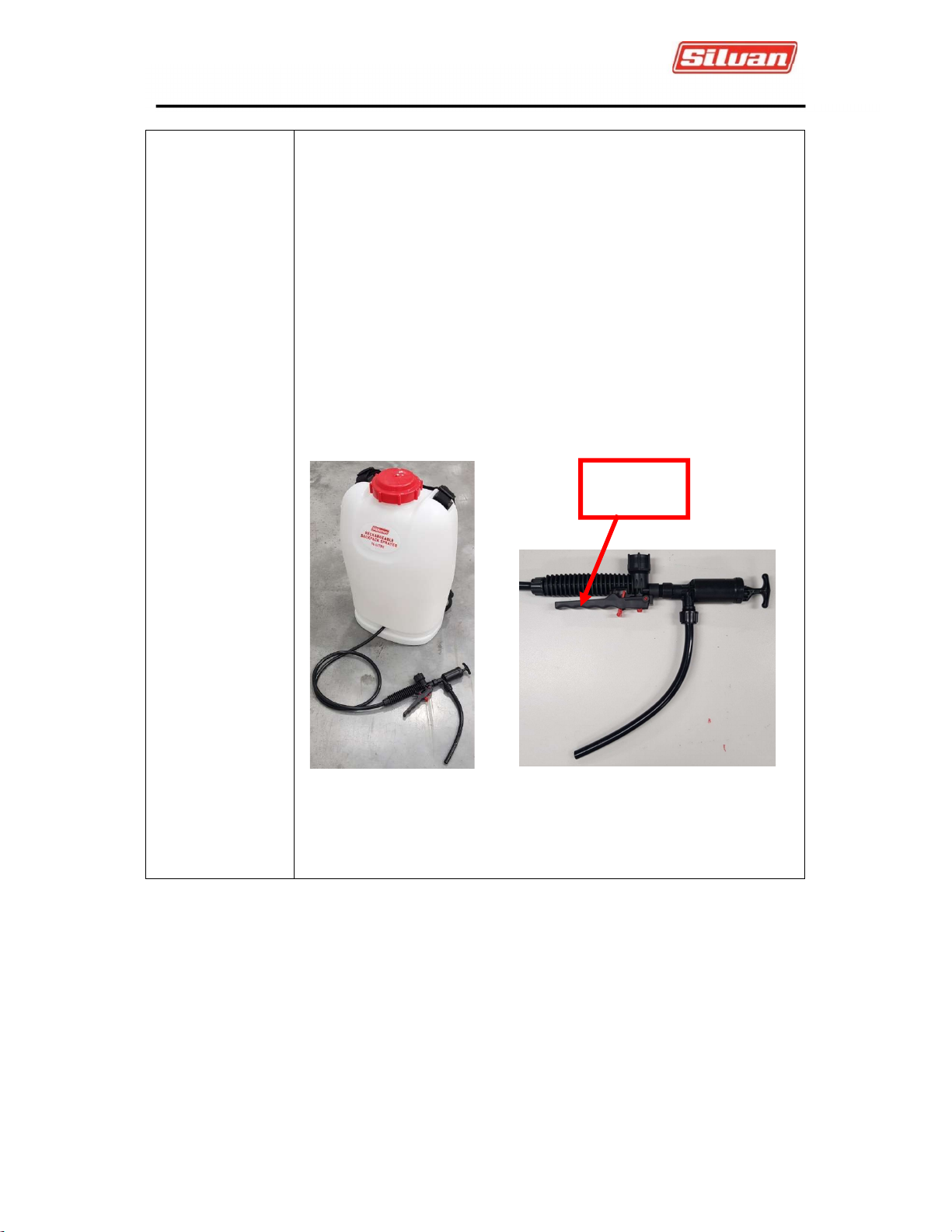

If this happens you can use the hand operated vacuum pump to prime

the pump as follows:

1. Empty the tank and spray hose of liquid

2. Make sure the power switch on the knapsack is off

3. Connect the hand pump as shown in the pictures below and lock the

trigger on

4. Pump the handle to draw some air and unblock the pump valves

5. Clean the vacuum pump after use

Alternatively apply a small amount of pressure to the suction line by

placing a garden hose over the suction hose inside the tank while the

pump is running.

TROUBLESHOOTING GUIDE

Trigger

Locked ON

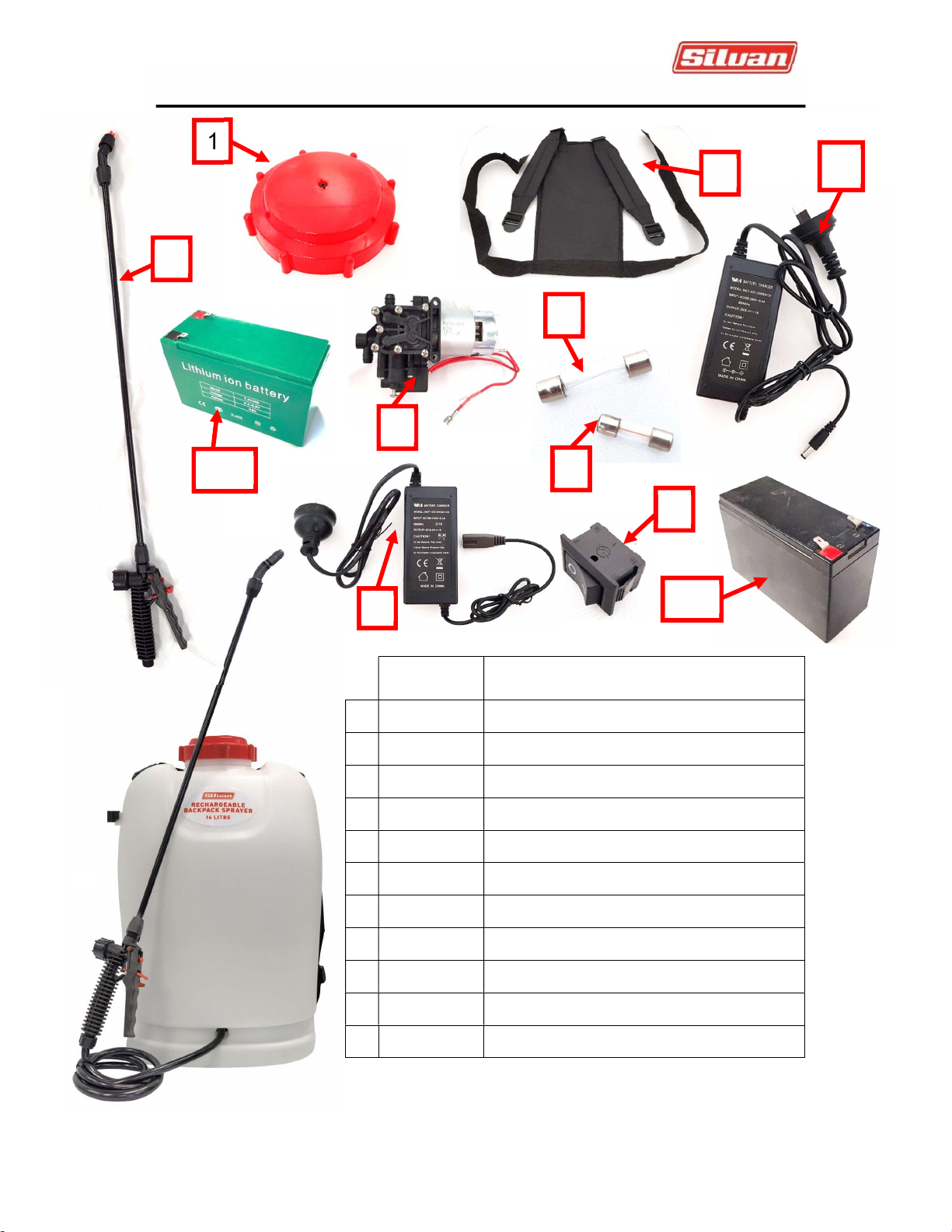

Part

Number Description

1 382-001 Lid Suit 20L Weedpak

2 382-040 Harness Suit WP16-1 & WP16-6

3 382-010 Complete Gun Assy Suit KN15-1 & WP16-1/6

4 118-140 Rocker Switch

5 382-072 Pump 6V Suit WP16-6

6 118-092 Fuse M205 15AMP (Pack of 5) – 20mm length

7 118-040 Fuse 3AG 10AMP (Pack of 5) – 30mm length

8 382-075 Bat Charger Round Plug 7.2V Lithium

9 382-075B Bat Charger Square Plug 2 Pin Lithium

BAT4 Battery 6AH – 6 Volts

BAT6 Battery Lithium 7.4 Volts

SPARE PARTS

Exploded View
