Operator’s Manual

Suntuff Linkage Airblast Sprayers

200 litres

400 litres

500 litres

MANAB06 Rev D 30/01/2006

Page 1

Warranty

Introduction 1

New Product Warranty Policy 2

Specifications 3

Safety Information 4

Operation

Attaching to the Tractor, PTO Drive 7

Starting the Sprayer 7

Control Units - 2 and 3 outlet 8

Flip On/Off Nozzles 9

Nozzle Selection and Calibration

Nozzle Selection, Checking Calibration 10

When to Spray, Nozzle Selection Tables 11

Examples and Calibration Worksheets 12

Optional Equipment

Two Side Conveyor, Single Side Conveyor 14

Electric Cabin Controls 14

Trouble Shooting 15

Lubrication and Maintenance 16

Warranty Certificate 17

Contents

Introduction

Silvan is an Australian owned company

specialising in the supply of crop protection

equipment to primary producers. A leader in the

design of agricultural sprayers, the company was

established in 1962 and has grown to become

the largest manufacturer and supplier of crop

protection equipment in Australia.

This manual covers the 200, 400 and 500 litre

sizes of Suntuff Linkage Airblast Sprayers. These

Silvan sprayers and associated equipment are

designed and manufactured to provide a high

standard of performance and safety and

incorporate many innovative features. To ensure

continued efficient performance and safe

operation, you need to read this manual

thoroughly and fully familiarise yourself with all

aspects of your sprayer’s operation, maintenance

and safety procedures.

Now that you’re a proud Silvan owner, all our

services and dealer support are available to you

should you need them. We assure you of our

best attention at all times.

Page 2

New Product Warranty

the Silvan

Warranty

This warranty is the only warranty applicable to Silvan new products ('Products') and, to the

maximum extent permitted by law, is expressly in lieu of any other conditions or warranties

expressed or implied in relation to the Products.

Subject only to legislative obligations to the contrary, Silvan shall not be liable for incidental or

consequential damage resulting from ownership or use of a Product.

Silvan does not authorize any person to create for it any other obligation or liability in connection

with these products.

Silvan warrants its authorised Dealer, who in turn warrants the original purchaser (owner) of each new

Silvan product that it will repair or replace the product, or, pay the cost of repair or replacement, as

determined by Silvan without charge for labour or any defective or malfunctioning parts in accordance

with the warranty limitations and adjustment schedule below.

The warranty period begins on the date the product is delivered to the first retail purchaser for a period of

12 months

This Warranty Covers

Only conditions resulting directly from defects in workmanship or material under normal use and service.

Warranty Exclusions

The Warranty does not cover:

Conditions resulting from misuse, use of incompatible chemicals, exceeding machine

specifications including overloading, impact damage, negligence, accidental damage or failure to

perform recommended maintenance services.

Any product which has been repaired by other than an authorised Silvan service outlet in a way

which, in the sole and absolute judgement of Silvan, adversely affect its performance or

reliability.

The replacement of maintenance items such as diaphragms, batteries, V belts and ground

engaging components, etc.

Loss of time, inconvenience, loss of use of the product liability to third parties or any other

consequential damages.

Incidental costs associated with a warranty repair including any travel costs, out of hour’s labour

charges, cleaning costs, transportation costs, freight costs or any communication costs.

The repair of a defective product qualifying under this warranty will be performed by any authorised

Silvan service outlet within a reasonable time following the delivery of the product, at the cost of the

owner, to the service outlet’s place of business. The product will be repaired or replaced, using new parts

supplied by Silvan. Silvan, in its absolute discretion, may choose to pay the cost of replacement or repair

of the product.

The owner is responsible for the performance of regular maintenance services as specified in the

Owner/Operator Manual applicable to the product. Failure to carry out regular maintenance may

invalidate warranty

Page 3

Specifications

General

Silvan Suntuff Linkage Airblast sprayers are for

use in the application of agricultural chemicals in

orchards and vineyards. The sprayers use a high

pressure pump and nozzles to atomise the

chemical solution, together with a high volume

axial flow air fan to distribute the spray.

Tank

Polytuff impact resistant polyethylene.

Capacity 200, 400, or 500 litres with calibrated

level indicator.

Offset, non spill screw down lid of 255 mm

diameter with basket strainer.

Continuous by-pass agitation in bottom of tank.

Pump

Constant displacement oil backed diaphragm

pump of varying size depending on sprayer

model and specification. Nitrile diaphragm and

corrosion resistant, anodised aluminium body.

Sprayer Model Pump Model

200 litre MP-40

400 litre MP-40 or APS-71

500 litre APS-96

Pump output and maximum operating pressure

at 540 PTO rpm as shown below.

Pump No. Output Max. Pressure

l/min gpm Bar psi

MP-40 40 8.6 30 435

APS-71 71 15.6 40 580

APS-96 95 21.0 40 580

Fan

Axial flow type of varying diameter depending on

sprayer model. Cast aluminium hub with 8 nylon

blades, polyethylene backing plate with

galvanised steel cowling and protective mesh

cover.

Sprayer Model Fan Diameter

200 litre 600 mm

400 litre 700 mm

500 litre 800 mm

PTO Drive

Quality 540 rpm telescopic drive PTO shaft with

safety shields.

Fan Gearbox

Single speed, oil bath type with neutral position.

Fan speed 2484 rpm at 540 rpm PTO speed.

Controls

Manual by-pass to tank.

Screw type pressure regulator.

Glycerine filled pressure gauge.

2 outlet valves with MP-40 pump.

3 outlet valves with APS-71 and APS-96 pump.

Nozzles

Screw mounted, brass body with removable

ceramic jets and stainless steel swirl plates.

Flip over action to turn nozzle on or off.

Larger models fitted with twin jet nozzles for easy

changing of application rate.

Fan Size No. Nozzles Nozzle Type

600 mm 10 (5 per side) Single jet

700 mm 12 (6 per side) Twin jet

800 mm 14 (7 per side) Twin jet

Filtration

Three stage with removable elements.

Tank lid strainer 18 mesh.

Suction line filter 50 mesh (blue).

Nozzle strainers stainless steel.

Pressure Hoses and Spray Lines

MP-40 pump -High pressure PVC hose.

APS-71 & APS-96 -Wire braided hydraulic

pressure hose and swaged fittings

Stainless steel spray lines.

Frame and Hitch

Heavy duty galvanised steel construction.

Category I linkage on 200 litre unit.

Reversible Category I and II linkage pins on 400

and 500 litre sprayers.

Optional Equipment

Two sided vineyard conveyor.

Single side conveyor for trees.

Electric cabin control unit.

Pentomatic single lever control valve.

Dimensions and Weights

With PTO drive and standard equipment fitted.

Length L, width W, height H, all in (mm).

Mass M(kg) with tank empty.

To calculate gross mass with tank filled add 1 kg

per litre of tank capacity.

e.g. for 200 litres add 200kg.

L W H M

200 litre 1070 1000 1000 75

400 litre 1330 1190 1200 134

500 litre 1400 1190 1325 137

Power Requirement

Minimum tractor PTO horsepower at 540 rpm.

200 and 400 litre 20 HP

500 litre 25 HP

Page 4

Safety Information

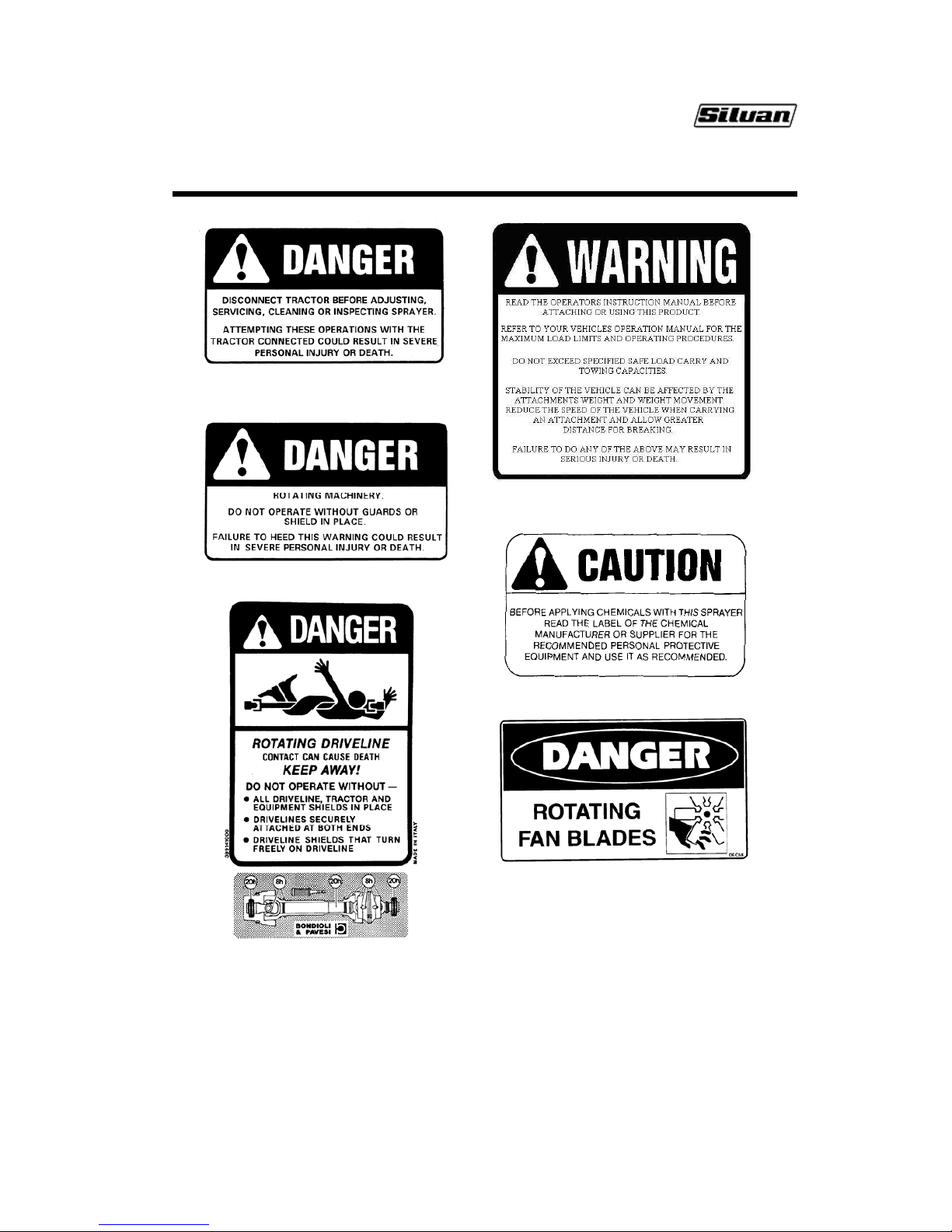

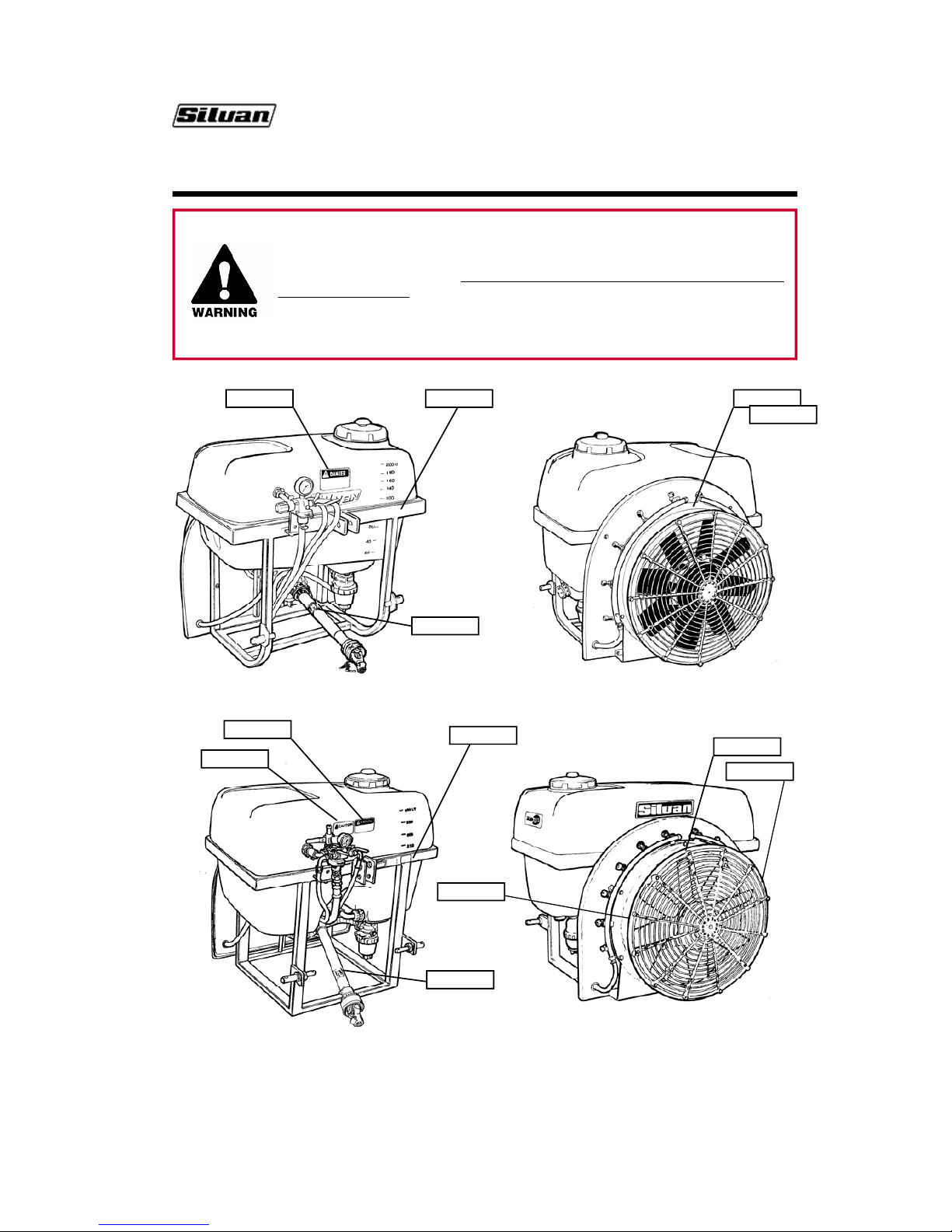

The location of the safety decals fitted to Suntuff Linkage Airblast sprayers is shown

in the diagrams below and their wording is shown on the page opposite.

It is important that all operators read and follow the information on all safety decals

before operating the sprayer. Failure to comply with these warnings could result in

serious injury or death.

Safety decals should be kept clean and legible at all times. If any decals are missing

or unreadable they should be replaced by ordering new decals from your Silvan

dealer using the part numbers shown below.

DEC 10

399 14 1000

DEC 12DEC 48

200 LITRE SPRAYER

FRONT VIEW REAR VIEW

DEC 10

399 14 1000

DEC 13

DEC 12

400 & 500 LITRE SPRAYER

FRONT VIEW REAR VIEW

DEC 48

DEC 12

DEC 68

Page 5

Part Number DEC 10

Safety Information

Part Number DEC 12

Part Number DEC 48

Part Number 399 14 1000

Part Number DEC 13

Part Number DEC 68

Page 6

Safety Information

Before operating the sprayer read the following safety instructions.

Failure to comply with these warnings may result in serious injury or death.

Whilst your Silvan Suntuff Linkage Airblast Sprayer has been designed and manufactured to incorporate

all necessary safety features it is essential that any person who operates or works on the machine is

aware of the safety precautions that should be exercised.

SThis sprayer is designed and manufactured

solely for the purpose of applying agricultural

chemicals to crops. Under no circumstances

should it be used for any other purpose.

SBefore using the sprayer carefully read and

ensure you understand the contents of this

manual and any other manual supplied with

the sprayer.

SBefore operating the sprayer read all the

safety warnings which are carried on various

parts of the machine. Refer to the next page

for the wording of these warnings.

SNever allow an inadequately trained person

to attach or operate the sprayer.

SDo not operate the sprayer whilst wearing

loose clothing, unrestrained long hair,

jewellery or anything which could become

entangled in rotating components or limit

your vision.

SWear ear protection when operating the

sprayer on a tractor which is not fitted with a

sound proofed cabin.

SEnsure the linkage capacity of the tractor is

suitable for the loaded mass of the sprayer.

Refer to the tractor operator’s manual for

safe working loads and relevant tractor safety

instructions.

SExercise extreme care when operating in hilly

or uneven terrain to ensure proper stability.

Refer also to the tractor manufacturer’s

operating and safety instructions .

SDo not operate the sprayer without all the

tractor and sprayer safety shields in place.

Carefully check that PTO and driveline

shields are correctly installed.

SDo not operate the sprayer at speeds greater

than 540 PTO rpm.

SStop the tractor PTO, apply the parking brake

and switch off the tractor engine before

approaching the sprayer or performing any

adjustments or work on it.

SNever engage the fan drive gearbox with the

tractor engine running or the PTO engaged.

SDisconnect the PTO shaft at the tractor and

ensure the sprayer is properly supported

before performing any maintenance work.

SBefore use of any chemicals refer to the

chemical manufacturer’s label and safety

instructions for safe handling procedures and

correct method of use. Always use the

recommended personal protective clothing

and safety equipment.

SAlways wear gloves when removing and

cleaning filters.

SDispose of empty chemical containers in

accordance with the instructions supplied by

the chemical manufacturer.

SEnsure that all operators and associated

personnel are familiar with the legal

regulations and codes of practice that apply

to the safe use, storage and disposal of spray

chemicals.

SDo not enter the sprayer tank under any

circumstances. If service is required contact

Silvan for correct maintenance procedures.

SKeep all bystanders away from the sprayer

whilst in operation

Page 7

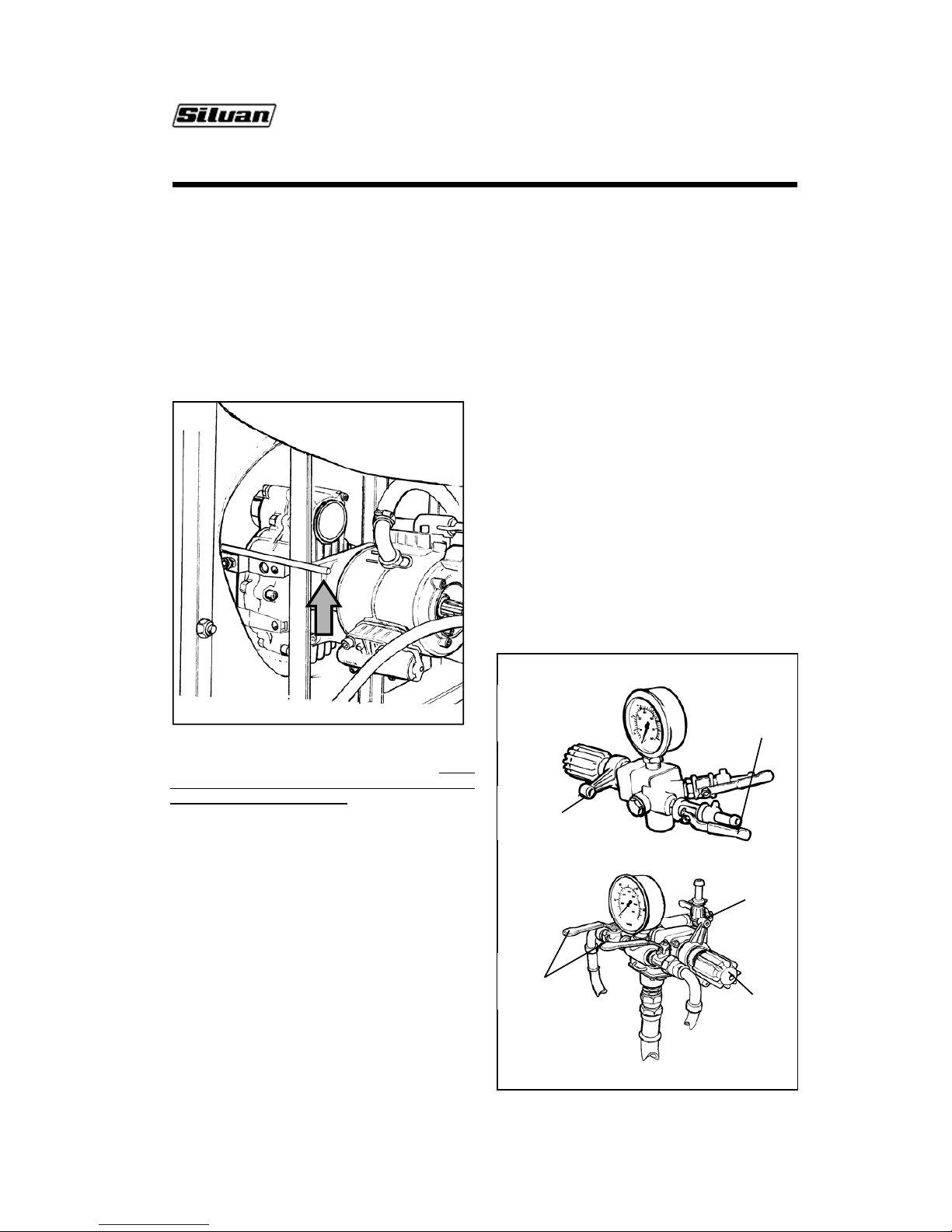

Attaching to the Tractor

Suntuff 200 litre sprayers are equipped to fit

tractors with Category I linkage systems only.

Units of 400 and 500 litre capacity are equipped

to fit tractors with either Category I or II linkage

systems. The inner end of each lower linkage pin

is Category I diameter and the outer end is

Category II. The lower holes in the top

connection plates are Category I diameter and

the upper holes are Category II. For best stability

install the lower linkage pin with the end which is

to be used to the outside.

Remove the PTO shaft from the sprayer by

depressing the locking pin. Lower the tractor

linkage and attach to the sprayer’s lower hitch

pins of the appropriate category, then connect

the upper linkage arm using the tractor’s link pin.

Secure all link pins with the tractor’s Linch pins.

Raise the tractor linkage to the desired spraying

height and level the sprayer by adjusting the

length of the top linkage arm.

Clean and grease the splines on the tractor and

sprayer PTO stub shafts and install the PTO

shaft making sure that the spring loaded locking

pins engage in the grooves of both stub shafts.

Ensure that the tractor’s PTO shaft guard is

attached to the tractor.

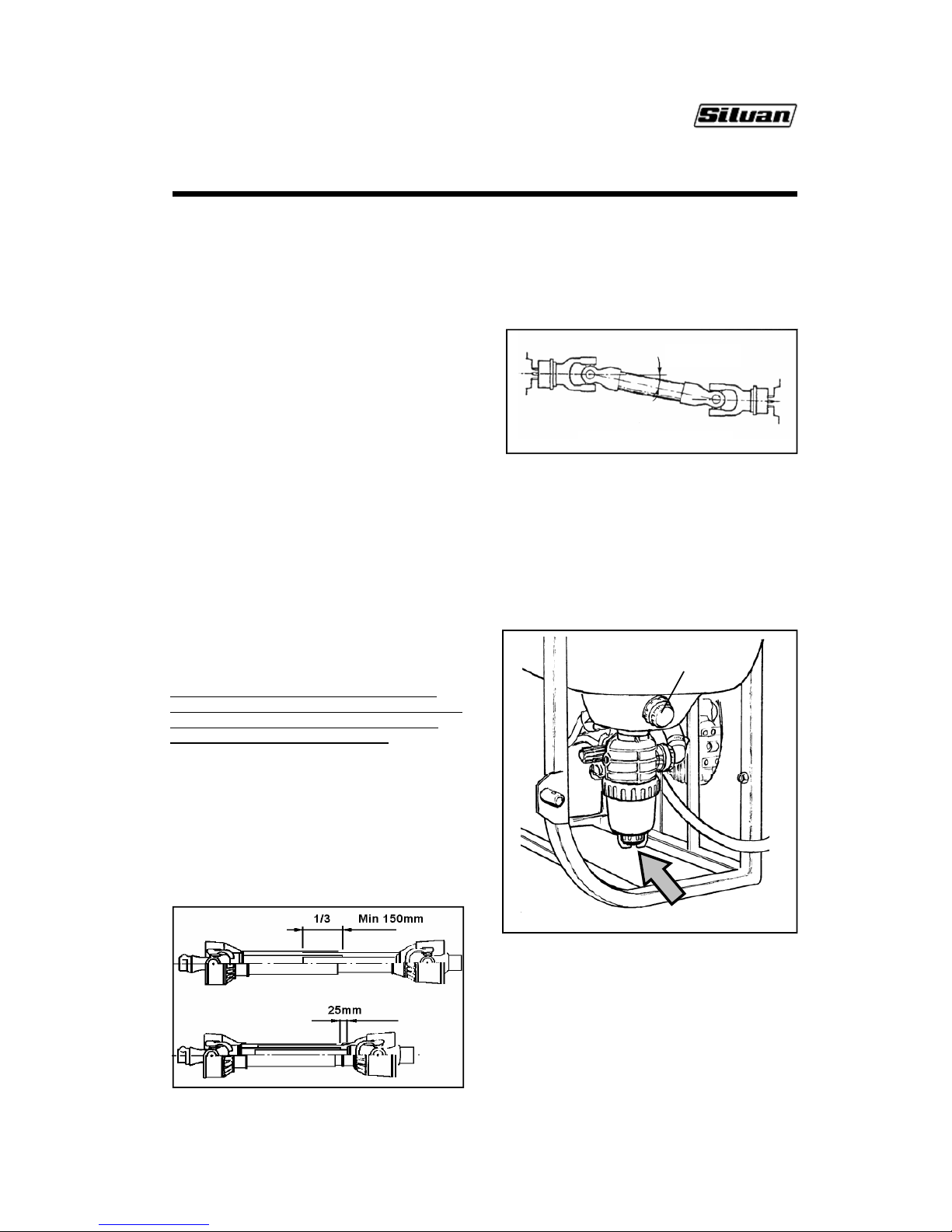

PTO Shaft Length

Note: Upon delivery of a new sprayer it is the

selling dealer’s responsibility to install and set the

PTO shaft to the correct length. The following

information is provided for reference.

Set the linkage height so the ends of the two

drive shafts are at their closest. Install the PTO

shaft making sure there is at least 25mm of

telescopic travel remaining between the male

and female sections. Raise and lower the

sprayer to check that the PTO telescopic tubes

overlap by approximately 1/3rd their length, and

not less than 150mm, in all operating positions.

If the PTO shaft must be shortened cut equal

amounts from both male and female shafts and

safety covers. Carefully remove all burrs then

clean and relubricate before reassembling.

If the operating angles of the PTO shaft exceed

350a constant velocity joint must be fitted by

your Silvan dealer.

Operation

350Maximum

PTO OPERATING ANGLE

Starting the Sprayer

When starting the sprayer for the first time

conduct a trial run using clean water only (no

chemicals) to become familiar with the operation

of the controls and to check that all systems are

functioning correctly without any leakage.

Before filling the tank ensure that the drain cap is

fitted and the basket strainer is in place and

clean. Close the lid securely after filling.

SHUT OFF VALVE AND SUCTION FILTER

DRAIN CAP

The suction filter is fitted with a shut-off valve which

closes automatically when the valve cap is

screwed off. This allows the filter cover to be

unscrewed and the element to be removed for

cleaning while there is fluid in the tank. Gloves

should be worn when handling the filter.

Page 8

GEARBOX IN ENGAGED POSITION

When the sprayer is operating the valve must be fully

screwed in to open the shut-off valve and allow fluid

to pass through the filter. Directional arrows are

moulded into the valve cap to show the opening and

closing operation.

Check that the oil level in the diaphragm pump is

level with the mark in the viewer and if necessary top

up with SAE 20W-40 multigrade engine oil. When

starting for the first time ensure that the gearbox oil

level is correct and that the PTO has been lubricated

- refer Maintenance section.

Operation

Check that the fan gearbox is engaged. The

selector lever should be in the up position. Never

engage the fan drive with the tractor engine

running or the PTO engaged. Moving the lever to

the down position puts the gearbox into neutral and

the pump will operate without the fan.

Flip the required number of spray nozzles to the

open position, refer to page 10. Refer to the

Calibration section for information on nozzles and

jet selection.

Before engaging the PTO, move the by-pass

control “A” to the by-pass position (clockwise) and

close the outlet valves “C”.

Engage the tractor PTO slowly and allow the

sprayer to run in by-pass mode. Once the pump is

primed increase the tractor speed to 540 PTO rpm.

The by-pass lever can then be moved to the

operating or pressure position (anti-clockwise) and

the pressure can be adjusted by regulator knob “B”

whilst observing the gauge.

Depending upon the type fitted, the pump is

designed to operate up to a maximum pressure

of either 30 Bar (435 psi) or 40 Bar (580 psi).

Refer to the pump identification plate and the

Specifications page for details.

The pressure used for spraying may be varied

between 10 Bar (145 psi) and the pump’s

maximum depending upon the application rate -

refer to the Calibration section.

Open the outlet valves to commence spraying.

Two and Three Outlet Control Units

The 200 litre Airblast sprayer is fitted with a two

outlet control. The 400 and 500 litre models use

a three outlet control with two outlets connected

to the airblast nozzles whilst the third can be

used to connect a spray gun or other device. The

operation of both control units is the same.

The selection of by-pass or pressure mode is

controlled by the lever “A” - refer diagrams

below. Moving the lever clockwise through its full

travel selects by-pass which reduces the pumps

operating pressure by allowing liquid to bypass

the pressure regulator. Note, this operation does

not fully shut off the flow to the individual outlet

taps. Moving the lever full anti-clockwise, re-

directs pressurised fluid to the outlets.

Pressure

regulator

“B”

PRE

SSU

NTR

NIT

TWO OUTLET USED WITH MP-40 PUMP

Outlet

valves

“C”

By-pass

control

“A”

Pressure

regulator

“B”

Outlet

valves

“C”

By-pass

control

“A”

THREE OUTLET WITH APS-71 AND APS-96 PUMPS

Page 9

Operation

System pressure is regulated by turning knob “B” and

observing the reading on the gauge. Turning the

knob clockwise increases the pressure and turning

anti-clockwise decreases pressure.

Fluid is directed to the airblast nozzles by outlet

valves “C” which are open when the lever is in line

with the direction of flow and closed when across the

direction of flow. The valves may be operated

individually to direct spray to either side or as a pair

to spray simultaneously from both sides .

If you wish to stop spraying but leave the tractor PTO

running, close the outlet valves “C” and move the by-

pass lever “A” to by-pass mode.

For spraying applications using only the third outlet,

on those models fitted with three outlet valves, the

fan can be disengaged to reduce unnecessary wear

and fuel consumption.

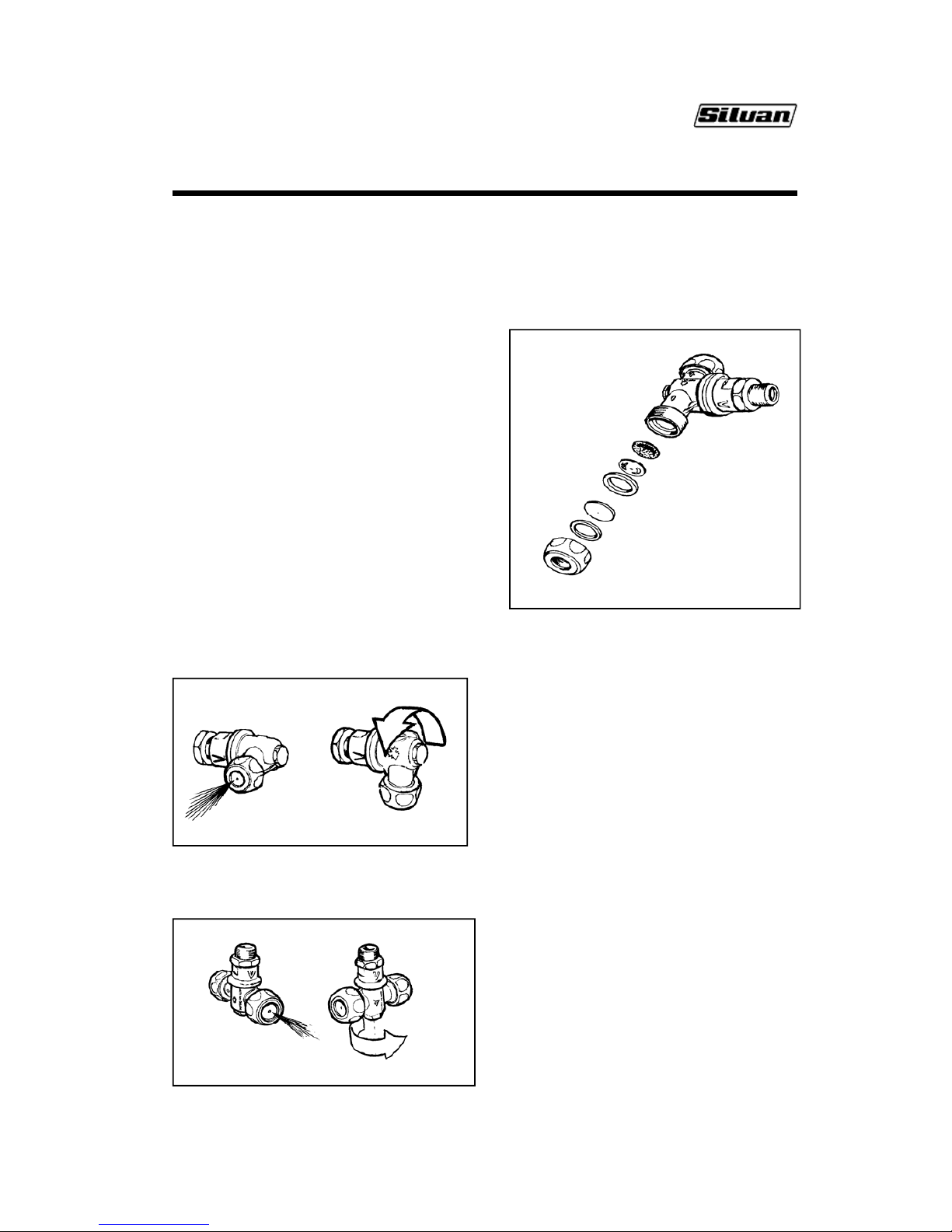

Flip On/Off Nozzles

Warning ! Relieve pressure in spray lines before

turning nozzles on.

The flip on/off nozzles incorporate an off position to

allow individual jets to be turned off when not

needed. The jets can be positioned by loosening the

attaching locknut and aligning the outlet to the

required angle. These two features enable the spray

pattern to be regulated to achieve the required

coverage without wastage of chemicals.

The nozzles fitted to 200 litre sprayers have a

single outlet which is turned on or off by rotating

the nozzle through 900.

DOUBLE OUTLET NOZZLE

SINGLE OUTLET NOZZLE

The nozzles fitted to 400 and 500 litre sprayers

have two outlet jets, one at each end of the

nozzle, but only the jet which is flipped to the

outward facing position is “on”. This facilitates

convenient changing between jets of different

sizes, for example, when requiring application

rates to suit concentrate and dilute spraying.

NOZZLE ASSEMBLY

CERAMIC JET

SWIRL PLATE

STRAINER

GASKETS

NOZZLE CAP

NOZZLE BODY

LOCKNUT

Both types of nozzle incorporate ceramic jets,

stainless steel swirl plates and stainless steel

mesh strainers, separated by neoprene gaskets.

The purpose of the swirl plate is to create a

conical spray pattern. Nozzle output at a

particular spray pressure can be varied by fitting

different combinations of jet and swirl plate as

shown in the Nozzle Output Chart on page 13.

Ceramic jets are sized according to the diameter

of the central hole in millimetres.

Swirl plates can either have a closed centre,

identified as CC, or a central hole which is sized

in millimetres. Closed centre swirl plates produce

a hollow cone spray pattern and are fitted for low

outputs. At higher outputs, swirl plates with a

central hole are necessary to fill the centre of the

conical spray pattern.

Ceramic jets and swirl plates normally have a

long wear life and require little maintenance other

than regular checking and cleaning of strainers.

The spray pattern should be observed

periodically against a dark background to detect

signs of wear which will be indicated by a streaky

or broken pattern. If worn jets are detected then

the full set of jets, swirl plates and gaskets

should be replaced.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Silvan Selecta Pistolet à peinture

Silvan Selecta

Silvan Selecta K02A Manuel utilisateur

Silvan Selecta

Silvan Selecta RP50-P1 Manuel utilisateur

Silvan Selecta

Silvan Selecta Oktopus 500L Manuel utilisateur

Silvan Selecta

Silvan Selecta Utepak 100L Manuel utilisateur

Silvan Selecta

Silvan Selecta TR25-2 Manuel utilisateur

Silvan Selecta

Silvan Selecta WP16-6 Manuel utilisateur

Silvan Selecta

Silvan Selecta TR12-2 Manuel utilisateur

Silvan Selecta

Silvan Selecta LT30-S8 Manuel utilisateur

Silvan Selecta

Silvan Selecta TR13-1 Manuel utilisateur

Silvan Selecta

Silvan Selecta Spotpak 50L Manuel utilisateur

Silvan Selecta

Silvan Selecta 190547 Manuel utilisateur

Silvan Selecta

Silvan Selecta WP12-1 Manuel utilisateur

Silvan Selecta

Silvan Selecta WP16-6 Manuel utilisateur

Silvan Selecta

Silvan Selecta Supaflo 2000L Manuel utilisateur

Silvan Selecta

Silvan Selecta Supaflo 3500 Manuel utilisateur

Silvan Selecta

Silvan Selecta RP70N-S7 Manuel utilisateur

Silvan Selecta

Silvan Selecta UP100-S7 Manuel utilisateur

Silvan Selecta

Silvan Selecta SPOTPAK SP50-S7 Manuel utilisateur

Silvan Selecta

Silvan Selecta TGS Manuel utilisateur

Silvan Selecta

Silvan Selecta REDLINE SPOTPAK Series Manuel utilisateur

Silvan Selecta

Silvan Selecta DEC101213P Manuel utilisateur

Silvan Selecta

Silvan Selecta Super 400L Series Manuel utilisateur

Silvan Selecta

Silvan Selecta TR25-S7 Manuel utilisateur

Silvan Selecta

Silvan Selecta 190545 Manuel utilisateur

Manuels Pistolet à peinture populaires d'autres marques

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Manuel utilisateur

Graco

Graco 246737 Manuel d'utilisation et d'entretien

Binks

Binks SV100 Manuel utilisateur

Fimco

Fimco LG-4-3-1 Manuel utilisateur

AG SPRAY

AG SPRAY FS-ATV-25BL Manuel utilisateur

Nordson

Nordson MicroMax 2 Manuel utilisateur

Bonide

Bonide 051 Manuel d'utilisation

zogics

zogics Z-DAS Manuel utilisateur

KISANKRAFT

KISANKRAFT KK-KBS-165 Manuel utilisateur

Matrix

Matrix SG 650 Manuel utilisateur

Anest Iwata

Anest Iwata SGA-3 Guide de démarrage rapide

paasche

paasche VV Fiche technique

Carlisle

Carlisle DeVilbiss JGA-510 Manuel utilisateur

Gardena

Gardena 11120 Manuel utilisateur

Conrad

Conrad Hobby Airbrush K3 Manuel utilisateur

wiwa

wiwa 14025 R/F Manuel utilisateur

Graco

Graco EM 390 Manuel d'utilisation

DeVilbiss

DeVilbiss LUNA2i Manuel utilisateur
