SignaMax 065-7908A Manuel utilisateur

User‘s Guide

8 Port Nway Gigabit Switch

Model

:065-7908A

SIGNAMAX LLC • www.signamax.eu

FCC Warning

This device has been tested and found to comply with limits for a

Class B digital device, pursuant to Part 2 and 15 of FCC Rules.

These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates and

radiates radio frequency energy and, if not installed and used in

accordance with the user’s manual, it may cause interference in

which case users will be required to correct interference at their

own expenses.

CE Warning

This is a Class B product. In a domestic environment, this

product may cause radio interference in which case the user may

be required to take adequate measures.

SIGNAMAX LLC • www.signamax.eu

Introduction

065-7908A switch provides 8 10/100/1000M ports. 065-7908A

switch was designed for easy installation and high performance

in an environment where traffic is on the network and the number

of users increases continuously.

The compact rigid desktop size was specifically designed for

small to medium workgroups. 065-7908A switch can be installed

where space is limited; moreover, it provides smooth network

migration and easy upgrade to network capacity.

SIGNAMAX LLC • www.signamax.eu

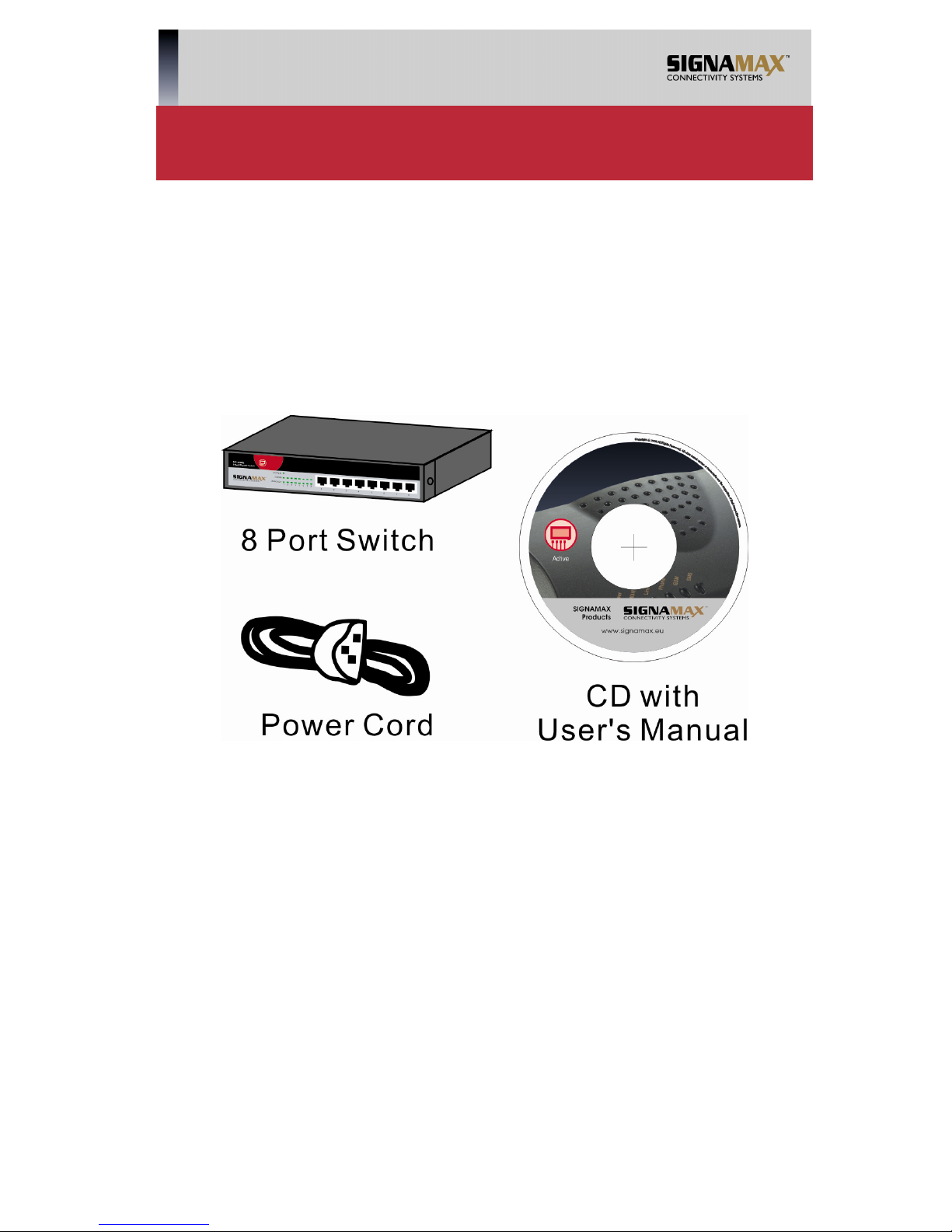

Package Contents

Before you start to install this switch, please verify your package

that contains the following items:

One 065-7908A Gigabit Ethernet Switch

One Power Cord

One CD with User’s Manual

Note: If any of these items is found missing or damaged, please

contact your local supplier for replacement.

SIGNAMAX LLC • www.signamax.eu

Key Features

8 Port 10/100/1000M Nway (Auto-negotiation) Switch

9” Desktop size with metal case

Can be installed in a 10” / 19” cabinet by rack-mount kits

Auto-learn of networking configurations

Auto-detect full/half-duplex modes for any port

Dedicated full-duplex 200Mbps bandwidth

Store-and-Forward switching methods

IEEE 802.3x flow control for full-duplex and back-pressure

flow control for half-duplex

Non-blocking & Non-head-of-line blocking full wire speed

forwarding

Auto-MDI/MDI-X function for any port

Smart plug & play

Front Panel (LEDs)

LED Indicators of 8 Port 10/100/1000M Switch

LED Status Description

On Power is on.Power

Off Power is off.

On Port is for connection.

Off No connection.

LINK/ACT

Flashing Data is transmitting or

receiving

On Port is on 1000M status1000M

Off Port is on 10/100M status.

SIGNAMAX LLC • www.signamax.eu

Connections

Switch/Hub to 065-7908A Gigabit Ethernet Switch

065-7908A switch provides automatic crossover detection

functionality for any port. It is simple and friendly to up-link to

another switch without crossover cable.

PC/Other devices to 065-7908A Gigabit Ethernet Switch

Via a twisted pair cable straight through, 065-7908A switch can

be connected to PCs, servers and other network devices.

SIGNAMAX LLC • www.signamax.eu

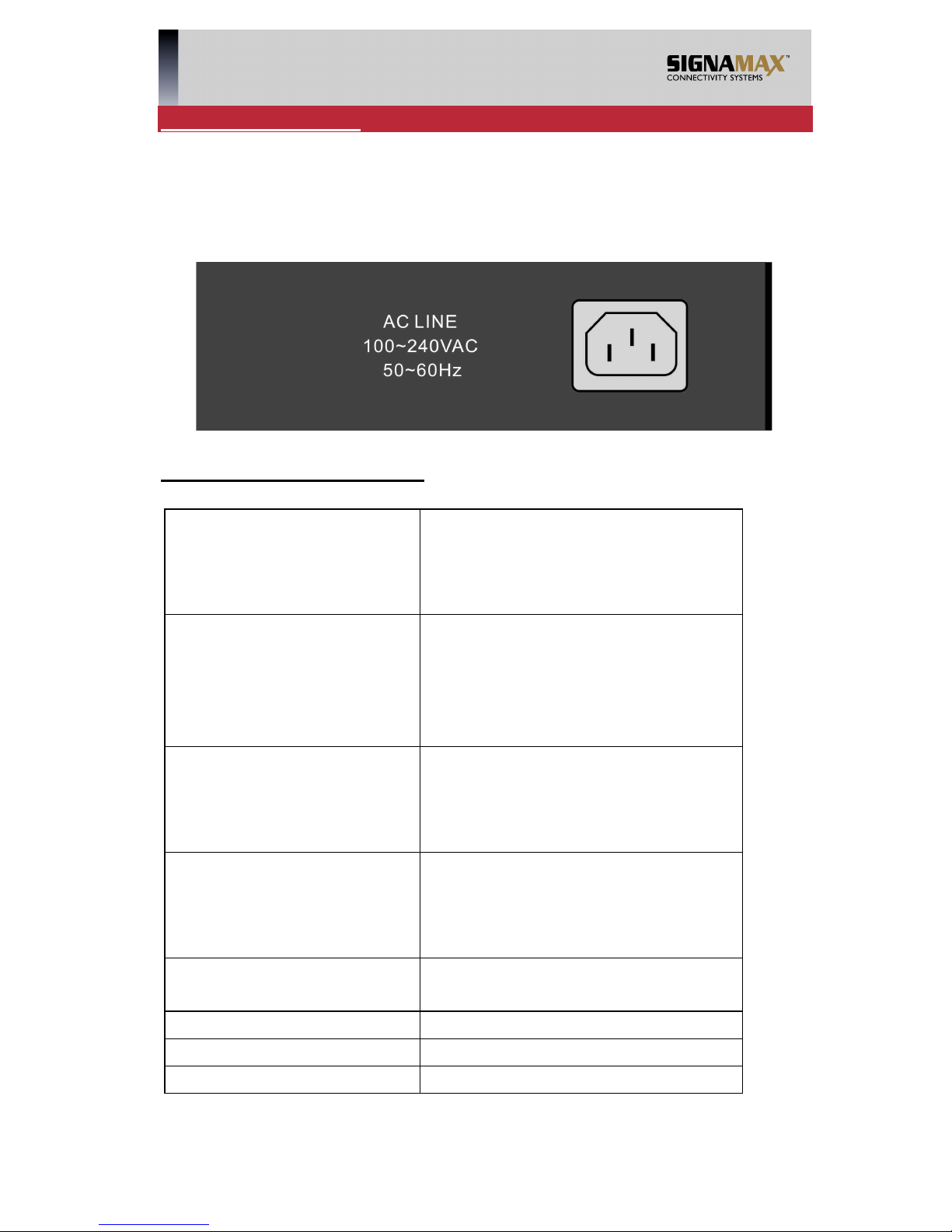

Rear Panel (Power)

AC input

AC input (100~240V/AC, 50~60Hz) UL Safety

Technical Specifications

Standards

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE 802.3ab 1000BaseT

IEEE 802.3x Flow control

Features

Number of Ports: 8

MAC Address: 8K

Buffer Memory: 144 KB

Jumbo Frames: 9.6 KB

Method: Store and Forward

Filtering/

Forwarding Rates

1000Mbps port –

1,488,000pps

100Mbps port – 148,800pps

10Mbps – 14,880pps

Transmission Media

10BaseT Cat. 3, 4, 5

UTP/STP

100BaseTX Cat. 5 UTP/STP

1000BaseT Cat. 5E UTP/STP

LED Indicators Per Port: LINK/ACT, 1000M

Per Unit: Power

Power Requirement 100~240V/AC, 50~60Hz

Power Consumption 15 Watts (Max)

Dimensions 228 × 123 × 44 mm

SIGNAMAX LLC • www.signamax.eu

(L x W x H)

Weight 0.92 kg

Operating

Temperature 0 to 55℃

Storage

Temperature -20 to 90℃

Humidity 10 to 90% RH

(non-condensing)

Certifications FCC Class B, CE
