SignaMax 065-7006 Manuel utilisateur

Signamax



065-1200 series 12-Port Media Converter

User’sManual 1

SignamaxConnectivity Systems

065-7006 5-Port 10/100BaseT/TX Switch

065-7011 8-Port 10/100BaseT/TX Switch

SER

’

UIDE

SignamaxConnectivity Systems

065-7006 5-Port

10/100BaseT/TX Switch

065-7011 8-Port

10/100BaseT/TX Switch

User’s Guide

Signamax



065-7006 5-Port 10/100BaseT/TX and

065-7011 8-Port 10/100BaseT/TX Switches

１

Table of Contents

Table of Contents.................................................

１

Packing List ...........................................................

２

FCC Statement......................................................

２

Introduction............................................................

３

Product Features.......................................................３

Front Panel ................................................................３

LEDs..........................................................................４

Installation..............................................................

４

Selecting a Site for the Switch...................................４

Connecting to Your Network......................................５

Specifications........................................................

５

Contact Information.............................................

６

Signamax



065-7006 5-Port 10/100BaseT/TX and

065-7011 8-Port 10/100BaseT/TX Switches

２User’s Manual

Packing List

Please inspect the contents and report any apparent damage or missing items

immediately to our authorized reseller.

•The Signamax065-7006 or 065-7011 Switch

•This User’s Manual

•AC to DC power Adapter

FCC Statement

The FCC (Federal Communications Commission) restricts the amount of radio

frequency emission and radiation coming from computer equipment. The Ethernet

switch stated in this manual has been tested and found to comply with the limits for

a Class A digital device pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses,

and can radiate radio frequency energy, and if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user is required to correct the interference at

his/her own expense. Any changes or modifications not expressly approved by the

manufacture would void the user’s authority to operate the equipment.

Signamax



065-7006 5-Port 10/100BaseT/TX and

065-7011 8-Port 10/100BaseT/TX Switches

User’sManual ３

Introduction

The Signamax065-7006 and 065-7011 switches are a 5/8-port Fast Ethernet

switch, integrating 10/100BaseT/TX networks in a cost-effective pocket size

package. The TX ports can auto-sense speed and half/full duplex modes, and they

also provide an auto-MDIX function for easy switch uplinking.

Product Features

•5 or 8 ports supporting 10/100BaseT/TX.

•Each port auto-negotiates for 10/100Mbps speed, auto-detects full or half

duplex mode, and has an auto-MDIX capability to eliminate the need for

crossover cables.

•Broadcast storm filter function.

•True non-blocking architecture.

•Full wire-speed forwarding rate.

•Store-and-forward mechanism.

•Back-pressure and IEEE 802.3x compliant flow control.

•Supports 2 K MAC addresses.

•Supports 1 Mb buffer memory.

•Front panel power and port status LEDs.

•Wall-mountable pocket size.

Front Panel

The front panel of the switch has an array of LED indicators to provide you with

instant feedback on the status of the switch.

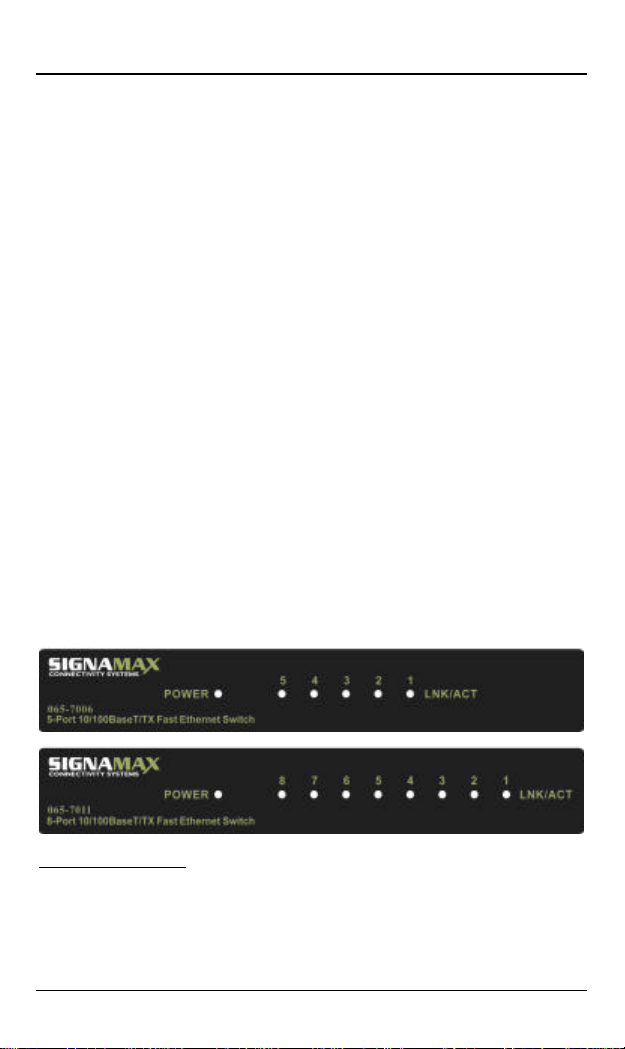

Figure 1: Front & rear panels

Signamax



065-7006 5-Port 10/100BaseT/TX and

065-7011 8-Port 10/100BaseT/TX Switches

４User’s Manual

LEDs

The array of LED indicators on the front panel conveys status and configuration

information to help you monitor and troubleshoot the switch.

ŒPower This LED comes on when the switch is connectedtothepoweradapter.

•

Port Status Each port has a LED, indicating the port status.

ŽPower Adapter Connect the supplied AC to DC adapter to the receptacle on

the back of the switch, then plug the cord into a standard AC outlet with a voltage

range from 100 to 240 VAC.

Table 1: Port Status

LED State Indication

Steady The port has established a valid network connection.

LNK stands for LINK.LNK/

ACT Flashing The port is transmitting or receiving data.

ACT stands for ACTIVITY.

Installation

Selecting a Site for the Switch

As with any electronic device, you should place the switch where it will not be

subject to extreme temperatures, humidity, or electromagnetic interference.

Specifically, the site you select should meet the following requirements:

•The ambient temperature should be between 32 and 104 degrees Fahrenheit (0 to

40 degrees Celsius).

•The relative humidity should be less than 90 percent, non-condensing.

•Surrounding electrical devices should not exceed the electromagnetic field (RFC)

standards for IEC 801-3, Level 2 (3V/M) field strength.

•Make sure that the switch receives adequate ventilation. Do not block the

ventilation holes on the side of the switch or the fan exhaust port on the rear of the

switch.

•The power outlet should be within 6 feet (1.8 meter) of the switch.

Signamax



065-7006 5-Port 10/100BaseT/TX and

065-7011 8-Port 10/100BaseT/TX Switches

User’sManual ５

Connecting to Your Network

Connect network cables from computers or network segments to the TX ports on the

back of the unit.

Table 2: Cabling Information

Speed Connector Port Speed

Half/Full Duplex Cable

100BaseTX RJ-45 100/200 Mbps 100 m, Category 5 STP/UTP

10BaseT RJ-45 10/20 Mbps 100 m, Category 3, 4, or 5

STP/UTP

Specifications

Applicable Standards IEEE 802.3, 10BaseT

IEEE 802.3u, 100BaseTX

LED Indicators Per unit–Power Status

Per Port–LNK/ACT

Cable 10BaseT 2-pair UTP/STP Cat. 3,4,5, up to 100m

100BaseTX 2-pair UTP/STP Cat.5, up to 100m

Switching Methods Store-and-Forward

Forwarding Rate 14,880 packets per second (pps) for 10 Mbps,

148,800 packets per second (pps) for 100 Mbps

AC Input 100~240 Volts AC, 50-60 Hz, external Universal power supply

Power consumption 12 Volts DC, 0.6 Amps, 7.2 Watts

Operating Temperature 32°F ~ 104°F (0°C ~ 40°C)

Storage Temperature -13 F°~ 158°F (-25°C ~ 70°C)

Humidity 10 % ~ 90 %, non-condensing

Emissions FCC part 15 Class A, CE Mark

Dimensions 6.3 in. x 3.2 in. x 1.1 in. WxDxH (160 mm x 81 mm x 28 mm)

pocket size

Weight 0.92lb. (0.42kg)

Signamax



065-7006 5-Port 10/100BaseT/TX and

065-7011 8-Port 10/100BaseT/TX Switches

６User’s Manual

Contact Information

SIGNAMAX



CONNECTIVITY SYSTEMS

An AESP Company

1810 N.E. 144th Street.

North Miami, Florida 33181, U.S.A.

Phone: 305-944-7710 Fax: 305-652-8489

Sales: 800-446-2377 Tech. Support: 800-446-2377, ext. 201

Http://www.signamax.com

E-mail: [email protected]

EUROPE

AESP Ukraine. (UKRAINE)

2 Timiryazevskaya St. 47

252014 Kiev, Ukraine

Phone: +380 44 296.53.57

Fax: +380 44 294.88.60

Http://www.aesp.com.ua

E-mail: [email protected]

AESP Sweden. (SWEDEN)

Grevegatan 19-21 SE-815

40 TIERP. SWEDEN

Phone: +46-(0)-293-228 88

Fax: +46-(0)-293-228 89

Phone: +49-81-35-9303-0

Http://www.aesp.se

E-mail: [email protected]

JOTEC AESP AS. (NORWAY)

Telefon 23 14 17 00 Ordrefax 23

14 17 10 Karihaugveien 102

Postboks 50 Ellingsrudasen 1006

Oslo, Norway

Phone: +47-23-14-1700

Fax: +47-23-14-1710

Http://www.jotec.no

E-mail: [email protected]

AESP Russia. (RUSSIA)

Kronshtadtsky Blv.

125499 Moscow, Russia

Phone: +7 095-456-0704

Phone: +7 095-456-0344

Fax: +7 095-454-3040

Http://www.aesp.ru

E-mail: [email protected]

AESP Germany GmbH

(GERMANY)

Weisserfelderstr.2 D-85551

Kircheim b. München, Germany

Phone: +49-89-901-097-0

Fax: +49-89-901-097-22

E-mail: aesp.info@t-online.de

INTELEK spol.s.r.o

(CZECH REPUBLIC)

Vlarska 22,

Brno, CZ 62700

CZE Czech Republic

Phone: +420-5-481-27248

Fax: +420-5-481-27247

Http://www.intelek.cz

E-mail: [email protected]
