Siemens Codoor CD3500 Mode d’emploi

Codoor CD3500

Codoor CD4000

Installation & User Manual

Fire Safety & Security Products

Siemens Building Technologies

Book contents

English ............................................... 3

Svenska............................................ 23

Deutsch .............................................43

Français............................................ 63

CD3500 & CD4000 Installation and User manual 3

ENG

English

Data and design subject to change without notice. / Supply subject to availability.

We reserve all rights in this document and in the subject thereof. By acceptance of the document

the recipient acknowledges these rights and undertakes not to publish the document nor the

subject thereof in full or in part, nor to make them available to any third party without our prior

express written authorization, nor to use it for any purpose other than for which it was delivered

to him.

4 CD3500 & CD4000 Installation and User manual

ENG

Contents

About this manual...............................................................5

Codoor - General.................................................................5

Setting the programming code........................................... 6

How to change an existing programming code................ 7

Codoor Installation kit........................................................ 8

Fitting CD3500 to door ................................................... 9

Fitting CD4000 to door................................................. 10

Setting codes.................................................................... 11

Delete code................................................................... 11

Deactivation function ........................................................12

Return to locked position...............................................12

Disconnect the deactivation function .............................13

Buzzer ..............................................................................13

Using Codoor....................................................................14

Access...........................................................................14

Leaving the premises ....................................................14

Automatic resetting.......................................................14

Access blocking.............................................................14

Testing.............................................................................. 15

Test Mode .....................................................................15

Entering test mode........................................................15

Test modes....................................................................15

Backup power supply........................................................ 17

Changing the batteries...................................................... 17

Erase memory...................................................................18

Troubleshooting................................................................19

Where can Codoor be fitted?............................................. 20

CD3500........................................................................ 20

CD4000 ........................................................................21

Technical specifications ....................................................22

CD3500 & CD4000 Installation and User manual 5

ENG

About this manual

This manual covers both the Scandinavian style (CD3500) and the

International style (CD4000) of the Codoor. In the scope of this manual

we will use the name Codoor (unless notified.)

Codoor - General

The Codoor, a complete code lock suitable for fitting to a single door,

incorporates an electronic code lock, a mechanical locking device and

a power unit in the same housing. Codoor may be fitted on most doors

with handle operated locks. See page 20-21 for more information. When

Codoor is fitted; the outside door handle is disengaged and may be

pressed down without opening the door. To open the door, a 4-digit

code has to be entered. The handle on the inside of the door is not

affected by Codoor, and works normally for people leaving the premises.

All programming, except for setting of the programming code, is

entered via the keypad (see figure). Besides the keys, the keypad

includes two LEDs, one green and one red.

GREEN -In programming mode, the green LED indicates that codes

etc. have been entered correctly. It also confirms each key

press in programming mode.

RED - In operating mode, the red LED confirms each key press.

In programming mode, the LED flashes slowly until a

command is entered. Then the LED flashes quickly.

321

654

987



6 CD3500 & CD4000 Installation and User manual

ENG

Codoor also incorporates a buzzer, both to confirm each key press (if

required) and to indicate “battery low” by sounding a low tone (see

section Backup Power Supply). Otherwise, the buzzer sounds to confirm

successful programming.

The programming code must be set before the unit is fitted to the door

Setting the programming code

When Codoor is delivered, the memory is completely empty. The first

thing you have to do is to set a programming code, before you fit Codoor

to a door. To set the programming code for the first time, connect the

batteries and proceed as follows:

Press the reset button on the rear of Codoor and hold it

down as you press the #button for at least 2 seconds.

The red LED will flash quickly, accompanied by simultaneous

sounding of the buzzer

While buzzer sound - press , then

enter the desired 6-digit programming

code. Finish by pressing .

The green LED is lit for 2 seconds. A rising tone from the buzzer

confirms that the programming code has been set.

NOTE! Programming must be done while the red LED flashes and the

buzzer sounds. Do not forget to write to down the chosen digits.

Programming Code

Note! The first 4 digits

in the programming

code must never be

used for any of the 9

access codes.

Code 1: Code 4: Code 7:

Code 2: Code 5: Code 8:

Code 3: Code 6: Code 9:

R+#

  

CD3500 & CD4000 Installation and User manual 7

ENG

How to change an existing programming code

Proceed like this:

Press , then enter the existing

programming code (6 digits). Finish by

pressing .

The red LED will flash slowly, accompanied by simultaneous

sounding of the buzzer.

Enter 99 . The red LED will flash quickly.

Press then enter the new

programming code (6 digits). Finish by

pressing . The green LED is lit for 2

seconds.

Finish programming by entering 00 . As a

confirmation, a rising tone sounds from the buzzer.

Having set the programming code, Codoor can be fitted to the door in

accordance with the accompanying installation instructions. Do not

forget to make a note of the programming code.

 

0 0

 

0 0

  

 

9 9

 

9 9

8 CD3500 & CD4000 Installation and User manual

ENG

Codoor Installation kit

Make sure you have the following tools handy:

Cross-head screwdriver for door handle and cylinder ring screws.

Hack saw for trimming lever handle spindle.

The following parts are supplied:

1 Codoor (batteries excluded).

Extension sleeves for handle nipples (use only one pair).

1 Reinforcing spring.

1 Reinforcing spring holder.

•

CD4000CD4000CD3500CD3500

CD3500 & CD4000 Installation and User manual 9

ENG

Fitting CD3500 to door

Remove the cylinder ring

and the door handle from

the door by loosening the

four screws.

The lever handle spindle

should project no more

than 20 mm on the outside

of the door. If the spindle

is too long, push it through

into the handle on the

inside. If this cannot be

done, cut the spindle to

the right length.

Screw the supplied

extension sleeves to the nipples for the handle.

Use the appropriate size sleeve to suite the bolts

supplied with the handles.

Place

Codoor

on the outside of the door with the

handle attached, and

pass the lever handle

spindle through the

square hole. Note! The

red mark on the follower

should always point

downwards.

Tighten, not too hard,

the four

previously

loosened

screws (the

screws for the handle first).

REDRED

10 CD3500 & CD4000 Installation and User manual

ENG

Fitting CD4000 to door

Remove the cylinder ring

and the door handle from

the door by loosening

the four screws.

The lever

handle spindle should

project no more than 20

mm on the outside of the

door. If the spindle is too

long, push it through into

the handle on the inside.

If this cannot be done, cut

the spindle to the right

length.

Screwthesuppliedextensionsleevestothenipples

for the handle. Use the appropriate size sleeve to

suite the bolts supplied with the handles.

Place

Codoor

on the outside of the door with

the handle attached, and pass the lever handle

spindle through the

square hole. Note: The

red mark on the follower

should always point

upwards.

Tighten, not too hard, the

four previously loosened

screws (the screws for

the handle first).

REDRED

Autres manuels pour Codoor CD3500

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Siemens Système de sécurité

Siemens

Siemens DMS8000 Manuel technique

Siemens

Siemens SISTORE AX4 Manuel utilisateur

Siemens

Siemens FDM225 Manuel utilisateur

Siemens

Siemens FDM1101-R Series Manuel utilisateur

Siemens

Siemens IGS6-10 Manuel utilisateur

Siemens

Siemens SINAMICS S120 Manuel utilisateur

Siemens

Siemens IC60 Manuel utilisateur

Siemens

Siemens Codelock K44 Duo Mode d’emploi

Siemens

Siemens milltronics MFA 4P Manuel utilisateur

Siemens

Siemens HFPO-11 Manuel utilisateur

Siemens

Siemens FC700A Caractéristiques techniques

Siemens

Siemens RB-6 L-801A Manuel utilisateur

Siemens

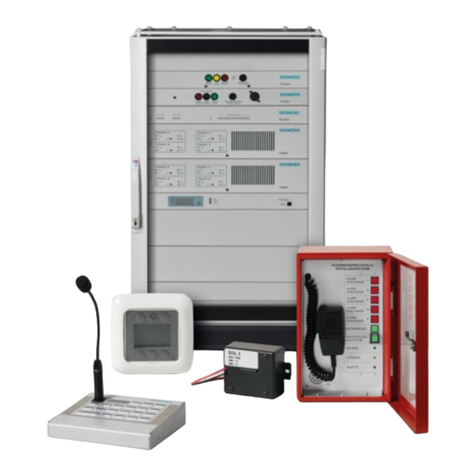

Siemens Cerberus PACE Mode d’emploi
