Smart Infrastructure

Sinteso™ S

LINE

Multisensor fire detectors

FDOOT241-A3, FDOOT241-A4, FDOOT241-A5, FDOOT241-A9, FDOOT241-8

Multi

sensor fire detector for gradual modernization with ASAtechnology™

●For the modernization of collective/GMT/SynoLINE300, AlgoRex AnalogPLUS,

and Interactive, SIGMALOOP, or MS8 on Sinteso FDnet

●Signal processing with ASAtechnology (Advanced Signal Analysis)

●Event-controlled detection behavior

●Early and reliable detection when fires occur

●Highly developed immunity to deceptive phenomena

●Maximum system availability thanks to sensory with redundancy

●Suitable for wind speeds of 1…20 m/s

●Ecological materials concept

Smart Infrastructure

Properties

Ecological benefits

●Environmentally friendly processing

●Reusable materials

●Electronic parts and synthetic materials can be easily separated

●Environmentally friendly detector-testing without gas

Features

●Resistant to environmental and interfering influences such as dust, fibers, insects,

moisture, extreme temperatures, electromagnetic interference, corrosive vapors,

vibration, artificial aerosols, and atypical fire phenomena

●Shock resistant, theft protection as an accessory

●Signal processing with ASAtechnology (Advanced Signal Analysis)

●Time and process-dependent detection behavior

●Proven immunity to faults in power electronics

●Protected electronics, high-quality components

●Sophisticated sensors and electronic monitoring

●Redundant, high-quality sensor system

●Internal alarm indicator (IAI), 360° visibility, alignment not necessary

●Integrated line separator

Smart Infrastructure

Use

Multi-sensor fire detector FDOOT241-A3, FDOOT241-A4, FDOOT241-A5, FDOOT241-A9, FDOOT241-8

Multi-sensor fire detector consisting of:

●Point detector with additional heat sensors

●Detector dust cap to protect the point detector during the construction phase

Function

●Functions according to the scattered light principle with two sensors: optical

forward and backward scattering

●Opto-electronic measuring chamber, obstructs disruptive extraneous light

but can be relied upon to detect both light and dark smoke particles

●Two additional heat sensors increase the fire detector's immunity to

deceptive phenomena

●Can be set as a multi-sensor smoke detector, smoke detector, or heat

detector by the software

●Selectable detection behavior thanks to application-specific ASA parameter

sets

●Multi-protocol:

– FDOOT241-A3 (AlgoRex AnalogPLUS, FDnet)

– FDOOT241-A4 (SIGMALOOP, FDnet)

– FDOOT241-A5 (AlgoRex Interactive, FDnet)

– FDOOT241-A9: Collective / GMT (Cerberus / Siemens) / SynoLINE300,

FDnet

– FDOOT241-8 (MS8/PMT, FDnet)

Use

●For early detection of flaming fires of solid and liquid substances as well as

of smoldering fires

●For early and reliable fire detection in an environment with deceptive

phenomena

●Can be used addressed, for the gradual modernization of:

– AlgoRex AnalogPLUS on Sinteso FDnet ¹ with FDOOT241-A3

– SIGMALOOP on Sinteso FDnet ¹ with FDOOT241-A4

– AlgoRex Interactive on Sinteso FDnet ¹ with FDOOT241-A5

– Collective/GMT/SynoLINE300 on Sinteso FDnet ¹ with FDOOT241-A9

– MS8/PMT on Sinteso FDnet with FDOOT241-8

¹ FS20 compatibility in FDnet is assured subject to in-country FS20 software support.

Smart Infrastructure

Type Overview

Type Order number Designation Weight [kg]

Point detector

FDOOT241-A3 S54310-F10-A1 Multi-sensor fire detector Sinteso (A+) 0.106

FDOOT241-A4 S54310-F9-A1 Multi-sensor fire detector Sinteso (SIGMA) 0.106

FDOOT241-A5 S54310-F14-A1 Multi-sensor fire detector Sinteso

(Interactive)

0.106

FDOOT241-A9 S54310-F11-A1 Multi-sensor fire detector Sinteso ASA 0.106

FDOOT241-8 A5Q00004663 Multi-sensor smoke detector Sinteso ASA 0.106

Migration kits

FDOOT241-8M A5Q00016038 Migration kit (FDOOT241-8 + FDB281) 0.235

FDOOT241-8B A5Q00015956 Migration kit (FDOOT241-8 + FDB221) 0.162

Base adapter

FDB241 S54319-F13-A1 Base adapter Sinteso (SIGMA/A+) 0.086

FDB251 S54319-F28-A1 Base adapter Sinteso (Interactive) 0.090

FDB281 A5Q00004929 Base adapter MS8/PMT 0.125

FDB299 S54319-F14-A1 Base adapter Sinteso (AlgoRex coll.) 0.086

Other accessories

FDUD290 S54370-S13-A1 Removal tool for adapter 0.098

You will find information about the color options for the fire detectors in the data sheet

009409.

Smart Infrastructure

Accessories

Base adapter FDB241

Function:

●For adapting AnalogPLUS and SIGMALOOP for Sinteso detector systems

●Can be set with jumper on replaced detector

Base adapter FDB251

Function:

●For adapting Interactive for Sinteso detector systems

●Can be set with jumper on replaced detector

Base adapter FDB281

Function:

●For adapting MS8/PMT for Sinteso detector systems

Base adapter FDB299

Function:

●For adapting AlgoRex (collective) and SIGMACON for Sinteso detector

systems

Removal tool for adapter FDUD290

Function:

●For removing base adapters FDB2xx with detector exchanger, detector

exchanger and tester, or detector tester

Smart Infrastructure

Applicable documents

Document ID Title

007004 Technical manual Automatic fire detectors FDOOT221, FDOOT241-A3, FDOOT241-

A4, FDOOT241-A5, FDOOT241-8, FDOOT241-9, FDOOT241-A9, FDO241, FDO221,

FDT241, FDT221

008116 Installation Base adapter FDB281

008164 Equipment overview Sinteso™ Detector system FD20

008331 List of compatibility (for 'Sinteso™' product line)

009409 Data sheet Colored detectors, bases and base attachment FDO.., FDOOT…, FDT…,

FDB…, FDCW241

A6V10301448 Installation Base adapter FDB299

A6V10301452 Installation Base adapter FDB241

A6V10323158 Technical manual Modernizing fire detection installations with multiple protocol

detectors

A6V10411361 Installation Base adapter FDB251

Notes

Efficiency on-site

●No wiring, detector replacement only

●Detectors can be replaced without a ladder at heights up to 8 m with the detector

exchanger FDUD291, detector exchanger and tester FDUD292, or intelligent detector

tester FDUD293 in combination with telescope or extension rod.

Smart Infrastructure

Installation

①Base adapter ②Point detector ③Detector base ④Detector exchanger/detector

exchanger and tester

⑤IAI

FDB241 FDOOT241-A3 AnalogPLUS (DB1131) FDUD291

FDUD292

FDUD293

Internal

alarm

indicator

FDOOT241-A4 SIGMALOOP (SPF3600)

FDB251 FDOOT241-A5 Interactive (DB1151A)

FDB299 FDOOT241-A9 AlgoRex collective

(DB1101A)/

SIGMACON (SPF600)

FDB281 FDOOT241-8 ⑥MS8 (Z84)

1. Screw the point detector into the base adapter.

2. Screw the point detector with the attached base adapter into the detector base by hand

or with a detector exchanger or detector exchanger and tester.

aThe point detector is mounted.

Disposal

The device is considered an electronic device for disposal in accordance

with the European Guidelines and may not be disposed of as domestic

garbage.

●Dispose of the device through channels provided for this purpose.

●Comply with all local and currently applicable laws and regulations.

●Dispose of empty batteries in designated collection points.

Smart Infrastructure

Technical data

FDOOT241-A3 FDOOT241-A4 FDOOT241-A5 FDOOT241-A9 FDOOT241-8

FDOOT241-A3,

FDOOT241-A4,

FDOOT241-A5,

FDOOT241-A9

FDOOT241-8

In the

AnalogPLUS

detector system

In the

SIGMALOOP

detector system

In the Interactive

detector system

In the collective

detector system

In the MS8

detector system

In FDnet

Operating voltage

(modulated)

DC 16…28 V DC 10…28 V DC 21…33 V DC 14…28 V DC 14…28 V DC 12…33 V

Operating current

(quiescent)

190 μA 200 μA 200 μA 65…125 μA 200 μA 190…230 μA

External alarm

indicators (AI) which

can be connected

2 2 2 2 2 2

Communication

protocol

AnalogPLUS SIGMALOOP Interactive Collective MS8/PMT FDnet

System compatibility AlgoRex SIGMASYS AlgoRex AlgoRex,

SIGMASYS,

CZ10

SIGMASYS,

BMS,

SM80/88/D100,

SRS

FS20 ¹

Operating

temperature

-25…+70°C -25…+70°C -25…+70°C -35…+70°C -25…+70°C -

Storage temperature -30…+75°C -30…+75°C -30…+75°C -35…+75°C -30…+75°C -

Humidity ≤95 % rel.

Color ~RAL 9010 pure white

Protection category

(IEC 60529)

with detector base

FDB221, FDB222

IP43

Base attachment

FDB291

IP43

Base adapter FDB281 IP44

Base adapter FDB241

and

detector base

DB1131A, or

SPF3600

IP44

Base adapter FDB251

and

detector base

DB1151A

IP44

Base adapter FDB299

and

collective detector

base DB1101A or

SPF600

IP44

Standards EN 54-5, EN 54-7, EN 54-17, EN 54-27 2, EN 54-29 3

Approvals

VdS

LPCB (except

EN 54-27)

DNV GL (marine)

G211125

126bv/02

–

G212007

–

G215057

126bv/01

–

G212036

126bv/03

MEDB00003UK

G204133

–

Permissible wind

speed

1…20 m/s

¹ FS20 compatibility in FDnet is assured subject to in-country FS20 software support.

2EN 54-27 for FDOOT241-A3, FDOOT241-A4, FDOOT241-A9 only

3EN 54-29 for FDOOT241-A3, FDOOT241-A4, FDOOT241-A5, FDOOT241-A9 only

Smart Infrastructure

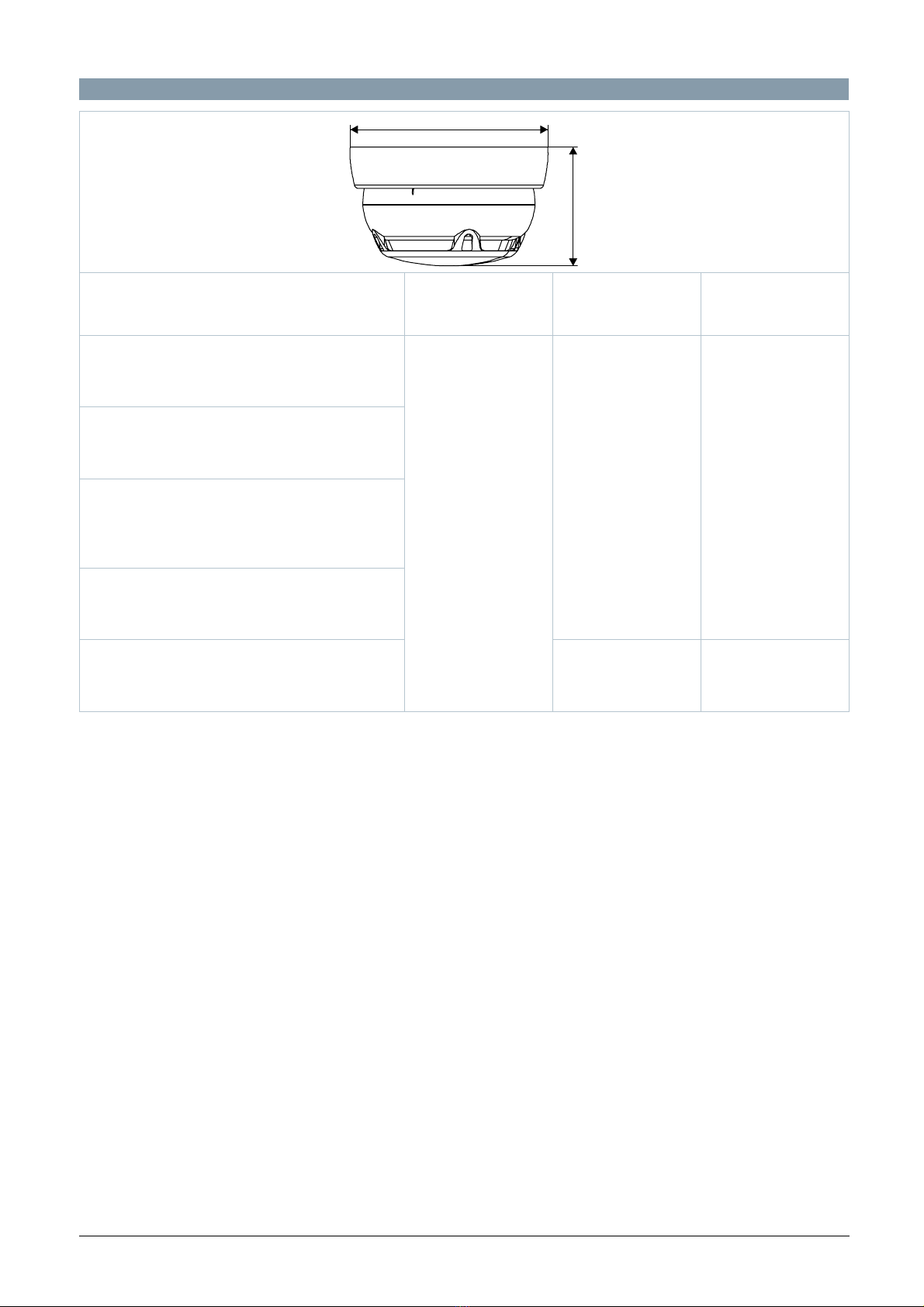

Dimensional drawing

Combination

Dimension 'a' Dimension 'b' with

detector base

Dimension 'b'

without detector

base

Detector base AnalogPLUS (DB1131A)

Base adapter FDB241

Multi-sensor fire detector FDOOT241-A3

117 77.9 73.3

Detector base AnalogPLUS (SPF3600)

Base adapter FDB241

Multi-sensor fire detector FDOOT241-A4

Detector base Collective (DB1101A or

SPF600)

Base adapter FDB299

Multi-sensor fire detector FDOOT241-A9

Detector base Interactive (DB1151A)

Base adapter FDB251

Multi-sensor fire detector FDOOT241-A5

Detector base MS8

Base adapter FDB281

Multi-sensor smoke detector FDOOT241-8

91.4 73.5

Ce manuel convient aux modèles suivants

Autres manuels Siemens Capteur de sécurité

Siemens

Siemens QNA2 D Series Mode d’emploi

Siemens

Siemens AP 251/11 Manuel de service

Siemens

Siemens FDO421 Manuel utilisateur

Siemens

Siemens FDB181 Series Manuel utilisateur

Siemens

Siemens FDB20 Series Manuel utilisateur

Siemens

Siemens Intrunet IS390 Manuel utilisateur

Siemens

Siemens ADM-Q12 Manuel utilisateur

Siemens

Siemens AD-3I Manuel utilisateur

Siemens

Siemens FDO421 Manuel utilisateur

Siemens

Siemens DELTA iris 5TG5930-2 Series Manuel utilisateur

Siemens

Siemens Cerberus CS1140 Mode d’emploi

Siemens

Siemens UP 258D11 OPTISENS OFFICE Manuel utilisateur

Siemens

Siemens Sinteso FDB221 Manuel utilisateur

Siemens

Siemens 5TC1700 Manuel utilisateur

Siemens

Siemens HI921 Manuel utilisateur

Siemens

Siemens SIMATIC ET 200S Manuel utilisateur

Siemens

Siemens FDF241-9 Manuel utilisateur

Siemens

Siemens HI320C Instructions d'utilisation et d'installation

Siemens

Siemens FDOOTC241 Manuel utilisateur

Siemens

Siemens SICAM V01.00 Manuel utilisateur

Siemens

Siemens DF11 Series Manuel utilisateur

Siemens

Siemens FDOOT221 Manuel utilisateur

Siemens

Siemens DF11 Series Manuel utilisateur

Siemens

Siemens OOH740-A9-Ex Manuel utilisateur

Manuels Capteur de sécurité populaires d'autres marques

THORLABS

THORLABS PDA10JT Manuel utilisateur

Waeco

Waeco UV-DETECT Manuel utilisateur

Intermatic

Intermatic IOS-DSIMF Manuel utilisateur

urmet domus

urmet domus 1083 Manuel utilisateur

BTI

BTI Profiline Multi Finder Manuel utilisateur

Challenger

Challenger SL01 Manuel utilisateur

DMP Electronics

DMP Electronics 1122INT Manuel utilisateur

Rielta

Rielta Ladoga MK-RK Manuel utilisateur

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuel utilisateur

Bosch

Bosch DS835 Manuel utilisateur

DBI SALA

DBI SALA EZ Stop Manuel de l'opérateur

Lamptime

Lamptime ST05C Manuel utilisateur

Ubiquiti

Ubiquiti MFI-MSC Manuel utilisateur

Subsite

Subsite 910R Instructions d'installation

Satel

Satel OPAL Pro Manuel utilisateur

Aleph

Aleph XC-1XTEU Manuel utilisateur

Pima

Pima LARIS QUAD Manuel utilisateur

Solinst

Solinst 301 Manuel utilisateur
