SIDLER Xamo Manuel utilisateur
OPERATING INSTRUCTIONS
Mode d’emploi
V 3.15 1/8

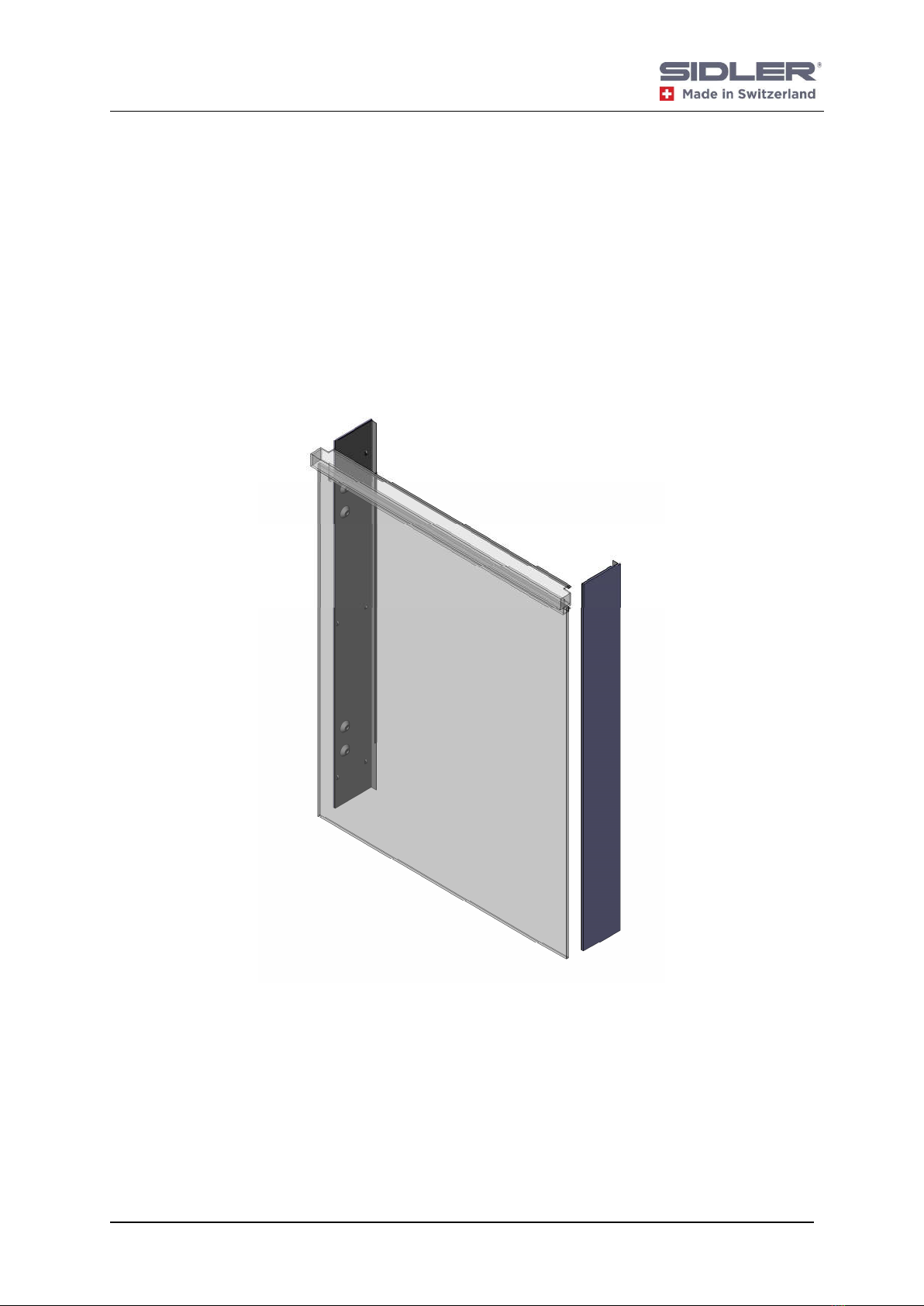

wall mount kit including side mirrors
kit fixation murale y compris les miroirs
latéraux
for mirrored bathroom cabinets
Model: SIDLER Xamo
Please read instructions before proceeding
Lisez attentivement les instructions avant d’installer l’armoire de toilette
Save these instructions
Conservez-les instructions pour future référence
OPERATING INSTRUCTIONS
Mode d’emploi
V 3.15 2/8
IMPORTANT SAFETY INSTRUCTIONS – to reduce the risk of burns, fire,
electric shock, or injury:
This product is for household use only
WARNING – do not use outdoors
WARNING – use this furnishing only for its intended use as described
in these instructions
WARNING – never operate the furnishing with the air openings
blocked. Keep the air openings free of lint, hair, and the like
WARNING – never drop or insert any object into any opening
WARNING – avoid dispensing of aerosol sprays near top of the
cabinet
SAVE THESE INSTRUCTIONS
Importantes consignes de sécurités pour réduire les risques de brulures,
d’incendie, de choc électrique et de blessures:
Ce produit est destiné seulement à un usage personnel et familial
Avertissement – ne pas utilisez à l’extérieur
Avertissement – Utilisez cette armoire pour l’usage approprie tel que
décrit dans ce manuel
Avertissement – Ne jamais faire fonctionner l’armoire si ses ouvertures
d’aération sont obstruées. Veiller à ce que ses ouvertures soient
exemptes de peluches, cheveux et autres.
Avertissement – Ne jamais laissez tomber ou insérer un objet dans les
ouvertures
Avertissement – Éviter la pulvérisation de bombes aérosol à proximité
haut de l’armoire
VEUILLEZ CONSERVER CES INSTRUCTIONS
OPERATING INSTRUCTIONS
Mode d’emploi
V 3.15 3/8
List of all components to be installed
Liste des pièces à installer
the components pos.2 / pos.6 are included in the delivered mirror cabinet.
Pos.
Description Dimension
Comment
1
side mirror / miroir latéraux
wall mount only
2
mounting bracket / support de montage
wall mount only
3
sheet metal / tôle
wall mount only
4
raw plug / gouions
wall mount only
5
screw / vis
M4x8
wall mount only
6
screw / vis
4.5x35mm
7
anchor / gouions
wall mount only
pos. 1 side mirror / miroir latéraux pos. 2 assembly rail/support de montage
pos. 3 sheet metal / tôle pos. 8 raw plug / goujons pos. 5 screw / vis
pos. 6 screw / vis pos. 7 anchor / goujons
OPERATING INSTRUCTIONS
Mode d’emploi
V 3.15 4/8
Installation Guide – Guide d’installation
Step 1 – Mounting bracket
1ère étape – Support de montage
1) Mount the mounting bracket (pos. 2) according to the schematic
drawings below. Recommend height: center of mounting holes at 76’’.
Make sure that the mounting bracket is fastened to at least one wall
stud. Use the correct anchors for the different types of walls.
pos.7
dry walls, hollow brick walls
pos.4
brick walls, concrete walls
Drill holes 3/8’’ (10mm) for the anchors pos.4 or 1/4" (6mm) for pos.5
Check the mounting rail with a level before proceeding with the next
steps.
pos.7
or
pos.4
pos.2
pos.6
pos.2
OPERATING INSTRUCTIONS
Mode d’emploi
V 3.15 5/8
Step 2 – Preparing wiring / assembling side mirrors
1) Bend the two flaps open at the back of the mirrored cabinet
2) Mount the side kits
pos.5
OPERATING INSTRUCTIONS
Mode d’emploi
V 3.15 6/8
Step 3 – thread wires through back opening
OPERATING INSTRUCTIONS
Mode d’emploi
V 3.15 7/8

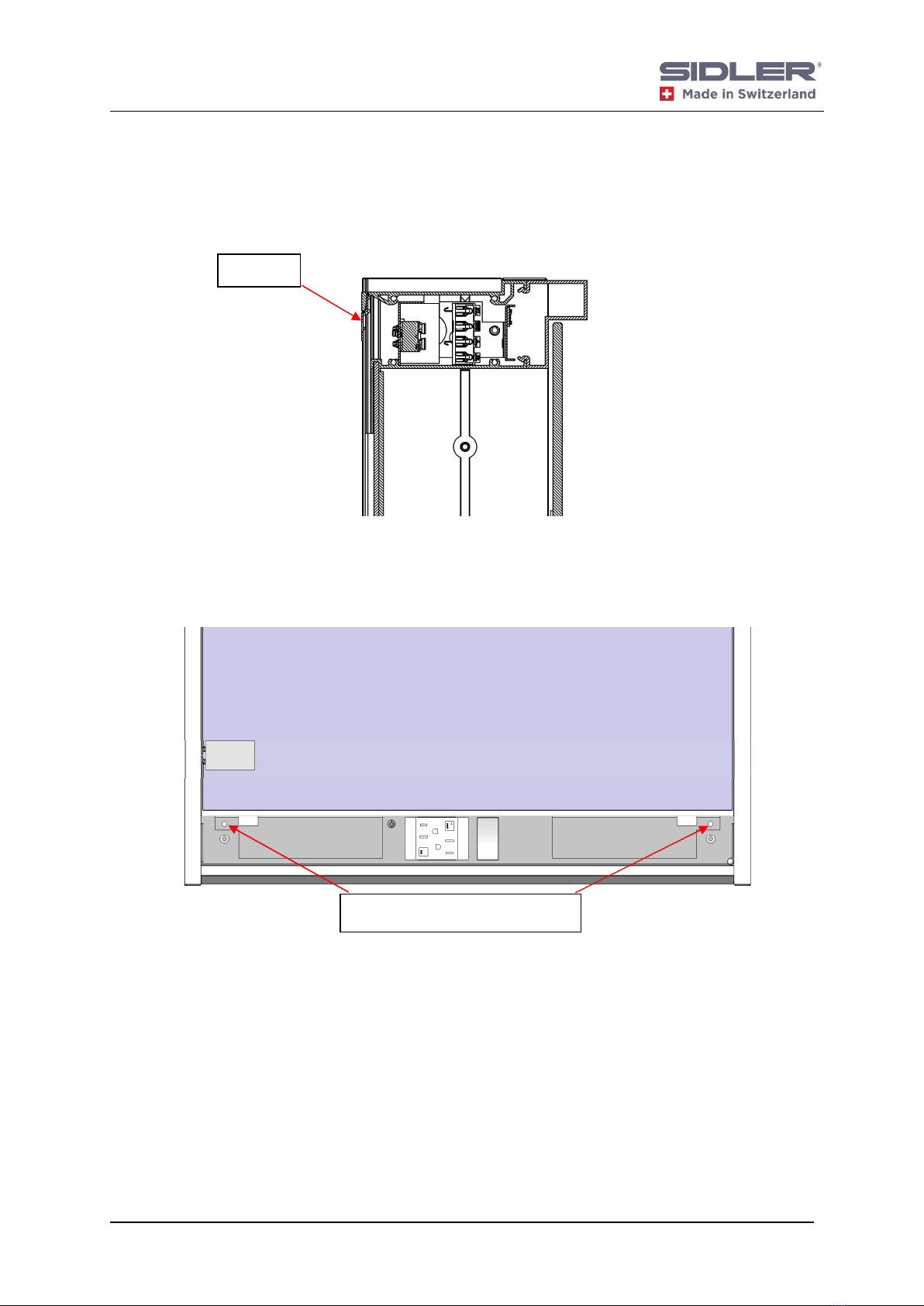

Step 5 – Mount the Cabinet
1) Hang the cabinet into mounting bracket Pos. 2
2) Center the mirror cabinet over the vanity and fasten it at the lower
mounting holes as shown below, by using the anchors (pos.4 or pos.5).
=> proceed with
OPERATION INSTRUCTIONS
Quadro
Step 6 (Connect the Electric Cables)
pos.2
Bottom fasteing positions
OPERATING INSTRUCTIONS
Mode d’emploi
V 3.15 8/8
LIMITED WARRANTY
SIDLER will provide a two-year warranty in respect of defects associated
with the Product, commencing from the date of delivery, subject to the
following conditions:
( I ) The Product must have been professionally mounted and installed by
a certified licensed contractor in accordance with the
Safety
Standards Act
, S.B.C. 2003, c. 39, as amended, and the Electrical
Safety Regulation B.C. Reg. 100/2004, as amended.
( II ) The Product must have been used by the Purchaser in the manner
and for the purpose recommended and authorized by SIDLER and
the manufacturer.
( III ) The Product must not have been modified, or changed in design or
function following delivery.
( IV ) In each case, written notice by the Purchaser specifying the alleged
defects must be received during the warranty period (within two
years of the date of delivery).
( V ) The warranty is limited to replacement parts only.
( VI ) Damages resulting from normal wear and tear are excluded. The
determination of whether damage has so resulted will be in the sole
discretion of SIDLER.
( VII ) Damages resulting from any errors in representations made by the
manufacturer regarding product specifications are excluded.
SIDLER International Ltd.
Vancouver, BC
CANADA
Phone: (604) 415 24 22
Toll Free: (888) 415 24 22
Fax: (604) 415 24 33
E-mail: [email protected]
Homepage: www.sidler-international.com
