OPERATING INSTRUCTIONS
V 03.15 1/15
SIDLER Singla 1 / 19’’
Please read instructions before proceeding
Save these instructions
OPERATING INSTRUCTIONS
V 03.15 2/15
IMPORTANT SAFETY INSTRUCTIONS –to reduce the risk of burns, fire,
electric shock, or injury:
This product is for household use only
The maximum load is 1.5kg (3lbs) per glass shelf
WARNING –do not use outdoors
WARNING –use this furnishing only for its intended use as described
in these instructions
WARNING –never operate the furnishing with the air openings
blocked. Keep the air openings free of lint, hair, and the like
WARNING –never drop or insert any object into any opening
WARNING –avoid dispensing of aerosol sprays near top of the
cabinet
When using an electrical furnishing, basic precautions should always
be followed, including the following:
Read all instructions before using (this furnishing)
DANGER –To reduce the risk of electric shock:
Close supervision is necessary when this furnishing is used by, or near
children, invalids, or disabled persons
SAVE THESE INSTRUCTIONS
OPERATING INSTRUCTIONS
V 03.15 3/15

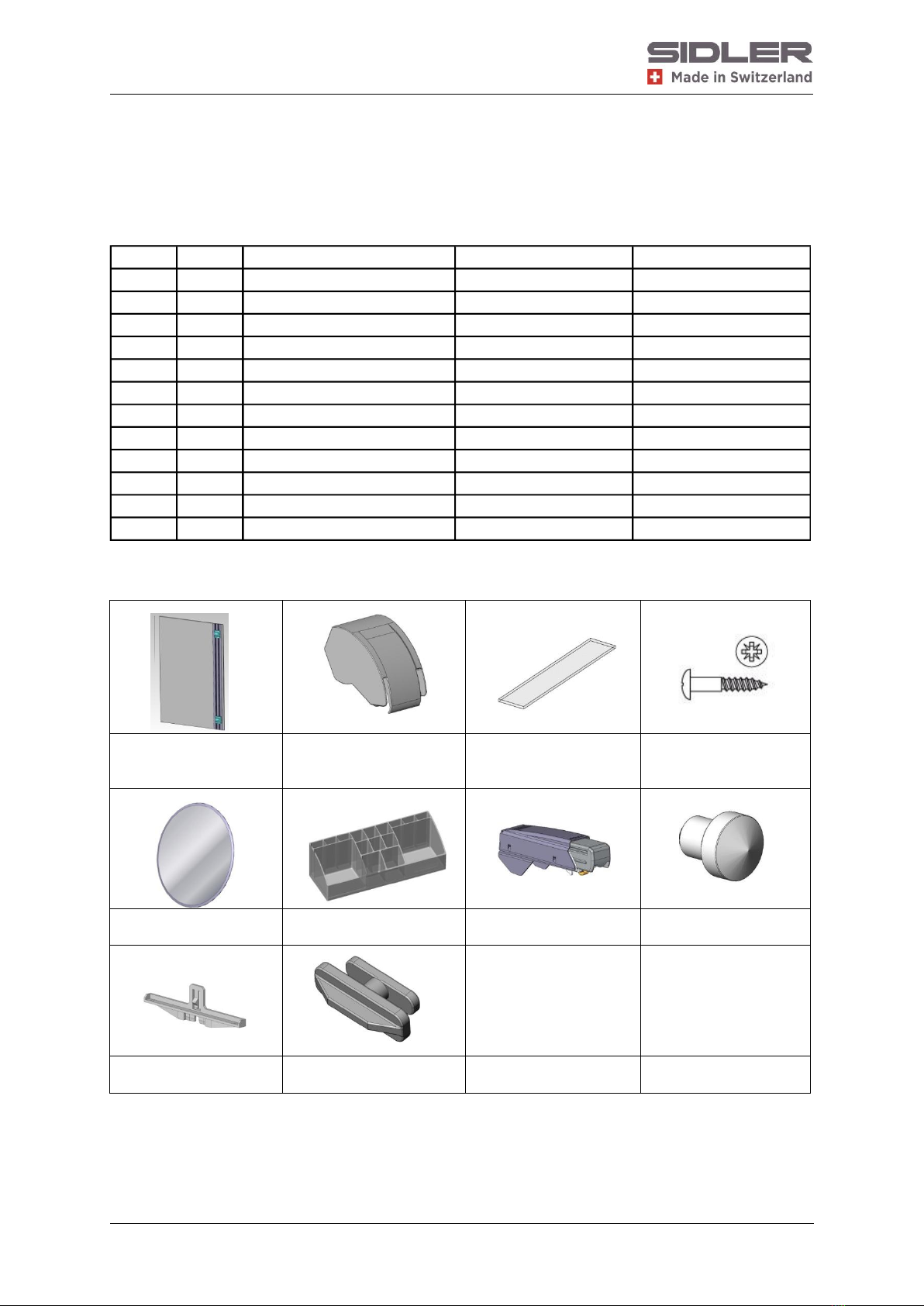

List of all components to be installed
Pos. Pcs. Description Dimension [mm] Comment
1 1 mirror door
2 1 cover cap dampener
3 3 glass shelve
4 4 screw Ø4.5 x 35
5 1 cosmetic mirror
6 1 cosmetic box
7 1 dampener
8 2 dump stop
9 6 shelf holder spare part
10 6 slider spare part
pos. 1
mirror door
pos. 2
cover cap
dampener
pos. 3
glass shelf
pos. 4
screw
pos. 5
cosmetic mirror
pos. 6
cosmetic box
pos. 7
dampener
pos. 8
dump stop
pos. 9
shelf holder
pos. 10
slider
OPERATING INSTRUCTIONS
V 03.15 4/15
Installation Guide
Step 1 –Remove the mirror doors
1) Remove the door (pos.1) from the cabinet by draw clip C.
!Attention!
Do properly hold the door before pushing clip C
Handle door carefully
cabinet
pos. 1
clip C
OPERATING INSTRUCTIONS
V 03.15 5/15
Step 3 –surface mounts
1) Use wall mount kit including side mirrors (see separate Operating
Instruction
wall mount kit for Singla
) if cabinet will be wall mounted.
OPERATING INSTRUCTIONS
V 03.15 6/15
2) Proceed with step 4 if cabinet will be recessed.
OPERATING INSTRUCTIONS
V 03.15 7/15

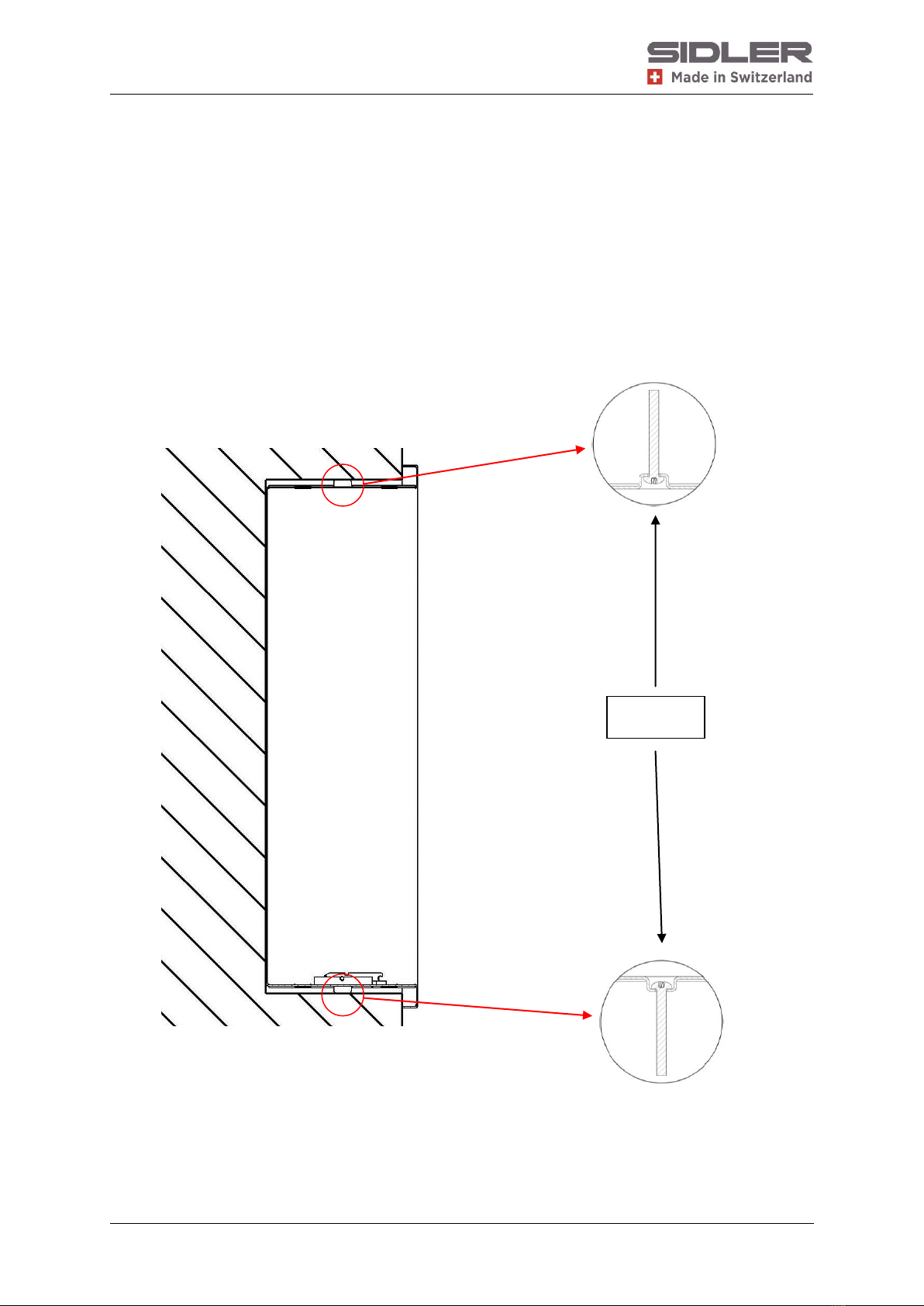

Step 4 –recessed mount cabinet
1) Place the cabinet in the provided opening 18.2" x 24" which is
surrounded by
2’’ x 4’’ studs.
2) If the cabinet does not fit in to the provided opening, do rework on the
opening and studs until cabinet fits.
3) Tighten the screws on provided openings.
pos. 4
OPERATING INSTRUCTIONS
V 03.15 8/15
Step 5 –Doors
1) Hang the doors on the hinges (pos. 1).
2) Align the doors (pos. 1) on the hinges (see diagram for adjustment
possibilities).
cabinet
pos.1
adjust the door with these
screws
OPERATING INSTRUCTIONS
V 03.15 9/15

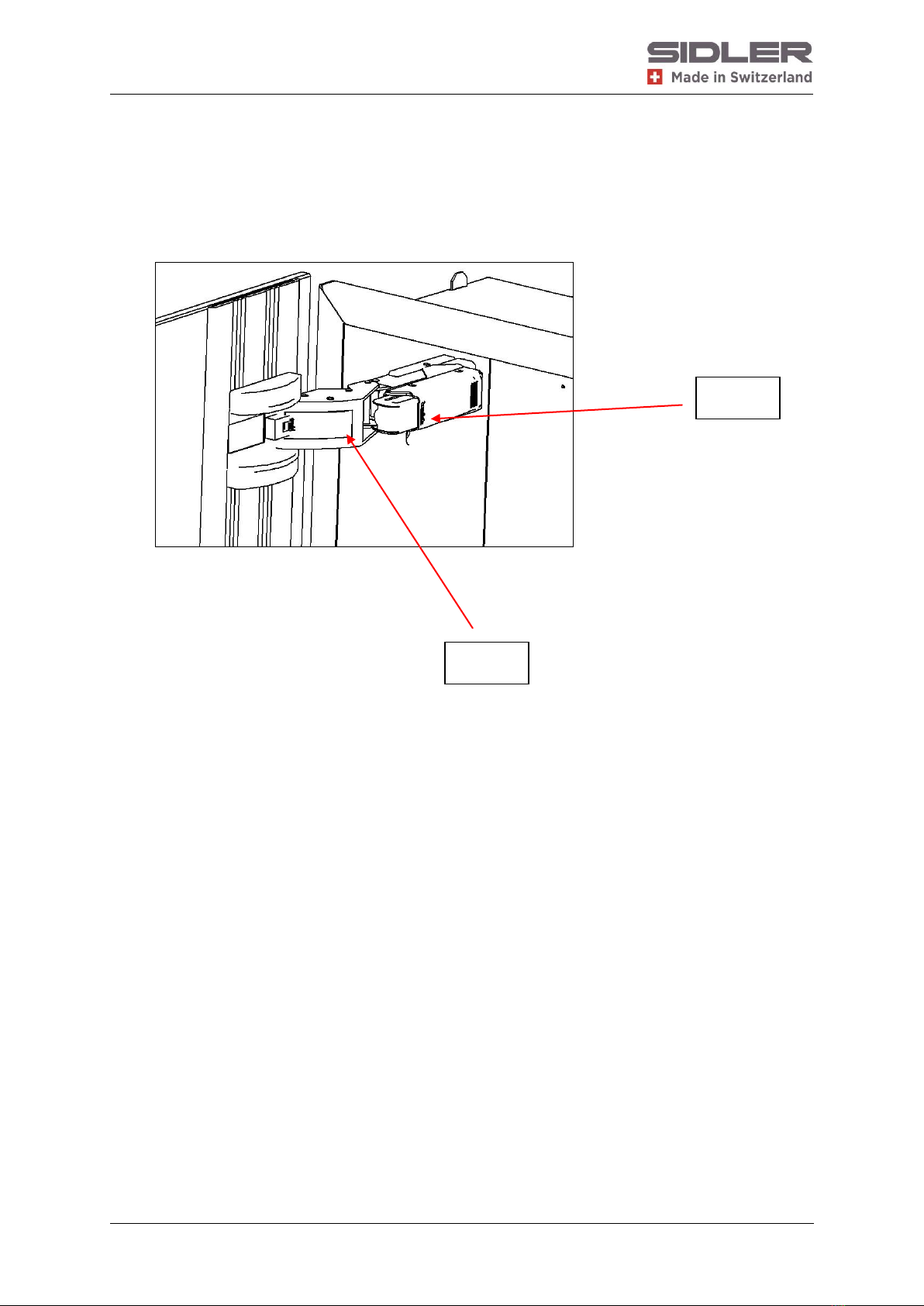

3) Place the cover cap on the door dampeners (pos. 2) and attach the door
dampeners (pos. 7) to the hinges.
pos. 7
pos. 2
OPERATING INSTRUCTIONS
V 03.15 10/15

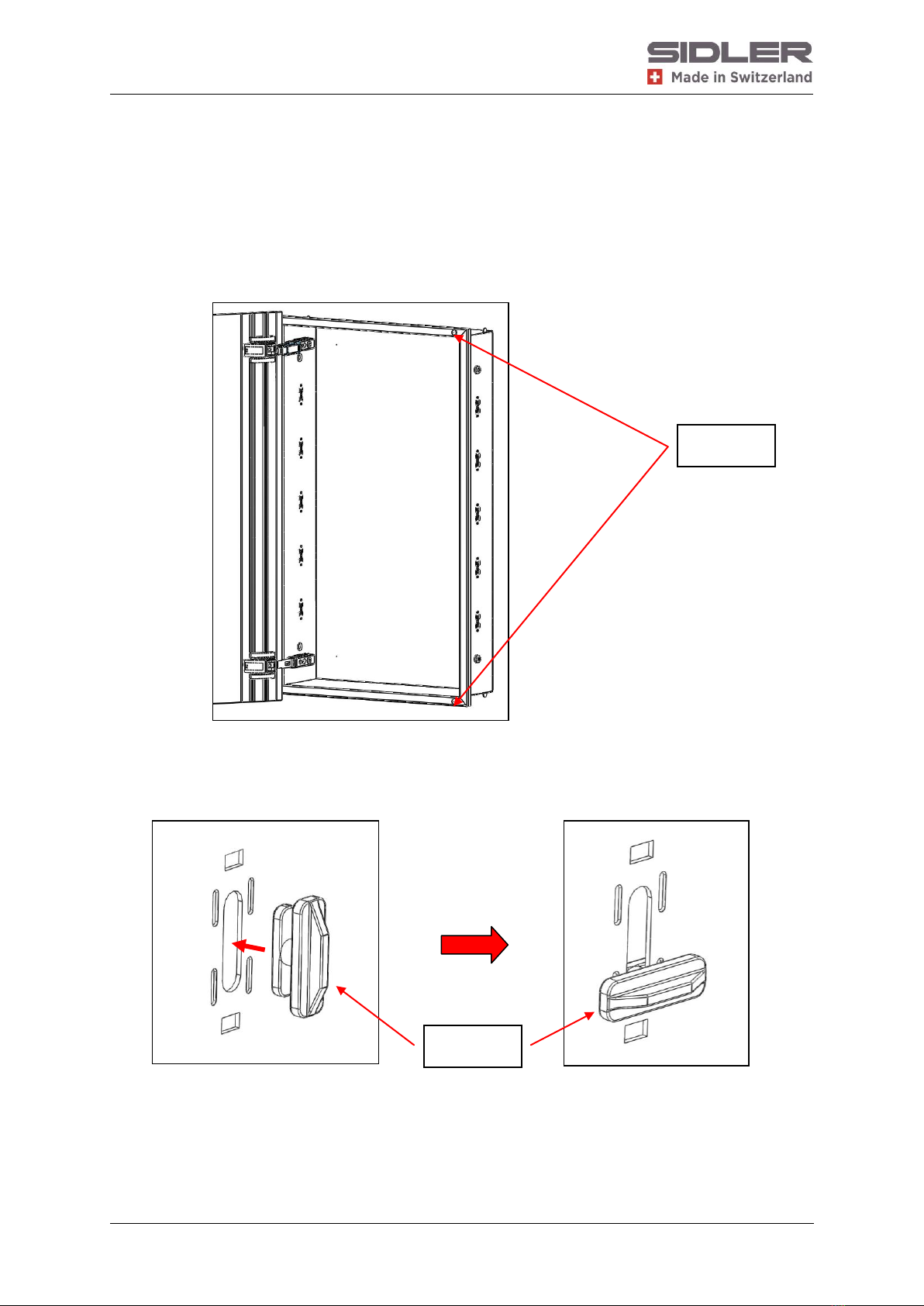

Step 6 –Final Assembly
1) Push the dump stops (pos. 8) into the holes provided.
2) Push the slider (pos. 10) into the holes provided and turn it by 90°.
pos. 8
pos. 10
