Sicunet NEPTUNE Manuel utilisateur

Access Control Systems

Intercom Integrated

SDOC-5011

NEPTUNE P A G E 2

Notices

All rights strictly reserved. No part of this document may be reproduced, copied, adapted, or

transmitted in any form or by any means without written permission from Sicunet.

Standards Approvals

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment a residential area is likely to cause harmful

interference in which case the user willbe required to correct the interference athis own expense.

This access control system is compliant with Level I UL 294 listed devices and must be installed

in controlled locations.

Corporate Office

USA

3001 Red HillAve. Suite 2-205, Costa Mesa, CA 9262 6

Tel. +1-714-512-8625 Fax. +1-714-512-6816

China

E1608 Bldg-East, Nanshan Digital Technology & Cultural Industry Park, Nanshan, Shenzhen,

China 518052

Tel. +86-755-2665-6082

Korea

Samsung-Dong, 8-1 Gunsul B/D Suite 301, Gangnam-Gu, Seoul, Korea 06097

Tel. +82-70-8286-2808 Fax. +82-2-6918-4928

www.sicunet.com

Technical Support

Tel.: +1-714-512-8625

NEPTUNE P A G E 3

E-mail: [email protected]

Notice

It is important that this instruction manual be read and understood completely before installation

or operation is attempted. It is intended that the installation of this unit will be performed only by

persons trained and qualified in the installation of access control equipment. The important

safeguards and instructions in this manual cannot cover all possible conditions and situations

which may occur during installation and use. It must be understood that common sense and

caution must be exercised by the person(s) installing, maintaining and operating the equipment.

NEPTUNE P A G E 4

History

Update

Description

Ver

04-05-2019

initial version

1.0

NEPTUNE P A G E 5

1.0 INTRODUCTION.............................................6

2.0 INTERCOM.....................................................6

2.1 Http Event Setup 7

2.2 Call Button Setup 8

2.3 Controller Setting 9

3.0 NEPTUNE.....................................................10

3.1 Event Action Setting 10

NEPTUNE P A G E 6

1.0 Introduction

This manual contains Information regarding the basic Intercom Integrated configuration of the

Neptune Access Control

2.0 Intercom

Intercom products integrated with NEPTUNE are described based on the DS05M Model of

“Beward”.

* Refer to the figure below for the connection between NEPTUNE and Intercom.

NEPTUNE

NC102P

(Intercom)

Alarm

Aux Input

NEPTUNE P A G E 7

2.1 Http Event Setup

❒Enable

Select whether to use Http Event to link with Neptune Server. Basically, it must be checked to use.

❒Protocol

Protocol for interworking with Neptune Server should be selected as HTTP by default.

❒Hostname

Enter the IP address and port of the Neptune Server.

IPAddress means the IP address of the Neptune Server already installed.

Port is using port number 8082 assigned to the Neptune Server.

* Example : 192.168.0.250:8082

NEPTUNE P A G E 8

❒Request

In order to recognize Intercom on Neptune Server, you must enter “/ beward”.

* Example : /beward

❒Method

The method to send to the Neptune Server is selected as “GET”.

2.2 Call Button Setup

❒Turn on

It activates the event alarm to the Neptune Server when an Intercom Call Button Event occurs.

❒Time 1

Select the time to use Event Alarm to the Neptune Server when a Call Button Event occurs in

Intercom. Basically, to use continuously, set the time as the default. The default time is 00:00 –

23:59.

❒HTTP event

Enter the door information to be delivered to the Neptune Server when a Call Button Event occurs

in Intercom. All entered English characters can be used in lower case.

NEPTUNE P A G E 9

m : method name ( Default fixed “call”)

door : Neptune Server Door List No.

* Example : m=call&door=15

2.3 Controller Setting

Controller type information may differ for each product of “BEWARD”.

The product described in this manual is based on the “NC102P” product.

❒Controller Type

Selected as Intercom's Channel 1

❒Status

Check Box Check.

NEPTUNE P A G E 10

❒Duration

Default Duration Used.

3.0 NEPTUNE

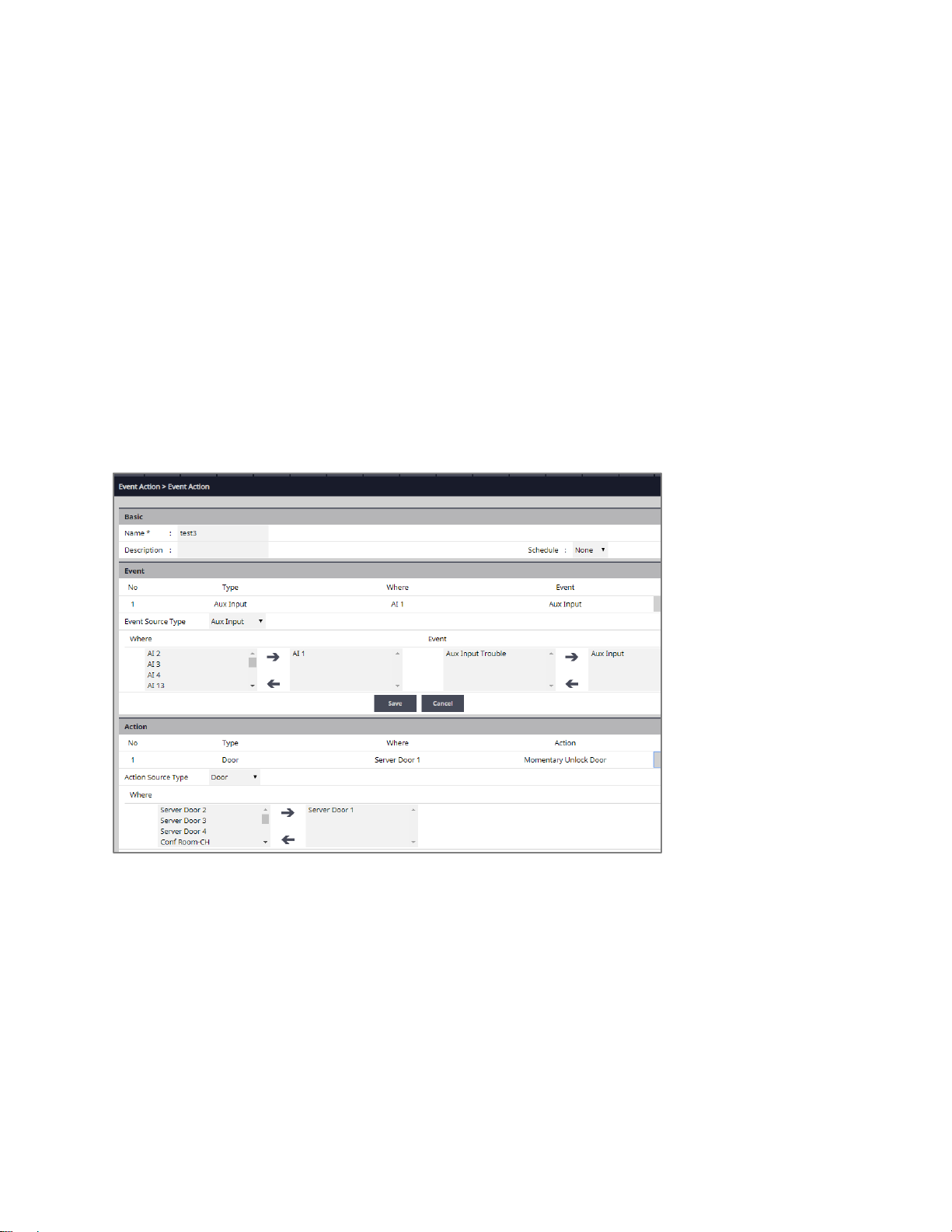

3.1 Event Action Setting

❒Adding an Event Action

Click New and enter a name and description.

In the Basic Section, name the event, fill in a Description, and select a Schedule for the time the

Event Action will be active.

❒Event

In the Event section. click Insert to add a new event

Choose the type is Aux Input (fixing)
