OPERATING INSTRUCTIONS

i11s

Safety switches

Described product

i11s

Manufacturer

SICK AG

Erwin-Sick-Str. 1

79183 Waldkirch

Germany

Legal information

This work is protected by copyright. Any rights derived from the copyright shall be

reserved for SICK AG. Reproduction of this document or parts of this document is

only permissible within the limits of the legal determination of Copyright Law. Any modi‐

fication, abridgment or translation of this document is prohibited without the express

written permission of SICK AG.

The trademarks stated in this document are the property of their respective owner.

Original document

This document is an original document of SICK AG.

2O P E R A T I N G I N S T R U C T I O N S | i11s 8027740/1FVF/2022-05-19 | SICK

Subject to change without notice

Contents

1 Scope.................................................................................................. 4

2 On Safety............................................................................................ 5

2.1 Qualified safety personnel....................................................................... 5

2.2 Applications............................................................................................... 5

2.3 Correct use................................................................................................ 5

2.4 General safety notes and protective measures...................................... 6

3 Mounting............................................................................................. 7

3.1 Reversing the actuating direction............................................................ 7

3.2 Protection against surroundings.............................................................. 8

4 Elektroinstallation............................................................................. 9

5 Commissioning.................................................................................. 11

5.1 Tests before the initial commissioning.................................................... 11

5.2 Periodic technical inspections................................................................. 11

6 Disposal.............................................................................................. 12

7 Technical data.................................................................................... 13

7.1 General system data................................................................................ 13

7.2 Dimensional drawing................................................................................ 14

8 Conformities and certificates.......................................................... 15

8.1 EU declaration of conformity.................................................................... 15

CONTENTS

8027740/1FVF/2022-05-19 | SICK O P E R A T I N G I N S T R U C T I O N S | i11s 3

Subject to change without notice

1 Scope

These operating instructions apply to the safety switches i11S from the date of manu‐

facture:

•1007

You will find the device’s date of manufacture on the type label in the field Date Code in

the format yyww (yy = year, ww = calender week).

These operating instructions are original operating instructions.

1 SCOPE

4O P E R A T I N G I N S T R U C T I O N S | i11s 8027740/1FVF/2022-05-19 | SICK

Subject to change without notice

2 On Safety

This chapter deals with your own safety and the safety of the equipment users.

bPlease read this chapter carefully before working with the i11S or with the

machine protected by the i11S.

The national/international rules and regulations apply to the installation, commission‐

ing, use and periodic technical inspections of the safety switches, in particular

•the machinery directive,

•the safety regulations as well as

•the work safety regulations/ safety rules.

2.1 Qualified safety personnel

The i11S safety switch must be mounted, installed and commissioned only by qualified

safety personnel. Qualified safety personnel are defined as persons who

•have undergone the appropriate technical training

and

•have been instructed by the responsible machine owner in the operation of the

machine and the current valid safety guidelines

and

•who have access to these operating instructions.

2.2 Applications

Safety switches of the i11S series are electromagnetic switching devices. They lock

guards (without locking device) so that

•the dangerous state of the machine can only be switched on when the protective

device is closed and locked,

•a STOP command is triggered if the protective device is opened with the machine

running.

For the control this means that

•starting is only possible when the protective device is in the closed position and

the dangerous motion should cease before opening the protective device.

Prior to the use of safety switches, a risk assessment must be performed on the

machine.

Important:

The user is responsible for the safe integration of the safety switch in a safe overall

system. For this purpose the overall system must be validated, e.g. in accordance with

EN ISO 13849-2.

If the safety switches are connected in series the Performance Level (PL) may be

reduced due to reduced fault detection, depending on the application (ISO/TR 24119).

2.3 Correct use

The i11S safety switch must be used only as defined in section 2.2 “Applications of

the safety switches”. The safety switch must be used only on the machine where it has

been mounted, installed and initialized by qualified safety personnel in accordance with

these operating instructions.

ON SAFETY 2

8027740/1FVF/2022-05-19 | SICK O P E R A T I N G I N S T R U C T I O N S | i11s 5

Subject to change without notice

All warranty claims against SICK AG are forfeited in the case of any other use, or

alterations being made to the safety switch, even as part of its mounting or installation.

Correct use includes the regular inspection of the protective device by qualified safety

personnel in accordance with section 5.2.

2.4 General safety notes and protective measures

Safety switches provide a protection function for persons. Incorrect installation or

manipulation can result in serious injuries.

WARNING

Safety switches are not allowed to be bypassed, turned away, removed or made ineffec‐

tive in any other manner. Take measures to reduce bypassing options as necessary.

Observe EN ISO 14119 for using interlocking devices associated with physical guards.

WARNING

The switching procedure may only be activated by actuators specifically designated for

that purpose, which are connected to the protective device in such a manner that they

cannot be detached.

Restrict access to replacement actuators, so they cannot be used for bypassing.

2 ON SAFETY

6O P E R A T I N G I N S T R U C T I O N S | i11s 8027740/1FVF/2022-05-19 | SICK

Subject to change without notice

3 Mounting

WARNING

Mounting is only allowed to be performed by qualified safety personnel.

bObserve EN ISO 14119 for using interlocking devices associated with physical

guards.

Fit the safety switches such that

•it is difficult for operators to access when the protective device is open,

•it is possible to inspect and replace the safety switches.

NOTICE

Safety switches and actuators must not be used as a mechanical stop.

NOTICE

Mount only in the assembled condition!

bInsert the actuator into the actuating head.

bMount the safety switch positively. For safety applications (fixed position), mount

safety switch using M5 × 30 screws.

bConnect the actuator to the protective device durably and non-detatchably, e.g.

using one-way bolts or by riveting or welding.

bFit additional stop for moving parts of the protective device.

3.1 Reversing the actuating direction

Figure 1: Reversing the actuating direction

1. Insert the actuator in the safety switch.

2. Loosen the bolts on the control cam.

3. Set the required direction.

4. Tighten screws to 0.8 Nm.

5. Fit enclosed plugs into unused actuator slots.

Figure 2: Minimum approach radius (the pivot point for the door must be in the same plane as

the insertion opening for the actuator)

MOUNTING 3

8027740/1FVF/2022-05-19 | SICK O P E R A T I N G I N S T R U C T I O N S | i11s 7

Subject to change without notice

3.2 Protection against surroundings

A precondition for a durable and perfect safety function is the protection of the control

cam against penetration by foreign matter such as shavings, sand, abrasive materials

etc.; seal unused actuating slots with the enclosed slot covers.

Cover the control slot, the actuator and the rating plate when painting. Use only solvent-

free cleaning materials when cleaning the safety switch.

3 MOUNTING

8O P E R A T I N G I N S T R U C T I O N S | i11s 8027740/1FVF/2022-05-19 | SICK

Subject to change without notice

4 Elektroinstallation

WARNING

The electrical connection is only allowed to be made by qualified safety personnel.

WARNING

Take note of the excess temperature in the casing when selecting insulation material or

pigtails (depending on the operating conditions)!

WARNING

To ensure a secure contact, strip the individual wires back about 6 mm (± 1 mm).

DANGER

For application and usage as per the requirement in cULus, a copper cable (60/70°C)

is to be used.

DANGER

For deployment and use according to the requirements of UL, a class 2 power supply

according to UL1310 must be used.

Figure 3: Opening the safety switch

1. Break open the desired lead-in.

2. Assemble screwed cable gland M16 with the corresponding enclosure rating.

3. Use wire cross section 0.34 to 1.5 mm2.

WARNING Operate all contact pairs in the same voltage range.

4. Connect all live parts to one side of the contact block.

Inserted

actuator

Extended

actuator

Figure 4: Switching elements and switching functions

5. Tighten the clamping bolts of the switching elements by 0.5 Nm.

ELEKTROINSTALLATION 4

8027740/1FVF/2022-05-19 | SICK O P E R A T I N G I N S T R U C T I O N S | i11s 9

Subject to change without notice

6. Take account of the density of the line entrance.

7. Close switch cover and tighten screws.

4 ELEKTROINSTALLATION

10 O P E R A T I N G I N S T R U C T I O N S | i11s 8027740/1FVF/2022-05-19 | SICK

Subject to change without notice

Table des matières

Autres manuels SICK Changer

SICK

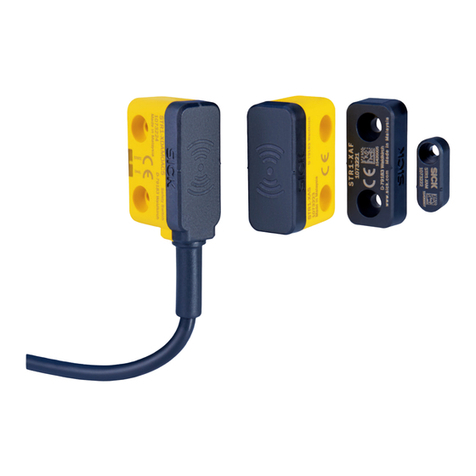

SICK STR1 Manuel utilisateur
