SICK GL6L-P1 Series Manuel utilisateur

OPERATING INSTRUCTION

GL6L

Miniature photoelectric sensors

OPERATING INSTRUCTION

GL6L

Miniature photoelectric sensors

Described product

G6L

GL6L

Manufacturer

SICK AG

Erwin-Sick-Str. 1

79183 Waldkirch

Germany

Production location

SICK Malaysia

Legal information

This work is protected by copyright. Any rights derived from the copyright shall be

reserved for SICK AG. Reproduction of this document or parts of this document is

only permissible within the limits of the legal determination of Copyright Law. Any modi‐

fication, abridgment or translation of this document is prohibited without the express

written permission of SICK AG.

The trademarks stated in this document are the property of their respective owner.

Original document

This document is an original document of SICK AG.

Laser

2006/42/EC

SAFETY

8025389.1BHT / 2021-04-19 | SICK

Subject to change without notice 3

Contents

1 General safety notes......................................................................... 5

2 Notes on UL approval........................................................................ 5

3 Intended use...................................................................................... 5

4 Operating and status indicators...................................................... 6

5 Mounting............................................................................................. 6

6 Electrical installation........................................................................ 6

7 Commissioning.................................................................................. 8

7.1 Alignment.................................................................................................. 8

7.2 Sensing range........................................................................................... 8

7.3 Settings..................................................................................................... 9

8 Troubleshooting................................................................................. 9

9 Disassembly and disposal............................................................... 10

10 Maintenance...................................................................................... 10

11 Technical specifications................................................................... 11

11.1 Dimensional drawing................................................................................ 12

11.2 Light spot diagram.................................................................................... 12

CONTENTS

48025389.1BHT / 2021-04-19 | SICK

Subject to change without notice

1 General safety notes

■Read the operating instructions before commissioning.

■

Connection, mounting, and configuration may only be performed by trained

specialists.

■

2006/42/EC

SAFETY

Not a safety component in accordance with the EU Machinery Directive.

■

Do not install the sensor at locations that are exposed to direct sunlight

or other weather influences, unless this is expressly permitted in the operating

instructions.

■When commissioning, protect the device from moisture and contamination.

■These operating instructions contain information required during the life cycle of

the sensor.

EN/IEC 60825-1:2014

IEC60825-1:2007

LASER CLASS 1

Laser

Maximum pulse power < 5.95 mW

Puls length: 2 µs

Wavelength: 670 - 690 nm

Complies with FDA performance

standards except for conformance with

IEC 60825-1 Ed. 3,

as described in Laser Notice No. 56,

dated May 8, 2019

ATTENTION

WARNING: Interruption, manipulation or incorrect use can lead to hazardous exposure

due to laser radiation.

2 Notes on UL approval

The device shall be supplied from an isolating transformer having a secondary overcur‐

rent protective device that complies with UL 248 to be installed in the field rated either:

a) max 5 amps for voltages 0 ~ 20 V (0 ~ 28.3 V peak), or

b) 100 / Vp for voltages of 20 ~ 30 V (28.3 ~ 42.4 V peak).

Alternatively, they can be supplied from a Class 2 power supply.

UL Environmental Rating: Enclosure type 1

3 Intended use

The GL6L is an opto-electronic photoelectric retro-reflective sensor (referred to as “sen‐

sor” in the following) for the optical, non-contact detection of objects. A reflector is

required for this product to function. If the product is used for any other purpose or

modified in any way, any warranty claim against SICK AG shall become void.

GENERAL SAFETY NOTES 1

8025389.1BHT / 2021-04-19 | SICK

Subject to change without notice 5

4 Operating and status indicators

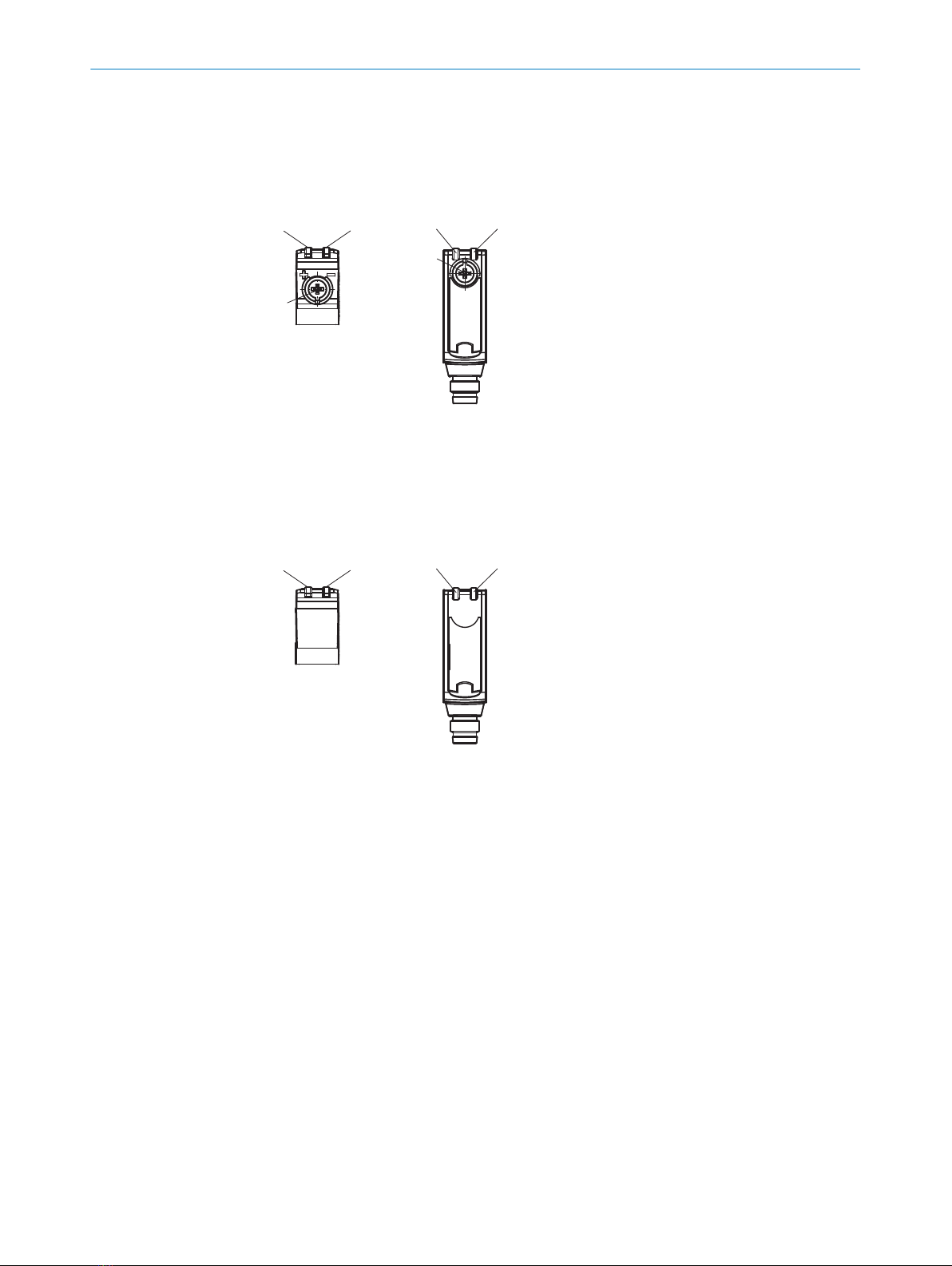

GL6L-xxx1x

2 3 23

1Potentiometer: sensitivity adjustment

2LED indicator yellow: status of received light beam

3LED indicator green: supply voltage active

GL6L-xxx3x

Sensor which it is not possible to set: The sensor is adjusted and ready for operation.

2 3 23

5 Mounting

Mount the sensor and the reflector using suitable mounting brackets (see the SICK

range of accessories). Align the sensor and reflector with each other.

6 Electrical installation

The sensors must be connected in a voltage-free state (UV = 0 V). The following informa‐

tion must be observed depending on the connection type:

– Plug connection: pin assignment

– Cable: wire color

Only apply voltage/switch on the voltage supply (UV > 0 V) once all electrical connec‐

tions have been established.

Explanation of connection terminology:

BN = Brown

WH = White

BU = Blue

BK = Black

n. c. = no connection

4 OPERATING AND STATUS INDICATORS

68025389.1BHT / 2021-04-19 | SICK

Subject to change without notice

Q = switching output 1

Q = switching output 2

L+ = supply voltage (Uv)

M = common

L.ON = light operate

D.ON = dark operate

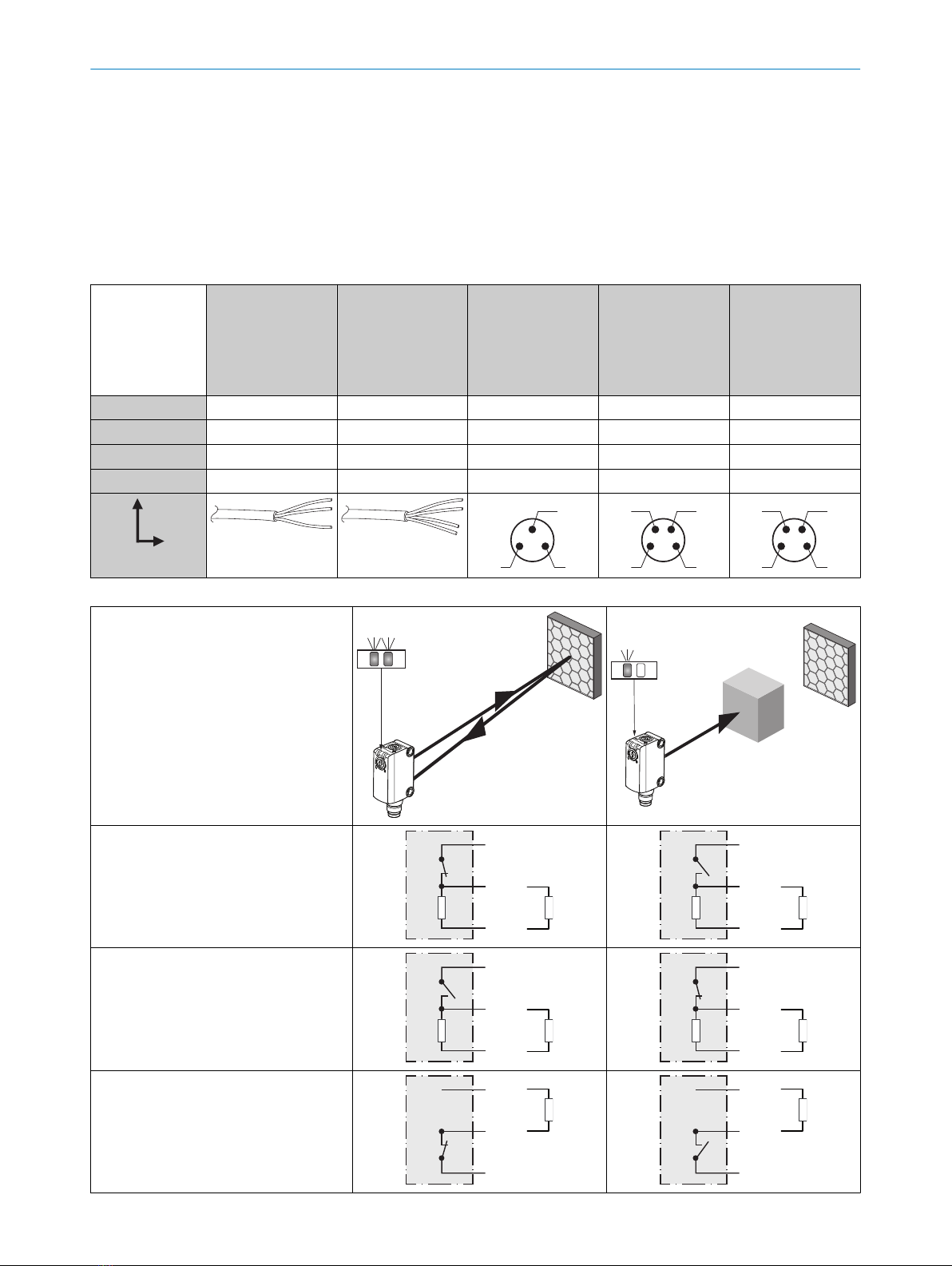

Connection and Output detail:

Table 1: DC

GL6L -P1xxx

-N1xxx

-E2xxx

-F2xxx

-P3xxx

-N3xxx

-P5xxx

-N5xxx

-P4xxx

-N4xxx

-P6xxx

-N6xxx

-P7xxx

-N7xxx

-E4xxx

-F4xxx

-E6xxx

-F6xxx

-E7xxx

-F7xxx

1 = BN + (L+) + (L+) + (L+) + (L+) + (L+)

2 = WH -Q- n. c. Q

3 = BU - (M) - (M) - (M) - (M) - (M)

4 = BK Q Q Q Q Q

0.205 mm2 /

AWG24 0.205 mm2 /

AWG24

Table 2: Output Operation

GL6L

-Pxxxx = Q output

-Nxxxx = Q output

-Fxxxx = Q + Q output

-Exxxx = Q + Q output

-Px1xx

-Px2xx

-Px5xx

-Px6xx

L.ON, PNP: Q (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

-Px1xx

-Px2xx

-Px3xx

-Px4xx

D.ON, PNP: Q (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

-Nx1xx

-Nx2xx

-Nx5xx

-Nx6xx

L.ON, NPN Open Collector Q (≤ 100 mA)

+ (L+)

‒ (M)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

ELECTRICAL INSTALLATION 6

8025389.1BHT / 2021-04-19 | SICK

Subject to change without notice 7

-Nx1xx

-Nx2xx

-Nx3xx

-Nx4xx

D.ON, NPN Open Collector Q (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

+ (L+)

‒ (M)

Load

7 Commissioning

7.1 Alignment

Align the sensor with a suitable reflector. Select the position so that the red emitted

light beam hits the center of the reflector. The sensor must have a clear view of the

reflector, with no object in the path of the beam [see figure 1]. You must ensure that the

optical openings of the sensor and reflector are completely clear.

Figure 1: Alignment

7.2 Sensing range

Adjust the distance between the photoelectric sensor and the reflector according to the

relevant diagram [see figure 2] (x = sensing range, y = operating reserve).

After alignment, place a non-transparent object into the path of the beam. Check the

function as described in table 2. If the switching output fails to behave as described in

table 2, check the application conditions.

7 COMMISSIONING

88025389.1BHT / 2021-04-19 | SICK

Subject to change without notice

100

Operating reserve

Distance in m (feet)

0 2

(6.56)

(13.12)

(19.69)

(26.25)

(32.81)

(39.37)

21 3

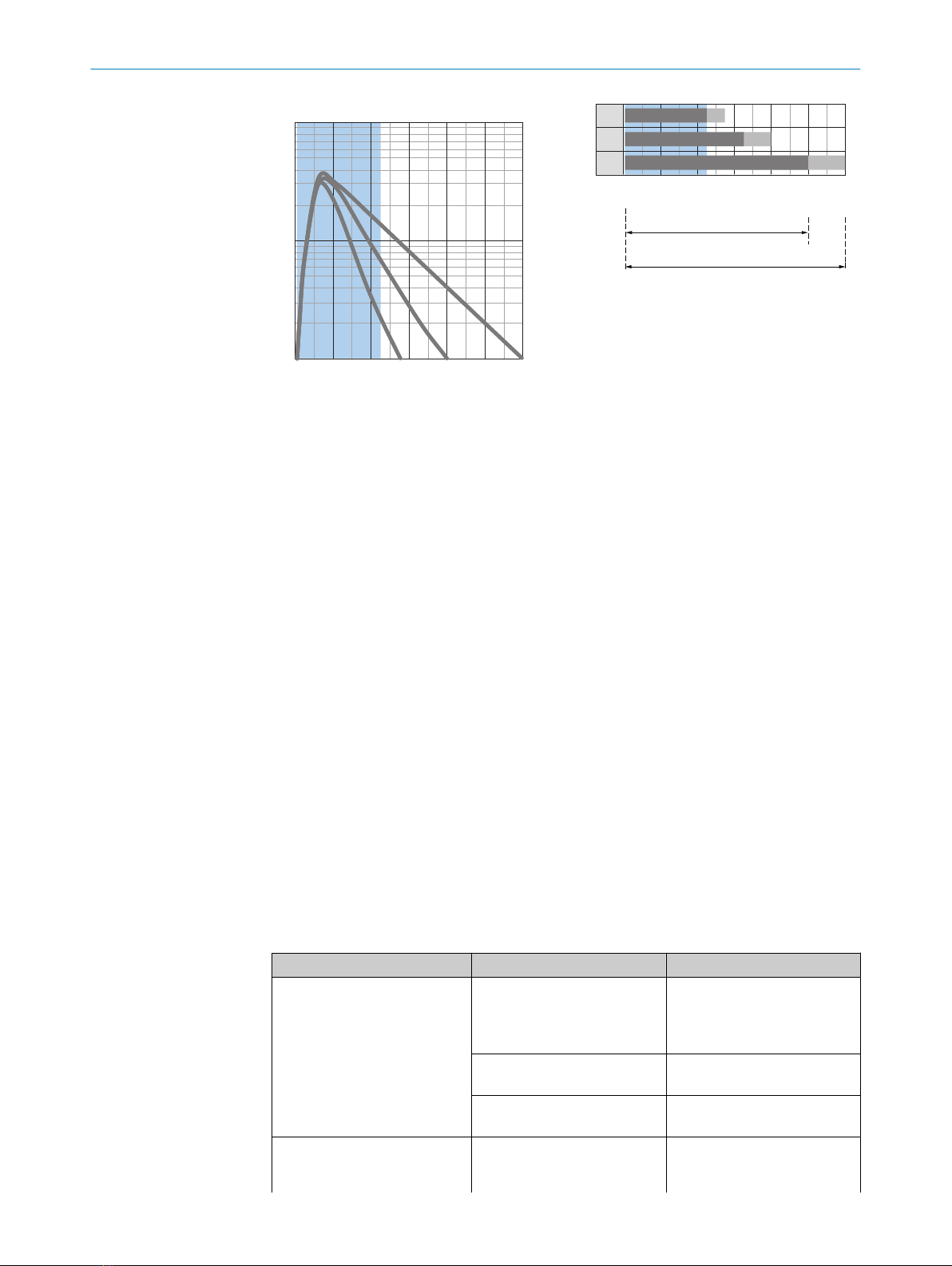

Figure 2: Characteristic line GL6L

Distance in m (feet)

0 2

(6.56)

(13.12)

(19.69)

(26.25)

(32.81)

(39.37)

0.08 5.54.5

0.08 1210

0.08 86.5

Figure 3: Bar graph display

1PL10F

2PL20F

3P250F

ASensing range min. in mm

BSensing range max. in mm

CMaximum distance range from reflector to sensor (operating reserve 1)

DRecommended distance range from reflector to sensor (operating reserve 2)

blue Recommended sensing range for the best performance

7.3 Settings

Sensitivity setting

Sensor which it is not possible to set: The sensor is adjusted and ready for operation.

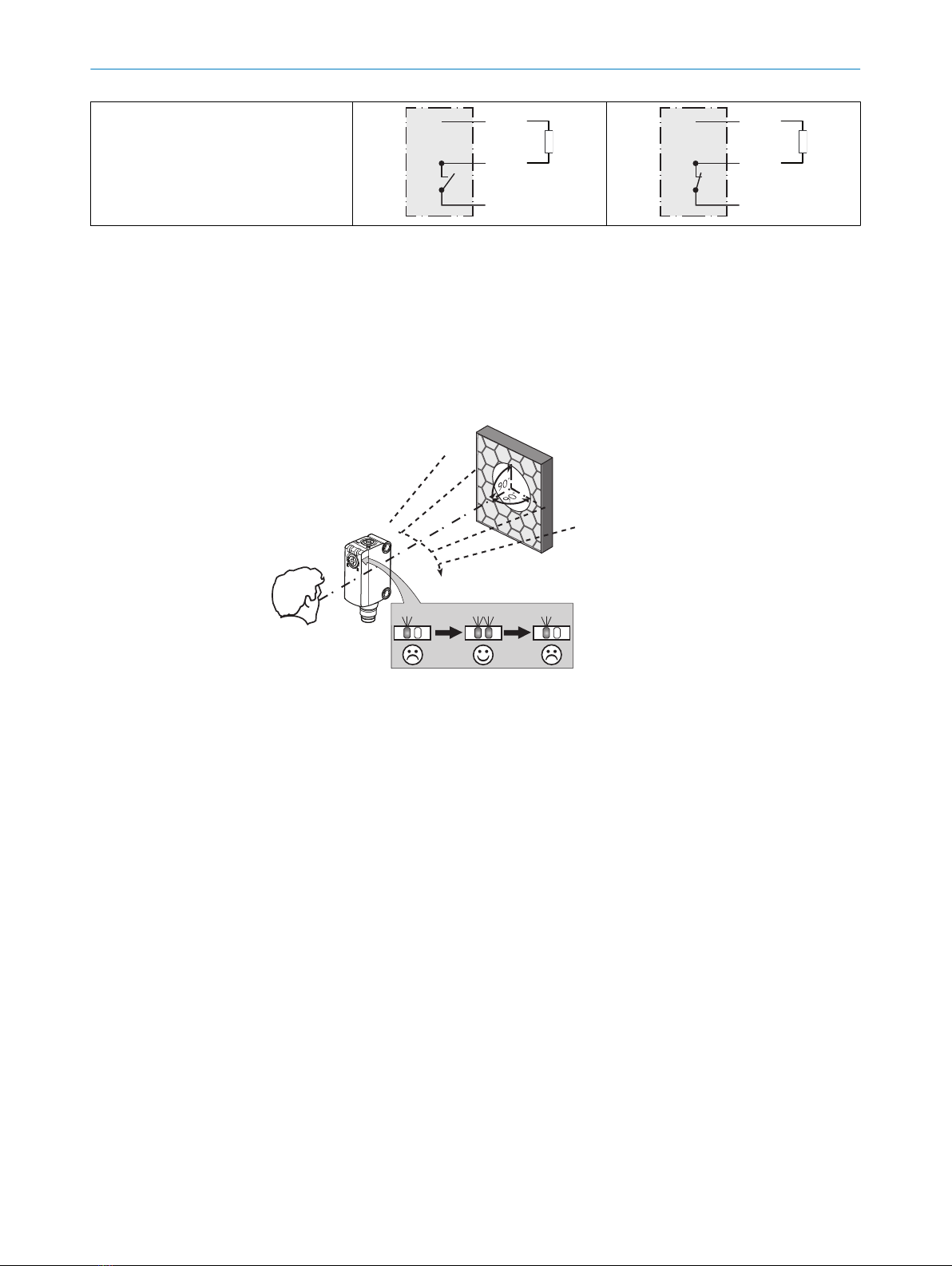

The sensitivity is adjusted with the potentiometer (type: 5-turn). Clockwise rotation:

operating reserve increased; counterclockwise rotation: operating reserve reduced. We

recommend setting the potentiometer to “Maximum”. A lower operating reserve may be

necessary for depolarizing surfaces.

The sensor is adjusted and ready for operation.

8 Troubleshooting

The Troubleshooting table indicates measures to be taken if the sensor stops working.

Table 3: Troubleshooting

LED indicator/fault pattern Cause Measures

Yellow LED does not light up

even though the light beam

is aligned to the reflector and

there is no object in the path of

the beam

No voltage or voltage below

the limit values

Check the power supply,

check all electrical connec‐

tions (cables and plug connec‐

tions)

Voltage interruptions Ensure there is a stable power

supply without interruptions

Sensor is faulty If the power supply is OK,

replace the sensor

Yellow LED flashes Sensor is still ready for oper‐

ation, but the operating condi‐

tions are not ideal

Check the operating condi‐

tions: Fully align the beam

of light (light spot) with the

COMMISSIONING 7

8025389.1BHT / 2021-04-19 | SICK

Subject to change without notice 9

LED indicator/fault pattern Cause Measures

reflector. / Clean the optical

surfaces (sensor and reflec‐

tor) / If the potentiometer is

set to the max. sensitivity:

Reduce the distance between

the sensor and the reflector,

and check the reflector type /

Reflector is not suitable for

the application in question

(we recommend only using

SICK reflectors) / Check sens‐

ing range and adjust if neces‐

sary / Distance between the

sensor and the reflector is too

long

Signal interruptions when

object is detected

Depolarizing property of the

object surface (e.g., tape),

reflection

Reduce sensitivity or change

the position of the sensor

9 Disassembly and disposal

The sensor must be disposed of according to the applicable country-specific regula‐

tions. Efforts should be made during the disposal process to recycle the constituent

materials (particularly precious metals).

NOTE

Disposal of batteries, electric and electronic devices

•According to international directives, batteries, accumulators and electrical or

electronic devices must not be disposed of in general waste.

•The owner is obliged by law to return this devices at the end of their life to the

respective public collection points.

•

WEEE: This symbol on the product, its package or in this document,

indicates that a product is subject to these regulations.

10 Maintenance

SICK sensors are maintenance-free.

We recommend doing the following regularly:

•Clean the external lens surfaces

•Check the screw connections and plug-in connections

No modifications may be made to devices.

Subject to change without notice. Specified product properties and technical data are

not written guarantees.

9 DISASSEMBLY AND DISPOSAL

10 8025389.1BHT / 2021-04-19 | SICK

Subject to change without notice

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels SICK Accessoires

SICK

SICK PowerProx WTT12L-A Series Manuel utilisateur

SICK

SICK KTS-WB61141142 Series Manuel utilisateur

SICK

SICK UM 18-51111 Manuel utilisateur

SICK

SICK GTE2 Flat Manuel utilisateur

SICK

SICK NAV245 Manuel utilisateur

SICK

SICK JEF300 Manuel

SICK

SICK deTec4 Core Manuel utilisateur

SICK

SICK Flexi Loop Manuel utilisateur

SICK

SICK LFR Manuel utilisateur

SICK

SICK GTE6 Series Manuel utilisateur

SICK

SICK RS25 Series Manuel utilisateur

SICK

SICK WS26 Manuel utilisateur

SICK

SICK RMS3 Series Manuel utilisateur

SICK

SICK Flexi Loop Manuel utilisateur

SICK

SICK KTM-LP2218 P Series Manuel utilisateur

SICK

SICK TMS88 Series Manuel utilisateur

SICK

SICK PBS Hygienic Series Manuel utilisateur

SICK

SICK deTec4 Core Guide de l'utilisateur

SICK

SICK EDS35-2 Series Manuel utilisateur

SICK

SICK DS500 Manuel utilisateur

SICK

SICK OD2000 Manuel utilisateur

SICK

SICK MPS-G50 Series Manuel utilisateur

SICK

SICK VICOTEC320 Series Manuel utilisateur

SICK

SICK DL100 Pro Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
