Shuttle FS51 Manuel utilisateur

- 1 -

TABLE OF CONTENTS

WHAT'S IN THE MANUAL ..................................................................... 5

Quick Reference ................................................................................................ 5

About This Manual ............................................................................................ 5

1 INTRODUCTION ................................................................................. 6

1.1 TO DIFFERENT U ER ..............................................................................6

FIRST-TIME DIY SYSTEM BUILDER ............................................................ 6

EXPERIENCED DIY USER ......................................................................... 6

SYSTEM INTEGRATOR ............................................................................... 6

1.2 ITEM CHECKLI T: ....................................................................................... 7

2 FEATURES.......................................................................................... 8

2.1 PECIFICATION ........................................................................................8

3 HARDWARE INSTALLATION ........................................................... 11

3.1 TEP BY TEP IN TALLATION................................................................ 11

Accessories of FS5 .............................................................................

STEP CPU Installation ......................................................................... 2

STEP 2 Set Jumpers .............................................................................. 4

STEP 3 Install DDR SDRAM System Memory ........................................ 4

STEP 4 Install Internal Peripherals in System Case ................................. 5

STEP 5 Mount the Mainboard on the Computer Chassis ........................ 6

STEP 6 Connect Front Panel Switches/LEDs/Speaker/USB .................. 7

STEP 7 Connect IDE and Floppy Disk Drives......................................... 8

STEP 8 Connect Other Internal Peripherals ............................................ 8

STEP 9 Connect the Power Supply ........................................................ 9

STEP 0 Install Add-on Cards in Expansion Slots .................................. 9

STEP Connect External Peripherals to Back-Panel............................ 20

STEP 2 First Time System Boot Up ...................................................... 2

STEP 3 Install Drivers & Software Components .................................... 22

- 2 -

3.2 JUMPER SETTINGS .................................................................................. 23

JUMPERS & CONNECTORS GUIDE .................................................... 24

Jumpers

Clear CMOS Setting (JP1) .................................................................... 27

Back-Panel Connectors

COM1 2 Port Connectors ....................................................................... 28

VGA Port Connector............................................................................... 28

IEEE 1394 Port Connectors ................................................................... 28

10 100 base-T LAN Port Connector........................................................ 28

USB0 1 Port Connectors ........................................................................ 29

PS 2 Keyboard & PS 2 Mouse Connectors ............................................ 29

Bass Center-Out Port Connector ............................................................ 29

Line-Out (Front-Out) Port Connector .......................................................29

Line-In (Rear-Out) Port Connector .......................................................... .30

SPDIF In Port ........................................................................................ .30

Front-Panel Connectors

ATX Power On Off Switch Connector (PWON) ........................................ 31

HDD LED Connector (HLED) .................................................................31

Green LED Power LED Connector (GLED PLED)................................ 32

Hardware Reset Connector (RST) .......................................................... 32

Extended USB Headers (JP3 JP10) .......................................................33

Front-Panel 1394 Header (JP5).............................................................. 33

Parallel Port Header (JP11) .................................................................... 34

Front-Panel Microphone and Line_out Header (JP4) .............................. 34

Internal Peripherals Connectors

Enhanced IDE and Floppy Connector ..................................................... 35

Other Connectors

ATX Power Supply Connector (CN5 and JP7) ........................................ 36

- 3 -

CPU and System Fan Connector - FAN1/2/3) ......................................... 37

Audio CD_ N Connector (CN3) (Black) ................................................... 37

Wireless Keyboard and Mouse Connectors (JP2) .................................. 38

SPD F Ext/ n/Out Headers (JP9) ............................................................. 38

3.3 SYSTEM MEMORY CONFIGURATION ...................................................... 39

NSTALL MEMORY ................................................................................ 39

UPGRADE MEMORY ............................................................................. 39

4 SOFTWARE UTILITY .......................................................................4 0

4.1 Mainboard CD Overview .......................................................................... 4

4.2 Install SIS VGA Driver ............................................................................... 41

4.3 Install SIS AGP Driver ............................................................................... 42

4.4 Install Audio Driver ................................................................................... 43

4.5 Install LAN Driver ...................................................................................... 44

nstall W N98 LAN driver ......................................................................... 44

4.6 Install USB 2. Driver ............................................................................... 47

4.7 View the User's Manual ............................................................................ 48

5 BIOS SETUP .....................................................................................49

5.1 ENTER BIOS .............................................................................................. 49

5.2 THE MAIN MENU ....................................................................................... 5

STANDARD CMOS FEATURES ................................................................ 52

ADVANCED B OS FEATURES .................................................................. 55

ADVANCED CH PSET FEATURES ........................................................... 59

NTEGRATED PER PHERALS ................................................................... 61

POWER MANAGEMENT SETUP .............................................................. 65

PNP/PC CONF GURAT ONS ..................................................................... 68

PC HEALTH STATUS ................................................................................. 70

FREQUENCY/VOLTAGE CONTROL .......................................................... 72

- 4 -

LOAD FAIL-SAFE DEFAULTS ................................................................... 73

LOAD OPTIMIZED DEFAULTS .................................................................. 74

SET PASSWORD ...................................................................................... 75

SAVE & EXIT SETUP................................................................................. 76

EXIT WITHOUT SAVING ............................................................................. 77

- 5 -

WHAT'S IN THE MANUAL

uick Reference

Hardware Installation >> tep-by- tep ................................................ Page 11

Jumper ettings >> A Closer Look ...................................................... Page 23

Drivers/ oftware Utilities >> How to Install ......................................... Page 40

BIO etup >> How to Configure ........................................................ Page 49

About This Manual

For First-Time DIY ystem Builder ......................................................... Page 6

For Experienced DIY User ...................................................................... Page 6

For ystem Integrator ............................................................................. Page 6

- 6 -

1 INTRODUCTION

1.1 To Different Users

First-Time DIY System Builder

Welcome to the DIY world! Building your own computer system is not as

difficult as you may think. To make your first computer DIY experience suc-

cessful, right from the start, we have designed the 3.1 Hardware Installation

section in a step-by-step fashion for all the first-time DIY system builders. Prior

to installation, we also suggest you to read the whole manual carefully to gain

a complete understanding of your new Shuttle FS5 mainboard.

Experienced DIY User

Congratulate on your purchase of the Shuttle FS5 mainboard. You will find

that installing your new Shuttle FS5 mainboard is just easy. Bundled with an

array of onboard functions, the highly-integrated FS5 mainboard provides

you with a total solution to build the most stable and reliable system. Refer to

sections 3.2 Jumper ettings and Chapter 4 Drivers/ oftware Utilities to

find out how to get the best out of your new mainboard. Chapter 5 BIO

etup also contains the relevant information on how to tune up your system to

achieve higher performance.

System Integrator

You have wisely chosen Shuttle FS5 to construct your system. Shuttle

FS5 incorporates all the state-of-the-art technology of the SiS 65 chipset

from SiS. It integrates the most advanced functions you can find to date in a

compact Flex ATX board.

- 7 -

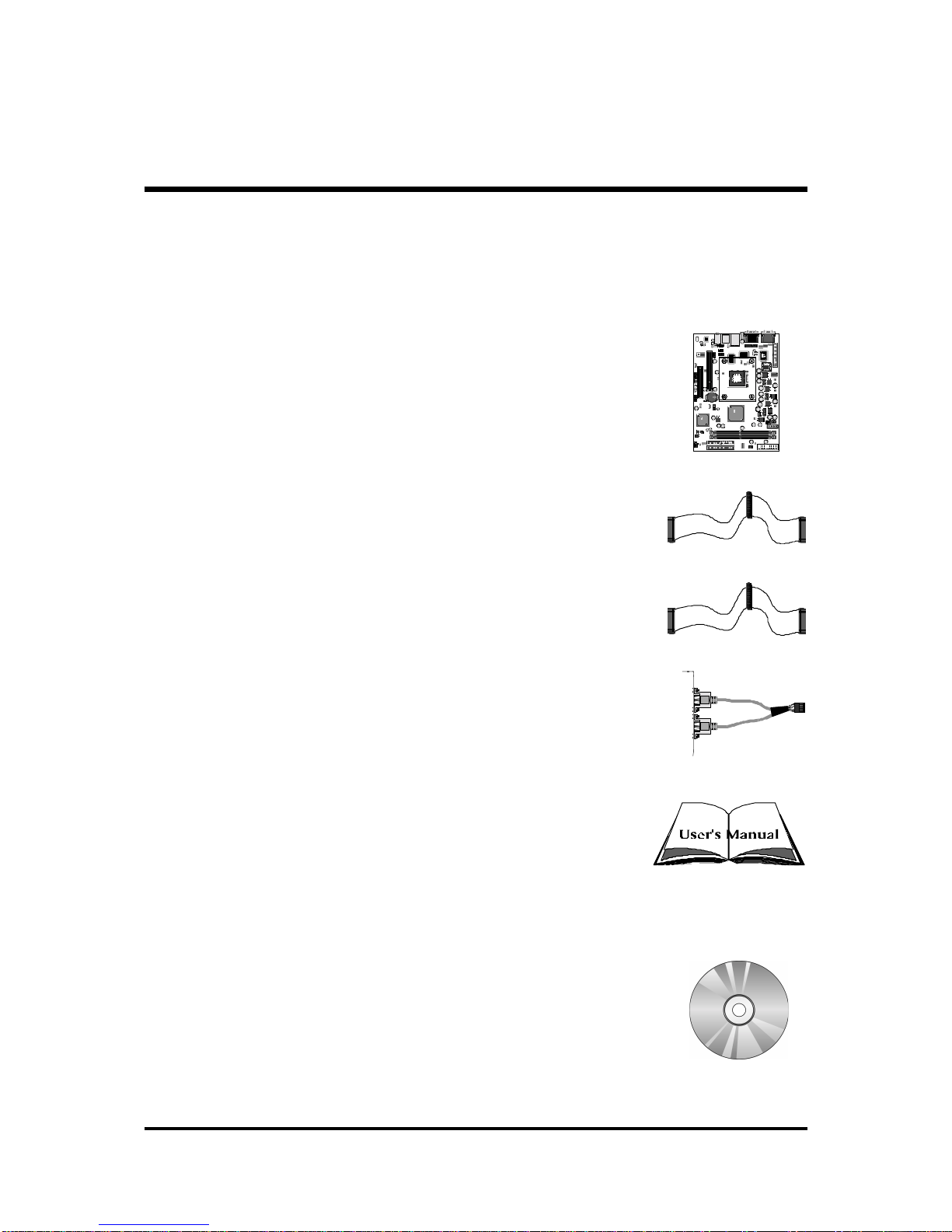

1.2 Item Checklist:

Check all items with you FS51 mainboard to make sure nothing is missing.

The complete package should include:

!One piece of Shuttle FS51 ainboard

!One piece of ATA133/100 Ribbon Cable

!One piece of Floppy Ribbon Cable

!One piece of twin ports USB Cable (optional)

!FS51 User's anual

!One piece of Bundled CD-RO with containing:

" FS51 user's manual saved in PDF format

" SiS Chipset driver

" Realtek Audio driver

" SiS VGA driver

" LAN driver

" Award Flashing Utility

U W23 004 0A

02 03

95 200 4A F

IC S

AMIC

A2 90021 TL-70

012 2T

B3 X5A

JP10

JP3

JP9

US B

US BSPD IF JP8

JP1

CN 3CD-IN

13 94

PCI1

AGP

FA N3

JP11

IDE 1

FD D

IDE 2

CN 5

JP7

AT XP

DIMM1

FA N2

FA N1

DIMM2

C651

SIS '0 1

PLD4892

0145EA

SiS

962

SIS '0 0

ELD2691

0138EA

SiS

24103S1 216E

ALC65 0

GLE D/ PL

HLE D

+--+

RS T

PW ON

- 8 -

.-)674-5

FS51 mainboard is carefully designed for the demanding PC user who wants high

performance and maximum intelligent features in a compact package.

2.1 Specifications

! CPU Support

Intel Pentium 4 / Celeron, 478-pin processors with 400/533 Hz FSB.

! Chipset

Features SiS 651 N.B. and SiS 962L S.B..

Onboard Lan

Realtek 8100B, support 10 b/s and 100 b/s operation.

Onboard 1394

VIA VT6306, support 400 b/s, 200 b/s, 100 b/s data transfer rate.

! Jumperless CPU Configuration

Soft-configuration FSB (The FSB speed is software configurable from

100 Hz to 166 Hz in the Frequency/Voltage Control of BIOS setup pro-

gram.)

! On Board 6 Channel AC97 Audio

Compliant with AC'97 2.2 specifications.

6 channel slot selectable DAC Output for multi-channel applications.

! Versatile Memory Support

Two 184-pin DI slots to support up to 2GB of PC1600, PC2100 or

PC2700 compliant DDR SDRA module.

! A P Expansion Slot

Provides one 32-bit AGP slot which support 2X / 4X AGP device.

! PCI Expansion Slots

Provides one 32-bit PCI slot.

! 6 USB 2.0 Interface Onboard

"2 x USB 2.0 connectors on back-panel and one sets of dual USB ports

headers on mid-board.

- 9 -

! I/O Interface

Provides a variety of I/O interfaces:

"1 x Floppy interface for 3.5-inch FDD with 20KB, 1.44MB, or 2.88MB

format or for 5.25-inch FDD with 360K or 1.2MB format.

"2 x DB9 Serial connectors 16550 UART compatible.

"1 x DB15 VGA connector.

"1 x SPDIF-In port.

"2 x 1394 connectors.

"1 x RJ45 LAN connector.

"1 x PS/2 mouse connector.

"1 x PS/2 Keyboard connector.

"1 x Line-Out (Front-Out) port.

"1 x Line-In port, shared with rear speaker output when multi-channel

audio is enabled.

"1 x Bass/Center-Out port.

! PCI Bus Master IDE Controller Onboard

Two Ultra DMA 133/100 Bus Master Dual-channel IDE ports provide support

to a maximum of four IDE devices (one Master and one Slave per channel).

The IDE Bus implements data transfer speeds of up to 133/100 MB/sec and

also supports Enhanced PIO Modes.

80-pin Cable Backward Compatible Legacy ATAPI Devices, ATAPI IDE CD-

ROM, CD-R, CD-RW, and LS-120 Supports.

! ATX Power Supply Connector

ATX power supply unit can connected to the onboard 20-pin Pentium 4

standard ATX power connectors, supporting Suspend and Soft-On/Off by

dual-function power button.

The Pentium 4 ATX power include other 4-pin +12V ATX power connector.

! Advanced Conf gurat on and Power Interface

Features four power saving modes: S1 (Snoop), S3 (Suspend to RAM), S4

(Suspend to DISK), and S5 (Soft-Off). ACPI provides more efficient Energy

Saving Features controlled by your operating system that supports OS

Direct Power Management (OSPM) functionality.

- 10 -

! System BIOS

Provides licensed Award BIOS V6.0 PG on 2Mb Flash core and supports

Green PC, Desktop Management Interface (DMI).

! Form Factor

System board conforms to Shuttle from factor ATX specification.

Board dimension: 254mm x 185mm.

! Advanced Features

"Low EMI - Built in spread spectrum and automatic clock shut-off of

unused PCI/SDRAMS slots to reduce EMI.

"Dual Function Power Button - The system can be in one of two states,

one is Suspend mode and the other is Soft-Off mode. Pushing the

power button for less than 4 seconds places the system into Suspend

mode. When the power button is pressed for longer than 4 seconds, the

system enters Soft-Off mode.

"Modem Ring Power-On - The system can be powered on automatically

by the activation of modem ringing.

"CP Host/SDRAM Clock Setting - This item allows users to adjust

CPU Host Clock, and SDRAM, and Clock in BIOS.

"CP Multiplier Setting - This item allows users to adjust CPU Multiplier

in BIOS.

! Intell gent Features

"Voltage Monitoring - Monitors various voltages of key elements, such

as the CPU, and other critical system voltage levels to ensure stable

current passing through mainboard components.

"Fan Status Monitoring - To prevent CPU from overheating, the CPU fan

is monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is

required.)

"Temperature Monitoring - This item allows users to make sure whether

the CPU or system runs in a suitable temperature.

"CP Fan AutoGuardian - This SMART Bios enabled 3 phase Variable

Fan Speed and CPU temperature Control feature.

Autres manuels pour FS51

Table des matières

Autres manuels Shuttle Carte mère

Shuttle

Shuttle HOT-683 Manuel utilisateur

Shuttle

Shuttle Spacewalker AK31 Manuel utilisateur

Shuttle

Shuttle AB60/R Manuel utilisateur

Shuttle

Shuttle AT30 Manuel utilisateur

Shuttle

Shuttle HOT-617 Manuel utilisateur

Shuttle

Shuttle AB60N Manuel utilisateur

Shuttle

Shuttle Spacewalker AB40 Manuel utilisateur

Shuttle

Shuttle Spacewalker AE14 Manuel utilisateur

Shuttle

Shuttle AE23 Manuel utilisateur

Shuttle

Shuttle HOT-555 Manuel utilisateur

Shuttle

Shuttle Spacewalke AK21 Manuel utilisateur

Shuttle

Shuttle Spacewalker MV25 Manuel utilisateur

Shuttle

Shuttle AV11 Manuel utilisateur

Shuttle

Shuttle Spacewalker HOT-685Z Manuel utilisateur

Shuttle

Shuttle FS58 Manuel utilisateur

Shuttle

Shuttle Spacewalker AV30 Manuel utilisateur

Shuttle

Shuttle HOT-641/P Manuel utilisateur

Shuttle

Shuttle HOT-591 Manuel utilisateur

Shuttle

Shuttle AE25 Manuel utilisateur

Shuttle

Shuttle FV24 Manuel utilisateur

Shuttle

Shuttle MV43VN Manuel utilisateur

Shuttle

Shuttle AB48 Manuel utilisateur

Shuttle

Shuttle FB65 Manuel utilisateur

Shuttle

Shuttle HOT-675 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
