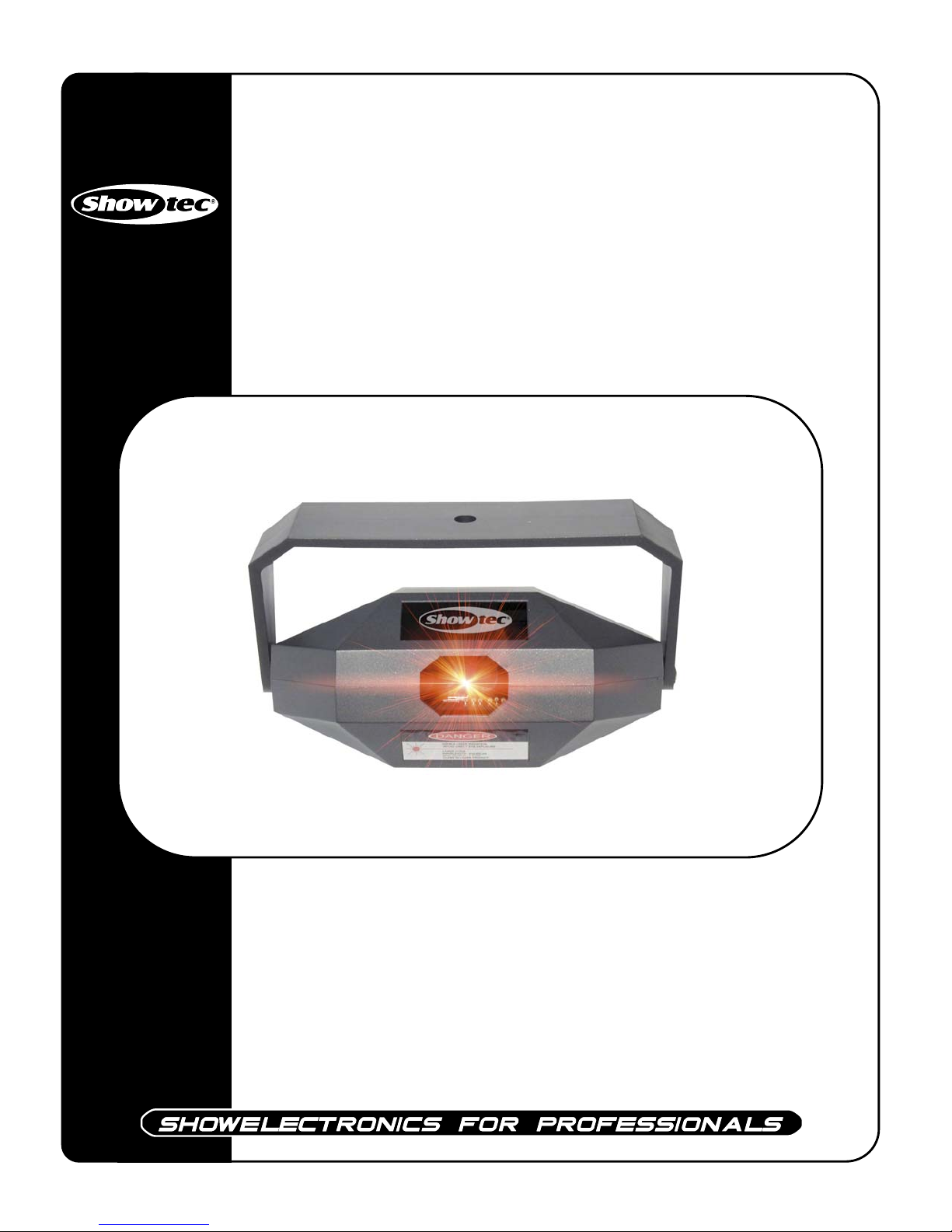

Show Tec Pocket LaserBeam Manuel utilisateur

Pocket LaserBeam

ORDERCODE 80371

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Pocket LaserBeam brings excitement to any venue.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: [email protected]

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Pocket LaserBeam™Product Guide

Warning..…...................................................................................…………………………………………..

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Rigging………………………………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features……………………….………………………………………………………….………………….….

Backside…….………...........................…………………………………………………………..…..…..…..

Set Up and Operation.....................................................................……..……………………………….…

Maintenance...................................................................................………..………….…….………………

Troubleshooting............................................................................………………….………………….…..

No Laser....…..........................………………………………………………………….……………….…...

Product Specifications.................................................................……………….…….…………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Do not open the device and do not modify the device.

•Never aim the laser beam at people or animals!

•Never use anything to cover the ground contact.

•Never leave the device run without a lamp!

•Never look directly into the light source.

•Never leave any cables lying around.

•Do not insert objects into air vents.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

•Do not shake the device. Avoid brute force when installing or operating the device. The Pocket

LaserBeam reacts very sensitive to movement.

•Never use the device during thunderstorms, unplug the device immediately.

•Only use device indoor, avoid contact with water or other liquids.

•Avoid flames and do not put close to flammable liquids or gases.

•Only operate the device after having familiarized with its functions.

•Always follow the guidelines, if you are using a class IIIA laser product.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

•If the Laser covers an area, in which people are, always examine the position of the laser before

anyone enters the room.

•Always allow free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Please take out all batteries, in order to avoid corrosion/humidity.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

•If the external cable is damaged, it has to be replaced by a qualified technician.

•The lens has to be replaced when it is obviously damaged, so that its function is impaired, e.g. due

to cracks or deep scratches!

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit

running unattended.

•For replacement use fuses of same type and rating only.

•The user is responsible for correct positioning and operating of the Laser. The manufacurer will not

accept liability for damages caused by the misuse or incorrect installation of this device.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the device

will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 0,8 meters.

The maximum ambient temperature ta= 45°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(

meant es

eciall

for e

ile

tics

)

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•If the laser is lowered from the ceiling or high joists, professional trussing systems have to be used.

•Use a clamp to mount the laser, with the mounting-bracket, to the trussing system.

•The laser must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

•When rigging, derigging or servicing the device, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

Cable Pin International

BROWN FASE L

BLUE NUL N

YELLOW/GREEN EARTH

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Showtec Pocket LaserBeam is a Laser-Effect with 16 programs and great effects.

• red 5 mW Laser

• music-controlled via built-in microphone

• Battery operation (4x AAA Batteries) or via AC Adapter

Overview

Fig. 1

Backside

Fig. 2

1) Mode Select

2) ON / OFF

3) Adapter 9V DC

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Graphics will be executed after the power switch (2) is turned on.

Function-Mode (1) may be selected from Slow, Music or Fast-Mode:

• Slow-Mode: 12 pre-set graphics to be executed in regular order with slower speed.

• Musik-Mode: pre-set graphics to be executed in regular order via the built-in microphone.

• Fast-Mode: 12 pre-set graphics to be executed in regular order with faster speed.

Warning: Always disconnect power from the mains, when device is not used.

Maintenance

The Showtec Pocket LaserBeam requires almost no maintenance. However, you should keep the unit

clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply,

and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and

a soft cloth. Do not use alcohol or solvents. Keep connections clean. Disconnect electric power, and then

wipe the connections with a damp cloth. Make sure connections are thoroughly dry before linking equipment

or supplying electric power.

The operator has to make sure that safety-relating and machine-technical installations are to be inspected

by an expert after every four years in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are to be inspected

by a skilled person once a year.

The following points have to be considered during the inspection:

1. All screws used for installing the device or parts of the device have to be tightly connected and must

not be corroded.

2. There may not be any deformations on housings, fixations and installation spots.

3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing.

4. The electric power supply cables must not show any damages or material fatigue.

Troubleshooting

No Laser

This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps

below in sequence until a solution is found. Once the unit operates properly, do not carry out following

steps.

If the light effect does not operate properly, refer servicing to a technician.

Response: Suspect two potential problem areas: the power supply or the lamp.

1. Power supply. Check that the unit is plugged into an appropriate power supply.

2. The Laser. Return the device to your Showtec dealer.

Product Specification

Model: Showtec Pocket LaserBeam

Power: 240V-50Hz (CE)

Batteries: 4x AAA

Dimensions: 145x105x60mm (LxWxH)

Weight: 0,24 kg

Laser

Red 5 mW Laser (650nm Class IIIA)

Minimum distance:

Minimum distance from flammable surfaces: 0.5m

Minimum distance to lighted object: 0.8m

Design and product specifications are subject to change without prior notice.

2005 Showtec.
