Explorer 575 Spot

ORDERCODE 40191

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Explorer 575 brings excitement to any venue. Whether you want simple plug-&-play action or

a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: [email protected]

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Explorer 575™Product Guide

Warning..…...................................................................................…………………………………………..

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Rigging………………………………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features and Overview ………………………………...….……………….………….………………….….

Backside…………………………………………………...…...….……………….…………………...….….

Installation...............................................................................…...…………………………………….…..

Installing the Lamp ........................................................………………………………………..…………

Lamp Adjustment.….......................................................………………………………………..…………

Set Up and Operation.....................................................................……..……………………………….…

One Explorer ............................................................................……………………………………………

Multiple Explorers..............................................................................……………………………………..

DMX-Protocol…...................................................…………………………………………………………….

Control Panel….............……....................................……………………………………………………….

Control Mode........................................………………………………………………………………………

DMX addressing...................................………………………………………………………………………

Stand – alone mode...................................………………………………………………………………….

Functions control panel...................................………………………………………………………………

Channel settings………………………………………………………………………………………………..

Maintenance...................................................................................………..………….…….………………

Changing the Lamp........................................................................…………………….…………………

Replacing the Fuse........................................................................…………………….…………………

Replacing a Gobo….......................................................................…………………….…………………

Troubleshooting............................................................................………………….………………….…..

No Light, No Movement - All Products............................................………………….…………………..

No Response to DMX ....................................................................………………….…………………..

Product Specifications.................................................................……………….…….…………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Never run the device without lamp!

•Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may

expose and emit a high ultraviolet radiation, which may cause burns.

•Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always

hold the fixture at the transport handles.

•Never place any material over the lens.

•Never look directly into the light source.

•Never leave any cables lying around.

•Never unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.

•Do not insert objects into air vents.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Allow the fixture to cool for at least 5 minutes before handling.

•Do not shake the device. Avoid brute force when installing or operating the device.

CAUTION!

Keep this device away from rain and moisture!

mains lead before o

enin

the housin

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

•Only use device indoor, avoid contact with water or other liquids.

•Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always replace the lamp, when it is damaged or deformed due to the heat.

•Always keep case closed while operating.

•Always allow free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

•To ensure the longest and most efficient use of the lamp always wait 15 minutes before re-applying

power after a shutdown. Failure to do so could result in premature aging of the lamp and failure to

the electronics that drive it.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

•If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to

cracks or deep scratches.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. Movinghead must be installed out of the reach of children. Never leave the unit

running unattended.

•Never attempt to bypass the thermostatic switch or fuses.

•For replacement use lamps and fuses of same type and rating only.

•Replace the lamp if it becomes defective or worn out, or before usage exceeds the maximum service

life.

•Allow the fixture to cool down for 15 minutes, before opening the fixture and replacing lamp. Protect

your hands and eyes with gloves and safety glasses.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the device

will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 2 meters.

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(

meant es

eciall

for e

ile

tics

)

The maximum ambient temperature tamust never be exceeded.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•If the projector is lowered from the ceiling or high joists, professional trussing systems have to be

used.

•Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.

•The projector must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

•When rigging, derigging or servicing the projector, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

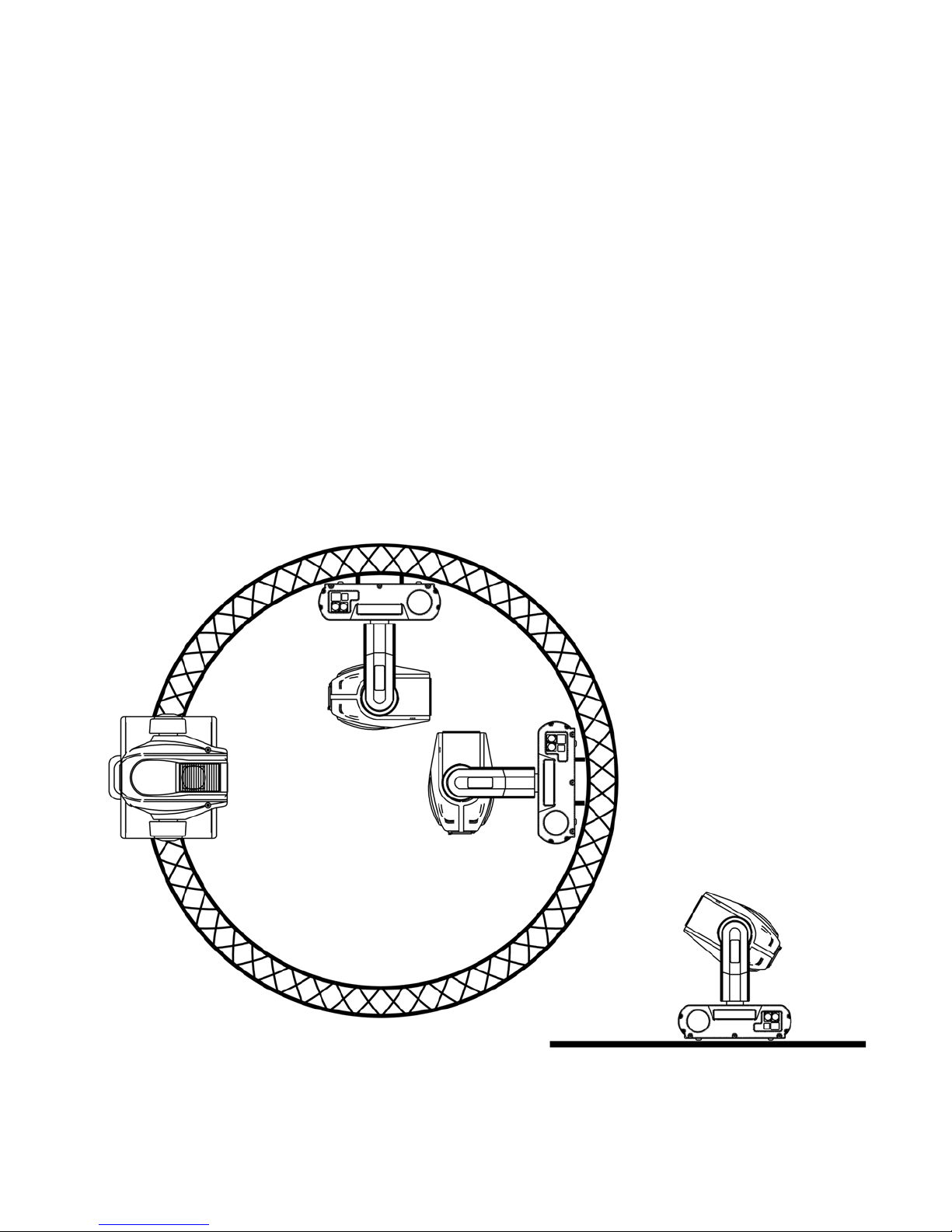

The Explorer can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

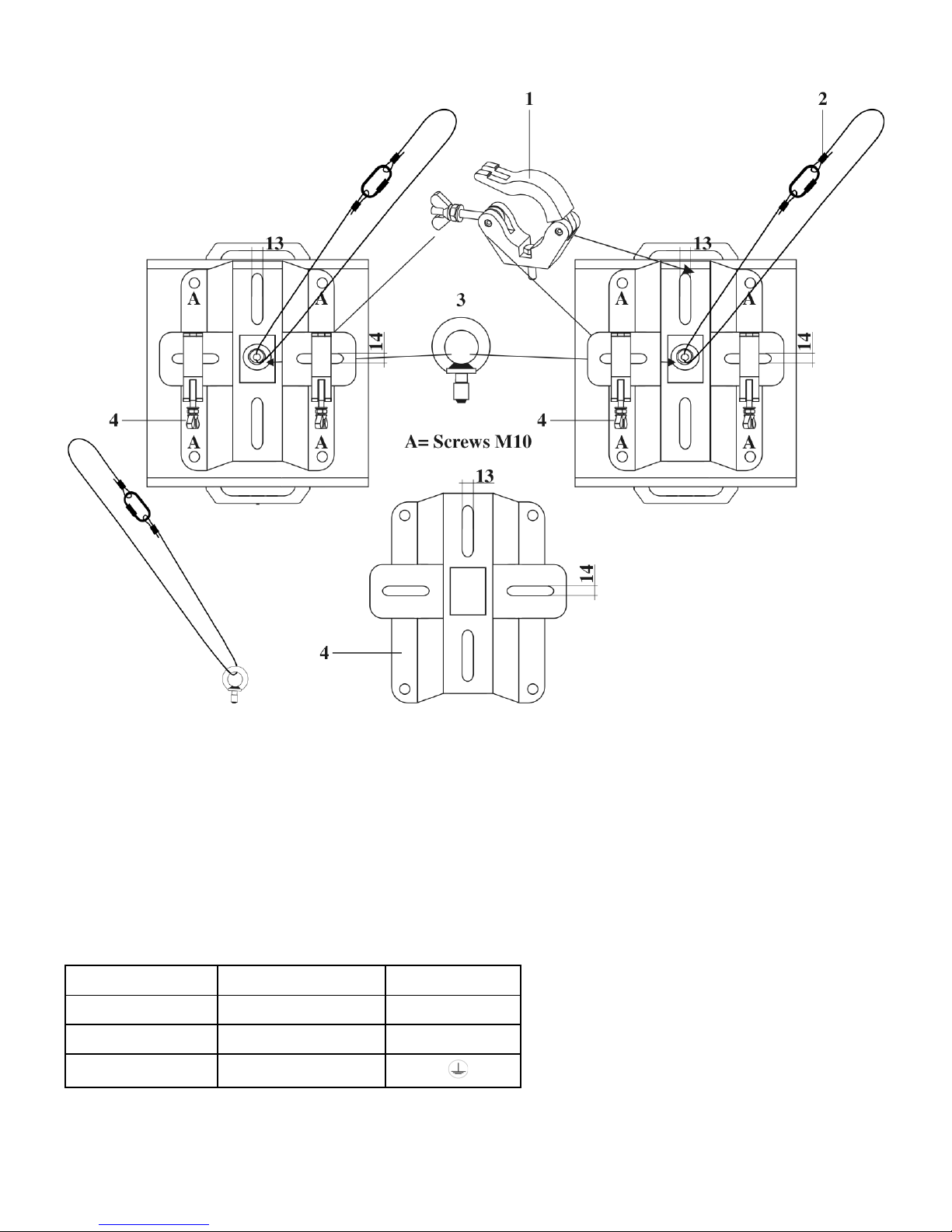

Mounting a clamp to the underside of the Explorer moving head

1) Clamp

2) Safety-cable

3) Eye bolt

4) Mounting plate

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

Wire Color Pin International

Brown Fase / Live L

Blue Nul / Neutral N

Yellow / Green Earth / Ground

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Showtec Explorer 575 is a moving head with high output and great effects.

• 1 Rainbow Color-wheel with 9 colored gobos, and open

• 1 Static Color-wheel with 7 colored gobos, 3200ºK, 6000ºK and open

• 1 Rotating Gobo-wheel with 3 glass and 3 metal interchangeable rotating gobos plus open

• 1 Static Gobo-wheel with 9 gobos plus open

• DMX-control via standard DMX-controller

• 16 DMX-control channels required

• Strobe-effect with adjustable speed (1 - 10 flashes/sec.)

• Electronic focus

• Pan 0º -- 530º

• Tilt 0º -- 280º

• Lamp MSR 575

• Fuse T10A / 250V

Overview

Fig. 1

1) Lens

2) Display

3) Menu / Select buttons

Backside

4 5 6 7 Fig. 2

4) DMX signal connector (OUT)

5) DMX signal connector (IN)

6) ON / OFF

7) Fuse

Installation

Installing the Lamp

The Showtec Explorer 575 uses the MSR 575 (ordercode 80915P / 80915O) bulb as manufactured by all

popular manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the

device was not designed for.

Damages caused by non-observance are not subject to warranty.

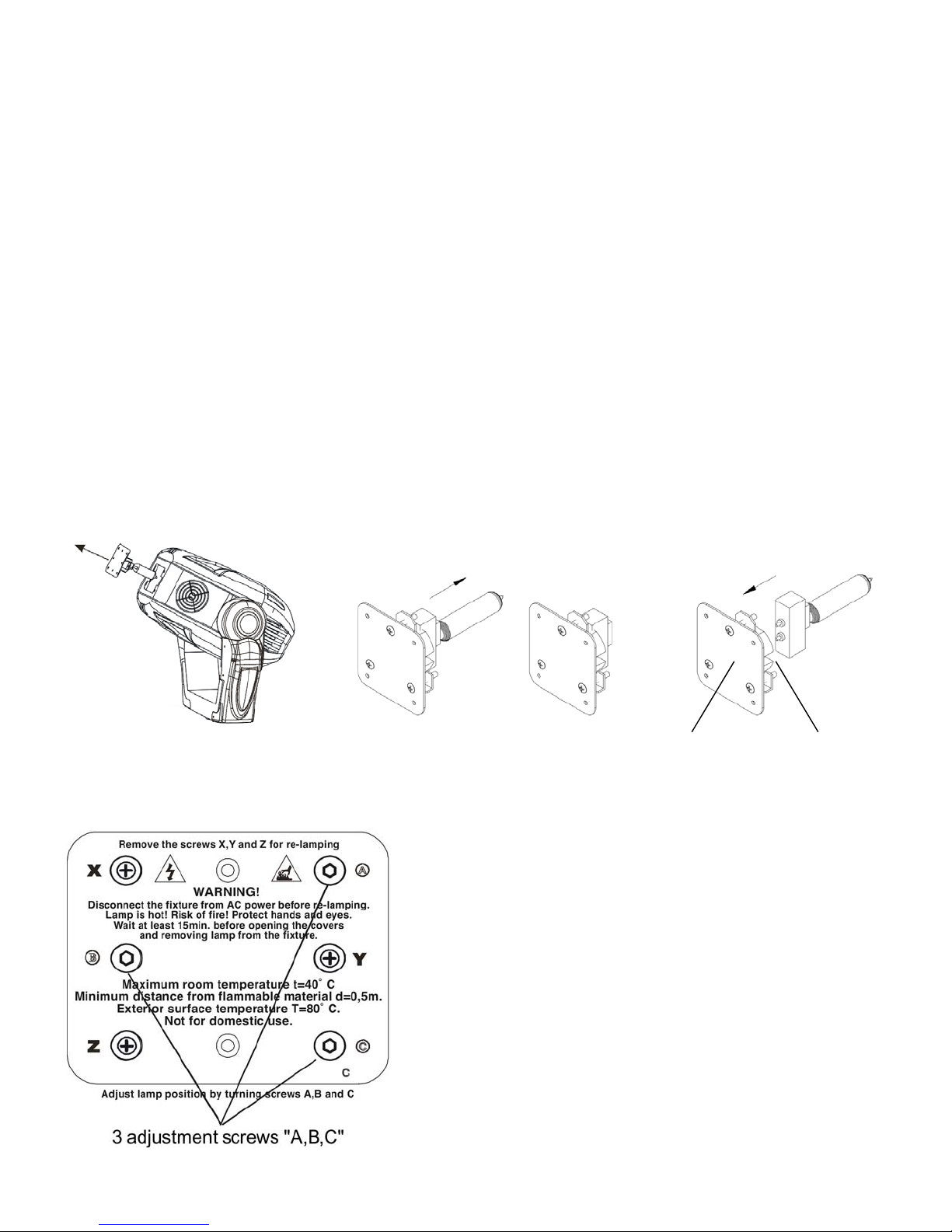

Procedure :

1. Loosen the 3 screws ( X, Y, Z) on the backside of the lamp cover. See Fig. 4

2. Gently pull out the lamp board.

3. Read lamp instructions. Do not touch the lamp bulb glass. (See Figure 3.)

Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free

towel and rubbing alcohol.).

4. Insert the lamp pins into the small holes in the lamp socket. You can adjust the distance between the

lamp and the lens (screw A) on the back.

5. Put the lamp board back and fasten the screws snugly.

Lamp board Lamp holder

1 2 3 4

Fig. 3

Backside Lamp Board

Fig. 4

Table des matières

Autres manuels Show Tec Équipement d'éclairage

Show Tec

Show Tec SharkSpot Two V1 Manuel utilisateur

Show Tec

Show Tec Explorer 1200 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 15WW Manuel utilisateur

Show Tec

Show Tec Parcan 36 Pinspot V1 Manuel utilisateur

Show Tec

Show Tec Expression 33000 ZoomRGBWA V2 Manuel utilisateur

Show Tec

Show Tec Spectral PC 1200Z IP V1 Manuel utilisateur

Show Tec

Show Tec Light Desk Pro 136 Manuel utilisateur

Show Tec

Show Tec Aircone Q6 WDMX Manuel utilisateur

Show Tec

Show Tec Galactic RGB-6-751 V1 Manuel utilisateur

Show Tec

Show Tec Performer 1500 Fresnel Tungsten Manuel utilisateur

Show Tec

Show Tec DDP-1220 Manuel utilisateur

Show Tec

Show Tec 51337 Manuel utilisateur

Show Tec

Show Tec Compact Power Lightset V@ Manuel utilisateur

Show Tec

Show Tec Compact Blinder 2 Manuel utilisateur

Show Tec

Show Tec Cedda 100W LED Floodlight V1 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 15CW Manuel utilisateur

Show Tec

Show Tec Spectral M3000 Q4 IP V1 Manuel utilisateur

Show Tec

Show Tec Galactic GBC-120 Manuel utilisateur

Show Tec

Show Tec Compact Par 108/10 Value Line Manuel utilisateur

Show Tec

Show Tec Colour Star Sky II DMX V4 Manuel utilisateur

Show Tec

Show Tec 604083 Manuel utilisateur

Show Tec

Show Tec LED Par 38 Manuel utilisateur

Show Tec

Show Tec Pixelstrip 20 Manuel utilisateur

Show Tec

Show Tec Sky Rose 2500 V1 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
