Starzone Inferno DMX

ORDERCODE 31323

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Inferno brings excitement to any venue. Whether you want simple plug-&-play action or a

sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Inferno™Product Guide

Warning.................................................................................…...……………..…………………………….………..…..

Safety-instructions…………………………………………………………………………………………………………

Operating Determinations.……………………………………………………………………………………………..

Rigging.……………………………………………………………………………………………………………………..

Description...............................................................................…...………………………………………….………..…

Features and Overview ………………………………...….……………….………….……….……….………………

Backside…………………………………………………...…...….……………….…………………...……………….…

Installation...............................................................................…...…………………………………………………..…..

Installing the Lamp ........................................................…………………………………………………….………..

Set Up and Operation...............................................................................................................................................

One Inferno……....................................................................................................................................................

Multiple Inferno’s.……..........................................................................................................................................

DMX-Protocol.............................................................................................................................................................

DMX Channels......................................................................................................................................................

Control Mode.......................................................................................................................................................

DMX Addressing...................................................................................................................................................

Control Board…....................................................................................................................................................

Maintenance...................................................................................………..………….…….……………………..……

Changing the Lamp........................................................................…………………….………………...…………

Replacing the Fuse........................................................................…………………….…………………………….

Troubleshooting............................................................................………………….………………….…………………

No Light............................................………………….………………………………………………………………….

Product Specifications.................................................................……………….…….…………………………………

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never run the device without lamp!

Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may

expose and emit a high ultraviolet radiation, which may cause burns.

Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged.

Always hold the fixture at the transport handles.

Never look directly into the light source.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

Always replace the lamp, when it is damaged or deformed due to the heat.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

Make sure you clean the fan once a month. Otherwise dust will cause the fan to stop and the

device will become damaged due to overheating. Then the warranty will become void.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due

to cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use lamps and fuses of same type and rating only.

Allow time to cool down, before replacing lamp.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 0.8 meter.

The maximum ambient temperature tamust never be exceeded.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash

etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the projector is lowered from the ceiling or high joists, professional trussing systems have to be

used.

Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.

The projector must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the projector, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Showtec Inferno is a lighteffect with high output and great effects.

• Standalone mode

• DMX-512

• 1channels

• Variable direction and variable speed

• Flowing Fire Effect

• Fixed Colour

• LCD Display

• Variable focus

• Lamp: EFP GZ6.35 12V 100W (not included) Ordercode: 80810 / 80810O / 80810S / 82399 / 82403

• Fuse F1A / 250V

• Optional Flightcase available (D7578)

Overview

Fig. 1

1) Mounting bracket

2) Lens

3) Fixation screw

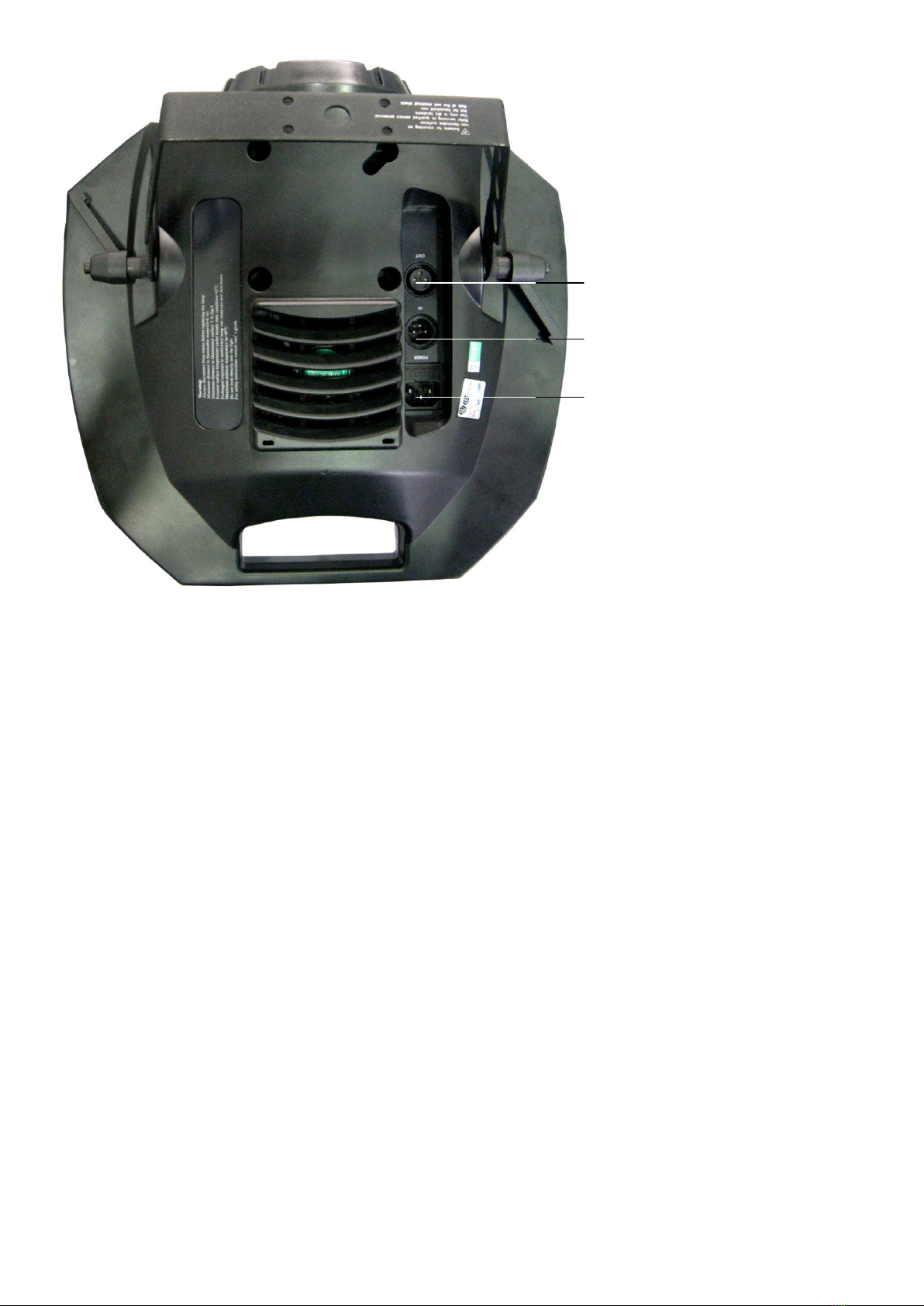

Backside

Fig. 2

4) DMX signal connector (OUT)

5) DMX signal connector (IN)

6) IEC Power connector + Fuse

Installation

Installing the Lamp

The Showtec Inferno uses the EFP GZ6.35 12V 100W (80810 / 80810O / 80810S / 82399 / 82403)

reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the

device was not designed for.

Damages caused by non-observance are not subject to warranty.

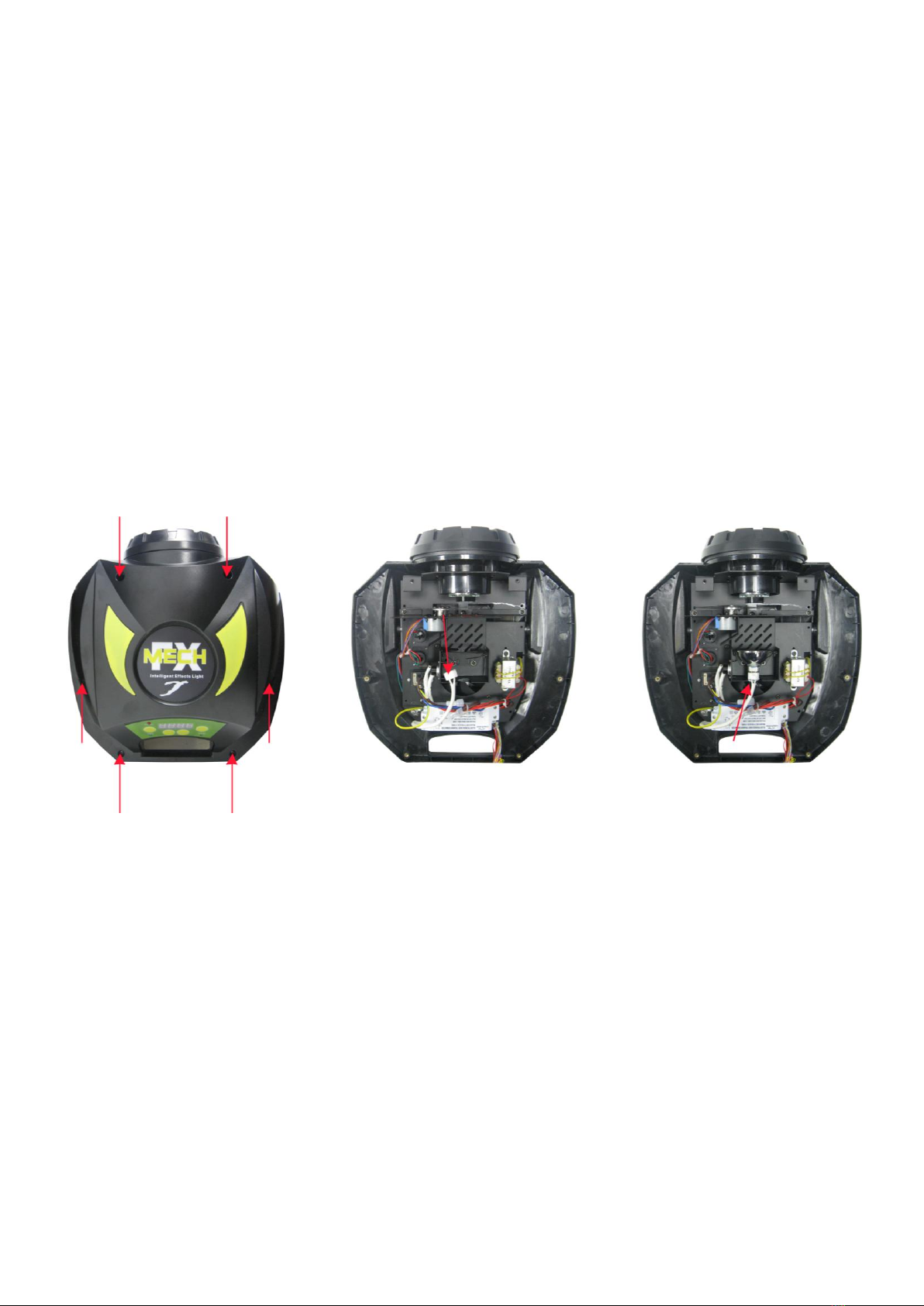

Procedure :

1. Loosen the 6 screws on the back of the housing.

2. Gently remove the plastic housing.

3. Read lamp instructions. Do not touch the lamp bulb glass. (See Figure 3.)

Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free

towel and rubbing alcohol.).

4. Insert the lamp pins into the small holes in the lamp socket.

5. Push the metal housing back and fasten the screws snugly.

Fig. 3

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

The Inferno is a simple plug-&-play device. After you have connected this device, all you have to do is,

turn one of the 2 controls. With the top control you can control the speed, with the bottom control you

can control the Sound activity.

One Inferno

1. Fasten the Inferno onto firm trussing. Leave at least 1 meter on all sides for air circulation.

2. Plug one end of the electric mains power cord into the IEC socket on the unit.

Then plug the other end of the cord into a proper electric power supply socket.

3. If the display shows , you can change the speed of the gobo-wheel by using the

Up/Down buttons.

Multiple Inferno’s

1. Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.

2. Use a 3-p XLR cable to connect the Inferno’s and other devices.

The pins:

1. Earth

2. Signal -

3. Signal +

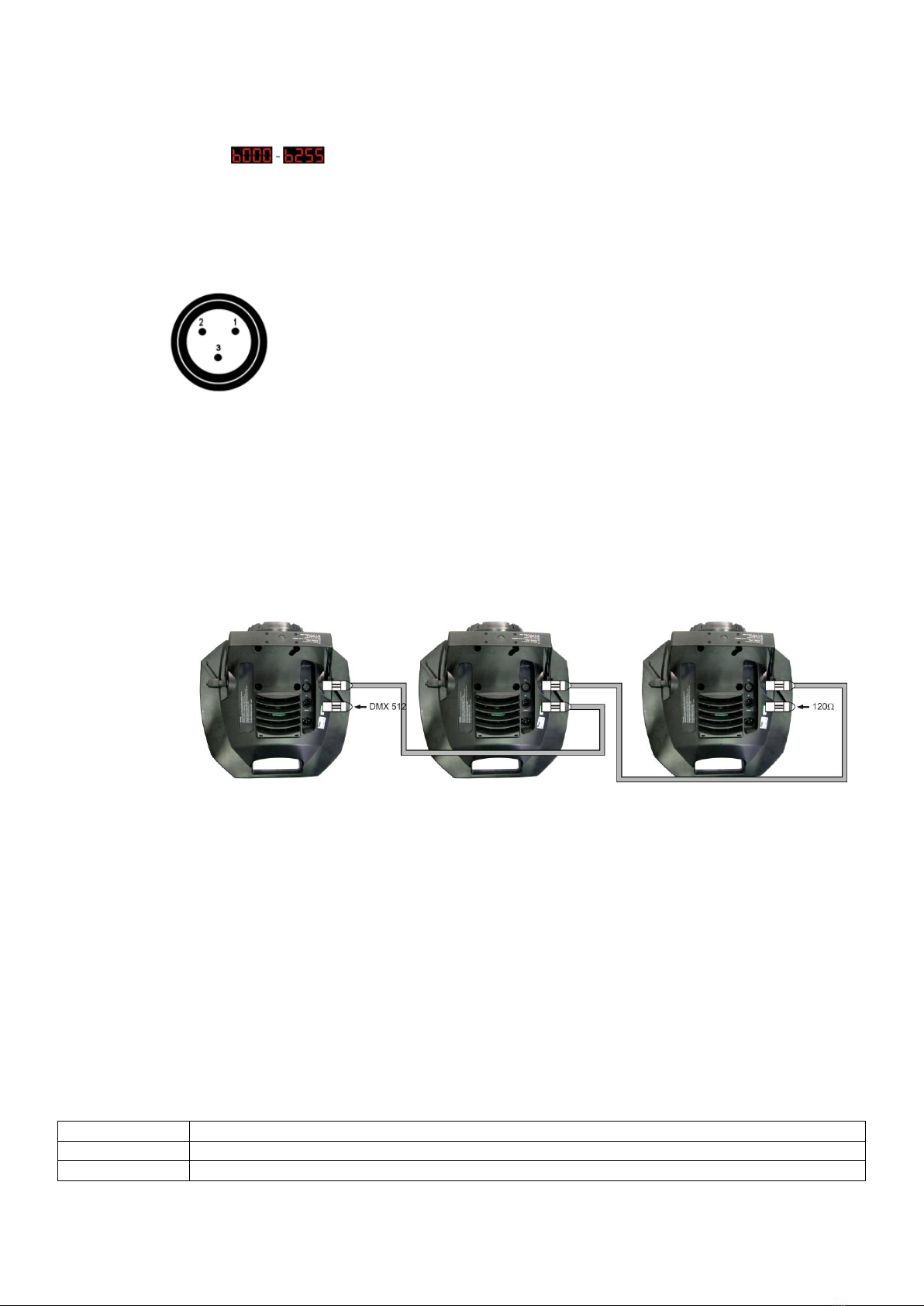

3. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to

the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

4. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other

end of the mains power cord into proper electric power supply sockets, starting with the first unit. Do

not supply power before the whole system is set up and connected properly.

Multiple Inferno’s Set Up

DMX-Set up

Fig. 4

Note : Link cables before connecting electric power

DMX Protocol

The Inferno can be operated with a controller in control mode or without the controller in stand-alone

mode.

DMX Channels

Channel 1 - Dimmer / Shutter

Stop

1-127

Forwards continuous rotating from slow to fast

128-255

Backwards continuous rotating from fast to slow

Table des matières

Autres manuels Show Tec Projecteur

Show Tec

Show Tec Compact Par 7x CW/WW V1 Manuel utilisateur

Show Tec

Show Tec 50463 Manuel utilisateur

Show Tec

Show Tec Compact Par 36 CW Manuel utilisateur

Show Tec

Show Tec Spectral M950 SW Manuel utilisateur

Show Tec

Show Tec galactic RGB 720 Manuel utilisateur

Show Tec

Show Tec Spectral D4000 Manuel utilisateur

Show Tec

Show Tec Compact Lightset MKII Manuel utilisateur

Show Tec

Show Tec Spectral CYC2000 Manuel utilisateur

Show Tec

Show Tec 43632 Manuel utilisateur

Show Tec

Show Tec HQ-150 A-symmetric V1 Manuel utilisateur

Show Tec

Show Tec Club Par 12/4 RGBW Manuel utilisateur

Show Tec

Show Tec Dream Dancer DMX MKII V1 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 6 Q6 Tour Manuel utilisateur

Show Tec

Show Tec Expression 5000 Manuel utilisateur

Show Tec

Show Tec Parcan 36 Short V1 Manuel utilisateur

Show Tec

Show Tec Multidim MKII Manuel utilisateur

Show Tec

Show Tec StageBeam 300/500W PC Manuel utilisateur

Show Tec

Show Tec XB-Dreamer DMX V2 Manuel utilisateur

Show Tec

Show Tec Parcan 64 Long Terminalset V1 Manuel utilisateur

Show Tec

Show Tec Performer Profile 600 Q4 Manuel utilisateur

Show Tec

Show Tec gatactic RGB-600 value series Manuel utilisateur

Show Tec

Show Tec Zipp LED DMX Manuel utilisateur

Show Tec

Show Tec Performer Fresnel Mini Manuel utilisateur

Show Tec

Show Tec Parcan 64 COB UV Manuel utilisateur

Manuels Projecteur populaires d'autres marques

VIZULO

VIZULO Micro Martin Guide de l'utilisateur

EuroLite

EuroLite LED IP FL-100 SMD Manuel utilisateur

Cooper Wheelock

Cooper Wheelock XB12 Manuel utilisateur

Allen + Roth

Allen + Roth 17624-000 Manuel utilisateur

ADJ

ADJ 4 STAGE PAK Manuel utilisateur

Cooper Lighting

Cooper Lighting EGL91SW233 Manuel utilisateur

Max

Max 37496 Manuel utilisateur

BEGA

BEGA 85 143 Manuel utilisateur

Beamz

Beamz 151.226 Manuel utilisateur

EuroLite

EuroLite LED IP FL-8 Manuel utilisateur

Ledj

Ledj PERFORMER 36 RGB Manuel utilisateur

Perel

Perel ELS3 Manuel utilisateur

Perel

Perel ELS3WD Manuel utilisateur

LumX

LumX LM 36130 Manuel utilisateur

Xtricity

Xtricity 4-80053 Manuel utilisateur

Stahl

Stahl 6521/4 Series Manuel utilisateur

Ecosense

Ecosense EcoSpec Manuel utilisateur

Ayrton

Ayrton minipanel FX Manuel utilisateur
