Show Tec Multidim MKII Manuel utilisateur

Multidim V3

ORDERCODE 50391

Highlite International B.V.

Vestastraat 2

6468 EX Kerkrade

The Netherlands

Phone: +31 45-5667700

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Multidim brings excitement to any venue. Whether you want simple plug-&-play action or a

sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Multidim™Product Guide

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Return Procedure..........................................................................................................................................................4

Claims..............................................................................................................................................................................4

Description of the device.................................................................................................................................................5

Overview ........................................................................................................................................................................5

Installation...........................................................................................................................................................................5

Set Up and Operation.......................................................................................................................................................6

Menu Overview.............................................................................................................................................................6

Maintenance......................................................................................................................................................................8

Replacing a Fuse ..........................................................................................................................................................8

Troubleshooting..................................................................................................................................................................8

No Response to DMX....................................................................................................................................................8

Product Specification .......................................................................................................................................................9

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• Multidim MKII with 1,8m cable

• User manual

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

Never use anything to cover the ground contact.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the device’s life.

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Device must be installed out of the reach of children. Never leave the unit

running unattended.

Never attempt to bypass the thermostatic switch or fuses.

For replacement use fuses of same type and rating only.

The user is responsible for correct positioning and operating of the Multidim. The manufacturer will

not accept liability for damages caused by the misuse or incorrect installation of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash

etc. You endanger your own safety and the safety of others!

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

• 4 Channel dimmer / switchpack

• Max 1449 Watt per Channel (6.3A per channel max)

• Max Load 3680 Watt (at 230V)

• 4 Shuko outputs

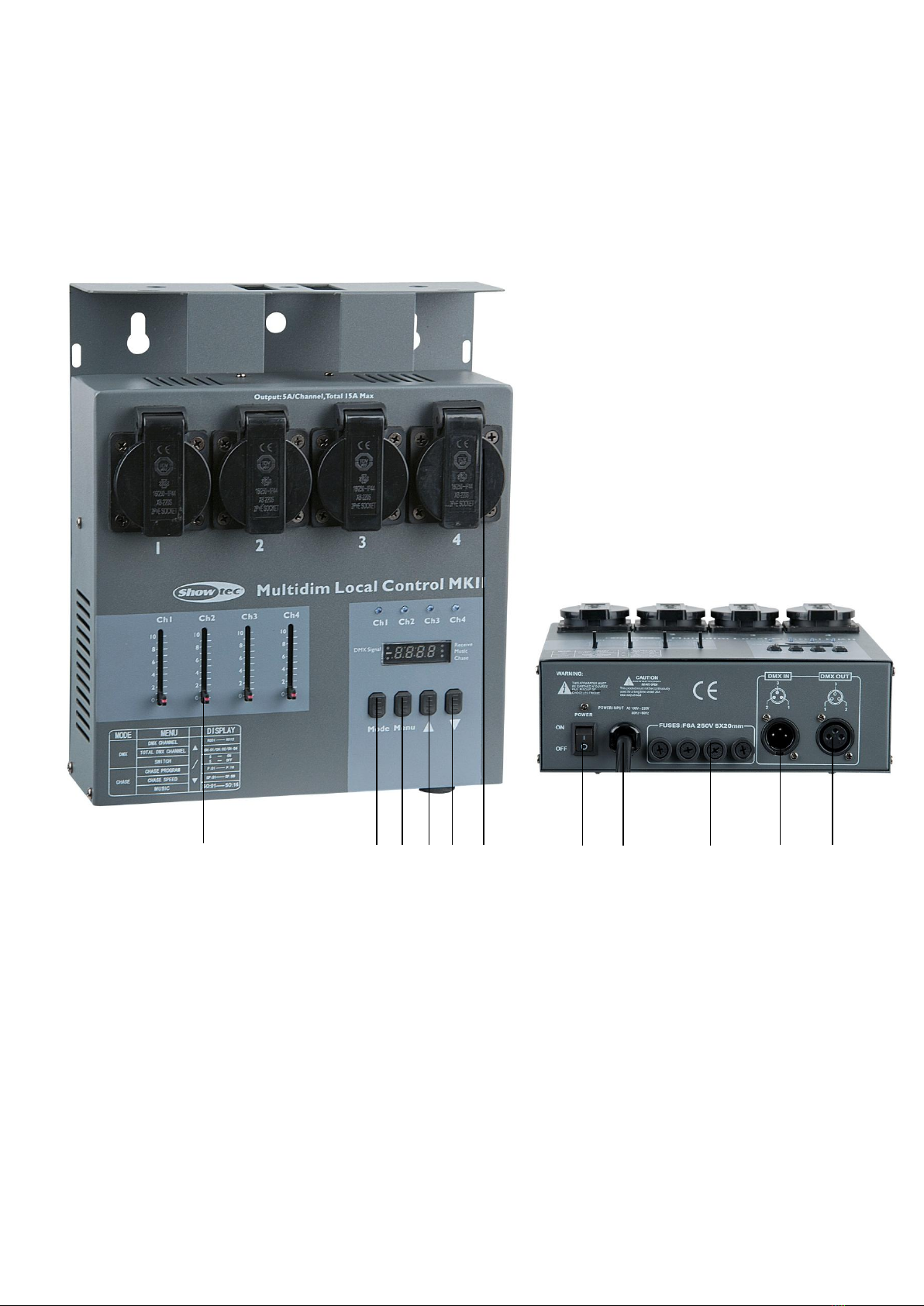

Overview

Fig. 1

1 2 3 4 5 6 7 8 9 10 11

1) Channel Faders 7) Power ON/OFF

2) Mode Button 8) Power 230V

3) Menu Button 9) Channels Fuses 6.3A 250V

4) UP Button 10) DMX IN

5) Down Button 11) DMX OUT

6) 4x Schuck Outputs

Installation

Remove all packing materials from the Multidim. Check that all foam and plastic padding is removed.

Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply. The device can be music-controlled by its built-in

microphone.

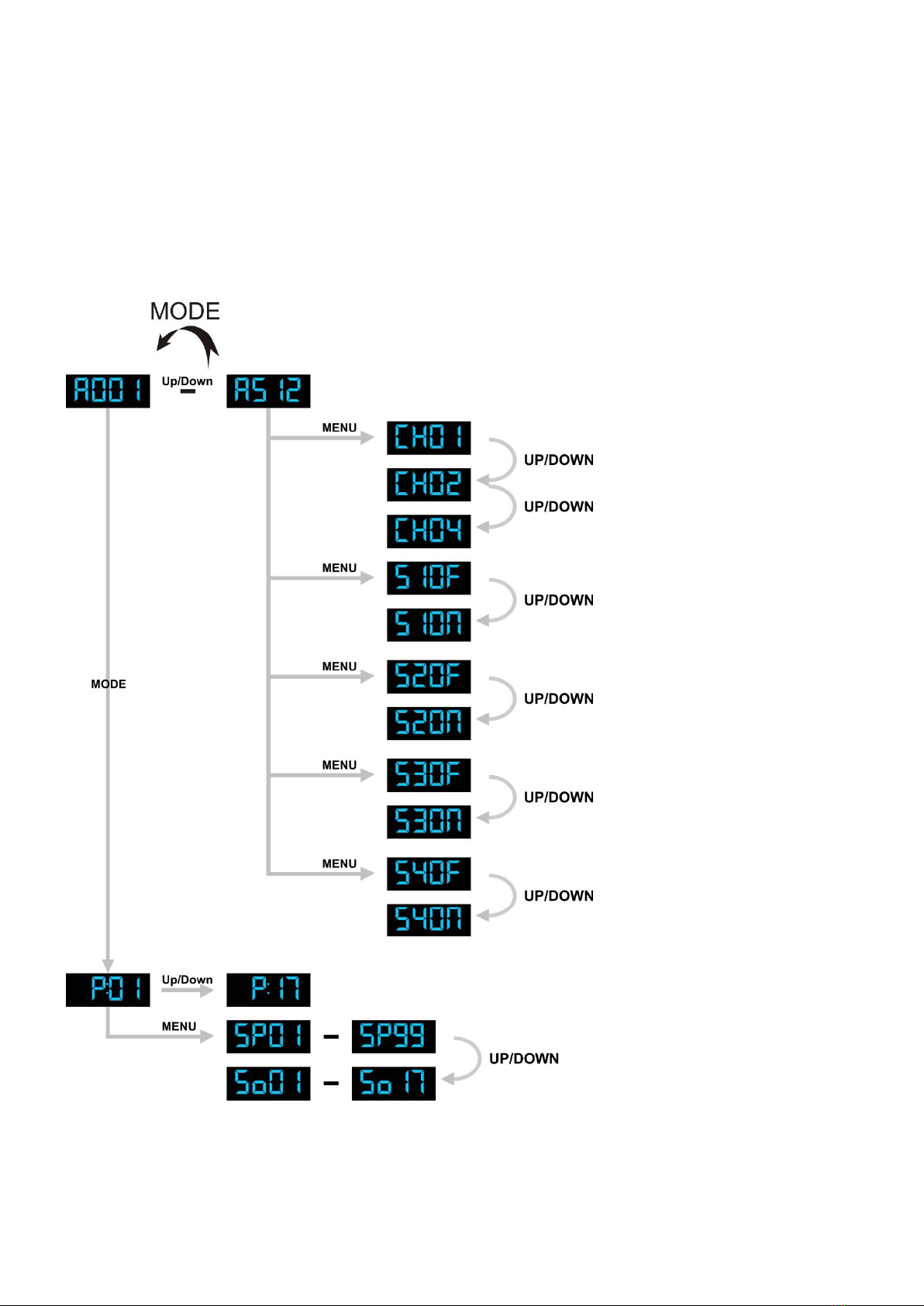

Menu Overview

P01-P16 Chase Programs; You can set the chase speed of these programs.

P17 Full On. The Speed has no function.

1. Press the “MENU” button to go to the submenu.

CH: XX Set total DMX Channels for this dimmer pack

CH: 01 Dimmer pack has 1 DMX channel, controlling all 4 outputs together.

CH: 02 Dimmer pack has 2 DMX channels to control the outputs.

Dimmer pack is divided into 2 groups, both containing two channels.

CH: 04 Dimmer pack has 4 DMX channels. All 4 outputs can be controlled

separately.

2. In DMX mode press “MENU” to set the dimmer pack in switch or in dimmer mode

S1OF Dimmer acts as dimmer pack

S1ON Dimmer acts as switch pack (0-127 no function; 128-255 ON)

3. When the dimmer is in P: XX mode, it is in stand-alone mode. Press UP/DOWN buttons to scroll

through the internal programs, P1~17

4. When you are in stand-alone mode, press “MENU” to enter the submenu’s :

SP:01~99 press UP or DOWN to control the speed of the programs

So:01~17 press UP or DOWN to choose an internal sound triggered

program.

After power is switched off or there has been a power failure, the multidim will return to the last setting.

Manual Dim Control

When you are in Program 17, you can ONLY use the channel faders to dim the power to the 4 schucko

outputs. Dimmable from 0-100%. The Speed has no function in Program 17

Maintenance

The operator has to make sure that safety-relating and machine-technical installations are to be

inspected by an expert after every year in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are to be

inspected by a skilled person once a year.

The following points have to be considered during the inspection:

1. All screws used for installing the device or parts of the device have to be tightly connected and must

not be corroded.

2. There may not be any deformations on housings, fixations and installation spots.

3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing.

4. The electric power supply cables must not show any damages or material fatigue.

The Showtec Multidim requires almost no maintenance. However, you should keep the unit clean.

Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in

liquid. Do not use alcohol or solvents.

Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections

with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying

electric power.

Replacing a Fuse

Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the

fuse burns out, the product will not function whatsoever. If this happens, follow the directions below to do

so.

1. Unplug the unit from electric power source.

2. Insert a screwdriver into the slot in the fuse cover. Turn the screwdriver to the left, at the same time.

Gently push a bit (Turn and Push). The fuse will come out.

3. Remove the used fuse. If brown or unclear, it is burned out.

4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to

use a fuse of the same type and specification. See the product specification label for details.

Troubleshooting

This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps

below in sequence until a solution is found. Once the unit operates properly, do not carry out following

steps.

If the light effect does not operate properly, refer servicing to a technician.

Response: Suspect two potential problem areas: the power supply, the lamp, the fuse.

1. Power supply. Check that the unit is plugged into an appropriate power supply.

2. The fuse. Replace the fuse. See page 8 for replacing the fuse.

No Response to DMX

Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card

malfunction.

1. Check the DMX setting. Make sure that DMX addresses are correct.

2. Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.

Try your DMX control again.

3. Determine whether the controller or light effect is at fault. Does the controller operate properly with

other DMX products ? If not, take the controller in for repair. If so, take the DMX cable and the light

effect to a qualified technician.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Projecteur

Show Tec

Show Tec gatactic RGB-600 value series Manuel utilisateur

Show Tec

Show Tec Ignitor-6 Section Strobe Manuel utilisateur

Show Tec

Show Tec Infinity iS-100 Manuel utilisateur

Show Tec

Show Tec Club Par 18 Manuel utilisateur

Show Tec

Show Tec Compact Par 36 CW Manuel utilisateur

Show Tec

Show Tec quadro flower v2 Manuel utilisateur

Show Tec

Show Tec Power Spot 6 Q5 Manuel utilisateur

Show Tec

Show Tec Spectral CYC2000 Manuel utilisateur

Show Tec

Show Tec Parcan 20 Long V1 Manuel utilisateur

Show Tec

Show Tec 42593 Manuel utilisateur

Show Tec

Show Tec Spider LED Manuel utilisateur

Show Tec

Show Tec Club Par 12/4 RGBW Manuel utilisateur

Show Tec

Show Tec Power Spot 3 Q5 V1 Manuel utilisateur

Show Tec

Show Tec compact par 7 MKII Manuel utilisateur

Show Tec

Show Tec Expression 5000 Manuel utilisateur

Show Tec

Show Tec Dream Dancer DMX MKII V1 Manuel utilisateur

Show Tec

Show Tec Parcan 64 Long Terminalset V1 Manuel utilisateur

Show Tec

Show Tec Compact Lightset MKII Manuel utilisateur

Show Tec

Show Tec 43632 Manuel utilisateur

Show Tec

Show Tec Parcan 64 COB UV Manuel utilisateur

Show Tec

Show Tec Compact Par 18 Tri MKII Manuel utilisateur

Show Tec

Show Tec Calypso 43104 Manuel utilisateur

Show Tec

Show Tec Spectral M950 SW Manuel utilisateur

Show Tec

Show Tec Cedda 200W LED Floodlight V1 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

VIZULO

VIZULO Micro Martin Guide de l'utilisateur

EuroLite

EuroLite LED IP FL-100 SMD Manuel utilisateur

Cooper Wheelock

Cooper Wheelock XB12 Manuel utilisateur

Allen + Roth

Allen + Roth 17624-000 Manuel utilisateur

ADJ

ADJ 4 STAGE PAK Manuel utilisateur

Cooper Lighting

Cooper Lighting EGL91SW233 Manuel utilisateur

Max

Max 37496 Manuel utilisateur

BEGA

BEGA 85 143 Manuel utilisateur

Beamz

Beamz 151.226 Manuel utilisateur

EuroLite

EuroLite LED IP FL-8 Manuel utilisateur

Ledj

Ledj PERFORMER 36 RGB Manuel utilisateur

Perel

Perel ELS3 Manuel utilisateur

Perel

Perel ELS3WD Manuel utilisateur

LumX

LumX LM 36130 Manuel utilisateur

Xtricity

Xtricity 4-80053 Manuel utilisateur

Stahl

Stahl 6521/4 Series Manuel utilisateur

Ecosense

Ecosense EcoSpec Manuel utilisateur

Ayrton

Ayrton minipanel FX Manuel utilisateur
