Show Tec Small mushroom LED Manuel utilisateur

Small Mushroom LED

ORDERCODE 43040

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Small Mushroom LED brings excitement to any venue.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Small Mushroom LED™Product Guide

Warning.................................................................................…...……………..…………………………….………..….

Safety-instructions…………………………………………………………………………………………………………

Operating Determinations.………………………………………………………………………………………………

Rigging.………………………………………………………………………………………………………………………

Return Procedure……………………………………………………………………………......................................

Claims……………………………………………………………………………..........................................................

Description...............................................................................…...………………………………………….………..…

Features and Overview ………………………………...….……………….………….……….……….………………

Backside…………………………………………………...…...….……………….…………………...….………………

Installation...............................................................................…...…………………………………….…………………

Set Up and Operation.....................................................................……..………………………………………………

Maintenance...................................................................................………..………….…….………………………….

Troubleshooting............................................................................………………….………………….………………...

No Light, No Movement - All Products............................................………………….…………………………....

Product Specifications.................................................................……………….…….………………………………...

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• Small Mushroom LED

• User manual

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device have to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never leave any cables lying around.

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not open the device and do not modify the device.

Never use the device during thunderstorms, unplug the device immediately.

Never look directly into the light source.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Avoid flames and do not put close to flammable liquids or gases.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

Only install the device with the hanging-bracket.

If the external cable is damaged, it has to be replaced by a qualified technician.

If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due

to cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Light effect must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

The user is responsible for correct positioning and operating of the Small Mushroom LED. The

manufacturer will not accept liability for damages caused by the misuse or incorrect installation

of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 0.5 meter.

The maximum ambient temperature ta= 45°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the Small Mushroom LED is lowered from the ceiling or high joists, professional trussing systems

have to be used.

Use a clamp to mount the Small Mushroom LED, with the mounting-bracket, to the trussing system.

The Small Mushroom LED must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the device, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The Showtec Small Mushroom LED is a light effect with high output and great effects.

• 15 multi-coloured beams

• Power consumption: 30 Watt

• DC motor：DC12V 70 rpm

• LED system: 2 pcs 9 Watt RGB Chip on board

• Music-controlled via built-in microphone

• When no music is played the LEDs and DC Motor turn off after 10 seconds

• Fuse 1A / 250V

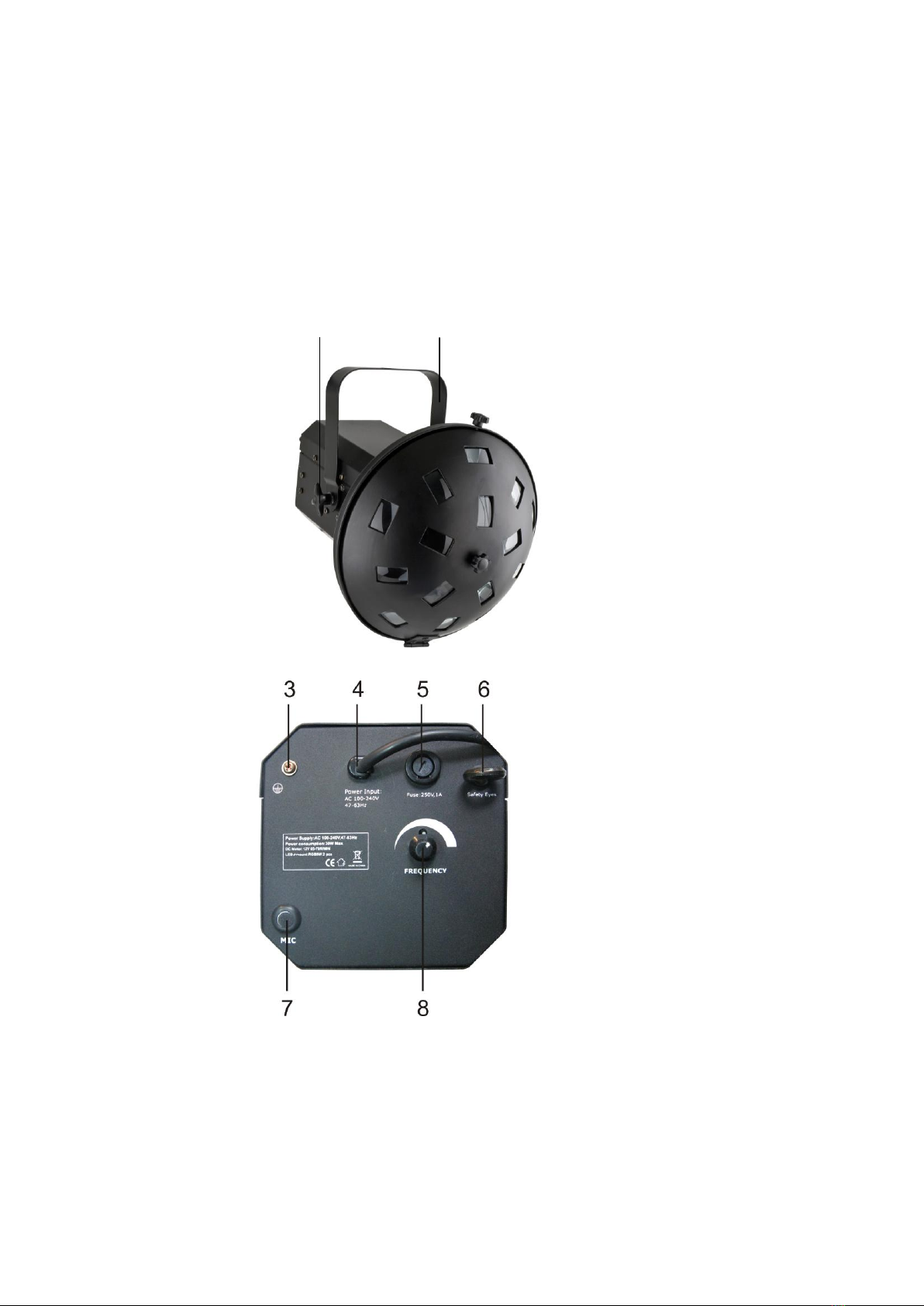

Overview 1 2

Fig. 1

Backside

Fig. 2

1) Fixation screws 5) Fuse 1A/250V

2) Mountingbracket 6) Safety eye

3) Earth connection 7) Built-in microphone

4) Power cable 8) Audio Sensitivity

Installation

Remove all packing materials from the Small Mushroom LED Medium. Check that all foam and plastic

padding is removed. Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

When the mounting bracket (2) isn’t fitted, you will have to fit the mounting bracket first.

Warning: Only install the device with the mounting-bracket.

Connect the device to the main power supply. The device is music-controlled by its built-in microphone

(7). The audio sensitivity control (8) allows you to adjust the sensitivity of the device. A clockwise

movement increases the sensitivity.

NOTE: When there is no sound the LEDS will dim. As soon as the music is turned on again, the LEDs will go

on.

Maintenance

The Showtec Small Mushroom LED requires almost no maintenance. However, you should keep the unit

clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power

supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass

cleaner and a soft cloth. Do not use alcohol or solvents. Keep connections clean. Disconnect electric

power, and then wipe the connections with a damp cloth. Make sure connections are thoroughly dry

before linking equipment or supplying electric power.

The operator has to make sure that safety-relating and machine-technical installations are to be

inspected by an expert after every four years in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are to be

inspected by a skilled person once a year.

The following points have to be considered during the inspection:

1. All screws used for installing the device or parts of the device have to be tightly connected and must

not be corroded.

2. There may not be any deformations on housings, fixations and installation spots.

3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing.

4. The electric power supply cables must not show any damages or material fatigue.

Replacing a Fuse

Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the

fuse burns out, the product will not function whatsoever. If this happens, follow the directions below to do

so.

1. Unplug the unit from electric power source.

2. Insert a screwdriver into the slot in the fuse cover. Turn the screwdriver to the left, at the same time

gently push a bit (Turn and Push). The fuse will come out.

3. Remove the used fuse. If brown or unclear, it is burned out.

4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to

use a fuse of the same type and specification. See the product specification label for details.

Troubleshooting

This troubleshooting guide is meant to help solve simple problems.

If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit

operates properly, do not carry out following steps.

1. If the device does not operate properly, unplug the device.

2. Check the power from the wall, the fuse, all cables etc.

3. If all of the above appears to be O.K., plug the unit in again.

4. If you are unable to determine the cause of the problem, do not open the Small Mushroom LED, as this

may damage the unit and the warranty will become void.

5. Return the device to your Showtec dealer.

No Light

This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps

below in sequence until a solution is found. Once the unit operates properly, do not carry out following

steps.

If the light effect does not operate properly, refer servicing to a technician.

Response: Suspect three potential problem areas: the power supply or the LEDs.

1. Power supply. Check that the unit is plugged into an appropriate power supply.

2. The LEDs. Return the Small Mushroom LED to your Showtec dealer.

3. The fuse. Replace the fuse. See page 7 for replacing the fuse.

Table des matières

Autres manuels Show Tec Projecteur

Show Tec

Show Tec Floodlight HQ 400 Manuel utilisateur

Show Tec

Show Tec 30690 Manuel utilisateur

Show Tec

Show Tec 43621 Manuel utilisateur

Show Tec

Show Tec led par 56 short pro rgb Manuel utilisateur

Show Tec

Show Tec Black Widow Manuel utilisateur

Show Tec

Show Tec Cedda 200W LED Floodlight V1 Manuel utilisateur

Show Tec

Show Tec quadro flower v2 Manuel utilisateur

Show Tec

Show Tec Multidim MKII Manuel utilisateur

Show Tec

Show Tec Zipp LED DMX Manuel utilisateur

Show Tec

Show Tec Club Par 18 Manuel utilisateur

Show Tec

Show Tec PAR 20 Warm-On-Dim V2 Manuel utilisateur

Show Tec

Show Tec Par 56 COB 100W 4000K V1 Manuel utilisateur

Show Tec

Show Tec Double3 Derby LED Q6 Manuel utilisateur

Show Tec

Show Tec SPECTRAL M850 Q4 TOUR Manuel utilisateur

Show Tec

Show Tec Compact Lightset MKII Manuel utilisateur

Show Tec

Show Tec Spectral D4000 Manuel utilisateur

Show Tec

Show Tec galactic RGB 720 Manuel utilisateur

Show Tec

Show Tec Pixel Bar COB 8*15W RGB Manuel utilisateur

Show Tec

Show Tec Compact Par 36 CW Manuel utilisateur

Show Tec

Show Tec StageBeam 300/500W PC Manuel utilisateur

Show Tec

Show Tec HQ-150 A-symmetric V1 Manuel utilisateur

Show Tec

Show Tec Starzone Inferno DMX Manuel utilisateur

Show Tec

Show Tec Parcan 64 COB UV Manuel utilisateur

Show Tec

Show Tec Energetic XL Manuel utilisateur

Manuels Projecteur populaires d'autres marques

VIZULO

VIZULO Micro Martin Guide de l'utilisateur

EuroLite

EuroLite LED IP FL-100 SMD Manuel utilisateur

Cooper Wheelock

Cooper Wheelock XB12 Manuel utilisateur

Allen + Roth

Allen + Roth 17624-000 Manuel utilisateur

ADJ

ADJ 4 STAGE PAK Manuel utilisateur

Cooper Lighting

Cooper Lighting EGL91SW233 Manuel utilisateur

Max

Max 37496 Manuel utilisateur

BEGA

BEGA 85 143 Manuel utilisateur

Beamz

Beamz 151.226 Manuel utilisateur

EuroLite

EuroLite LED IP FL-8 Manuel utilisateur

Ledj

Ledj PERFORMER 36 RGB Manuel utilisateur

Perel

Perel ELS3 Manuel utilisateur

Perel

Perel ELS3WD Manuel utilisateur

LumX

LumX LM 36130 Manuel utilisateur

Xtricity

Xtricity 4-80053 Manuel utilisateur

Stahl

Stahl 6521/4 Series Manuel utilisateur

Ecosense

Ecosense EcoSpec Manuel utilisateur

Ayrton

Ayrton minipanel FX Manuel utilisateur
