Show Tec Quick DMX Rack 1024 Manuel utilisateur

Quick DMX Rack 1024 V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 50058

MANUAL

ENGLISH



 1

Ordercode: 50058
Quick DMX Rack 1024
Table of contents

Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................3
Connection with the mains.........................................................................................................................................4
Return Procedure..........................................................................................................................................................4
Claims..............................................................................................................................................................................4

Description of the device.................................................................................................................................................5
Frontside..........................................................................................................................................................................5
Backside .........................................................................................................................................................................5

Installation...........................................................................................................................................................................6

Set Up and Operation .......................................................................................................................................................6
Saving DMX Files to the Memory Buttons .................................................................................................................6
Patching DMX Input .....................................................................................................................................................9
LED indicators ..............................................................................................................................................................13
Troubleshooting........................................................................................................................................................13
Standalone Playback ................................................................................................................................................14
Timelines.....................................................................................................................................................................14
Zones ..........................................................................................................................................................................14
Buttons .......................................................................................................................................................................14
Triggers .......................................................................................................................................................................14
IR Remote Control ...................................................................................................................................................15
IR Extension Cable ...................................................................................................................................................15
Art-Net™ Universe Access......................................................................................................................................15
Patching DMX Input ...................................................................................................................................................16
Control Modes.............................................................................................................................................................18
DMX Control..............................................................................................................................................................18
DMX Setup.................................................................................................................................................................18
Data Cabling...............................................................................................................................................................19

Maintenance....................................................................................................................................................................19

Troubleshooting ...............................................................................................................................................................19
No Function..................................................................................................................................................................19
No Response to DMX..................................................................................................................................................19

Product Specifications....................................................................................................................................................20



Ordercode: 50058

Quick DMX Rack 1024

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

Quick DMX Rack 1024

USB-A to USB-B cable

IR eye

IR remote control

User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

be qualified

follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 50058

Quick DMX Rack 1024

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit. 

Never use anything to cover the ground contact. 

Never leave any cables lying around. 

Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within

children’s reach, as they are potential sources of danger. 

Do not open the device and do not modify the device. 

Do not connect this device to a dimmer pack. 

Do not shake the device. Avoid brute force when installing or operating the device. 

Do not switch the device on and off in short intervals, as this would reduce the system’s life. 

Do not touch the device’s housing bare-handed during its operation (housing becomes hot). 

Only use device indoors, avoid contact with water or other liquids. 

Only operate the device after having familiarized with its functions. 

Avoid flames and do not put close to flammable liquids or gases. 

Always keep case closed while operating. 

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power cord by the plug. Never pull out the plug by tugging the power cord. 

Make sure that the device is not exposed to extreme heat, moisture or dust. 

Make sure that the available voltage is not higher than stated on the rear panel. 

Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time. 

If the external cable is damaged, it has to be replaced by a qualified technician. 

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating. 

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature. 

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service. 

For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended. 

For replacement use fuses of same type and rating only. 

The user is responsible for correct positioning and operating of the Quick DMX Rack 1024. The

manufacturer will not accept liability for damages caused by the misuse or incorrect installation of

this device. 

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth. 

Repairs, servicing and electric connection must be carried out by a qualified technician. 

WARRANTY: Till one year after date of purchase. 

Operating Determinations

This system is not designed for permanent operation. Consistent operation breaks will ensure that the

system will serve you for a long time without defects.

If this system is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

Ordercode: 50058

Quick DMX Rack 1024

Connection with the mains

Connect the device to the mains with the power-plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE

GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the

fixture. Be prepared to provide the model number, serial number and a brief description of the cause for

the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is

the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 50058

Quick DMX Rack 1024

Description of the device

Features

The Showtec Quick DMX Rack 1024 is a stand-alone interface which can store up to 16 different DMX

files.

It makes the device suitable for fixed installations. In order to edit DMX files, connection with Quick DMX

software is required.

Input voltage: 9V DC, min. 300mA power adapter (not included) or via USB

Memory: 16 slots

1024 Channel output

Internal clock / calendar

8 external trigger contacts (Phoenix connector)

including IR remote, external IR sensor and a USB cable (USB-A to USB-B)

Control protocol: DMX-512

DMX channels: 1024 channels

Housing: Metal & flame-retardant plastic

Connections: 3-pin DMX IN/OUT, USB B-type IN (5V DC)

Dimensions: 483 x 78 x 44,5 mm (LxWxH)

19” x 1 HE

Weight: 1,3 kg

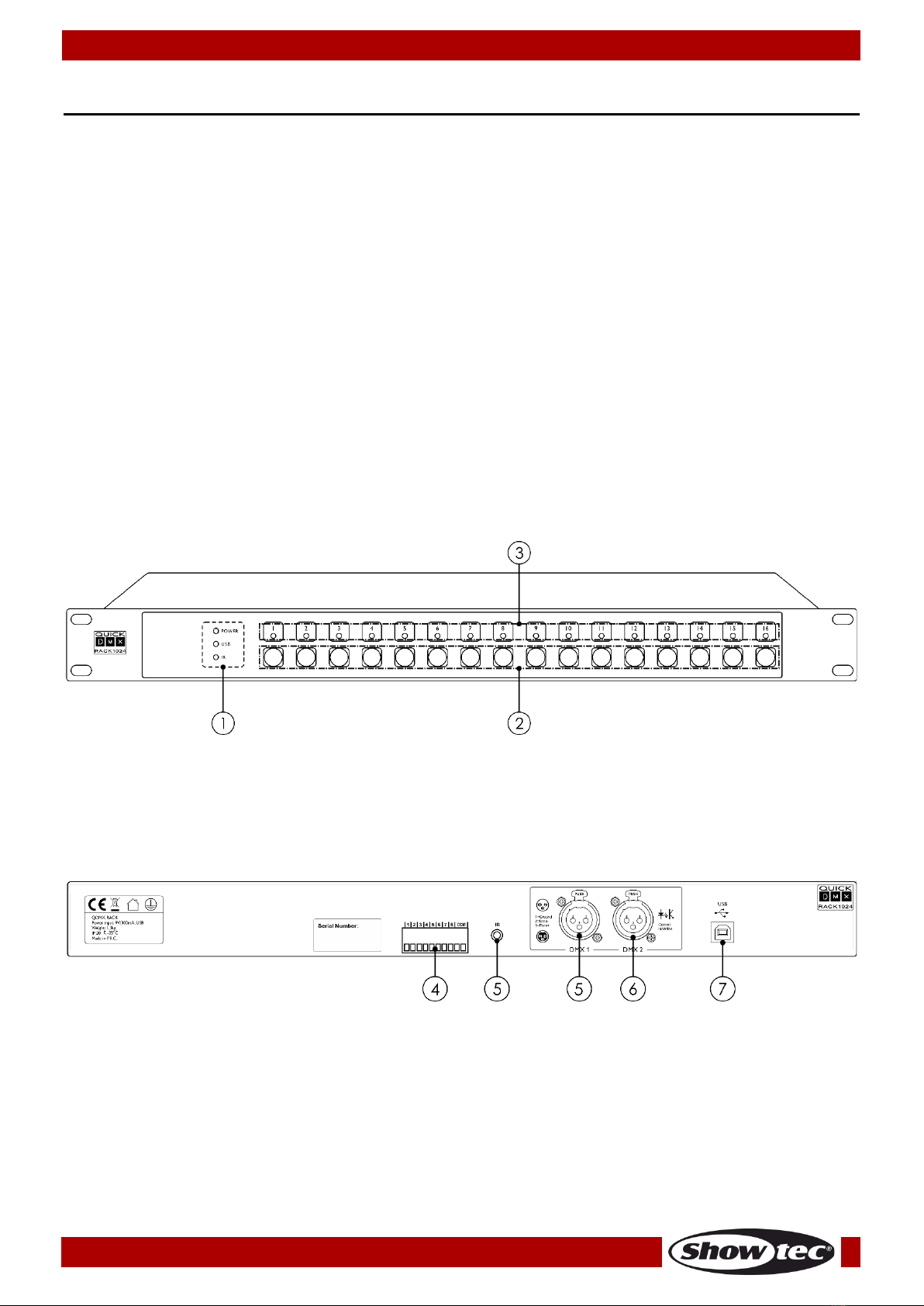

Frontside

Fig. 01

01) LED indicators (POWER/PC LINK/ DMX INPUT)

02) Memory buttons (1-16)

03) Memory LED indicators (1-16)

Backside

Fig. 02

04) 8 external contacts to connect any external switch or trigger

05) 3,5mm Mini Jack socket for external IR sensor (supplied with the IR remote controller)

06) 3-pin DMX signal connector OUT 1

07) 3-pin DMX signal connectors OUT 2

08) USB B-type IN (USB/9V adapter)

Ordercode: 50058

Quick DMX Rack 1024

Installation

Remove all packing materials from the Quick DMX Rack 1024. Check if all foam and plastic padding is

removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

You are only able to connect the Quick DMX Rack 1024 via the included USB cable (USB-A to USB-B) to

your own computer.

Note: When you do not want to connect the Quick DMX Rack to your computer, but to a mains power

outlet, make sure to also buy the external adapter.

Optional accessory

50040 –Showtec USB Adapter / Charger 1000mA

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply.

Saving DMX Files to the Memory Buttons

01) Install Quick DMX software:

02) Download the software via this link: Software Quick DMX

03) For further information, download the user manual: Quick DMX software manual

04) Start Quick DMX software, program and save a desired show (scene/chase/pixel/generator).

Ordercode: 50058

Quick DMX Rack 1024

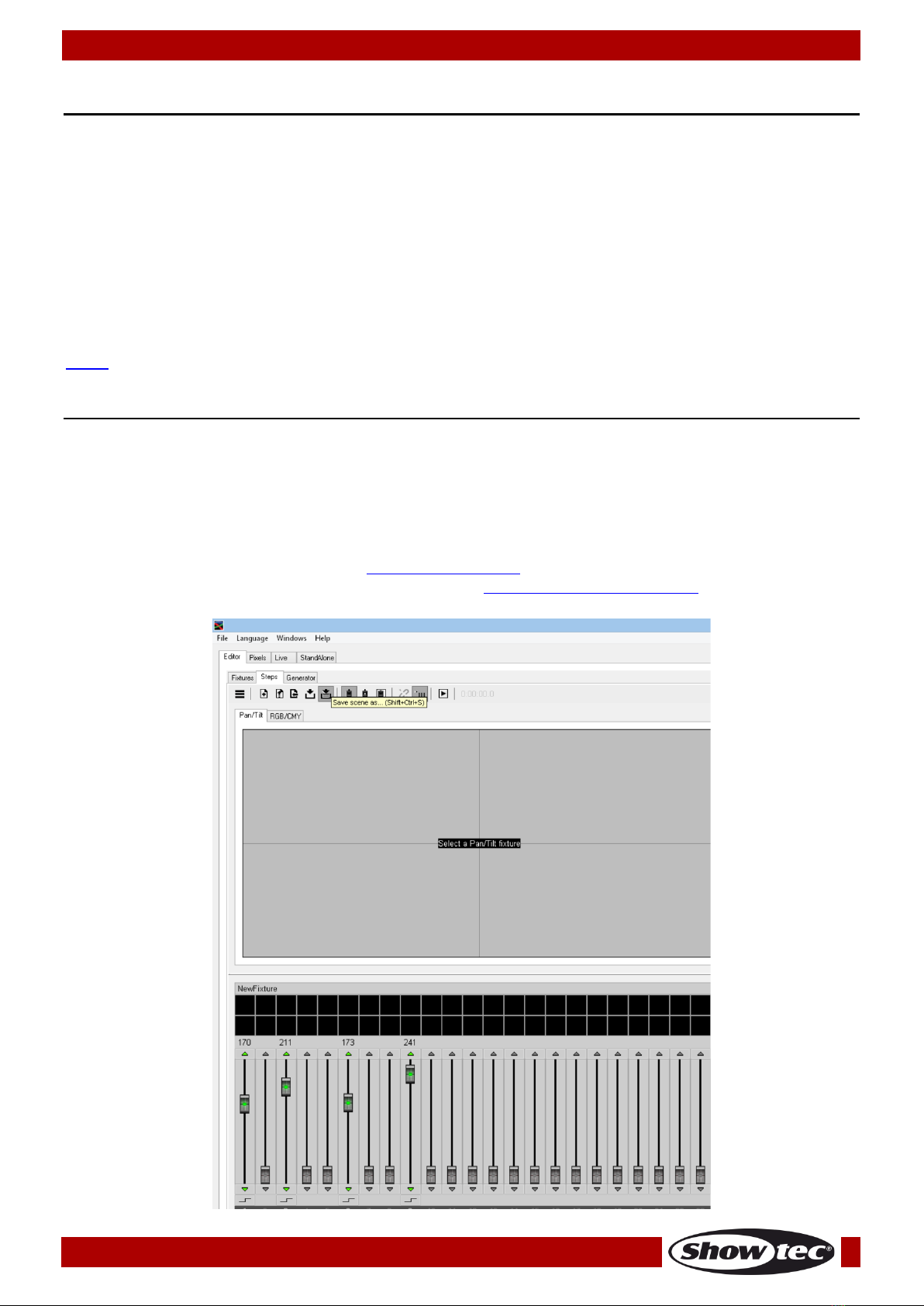

05) Click on “StandAlone”tab. The display will show:

06) Click on one of the numbers (1-16) in order to choose the desired memory button.

07) Right-click on the timeline and choose “Add light scene,”“Add Generator scene” or “Add Pixels

scene.” The display will show:

Ordercode: 50058

Quick DMX Rack 1024

08) Select the previously created DMX file. It will now appear on the timeline:

09) Use drag-and-drop method to move the scene/chase/pixel/generator across the timeline.

10) Edit the following options:

Zones: The Quick DMX Rack 1024 handles the programmed DMX files using the LTP principle

(Latest Takes Priority). This means that only one DMX file can be played at a time. In order to be

able to play multiple DMX files at the same time, assign them to different zones. The Quick DMX

Rack 1024 offers 4 zones to choose from. Once you have assigned the zones to the desired

memory buttons, the memory buttons in the software will light in one of the following colors: zone

#1 (orange), zone #2 (blue), zone #3 (pink) and zone #4 (yellow).

Auto start: When this option is checked, the scene/chase will start automatically upon start-up of

the Quick DMX Rack 1024, without triggering.

Enable calendar “on” trigger: Click on “Edit”to set the starting time of the scene/chase.

Enable calendar “off” trigger: Click on “Edit”to set the stopping time of the scene/chase.

11) Repeat steps 3-9 in order to assign DMX files to the remaining memory buttons.

12) Once you have assigned all the scenes/chases to the desired buttons, click on “Upload Data,” in

order to export data to the Quick DMX Rack 1024 and wait until the process is finished.

Ordercode: 50058

Quick DMX Rack 1024

13) Press the desired 1-16 memory buttons (02) in order to trigger the programmed scenes/chases.

While assigning DMX files to the memory buttons, always start with button #1 and proceed

with buttons #2, 3, 4, up to button #16.

It is NOT RECOMMENDED to assign DMX files to random buttons.

In such case, some DMX files WILL NOT function properly.

Patching DMX Input

Problems with uploading from your PC to your Quick DMX Rack 1024

Pay attention!

Please, first check whether the rack Is connected on a USB Hub.

First remove all other QuickDMX boxes, dongles, etc.

01) Go to Device Manager on your Windows PC:

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Star Dream 6x3m 128 LED RGB Manuel utilisateur

Show Tec

Show Tec Performer Profile Zoom 150 Q6 Manuel utilisateur

Show Tec

Show Tec LED Par 36 DMX Manuel utilisateur

Show Tec

Show Tec City Painter 575 Manuel utilisateur

Show Tec

Show Tec D-Pack 6 Classic Manuel utilisateur

Show Tec

Show Tec Showmaster 48 Manuel utilisateur

Show Tec

Show Tec LED Wall Wash Manuel utilisateur

Show Tec

Show Tec PIXEL BAR 12 MKII Manuel utilisateur

Show Tec

Show Tec LED City Painter 45 Manuel utilisateur

Show Tec

Show Tec Stage Blinder 2 Blaze Manuel utilisateur

Show Tec

Show Tec Parcan 16 GU10D socket V1 Manuel utilisateur

Show Tec

Show Tec Pixel Square 16 COB Manuel utilisateur

Show Tec

Show Tec RGB Studio Beam Driver Manuel utilisateur

Show Tec

Show Tec Aura 4 Manuel utilisateur

Show Tec

Show Tec DB-1-4/RDM Manuel utilisateur

Show Tec

Show Tec Performer 2500 Fresnel Tungsten V1 Manuel utilisateur

Show Tec

Show Tec WTF-FZ1500 1500W DMX Fazer Manuel utilisateur

Show Tec

Show Tec GALACTIC BEAM G40 V1 Manuel utilisateur

Show Tec

Show Tec Indigo 150 LED Manuel utilisateur

Show Tec

Show Tec StageBeam 300/500W Fresnel V2 Manuel utilisateur

Show Tec

Show Tec LED Design Par18 RGB Manuel utilisateur

Show Tec

Show Tec Spectral PC 1800Z IP65 Manuel utilisateur

Show Tec

Show Tec TECHNO DERBY V1 Manuel utilisateur

Show Tec

Show Tec Phantom 130 Spot Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
