Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Sunstrip Active DMX brings excitement to any venue. Whether you want simple plug-&-play

action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: [email protected]

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Sunstrip Active DMX™Product Guide

Warning..…...................................................................................…………………………………………..

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Rigging………………………………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features and Overview ………………………………...….……………….………….………………….….

Backside…………………………………………………...…...….……………….…………………...….….

Installation...............................................................................…...…………………………………….…..

Installing the Lamp ........................................................………………………………………..…………

Set Up and Operation.....................................................................……..……………………………….…

One Sunstrip Active ...............................................................……………………………………..….…..

Multiple Sunstrip Active’s.............................................................…....…………………………………...

Operation Modes…...................................................………………………………………………….…….

DMX Mode……....................................……………………………………………………………………..

Chase Mode……....................................………………….………………………………………………..

Maintenance...................................................................................………..………….…….………………

Changing the Lamp........................................................................…………………….…………………

Replacing the Fuse........................................................................…………………….…………………

Troubleshooting............................................................................………………….………………….…..

No Light............................................………………….……………………………………………………..

No Response to DMX ....................................................................………………….…………………..

Product Specifications.................................................................……………….…….…………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Never run the device without lamp!

•Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may

expose and emit a high ultraviolet radiation, which may cause burns.

•Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always

hold the fixture at the transport handles.

•Never look directly into the light source.

•Never leave any cables lying around.

•Do not insert objects into air vents.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

•Do not shake the device. Avoid brute force when installing or operating the device.

•Only use device indoor, avoid contact with water or other liquids.

•Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

CAUTION!

Keep this device away from rain and moisture!

mains lead before o

enin

the housin

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always replace the lamp, when it is damaged or deformed due to the heat.

•Always keep case closed while operating.

•Always allow free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

•If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to

cracks or deep scratches.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

•For replacement use lamps and fuses of same type and rating only.

•Allow time to cool down, before replacing lamp.

•This device falls under protection class I. Therefore it is essential to connect this device to earth.

•During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the device

will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 1.3 meter.

The maximum ambient temperature tamust never be exceeded.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(

meant es

eciall

for e

ile

tics

)

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•If the Sunstrip is lowered from the ceiling or high joists, professional trussing systems have to be

used.

•Use a clamp to mount the Sunstrip, with the mounting-bracket, to the trussing system.

•The Sunstrip must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

•When rigging, derigging or servicing the Sunstrip, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

Cable Pin International

BROWN FASE L

BLUE NUL N

YELLOW/GREEN EARTH

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Showtec Sunstrip Active DMX is a light effect with high output and great effects.

• DMX-control via standard DMX-controller

• 1, 2, 5 or 10 DMX-control channels required depending on your setup

• 16 built-in programs subject to Speed and Dimmer, except for Auto & Full

• 0-100% dimming level

• 01 –99 Chase speed adjustment

• Power Failure Memory

• Fuse Protection

• Powercon in- and output

• Mounting/Floor brackets included

• Built-in Dimmerpack

• 10x Showtec Lamp 240V/75W GU10 (82382) Included !

• Fuse T6,3A / 250V

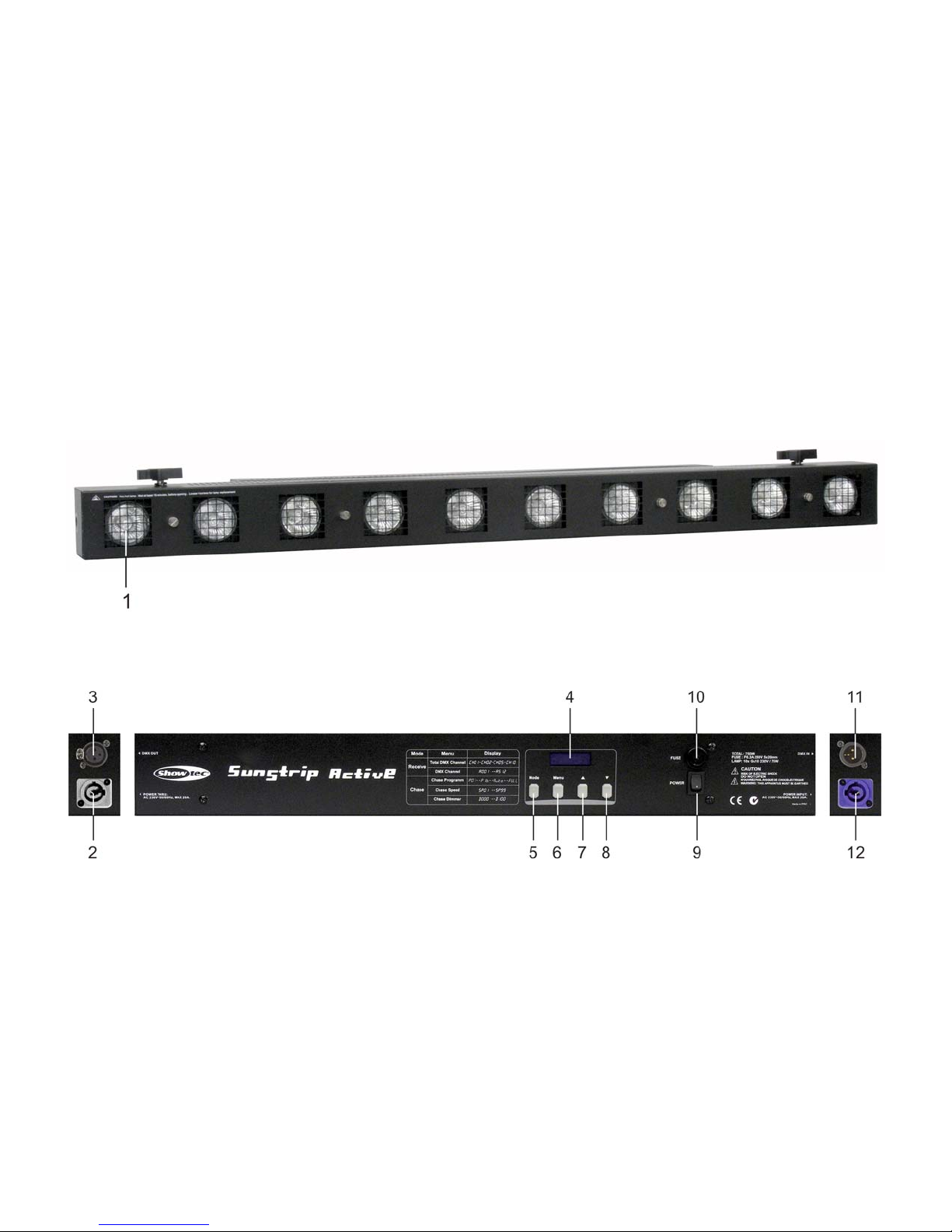

Overview

Fig. 1

1) 10x Showtec Lamp 240V/75W GU10 (82382)

Fig. 2

2) Power Thru (Grey): This connector sends the power to the next unit (Max 20A).

3) DMX signal connector (OUT): This connector sends the DMX signal to the next unit.

4) LED Display

5) Mode Button

6) Menu Button

7) Up Button

8) Down Button

9) Power On/Off

10) Fuse; 6,3A 250V 5*20mm

11) DMX signal connector (IN): This connector accepts the DMX input signal.

12) Power Input (Blue): This connector is the input power for this unit (Max 20A).

Installation

Installing the Lamp

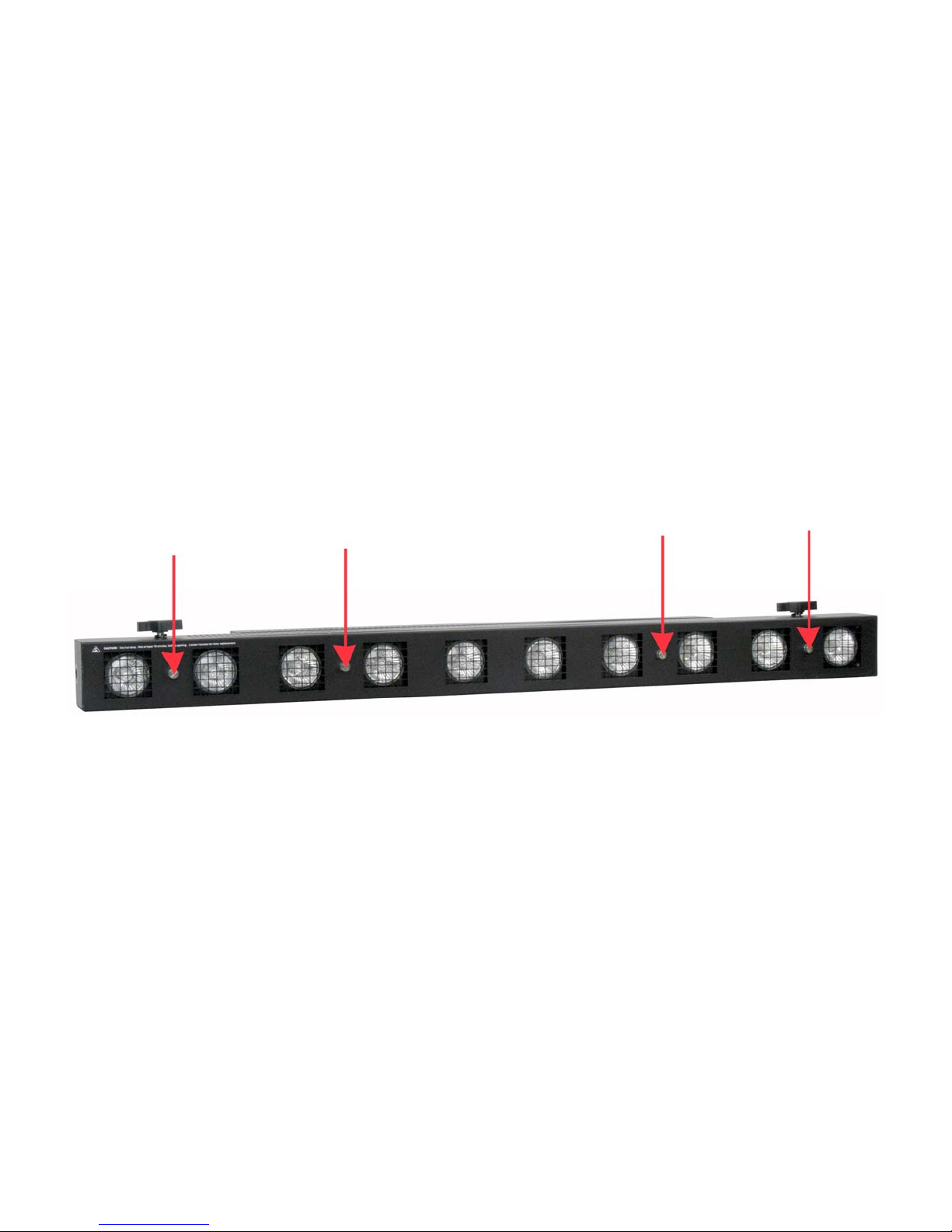

The Showtec Sunstrip Active uses the 240V/75W GU10 (82382) bulb as manufactured by all popular

manufacturers. Use only the appropriate lamp for your unit. 10 Lamps included.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the

device was not designed for.

Damages caused by non-observance are not subject to warranty.

Procedure :

1. Loosen the 4 screws on the front of the housing.

2. Gently remove the metal housing.

3. Read lamp instructions. Do not touch the lamp bulb glass. Push and turn the lamp Counter Clockwise and

remove the lamp. Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with

a clean, lint-free towel and rubbing alcohol.).

4. Insert the lamp pins into the small holes in the lamp socket,. Push and turn Clockwise to install the lamp.

Do the same for the remaining lamps.

5. Put the metal housing back and fasten the screws snugly.

Fig. 3

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

One Sunstrip Active

1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp fastened onto the

Sunstrip Active ). Leave at least 1 meter on all sides for air circulation.

2. Plug one end of the electric mains power cord into the IEC socket on the unit.

Then plug the other end of the cord into a proper electric power supply socket.

Multiple Sunstrip Active

1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp fastened onto the

Sunstrip Active). Leave at least 1 meter on all sides for air circulation.

2. Use a 3-p XLR cable to connect the Sunstrip Active’s.

The pins:

1. Earth

2. Signal -

3. Signal +

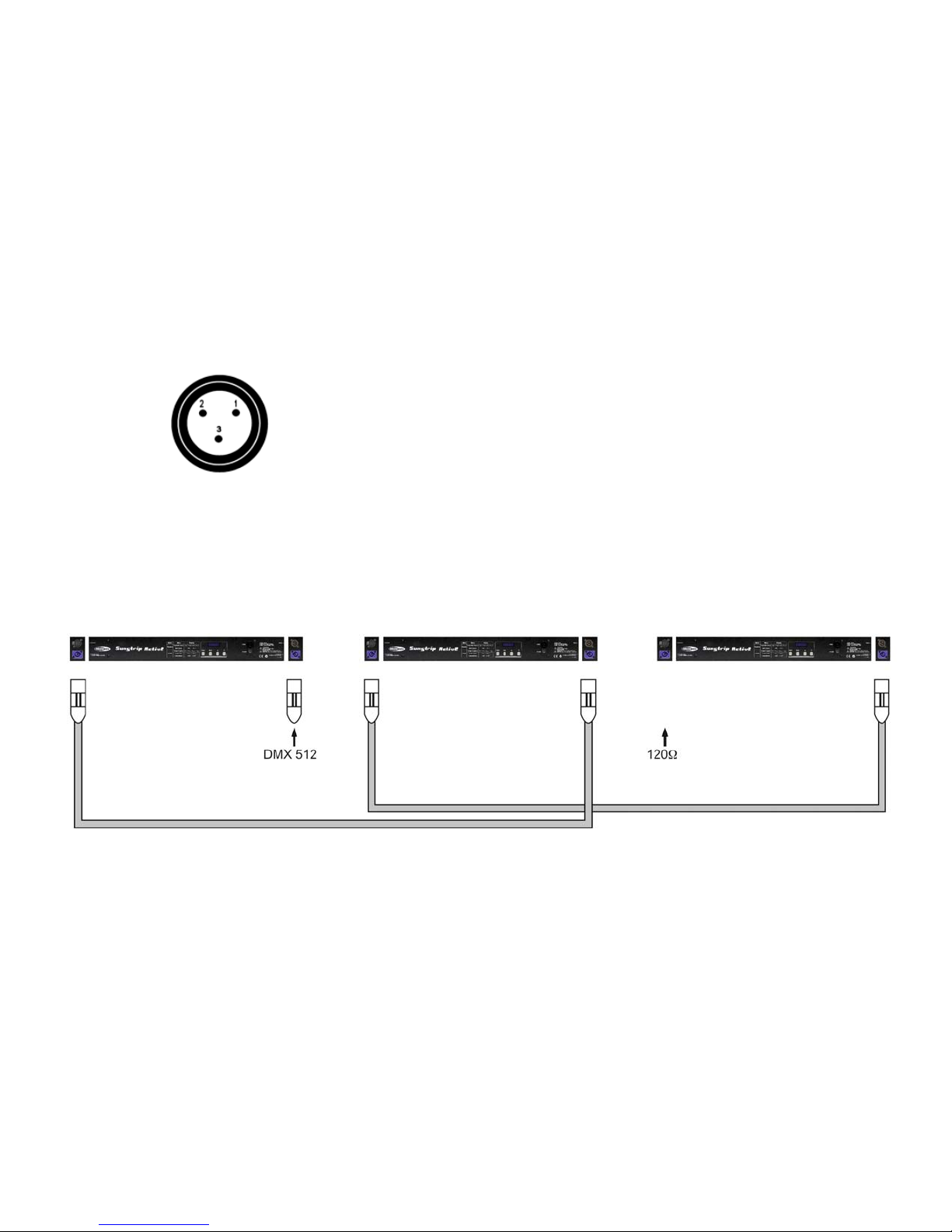

3. Link the units as shown in (figure 6), Connect a DMX signal cable from the first unit's DMX "out" socket to

the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

4. Supply electric power: Plug electric mains power cords into each unit's Blue socket, then plug the other

end of the mains power cord into proper electric power supply sockets, starting with the first unit. Do not

supply power before the whole system is set up and connected properly.

Multiple Sunstrip Active DMX Set Up

Fig. 6

Note : Link all cables before connecting electric power

Operation Modes

The Sunstrip Active has 2 different operating modes: • 10 Channel Chaser (P)

• 1, 2, 5 or 10 Channel DMX Dimmer (A)

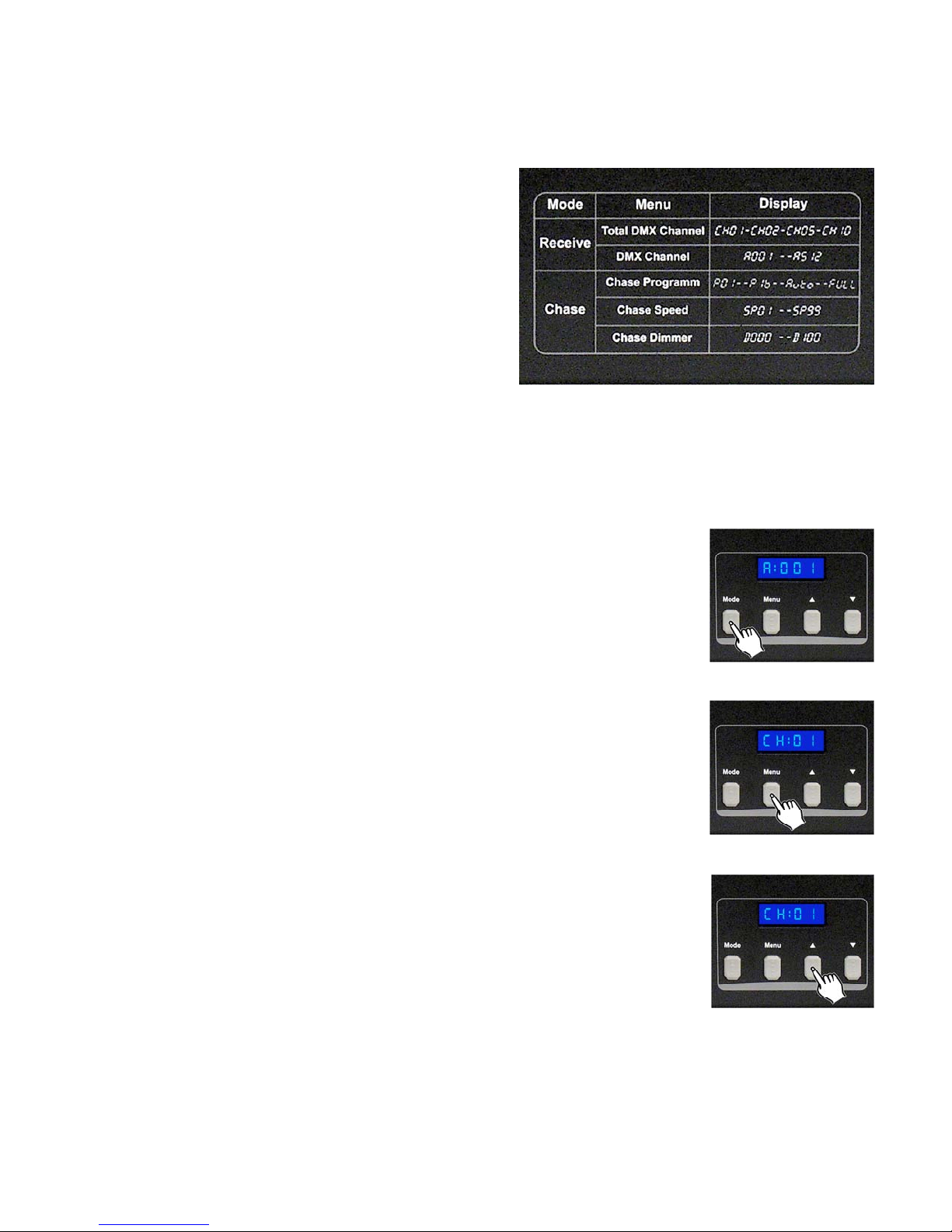

In DMX Mode , you can select: • DMX Address (A)

• Channel (CH)

In Chase Mode, you can select: • Chase Program (P),

Auto, Full

• Chase Dimmer (d)

• Chase Speed (SP)

DMX Mode

You can only use this mode when you are using the device as a DMX Dimmer.

This function allows you to set your device as a 1, 2, 5 or 10 Channel DMX Dimmer.

Selecting DMX Mode

DMX mode is indicated by an “A” followed by 3 digits in the LED Display.

“A” means DMX Address and shows the DMX Mode has been activated.

If the Display shows “P”, means you are in Chase Mode.

You can switch between the 2 modes by pushing the MODE Button.

Selecting Channel Mode

Channel mode is indicated by an “CH” followed by 2 digits (01, 02, 05 or 10) in

the LED Display.

You cannot use the MENU Button to select the Channel Mode, unless you have

selected the DMX Operation Mode as in Step 1.

Setting the Channel Value

Once you have activated the Channel Mode, you can push

the UP or DOWN button to change the setting from 01, 02, 05 or 10.

1) When CH:01 is shown in the display, all channels will be controlled by

one DMX Channel.

2) When CH:02 is shown in the display, Channel 1 and 2 will be controlled by

one DMX Channel, Channel 3 and 4 will be controlled by one DMX Channel, …..,

Channel 9 and 10 will be controlled by one DMX

Channel. You have a total of 5 DMX Channels available.

3) When CH:05 is shown in the display, Channel 1-5 will be controlled by one DMX Channel and

Channel 6-10 will be controlled by the other DMX Channel.

4) When CH:10 is shown in the display, each channel will be controlled by one DMX Channel.

Note : Default is CH:10; this means 10 DMX Channels, so every light is individually controllable.

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Performer 1500 Fresnel Q6 Manuel utilisateur

Show Tec

Show Tec DB-1-8/RDM V1 Manuel utilisateur

Show Tec

Show Tec Polar 340 WashFX Manuel utilisateur

Show Tec

Show Tec Spectral PC 1800Z IP65 Manuel utilisateur

Show Tec

Show Tec Galactic RGB300 Manuel utilisateur

Show Tec

Show Tec LED Par 64 36x3W Manuel utilisateur

Show Tec

Show Tec Performer 1500 Fresnel Daylight Manuel utilisateur

Show Tec

Show Tec LED Wall Wash Manuel utilisateur

Show Tec

Show Tec ACT Profile 50 RGBAL Manuel utilisateur

Show Tec

Show Tec Performer 2000 RGBAL V1 Manuel utilisateur

Show Tec

Show Tec Pixelbar 16 Q6 Manuel utilisateur

Show Tec

Show Tec LED Aqua Painter Manuel utilisateur

Show Tec

Show Tec Galactic RVP-250 Manuel utilisateur

Show Tec

Show Tec Eventspot 1900 MKII Manuel utilisateur

Show Tec

Show Tec ACT Flood 100 RGBW V1 Manuel utilisateur

Show Tec

Show Tec XS-4W Quad Beam Manuel utilisateur

Show Tec

Show Tec Vintage Blaze 33 Value Line V2 Manuel utilisateur

Show Tec

Show Tec Galactic G-30 Manuel utilisateur

Show Tec

Show Tec LED Design Par18 RGB Manuel utilisateur

Show Tec

Show Tec Rainbow Moon Manuel utilisateur

Show Tec

Show Tec StageBeam 300/500W Fresnel V2 Manuel utilisateur

Show Tec

Show Tec Dreamwave V1 Manuel utilisateur

Show Tec

Show Tec Mistique Manuel utilisateur

Show Tec

Show Tec EventLITE 7/4 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
