Show Tec Energetic V3 Manuel utilisateur

Energetic V3

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 43165

MANUAL

ENGLISH



 1

Ordercode: 43165
Energetic
Table of contents

Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................5
Laser safety for a Class 3R Laser Product .................................................................................................................5

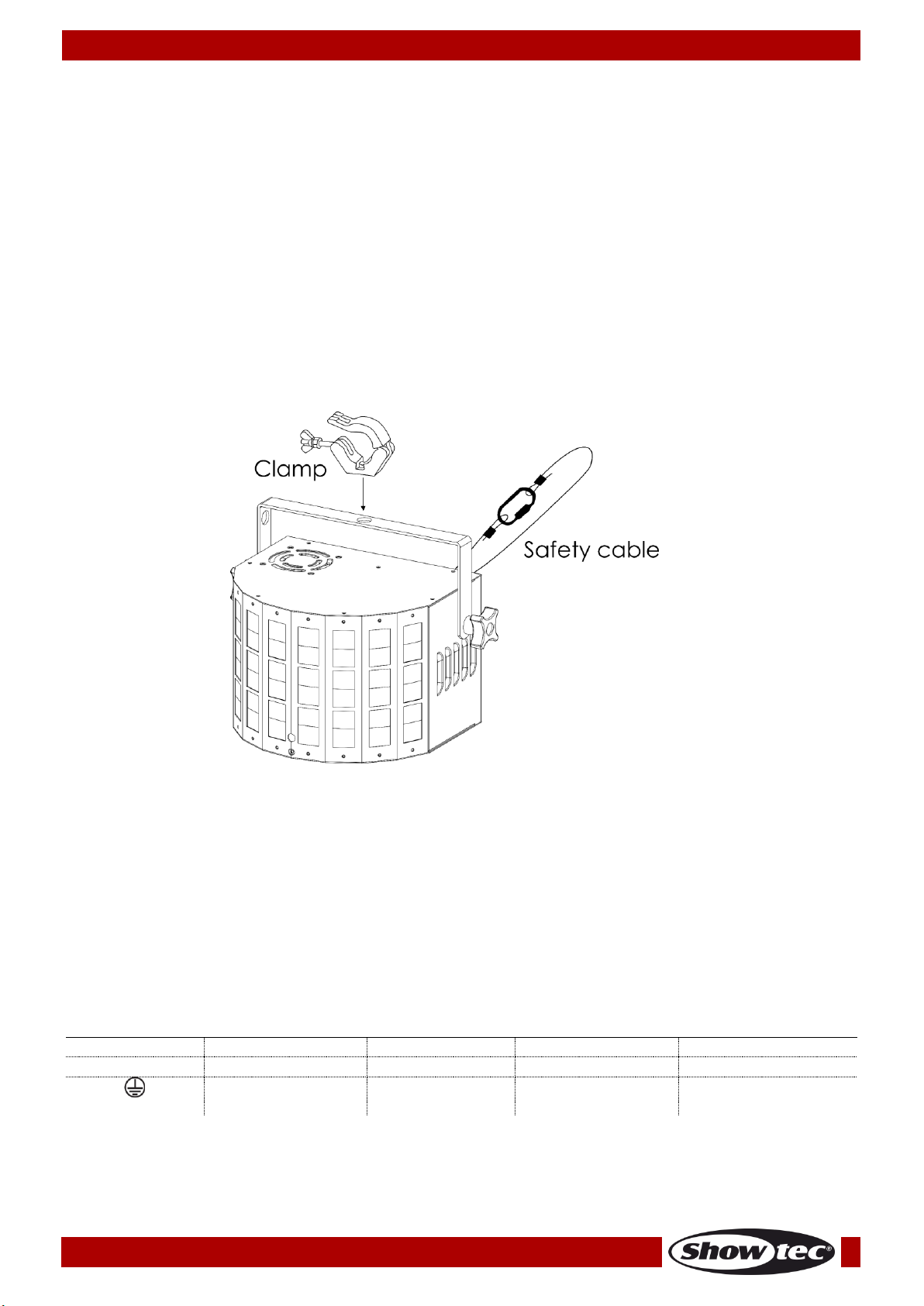

Rigging ............................................................................................................................................................................7
Connection with the mains.........................................................................................................................................7
Return Procedure..........................................................................................................................................................8
Claims..............................................................................................................................................................................8

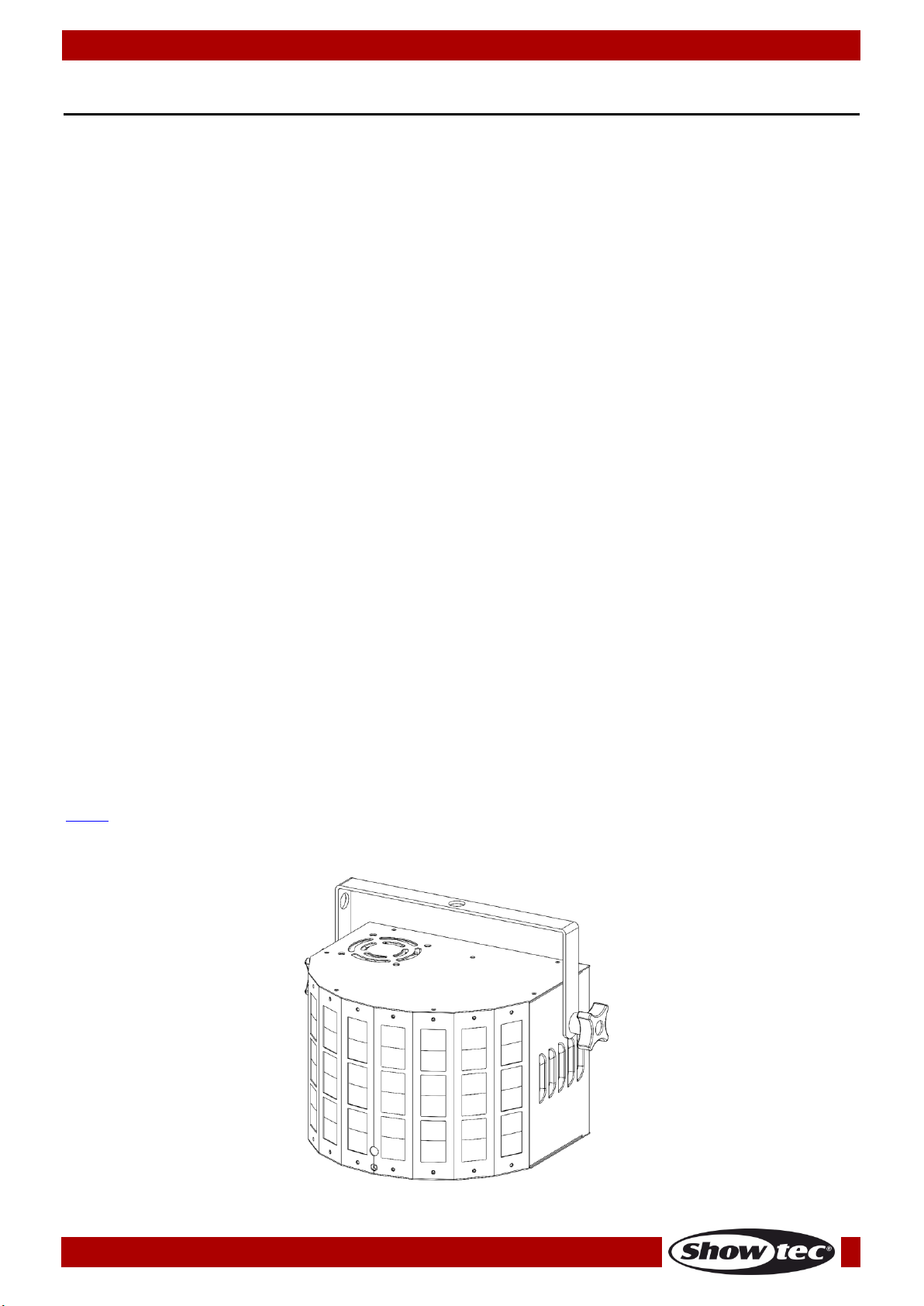

Description of the device.................................................................................................................................................9
Overview ........................................................................................................................................................................9
Frontside........................................................................................................................................................................10
Backside .......................................................................................................................................................................10

Installation.........................................................................................................................................................................11

Set Up and Operation .....................................................................................................................................................11
Control Modes.............................................................................................................................................................12
One Energetic (Built-in programs, Static Color, Manual).................................................................................12
One Energetic (Sound-controlled).......................................................................................................................12
Multiple Energetics (Master/Slave control).........................................................................................................13
Multiple Energetics (DMX Control) .......................................................................................................................14
Fixture Linking ...............................................................................................................................................................15
Data Cabling...............................................................................................................................................................15
Control Panel ...............................................................................................................................................................16
Control Mode ..............................................................................................................................................................16
DMX Addressing ..........................................................................................................................................................16
Menu Overview...........................................................................................................................................................17
Main Menu Options ....................................................................................................................................................17
1. Auto Run Programs..............................................................................................................................................18
2. Sound-controlled Mode .....................................................................................................................................18
3. Static Control Mode............................................................................................................................................18
4. DMX Address / DMX Channels..........................................................................................................................18
5. Slave mode...........................................................................................................................................................18
6. System Settings.....................................................................................................................................................19
Remote Control...........................................................................................................................................................20
DMX Channels .............................................................................................................................................................21
2 channels .................................................................................................................................................................21
9 channels .................................................................................................................................................................21

Maintenance....................................................................................................................................................................23
Replacing the Fuse.....................................................................................................................................................23

Troubleshooting ...............................................................................................................................................................24
No Light.........................................................................................................................................................................24
No Response to DMX..................................................................................................................................................24

Product Specifications....................................................................................................................................................26

Dimensions........................................................................................................................................................................27

Notes ..................................................................................................................................................................................28



Ordercode: 43165

Energetic

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

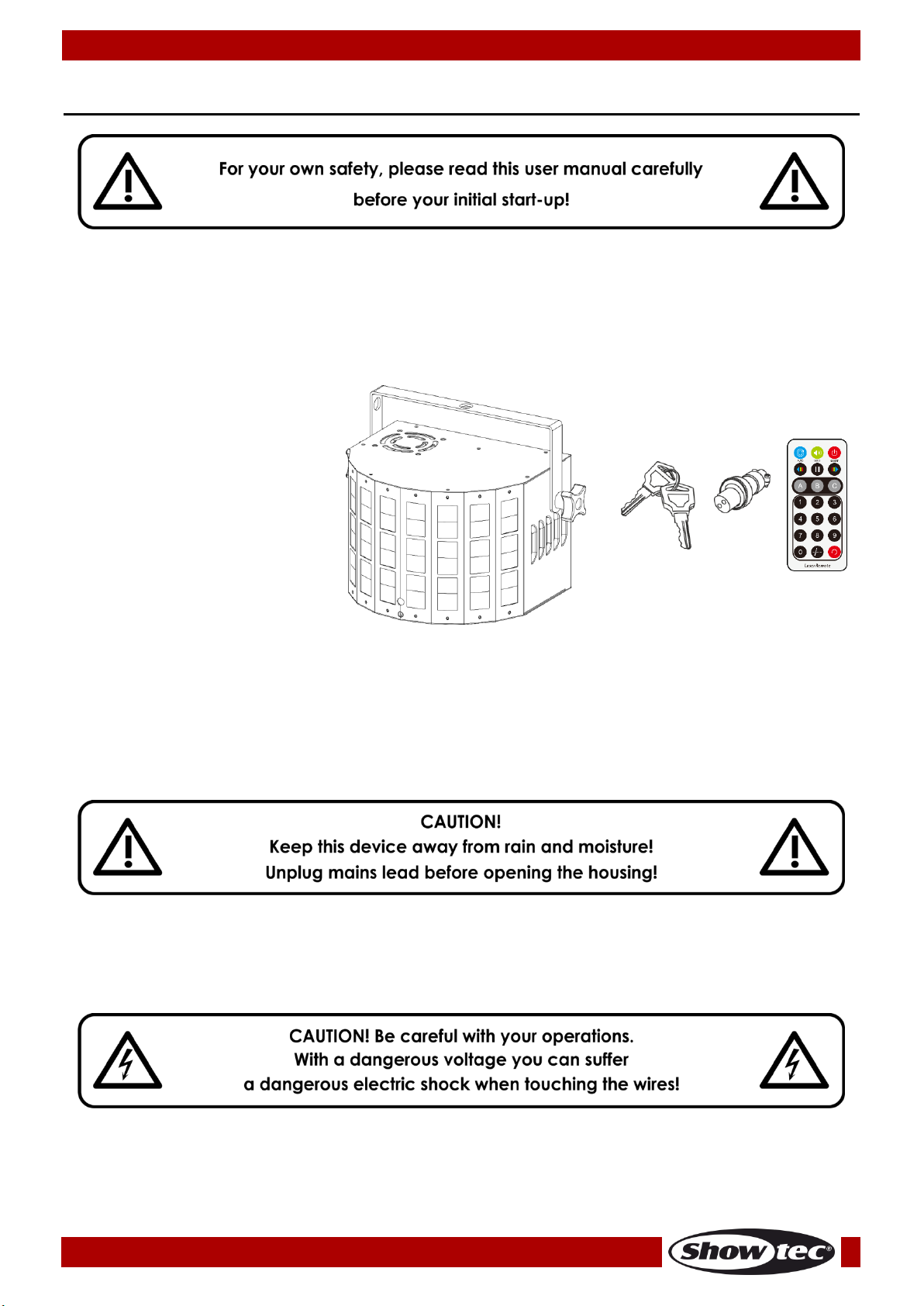

Your shipment includes:

●Showtec Energetic

●IEC power cable (1,5 m)

●2 keys for the interlock

●Remote control plug

●IR remote control

●User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower

operational temperatures. This may include climatic-environmental and the reduction of overall

projection intensity.

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be qualified

●follow the instructions of this manual

Ordercode: 43165

Energetic

Before the initial start-up, please make sure that there is no damage caused by transportation.

Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes contained in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

●Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

●Never modify, bend, mechanically strain, put pressure on, pull or heat up the power cord.

●Never strain the cable insert or the female part in the device. There must always be sufficient cable

going to the device. Otherwise, the cable will be damaged, which can cause serious damage.

●Never remove warning or informative labels from the unit.

●Never use anything to cover the ground contact.

●Never lift the device holding it by the projector-head, as the mechanics may be damaged. Always

hold the device by the transport handles.

●Never place any material over the LEDs or lens.

●Never look directly into the light source.

●Never leave any cables lying around.

●Never use the device during thunderstorms, unplug the device immediately.

●Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within

children’s reach, as they are potential sources of danger.

●Never aim the laser beam at people or animals!

●Never point a laser at aircraft, this is a federal offense.

●Never point unterminated laser beams into the sky.

●Never open the laser housing. The high laser power levels inside of the protective housing can start

fires, burn skin and will cause instant eye injury.

●Do not insert objects into air vents.

●Do not connect this device to a dimmer pack.

●Do not open the device and do not modify the device.

●Do not point lasers at highly reflective surfaces such as windows, mirrors and shiny metal. Even laser

reflections can be hazardous.

●Do not expose the output optic (aperture) to cleaning chemicals.

●Do not use the laser if the laser appears to be emitting only one or two beams.

●Do not use the laser if housing is damaged or open, or if optics appear damaged in any way.

●Do not operate laser without first reading and understanding all safety and technical data in this

manual. Never look into the laser aperture or laser beams.

●Do not switch the device on and off in short intervals, as this will reduce the device’s life.

●Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Allow the device to cool for at least 5 minutes before handling.

●Do not shake the device. Avoid brute force when installing or operating the device.

●After set up and prior to public use, test laser to ensure proper function. Do not use the laser if any

defect is detected. Do not use, if the laser emits only one or two laser beams rather than

dozens/hundreds, as this could indicate damage to the diffraction grating optic, and could allow

emission of higher laser levels.

●Only use the device indoors, avoid contact with water or other liquids.

●Only operate the device after having checked if the housing is firmly closed and all screws are tightly

fastened.

●Only operate the device after having familiarized with its functions.

●Always check the regulations when using a class 3R laser product.

●Always check and position the laser before anybody enters the room, when the laser is facing an

area with people.

Ordercode: 43165

Energetic

●Avoid flames and do not put close to flammable liquids or gases.

●Always keep the case closed while operating.

●Always allow a free air space of at least 50 cm around the unit for ventilation.

●Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord holding it by the plug. Never pull out the plug by tugging the power cord.

●Make sure that the device is not exposed to extreme heat, moisture or dust.

●Make sure that the available voltage is not higher than stated on the rear panel.

●Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

●Make sure that the core diameter of extension cords and power cords is sufficient for the required

power consumption of the device.

●If the external cable is damaged, it has to be replaced by a qualified technician.

●If the lens or LEDs are obviously damaged, it has to be replaced to prevent its functions from being

impaired, due to cracks or deep scratches.

●If device was dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

●If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

●For adult use only. The device must be installed beyond the reach of children. Never leave the unit

running unattended.

●Never attempt to bypass the thermostatic switch or fuses.

●For replacement use fuses of same type and rating only.

●The operation of a class 3R laser show laser is only allowed if the show is controlled by a skilled and

well-trained operator familiar with the data included in this manual.

●The user is responsible for correct positioning and operating of the device. The manufacturer will not

accept liability for damages caused by the misuse or incorrect installation of this device.

●This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

●The laser will only work between 10-35ºC.

●After 3 hours working, you must shut off the laser and let the laser diode cool off for 30 minutes,

otherwise the laser could be damaged and the warranty becomes void.

●Repairs, servicing and electric connection must be carried out by a qualified technician.

●WARRANTY: Till one year after date of purchase.

Ordercode: 43165

Energetic

Operating Determinations

●This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

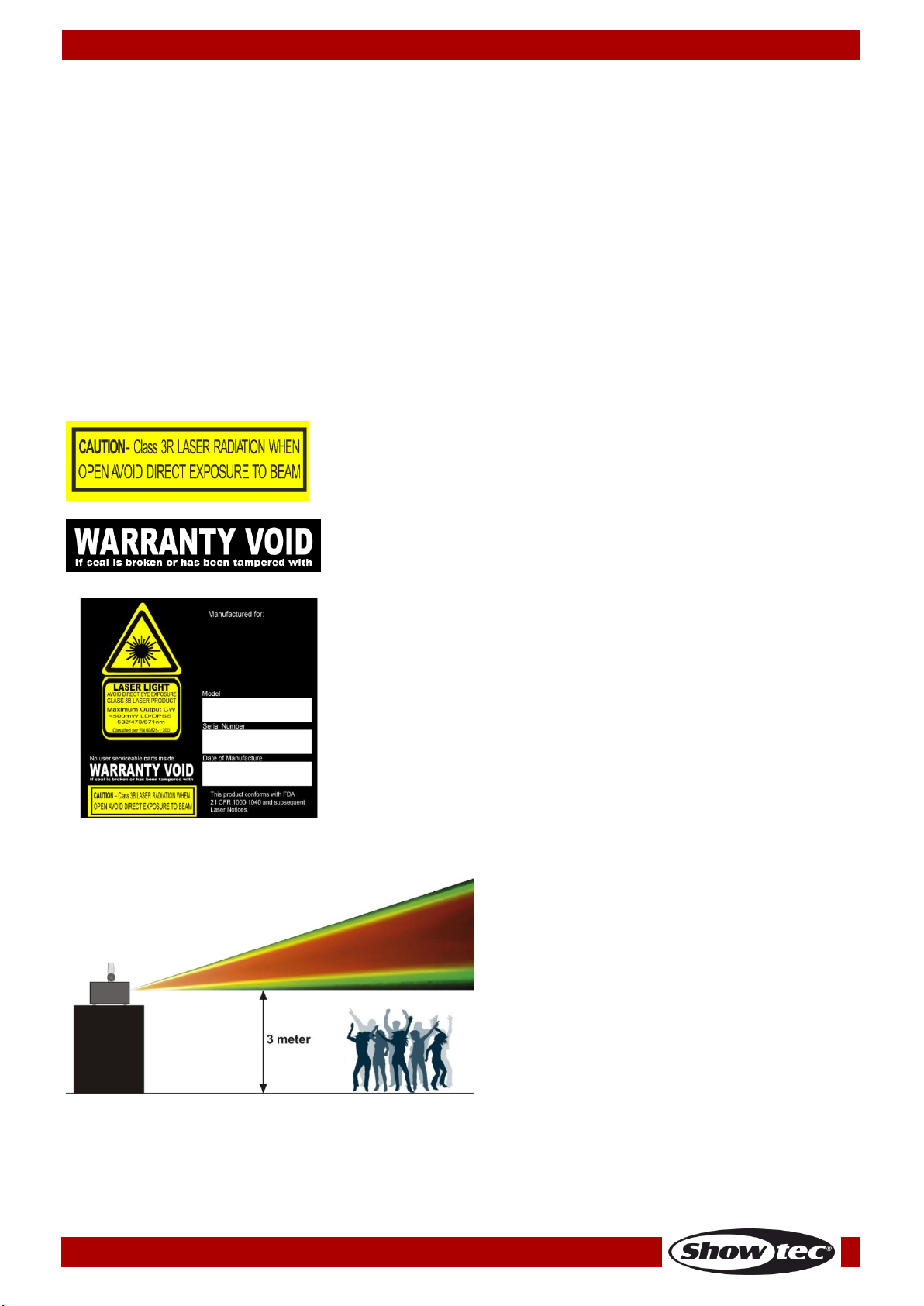

●The minimum distance between light output and the illuminated surface must be bigger than 1

meter. (This distance may differ depending on the model. The exact minimum distance will be

mentioned in the corresponding manual.)

●To eliminate wear and improve lifespan, during periods of non-use, completely disconnect from

power via breaker or by unplugging.

●The maximum ambient temperature ta= 35°C must never be exceeded.

●The relative humidity must not exceed 50 % with an ambient temperature of 35°C.

●If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.

You endanger your own safety and the safety of others!

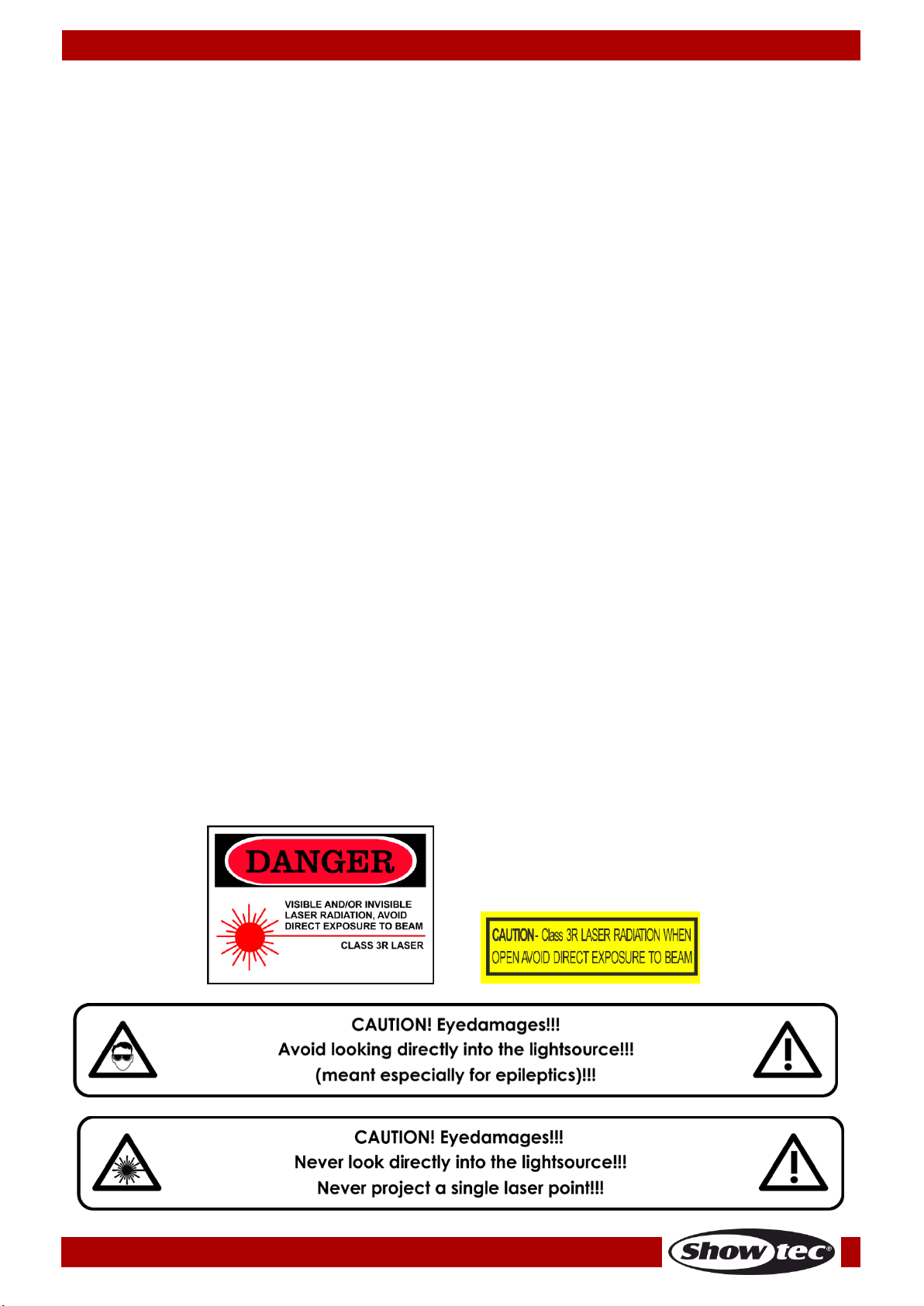

Laser safety for a Class 3R Laser Product

Laser Light is different from any other light source with which you may be familiar with. This laser is less

dangerous than a higher class laser such as an 3B or 4. The light from this product is safe for unintentional

(<1/4 sec) unaided eye exposure. However this device is potentially hazardous if viewed with certain

optical instruments such as binoculars or eye loupe.

Laser light is thousands of times more concentrated than light from any other kind of light source. This

concentration of light power can cause instant eye injuries, primarily by burning the retina (the light

sensitive portion at the back of the eye). Even if you cannot feel “heat” from a laser beam, it can still

potentially injure or blind you or your audience.

Even very small amounts of laser light are potentially hazardous even at long distances. Laser eye injuries

can happen quicker than you can blink.

It is incorrect to think that because these laser products split the laser into hundreds of beams or the laser

beam is scanned out in high speed, that an individual laser beam is safe for eye exposure. This laser

product uses dozens of milliwatts of laser power (Class 3R levels internally). Many of the individual beams

are potentially hazardous to the eyes.

It is also incorrect to assume that because the laser light is moving, it is safe. This is not true. Nor, do the

laser beams always move. Since eye injuries can occur instantly, it is critical to prevent the possibility of

any direct eye exposure. According to the laser safety regulation, it is not legal to aim Class 3R lasers in

areas which people can get exposed. This is true even if it is aimed below people’s faces, such as on a

dance floor.

CAUTION! Only Laser Safety Officers who are officially certified by a regulatory body or authorized

training organization are allowed to use class 3R lasers in public. The Laser Safety Officer is responsible for

all aspects when using this laser, including following all locally applicable safety laws and regulations.

The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of

this laser.

CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser

light. Never intentionally expose your eyes or others to direct laser

radiation.

Compliance Statement

Your Energetic laser has been designed to comply with FDA and IEC Standards for its classification.

The Energetic is a Class 3R laser product.

Laser Safety and Compliance Information

The Energetic is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and

Drug Administration (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser

notices.

Ordercode: 43165

Energetic

Product Classification and Manufacturing Label Identification

Laser Classification

Class 3R

Cooling

Cooling fans and TE Cooling

Laser medium

Wavelength 650 nm / Red (Laser Diode) ; Output >100mW

Wavelength 532 nm / Green (Laser Diode); Output >30mW

Output

130mW

The legal requirements for using laser entertainment products vary from country to country. The user is

responsible for the legal requirements at the location/country of use.

Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard

“For Safe Use of Lasers”, available from www.lia.org/. Many local governments, corporations, agencies,

military and others, require all lasers to be used under the guidelines of ANSI Z136.1. Laser Display

guidance can be obtained via the International Laser Display Association, www.ilda.com/index.htm.

CAUTION: The use of corrective eye wear or optics for viewing at distances such as telescopes or

binoculars within a distance of 100mm may pose an eye hazard.

This laser product is a Class 3R laser and has an interlocked

housing.

There are no user serviceable parts inside. Tampering or

removing warranty seals will void your products limited

warranty.

Combo label with the Product Model Number, Serial

Number, Date of Manufacturing, Laser Light Warning Label,

Warranty Void Label and Interlocked Housing Label

Proper Usage Safety and Compliance Information

According to FDA Regulations you should

operate this product as stated on the left.

Ordercode: 43165

Energetic

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

●If the Energetic is lowered from the ceiling or high joists, professional trussing systems have to be used.

●Use a clamp to mount the Energetic, with the mounting bracket, to the trussing system.

●The Energetic must never be fixed swinging freely in the room.

●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety cable.

●When rigging, derigging or servicing the Energetic, always make sure, that the area below the

installation site is secured and that there are not any unauthorized people around.

The Energetic can be placed on a flat stage floor or mounted to any kind of truss with a clamp.

Improper installation can cause serious injuries and/or damage of property!

Connection with the mains

Connect the device to the mains with the power-plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE

GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Ordercode: 43165

Energetic

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the

fixture. Be prepared to provide the model number, serial number and a brief description of the cause of

the return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging

is the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name.

02) Your address.

03) Your phone number.

04) A brief description of the symptoms.

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that the fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

agreed otherwise in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period, complaints will not be handled anymore.

Complaints will only be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 43165

Energetic

Description of the device

Features

The Energetic is a light effect with high output and great effects. It is equipped with laser, strobe and LED

effects.

●Input voltage: 100-240V AC, 50/60Hz

●Power consumption: 30W

●DMX channels: 2 or 9 channels

●4-digit LED display for easy setup

●Control modes: Built-in programs, Static Color, Manual, Sound-controlled, Master/Slave, DMX

●Control protocol: DMX-512

●Protection rate: IP20

●Housing: Die-cast black aluminum

●Cooling: Cooling fan

●Remote Control; Use max. 5m from device

●Connections: IEC connectors IN/OUT, 3-pin XLR IN/OUT

●Fuse: T1L/250V

●Dimensions: 260 x 190 x 188 mm (LxWxH)

●Weight: 1,8 kg

LED effect

●Light source: 1 x 3W Red LED, 1 x 3W Green LED, 1 x 3W Blue LED, 1 x 3W White LED

Laser effect

●Laser Color: Red, Green

●Laser Power: 130mW (100mW 650nm Red, 30mW 532nm Green)

●Laser Class: 3R

●Safety Features: Key switch, Interlock, Safety eye

●Laser Safety: EN/IEC 60825-1 Ed 2, 2007-03

Strobe effect

●Light source: 16 x 0,5W White 5730 LEDs

Note: Knowledge of DMX is required to fully utilize this unit.

Optional accessories

51316 - Remote Interlock

Overview

Fig. 01

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec LED Design Par18 RGB Manuel utilisateur

Show Tec

Show Tec Spectral PC 1800Z IP65 Manuel utilisateur

Show Tec

Show Tec Floodlight 1 kW Symmetric Manuel utilisateur

Show Tec

Show Tec Spectral M400 IP67 Manuel utilisateur

Show Tec

Show Tec Airstrike V2 Manuel utilisateur

Show Tec

Show Tec Performer 1500 Fresnel Daylight Manuel utilisateur

Show Tec

Show Tec Lightset PRO 9/10 RGBM Manuel utilisateur

Show Tec

Show Tec Edison Dot E1 V1 Manuel utilisateur

Show Tec

Show Tec Solar FL-550 Manuel utilisateur

Show Tec

Show Tec City Painter 575 Manuel utilisateur

Show Tec

Show Tec STAGE BLINDER 2 DMX Manuel utilisateur

Show Tec

Show Tec Pixel Panel 1024 Manuel utilisateur

Show Tec

Show Tec Sustrip II Stageblinder Manuel utilisateur

Show Tec

Show Tec Maniac FX 7 Manuel utilisateur

Show Tec

Show Tec Mirrorball 30 cm V1 Manuel utilisateur

Show Tec

Show Tec XS-4W Quad Beam Manuel utilisateur

Show Tec

Show Tec helix 1800 Q4 RGBW Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 15 Q4 Manuel utilisateur

Show Tec

Show Tec Cameleon Spot 18-4 Q4 Manuel utilisateur

Show Tec

Show Tec Candela Pix 100 Manuel utilisateur

Show Tec

Show Tec Truss Booster RDM 1-6 Manuel utilisateur

Show Tec

Show Tec Showmaster 48 V5 Manuel utilisateur

Show Tec

Show Tec Cameleon Spot 7 Q6 V1 Manuel utilisateur

Show Tec

Show Tec Galactic G30 30mW Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
