Net-2/3 Pocket V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Order code: 50807

MANUAL

ENGLISH



 1

Order code: 50807
Net-2/3 Pocket
Table of contents

Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................4
Connection with the mains.........................................................................................................................................4
Return Procedure..........................................................................................................................................................5
Claims..............................................................................................................................................................................5

Description of the Device ................................................................................................................................................6
Top View .........................................................................................................................................................................6
Front View.......................................................................................................................................................................7
Back View.......................................................................................................................................................................7

Installation...........................................................................................................................................................................7

Setup and Operation ........................................................................................................................................................8
Setup ...............................................................................................................................................................................8
Setup Net-2/3 Pocket with Laptop/Computer ....................................................................................................8
Setup Net-2/3 Pocket with Lighting Controller.....................................................................................................9
Connecting to a Network .........................................................................................................................................10
Art-Net Settings.........................................................................................................................................................10
sACN Settings............................................................................................................................................................10
How to Make a Data Cable.....................................................................................................................................10
Fixture Linking...............................................................................................................................................................11
Data Cabling...............................................................................................................................................................11
Operation .....................................................................................................................................................................12
Control Panel ...............................................................................................................................................................12
Status Menu .................................................................................................................................................................13
Main Menu Overview.................................................................................................................................................14
Main Menu Options....................................................................................................................................................15
1. Rename .................................................................................................................................................................15
2. IP Mode .................................................................................................................................................................15
3. Set Netmask ..........................................................................................................................................................16
4. Set DMX Port .........................................................................................................................................................17
5. Set Display.............................................................................................................................................................18
6. Set Default.............................................................................................................................................................18
7. Firmware Version..................................................................................................................................................18
Settings Configuration via Web Browser ................................................................................................................19
Changing the Password .........................................................................................................................................20
Updating the Firmware...........................................................................................................................................20

Maintenance....................................................................................................................................................................20

Troubleshooting ...............................................................................................................................................................21

Product Specifications....................................................................................................................................................22



Order code: 50807

Net-2/3 Pocket

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

●Showtec Net-2/3 Pocket

●AC power adapter

●User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be qualified

●follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation.

Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Order code: 50807

Net-2/3 Pocket

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

●Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

●Never remove warning or informative labels from the unit.

●Never leave any cables lying around.

●Do not connect this device to a dimmer pack.

●Do not switch the device on and off in short intervals, as this would reduce the device’s life.

●Do not touch the device’s housing bare-handed during its operation. Allow the fixture to cool for at

least 5 minutes before handling.

●Do not shake the device. Avoid brute force when installing or operating the device.

●Only use device indoors, avoid contact with water or other liquids.

●Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

●Only operate the device after having familiarized yourself with its functions.

●Avoid flames and do not put close to flammable liquids or gases.

●Always keep case closed while operating.

●Always allow free air space of at least 50 cm around the unit for ventilation.

●Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord by the plug. Never pull out the plug by tugging the power cord.

●Make sure that the device is not exposed to extreme heat, moisture or dust.

●Make sure that the available voltage is not higher than stated on the rear panel.

●Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

●If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

●If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

●For adult use only. Device must be installed out of the reach of children. Never leave the unit running

unattended.

●The user is responsible for correct positioning and operating of the Net-2/3 Pocket. The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of this device.

●Repairs, servicing and electric connection must be carried out by a qualified technician.

●WARRANTY: Till one year after date of purchase.

Order code: 50807

Net-2/3 Pocket

Operating Determinations

●This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

●The maximum ambient temperature ta = 40 °C must never be exceeded.

●In order to eliminate wear and improve the device’s lifespan, during periods of non-use, completely

disconnect from power source via breaker or by unplugging.

●The relative humidity must not exceed 50 % with an ambient temperature of 40 °C.

●If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property!

Connection with the mains

Connect the device to the mains with the supplied AC power adapter.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NULL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Order code: 50807

Net-2/3 Pocket

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the

fixture. Be prepared to provide the model number, serial number and a brief description of the cause for

the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is

the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Order code: 50807

Net-2/3 Pocket

Description of the Device

Features

The Showtec NET-2/3 Pocket node is a cutting-edge network routing device which converts Art-Net or

sACN to DMX-512 and vice versa. It allows for the transmission of a maximum of 1024 DMX channels over

a single Ethernet cable. The NET-2/3 Pocket can be configured remotely via a web interface and can be

powered using PoE (Power-over-Ethernet) technology. It supports Backup, Normal, Single, HTP and LTP

merging options.

●DMX: 2 universes (IN and/or OUT)

●Network: RJ45

●Data speed: 1 Gbps

●Input voltage: 12 V DC, 500 mA PoE

●Power consumption: 8 W

●Connections: 2 x 3-pin XLR IN/OUT, RJ45 connector, DC input connector

●Power supply: PoE, AC power adapter

●Supported protocols: Art-Net, sACN, TCP/IPv4, DMX-512-A

●Setup: control panel, web interface

●Merging options: HTP, LTP, Normal, Backup

●DMX data refresh rate: 40 Hz default (adjustable 10-40 Hz)

●Display: OLED

●IP rating: IP20

●Operating temperature: 0-40 °C

●Dimensions: 115 x 67 x 44 mm (L x W x H)

●Weight: 0,3 kg

Top View

Fig. 01

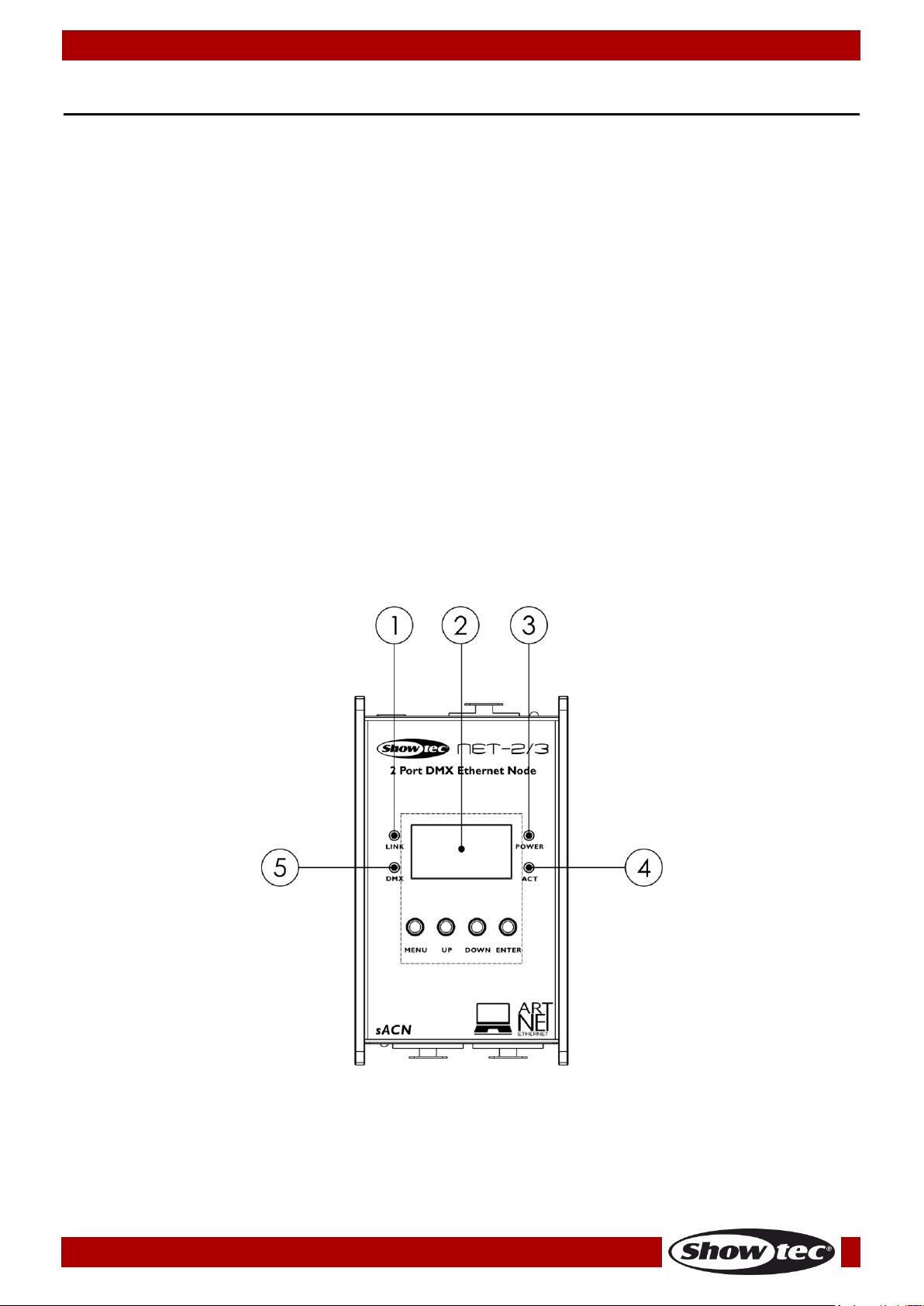

01) Link LED indicator. This indicator lights up when a network signal is received.

02) Control panel –OLED display with buttons

03) Power LED indicator. This indicator lights up when the device is powered.

04) Activity LED indicator. This indicator lights up when there is network activity.

05) DMX LED indicator. This indicator lights up when a DMX signal is present.

Order code: 50807

Net-2/3 Pocket

Front View

Fig. 02

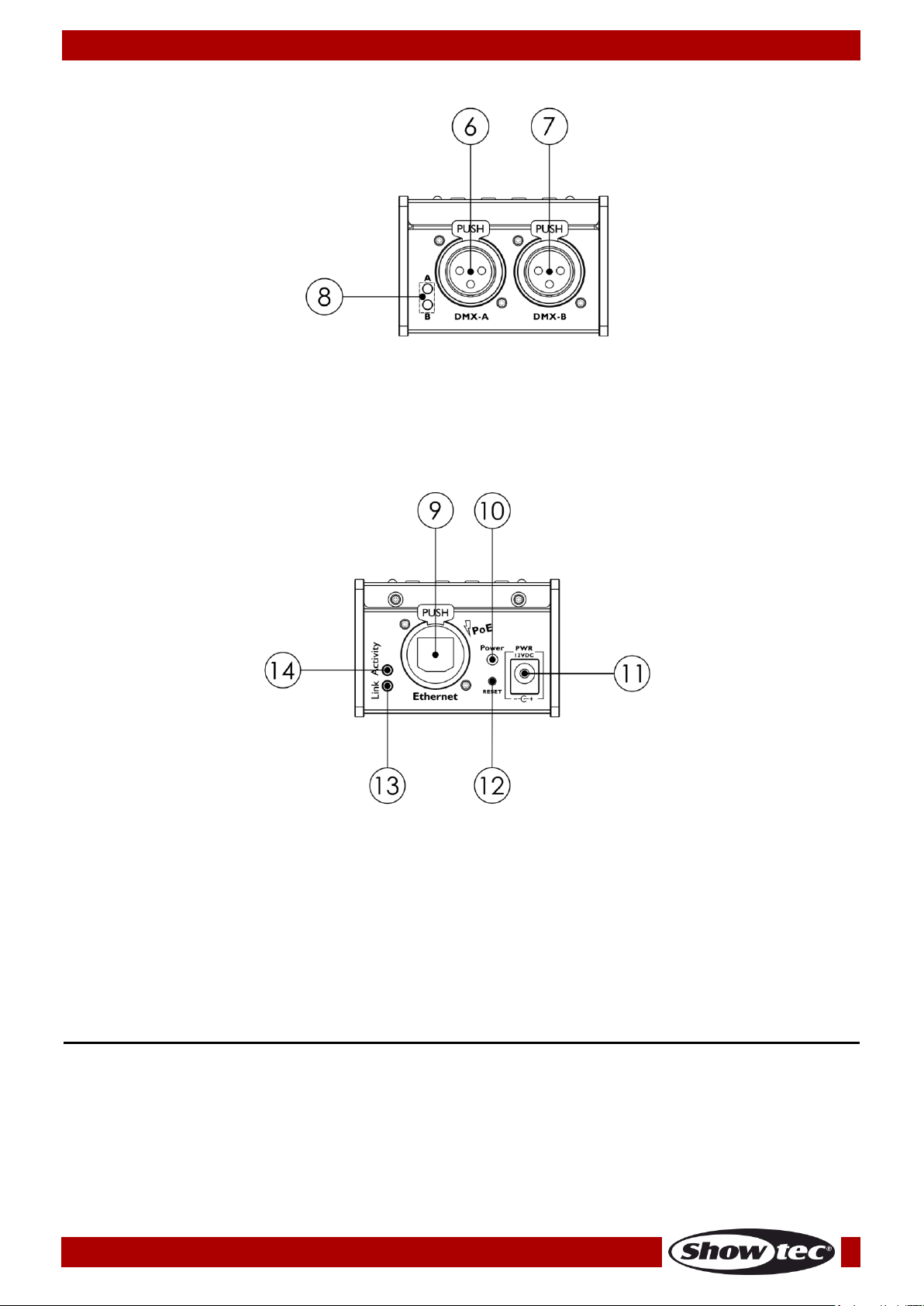

06) 3-pin DMX XLR port A

07) 3-pin DMX XLR port B

08) DMX LED indicators for respectively DMX port A and DMX port B. These indicators light up when there

is DMX signal present.

Back View

Fig. 03

09) Ethernet RJ45 connector

10) Power LED indicator. This indicator lights up when the device is powered. The indicator is blinking

during reset of the device.

11) 12 V DC power input

12) RESET button. Resets the device to factory defaults. To reset the device via the control panel, see 6.

Set Default on page 18.

13) Link LED indicator. This indicator lights up when a network signal is received.

14) Activity LED indicator. This indicator lights up when there is network activity.

Installation

Remove all packing materials from the Net-2/3 Pocket. Check that all foam and plastic padding is

removed. Connect the Net-2/3 Pocket to a power outlet with the supplied AC power adapter.

Alternatively, the Net-2/3 Pocket can be powered from the Ethernet connection, using Power-over-

Ethernet (PoE) technology. If the network switch does not support PoE, you can use a PoE injector or a

PoE hub.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Order code: 50807

Net-2/3 Pocket

Setup and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage.

Setup

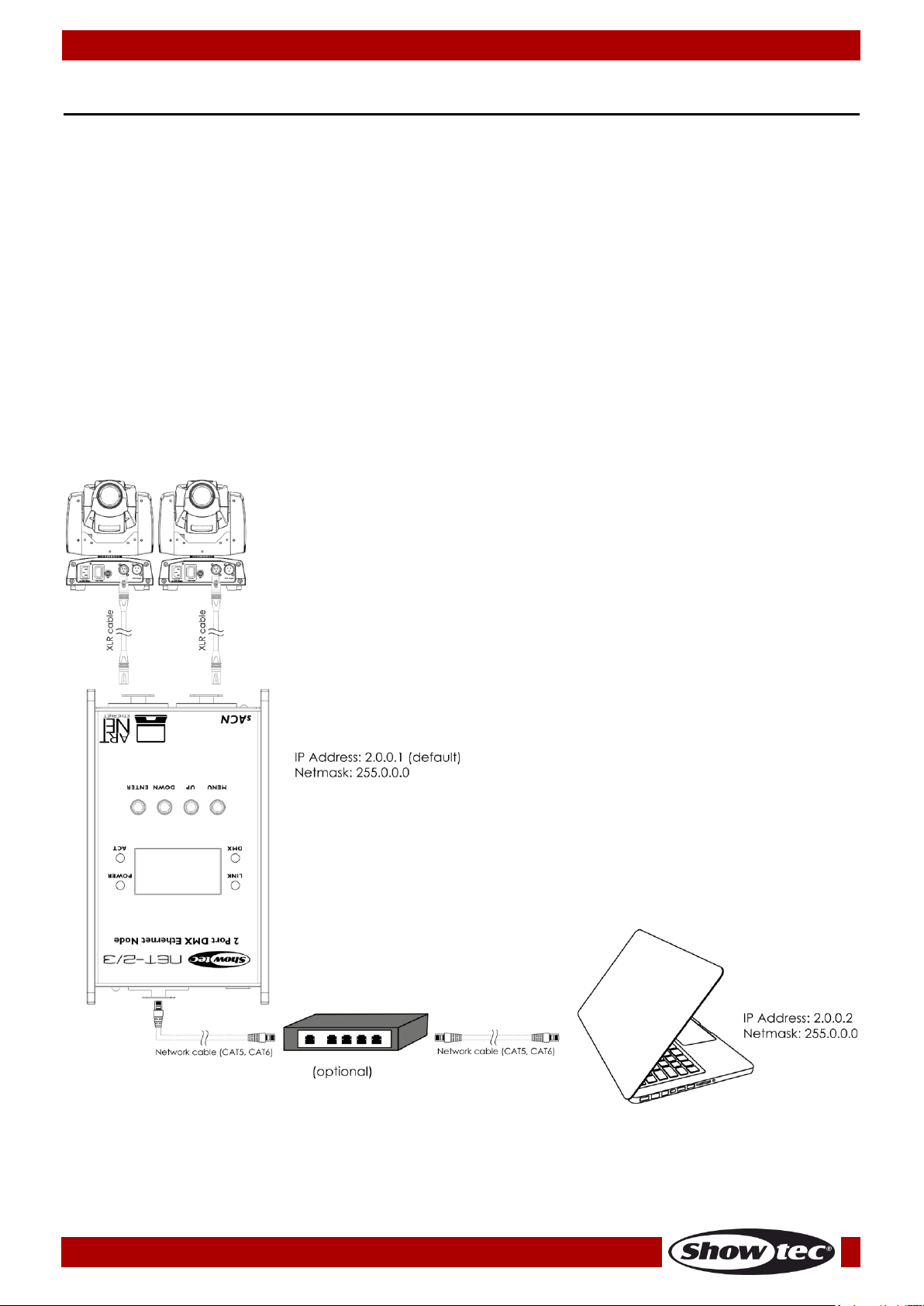

Setup Net-2/3 Pocket with Laptop/Computer

01) Connect the Net-2/3 Pocket using 3-pin XLR cable to the DMX inputs of the fixtures.

02) Connect the Net-2/3 Pocket to a network switch using a CAT5/CAT6 cable.

03) Connect the network switch to a laptop/computer using a CAT5/CAT6 cable. If no network is

required, you can connect the Net-2/3 Pocket directly to the laptop/computer using a CAT5/CAT6

cable.

04) Supply electric power.

The Net-2/3 Pocket can be powered via the AC adapter or via the Ethernet connection using PoE.

Do not supply power before the whole system is set up and connected properly.

05) Set the IP address of the lighting controller. The default IP address of the Net-2/3 Pocket is 2.0.0.1. To

change the IP address of the Net-2/3 Pocket, see 2. IP Mode on page 15. Refer to Connecting to a

Network on page 10 for the correct network settings.

Fig. 04

Note: Link all cables before connecting electric power

Order code: 50807

Net-2/3 Pocket

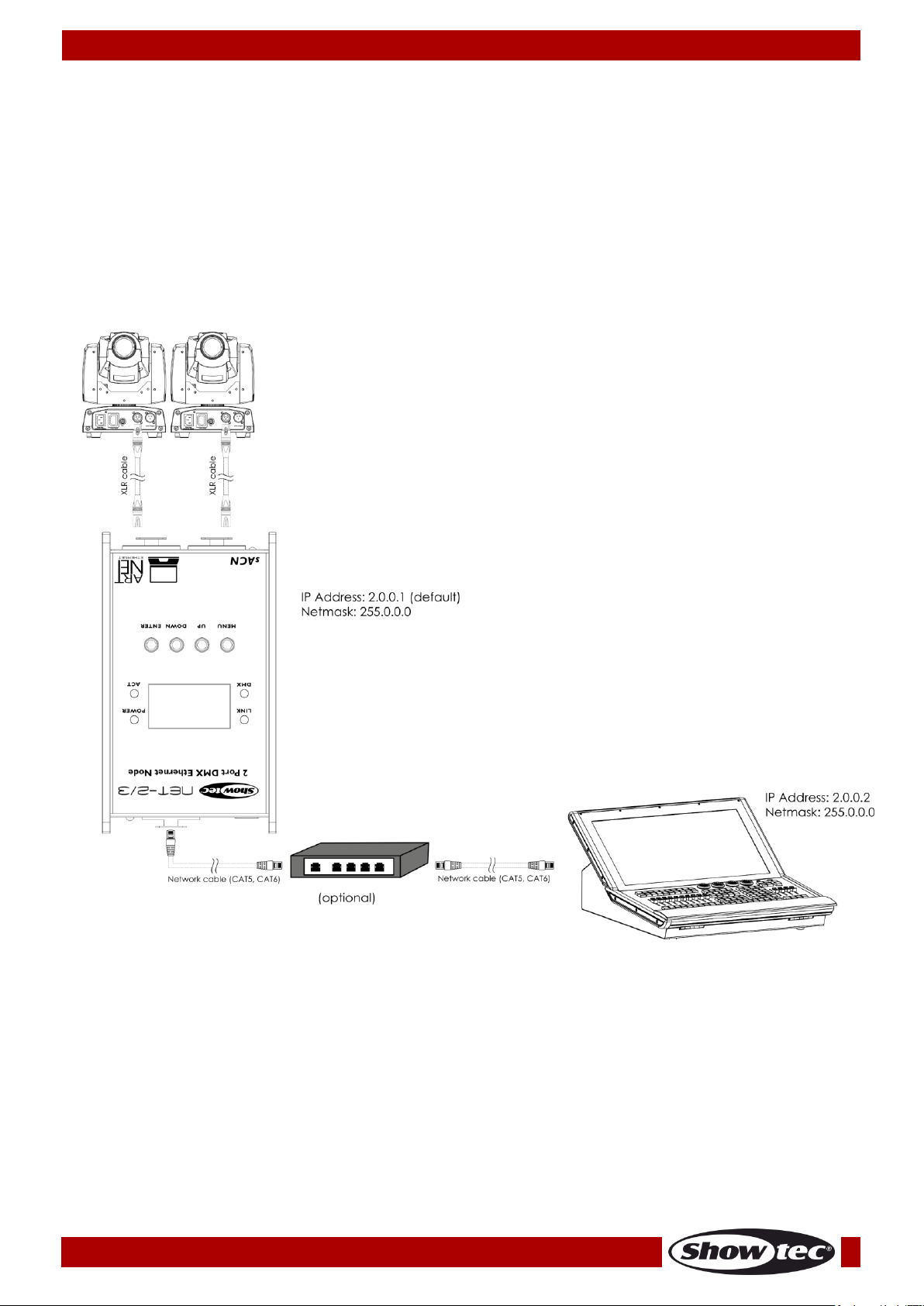

Setup Net-2/3 Pocket with Lighting Controller

01) Connect the Net-2/3 Pocket using 3-pin XLR cable to the DMX inputs of the fixtures.

02) Connect the Net-2/3 Pocket to a network switch using a CAT5/CAT6 cable.

03) Connect the network switch to the lighting controller using a CAT5/CAT6 cable. If no network is

required you can connect the Net-2/3 Pocket directly to the lighting controller using a CAT5/CAT6

cable.

04) Supply electric power.

The Net-2/3 Pocket can be powered via the AC adapter or via the Ethernet connection using PoE.

Do not supply power before the whole system is set up and connected properly.

05) Set the IP address of the lighting controller. The default IP address of the Net-2/3 Pocket is 2.0.0.1. To

change the IP address of the Net-2/3 Pocket, see 2. IP Mode on page 15. Refer to Connecting to a

Network on page 10 for the correct network settings.

Fig. 05

Note: Link all cables before connecting electric power

Ce manuel convient aux modèles suivants

Table des matières

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
