Shop fox SHOP FOX W1789 Manuel utilisateur

Specifications

Square Drive Size.............................................1⁄2"

Maximum Torque.....................................230 ft/lbs.

No Load Speed........................................7,000 RPM

Air Inlet...................................................1⁄4" NPT

Required PSI................................................90 PSI

Average Air Consumption.................................4 CFM

Weight........................................................6 lbs.

Inventory

A. Air Impact Wrench ........................................1

B. 1⁄4" NPT Quick Connect Fitting (male) .................1

Operation

To improve tool lifespan, use a filter/lubricator/regulator

as shown in Figure 2. Otherwise, lubricate daily with a

couple drops of pneumatic tool oil directly into the air fit-

ting as shown in Figure 3.

CAUTION: Shattering hazard! Standard sockets may

break apart if used on this tool. Use sockets rated for

impact wrench use only.

Figure 3. Lubricating directly into air

fitting.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC. Printed in China#9578JM

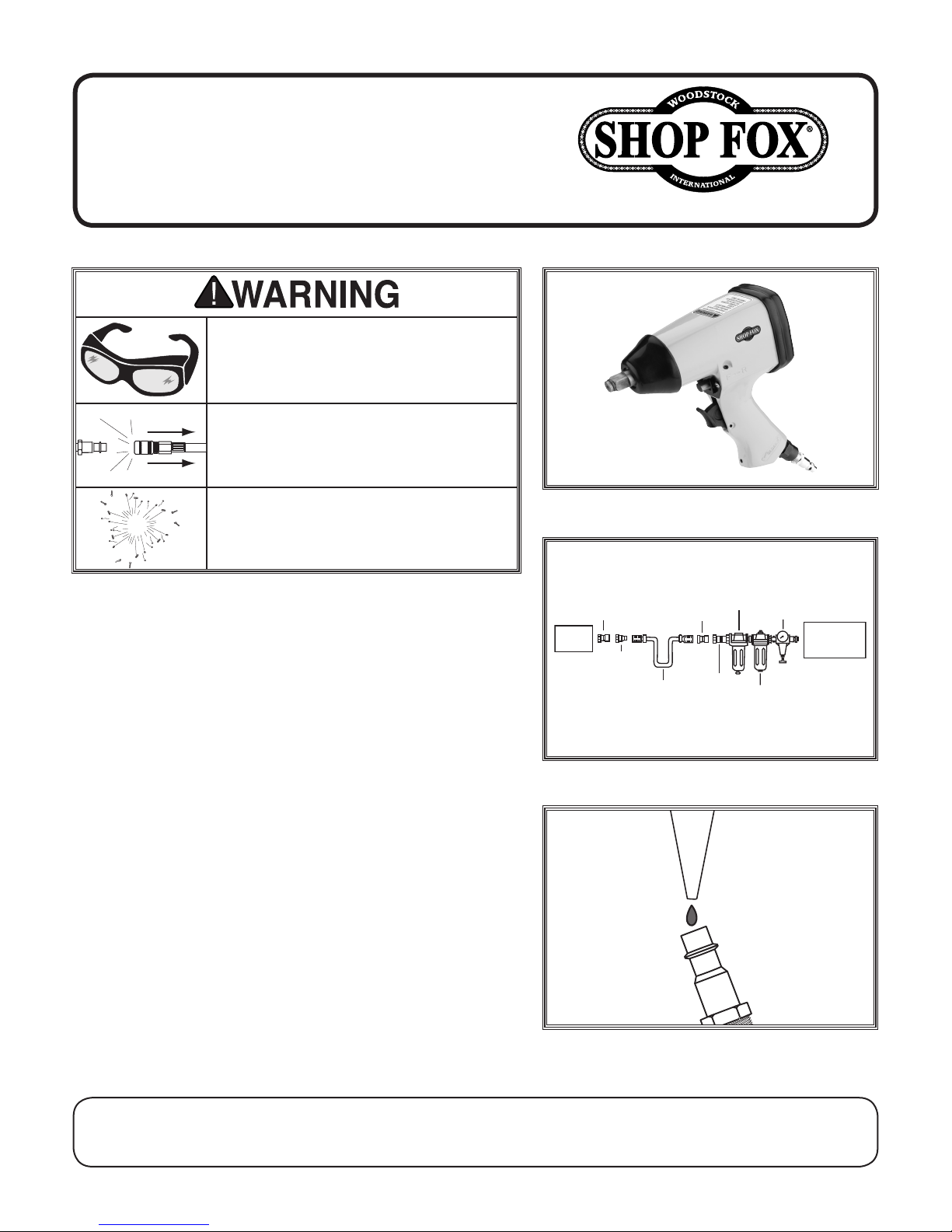

Model W1789

1⁄2" Impact Wrench

Instruction Sheet

Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz

EYE INJURY HAZARD!

Always wear safety glasses during

use to prevent serious personal

injury!

INJURY HAZARD!

Always disconnect tool from air to

prevent unexpected operation dur-

ing service!

INJURY HAZARD!

Never exceed 120 PSI!

Quick

Connector

Quick

Coupler

Air Hose Quick

Coupler

Quick

Connector

Lubricator

Filter

Regulator

Air

Compressor

Your

Tool

Figure 2. Installing your tool.

Figure 1. Model W1789.

-2-

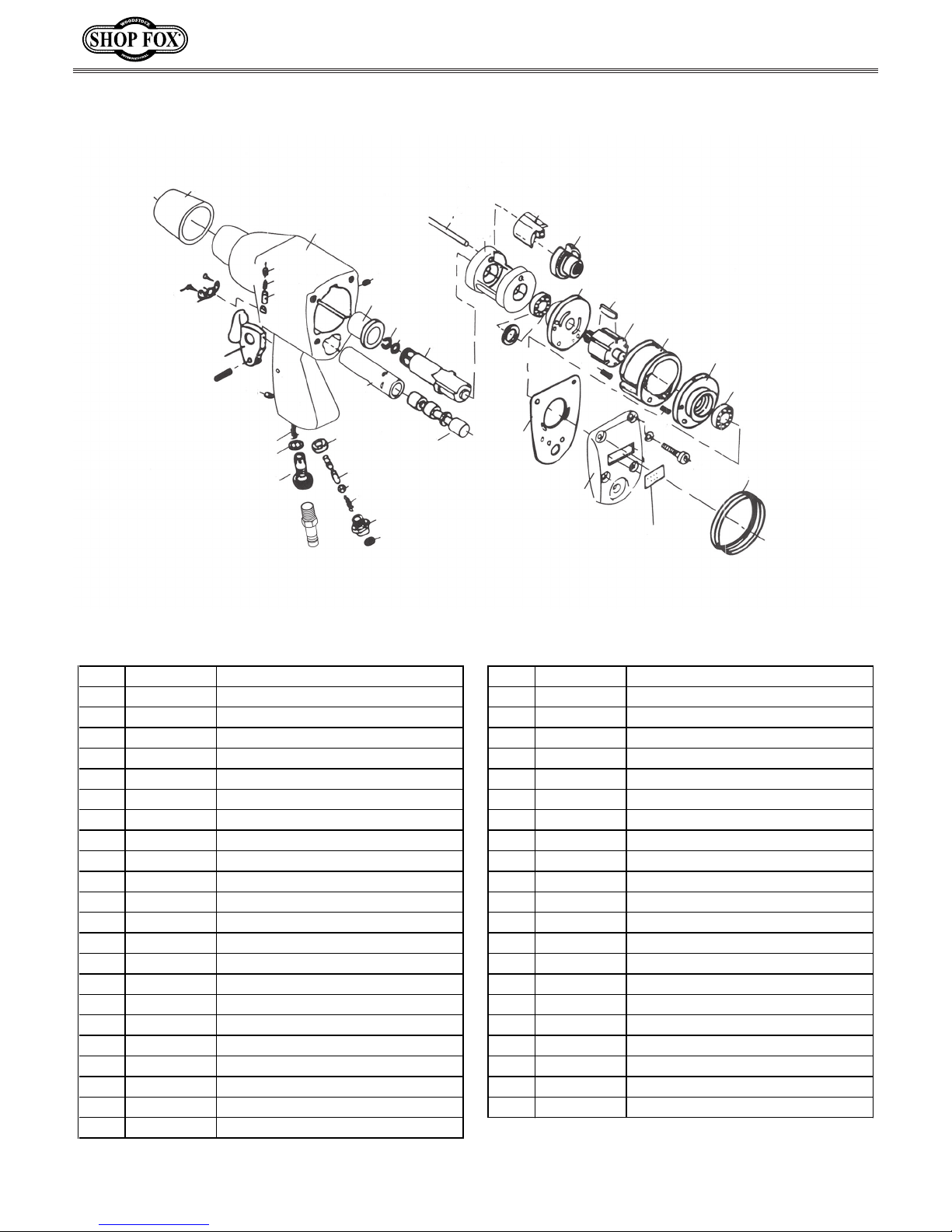

W1789 1⁄2" Impact Wrench Instructions

REF PART�# DESCRIPTION REF PART�# DESCRIPTION

101 X1789101 HOUSING 124 X1789124 ANVIL�

102 X1789102 VALVE�SLEEVE 125 X1789125 HAMMER�CAGE

103 X1789103 ANVIL�BUSHING 126 X1789126 HAMMER�PIN

104 X1789104 EXHAUST�DEFLECTOR 127 X1789127 HAMMER�DOG

105 X1789105 TAPPING�SCREW 128 X1789128 DRIVE�CAM

106 X1789106 TRIGGER 129 X1789129 OIL�SEAL

107 X1789107 SPRING�PIN 130 X1789130 BALL�BEARING

108 X1789108 VALVE�STEM 131 X1789131 FRONT�END�PLATE

109 X1789109 BUSHING 132 X1789132 ROTOR�BLADE

110 X1789110 STEEL�BALL 133 X1789133 ROTOR

111 X1789111 COMPRESSION�SPRING 134 X1789134 SPRING�PIN

112 X1789112 HOSE�ADAPTER 135 X1789135 CYLINDER

113 X1789113 COMPRESSION�SPRING 136 X1789136 REAR�END�PLATE

114 X1789114 O-RING 137 X1789137 REAR�GASKET

115 X1789115 AIR�REGULATOR 138 X1789138 REAR�COVER

116 X1789116 SET�SCREW 139 X1789139 SPRING�WASHER

117 X1789117 REVERSE�VALVE 140 X1789140 CAP�SCREW

118 X1789118 PIN 141 X1789141 NAME�PLATE

119 X1789119 SPRING 142 X1789142 RUBBER

120 X1789120 SET�SCREW 143 X1789143 PROTECTING�RUBBER

121 X1789121 SET�SCREW 144 X1789144 STEEL�BALL

122 X1789122 ANVIL�COLLAR 145 X1789145 1/4�NPT�AIR�FITTING

123 X1789123 O-RING













































 



 





 

































W1789 Parts
