Shop fox SHOP FOX D4033 Manuel utilisateur

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC. Printed in China#12963JB

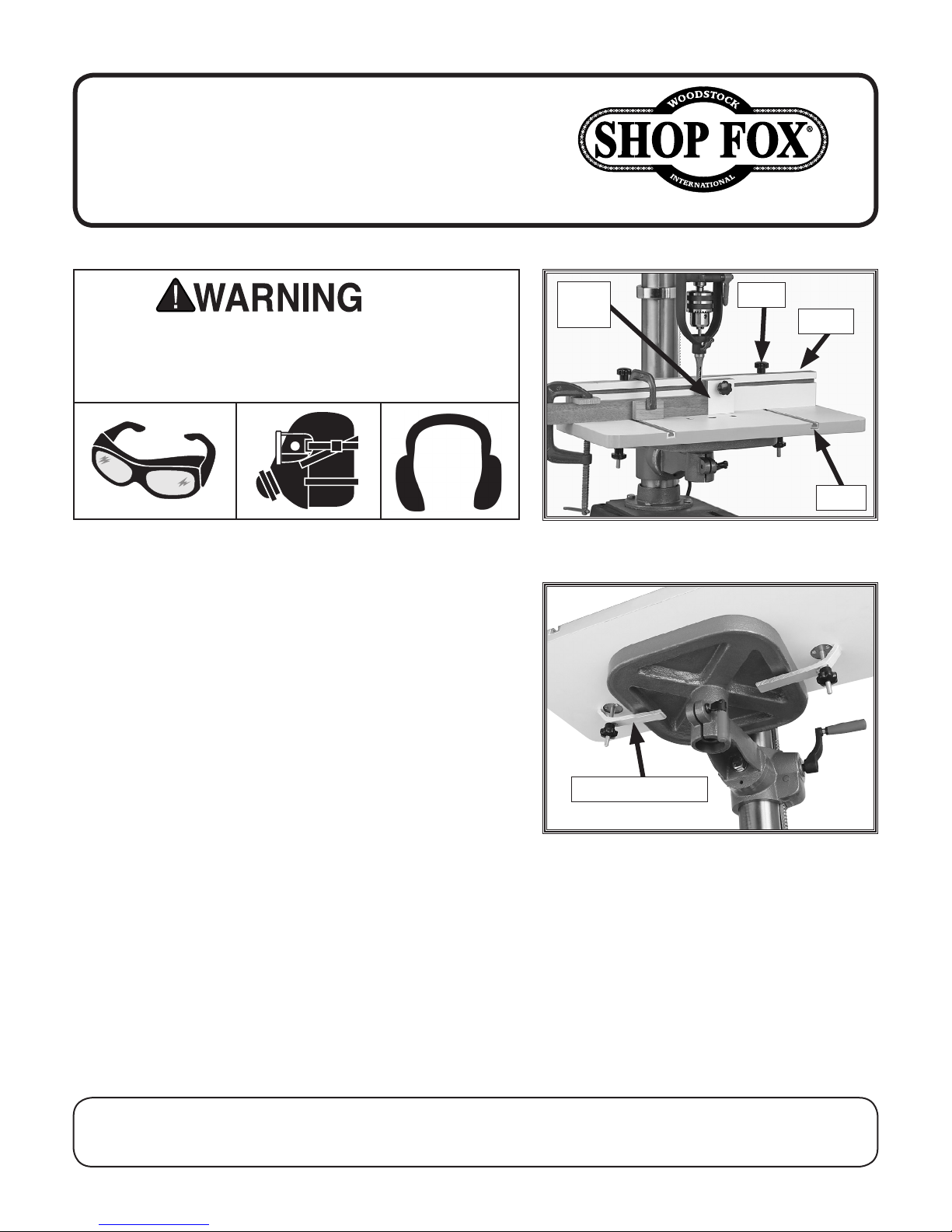

Figure 1. Drill press fitted with Model

D4033 drill press table.

Figure 2. Installed table.

Model D4033

Shop Fox Drill Press Table

Instruction Sheet

Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz

Damage to your eyes, lungs, and ears could result

from using a drill press without protective gear,

such as safety glasses, a respirator, and hearing

protection.

Specifications

Size ................................. 23

3⁄4" W x 11

7⁄8" D x 3" T

Aluminum Insert T-Slots........................................2

Wooden T-Slots ..................................................1

Weight ..................................................10

1⁄2lbs.

Construction ...........................Melamine-Coated MDF

Color ........................................................White

Inventory (Refer to Figures 1 & 2) Qty

Table ..............................................................1

Fence .............................................................1

Fence Stop .......................................................1

Knobs .............................................................5

Clamp Assemblies ...............................................2

Installation

1. File down any nicks or burrs in the drill press table,

clean the surface, then wipe a very light coat of

machine oil on the table to prevent rust should any

condensation occur.

2. Place the Model D4033 table onto the drill press

table, align the clamps as shown in Figure 2, then

snug them in place.

Table

Fence

Stop

Knob

Clamp Assembly

-2-

D4033 Drill Press Table Instructions

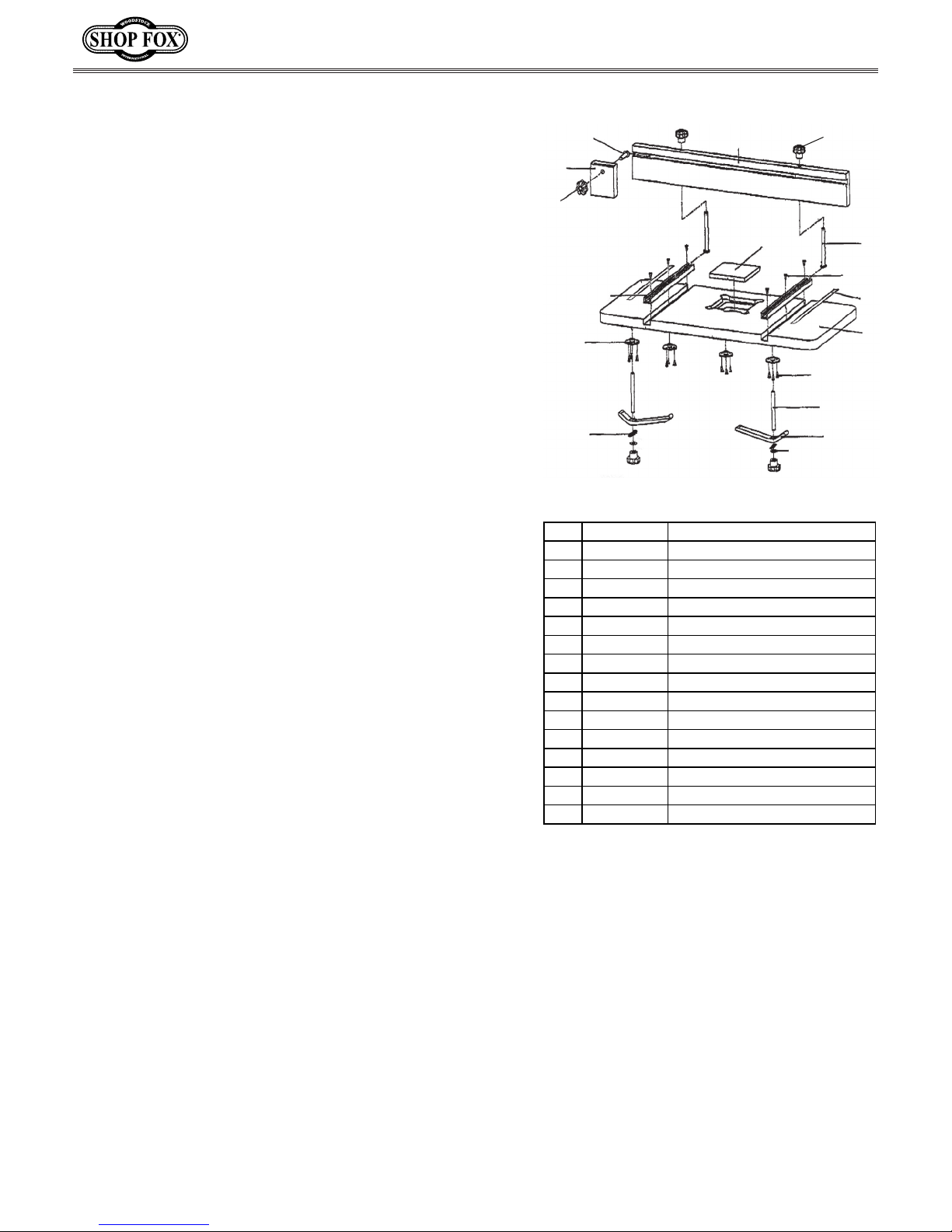

REF PART # DESCRIPTION

1 XD4033001 CLAMP BAR

2 XD4033002 TAPE SCALE

3 XD4033003 KNOB

4 XD4033004 TABLE INSERT

5 XPW01M FLAT WASHER 8MM

6 XD4033006 HOLDDOWN

7 XD4033007 STUD

8 XPFH39 FLAT HEAD SCR 6-32 X 7/16

10 XD4033010 THREADED FLANGE

11 XD4033011 T-SLOT BOLT M8-1.25 X 75

12 XD4033012 T-SLOT BOLT M8-1.25 X 35

13 XD4033013 KNOB M8-1.25

14 XD4033014 TABLE

15 XD4033015 STOP BLOCK

16 XD4033016 FENCE

17 XD4033017 T-TRACK

Parts

Maintenance and Care

• Keep your cast iron drill table and column rust-

free with regular applications of a high-quality rust

preventive product.

• To avoid condensation and rust between the two

tables, do not leave the Model D4033 table mounted

on the drill press table for long periods of time.

• Clean the Model D4033 drill press table by

vacuuming out T-slots when finished and wiping

down the table and fence with any good household

glass cleaner. Periodically lightly oil the hand knob

threads and the studs.

Operation

• Periodically verify the mounting clamps are snug,

and never overtighten the hand knobs.

• To avoid drilling into the table, make sure that the

drill press depth stop and drill bit alignment are

correct.

• Use the table only in dry environments.

• Wipe down workpieces to ensure they are free of

debris that may scratch the table.

• Remove the center plate (#4 in Parts) from the table

if you need to perform a through-drilling operation.
