Stinger96

Hardware User Manual Rev1.0

Page 1of 21

Stinger96 HW User Manual Rev1.0

www.shiratech-solutions.com

Document Revision History

Revision

Date

Author

Status and Description

0.13

22/07/2019

Ori Makover

Pre-Initial version

1.0

01/05/2020

Guy Zohar

First release

INDEX

1. Introduction ................................................................................................................2

2. Functional Block Diagram ............................................................................................3

3. Overview ................................................................................................................4

4. Additional Information ................................................................................................5

5. Running The Board For The First Time ..........................................................................6

6. Power Supply ................................................................................................................8

7. LTE BG96 Cat.M1/NB1 & EGPRS Module ......................................................................9

8. STM32MP157A ..............................................................................................................12

9. Low-Speed Connector ................................................................................................14

10. Power And Reset Buttons ..........................................................................................16

11. Micro SD Card Connector ...........................................................................................17

12. JTAG Connector ..............................................................................................................17

13. ST-Link Connector ..............................................................................................................18

14. SIM Card Connector ...................................................................................................18

15. USB0 + Power ..............................................................................................................19

16. USB1 + Console ..............................................................................................................19

17. IS43TR16640B-125JBL ................................................................................................20

18. MT29F8G08ABBCAH4-ITC ..........................................................................................21

Page 2of 21

Stinger96 HW User Manual Rev1.0

www.shiratech-solutions.com

1. Introduction

STINGER96 is a 96Boards IoT Edition compatible (IE extended) base board from Shiratech. The board

provides full support for 96Boards IoT Edition (IE) mezzanines via the Low Speed expansion connector, and

features LTE connectivity using the Quectel BG96 NB-IoT modem.

The board incorporates the following key elements:

•STM32MP157 microprocessor with dual Arm®Cortex®-A7 and Cortex®-M4 Cores, a very energy-

efficient, performance rich SoC, highly suitable for low-power embedded and consumer

applications.

•Quectel BG96 LTE, an ultra-low power consumption LTE Cat-M1/NB1/EGPRS module delivering

375Kbps downlink and 375Kbps uplink data rates. Also provides pin-to-pin compatibility with

Quectel LTE module EG91/EG95, Cat NB1 (NB-IoT) module BC95, UMTS/HSPA module UG95/UG96

and GSM/GPRS module M95.

•Running Yocto –A Linux distribution aimed for embedded and IoT software.

•96Boards Low Speed expansion connector, allowing the connection of additional 96Boards

mezzanines as needed.

•2 micro USB connectors (USB and monitor), a micro SD card connector and a micro SIM connector.

Page 3of 21

Stinger96 HW User Manual Rev1.0

www.shiratech-solutions.com

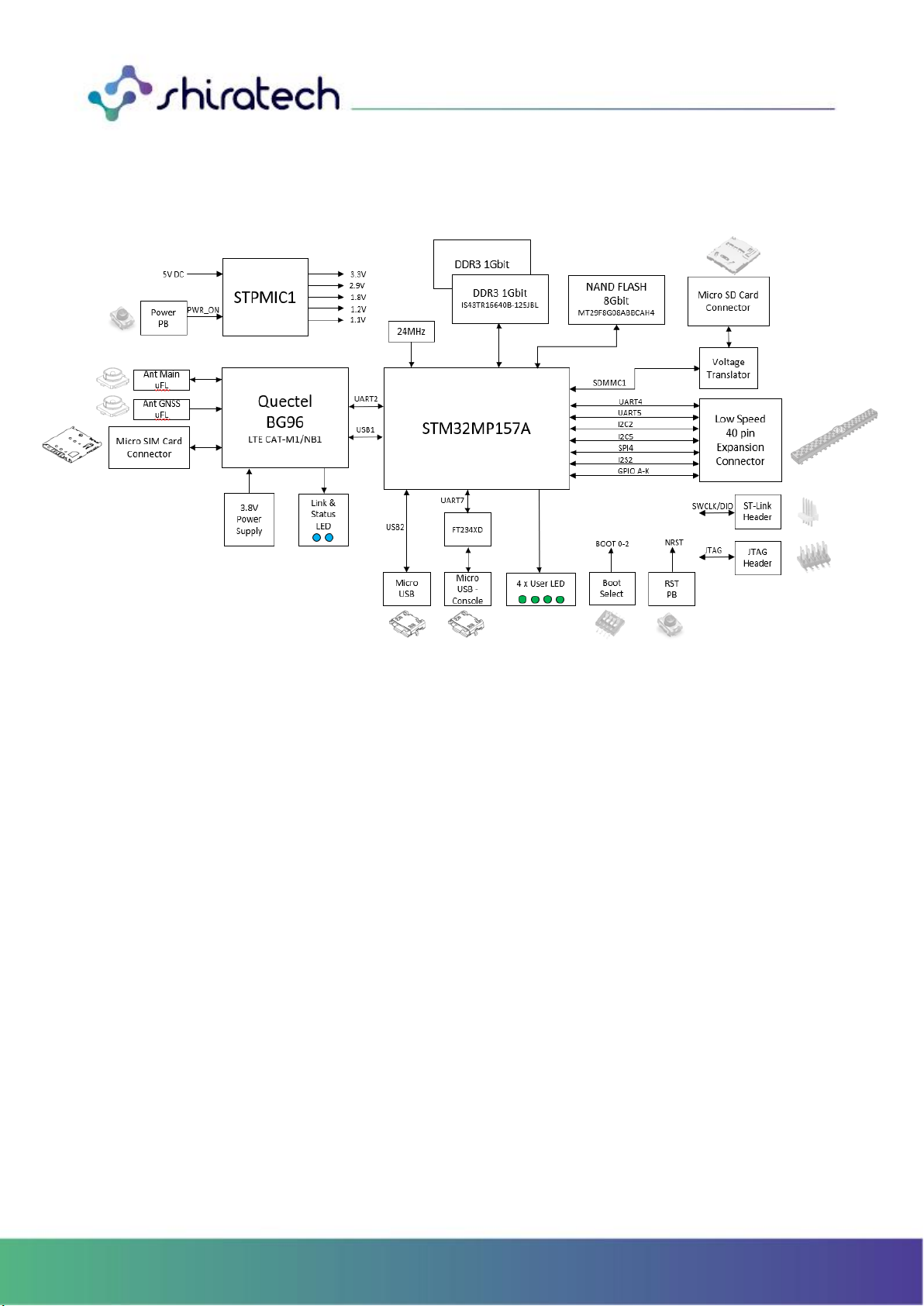

2. Functional Block Diagram

Stinger96 incorporates the following key elements:

•Mezzanine board connection is enabled via Low Speed Connectors, including 2 UART lines, 2 I2C

lines, GPIO A-L, SPI0 and PCM.

•The board is connected to a 5V power feed. The STPMIC1 provides additional 3.3V, 2.8V and 1.8V

to the various components.

•Quectel BG96 CAT -M1/NB1/GPRS Module:

oThe module is powered by 3.8V

oConnected to the CPU via UART and USB

oConnected to a micro SIM connector

oConnected to two RF antenna UFL jacks: Main and GNSS.

•8 Gbit NAND Flash MT29F8G08ABBCAH4-ITC, powered by 1.8V, and connected to the CPU via a 32-

bit bus.

•Two DDR-3 memories IS43TR16640B-125JBL, are powered by 1.1V, and are connected to the CPU

via a 32-bit bus.

•Micro SD-Card connector, connected to a 2.9V power supply. Connected to the CPU by SDIO.

•Micro USB –5V power supply and UART debug port

•Micro USB –Direct to CPU

Page 4of 21

Stinger96 HW User Manual Rev1.0

www.shiratech-solutions.com

•FT234XD-R USB to serial UART interface, powered by the 5V supply from the USB port, and

provides UART communication with the CPU.

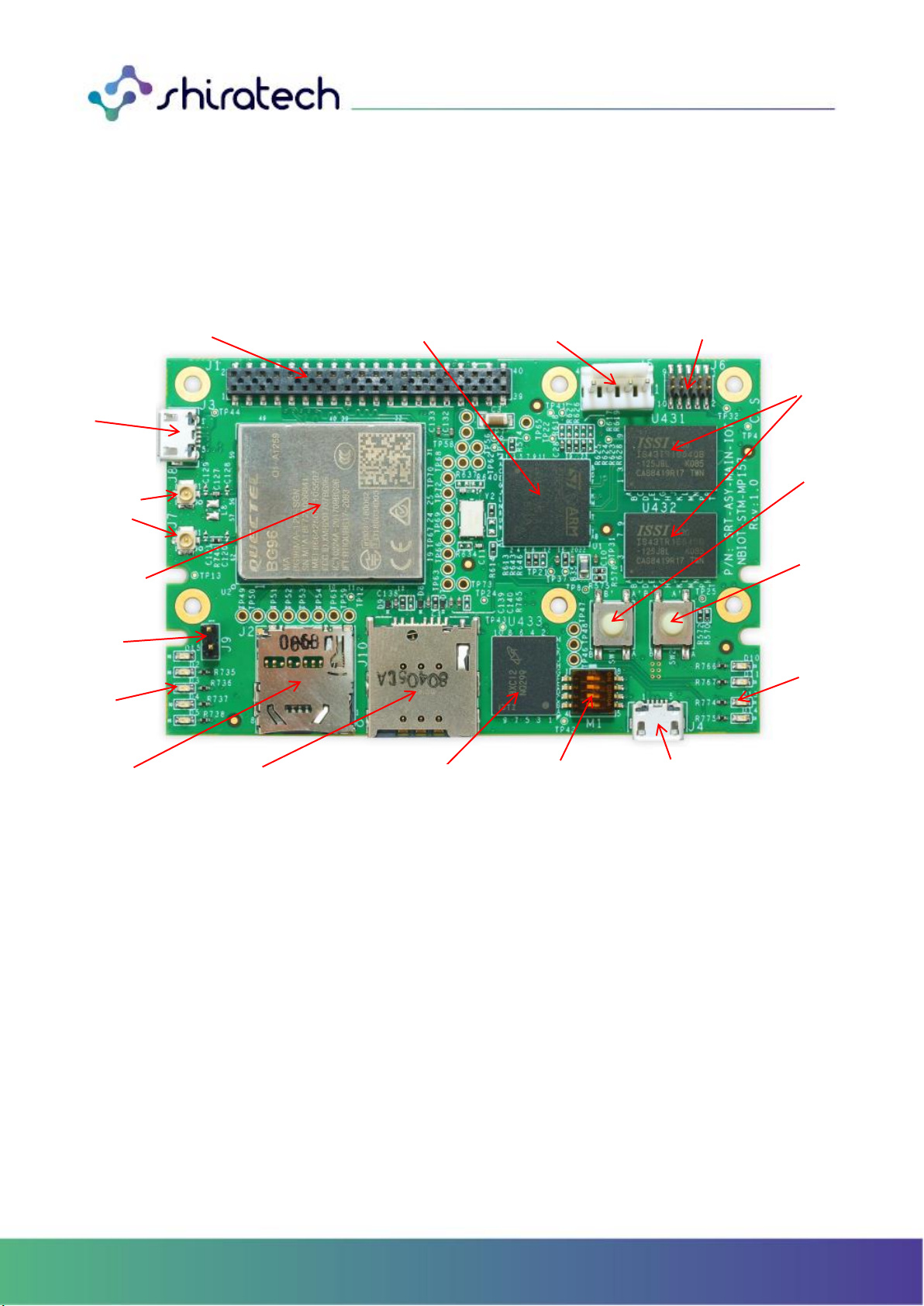

3. Overview

QUECTEL

BG96

Main and

GNSS

Antenna UFL

Connectors

LS Expansion Connector STM32MP157 Debugger JTAG

DDR3

Reset

Button

Power

Button

Modem

LED’s

Micro USB

(USB0 +

Power)

Main and

GNSS Antenna

UFL

Connectors

QUECTEL BG96

BG96 Boot

Configuration

User LED’s

SIM Connector

SD Connector SIM Connector SLC NAND Flash Boot Select Micro USB (USB1+Console)

Page 5of 21

Stinger96 HW User Manual Rev1.0

www.shiratech-solutions.com

4. Additional Information

SoC: ST Microelectronics STM32MP157

CPU: 32 bit dual-core Arm®Cortex®-A7 and 32 bit Cortex®-M4 with FPU/MPU

GPU: Vivante® - OpenGL® ES 2.0

PMIC: STPMIC1

RAM: DDR3 –64M x 32bit (2Gbit/256MB)

Storage: SLC NAND FLASH –1G x 8bit (8Gbit/1GB) + micro SD connector.

Communication: Quectel BG96 LTE modem.

USB: 2 micro USB connectors

Expansion Interface: 40 pin low speed expansion connector: +1.8V, +5V, SYS_DCIN, GND, UART, I2C, SPI,

PCM, PWM,GPIO x12

LED: 4 x User LEDs and 2 x modem LEDs

Buttons: Power button and Reset button

Power Source: Micro USB Connector

OS Support: Yocto Linux distribution

Size: 85mm x 54mm x 12mm

Page 6of 21

Stinger96 HW User Manual Rev1.0

www.shiratech-solutions.com

5. Running The Board For The First Time

1. Download the image file from the downloads at: https://www.shiratech-

solutions.com/products/stinger96/

2. Insert a clean SD card to your PC, then burn the .img file to the SD card using a suitable tool

(Win32 Disk Imager for example).

3. Do not connect the board to the power supply yet.

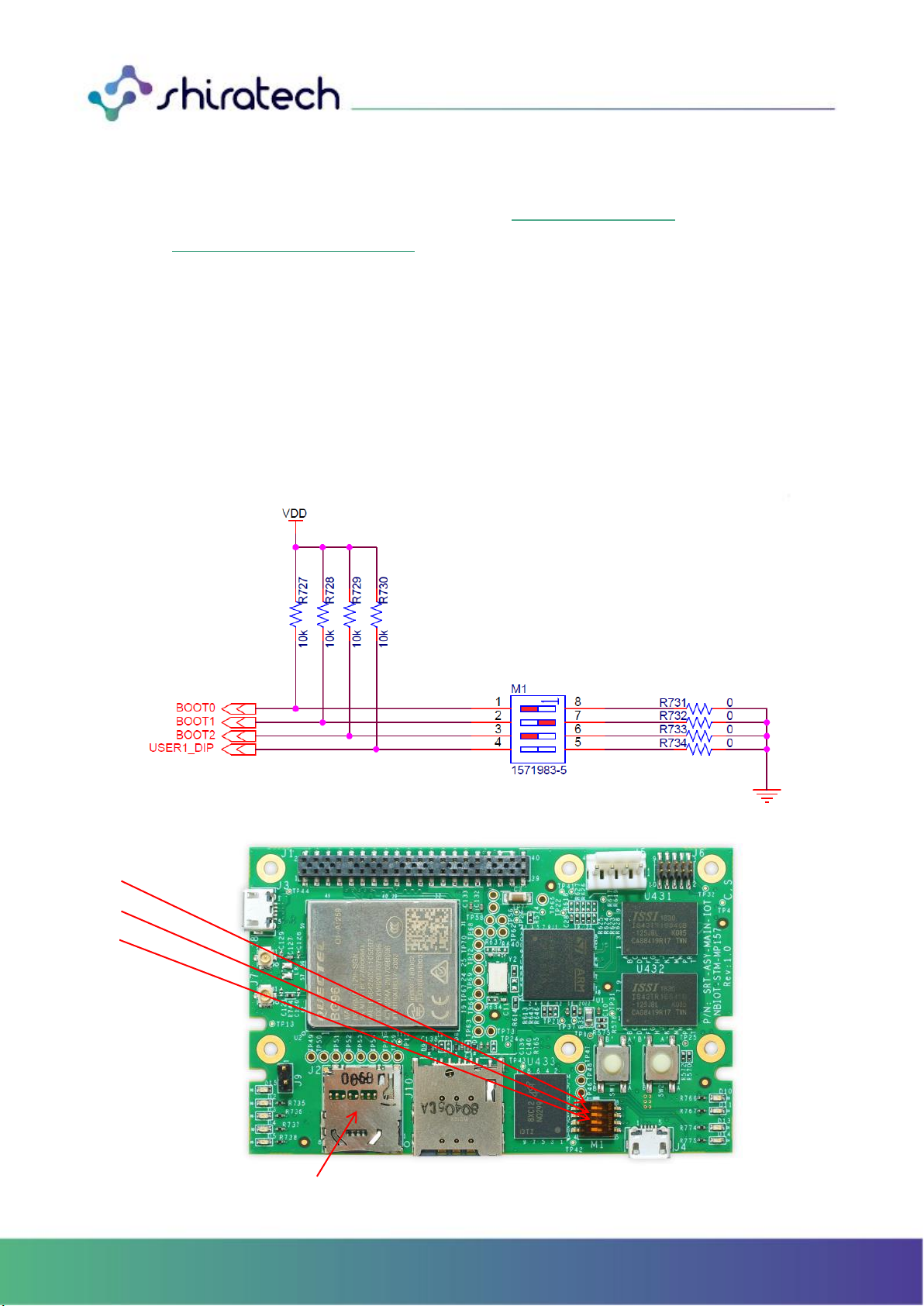

4. To boot from SD card, change the boot select to 1 0 1. The boot select pins are ordered as

follows, top to bottom: Boot0, Boot1, Boot2. Please refer to the pin statuses highlighted in red

in the schematic below. (The photo is only intended to show the boot select pins location,

ignore their status in the photo).

SD Connector

Boot0

Boot1

Boot2

Page 7of 21

Stinger96 HW User Manual Rev1.0

www.shiratech-solutions.com

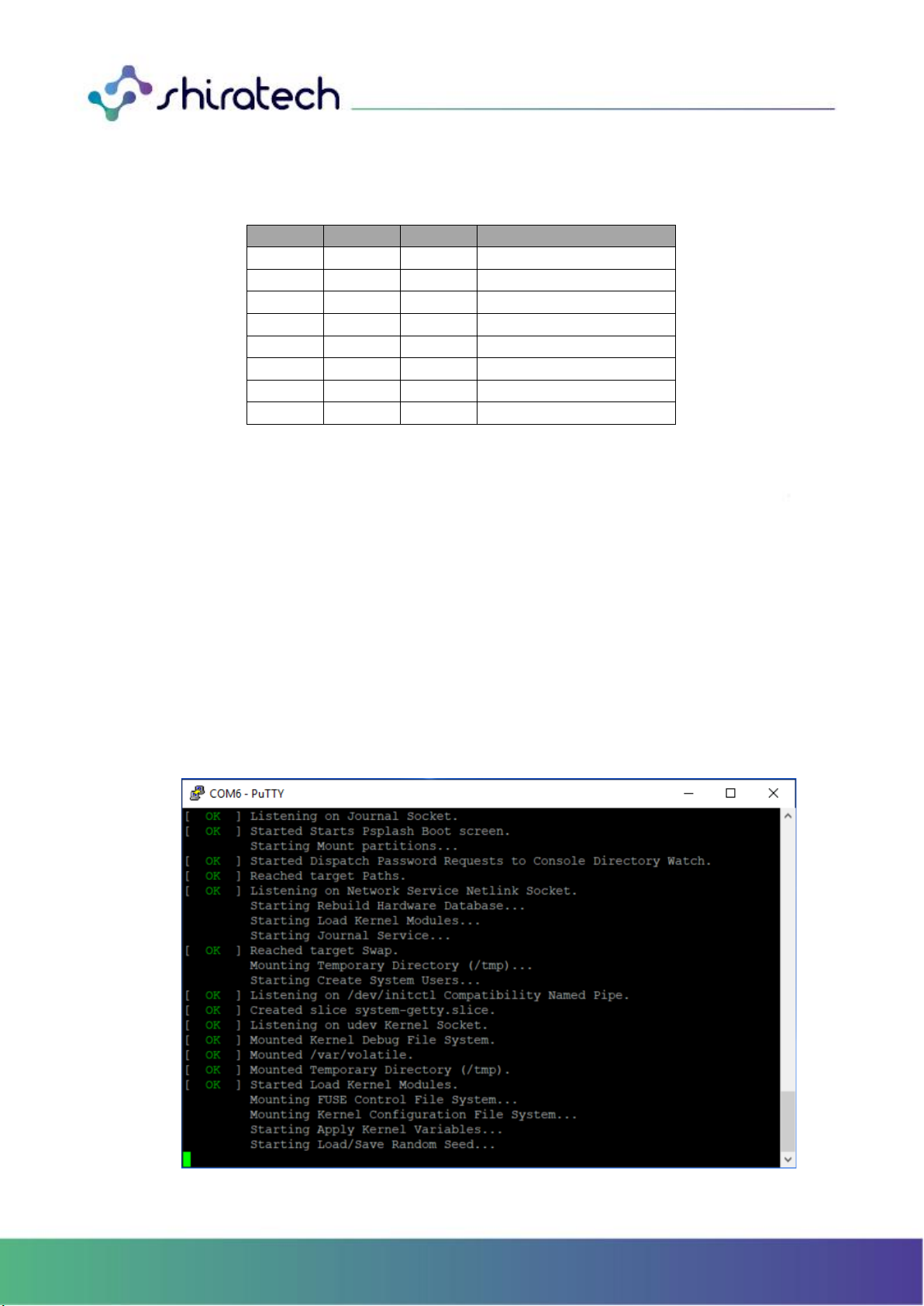

5. For other boot options, please refer to the STM32MP157 boot modes table:

6. Insert the SD card containing the image file to the SD card connector.

7. Connect the board to the PC using the micro USB connector. Make sure you connect using

USB1 + Console (the one next to the boot select pins).

8. Your board should now boot from the SD card. Open your device manager. The board should

appear under ‘Ports (COM & LPT)’.

9. Connect to the board through a serial connection using a suitable tool (PuTTY, for example).

Make sure you have picked the correct COM port (the one you see in the device manager), and

that you use the correct baud rate –115200.

BOOT2

BOOT1

BOOT0

Mode

UART and USB

Serial NOR Flash

e-MMC

NAND Flash

Reserved (NoBoot)

SD Card

UART and USB

Serial NAND Flash

Page 8of 21

Stinger96 HW User Manual Rev1.0

www.shiratech-solutions.com

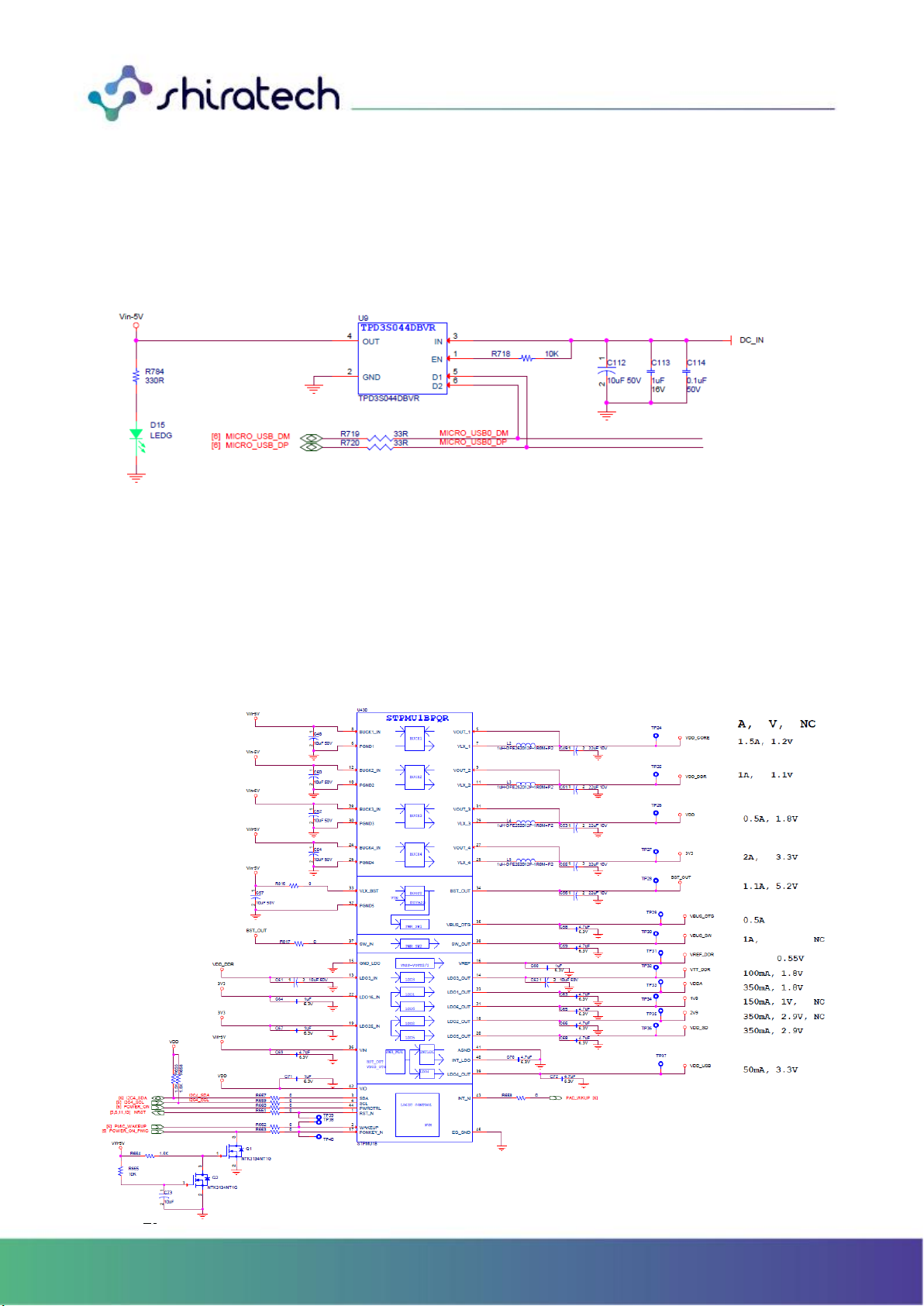

6. Power Supply

The board draws 5V from the micro USB connectors. The green LED (D15) turns on when the board is

powered up.

The STPMIC accepts a 5V input voltage, and provides 1.1V, 1.2V, 1.8V, 2.9V and 3.3V voltages to power the

various components. It also features I2C and digital IO control interface, and a user programmable non-

volatile memory (NVM), enabling scalability to support a wide range of applications.

Page 9of 21

Stinger96 HW User Manual Rev1.0

www.shiratech-solutions.com

7. LTE BG96 Cat-M1/NB1 & EGPRS Module

BG96 is a series of LTE Cat-M1/NB1/EGPRS module offering a maximum data rate of 375Kbps downlink and

375Kbps uplink. It features ultra-low power consumption, and provides pin-to-pin compatibility with

Quectel LTE module EG91/EG95, Cat NB1 (NB-IoT) module BC95, UMTS/HSPA module UG95/UG96 and

GSM/GPRS module M95.

With a cost-effective SMT form factor of 26.5mm × 22.5mm × 2.3mm and high integration level, BG96

enables integrators and developers to easily design their applications and take advantage from the

module’s low power consumption and mechanical intensity. Its advanced LGA package allows fully

automated manufacturing for high-volume applications.

A rich set of Internet protocols, industry-standard interfaces (USB/UART/I2C/Status Indicator) and

abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux and Android) extend the applicability

of the module to a wide range of M2M applications such as wireless POS, smart metering, tracking, etc.

The Quectel BG96 CAT M1/Cat NB1/GPRS module is powered by 3.8V.

Connected to a micro SIM connector.

RF lines connected to two RF antenna UFL jacks: Main and GNSS.

Two LEDs are used to indicate modem status.
