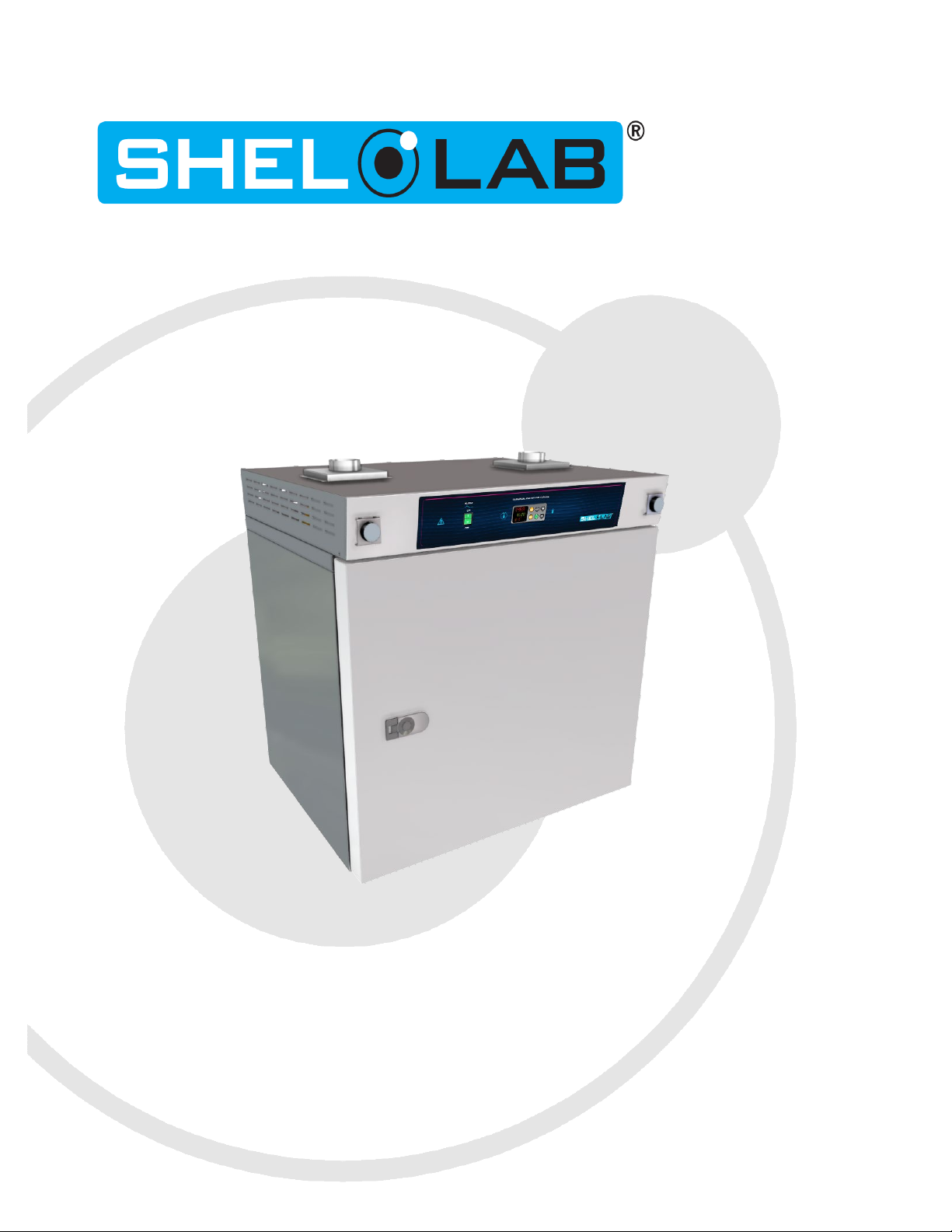

Shelolab SMO5HP-2 Manuel utilisateur

Installation - Operation Manual

SMO5HP-2

HIGH-PERFORMANCE OVEN

220 – 240 Voltage

2 | Page

These ovens require permanent connect wiring (also known as hardwiring) to a power supply.

Gas Purge Port Option

The SMO5HP-2 can be built with a 3/8-inch ID (9.5mm) gas in-port on the back of the oven. This

optional port can be connected to a cylinder of nitrogen (N2) or other inert gas to purge the oven

chamber during baking applications. This option must be ordered before the construction of the

oven.

Warning:48T This product contains chemicals, including triglycidyl isocyanurate, known to the State of

California to cause cancer as well as birth defects or other reproductive harm. For more information,

go to 33Twww.P65Warnings.ca.gov33T.

48T¡Advertencia! Este producto contiene sustancias químicas, incluido el triglicidil isocianurato, que el

estado de California sabe que causa cáncer, así como defectos de nacimiento u otros daños

reproductivos. Para obtener más información, visite www.P65Warnings.ca.gov48T.

Avertissement!Ce produit peut vous exposer à des produits chimiques, dont l'isocyanurate de

triglycidyle, reconnu par l'État de Californie pour provoquer le cancer, des anomalies congénitales

ou d'autres problèmes de reproduction. Pour plus d'informations, visitez le site

www.P65Warnings.ca.gov.

3 | Page

SMO5HP-2 High-Performance Oven

220 – 240 Voltage

Part Number (Manual): 4861706

Revision: June 23, 2020

Model SMO5HP-2

Part ID SLFHP522-H

The Part ID denotes the build type of the model. The manufacturer periodically releases

new build type designs incorporating new features and refinements of existing ones.

SHEL LAB is a brand of Sheldon Manufacturing, INC, an ISO 9001

certified manufacturer.

Safety Certifications

These units are CUE listed by TÜV SÜD as forced air ovens for professional, industrial, or

educational use where the preparation or testing of materials is done at an ambient air pressure

range of 22.14 – 31.3 inHg (75 – 106 kPa) and no flammable, volatile, or combustible materials are

being heated.

The units have been tested to the following requirements:

CAN/CSA-22.2 No. 61010-1:2012

CAN/CSA-C22.2 No. 61010-2-010:2015

UL 61010-1:2012

UL 61010-2-010:2015

EN 61010-1:2010

EN 61010-2-010:2014

4 | Page

TABLE OF CONTENTS

INTRODUCTION..................................................................................................................................................... 5

Read this Manual....................................................................................................................................................................5

Safety Considerations and Requirements ......................................................................................................................5

Contacting Assistance ..........................................................................................................................................................6

Manufacturing Warranty ......................................................................................................................................................6

Engineering Improvements .................................................................................................................................................6

Reference Sensor Device .................................................................................................................................................... 7

RECEIVING YOUR UNIT........................................................................................................................................ 9

Inspect the Shipment.............................................................................................................................................................9

Orientation.............................................................................................................................................................................. 10

Recording Data Plate Information.................................................................................................................................... 11

INSTALLATION...................................................................................................................................................... 13

Hardwire Requirement........................................................................................................................................................ 13

Installation Procedure Checklist ...................................................................................................................................... 13

Required Ambient Conditions........................................................................................................................................... 14

Required Clearances........................................................................................................................................................... 14

Power Source Requirements ............................................................................................................................................ 15

Power Feed Wiring............................................................................................................................................................... 16

Lifting and Handling ............................................................................................................................................................ 16

Leveling....................................................................................................................................................................................17

Install the Oven ......................................................................................................................................................................17

Installation Cleaning.............................................................................................................................................................17

Install the Shelving............................................................................................................................................................... 18

GRAPHIC SYMBOLS.............................................................................................................................................19

CONTROL OVERVIEW..........................................................................................................................................21

OPERATION.......................................................................................................................................................... 23

Operating Precautions....................................................................................................................................................... 23

Theory of Operations ......................................................................................................................................................... 24

Put the Oven into Operation ............................................................................................................................................ 26

Set the High Temperature Limit.......................................................................................................................................27

Set the Constant Temperature Setpoint....................................................................................................................... 28

Temperature Programs ..................................................................................................................................................... 28

High Temperature Limit Activated ................................................................................................................................. 29

Venting Oven Exhaust ....................................................................................................................................................... 30

Power Exhaust Blower........................................................................................................................................................ 31

USER MAINTENANCE ......................................................................................................................................... 33

Cleaning and Disinfecting................................................................................................................................................. 33

Door Gaskets and Chamber Integrity ........................................................................................................................... 34

Electrical Components....................................................................................................................................................... 34

Removing the Chamber Liner.......................................................................................................................................... 35

Calibrating the Temperature Display ............................................................................................................................ 36

UNIT SPECIFICATIONS........................................................................................................................................41

Weight...................................................................................................................................................................................... 41

Dimensions............................................................................................................................................................................. 41

Capacity .................................................................................................................................................................................. 41

Shelf Capacity by Weight................................................................................................................................................... 41

Temperature .......................................................................................................................................................................... 41

Airflow Performance........................................................................................................................................................... 42

Power...................................................................................................................................................................................... 42

REPLACEMENT PARTS ....................................................................................................................................... 43

5 | Page

INTRODUCTION

Thank you for purchasing a SHEL LAB oven. We know you have many choices in today’s competitive

marketplace when it comes to constant temperature equipment. We appreciate you choosing ours. We

stand behind our products and will be here if you need us.

READ THIS MANUAL

Failure to follow the guidelines and instructions in this user manual may create a protection

impairment by disabling or interfering with the unit safety features. This can result in injury or death.

Before using the unit, read the manual in its entirety to understand how to install, operate, and

maintain the unit in a safe manner. Ensure all end-users are given appropriate training before the unit

begins service.

Keep this manual available for use by all end-users.

SAFETY CONSIDERATIONS AND REQUIREMENTS

Follow basic safety precautions, including all national laws, regulations, and local ordinances in your

area regarding the use of this unit. If you have any questions about local requirements, please

contact the appropriate agencies.

SOPs

Because of the range of potential applications this unit can be used for, the end-user or their

supervisors must draw up a site-specific standard operating procedure (SOP) covering each

application and associated safety guidelines. This SOP must be written and available to all end-users

in a language they understand.

Intended applications and Locations

SMOHP forced-air ovens are engineered for constant temperature forced-air drying, curing, and

baking applications in professional, industrial, and educational environments. The ovens are not

intended for use at hazardous or household locations.

Power

Your unit and its recommended accessories are designed and tested to meet strict safety

requirements.

•Always hardwire the unit power feed to a protective earth grounded electrical source that

conforms to national and local electrical codes. If the unit is not grounded, parts such as

knobs and controls may conduct electricity and cause serious injury.

•Position the unit so the end-user can quickly and easily disconnect or uncouple the power

feed in the event of an emergency.

•Avoid damaging the power feed. Do not bend it excessively, step on it, place heavy objects

on it. A damaged power feed can easily become a shock or fire hazard. Never use a power

feed after it has been damaged.

•Use only approved accessories. Do not modify system components. Any alterations or

modifications to your unit not explicitly authorized by the manufacturer can be dangerous

and will void your warranty.

6 | Page

INTRODUCTION

CONTACTING ASSISTANCE

Phone hours for Sheldon Customer Support are 6 am – 4:30 pm Pacific Coast Time (west coast of

the United States, UTC -8), Monday – Friday. Please have the following information ready when

calling or emailing Customer Support: the model number, serial number, part number, and part ID.

See page 11.

[email protected]

1-800-322-4897 extension 4

(503) 640-3000 extension 4

FAX: (503) 640-1366

Sheldon Manufacturing, INC.

P.O. Box 627

Cornelius, OR 97113

USA

MANUFACTURING WARRANTY

For information on your warranty and online warranty registration please visit:

•sheldonmanufacturing.com/warranty

ENGINEERING IMPROVEMENTS

Sheldon Manufacturing continually improves all of its products. As a result, engineering changes and

improvements are made from time to time. Therefore, some changes, modifications, and

improvements may not be covered in this manual. If your unit’s operating characteristics or

appearance differs from those described in this manual, please contact your SHEL LAB dealer or

customer service representative for assistance.

7 | Page

INTRODUCTION

REFERENCE SENSOR DEVICE

Must be purchased separately

A reference sensor device is required for calibrating the unit temperature display.

Reference devices must meet the following standards:

•Accurate to at least 0.1°C

The device should be regularly calibrated, preferably by a third party.

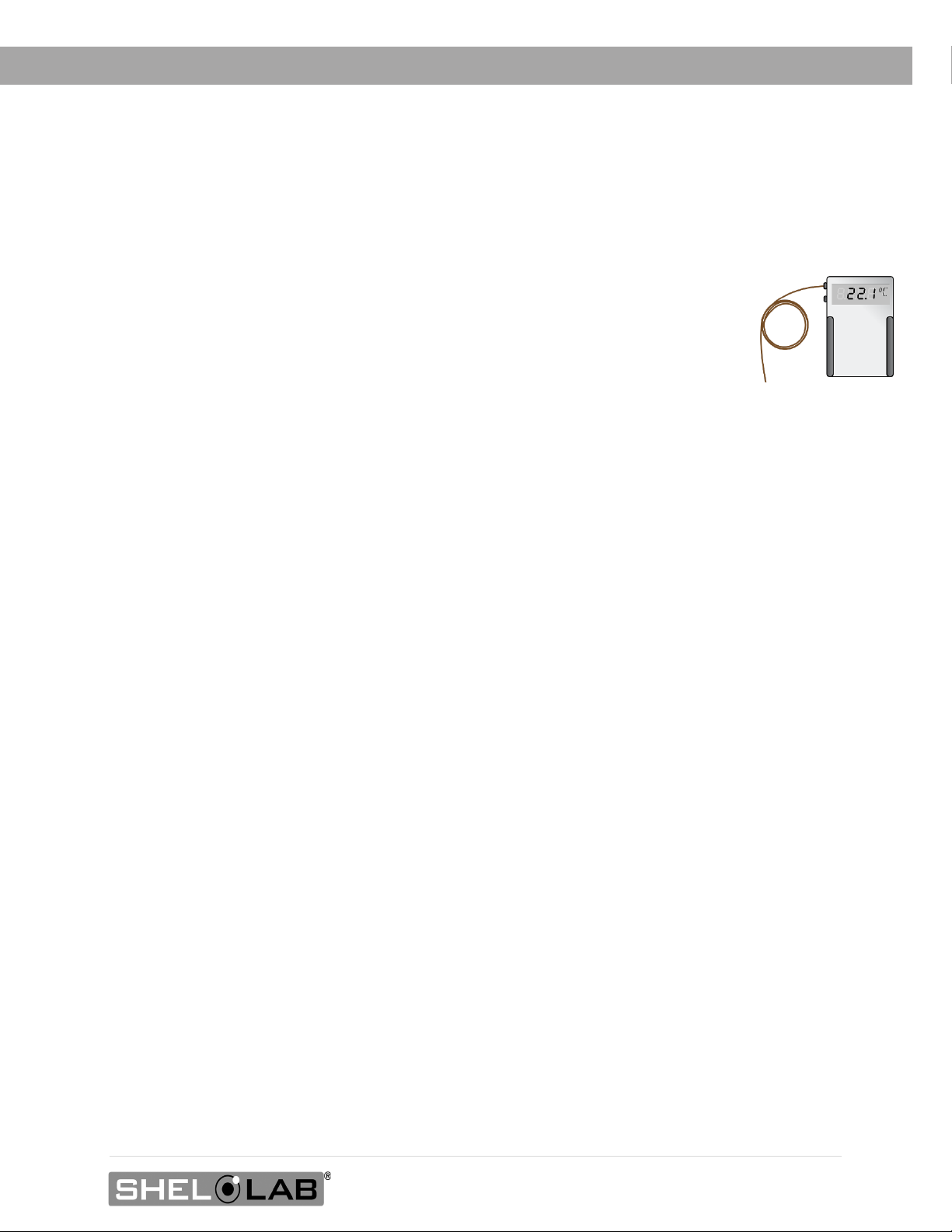

Temperature Probe

Use a digital device with a wire thermocouple probe that can be introduced into the unit chamber

through the door space. Select a thermocouple suitable for the application temperature you will be

calibrating at.

Why Probes?

Reference readings taken outside the chamber using wire temperature probes avoid chamber door

openings. Openings disrupt the chamber temperature. Each disruption requires a minimum 1-hour wait

to allow the atmosphere to re-stabilize before continuing.

No Alcohol or Mercury Thermometers

Alcohol thermometers do not have sufficient accuracy to conduct accurate temperature calibrations.

Never place a mercury thermometer in the unit chamber. Always use thermocouple probes.

Temperature

Reference

8 | Page

INTRODUCTION

9 | Page

RECEIVING YOUR UNIT

INSPECT THE SHIPMENT

Safe delivery becomes the responsibility of the carrier when a unit leaves the factory. Damage

sustained during transit is not covered by the manufacturing defect warranty.

When you receive your unit, inspect it for concealed loss or damage to its interior and exterior. If you

find any damage to the unit, follow the carrier’s procedure for claiming damage or loss. Save the

shipping carton until you are certain that the unit and its accessories function properly.

1. Carefully inspect the shipping carton for damage.

2. Report any damage to the carrier service that delivered the unit.

3. If the carton is not damaged, open the carton and remove the contents.

4. Inspect the unit for signs of damage. Use the orientation images in this chapter as

references.

5. The unit should come with an Installation and Operation Manual and heating recipe

programming guide.

6. Verify that the correct number of accessory items has been included. See the next page.

7. Carefully check all packaging for accessory items before discarding.

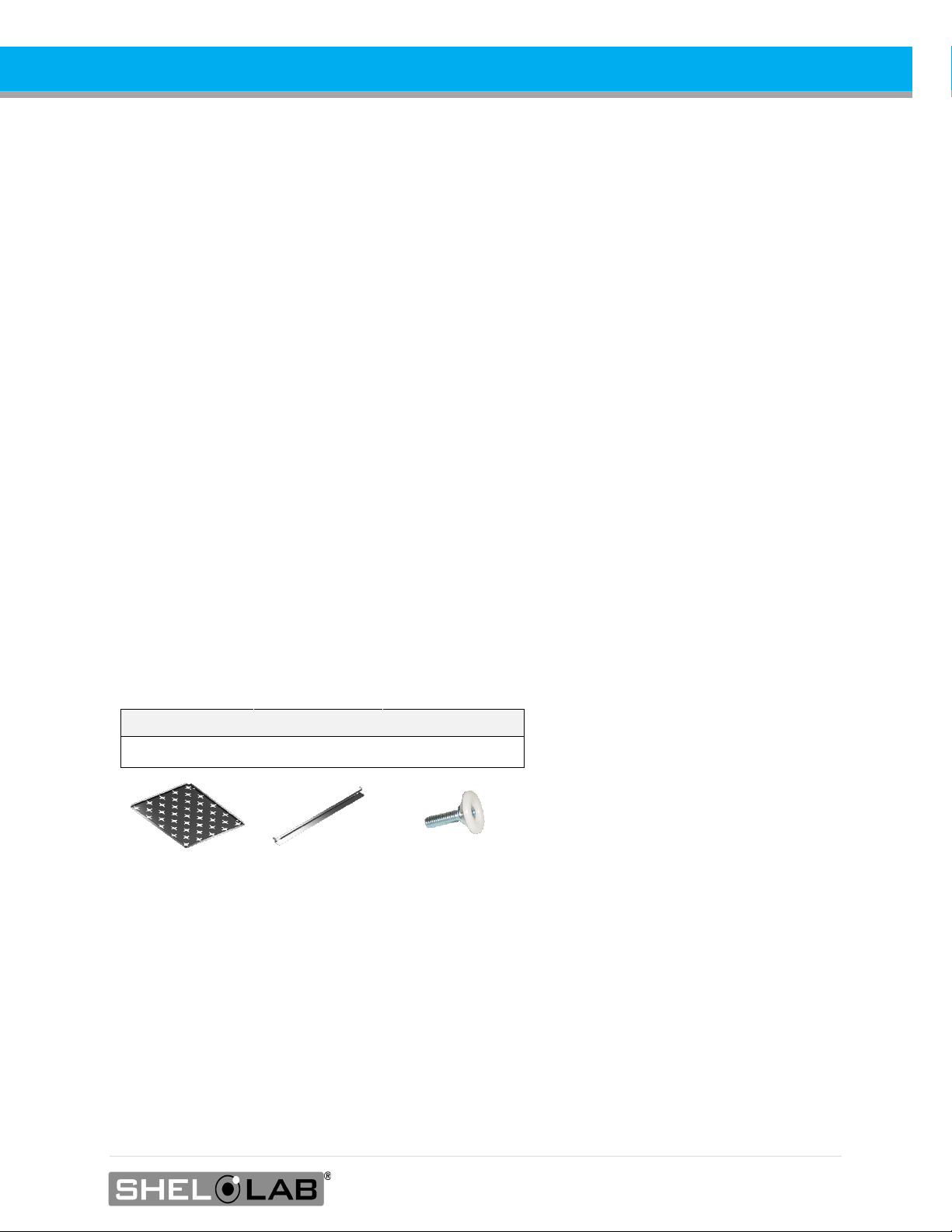

Included Accessories

Shelves Shelf Mounts Leveling Feet

2 4 4

10 | Page

SMO5HP-2

RECEIVING

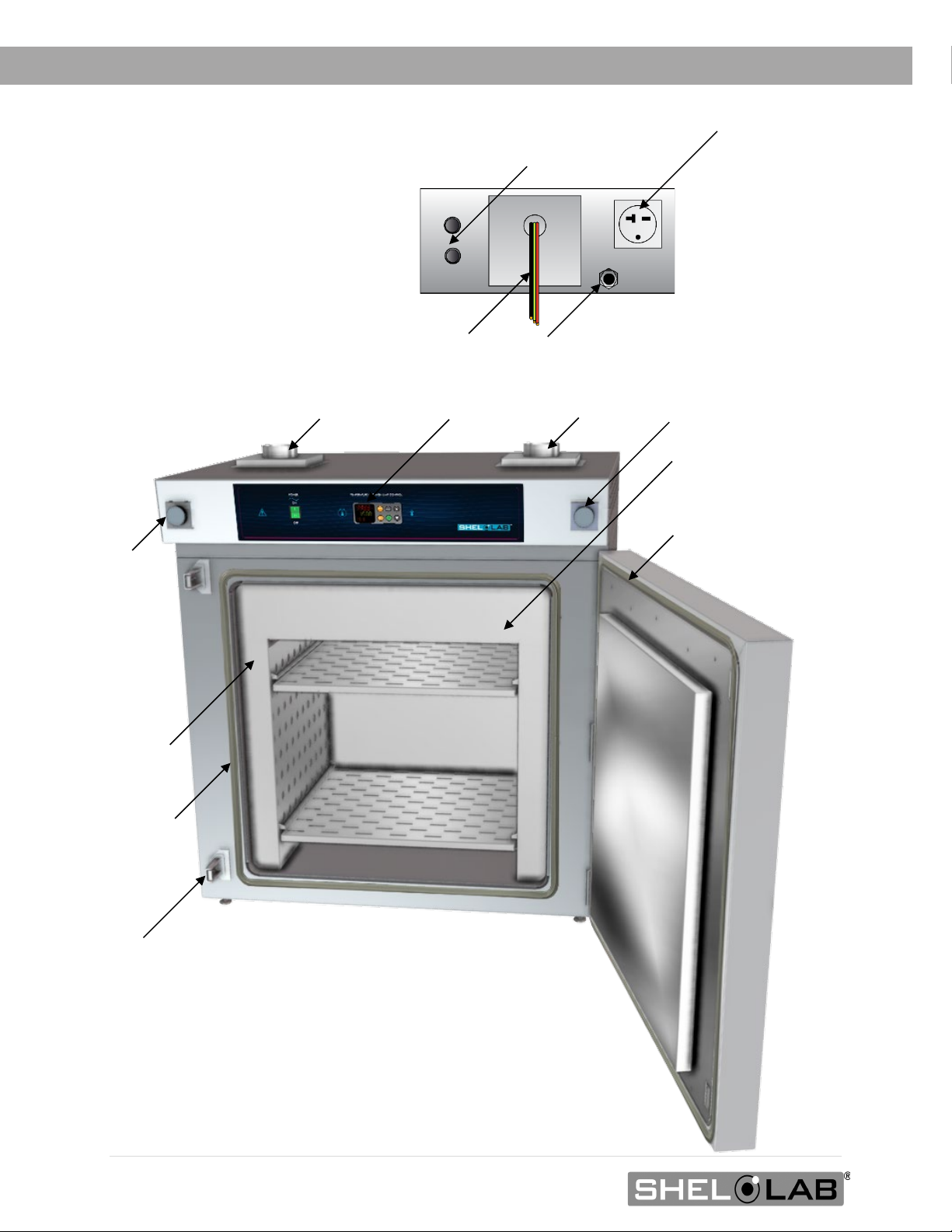

ORIENTATION

Intake Vent

Exhaust

Control

Intake Vent

Valve Control

Exhaust Vent Valve Control

Outer Door Gasket

Chamber Ceiling Liner

Left wall

Chamber Liner

Door Latch

Chamber Gasket

Fuse Holders

External Power Outlet: Varies by country and voltage type

Purge Gas Inlet. 3/8 in ID

Permanent Connect Wire Braid 14 gauge, 6 inches (150 mm)

Power Panel - Back

Autres manuels pour SMO5HP-2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels shelolab Four

shelolab

shelolab SVAC1E Manuel utilisateur

shelolab

shelolab SMO3 Manuel utilisateur

shelolab

shelolab SMO5HP-2 Manuel utilisateur

shelolab

shelolab SMO5HP-2 Manuel utilisateur

shelolab

shelolab SGO3 Manuel utilisateur

shelolab

shelolab SMO14-2 Manuel utilisateur

shelolab

shelolab SMO14-2 Manuel utilisateur

shelolab

shelolab SMO34HP-2 Manuel utilisateur

shelolab

shelolab SMO10HP-2 Guide de démarrage rapide

shelolab

shelolab SG02 Manuel utilisateur

shelolab

shelolab SMO1E Manuel utilisateur

shelolab

shelolab E1310 Manuel utilisateur

shelolab

shelolab SGO1-2 Manuel utilisateur

shelolab

shelolab SMO5CR-2 Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
