Sharp HT-SB116 Manuel utilisateur

Thank you for purchasing this SHARP product. To obtain the best

performance from this product, please read this manual carefully. It will guide

you in operating your SHARP product.

ENGLISH

MODEL

HT-SB116

SOUND BAR HOME THEATER SYSTEM

OPERATION MANUAL

Note:

This product is recommended for at panel TV (LED, LCD and plasma).

TINSEA568AWZZ 21L R MW 1

Printed in Malaysia

E-1

The following accessories are included.

Remote control x 1

“AAA” size battery

(UM/SUM-4, R3, HP-16

or similar) x 2

Accessories

The Bluetooth®word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by SHARP is under license.

Other trademarks and trade names are those of their respective owners.

Special notes

Supply of this product does not convey a license nor imply any right to

distribute content created with this product in revenue generating broadcast

systems (terrestrial, satellite, cable and/or other distribution channels),

revenue-generating streaming applications (via Internet, intranets and/or

other networks), other revenue-generating content distribution systems (pay-

audio or audio-on-demand applications and the like) or on revenue-generating

physical media (compact discs, digital versatile discs, semiconductor chips,

hard drives, memory cards and the like).An independent license for such use

is required. For details, please visit http://mp3licensing.com

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and

Thomson.

“The terms HDMI, HDMI High-Denition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing

Administrator, Inc.”

E-2

●Please ensure that the equipment

is positioned in a well ventilated

area and ensure that there is a

free space along the sides, top

and back of the equipment as

below.

●Use the sound bar on a rm, level

surface free from vibration.

●Keep the sound bar away

from direct sunlight, strong

magnetic elds, excessive dust,

humidity and electronic/electrical

equipment (home computers,

facsimiles, etc.) which generate

electrical noise.

●Do not place anything on top of

the sound bar.

●Do not expose the sound bar to

moisture, to temperatures higher

than 60°C (140°F) or to extremely

low temperatures.

●If the sound bar does not work

properly, unplug and plug it in

again. Then turn it on.

●In case of an electrical storm,

unplug the sound bar for safety.

●Hold the AC power plug by the

head when removing it from the

wall socket, as pulling the lead

can damage internal wires.

●The AC power plug is used as

a disconnect device and shall

always remain readily operable.

●Do not remove the outer cover,

as this may result in electric

shock. Refer internal service

to your local SHARP service

facility.

●The ventilation should not

be impeded by covering the

ventilation openings with items,

such as newspapers, tablecloths,

curtains, etc.

●No naked ame sources, such as

lighted candles, should be placed

on the apparatus.

●Attention should be drawn to the

environmental aspects of battery

disposal.

●This sound bar should only be

used within the range of 5°C -

35°C (41°F - 95°F).

●The apparatus is designed for use

in moderate climates.

●SHARP is not responsible for

damage due to improper use.

Refer all servicing to a SHARP

authorised service centre.

● Do not use chemicals for cleaning

(benzine, thinner or alcohol). Also

do not allow volatile substances

such as insecticides, cosmetics

(perfumes, creams, sprays, etc.),

sunscreens, insect repellents, etc.

to adhere to the unit’s surface. It

may damage the surface nish or

cause discolouration.

General

Precaution

10 cm (4") 10 cm (4")

E-3

Precaution (continued)

Warnings:

●The voltage used must be the

same as that specied on this

sound bar. Using a higher voltage

is dangerous and may result in

a re or other type of accident

causing damage. SHARP will

not be held responsible for any

damage resulting from such

usage.

●When the button is set at

STANDBY position, mains

voltage is still present inside the

sound bar. The sound bar may

be brought into operation by the

remote control.

●This sound bar contains no user

serviceable parts. Never remove

covers unless qualied to do so.

This sound bar contains dangerous

voltages, always remove mains

plug from the socket before any

service operation and when not in

use for a long period.

●To prevent re or shock hazard,

do not expose this appliance to

dripping or splashing. No objects

lled with liquids, such as vases,

shall be placed on the apparatus.

● This equipment is a Class

II or double insulated electrical

appliance. It has been designed in

such a way that it does not require

a safety connection to electrical

earth.

The sound level at a given volume

setting depends on speaker

efciency, location and various

other factors. It is advisable to avoid

exposure to high volume levels,

which occurs whilst turning the

sound bar on with the volume control

setting up high, or while continually

listening at high volumes.

Volume control

E-4

4 4

HDMI (ARC) USB AUDIO

IN OPTICAL

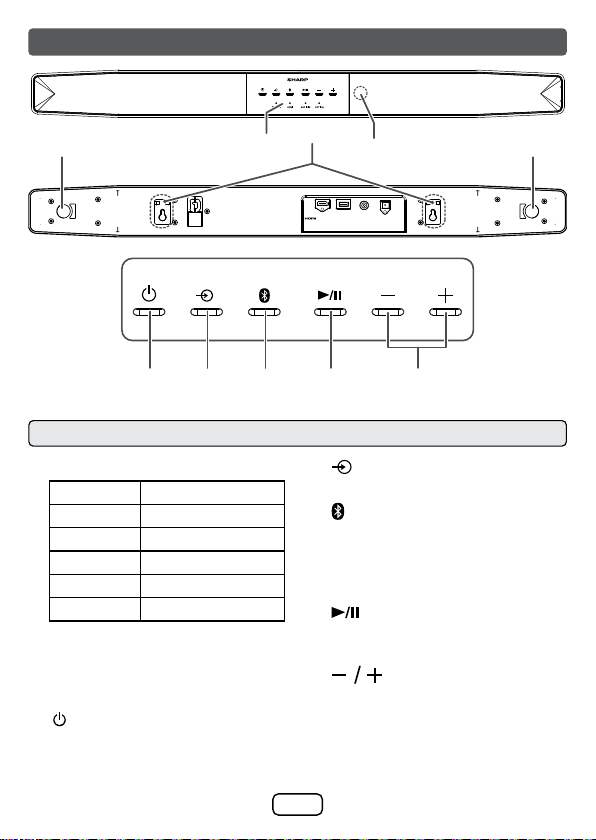

1. LED Indicators

2. Wall bracket holes

3. Remote Control Sensor

4. Duct ports

5. button

Switch the sound bar between

ON and STANDBY mode.

6. button

Select the input function.

7. button

Press to activate the pairing

function in Bluetooth mode or

disconnect the existing paired

Bluetooth device.

8. button

Play or pause in Bluetooth and

USB modes.

9. buttons

Decrease or increase the volume

level.

Controls and indicators

Front panel

5 6 7 8 9

RED In Standby mode

MAGENTA In USB mode

BLUE In Bluetooth mode

WHITE In HDMI mode

GREEN In Audio In mode

ORANGE In Optical In mode

E-5

Controls and indicators (continued)

HDMI (ARC) USB AUDIO

IN OPTICAL

1 2 3 4

1. HDMI ARC terminal

Connect to a TV via HDMI cable.

2. USB terminal

Plug in USB device to playback

audio les from it.

3. Audio In terminal

Connect to an external audio

device.

4. Optical In terminal

Optical input socket.

Rear panel

E-6

1. button – Switch the sound

bar between ON and STANDBY

mode.

2. button – Increase the volume

level.

3. button – Skip to previous

sound track.

4. button – Select the input

function.

5. button – Press to activate

the pairing function in Bluetooth

mode or disconnect the existing

paired Bluetooth device.

6. EQ button – Select a preset

sound mode.

7. button – Mute or resume the

sound.

8. button – Play or pause

playback.

9. button – Skip to next sound

track.

10. button – Decrease the volume

level.

11. BASS button – Change the

bass level.

12. TREBLE button – Change the

treble level.

Controls and indicators (continued)

Remote control

1 7

E-7

Installation image:

Place the system as shown.

Note:

The front panel of the sound bar is

not removable.

Caution:

●Do not change the installation

direction when the sound bar is

turned on.

●Do not stand or sit on the sound

bar as you may be injured.

●Do not allow any objects to fall into

or to be placed in the bass reex

duct.

Safety wires (not supplied) are useful

to prevent the sound bar from falling.

Placing the system Falling prevention

Sound Bar

Digital Tuner BD player

Safety wires

(not supplied)

Screw eye (not supplied)

Sound bar

Wall

When mounting on the wall

When placing on the shelf/

table

Sound bar

Safety wires

(not supplied)

Screw eyes

(not supplied)

Shelf or

table

E-8

Cautions:

●Be very careful to prevent the

sound bar [1.7 kg (3.7 lbs.)] from

falling when mounting on the wall.

●Before mounting, check the wall

strength. (Do not put on the

veneer plaster or whitewashed

wall. The sound bar may fall.)

If unsure, consult a qualied

service technician.

●Mounting screws are not

supplied. Use appropriate ones.

●Check all wall mount angle

screws for looseness.

●Select a good location. If not,

accidents may occur or the sound

bar may get damaged.

●SHARP is not responsible

for accidents resulting from

improper installation.

SHARP designed the sound bar so

you may hang it on the wall. Use

proper screws (not supplied). See

below for size and type.

Sound bar preparation

Make sure to unplug the AC

power lead before installing

the sound bar or changing the

position.

To mount the sound bar on the

wall.

Driving screws

1/8" (3.2 mm)

3/8" (9 mm)

Min. 7/8" (22 mm)

3/16"

(5 mm)

E-9

Sound bar preparation (continued)

Installing the sound bar

1. Mark two screw points on the

wall as below distance.

2. Make a hole on the wall

following the screw point

marks by using a drill.

3. Fix a wall mount plug into the

hole using a hammer, until it is

ushed with the wall surface.

403 mm

Ø5.5 ~ 6mm

32m

Wall

surface

1-1/4" (32 mm)

3/8"

(8-9 mm)

Wall

surface

1-1/4" (32 mm)

3/8"

(8-9 mm)

4. Fasten the screws to the wall

as shown below. (Total screw

is 2 pieces)

5. Hang the sound bar onto the

screws.

Screw using

Wall surface

a screwdriver

4.5mm - 5mm

Gap from

wall surface

Table des matières

Autres manuels Sharp Système de haut-parleurs

Sharp

Sharp CD-PC3500 Manuel utilisateur

Sharp

Sharp MD-X60H Manuel utilisateur

Sharp

Sharp HT-SB147 Manuel utilisateur

Sharp

Sharp NEC SP-AS Instructions d'installation et d'utilisation

Sharp

Sharp MD-MX30 MD Manuel utilisateur

Sharp

Sharp HT-SB150 Manuel utilisateur

Sharp

Sharp HT-SBW160 Manuel utilisateur

Sharp

Sharp PS-919 Manuel utilisateur

Sharp

Sharp androidtv 42EL2KA Manuel utilisateur

Sharp

Sharp HT-SB107 Manuel utilisateur

Sharp

Sharp MD-MX30 MD Manuel utilisateur

Sharp

Sharp CD-C690X Manuel utilisateur

Sharp

Sharp PS-929 Manuel utilisateur

Sharp

Sharp CD-BA1300H Manuel utilisateur

Sharp

Sharp CD-E650E Manuel utilisateur

Sharp

Sharp MD-MX30 MD Manuel utilisateur

Sharp

Sharp HT-SB30D Manuel utilisateur

Sharp

Sharp HT-DV40H Manuel utilisateur

Sharp

Sharp HT-SBW420 Manuel utilisateur

Sharp

Sharp HT-SBW110 Manuel utilisateur

Sharp

Sharp HT-SB140 Manuel utilisateur

Sharp

Sharp CD-C1W Manuel utilisateur

Sharp

Sharp LC-49FI5242KF Manuel utilisateur

Sharp

Sharp HT-E300 Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
