Sharp HT-DD5000W Manuel utilisateur

HT-DD5000W

– 1 –

Page

SPECIFICATIONS .................................................................................................................................................................. 2

VOLTAGE SELECTION......................................................................................................................................................... 2

NAMES OF PARTS ............................................................................................................................................................... 3

OPERATION MANUAL .......................................................................................................................................................... 4

DISASSEMBLY...................................................................................................................................................................... 6

ADJUSTMENT ...................................................................................................................................................................... 8

BLOCK DIAGRAM ................................................................................................................................................................ 11

SCHEMATIC DIAGRAM/WIRING SIDE OF P.W.BOARD................................................................................................... 16

NOTES ON SCHEMATIC DIAGRAM .................................................................................................................................. 38

TYPES OF TRANSISTOR AND LED.................................................................................................................................... 38

FUNCTION TABLE OF IC.................................................................................................................................................... 39

FL SEGMENT ...................................................................................................................................................................... 48

PARTS GUIDE/EXPLODED VIEW

CONTENTS

HT-DD5000W

No. SX886HTDD500W

• In the interests of user-safety the set should be restored to its original

condition and only parts identical to those specified should be used.

SERVICE MANUAL

SHARP CORPORATION

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

Manufactured under license from Dolby Laboratories.

"Dolby", "Pro Logic" and the double-D symbol are trade-

marks of Dolby Laboratories. Confidential Unpublished

Works. 1992-1997 Dolby Laboratories, Inc. All rights re-

served.

HT-DD5000WconsistingofHT-DD5000W,CP-F5000W,

CP-SW5000W,CP-C5000W and CP-SR5000W

HT-DD5000W

– 2 –

SPECIFICATIONS

HT-DD5000W

General

Type: Home theater receiver

Power source: AC 110/127/220/230 - 240 V

50/60 Hz

Power consumption: 160 W

Dimenslons: Width; 430 mm (16-15/16")

Height; 150 mm (5-15/16")

Depth; 347 mm (13-11/16")

Weight: 9.8 kg (21.6 lbs.)

Output power: (Front)

RMS; 40 W/CH (0.9% T.H.D.)

(Center)

RMS; 40 W (0.9 % T.H.D.)

(Surround)

RMS; 40 W/CH (0.9 % T.H.D.)

(Sub woofer)

RMS; 40 W (0.9 % T.H.D.)

Output terminals: Front speakers; 8 ohms

Center speaker; 8 ohms

Surround speakers; 8 ohms

Sub woofer; 8 ohms

VCR-1, MD/TAPE, VCR1 VIDEO,

VIDEO MONITOR

Headphones; 16-50 ohms

(recommended; 32 ohms)

Input terminals: DVD (Digital); Coaxial

DVD (Digital); Optical

DVD, VCR-1, VCR-2,CD/AUX,

MD/TAPE; 500 mV/47 kohms

PHONO; 3.5 mV/47 kohms

Tuner section

Frequency range: FM; 88 - 108 MHz

AM; 531 - 1,602 kHz

Front speaker section

Type: 2-way, 16 cm (6-5/16") woofer,

and 5 cm (2") tweeter

Maximum Input power: 80 W

Rated Input power: 40 W

Impedance: 8 ohms

Dimensions: Width; 210 mm (8-5/16")

Height; 330 mm (13")

Depth; 218 mm (8-5/8")

Weight: 3.7 kg (8.2 lbs.)/each

Center speaker section

Type: 2-way, 13 cm (5-1/8") woofer

and 5 cm (2") tweeter

Maximum Input power: 80 W

Rated Input power: 40 W

Impedance: 8 ohms

Dimensions: Width; 400 mm (15-3/4")

Height; 165 mm (6-1/2")

Depth; 163 mm (6-7/16")

Weight: 2.9 kg (6.4 lbs.)

Surround speaker section

Type: 2-way, 13 cm (5-1/8") woofer

and 5 cm (2") tweeter

Maximum Input power: 80 W

Rated Input power: 40 W

Impedance: 8 ohms

Dimensions: Width; 210 mm (8-5/16")

Height; 165 mm (6-1/2")

Depth; 163 mm (6-7/16")

Weight: 1.6 kg (3.5 lbs.)/each

Sub woofer section

Type: 16 cm (6-5/16") super woofer

Maximum Input power: 80 W

Rated Input power: 40 W

Impedance: 8 ohms

Dimensions: Width; 210 mm (8-5/16")

Height; 330 mm (13")

Depth; 340 mm (13-3/8")

Weight: 5.2 kg (11.5 lbs.)

CP-F5000W

CP-C5000W

CP-SR5000W

CP-SW5000W

Specifications for this model are subject to change without

prior notice.

VOLTAGE SELECTION

The voltage selector is located on the AC voltage selector box. If adjustment is necessary, use a screwdriver in order to turn the

selector in either direction until the correct voltage figure is displayed in the window next to the adjustment screw.

QACCE0008AW00

QACCL0005AW00

QPLGA0250AFZZ

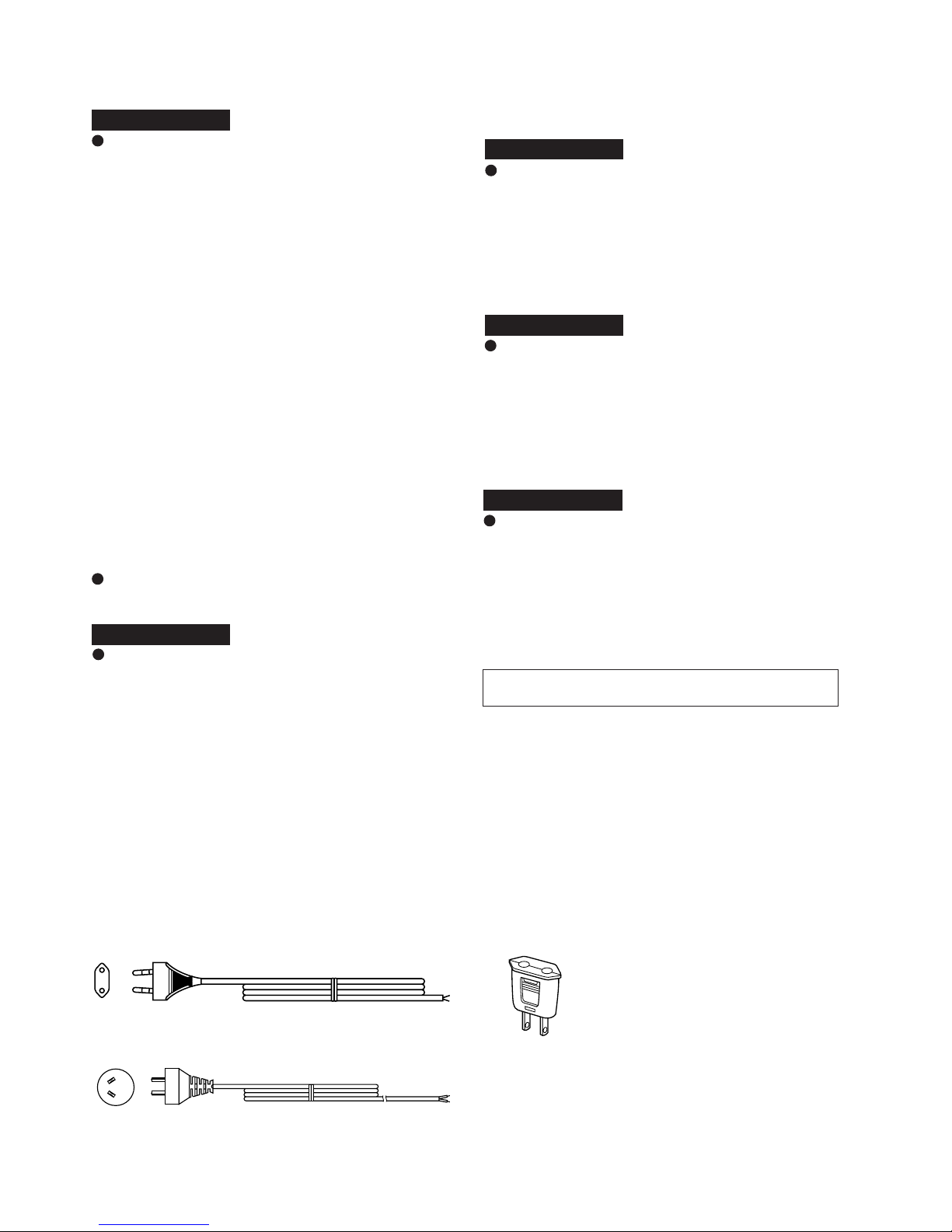

Figure 2 AC POWER SUPPLY CORD AND AC PLUG ADAPTOR

HT-DD5000W

– 3 –

NAMES OF PARTS

HT-DD5000W

Front Panel

1. On/Stand-by

2. Remote Control Sensor

3. Stand-by Indicator

4. Timer Indicator

5. Display Panel

6. Dolby Surround Button

7. Eqalizer Button

8. Extra Bass Button: X-BASS

9. Volume Conrol

10. DVD Button

11. VCR-1 Button

12. Headphones Socket

13. Speaker A Button

14. Speaker B Button

15. CD/AUX Button

16. MD/TAPE Button

17. VCR-2 Button

18. PHONO Button

19. Tuner (Band) Button

20. Tuning Down Button

21. Tuning Up Button

22. Memory Button

23. Timer/ Sleep Button

24. Jog Dial

25. Enter Button

26. VCR-2 Input Sockets

Rear Panel

27. CD/AUX Input Sockets

28. DVD Input Sockets

29. VCR-1 Input/Output Sockets

30. DVD Digital Input Sockets

31. Video Monitor Output Socket

32. AM Antenna Terminal

33. Antenna Ground Terminal

34. FM Antenna Terminal

35. MD/TAPE Input/Output Sockets

36 Phono Input Sockets

37. Front Speaker Terminals

38. Center/Surround Speaker/Sub Woofer Terminals

39. AC Power Cord

40. AC Voltage Selector

Remote Control

1. Remote Control Transmitter LED

2. TV Power Button

3. On/Stand-by Button

4. TV CH Up/Down Button:

5. VCR CH Up/Down Button:

6. DVD Track Up/Down Button:

7. VCR Power Button

8. DVD Power Button

9. TV/VIDEO Button

10. TV/VCR Button

11. VCR Play Button:

12. VCR Stop Button:

13. DVD Stop Button:

14. DVD Play Button:

15. DVD Button

16. VCR-1 Button

17. VCR-2 Button

18. PHONO Button

19. CD/AUX Button

20. MD/TAPE Button

21. Dolby Surround Button

22. Eqalizer Button

23. Tuner (Band) Button

24. Extra Bass Button: X-BASS

25. Preset Balance Button

26. Menu Button

27. Sub Woofer Level Button

28. Mute Button

29. Set Up Up/Down Button:

30. Item Button

31. Volume Up/Down Button:

32. Tuner Preset Button:

13 141516171819 2021 22 23

52 3 94 6 7 8

2827 29 30 31

35 36 37 38

1011

13 14

1617 18

27 2829

31 32

HT-DD5000W

– 4 –

CP-C5000W

CP-SR5000W CP-SW5000W

1. Tweeter

2. Woofer

3. Speaker Cord

1. Tweeter

2. Woofer

3. Speaker Cord

1. Woofer

2. Bass Reflex Duct

3. Speaker Cord

CP-F5000W

1. Tweeter

2. Woofer

3. Speaker Cord

OPERATION MANUAL

0.2 m - 6 m

(8" - 20')

15˚ 15˚

■

Remote control

●When inserting or removing the batteries, push them to-

wards the battery terminal.

●Installing the batteries incorrectly may cause the unit to

malfunction.

Notes concerning use:

●Replace the batteries if the operating distance is reduced

or if the operation becomes erratic.

●Periodically clean the transmitter LED on the remote con-

trol and the sensor on the main unit with a soft cloth.

●Exposing the sensor on the main unit to strong light may

interfere with operation. Change the lighting or the direc-

tion of the unit.

●Keep the remote control away from moisture, excessive

heat, shock, and vibrations.

PREPARATION FOR USE

HT-DD5000W

– 4 –

CP-C5000W

CP-SR5000W CP-SW5000W

1. Tweeter

2. Woofer

3. Speaker Cord

1. Tweeter

2. Woofer

3. Speaker Cord

1. Woofer

2. Bass Reflex Duct

3. Speaker Cord

CP-F5000W

1. Tweeter

2. Woofer

3. Speaker Cord

OPERATION MANUAL

0.2 m - 6 m

(8" - 20')

15˚ 15˚

■

Remote control

●When inserting or removing the batteries, push them to-

wards the battery terminal.

●Installing the batteries incorrectly may cause the unit to

malfunction.

Notes concerning use:

●Replace the batteries if the operating distance is reduced

or if the operation becomes erratic.

●Periodically clean the transmitter LED on the remote con-

trol and the sensor on the main unit with a soft cloth.

●Exposing the sensor on the main unit to strong light may

interfere with operation. Change the lighting or the direc-

tion of the unit.

●Keep the remote control away from moisture, excessive

heat, shock, and vibrations.

PREPARATION FOR USE

HT-DD5000W

– 5 –

(Continued)

■

AM/FM Interval (span)

The International Telecommunication Union (ITU) has estab-

lished that member countries should maintain either a 10

kHz or a 9 kHz interval between broadcasting frequencies

of any AM station. The illustration shows the 9 kHz interval

zones (regions 1 and 3), and the 10 kHz interval zone (region

2).

This product is not equipped with a span selector. However,

it will be adjusted to 9 kHz AM interval (50 kHz FM interval)

when shipped from the factory.

Before using the unit, be sure to set it for the AM tuning

interval (span) used in your area.

To check the tuning span currently selected:

Set the ON/STAND-BY button on the main unit to ON.

Press the TUNER (BAND) button until "FM" or "AM" ap-

pears in the display.

Press the TUNER (BAND) button to select the AM band.

●If "AM 531 kHz" is displayed, it means that the radio has

been adjusted for a 9 kHz span. If "AM 530 kHz" is dis-

played, it means that the radio has been adjusted for a

10 kHz span.

To change from a 9 kHz AM (50 kHz FM) interval to a

10 kHz AM (100 kHz FM) interval:

Press the ON/STAND-BY button on the remote control

to enter the stand-by mode.

Hold down the TUNER (BAND) button and the ENTER

button for at least 4 seconds. Release the buttons when

"AM SP 10 kHz" and "FM SP 100 kHz" are displayed

alternately.

To return to a 9 kHz AM (50 kHz FM) interval:

Press the ON/STAND-BY button on the remote control

to enter the stand-by mode.

Hold down the TUNER (BAND) button and the ENTER

button for at least 4 seconds. Release the buttons when

"AM SP 9 kHz" and "FM SP 50 kHz" are displayed al-

ternately.

Caution:

●When the unit is left for a few hours after the span has

been switched and AC power lead disconnected, it will

be automatically returned to a 9 kHz span. If this hap-

pens, set the span again.

●When the span is switched, any stations that are

memorised will be cancelled.

ON/STAND-BY

TUNER (BAND) ENTER

ON/

STAND-BY

[9 kHz →10 kHz]

(4 seconds)

[10 kHz →9 kHz]

(4 seconds)

HT-DD5000W

– 6 –

1 Top Cabinet 1. Screw ................. (A1) x5 6-1

Rear Panel/Video Jack

1. Screw ............... (B1) x16 6-1,2

PWB/Digital nput Jack

2. Socket ............... (B2) x5 6-2

PWB/Voltage Selector

PWB

Front Panel

1. Screw .................(C1) x8 6-2

2. Socket ................(C2) x5

3. Flat Cable ...........(C3) x2

4 Dolby PWB 1. Screw .................(D1) x3 7-1

2. Flat Cable ...........(D2) x2

3. Screw .................(D3) x4 6-3

5 Main PWB/Tuner 1. Screw ............... (E1) x12 7-1

PWB/Audio PWB 2. Socket ................ (E2) x7

6 Power PWB 1. Screw ................. (F1) x5 7-1

2. Socket ................ (F2) x2

7 Jog Dial 1. Knob ...................(G1) x1 7-2

2. Nut ......................(G2) x1

8 Display PWB 1. Screw ............... (H1) x10 7-2

2. Socket ................(H2) x2

9 Switch PWB 1. Screw ................. (J1) x2 7-2

Headphones PWB

1. Screw ................ (K1) x3 7-2

VCR Input PWB

1. Screw ................ (L1) x3 7-2

Caution on Disassembly

Follow the below-mentioned notes when disassembling

the unit and reassembling it, to keep it safe and ensure

excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall

outlet before starting to disassemble the unit.

3.Takeoffnylonbands or wireholderswheretheyneedbe

removed when disassembling the unit. After servicing

the unit, be sure to rearrange the leads where they were

before disassembling.

4. Take suff cient care on static electricity of integrated

circuits and other circuits when servicing.

DISASSEMBLY

Figure 6-2

Figure 6-1

HT-DD5000W

CP-F5000W

HT-DD5000W

STEP REMOVAL PROCEDURE FIGURE

1 Woofer/Tweeter 1. Net ........................(A1) x1 7-3

2. Screw .................... (A2) x6

REMOVAL PROCEDURESTEP FIGURE

CP-C5000W

STEP REMOVAL PROCEDURE FIGURE

1 Woofer/Tweeter 1. Net ........................(A1) x1 7-4

2. Screw .................... (A2) x6

CP-SR5000W

STEP REMOVAL PROCEDURE FIGURE

1 Woofer/Tweeter 1. Net ........................(A1) x1 7-5

2. Screw .................... (A2) x6

CP-SW5000W

STEP REMOVAL PROCEDURE FIGURE

1 Speaker 1. Net ........................(A1) x1 7-6

2. Screw .................... (A2) x4

Figure 6-3

(A1)x2

ø3x10mm

(B1)x15

ø3x10mm

(A1)x2

ø3x10mm

(A1)x1

ø3x10mm

Front Panel

Top Cabinet

Rear

Panel

Voltage

Selector PWB

(C1)x1

ø3x8mm

(C1)x1

ø3x8mm

(C1)x3

ø3x8mm

(B1)x1

ø3x10mm

(C1)x3

ø3x8mm

(C2)x1

Digital

Input Jack

PWB

Video

Jack

PWB

(B2)x2

Rear

Panel

Front

Panel

(C3)x2

(C2)x1

(B2)x1

(C2)x2

(B2)x2

(D3)x4

ø3x6mm

Shield

Dolby PWB

HT-DD5000W

– 7 –

Figure 7-1

(D1)x1

ø3x8mm

(E1)x2

ø3x8mm

(D2)x1

(E2)x1

(F1)x4

ø3x8mm

Power

PWB

(E1)x6

ø3x8mm

(D1)x2

ø3x8mm

(E1)x2

ø3x8mm

(E1)x2

ø3x8mm(F1)x1

ø3x8mm

TRANS A

PWB

TRANS B

PWB

(E2)x2

(E2)x1

(F2)x1

(D2)x1

Audio

Jack

PWB

Tuner

PWB

(E2)x2

(L1)x3

ø3x10mm (H1)x10

ø3x10mm

(J1)x2

ø3x10mm (K1)x2

ø3x10mm

(K1)x1

ø3x10mm

(H2)x2

Front

Panel

Switch

PWB

VCR

Input Jack

PWB

Headphones

PWB

(G1)x1

(G2)x1

Display

PWB

Washer

Figure 7-4

Figure 7-3

CP-F5000W

CP-SW5000W

CP-C5000W

CP-SR5000W

Figure 7-6

Figure 7-5

Figure 7-2

(A2)x4

(A2)x2

Screw

driver

Drive should be pried

away from Speaker Box.

Direction of handle

Woofer Speaker

Box

(A1)x1

Tweeter

(A2)x4

(A2)x2

Screw

driver

Drive should be pried

away from Speaker Box.

Direction of handle

Woofer

Speaker

Box

(A1)x1

Tweeter

(A2)x2

(A2)x4

Screw

driver

Drive should be pried

away from Speaker Box.

Direction of handle

Speaker

Box

(A1)x1

Woofer Tweeter

(A2)x4

Screw

driver

Drive should be pried

away from Speaker Box.

Direction of handle

Woofer Speaker

Box

(A1)x1

HT-DD5000W

– 8 –

Figure 8 ADJUSTMENT POINTS

TUNER SECTION

fL: Low-range frequency

fH: High-renge frequency

Instrument

Connection

• FM RF

Signal generator: 1 kHz, 75 kHz dev., FM modulated

Test Stage Frequency Frequency

Display Setting/

Adjusting

Parts

Band — 87.5 kHz (fL): L202 *1

Coverage 3.4 ±0.1 V

RF 98 MHz 98.0 MHz L201 *2

(10 - 30 dB)

*1. Input: Antenna, Output: TP302

*2. Input: Anetnna, Output: Speaker Terminal

• FM Detection

Signal generator: 10.7 MHz, FM sweep

Test Stage Instrument

Connection

Frequency Frequency

Display Setting/

Adjusting

Parts

IF 10.7 MHz 98.0 MHz T202 Input: Pin 1

(Turn the of IC201

core of T202 Output:

fully counter- Pin 1of

clockwise) IC203

ADJUSTMENT

IF 450 kHz 1,602 kHz T204 *1

Band — 531 kHz (fL): T203 *2

(AM Band

Coverage

0.8V±0.1v

Tracking 990 kHz 990 kHz T201 *1

Test Stage Instrument

Connection

Frequency Frequency

Display Setting/

Adjusting

Parts

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

• Setting the Test Mode

Keeping the ENTER button and MEMORY button pressed,

turn on POWER (of Main Set). Then, the frequency is initially

set in the memory as shown in Table. Call it with the JOG to

use it for adjustment and check of tuner circuit.

Preset No.

1 87.50 MHz 6 531 kHz

2 108.00 MHz 7 1,602 kHz

3 98.00 MHz 8 990 kHz

4 90.00 MHz 9 603 kHz

5 106.00 MHz 10 1,404 kHz

11~40

FM Preset No. AM

*1. Input: Antenna, Output: TP301

*2. Input: Input is not connected, Output: TP302

*1. Adjust so that an output signal appears.

• FM Mute Level

Signal generator: 1 kHz, 40 kHz dev., FM modulated

Frequency Adjusting

Parts Instrument

Connection

Frequency

Display

98.0 MHz 98.0 MHz VR201 *1 Input: SOC201

(25 dBµV) Output: Speaker

Terminal

T201

AM TRACKING AM BAND

COVERAGE

T203

R216

TP302

L201

FM RF

IC201

T202 L202

FM IF VR201

FM MUTE

LEVEL T204

IC 203

TP301

R223

TUNER PWB

FM BAND

COVERAGE

SOC201

ANTENNA

TERMINAL

AM IF

HT-DD5000W

– 9 –

EXPLANATION OF AUTOMATIC SOUND VALUE CORRECTION CONTROL

1. Outline

The recent trend is toward rise of SOUND level in the world, for example rock, dancing music, etc. In case of continuous high

levelplaybackandVOL(Volume)arecontrolled(lowered)automaticallyafteralapse soastogettheeasy-to-listensoundlevel.

The ALC (Automatic Level Control) of the HT-DD5000 begins to operate immediately after the power is turned on.

2. Explanation of operation

The SOUND operation is explained below.

0v (The ALC will be functional

during this period.)

Distortion clip point

SP output

level

Power

ALC operation

The ALC (Automatic Level Control) will begin operation immediately after the power switch is turned on.

If the sound exceeds level X , the ALC will instantaneously cut the volume back to level X , and it will also respond to

monophonic signals.

Since this control only effects the VOL level, it does not otherwise change the quality of the sound.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sharp Système de haut-parleurs

Sharp

Sharp HT-SBW110 Manuel utilisateur

Sharp

Sharp PS-920 Manuel utilisateur

Sharp

Sharp HT-SB250 Manuel utilisateur

Sharp

Sharp HT-SB110 Manuel utilisateur

Sharp

Sharp HT-SB32D Manuel utilisateur

Sharp

Sharp HTSB200 - Sound Bar Speaker Manuel utilisateur

Sharp

Sharp HT-SB107 Manuel utilisateur

Sharp

Sharp HT-SB350 Manuel utilisateur

Sharp

Sharp NEC SP-AS Instructions d'installation et d'utilisation

Sharp

Sharp HT-SB140 Manuel utilisateur

Sharp

Sharp HT-SB107 Manuel utilisateur

Sharp

Sharp HT-SB147 Manuel utilisateur

Sharp

Sharp HT-SB150 Manuel utilisateur

Sharp

Sharp HT-SB300 Manuel utilisateur

Sharp

Sharp HT-SB147 Manuel utilisateur

Sharp

Sharp PS-919 Manuel utilisateur

Sharp

Sharp PS-919 Manuel utilisateur

Sharp

Sharp XL-HF200PH(S) Manuel utilisateur

Sharp

Sharp CD-E650E Manuel utilisateur

Sharp

Sharp HT-SB140 Manuel utilisateur

Sharp

Sharp CD-E250E Manuel utilisateur

Sharp

Sharp MD-X7H Manuel utilisateur

Sharp

Sharp HT-SBW125 Manuel utilisateur

Sharp

Sharp MD-MX30H Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
