Sharp SL-C750 Manuel utilisateur
Important!
Please read the information in the section
"Unpacking / Startup", before unpacking any
further.
SHARP SL-C750
SL-C760/SL-C860
Linux
Personal Mobile Tool
Table of contents
Welcome........................................4
Zaurus models SL-C750 und SL-C760/860 ......................5
ComparisonSL-C750/SL-C760/SL-C860 ..................5
Unpacking .......................................6
Startup .........................................6
Insertthebattery(SL-C750) ..........................6
Insertthebattery(SL-C760/SL-C860) ....................7
Chargingthebattery ..............................7
OpenandTurnOverDisplay..........................8
Ports / Controls ....................................9
Bottom.....................................9
Devicebackside ...............................10
One-HandedUse...............................11
Keyboard functions ..................................11
Umlauts/Euro ................................12
Software for SL-5500(G) ...............................13
Software installation (Windows) ...........................13
USB-Driver..................................13
IntelliSync ..................................13
CommunicationviaNeighbourhood .....................14
AccessasUSB-MassStorage(SL-C860) ..................14
Telnet-Access ................................14
Annotations about Software .............................15
Applications .................................15
MoviePlayer ...............................15
Localisation after reset ................................16
Page 2SHARP SL-C750/760/860
///TRIsoft OHG SL-C750/760/860 Quickstart
Reset(Flashmenu)..............................16
Firststart ...................................17
Runrestore..................................18
Umlauts / Diacritics / Euro ..............................20
Japanese Leftovers..................................21
Addressbook .................................21
Network-Wizard ...............................21
Diag / service menu .................................22
Accessingtheservicemenu: .........................22
Quitservicemenu: ..............................23
Backupwithservicemenu: ..........................23
Restorewithservicemenu:..........................24
Boot to command-line ................................25
Helpful links: .....................................26
Zaurusportals ................................26
Software ...................................26
Accessories for Your Zaurus .............................27
SHARPaccessories .............................27
Thirdpartyaccessories............................27
Declaration of conformity ...............................29
SHARP SL-C750/760/860 Page 3
SL-C750/760/860 Quickstart ///TRIsoft OHG
Page 4SHARP SL-C750/760/860
///TRIsoft OHG SL-C750/760/860 Quickstart
Welcome
Thank You for buying the SHARP SL-C750 / SL-C760 / SL-C860.
This device is not sold officially out of Japan. It is a Japanese device with English user
interface and English keyboard.
If You are mainly interested in a calendar, addressbook, etc., You are perhaps better off
with a simple organizer.
Butif an English environmentdoes not scare You,and You are lookingfor a mobile Linux
system with excellent performance, You have made the right choice.
Each device is tested and localised by us in English in most aspects, before it is shipped.
So You can start at once, without navigating through Kanji characters.
The Zaurus will start in Japanese after a hard-reset. But do not be afraid, the steps for
localisation are described on page 16.
Please note that SHARP Electronics Europe does not support this device.
Forfurtherinformation,linksandquestionsvisitusintheinternetathttp://www.trisoft.de.
The largest german-speaking (sorry) Zaurus-Community is to be found at
http://www.z-portal.info. Tons of english information is available at
http://externe.net/zaurus/forum/
via telephone: +49 511 94294 0
Credits:
This english version of the SL-C750/SL-C760/SL-C860 quickstart guide was made by
the team of Werner Heuser / Xtops.de, Berlin.
Trademarks:
SHARP and Zaurus are registered trademarks of the SHARP Corporation.
Linux is a registered trademark of Linus Torvalds.
QT and QTopia are trademarks of Trolltech Inc.
All other products, brand names or in this manual mentioned company names are
property and trademark of the particular companies.
SHARP SL-C750/760/860 Page 5
SL-C750/760/860 Quickstart ///TRIsoft OHG
Zaurus models SL-C750 und SL-C760/860
This manual covers the models SHARP Zaurus SL-C750, SL-C760 and SL-C860.
The essential difference between the C750 and the C760/860 is the bigger battery and
the increased amount of Flash memory (64 MB) in the model SL-C760/860. Since all
models, apart from the colour of their cover (SL-C750: black, SL-C760: white, SL-C860:
“champagne silver”), are mostly identical, the differences will be explained at the
appropriate places in this manual.
Comparison SL-C750 / SL-C760 / SL-C860
Attribute SL-C750 SL-C760 / SL-C860
OS Linux OpenPDA
CPU Intel Xscale PXA255 400 MHz
Memory 64 MB Flash
64 MB SDRAM 128 MB Flash
64 MB SDRAM
Display SHARP CG Silicon 640x480
Ports SHARP I/O-Port, Infrarer, Headphone-out, Power
supply
Cardslots 1 x SD, 1 x CompactFlash
Battery (included) 3,7V LiIon EA-BL06
950mAh 3,7V LiIon EA-BL08
1700mAh
Battery (optional) 3,7V LiIon EA-BL08K
1700mAh 3,7V LiIon EA-BL06
950mAh
Power consumption 2.7 W
Display cover Black SL-C760: white
SL-C860: silver
Dimensions 120 x 83 x 18,6 mm 12 x 83 x 23,2 mm
Weight appr. 225 g appr. 250 g
Page 6SHARP SL-C750/760/860
///TRIsoft OHG SL-C750/760/860 Quickstart
Unpacking
The package should contain the following items:
Quantity SL-C750 SL-C760 / SL-C860
1SL-C750 SL-C760 / SL-C860
1Battery EA-BL06 (well
hidden beneath the
USB-cable)
Battery EA-BL08 and
cover for optional
EA-BL06 also hidden
beneath the cable
1USB cable
1Zaurus software CD
1Manual (Japanese)
1This short manual (already found)
The Zaurus should contain:
1Stylus
1Cover for CF-Slot (right side)
1Cover for I/O-Port (left side)
Startup
Insert the battery (SL-C750)
On the bottom of the Zaurus (also see page ) is the switch for the interlock of the battery
compartment. Unlock the compartment by sliding the switch to the right and take off the
cover of the compartment.
Insert the battery, so that its white, triangular arrow covers the triangle to be seen in the
compartment. Close the cover and slide the switch back to the left.
Please read the following section, if the optional battery EA-BL08K (default for SL-C760
and SL-C860) is used.
SHARP SL-C750/760 Seite 7
SL-C750/760/860 Quickstart ///TRIsoft OHG

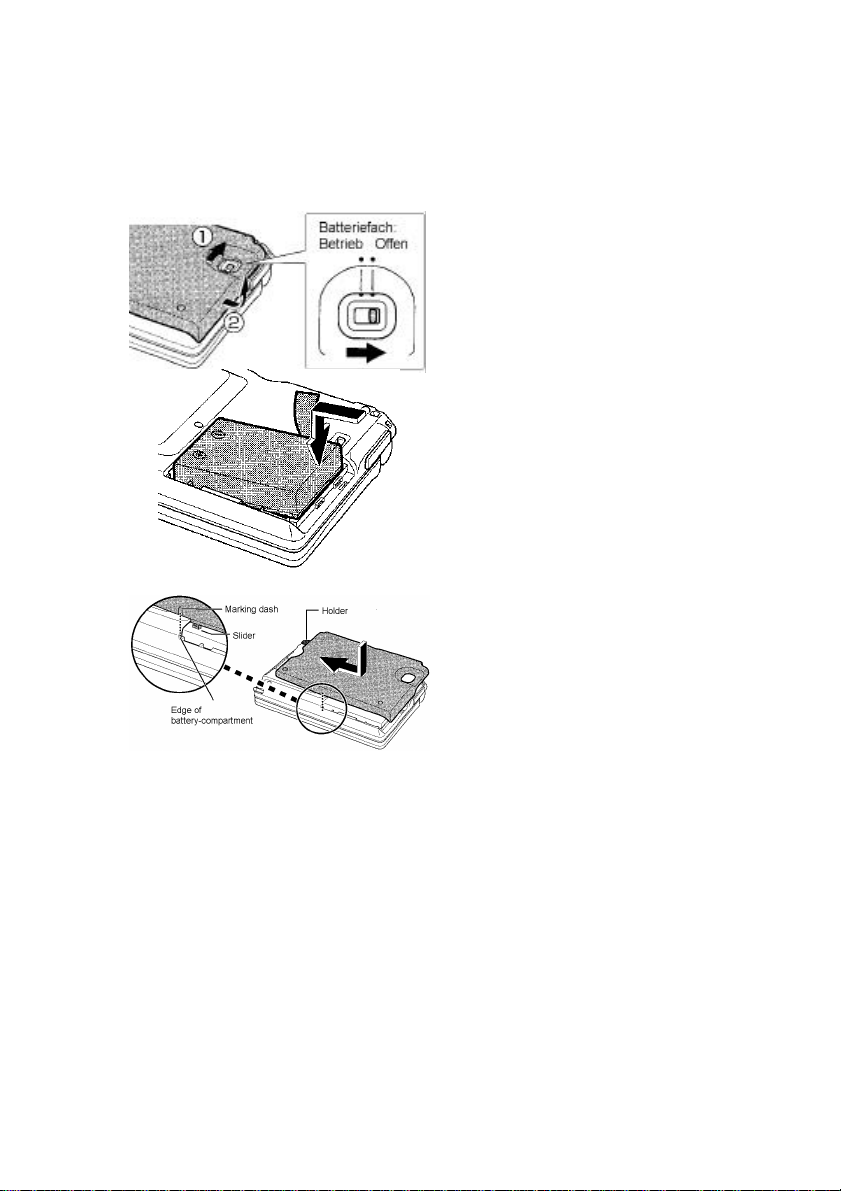

Insert the battery (SL-C760 / SL-C860)
Unlock the lower cover by sliding the the
switch for the interlock of the battery
compartment (1) to the right. Detach the
cover in direction (2).
Insert the battery as shown in the
picture.Forthe battery to fittightly,press
in direction of the arrow on the end
leading to the border of the enclosure.
Put the cover for the battery
compartment back onto the device.
Thereisamarking dash at theborderfor
orientation which should be aligned to
the border of the compartment.
Charging the battery
You should now connect the power supply with the Zaurus (the AC-in is located on the
backside of the device).
The Zarurs will be charged and in the upper left corner should glow a yellow charging
LED.
Please charge the Zaurus for some time, before turning it on.
Page 8SHARP SL-C750/760/860
///TRIsoft OHG SL-C750/760/860 Quickstart
Open and Turn Over Display
The display can be opened
andturnednearlyhorizontal
to the keyboard. There it
snaps into the maximal
possible position.
When opened, the display
can also be turned
clock-wise and turned over
back onto the keyboard:
Attention: NEVER turn the
display using violence or in
opposite to the designated
direction. Such damages
(Zaurus in two parts) are
not warranted.
Please touch the device at
both sides when the display
is turned. Do not touch it at
the upper border.
SHARP SL-C750/760/860 Page 9
SL-C750/760/860 Quickstart ///TRIsoft OHG
Ports / Controls
Bottom
1: Lug for fastening the Zaurus (for instance a chain)
2: Slot for CompactFlash cards
3: Cover for CompactFlash slot
4: Stylus
5: Cover for battery compartment
6: Switch for inter-/unlocking the compartment
7: Yet another lug for fastening the Zaurus
8: Cover for I/O-Ports
9: I/O-Port (see next page)
Page 10 SHARP SL-C750/760/860
///TRIsoft OHG SL-C750/760/860 Quickstart
The serial and USB cables can be used at this port.
Cables approved by TRIsoft for SL-C750/SL-C760/SL-C860:
•SHARP CE-170TS serial cable
•TRIsoft ZBPDB9M serial cable (plug)
•TRIsoft ZBPDB9F serial cable (jack)
•Serial IO ZThinCable (serial)
•SHARP CE-UC1 USB cable (included)
•TRIsoft ZBPUSB USB cable with charging function
•Serial IO ZThinUSB cable with charging function
Device backside
1. Controls for One-Handed Use
2. Infrared
3. Slot for SD cards
4. Hookup for power supply (5V)
Attention : Only the original power supply from SHARP, model EA-70S, is approved by
us.Theusageofthird-partypowersuppliescanpossiblydestroythechargingelectronics
of the Zaurus. "Cheap" power supplies often provide 6V instead of the printed 5V.
