Sharp AX1200S - 22" SuperSteam Oven Manuel utilisateur

PART NAME

EXHAUST DUCT BACK

PDVC-B107WRWZ

EXHAUST DUCT UPPER

PDVC-B105WRWZ

DIVIDE PLATE L

PSKR-A486WRWZ

DIVIDE PLATE R

PSKR-A487WRWZ

RECTIFIER PLATE L

PSKR-A484WRWZ

EXHAUST DUCT LEFT

PDVC-B108WRWZ

EXHAUST DUCT RIGHT

PDUC-B117WRWZ

EXHAUST DUCT BOTTOM

PDVC-B106WRWZ

FRAME ASSEMBLY

FDEC-A004WRKZ

SCREW(A)

XHTS740P08000

SCREW(B)

XMMS841P13000

SCREW(C)

XMSS827P25000

REAR SPACER

PSPAFA003WRWZ

CUSHION 15/8" x 16",

15 mm x 405 mm

PCUS-A245WRPZ

CUSHION 21/4" x 24 3/8",

5 mm x 618 mm

PCUS-A247WRPZ

CUSHION 3

1/8

" x 27

1/8

30 mm x 689 mm

PCUS-A249WRPZ

CUSHION 41/4" x 12",

5 mm x 305 mm

PCUS-A251WRPZ

CUSHION 51/4" x 15",

5 mm x 382 mm

PCUS-A253WRPZ

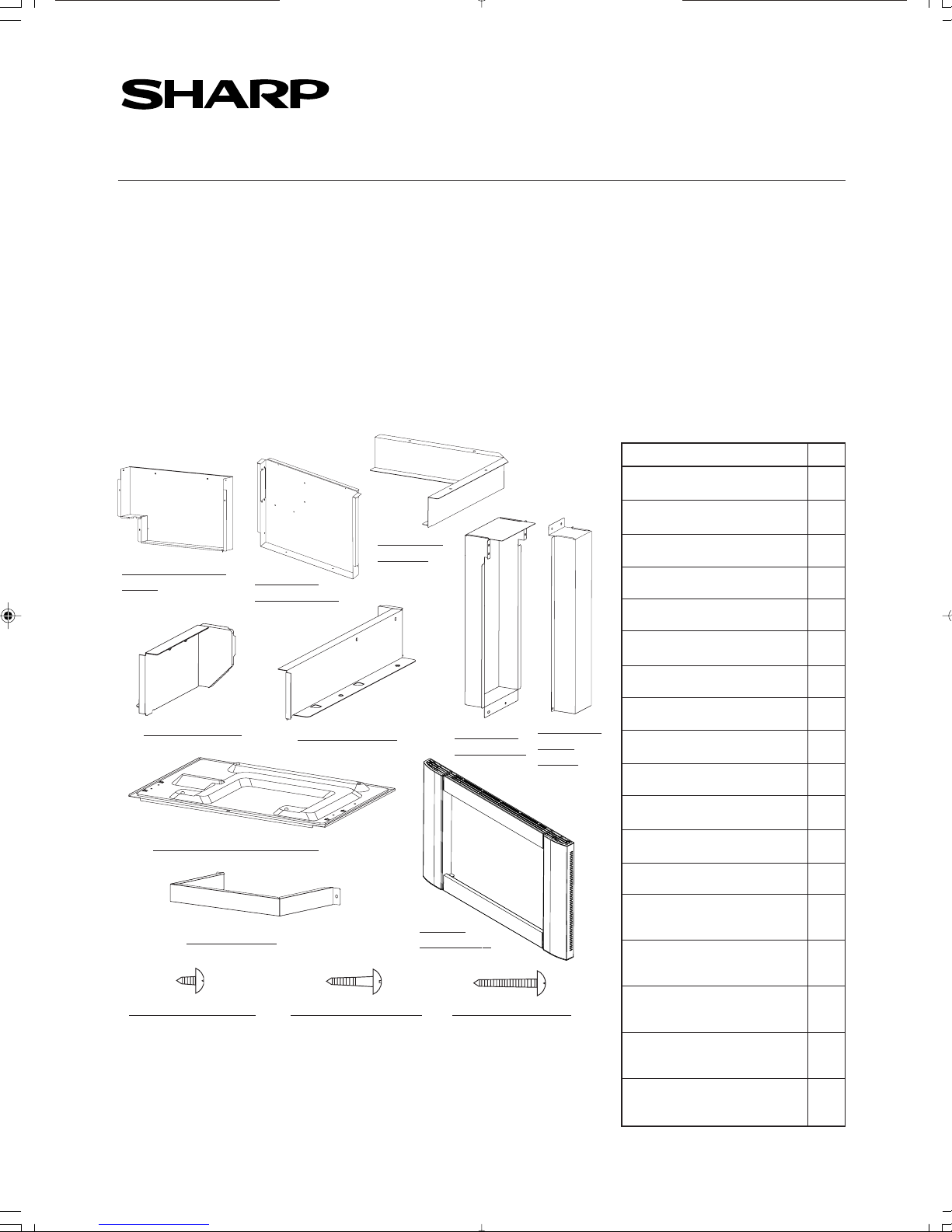

INSTALLATION INSTRUCTIONS

BUILT-IN KIT MODEL

IMPORTANT: This Built-In Kit is designed for use with Sharp SuperSteam Ovens specifying a RK-12S30

Built-In Kit on the rating label on the front of the oven.

The cabinet or wall opening must be within the following dimensions:

HEIGHT 19" to 19 1/8" (482 mm - 486 mm)

WIDTH 28" to 28 1/4" (710 mm - 719 mm)

DEPTH 23 1/4" minimum (509.5 mm minimum)

The completed built-in kit frame assembly dimensions:

HEIGHT 19 1/2" (495mm)

WIDTH 30" (762mm)

NOTE: The bottom of the cut-out opening for built-in use must be 36 inches (915 mm) or higher from the floor.

PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION!

The electrical requirements for this oven are 120 volts, 15 amps. The oven has a 5-15 plug

and requires a 5-15 receptacle.

RK-12S30

Q'TY

*For walls other than wood, you may need screws appropriate for that

wall to install the frame.

Be sure to DISCONNECT THE PLUG of the oven from the electrical

outlet before installing the oven and kit.

*Because the kits are metal, due caution should be used in handling

and installation to avoid the possibility of injury.

PROVIDED PARTS

SCREW (C) - LONG

EXHAUST DUCT BOTTOM

EXHAUST DUCT

BACK EXHAUST

DUCT UPPER

EXHAUST

DUCT

RIGHT

DIVIDE PLATE L DIVIDE PLATE R

FRAME

ASSEMBLY

RECTIFIER

PLATE L

EXHAUST

DUCT LEFT

REAR SPACER

SCREW (B) - MIDDLESCREW (A) - SHORT

TINSEB184WRRZ-D92

Printed in Thailand

RK12S30 2nd 09.1.14, 11:01 AM1

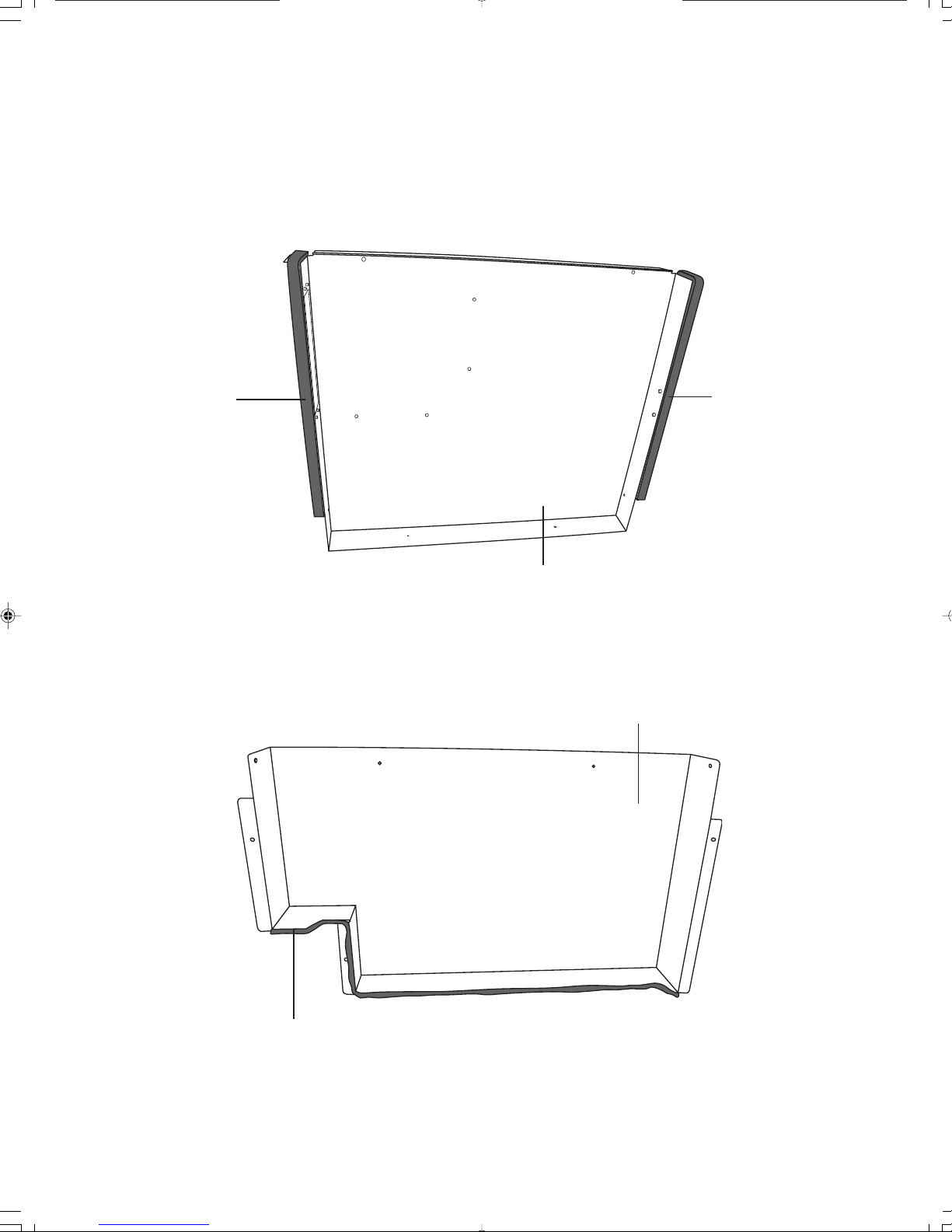

PREPARATION

Follow the directions from 1 to 5 to attach cushions to some parts.

1. EXHAUST DUCT UPPER

Remove the backing paper from each CUSHION 1.

Attach the CUSHIONS 1to each side flange of the EXHAUST DUCT UPPER as shown in the illustration

below.

2. EXHAUST DUCT BACK

Remove the backing paper from CUSHION 2.

Attach the CUSHION 2at the lower flange of the EXHAUST DUCT BACK as shown in the Illustration below.

CUSHION 1CUSHION 1

EXHAUST DUCT UPPER

CUSHION 2

EXHAUST DUCT BACK

RK12S30 2nd 09.1.7, 5:19 PM2

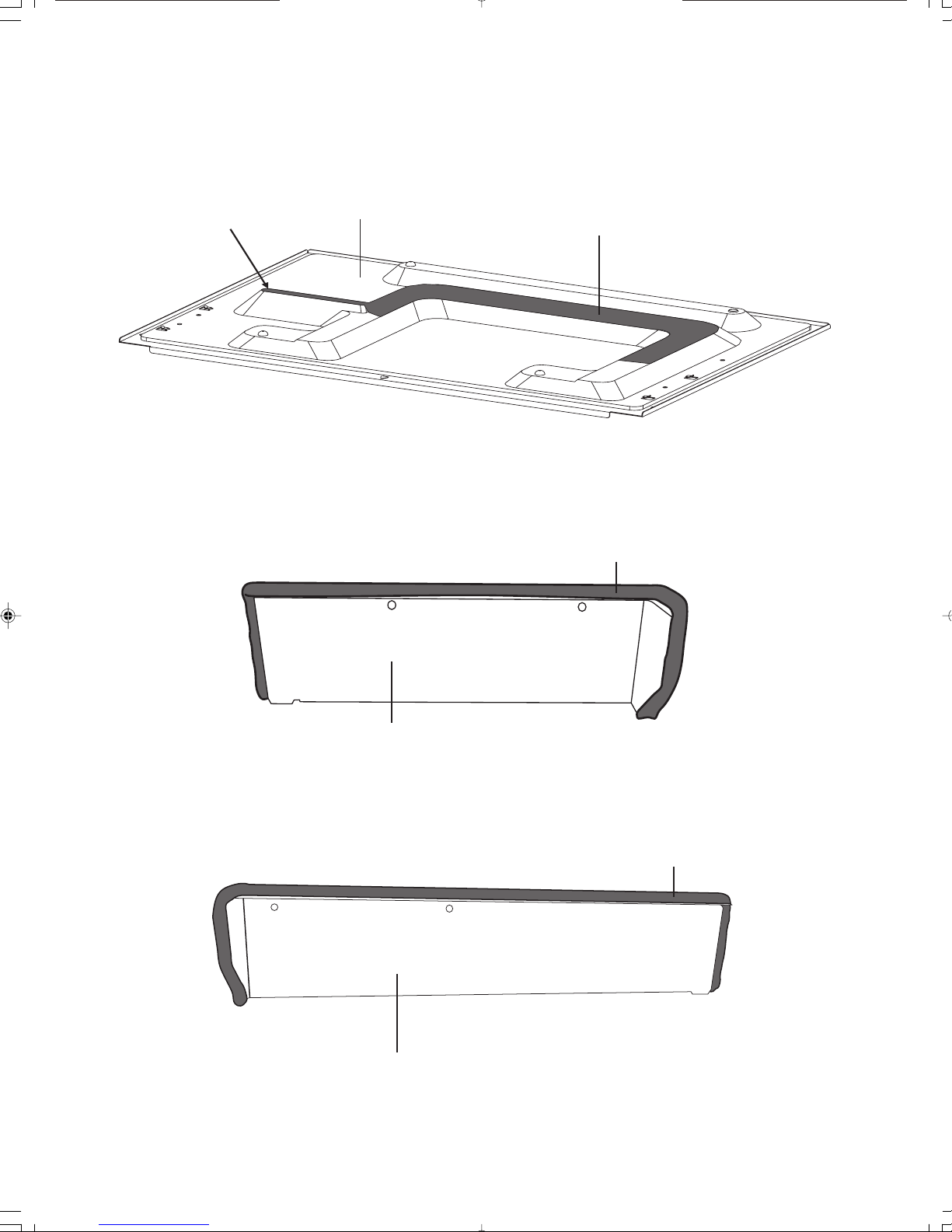

3. EXHAUST DUCT BOTTOM

Remove the backing paper from CUSHION 3.

Attach the CUSHION 3to the EXHAUST DUCT BOTTOM as shown in the Illustration below.

* Start A to attach the CUSHION 3.

4. DIVIDE PLATE L

Remove the backing paper from CUSHION 4.

Attach the CUSHION 4to the DIVIDE PLATE L as shown in the Illustration below.

5. DIVIDE PLATE R

Remove the backing paper from CUSHION 5.

Attach the CUSHION 5to the DIVIDE PLATE R as shown in the Illustration below.

CUSHION 4

DIVIDE PLATE L

CUSHION 5

DIVIDE PLATE R

CUSHION 3

EXHAUST DUCT BOTTOM

RK12S30 2nd 09.1.7, 5:19 PM3

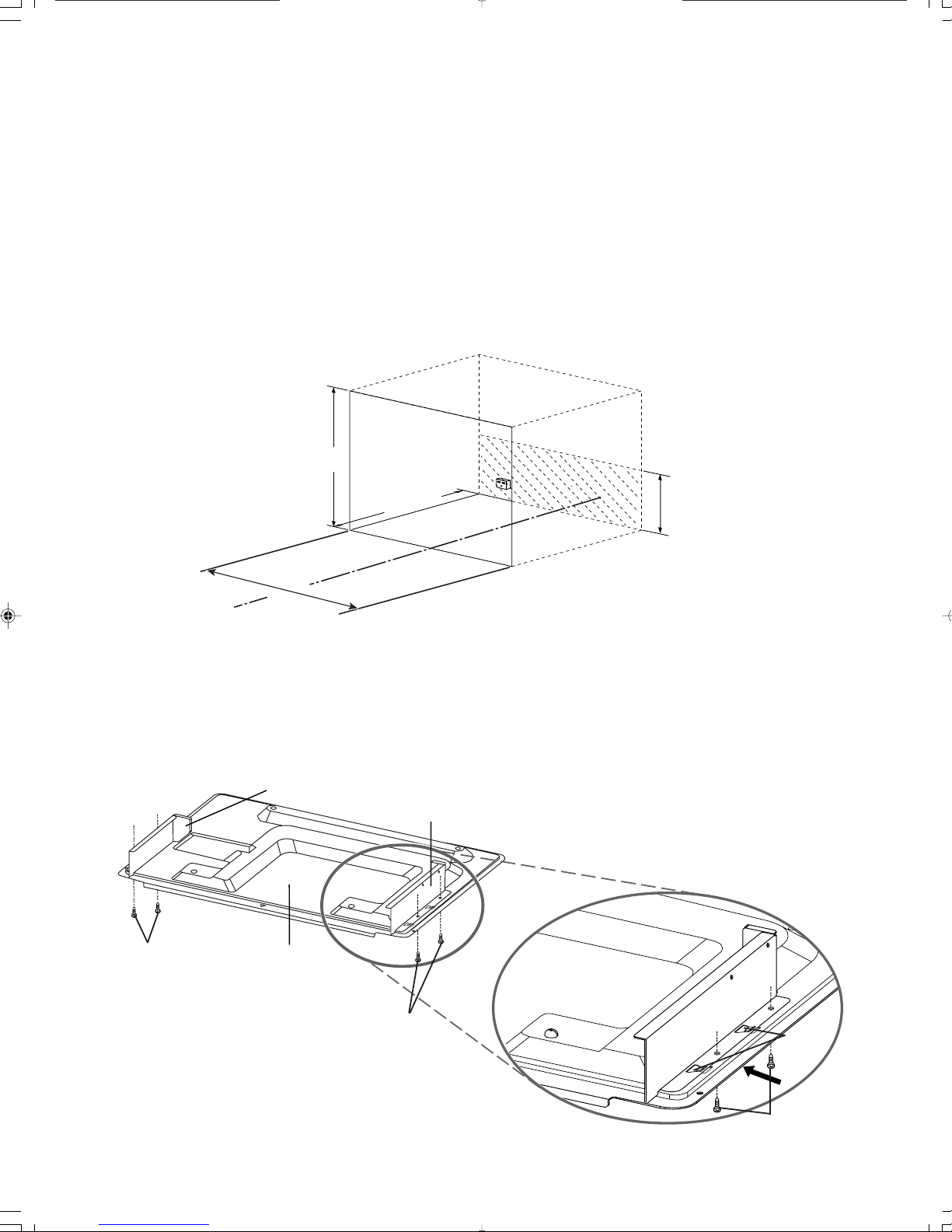

STEP 1: CABINET OR WALL OPENING

Provide an opening in the wall or cabinet shown in Figure 1.

The depth should be minimum 23 1/4" (590.5 mm). The floor of the opening should be constructed of

plywood strong enough to support the weight of the oven (about 150 lbs., 68.1 kg) and should be level for

proper operation of the oven.

NOTE: While the proper functioning of the oven does not require that the opening be enclosed (with sides,

ceiling and rear partition), this may be required by local code, and it is suggested that the local code be

checked for any such requirement.

ELECTRICAL SUPPLY

At the rear of the opening, provide a 3 pronged, polarized, electrical outlet, 120 volt A.C., 15 amp. or larger.

This outlet should be located in the shaded area of Figure 1.

It is exceedingly important that the outlet be 120 volts and 15 amps. for optimum oven performance.

STEP 2: INSTALLATION OF EXHAUST DUCT BOTTOM & DIVIDE PLATE L/R

It is recommended that a sheet of cardboard or other protective material should be placed on the table or

countertop to prevent damage to the surface during assembly.

1Place DIVIDE PLATE L/R over 2 caches on EXHAUST DUCT BOTTOM.

2Lock them into EXHAUST DUCT BOTTOM by sliding DIVIDE PLATE L/R in the direction of the

arrow as shown in Figure 2-A.

3Tighten 4 SCREWS (A) from the bottom at the left and right sides as shown in Figures 2 and 2-A.

(590.5 mm)

(200 mm)

19" - 19

(482 mm - 486 mm)

28" - 28 1

4" (710 mm - 719 mm)

DIVIDE PLATE L

EXHAUST

DUCT BOTTOM

Catches

Figure 1

Figure 2

Figure 2-A

SCREW (A)

DIVIDE PLATE R

SCREW (A)

RK12S30 2nd 09.1.14, 11:01 AM4

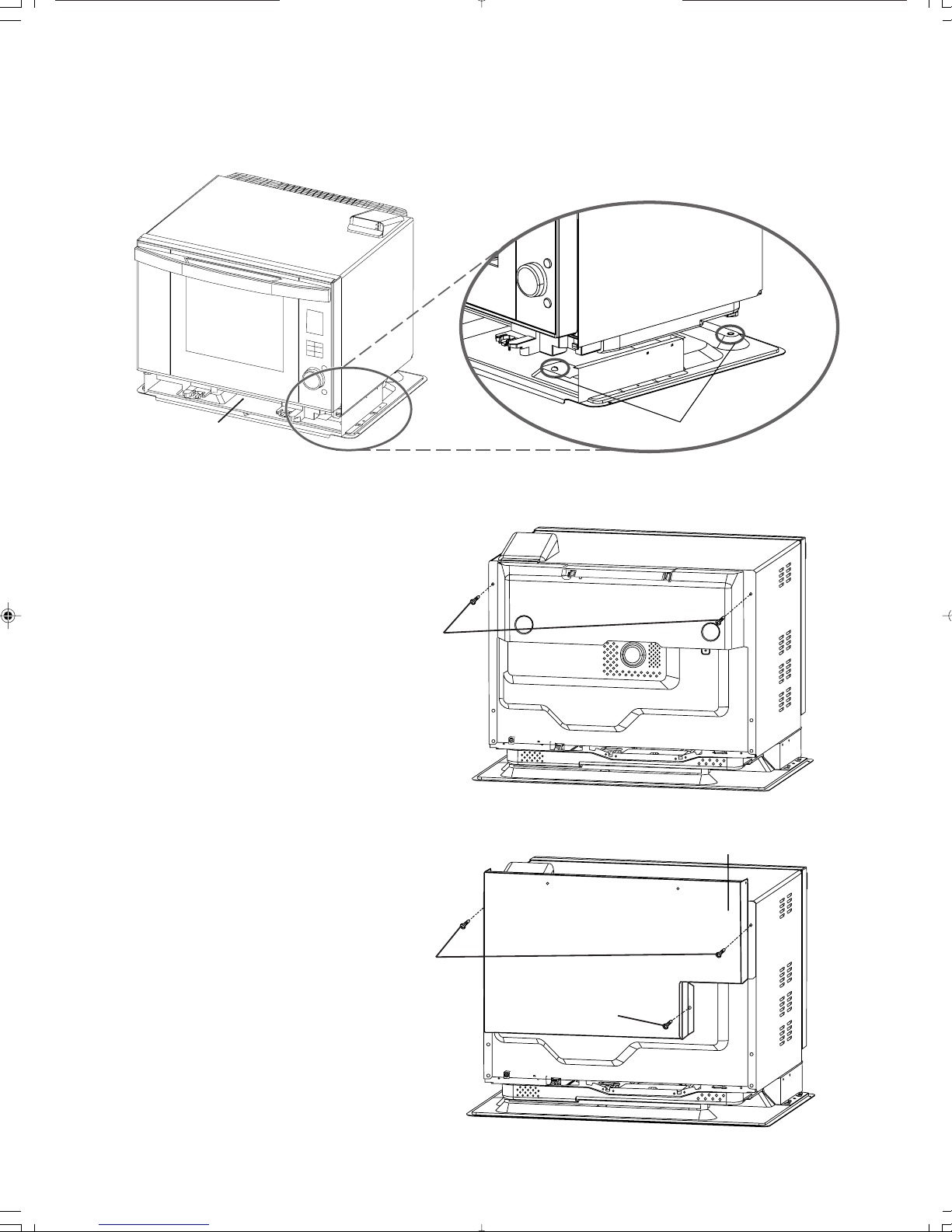

STEP 3: EXHAUST DUCT BOTTOM INSTALLATION

1Place the oven onto the EXHAUST DUCT BOTTOM, lowering the 4 feet of the oven onto the projections

at the 4 corners of EXHAUST DUCT BOTTOM as shown in Figure 3-A.

STEP 4: EXHAUST DUCT BACK INSTALLATION

2Secure EXHAUST DUCT BACK to the oven

with the screws (#1) removed at step 4-1 and

a SCREW (A) as shown in Figure 4-B.

Figure 3-A

Figure 3

1Remove 2 screws (#1) from upper both

sides of the oven as shown in Figure 4-A

to install the EXHAUST DUCT BACK.

(Save 2 screws to be used at step 4-2.)

Figure 4-A

EXHAUST DUCT BACK

Figure 4-B

Projection

EXHAUST DUCT

BOTTOM

SCREW (A)

RK12S30 2nd 09.1.7, 5:19 PM5

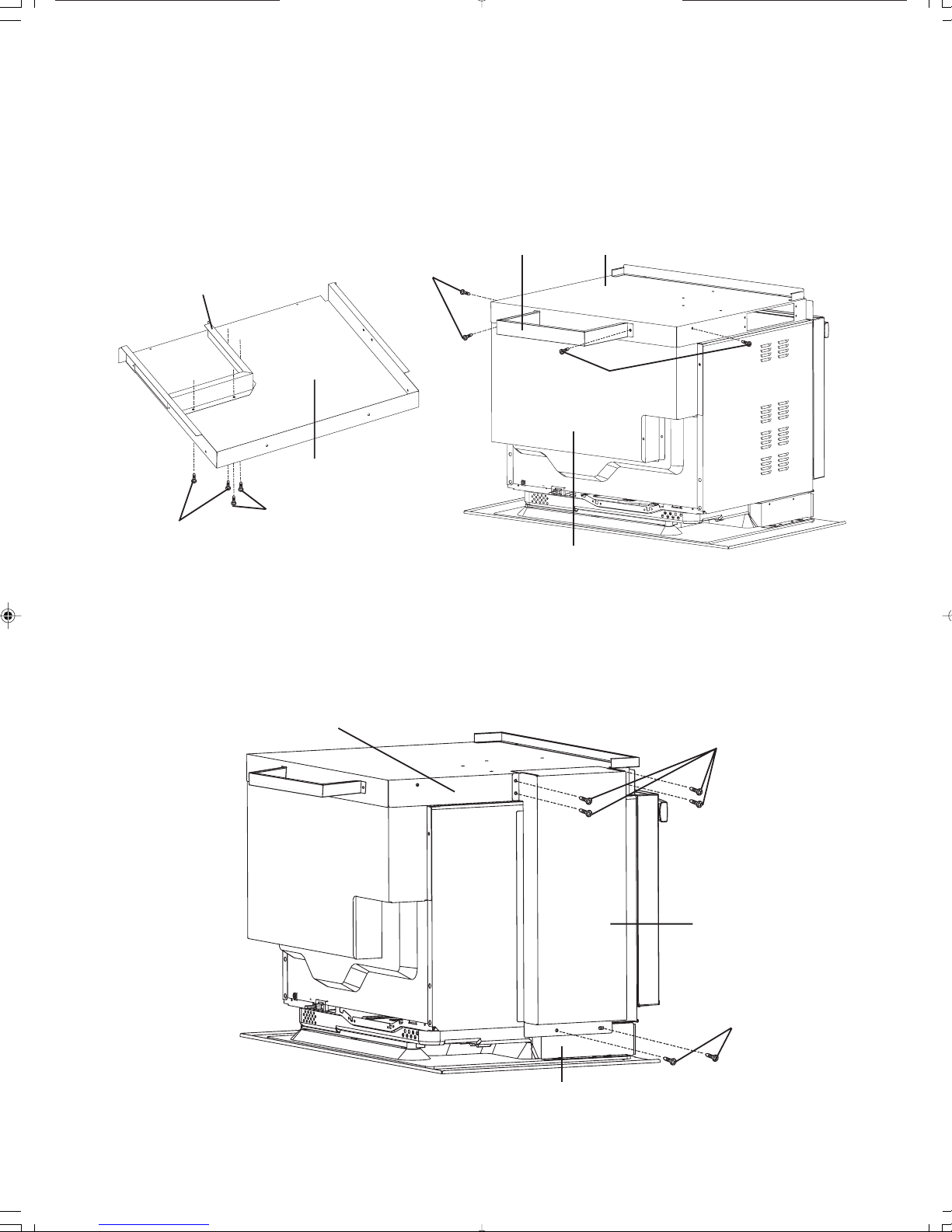

STEP 5: INSTALLATION OF REAR SPACER and EXHAUST DUCT UPPER

1Attach RECTIFIER PLATE L to inside of EXHAUST DUCT UPPER with 4 SCREWS (A) as shown in Figure

5-A.

2Place EXHAUST DUCT UPPER over the oven and EXHAUST DUCT BACK, and attach REAR SPACER

with 2 SCREWS (A) in Figure 5-B.

Tighten together EXHAUST DUCT UPPER and EXHAUST DUCT BACK at the left and right sides with 2

SCREWS (A) as shown in Figure 5-B.

STEP 6: INSTALLATION OF EXHAUST DUCT LEFT

1Attach EXHAUST DUCT LEFT to the left wall of the oven.

2Tighen with 6 screws (A) as shown in Figure 6.

EXHAUST DUCT UPPER

EXHAUST DUCT BACK

Figure 5-A

Figure 6

SCREW (A)

REAR SPACER

SCREW (A)

RECTIFIER PLATE L

EXHAUST DUCT UPPER

SCREW (A)

Figure 5-B

SCREW (A)

EXHAUST DUCT

LEFT

EXHAUST DUCT UPPER

DIVIDE PLATE L

RK12S30 2nd 09.1.8, 4:21 PM6

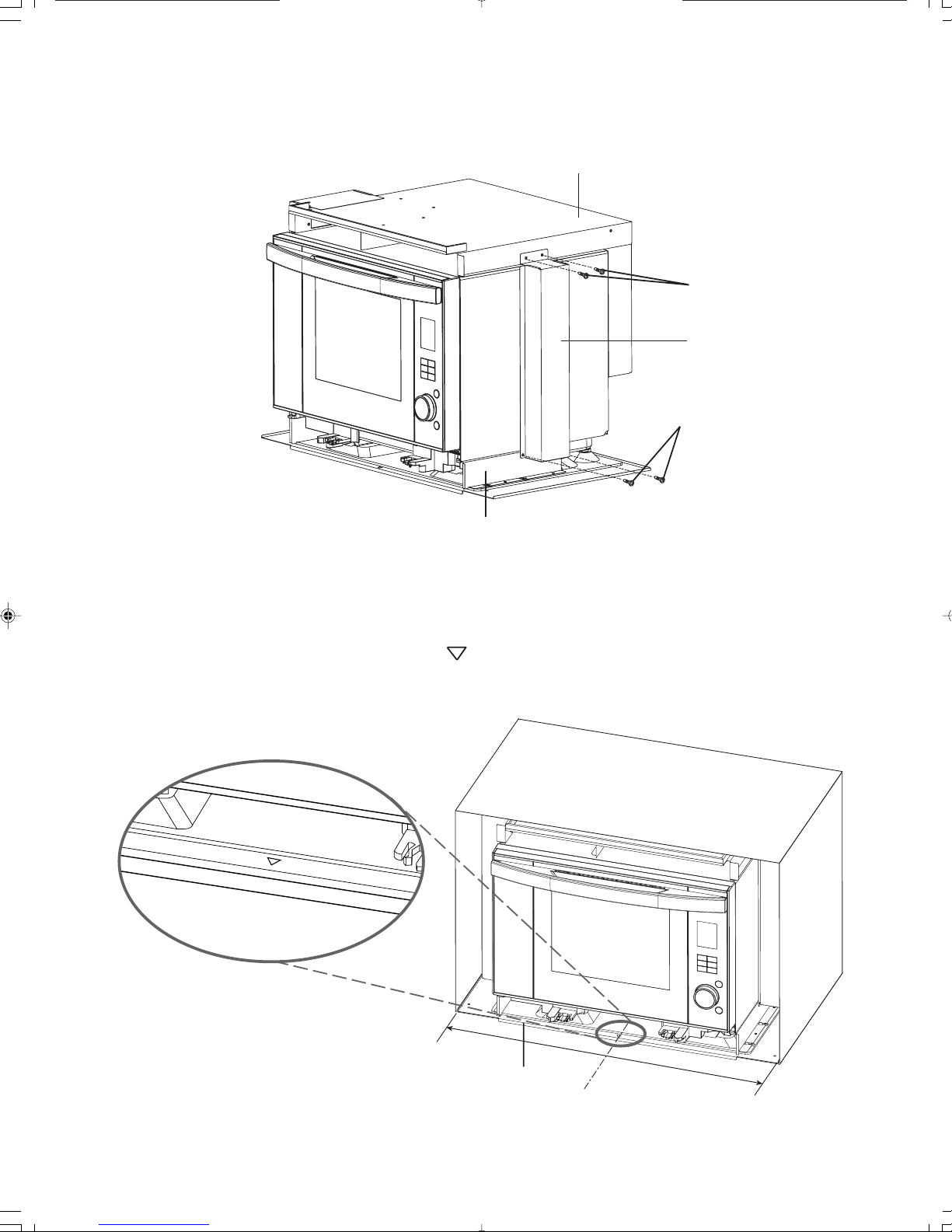

STEP 8: OVEN INSTALLATION

CAUTION: Never hold the handle when moving the oven. Two persons are required to install the oven.

1Establish center line of opening and mark front edge.

2Place the oven on a table or stand positioned in front of the cabinet where the oven is to be installed.

One person should hold the oven while the other connects it to the electrical outlet.

3Install the oven into the shelf with adjusting mark on EXHAUST DUCT BOTTOM to the center line

marked on front edge as shown in Figures 8 and 8-A. Then push the oven until the flange of EXHAUST

DUCT BOTTOM touches the edge of the wall or cabinet opening. Avoid pinching the cord between the

oven and any wall as shown in Figure 8.

28" - 28

" (710 mm - 719 mm)

STEP 7: INSTALLATION OF EXHAUST DUCT RIGHT

1Attach EXHAUST DUCT RIGHT to the right wall of the oven.

2Tighten with 4 SCREWS (A) as shown in the Figure 7.

Figure 7

Figure 8

SCREW (A)

EXHAUST DUCT

RIGHT

Figure 8-A

EXHAUST DUCT UPPER

DIVIDE PLATE R

Flange

RK12S30 2nd 09.1.7, 5:19 PM7

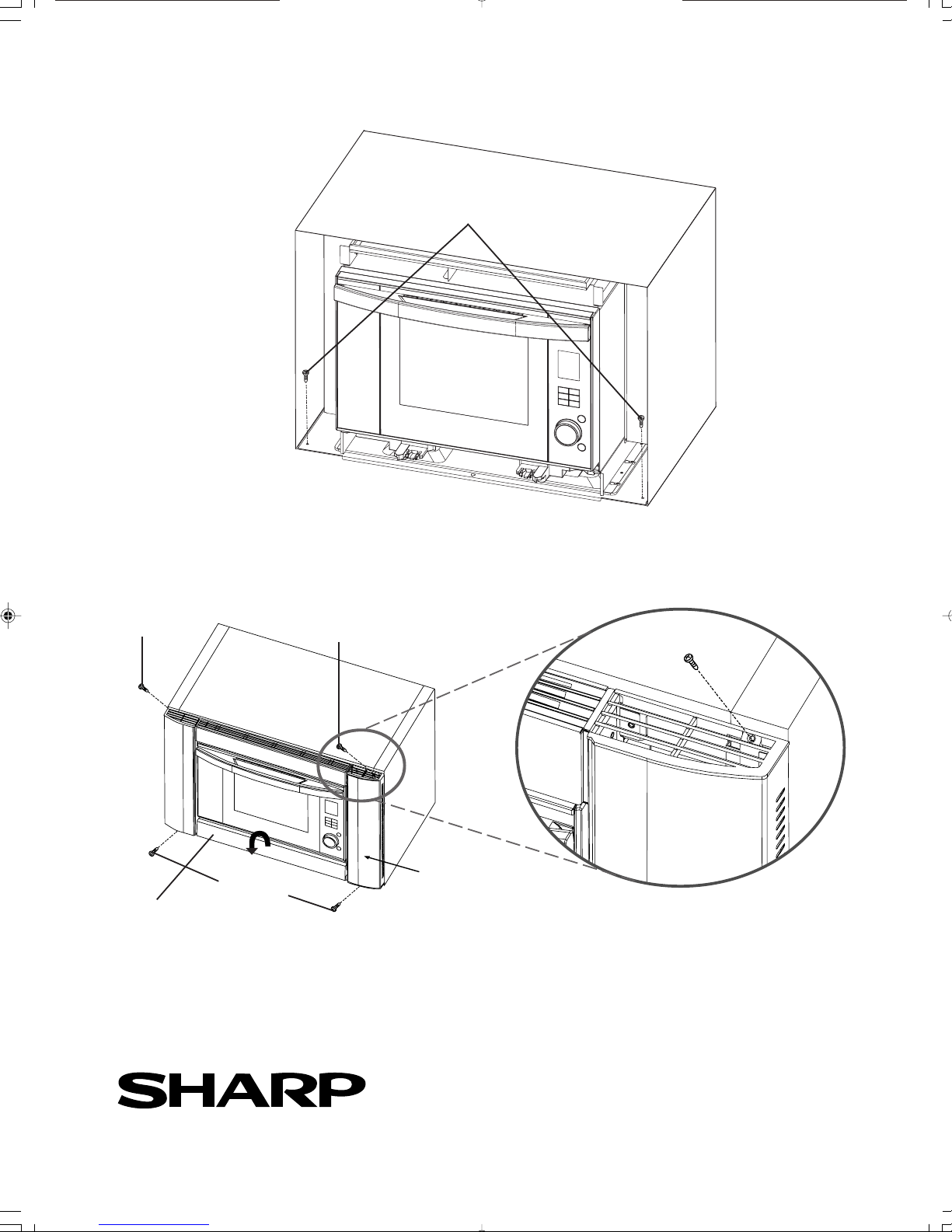

4Secure EXHAUST DUCT BOTTOM to the shelf with 2 SCREWS (B) as shown in Figures 8-B.

STEP 9: FRAME ASSEMBLY INSTALLATION

1Attach FRAME ASSEMBLY and tighten 4 SCREWS (C) as shown in Figure 9 and Figure 9-A.

Pull bottom panel of FRAME ASSEMBLY toward you to remove or replace the drip tray.

For any other assistance or information about this product, please call SHARP's Customer Assistance Cen-

ter 1-800-BE-SHARP.

FRAME

ASSEMBLY

Figure 8-B

SCREW (B)

SCREW (C)

Figure 9 Figure 9-A

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, NJ 07495-1163

BOTTOM PANEL of

FRAME ASSEMBLY

RK12S30 2nd 09.1.7, 5:19 PM8
