MX-C250F

MX-C300W

MX-C301W

Technical Handy Guide

AUGUST 2015

CONTENT

Product Specification

Watermark Update

Product Options

EEPROM Handling Procedure

Consumables

HDD Replacement Procedure

Initial Setup

SD Card Replacement Procedure

Colour Calibration

Firmware & Print Driver Revision

Maintenance

Test Simulation

Updated

Operating System Support

Updated

Trouble Codes

Electrical

Sensor Location

Wireless LAN Setup

NEW

Jam Cause Codes

MX-C250/300 Firmware Upgrade

Repair Hints

MX-C301W Firmware Upgrade

Technical Bulletin Index

MX-C301W Firmware Recovery

Document Reference

E-Manual Update

Notes

PRODUCT SPECIFICATION

SHARP

MX-C250F

MX-C300W

MX-C301W

GENERAL SPECIFICATION:

Type:

Desktop

Original Paper Size:

Max. A4

Printed paper Size:

Tray: A4R –A5R, 8.5 x 11R –5.5 x 8.5R,

Bypass: A4R –A6R, 8.5 x 14 –5.5 x 8.5R, Envelope, Custom

Standard Paper Capacity:

300 (250-sheet + 50-sheet Multi bypass)

Maximum Paper Capacity:

800 (250-sheet+ 50-sheet Multi bypass + opt 500-sheet)

Paper Weight:

Tray: 60 g/m2 –105 g/m2, Bypass: 55 g/m2 –220 g/m2

Output Capacity:

150 sheets (Face down)

Warm-up Time:

29 sec

18 sec

Resolution (dpi):

600 x 600

9600 (equivalent) x 600

Memory:

512 MB

SD Card: 4 GB,

ICU: 2GB(STD),

PCL Accelerator:

1GB(STD), 2GB(Opt)

HDD:

N/A

Std: 250GB

Duplex:

Std. (60 g/m2 –105 g/m2)

LCD:

Mono 5-line LCD

Colour 7”

Dimensions (WDH):

429 x 509 x 398 mm

429 x 509 x 421 mm

429 x 569 x 474 mm

Weight:

28kg

29kg

33kg

Machine Life:

300K or 5 Years (whichever comes first)

Average Monthly Volume:

1-2K, Max 3K

1-3K, Max 5K

ENVIRONMENTAL:

Power Consumption:

1.15kW

1.3kW

TEC Value (Standard Tier 2):

1.69kWh

2.01kWh

2.2kWh

Noise (Sound Pressure):

Ready: 37.9db (STD),

Operation: 54.3db (Max)

Ready: 34.3db (STD),

Operation: 55.5db (Max)

Ready: 23.1db (STD),

Operation: 54.5db (Max)

COPIER SPECIFICATION:

Copy Speed (Max):

Col & B/W: 25 ppm

Col & B/W: 30 ppm

E-Sort:

Yes / Yes

First Copy Time (OC):

Colour: 18 sec / B/W 10 sec

Colour: 7.4 sec

B/W 6.3 sec

First Copy Time (SPF/RSPF):

SPF: Colour 22 sec / B/W 14 sec

RSPF: Colour 25 sec / B/W 16 sec

Colour 11 sec

B/W 7.6 sec

Continuous Copy:

Max 999

Tandem Copy:

Not Supported

Scan Resolution:

Platen: 600 x 600 dpi / 600 x 400 dpi (default)

SPF / RSPF: 600 x 600 dpi / 600 x 300 dpi (default)

Zoom Range:

25 - 400% (Document Feeder: 25 –200 %)

DOCUMENT FEEDER:

Type:

STD: SPF

STD: RSPF

Original Capacity:

35 sheets (85 g/m2)

50 sheets (85 g/m2)

Max. Replacement Speed:

Colour: 9 opm, B/W: 18 opm (Copy/Scan),

9 opm (Fax)

Colour: & B/W: 35 opm

SHARP

PRODUCT SPECIFICATION

MX-C250F

MX-C300W

MX-C301W

DOCUMENT FILING:

Capacity:

N/A

20GB (Quick Folder) +

100GB (Main/Custom

Folder)

Quick Folder:

Max. 10,000 pages or

1000 files.

Main & Custom Folder:

Max. 20,000 pages or

3000 files

User Registrations:

1000

Preview Thumbnails:

Supported

PRINTER SPECIFICATION:

Print Speed (Max.):

Col & B/W: 25 ppm

Col & B/W: 30 ppm

PDL (Emulation):

STD: PCL6, Postscript 3

Opt. XPS [MX-PUX1 &

2GB Expansion RAM]

Interface:

USB 2.0, 10Base-T, 100Base-TX

USB 2.0, 10Base-T,

100Base-TX, 1000Base-T

Protocol:

TCP/IP (IPv4, IPv6)

Supported OS:

Windows® XP*/ Vista*, Windows® 7*, Windows® 8*, Windows® 8.1*,

Windows® Server 2003* / 2008* / 2008R2 / 2012 / 2012R2 (*32/64bit).

Mac OSX 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.x, 10.9.x

XPS - Windows Vista only (Opt: MXPUX1 & 2GB Expansion RAM

for MX-C301W only)

Bundled Utility Software:

Status Monitor

Tandem Print:

Not supported

Airprint Support:

Supported using Third Party Solution only.

Sharpdesk Mobile:

Supported

SCANNER [IMAGE SEND]:

Requirement:

STD

Type:

Colour

Resolution:

100, 200, 300, 400, 600 dpi

File Format:

Mono: TIFF, XPS, PDF, PDF/A & Encrypted PDF,

Colour: TIFF, JPEG, XPS, PDF, PDF/A & Encrypted PDF,

Duplex:

Not supported

Supported

Destination:

Desktop (Sharpdesk), FTP, E-Mail, SMB Folder, USB Memory, TWAIN / WIA

compliant, HDD [MX-C301W only], I-Fax (SMTP - MX-C301W only)

LDAP:

Supported

Bundled Utility software:

Network Scan Tool, Sharpdesk 3.3 (1 license),

FACSIMILE:

Requirement:

STD

Communication Formula:

Super G3

Communication Line:

PSTN

Transmission Speed:

2sec.range (Super G3/JBIG) 6sec.range (G3/ECM)

Dial Registration:

Max 1000

Document Size:

A3 - A5,

Compression:

MH,MR,MMR,JBIG

Inbound Routing:

Yes (Network Folder only)

PC Fax:

Yes (For Windows only)

PRODUCT SPECIFICATION

SHARP

MX-C250F

MX-C300W

MX-C301W

WIRELESS LAN:

Requirement:

N/A

STD

Compliant Regulation:

IEEE802.11n/g/b

Access Mode:

Infrastructure mode,

Software AP mode (Adhoc).

Security:

WEP, WPA Personal, WPA2 Personal

Center frequency/ Channel:

IEEE802.11n max 150M bps

IEEE802.11 n/g/b: 2.4 GHz / 1-13ch

Transmission Rate:

IEEE802.11g max. 54M bps

IEEE802.11b max 11 M bps

Max Number of Connections:

Infrastructure Mode: As defined by the Access

Point/Router.

Software AP Mode: 5 concurrent connections.

SHARP

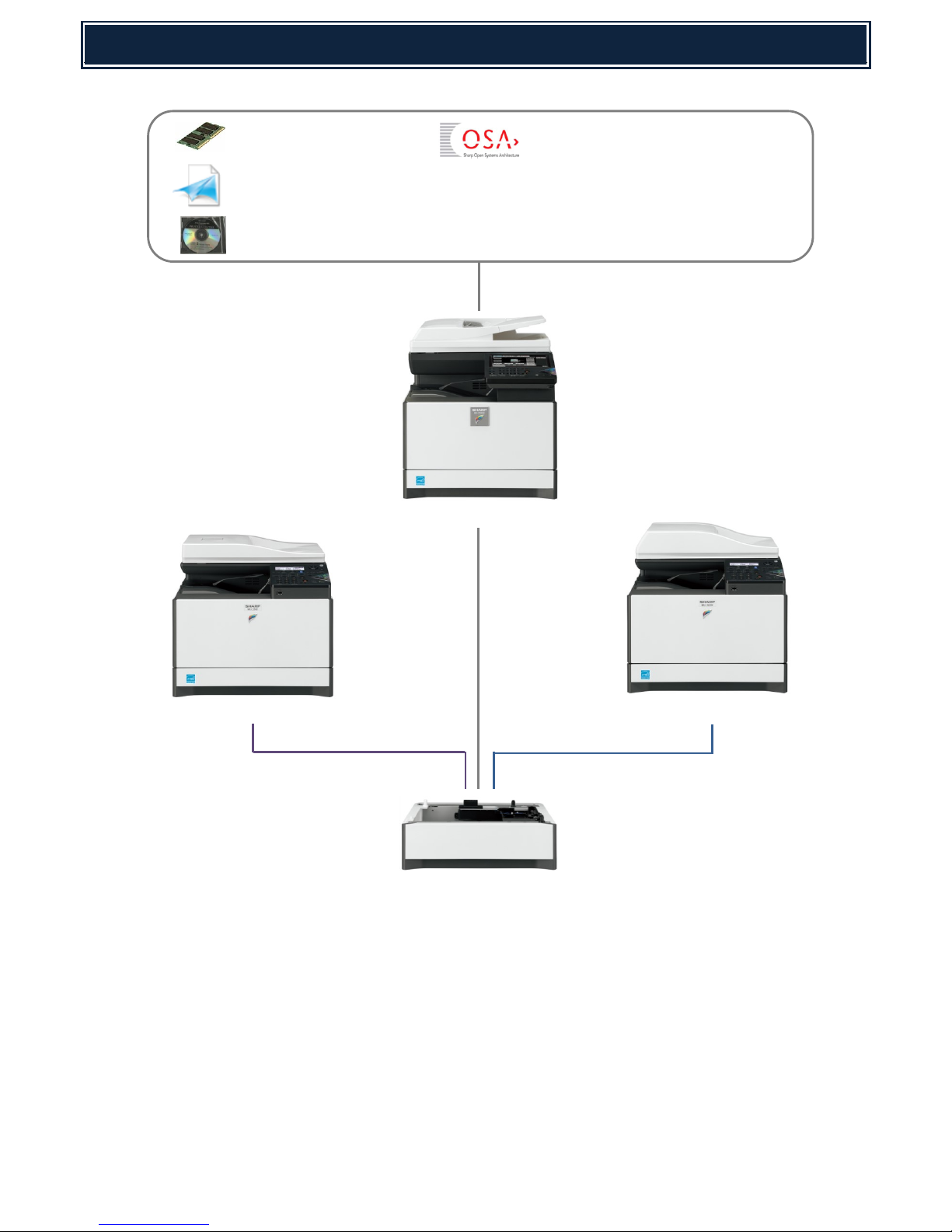

PRODUCT OPTIONS

MX-C301W

MX-PUX1

XPS Expansion

MX-PF10

Barcode Font

MX-FWX1

Internet Fax Kit

MX-AMX1

Application Integration Module

MX-AMX2

Application Communication Module

MX-AMX3

External Account Module

MX-CS11

Paper Feed Unit

MX-C250F

MX-C300W

PRODUCT OPTIONS

SHARP

Machine Options

MX-C301W

Model

Description

Comment

MX-CS11

1 x 500 sheet paper feed unit

MX-PUX1

XPS expansion kit

Requires 2GB Expansion RAM

2GB Expansion memory board for MXPUX1

Local Purchase

MX-PF10

Barcode font kit

MX-FWX1

Internet-Fax expansion kit

MX-FR46U

Data security kit (Commercial version)

MX-AMX1

Application integration module

MX-AMX2

Application communication module

MX-AMX3

External account module

MX-USX1

Sharpdesk Additional license kit (1 license)

MX-USX5

Sharpdesk Additional license kit (5 licenses)

MX-US10

Sharpdesk Additional license kit (10 licenses)

MX-US50

Sharpdesk Additional license kit (50 licenses)

MX-USA0

Sharpdesk Additional license kit (100 licenses)

MX-UN01A

Sharp OSA-Network Scanner Tool (1 license)

Requires MX-AMX2

MX-UN05A

Sharp OSA-Network Scanner Tool (5 licenses)

MX-UN10A

Sharp OSA-Network Scanner Tool (10 licenses)

MX-UN50A

Sharp OSA-Network Scanner Tool (50 licenses)

MX-UN1HA

Sharp OSA-Network Scanner Tool (100 licenses)

Machine Options

MX-C250F, MX-C300W

Model

Description

Comment

MX-CS11

1 x 500 sheet paper feed unit

MX-USX1

Sharpdesk Additional license kit (1 license)

MX-USX5

Sharpdesk Additional license kit (5 licenses)

MX-US10

Sharpdesk Additional license kit (10 licenses)

MX-US50

Sharpdesk Additional license kit (50 licenses)

MX-USA0

Sharpdesk Additional license kit (100 licenses)

SHARP

CONSUMABLES

MX-C250F

MX-C300W

MX-C301W

Product Code

Description

Approx. Life

MX-C30GTB

Black Toner Cartridge

(A4 @ 5%)

MX-C30GTC

Cyan Toner Cartridge

(A4 @ 5%)

MX-C30GTM

Magenta Toner Cartridge

(A4 @ 5%)

MX-C30GTY

Yellow Toner Cartridge

(A4 @ 5%)

MX-C30DR

Drum Cartridge

Colour: 45k*

Mono: 75k*

MX-C30GVB

Black Developer Cartridge

75k

MX-C30GVC

Cyan Developer Cartridge

45k

MX-C30GVM

Magenta Developer Cartridge

45k

MX-C30GVY

Yellow Developer Cartridge

45k

SERVICE

MX-C30FU

Fusing Unit for MX-C250/300 only.

150k

MX-C33FU

Fusing Unit for MX-C301W only.

150k

MX-C30U1

Primary Transfer Unit

150k

MX-C30HB

Toner Collection Container

Notes:

Toner starter pack is supplied with MX-C250F/300W/301W –Approx. CMYK life (A4 @ 5%) = 1k.

CMYK Developer Cartridge is also supplied/preinstalled with MX-C250F/300W/301W.

* The consumable life is specified by 575K rotations therefore, the page count life indicated above is for

approx. guidance only.

INITIAL SETUP

SHARP

TONER INSTALLATION & REPLENISHMENT

Developer setup has been executed during machine production therefore, it is

not necessary to execute Sim25-02 after unpacking the machine.

Remove Protective Caps from Developer Units (x4).

(Please retain the Caps as they are used for transporting).

Install CMYK Toner Cartridges.

Caution:

DO NOT open any Exterior Cover, Power OFF/ON or enter Simulation Mode

during Initial Toner Replenishment.

PRODUCT ACTIVATION & FIRMWARE UPGRADE

Activation of Optional Product.

Sim 22-05 Check Firmware version(s):- Upgrade to latest version.

INITIAL SETUP

Sim 26-06 Machine Destination.

Sim 26-35 Set Multi Error Counter Set to 1 (Multi Count).

Sim 55-03 Process Mixed Size Pages (orientation) when Printing in Duplex:-

SSW 3-6, 0 = Disable, 1 = Enable.

Sim 55-03 Toner Remain Status Display: SSW 22-5, 0 = Disable, 1 = Enable

[MX-C301W only].

System Settings: Adjust Date/Time (Inc. Daylight Saving setting).

Network Settings –Print Port Settings: Disable WSD.

Set cassette size by adjusting the guides in the cassette.

PRINT IMAGE POSITION & MAGNIFICATION

Manual Adjustment:-

Sim 50-10 BK MAG (inside dimension).

Measure the length of 14 squares around the centre area of the

test print and check whether the length is 140 +/- 0.7mm.

Sim 50-10 Image Off Centre Adjustment.

Sim 50-05 Printer Lead Edge & Void Adjust.

IMAGE SKEW & COLOUR REGISTRATION

Sim 50-22 Colour Registration/Skew & OPC Drum Phase Adjustment

Check/Adjust SKEW (CMY) so value is within the following range:-

SKEW_C : +/-30, SKEW_M : +/-40, SKEW_Y : +/-20 (Result=OK).

SHARP

INITIAL SETUP

HALF TONE COLOUR CALIBRATION

Sim 46-24 Colour Balance Adjustment/Calibration [MX-C250/300 only].

Sim 46-74 Colour Balance Adjustment/Calibration [MX-C301W only].

COPY IMAGE QUALITY

Check Image Quality (Copy Mode) –Density, Magnification, Lead Edge & Void.

If NG, perform the following adjustments as required:-

Sim 46-01 Copy Density Adjust. (Colour).

Sim 46-02 Copy Density Adjust. (B/W).

Sim 46-09 SPF Copy Density Adjust.

Manual Adjustment (Magnification, Lead Edge, Void, Off Centre etc).:

Sim 48-01 Magnification Adjustment (OC & SPF).

Sim 50-01 Lead/Rear Edge, Loss & Void Adjust.

Sim 50-12 OC & SPF Off Centre Adjust.

PRINT IMAGE QUALITY

Check Image Quality (Print Mode) –Density.

Sim 64-05 PCL Density Test Page.

Sim 64-06 PS Density Test Page.

FACSIMILE

Sim 66-02 Fax SW Setting (Destination).

Sim 66-10 Fax Memory Clear.

OPTION CONFIGURATION

EXTERNAL ACCOUNTING MODULE –MX-AMX3

Sim 55-03 Auto clear function before Copy job execution:-

SSW 1-5 0 = Disable, 1 = Enable.

Sim 55-03 USB Card Reader detection control:-

SSW 6-8 0 = Disable, 1 = Enable.

Sim 55-03 Continuous print mode (job queuing for OSA):-

SSW 24-7 0 = Disable, 1 = Enable.

INITIAL SETUP

SHARP

MFP DATA BACKUP

Sim 22-06 Data Simulation Print.

Device Clone & Storage Backup.

Sim 56-01 Backup EEPROM Data to HDD [MX-C301W only].

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sharp Imprimante tout-en-un

Sharp

Sharp MX-M503N Manuel utilisateur

Sharp

Sharp MX-M700N Manuel utilisateur

Sharp

Sharp AR-BC320 Manuel utilisateur

Sharp

Sharp AR-M207 Manuel utilisateur

Sharp

Sharp MX-B382 Manuel utilisateur

Sharp

Sharp MX-6240N Manuel utilisateur

Sharp

Sharp MX-3050N Manuel utilisateur

Sharp

Sharp AM 900 - Digital Office Laser Copier Manuel utilisateur

Sharp

Sharp AR-M277 IMAGERs Manuel utilisateur

Sharp

Sharp AR-C260 Mise à jour du firmware

Sharp

Sharp MX-B201D Mode d’emploi

Sharp

Sharp MX-3111U Manuel utilisateur

Sharp

Sharp MX-M753 Manuel utilisateur

Sharp

Sharp AL-1651CS Manuel utilisateur

Sharp

Sharp MX-C312 Mode d’emploi

Sharp

Sharp MX-C310 Manuel utilisateur

Sharp

Sharp MX-3610N Manuel utilisateur

Sharp

Sharp AR-F15 Manuel utilisateur

Sharp

Sharp MX-B402 Mode d’emploi

Sharp

Sharp AL-1651CS Manuel utilisateur

Sharp

Sharp SF-2040 Manuel utilisateur

Sharp

Sharp MX-M1100 Manuel d'installation et d'exploitation

Sharp

Sharp MX 5500N - Color Laser - Copier Manuel utilisateur

Sharp

Sharp MX-5001N Manuel d'installation et d'exploitation

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Brother

Brother MFC-9760 Manuel utilisateur

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Aficio

Aficio 200 Manuel utilisateur

Canon

Canon ImageCLASS 2300 Manuel

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur
