Why the AR-M237/M277 …

The Sharp 23-ppm AR-M237 IMAGER and the 27-ppm

AR-M277 IMAGER are designed with advanced features

that help users maximize productivity. These IMAGERs

come standard with a 100-sheet RADF that feeds up to

43 originals per minute, electronic sorting, auto-duplex

capability, and 1200 dpi output.

These IMAGERs offer standard PC printing that outputs

jobs at up to 1200 x 600 dpi (enhanced) resolution. For

speedy printing, Sharp’s host-based print controller

utilizes JBIG compression, which reduces the job’s file

size, and with a standard USB-2.0 interface, the AR-

M237/M277 IMAGER can transfer data up to 40 times

faster than USB-1.1.

With the optional Super G3 Fax Module i, the AR-

M237/M277 IMAGERs become powerful workgroup

facsimiles, offering advanced features such as duplex

scanning, job build, F-code communication, ledger-size

reception, and more. Ideal for high-volume faxing, the

AR-M237/M277 IMAGERs can also broadcast up to 200

destination, and can store up to o500 auto numbers, all

of which can be managed through the touch-screen

display.

The AR-M237/M277 Digital

Multifunctional IMAGER

High-Performance Features

923-ppm (AR-M237) or 27-ppm (AR-M277)

9Multiple sets—up to 500 sheets total

9High-efficiency Out-of-the-Box Printing

9PCL6 Network Printing

9Optional Network Scanning

9Built-in LDAP (lightweight Directory Access

Protocol)

9User-level Authentication

9Integrated Fax Capabilities

9Layered Security Approach

Powerful Features for Increased

Security

To secure your electronic documents and

restrict access, the AR-M237/M277 IMAGERs

offer several levels of network and data

security.

Confidential Print

User Authentication

IP/MAC Address Filtering

Data Security Kit

Quick Reference Guide: AR-M237/M277

Touch-screen LCD display

100-sheet RADF feeds 43 originals per

minute

Mixed size original detection

Automatic trayless duplex copying and

printing

Electronic sorting

48 MB total standard memory expandable

to 1,072 MB

Offset stacking with paper shifter

JBIG speed-enhanced PC printing system

USB-2.0 and IEEE 1284 bi-directional

parallel interfaces

1,100-sheet standard paper capacity

expandable to 2,100 sheets

100-sheet multi-sheet bypass tray

Integrated Super G3 Fax option

Optional 1,000-sheet stapler finisher

PCL6 and Postscript Level 3 option with

advanced network security

Advanced network scanning option with

LDAP (Lightweight Directory Access Protocol)

Optional Data Security Kit offers 128-bit

encryption and memory erase

Description: Features & Options

Quick Reference Guide: AR-M237/M277

Pre-Setup: Tools, Documentation, & Admonitions

Toolbox Basics

Mechanical

• Screwdriver, Phillips #2

• Screwdriver, Flat #1

• Wrench, 1.5mm Hex head

• Feeler gauges

Electrical

• Voltmeter

• ESD wrist or ankle strap

• Approved surge suppressor

• 30x lighted viewing device

Miscellaneous

• Clean, soft, lint-free cloths

• Alcohol

Special Tools & Service Documentation

* Optional equipment available for system

Electrical/Electronic Component

Admonitions

WARNING: Electrical hazard.

Employ proper precautions when

working with high-voltage electrical

equipment.

CAUTION: Improper handling of

electronic components can damage

the equipment.

Properly ground and wear an

electro-static device (ESD) on your

wrist or ankle when working with

electronic modules. Similarly, use

anti-static bags to protect electronic

components during storage or

shipping.

Material Safety Data Sheets (MSDSs)*

* Download MSDSs at http://www.sharp-service.com

Laser Admonition

For your protection, do

not remove protective

covers or bypass safety

interlocks.

SM-AR-FX7

Code: 00ZARFX//A1E

*AR-FX7, Super G3 Fax Kit

SM-0AR-FN5N

Code: 00ZARFN5//A1E

*AR-FN5N, Finisher/Stapler

SM-AR-NS2

Code: 00ZARNS2//A1E

*AR-NS2, Network Scanning

Kit

SM-AR-P17

Code: 00ZARP17//A1E

*AR-P17, Print Controller

PG-ARM-237/M277

Code: 00ZARM277/P1E

AR-M237/M277, Parts Guide

CD-ARM-237/M277

Code: 00ZARM277/C1E

AR-M237/M277, Circuit

Diagram

SM-ARM-237/M277

Code: 00ZARM277/A1E

AR-M237/M277, Service

Manual

Part NumberDescription

F-31201Drum CartridgeAR-271DR

F-30981DeveloperAR-271MD

F-00981Toner CartridgeAR-270MT

MSDS No.DescriptionProduct Code

Quick Reference Guide: AR-M237/M277

Configuration and Combination of Options

Configuration

Combination of Options List

Quick Reference Guide: AR-M237/M277

Consumable Parts

List

SEC/LAG/SECL

Copy Speed

Quick Reference Guide: AR-M237/M277

Copier Specifications

15 copies per minute (11” x 17”)12 copies per minute (11” x 17”)

16 copies per minute (8.5” x 14”)13 copies per minute (8.5” x 14”)

18 copies per minute (8.5” x 11R”)16 copies per minute (8.5” x 11R”)

27 copies per minute (8.5” x 11”)Copy Speed:23 copies per minute (8.5” x 11”)Copy Speed:

AR-M277AR-M237

Specifications

Quick Reference Guide: AR-M237/M277

Copier Specifications

Specifications (cont’d)

Specifications

Quick Reference Guide: AR-M237/M277

Copier Specifications

Specifications (cont’d)

Quick Reference Guide: AR-M237/M277

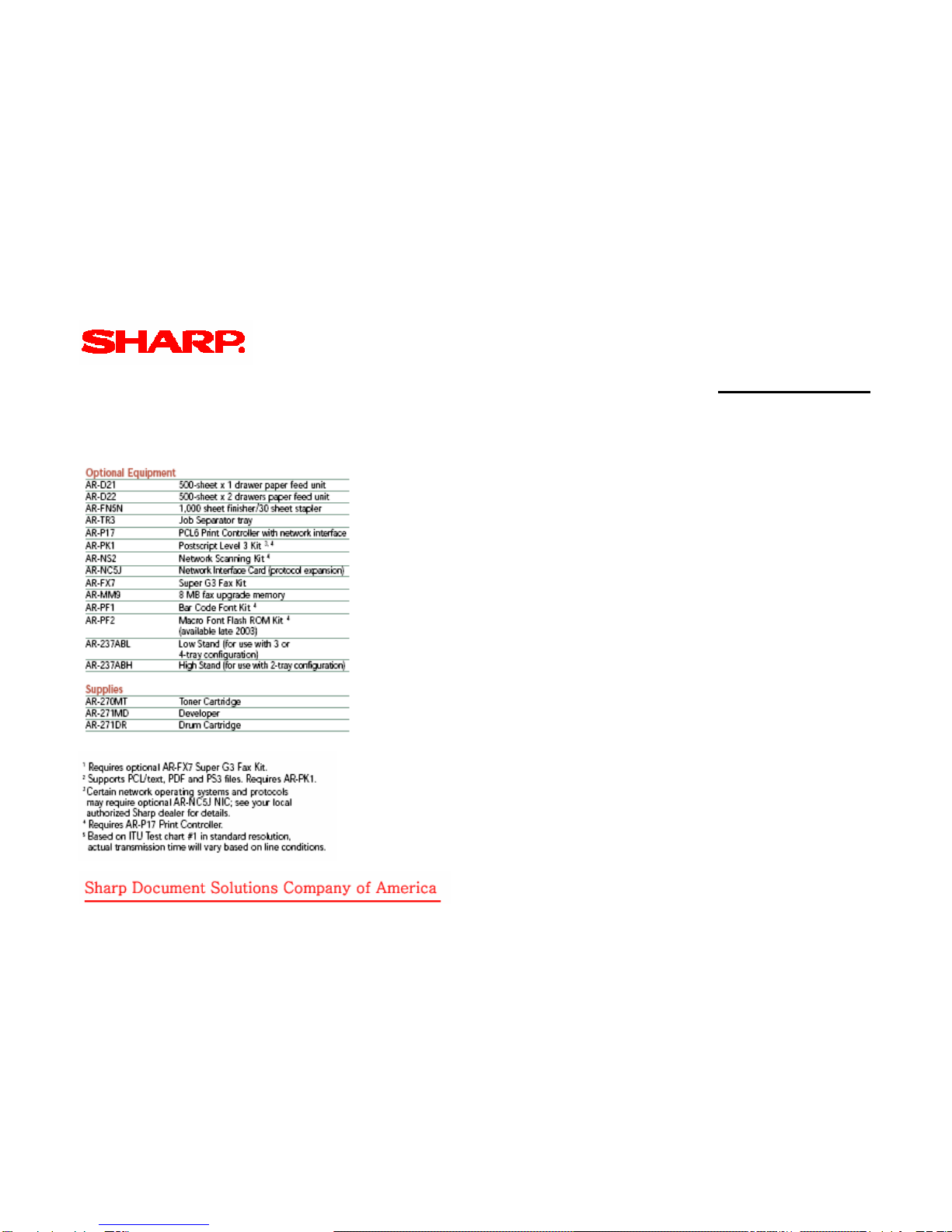

Optional Equipment and Supplies

Optional Equipment

Quick Reference Guide: AR-M237/M277

Adjustments

List of Adjustments

Quick Reference Guide: AR-M237/M277

Simulation

Simulation: Diagnostics, Setup, Adjustment Value Input, and Data Display

Entering the Simulation Mode

1. Copy mode key ON →Program key ON →Asterisk (*) key

ON →CLEAR key ON →Asterisk key ON →Ready for

input of a main code of simulation

2. Entering a main code with the 10-key →START key ON

3. Entering a sub-code with the 10-key →START key ON

4. Select an item with the scroll key and the item key.

5. The machine enters the mode corresponding to the

selected item.

a) Press START key or EXECUTE key to start

the simulation operation.

b) To cancel the current simulation mode or to

change the main code or the sub code, press

the user setup key.

*Canceling the simulation mode to return to the

normal mode:

Simulation List

Please refer to the Simulation List (pages 1 through 10) that follows.

6. Press CA key.

How to Change the Simulation Adjustment Value Set by the Touch Panel

in the Adjustment Value Entry Process

Target SIM List

Touch Panel Operating Procedure
