DIGITAL LASER COPIER/PRINTER

OPERATION MANUAL

AR-122E N / AR-123E

AR-122E N

AR-123E

MODEL

Page

INTRODUCTION 4

LOADING PAPER

MAKING COPIES

SPECIAL FUNCTIONS

MAINTENANCE

TROUBLESHOOTING

THE UNIT

OPTIONAL EQUIPMENT 32

APPENDIX

INSTALLING THE

SOFTWARE 38

AR-122EN_123E.book 1 ページ２００２年８月７日　水曜日　午前８時５５分

CAUTION

VORSICHT

ADVARSEL

ADVERSEL

VARNING

VARO!

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.

AVOID EXPOSURE TO BEAM.

UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET UND

SICHERHEITSVERRIEGELUNG ÜBERERÜCKT. NICHT DEM STRAHL AUSSETZEN.

USYNLIG LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE ER

UDE AF FUNKTION. UNDGA UDSAETTELSE FOR STRÅLING.

USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG SIKKERHEDSLÅS BRYTES.

UNNGÅ EKSPONERING FOR STRÅLEN.

OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRRAR ÄR

URKOPPLADE. STRÅLEN ÄR FARLIG. BETRAKTA EJ STRÅLEN.

AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTÖNTÄ

LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

Laserstrahl

CLASS 1 LASER PRODUCT

LASER KLASSE 1

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

VAROITUS!

LAITTEEN KÄYTTÄMINEN

MUULLA KUIN TÄSSÄ

KÄYTTÖOHJEESSA MAINITULLA

TAVALLA SAATTAA ALTISTAA

KÄYTTÄJÄN

TURVALLISUUSLUOKAN 1

YLITTÄVÄLLE

NÄKYMÄTTÖMÄLLE

LASERSÄTEILYLLE.

VARNING

OM APPARATEN ANVÄNDS PÅ

ANNAT SÄTT ÄN I DENNA

BRUKSANVISNING

SPECIFICERATS, KAN

ANVÄNDAREN UTSÄTTAS FÖR

OSYNLIG LASERSTRÅLNING,

SOM ÖVERSKRIDER GRÄNSEN

FÖR LASERKLASS 1.

CLASS 1

LASER PRODUCT

LASER KLASSE 1

Caution

This product contains a low

power laser device.

To ensure continued safety

do not remove any cover or

attempt to gain access to the

inside of the product. Refer

all servicing to qualified

personnel.

AR-122EN_123E.book 1 ページ２００２年８月７日　水曜日　午前８時５５分

CAUTIONS

Caution label on the unit

The label ( ) in the fusing area of the unit indicates the following:

: Caution, risk of danger

: Caution, hot surface

Cautions on using

Follow the cautions below when using this unit.

Warning:

•The fusing area is hot. Exercise care in this area when removing misfed paper.

•Do not look directly at the light source. Doing so may damage your eyes.

•Do not switch the unit rapidly on and off. After turning the unit off, wait 10 to 15

seconds before turning it back on.

•Unit power must be turned off before installing any supplies.

Caution:

•Place the unit on a firm, level surface.

•Do not install the unit in a humid or dusty location.

•When the unit is not used for a long time, for example for consecutive holidays,

turn the power switch off and remove the power cord from the outlet.

•When moving the unit, be sure to turn the power switch off and remove the power

cord from the outlet.

•Do not cover the unit with a dust cover, cloth or plastic film while the power is on.

Doing so may prevent heat radiation, damaging the unit.

•Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

•The socket-outlet shall be installed near the unit and shall be easily accessible.

Important points when selecting an installation site

Do not install your unit in areas that are:

•damp, humid, or very dusty

•exposed to direct sunlight

•poorly ventilated

•subject to extreme temperature or humidity changes, e.g., near an air conditioner

or heater.

Be sure to connect the power cord only to a power outlet that meets the

specified voltage and current requirements. Also make certain the outlet is

properly grounded.

Be sure to allow the required space around the

machine for servicing and proper ventilation.

Connect the unit to a power outlet which is not used for other electric

appliances. If a lighting fixture is connected to the same outlet, the light

may flicker.

20cm

(8")

10cm

(4")

10cm

(4")

AR-122EN_123E.book 1 ページ２００２年８月７日　水曜日　午前８時５５分

Cautions on handling

Be careful in handling the unit as follows to maintain the performance of this unit.

Do not drop the unit, subject it to shock or strike it against any object.

Store spare toner cartridges in a cool dry place without removing from the

package before use.

•If they are exposed to direct sunlight or excessive heat, poor copies may result.

Do not touch the photoconductive drum (green portion).

•Scratches or smudges on the drum will cause dirty copies.

Cautions on laser

Proper storage for supplies

Store the supplies (paper and toner cartridges) in a location that is:

•clean and dry

•at a stable temperature

•not exposed to direct sunlight.

Store paper in the wrapper and lying flat.

•Paper stored out of the wrapper or in packages standing on end may curl or get

damp, resulting in paper misfeeds.

Trademark acknowledgements

•Microsoft and Windows are trademarks of Microsoft Corporation in the U.S.A. and

other countries.

•IBM and PC/AT are trademarks of International Business Machines Corporation.

•Adobe and Acrobat are trademarks of Adobe Systems Incorporated.

•All other trademarks and copyrights are the property of their respective owners.

Wave length 770 nm –795 nm

Pulse times 11.82 µs / 7 mm

Output power 0.17 mW ± 0.01 mW

As an ENERGY STAR®Partner, SHARP has determined that

this product meets the ENERGY STAR®guidelines for energy

efficiency.

AR-122EN_123E.book 2 ページ２００２年８月７日　水曜日　午前８時５５分

1INTRODUCTION

USING THE MANUAL ................... 4

PART NAMES ...............................5

OPERATION PANEL..................... 6

2LOADING PAPER

PAPER........................................... 7

LOADING THE PAPER TRAY....... 8

BYPASS FEED

(including special paper).............. 10

3MAKING COPIES

COPY FLOW ............................... 11

CONNECTING THE POWER

CORD .......................................... 12

ORIGINAL PLACEMENT............. 14

SET THE COPY QUANTITY ....... 15

EXPOSURE ADJUSTMENT/

PHOTO COPYING ...................... 15

REDUCTION/ENLARGEMENT/

ZOOM.......................................... 17

4SPECIAL FUNCTIONS

DESCRIPTION OF SPECIAL

FUNCTIONS................................ 18

TONER SAVE MODE.................. 18

USER PROGRAMS..................... 19

DISPLAYING TOTAL NUMBER

OF COPIES ................................. 20

5MAINTENANCE

TONER CARTRIDGE

REPLACEMENT.......................... 21

CLEANING THE UNIT................. 24

TROUBLESHOOTING THE UNIT

TROUBLESHOOTING.................26

STATUS INDICATORS................27

MISFEED REMOVAL ..................28

DEVELOPER REQUIRED ...........31

MAINTENANCE REQUIRED.......31

SCAN HEAD LOCKING

SWITCH.......................................31

7OPTIONAL EQUIPMENT

SYSTEM CONFIGURATION .......32

PRINTER/SCANNER EXPANSION

KIT (AL-12PK)..............................32

SINGLE PASS FEEDER

(AR-SP5)......................................32

250-SHEET PAPER FEED UNIT

(AR-D16)......................................36

INSTALLING THE SOFTWARE

SOFTWARE FOR THE SHARP

PERSONAL MFP SERIES...........38

HARDWARE AND SOFTWARE

REQUIREMENTS ........................39

BEFORE INSTALLATION............39

INSTALLING THE SOFTWARE ..41

INDICATORS ON THE

OPERATION PANEL ...................51

USING THE PRINTER MODE.....52

USING THE SCANNER MODE ...54

HOW TO USE THE ONLINE

MANUAL ......................................62

USING OTHER INSTALLED

DRIVERS .....................................64

CONNECTING THE INTERFACE

CABLE .........................................65

9APPENDIX

SPECIFICATIONS .......................67

INDEX ..........................................70

SOFTWARE LICENSE ................73

CONTENTS

AR-122EN_123E.book 3 ページ２００２年８月７日　水曜日　午前８時５５分

This chapter provides basic information for using the unit.

USING THE MANUAL

The operation manual contains explanations of how to operate the unit, important

considerations, and maintenance procedures. To get the most out of the unit, please

read the operation manual. Please keep the operation manuals in a suitable location

that will allow for convenient future reference.

Conventions used in the manual

This operation manual explains the operation of the AR-122EN and AR-123E

models. In cases where the operation is the same, AR-123E is used. The differences

between AR-122EN and AR-123E are shown below.

In this manual, the following icons are used to provide the user with information

pertinent to the use of the unit.

When references are made to paper sizes and weights, the inch series values are

quoted in brackets.

For example:

Page 7 ......................56g/m2to 80g/m2(15 lbs. to 21 lbs.)

A4 (8-1/2" x 11")

Warns the user that injury may result if the contents of the warning

are not properly followed.

Cautions the user that damage to the unit or one of its components

may result if the contents of the caution are not properly followed.

Notes provide information relevant to the unit regarding

specifications, functions, performance, operation and such, that

may be useful to the user.

Indicates a letter displayed in the display.

AB series (metric) and inch series reference

:Standard functions and equipment

:Optional functions and equipment

AR-122EN

Copier

AR-123E

Can be used when the optional Printer/Scanner Expansion Kit (AL-12PK) is installed.

The optional single pass feeder (AR-SP5) can be installed.

The optional 250-sheet paper feed unit (AR-D16) can be installed.

Copier

Printer *

(AL-12PK)

Scanner *

(AL-12PK)

SPF *

(AR-SP5)

250-sheet paper feed unit *

(AR-D16)

Printer *

(AL-12PK)

Scanner *

(AL-12PK)

1INTRODUCTION

AR-122EN_123E.book 4 ページ２００２年８月７日　水曜日　午前８時５５分

PART NAMES

Toner cartridge

Photoconductive drum

Single bypass

Original cover

Original table

Operation panel

Front cover

Paper tray

Side cover

Side cover open button

Bypass paper guides

Paper output tray

Paper output tray extension

Power switch

Handle

Power cord socket

Fusing unit release lever

Transfer charger

Charger cleaner

AR-122EN_123E.book 5 ページ２００２年８月７日　水曜日　午前８時５５分

OPERATION PANEL

Inch system

Exposure mode selector key and

indicators

Use to sequentially select the exposure

modes: AUTO, MANUAL or PHOTO.

Selected mode is shown by a lit

indicator. (p.15)

Light and dark keys and indicators

Use to adjust the MANUAL or PHOTO

exposure level. Selected exposure level is

shown by a lit indicator. (p.15) Use to start

and terminate user program setting. (p.19)

Alarm indicators

Developer replacement required

indicator (p.31)

Misfeed indicator (p.28)

Toner cartridge replacement

required indicator (p.21)

Maintenance indicator (p.31)

SPF indicator (p.33)

Can be used only when your unit has the

SPF.

SPF misfeed indicator (p.34)

Can be used only when your unit has the

SPF.

Copy ratio selector key and

indicators

Use to sequentially select preset

reduction/enlargement copy ratios.

Selected copy ratio is shown by a lit

indicator. (p.17)

Copy ratio display (%) key (p.17)

Display

Displays the specified copy quantity,

zoom copy ratio, user program code,

and error code.

SCANNER key and indicator

(p.51, p.58)

Can be used when the Printer/Scanner

Expansion Kit (AL-12PK) is installed.

ONLINE key and indicator (p.51)

Can be used when the Printer/Scanner

Expansion Kit (AL-12PK) is installed.

Power save indicator

Lights up when the unit is in a power

save mode. (p.18, p.19)

Paper feed location indicators

Light up to show the selected paper

feed station.

Tray select key

This is only enabled when a 250-sheet

paper feed unit is installed.

ZOOM keys and indicator

Use to select any reduction or

enlargement copy ratio from 25% to

400% in 1% increments. (p.17)

Copy quantity keys

•Use to select the desired copy

quantity (1 to 99). (p.15)

•Use to make user program entries.

(p.19)

Clear key

•Press to clear the display, or press

during a copy run to terminate

copying. (p.15)

•Press and hold down during standby

to display the total number of copies

made to date. (p.20)

Start key and indicator

•Copying is possible when the

indicator is on.

•Press to start copying.

•Use to set a user program. (p.19)

AR-122EN_123E.book 6 ページ２００２年８月７日　水曜日　午前８時５５分

Follow the steps below to load paper into the tray.

PAPER

For best results, use only paper recommended by SHARP.

* Do not use non-standard envelopes, and envelopes that have metal clasps, plastic

snappers, string closures, windows, linings, self-adhesive, patches or synthetic

materials. Do not use envelopes that are filled with air or envelopes that have

labels or stamps attached. These will cause physical damage to the unit.

** For paper weighing from 104g/m2to 128g/m2 (28 lbs. to 34.5 lbs.), A4 (8-1/2" x

11") is the maximum size that can be fed through the single bypass.

•Special papers such as transparency film, labels and envelope must be fed one

sheet at a time through the single bypass.

Type of paper

feeding

Type of media Size Weight

Paper tray Standard paper A4 (210mm x 297mm)

A5 (148mm x 210mm)

B5 (182mm x 257mm)

Letter (8-1/2" x 11")

Legal (8-1/2" x 14")

Invoice (5-1/2" x 8-1/2")

56g/m2to

80g/m2

(15 lbs. to

21 lbs.)

Single bypass Standard paper and

thick paper

A4 (210mm x 297mm)

A5 (148mm x 210mm)

A6 (105mm x 148mm)

B5 (182mm x 257mm)

B6 (128mm x 182mm)

Letter (8-1/2" x 11")**

Legal (8-1/2" x 14")

Invoice (5-1/2" x 8-1/2")

52g/m2to

128g/m2

(14 lbs. to

34.5 lbs.)**

Special

media

Transparency

film

A4 (210mm x 297mm)

Letter (8-1/2" x 11")

Envelope* International DL

(110mm x 220mm)

International C5

(162mm x 229mm)

Commercial 10

(4-1/8" X 9-1/2")

Monarch

(3-7/8" X 7-1/2")

2LOADING PAPER

AR-122EN_123E.book 7 ページ２００２年８月７日　水曜日　午前８時５５分

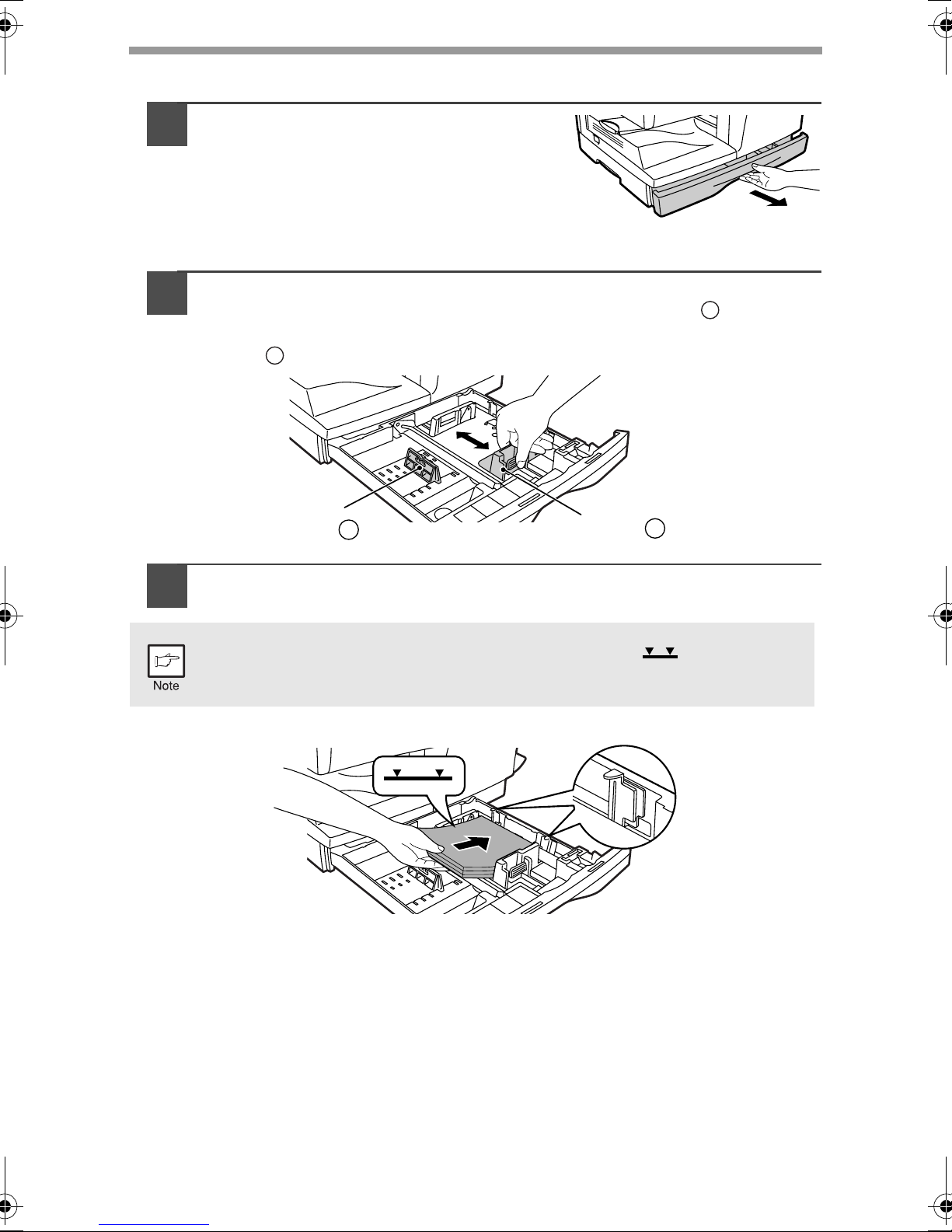

LOADING THE PAPER TRAY

1Raise the handle of the paper tray

and pull the paper tray out until it

stops.

2Adjust the paper guides on the paper tray to the copy paper

width and length. Squeeze the lever of paper guide and slide

the guide to match with the width of the paper. Move paper

guide to the appropriate slot as marked on the tray.

3Fan the paper and insert it into the tray. Make sure the edges go

under the corner hooks.

Do not load paper above the maximum height line ( ). Exceeding

the line will cause a paper misfeed.

Paper

guide B

Paper

guide A

AR-122EN_123E.book 8 ページ２００２年８月７日　水曜日　午前８時５５分

Autres manuels pour AR-122E N

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sharp Imprimante tout-en-un

Sharp

Sharp AR-C360P Manuel utilisateur

Sharp

Sharp AL-1642CS Manuel utilisateur

Sharp

Sharp AR-M277 IMAGERs Manuel utilisateur

Sharp

Sharp AR-M355N Manuel utilisateur

Sharp

Sharp MX-M283 Manuel utilisateur

Sharp

Sharp AR-208S Guide de configuration

Sharp

Sharp AR-FX9 - Fax Interface Card Manuel utilisateur

Sharp

Sharp AL-841 Manuel utilisateur

Sharp

Sharp MFP Series Manuel utilisateur

Sharp

Sharp MX-C301 Manuel utilisateur

Sharp

Sharp MX-7001N Series Manuel d'installation et d'exploitation

Sharp

Sharp AR-M257 - Digital Imager B/W Laser Manuel utilisateur

Sharp

Sharp MX-2651 Manuel d'instructions

Sharp

Sharp TINSE2026QSZZ Manuel utilisateur

Sharp

Sharp AR-5516S Mode d’emploi

Sharp

Sharp AR-C170M Manuel utilisateur

Sharp

Sharp MX-3051 Manuel d'instructions

Sharp

Sharp AR-5618 Manuel utilisateur

Sharp

Sharp MX-6500N Mode d’emploi

Sharp

Sharp AR-5316 X Manuel utilisateur

Sharp

Sharp AR-M270 Series Guide de configuration

Sharp

Sharp MX-M314N Manuel utilisateur

Sharp

Sharp AR-M257 - Digital Imager B/W Laser Manuel utilisateur

Sharp

Sharp MX-3111U Manuel utilisateur

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Brother

Brother MFC-9760 Manuel utilisateur

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Aficio

Aficio 200 Manuel utilisateur

Canon

Canon ImageCLASS 2300 Manuel

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur
