DIGITAL MULTIFUNCTIONAL

SYSTEM

OPERATION MANUAL

AR-M150

AR-M155

MODEL

Do not make copies of anything which is prohibited from copying by law. The

following items are normally prohibited from copying by national law. Other items

may be prohibited by local law.

Money Stamps Bonds Stocks Bank drafts

Checks Passports Driver's licenses

In some areas, the "POWER" switch positions are marked "I" and

" " on the copier instead of "ON" and "OFF".

If your copier is so marked, please read "I" for "ON" and " " for

"OFF".

Caution!

For a complete electrical disconnection, pull out the main plug.

The socket-outlet shall be installed near the equipment and

shall be easily accessible.

The CE mark logo label is affixed on an equipment in case that the directives

described in the above sentence are applicable to the product. (This sentence is

not applicable in any country where the above directives are not required.)

If the AR-M150/AR-M155 is used without the facsimile expansion kit AR-FX9,

then the following directives are applicable :

If the AR-M150/AR-M155 is used with the facsimile expansion kit AR-FX9, please

refer to the Declaration Of Conformity in the AR-FX9 operation manual.

CAUTIONS................................................................................................................ 3

ENVIRONMENTAL INFORMATION ......................................................................... 5

INTRODUCTION....................................................................................................... 6

MAIN FEATURES ..................................................................................................... 7

1PREPARATIONS

PART NAMES ................................................................................................... 9

POWER ON AND OFF.................................................................................... 12

2LOADING PAPER

PAPER ............................................................................................................ 14

LOADING THE PAPER TRAY ........................................................................ 15

BYPASS FEED (including special paper)........................................................ 17

CHANGING A TRAY'S PAPER SIZE SETTING ............................................. 19

3MAKING COPIES

NORMAL COPYING........................................................................................ 20

SELECTING THE TRAY ................................................................................. 23

MAKING A COPY DARKER OR LIGHTER..................................................... 24

REDUCTION/ENLARGEMENT/ZOOM ........................................................... 25

4CONVENIENT COPY FUNCTIONS

AUTOMATIC TWO-SIDED COPYING ............................................................ 26

SORT COPY ................................................................................................... 29

COPYING MULTIPLE ORIGINALS ONTO A SINGLE SHEET OF PAPER

(2 IN 1 copy) .................................................................................................... 31

CREATING MARGINS WHEN COPYING (Margin shift)................................. 34

5SET UP THE SOFTWARE

SOFTWARE .................................................................................................... 36

BEFORE INSTALLATION ............................................................................... 37

INSTALLING THE SOFTWARE ...................................................................... 38

SETTING UP BUTTON MANAGER ................................................................ 51

CONNECTING THE MACHINE TO YOUR COMPUTER................................ 55

CONTENTS

6PRINTER/SCANNER FUNCTIONS

USING THE PRINTER MODE ........................................................................ 58

BASIC PROCEDURE FOR PRINTING ........................................................... 58

USING THE SCANNER MODE....................................................................... 59

SCANNING USING THE KEYS ON THE MACHINE ...................................... 59

SCANNING FROM YOUR COMPUTER ......................................................... 60

OPERATION IN COPY, PRINTER, AND SCANNER MODES ....................... 60

HOW TO USE THE ONLINE MANUAL........................................................... 61

7USER SETTINGS

USER PROGRAMS......................................................................................... 62

SELECTING A SETTING FOR A USER PROGRAM...................................... 67

8TROUBLESHOOTING AND MAINTENANCE

DISPLAY MESSAGES .................................................................................... 69

TROUBLESHOOTING THE MACHINE........................................................... 71

PROBLEMS DURING SETUP OF THE SOFTWARE..................................... 75

MISFEED REMOVAL ...................................................................................... 79

TONER CARTRIDGE REPLACEMENT.......................................................... 83

SCAN HEAD LOCKING SWITCH ................................................................... 86

CHECKING THE TOTAL COUNT ................................................................... 87

MAINTENANCE REQUIRED .......................................................................... 87

CLEANING THE MACHINE ............................................................................ 88

9OPTIONAL EQUIPMENT

SYSTEM CONFIGURATION........................................................................... 90

FACSIMILE EXPANSION KIT (AR-FX9)......................................................... 90

NETWORK EXPANSION KIT (AR-NB2 N) ..................................................... 90

SINGLE PASS FEEDER (AR-SP8)/ REVERSING SINGLE PASS FEEDER

(AR-RP8) ......................................................................................................... 90

250-SHEET PAPER FEED UNIT (AR-D16) .................................................... 91

10 APPENDIX

SPECIFICATIONS........................................................................................... 93

SOFTWARE LICENSE.................................................................................... 98

INDEX............................................................................................................ 100

INDEX BY PURPOSE ................................................................................... 103

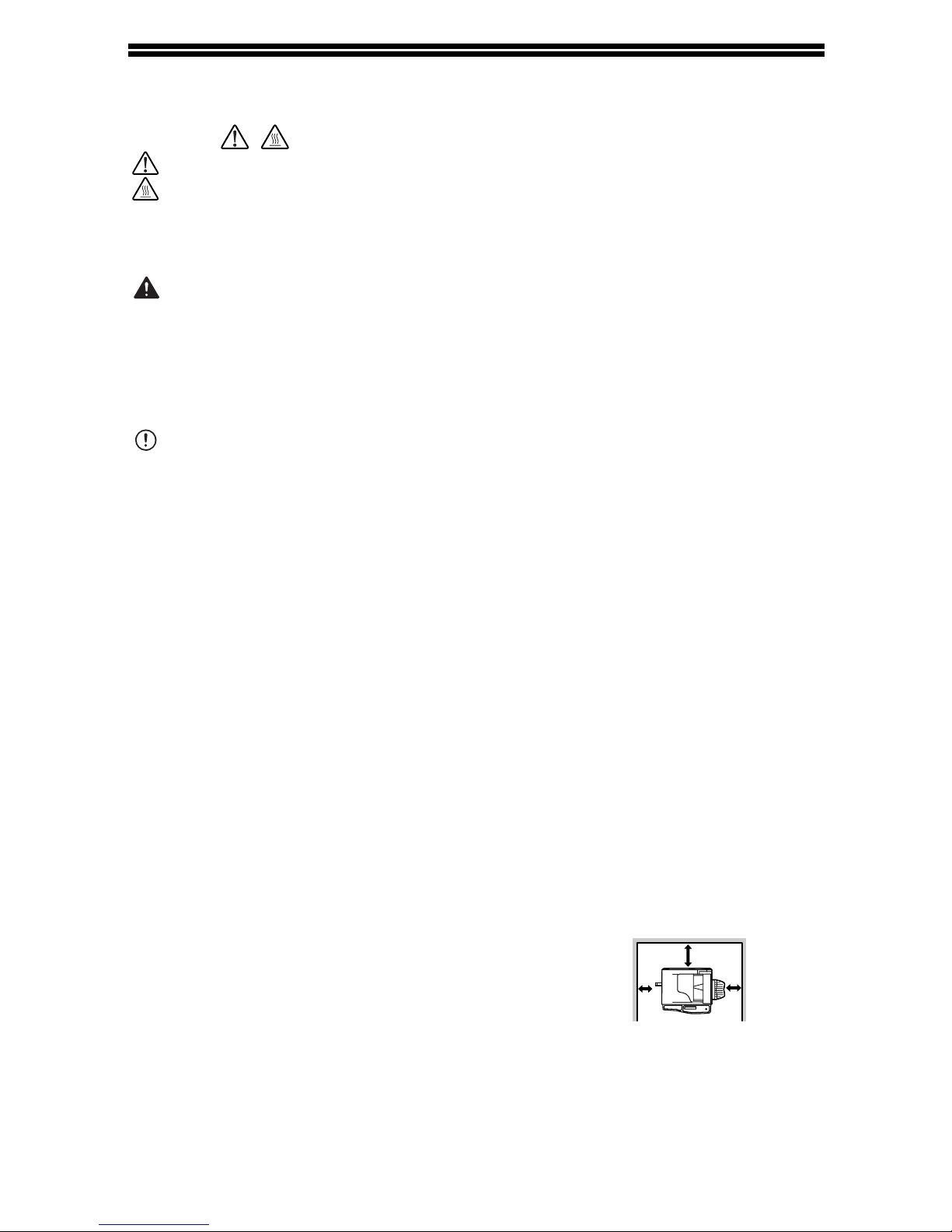

CAUTIONS

Caution label on the machine

The label ( ) in the fusing area of the machine indicates the following:

: Caution, risk of danger

: Caution, hot surface

Cautions on using the machine

Follow the cautions below when using this machine.

Warning:

• The fusing area is hot. Exercise care in this area when removing misfed paper.

• Do not look directly at the light source. Doing so may damage your eyes.

• Do not switch the machine rapidly on and off. After turning the machine off, wait 10

to 15 seconds before turning it back on.

• Machine power must be turned off before installing any supplies.

Caution:

• Place the machine on a firm, level surface.

• Do not install the machine in a humid or dusty location.

• When the machine is not used for a long time, for example for consecutive

holidays, turn the power switch off and remove the power cord from the outlet.

• When moving the machine, be sure to turn the power switch off and remove the

power cord from the outlet.

• Do not cover the machine with a dust cover, cloth or plastic film while the power is

on. Doing so may prevent heat radiation, damaging the machine.

• Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

• The socket-outlet shall be installed near the machine and shall be easily

accessible.

Important points when selecting an installation site

Do not install your machine in areas that are:

• damp, humid, or very dusty

• exposed to direct sunlight

• poorly ventilated

• subject to extreme temperature or humidity changes, e.g., near an air conditioner

or heater.

Be sure to allow the required space around the

machine for servicing and proper ventilation. 20cm (8")

10cm

(4")

10cm

(4")

Cautions on handling the machine

Be careful in handling the machine as follows to maintain the performance of this

machine.

Do not drop the machine, subject it to shock or strike it against any object.

Do not drop the unit, subject it to shock or strike it against any object.

Store spare toner cartridges in a cool dry place without removing from the

package before use.

• If they are exposed to direct sunlight or excessive heat, poor copies may result.

Do not touch the photoconductive drum (green portion).

• Scratches or smudges on the drum will cause dirty copies.

Cautions on laser

Trademark acknowledgements

•Microsoft

®Windows®operating system is a trademark or copyright of Microsoft

Corporation in the U.S.A. and other countries.

• Windows®95, Windows®98, Windows®Me, Windows NT®4.0, Windows®2000,

and Windows®XP are trademarks or copyrights of Microsoft Corporation in the

U.S.A. and other countries.

• IBM and PC/AT are trademarks of International Business Machines Corporation.

• Acrobat®Reader Copyright

1987- 2002 Adobe Systems Incorporated. All rights

reserved. Adobe, the Adobe logo, Acrobat, and the Acrobat logo are trademarks of

Adobe Systems Incorporated.

• All other trademarks and copyrights are the property of their respective owners.

Wave length 770 nm, 795 nm

Pulse times 10.24 µs / 7 mm

Output power 0.17 mW ± 0.01 mW

ENVIRONMENTAL INFORMATION

As an ENERGY STAR®Partner, SHARP has determined that

this product meets the ENERGY STAR®guidelines for energy

efficiency.

A small amount of ozone is produced within the unit during operation. The

emission level is insufficient to cause any health hazard.

Note:

The present recommended long term exposure limit for ozone is 0.1ppm

(0.2mg/m3) calculated as an 8hr. time-weighted average concentration.

However, since the small amount that is emitted may have an objectionable odor, it

is advisable to place the unit in a ventilated area.

USB 2.0 compatible

When connecting the machine by USB 2.0 (Hi-Speed mode),

be sure to read "System requirements for USB 2.0 (Hi-Speed

mode)" (p.57) to verify that your system and the machine

settings are configured appropriately.

INTRODUCTION

Using the manual

This machine has been designed to provide convenient copying features in a

minimum amount of office space and with maximum operational ease. To get full use

of all machine features, be sure to familiarize yourself with this manual and the

machine. For quick reference during machine use, keep this manual in a handy

location.

About the operation manuals

The operation manuals for the machine are as follows:

Operation Manual (this manual)

Explains the machine and how to use it as a copier. Also explains how to install the

software that allows the machine to be used as a printer and scanner for your computer.

Online Manual (on the accessory CD-ROM)

This manual explains the procedures for using the machine as a printer or a scanner.

Operation manual for fax (for the models with the AR-FX9 option)

This manual explains the procedures for using the machine as a fax.

Operation manual for the expansion network kit (for the models with

the AR-NB2 N option)

This manual explains the procedures for using the machine as a printer or a

network scanner.

Conventions used in this manual and online manual

• Illustrations of driver screens and other computer screens show the screens that

appear in Windows XP Home Edition. Some of the names that appear in these

illustrations may differ slightly from the screens that appear in other operating systems.

• The explanations in this manual assume that the person who will install the product

and the users of the product have a working knowledge of Microsoft Windows.

• This operation manual refers to the Single Pass Feeder as the "SPF", and the

Reversing Single Pass Feeder as the "RSPF".

• In this manual, the following icons are used to provide the user with information

pertinent to the use of the machine.

Some model may not be available in certain countries.

Warns that injury may result if the contents of the warning are

not properly followed.

Cautions that damage to the machine or one of its components may

result if the contents of the caution are not properly followed.

Notes provide useful information on the specifications, functions,

performance, and operation of the machine.

The display screens, messages, and key names shown in the manual may differ

from those on the actual machine due to product improvements and modifications.

Note

Warning

Caution

Note

Explanation of illustration

Depending on the model you have and on the options installed, some of the illustrations

in this manual may be different, however, the basic operations are the same.

When references are made to paper size and weights, the inch series values are

quoted in brackets.

For example:

Page 14 ....................56g/m2 to 80g/m2(15 lbs. to 21 lbs.)

A4 (8-1/2" x 14")

MAIN FEATURES

High-speed laser copying

First-copy time*1at 300 dpi*2is only 9.6 seconds.

Copying speed is 15 copies per minute. This is ideal for business use and provides a

big boost to workplace productivity.

*1The copy time in the case when the power is turned on and copying using the

document glass is started immediately after the power save indicator goes off (A4,

paper fed from paper tray).

The first-copy time may vary depending on machine operating conditions and

ambient conditions such as temperature.

*2"dpi" ("dots per inch") is unit that is used to measure resolution. Resolution

indicates how much detail can be reproduced in a printed or scanned image.

High-quality digital image

• High-quality copying at 600 dpi is performed.

• In addition to automatic exposure adjustment, two original modes can be selected:

"TEXT" for text-only originals, and "PHOTO" for photographs. The exposure can

be adjusted to five levels in each mode.

• The photo mode copying function allows clear copying of delicate halftone original

images such as monochrome photos and colour photos.

Model AR-M155

Appearance

(With optional RSPF installed)

Document cover/

SPF/RSPF

• Document cover (Standard)

• SPF (Optional)

• RSPF (Optional)

AB series (metric) and rich series reference

Enhanced copying features

• Zoom copies can be made from 25% to 400% in increments of 1%. (When the

SPF/RSPF is being used, the zoom copy ratio range is 50% to 200%.)

• Continuous copying of up to 99 copies is possible.

• Sets of output can be offset from each other for easy separation (offset function).

• Sorting by sets is possible without the need for a sorter or other special device

(Sort copy).

• Includes convenient features such as margin shift, 2 IN 1 copy, and automatic two-

sided copying.

Scan once/Print many

• The machine is equipped with a memory buffer allowing the machine to scan an

original once and make up to 99 copies of the scanned image. This improves

workflow, reduces operating noise from the machine and reduces wear and tear

on the scanning mechanism, which provides for a higher reliability.

LCD panel displays messages

• The LCD panel displays messages that show function settings and the status of

the machine.

Laser printer function

• The accompanying printer driver can be installed to enable use of the machine as

a printer.

Colour scanner function

• The accompanying scanner driver can be installed and the machine connected to

a computer using a USB cable to enable use as a scanner.

Fax function (option)

• The optional Facsimile Expansion Kit can be installed to enable the machine to be

used as a fax machine. (Facsimile Expansion Kit Operation Manual)

Network connection (option)

• The optional Network Expansion Kit can be installed to enable the machine to be

used as a network printer and network scanner. (Network Expansion Kit Operation

Manual)

Environment and people friendly design

• Preheat mode and auto power shut-off mode are provided to reduce power

consumption when the machine is not in use.

• A universal design has been implemented in the product whereby the height of the

operation panel and shape of the keys are designed to be usable by as many

people as possible.

Margin shift

Sort copy Offset function 2 IN 1 copy

Autres manuels pour AR-M150 Online

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sharp Imprimante tout-en-un

Sharp

Sharp MX-4110N Manuel utilisateur

Sharp

Sharp AR-208S Manuel utilisateur

Sharp

Sharp MX-M503N Manuel utilisateur

Sharp

Sharp MX-3050N Manuel utilisateur

Sharp

Sharp IMAGER AR-5316 Manuel utilisateur

Sharp

Sharp MX-2600N Manuel utilisateur

Sharp

Sharp BP-50C26 Manuel utilisateur

Sharp

Sharp AR-M550U Guide de démarrage rapide

Sharp

Sharp AR-208S Manuel utilisateur

Sharp

Sharp FO-3800M Manuel utilisateur

Sharp

Sharp MX-7081 Manuel d'instructions

Sharp

Sharp MX 3070 Mode d'emploi

Sharp

Sharp AR-C360P Manuel utilisateur

Sharp

Sharp AR-203E X Manuel utilisateur

Sharp

Sharp FO-DC500 Instructions d'installation et d'entretien

Sharp

Sharp AR-C360P Manuel utilisateur

Sharp

Sharp MX-5000N Manuel utilisateur

Sharp

Sharp MX-C312 Mode d’emploi

Sharp

Sharp AL-2061 Mode d’emploi

Sharp

Sharp MX-M950 Guide de démarrage rapide

Sharp

Sharp MX-M356N Manuel utilisateur

Sharp

Sharp MX-5001N Manuel d'installation et d'exploitation

Sharp

Sharp AR-M237 IMAGERs Manuel utilisateur

Sharp

Sharp AJ-5030 Manuel utilisateur

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Brother

Brother MFC-9760 Manuel utilisateur

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Aficio

Aficio 200 Manuel utilisateur

Canon

Canon ImageCLASS 2300 Manuel

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur
