ENGLISH

FU-S51E

FU-S51A

AIR PURIFIER

OPERATION MANUAL

Free Standing

*Plasmacluster is a trademark of

Sharp Corporation.

*Plasmacluster是聲寶公司的商標

Please read before operating your new Air Purifier

The air purifier draws in room air from its air intake, lets the air pass through a

Active Carbon Filter (deodorization filter) and a HEPA Filter (dust collection

filter) inside of the unit, then discharges the air from its air outlet. The air

purifier unit repeats this process by moving its internal fan.

As air passes through, a new HEPA Filter can remove 99.97% of dust parti-

cles, of as small as 0.3 microns. The Active Carbon Filter gradually absorbs

odour elements as they repeatedly pass through the filter. (Odour elements

are absorbed by HEPA Filter as well.)

Some odour ingredients absorbed by the filters may become separated and

may be discharged through the air outlet and result in additional odour. De-

pending on the usage environment, especially when the product is used in a

condition significantly more severe than household use, this odour may be-

come strong in a shorter period than expected.

If the odour persists, then the filters are fully expended and it is necessary to

purchase the optional replacement filter.

NOTE

•The air purifier is designed to remove air-suspended dust and odour, but not harmful gases (for

example, carbon monoxide contained in cigarette smoke). If the odour sources still exist, it cannot

completely remove the odour. (for example, odours from construction materials and pet odours).

• It is suggested to open the window a bit when you are smoking in order to facilitate ventilation.

ENGLISH

FEATURES

ION SHOWER

E-1

ENGLISH

Thank you for purchasing the SHARP Air Puri-

fier. Please read this manual carefully for the cor-

rect usage information. Before using this prod-

uct, be sure to read the section: “Important Safety

Instructions.”

After reading this manual, retain it in a conven-

ient location for future reference.

IMPORTANT SAFETY INSTRUCTIONS ....

E-2

•WARNING ....................................................E-2

•CAUTIONS CONCERNING OPERATION ...E-3

•INSTALLATION GUIDELINES ..................... E-3

•FILTER GUIDELINES ..................................E-3

PART NAMES .......................................... E-4

•MAIN UNIT DISPLAY ...................................E-4

•ILLUSTRATIVE DIAGRAM .......................... E-4

• BACK ...........................................................E-5

• INCLUDED ...................................................E-5

PREPARATION........................................ E-6

•FILTER INSTALLATION ...............................E-6

OPERATION ............................................ E-8

•MAIN UNIT OPERATION ............................. E-8

CARE AND MAINTENANCE ................. E-10

•MAIN UNIT ................................................ E-10

• FILTER ...................................................... E-10

• SENSORS ................................................ E-10

•

WASHABLE ACTIVE CARBON FILTER CARE ....

E-11

•FILTER REPLACEMENT

GUIDELINES ............................................ E-12

SPECIFICATIONS ................................. E-12

TROUBLESHOOTING........................... E-13

CONTENTS

New ION SHOWER Operation Mode

releases the concentrated Plasmacluster

Ions, and effectively removes the pollen

and mold, and also controls the activity of

airborne virus, mold, and allergen.

Plasmacluster Ion Control

Your new air purifier will control the ratio

of negative ions and positive ions de-

pending on the condition of the room.

•Clean Mode

Approximately the same numbers of

positive and negative ions are dis-

charged.

•AUTO Plasmacluster Ion

Mode

The unit will switch between Clean Mode

and Ion Control Mode* automatically

depending on the amount of impurities

in the air detected by the odour and dust

sensors.

*Ion Control Mode

Negative ions will be released in an

increased rate and controls the ion

balance.

•Filters

1) Washable Active Carbon Filter

Absorbs odour elements.

Washable to maintain optimum

deodorization performance.

2) HEPA (High Efficiency

Particulate Air) Filter with

Microbial Control

High-efficiency particle collection in-

cluding pollen and dust.

E-2

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the

following:

WARNING - To reduce the risk of electrical shock, fire or injury to persons:

•Read all instructions before using the air purifier.

•Use only a 220 volt outlet with a polarized receptacle.

•Do not use the air purifier if the power cord or plug is damaged or the connection to the wall

outlet is loosened.

•Periodically remove dust from the power plug.

•Do not insert fingers or foreign objects into the intake or air outlet.

•When removing the power plug, always hold the plug and never pull the cord.

Electrical shock and/or fire from short circuit may occur as a result.

• Do not remove the plug when your hands are wet.

•Do not use this air purifier near gas appliances or fireplaces.

•Remove the power plug from the wall outlet before cleaning the unit and when not using the

unit.

Electrical shock from bad insulation and/or fire from short circuit may occur as a result.

•If the power cord is damaged, it must be replaced by the manufacturer, its service agent,

Sharp authorized Service Centre or similarly qualified person in order to avoid a hazard.

•Do not operate when using aerosol insecticides or in rooms where there is oily residue, incense,

sparks from lit cigarettes, chemical fumes in the air or in very high humidity condition, such as a

bathroom.

•Be cautious when cleaning the air purifier. Strong corrosive cleansers may damage the exterior.

•Only Sharp Authorized Service Centre should service this air purifier. Contact the nearest Service

Centre for any problems, adjustments, or repairs.

NOTE - Radio or TV Interference

If this air purifier should cause interference to radio or television reception, try to correct the interference

by one or more of the following measures:

•Reorient or relocate the receiving antenna.

• Increase the separation distance between the air purifier and radio/TV receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected.

•Consult the dealer or an experienced radio/TV technician for help.

ENGLISH

E-3

CAUTIONS CONCERNING OPERATION

• Do not block the intake and air outlet.

•Do not use the unit near or on hot objects, such as stoves or heaters or where it may come into

contact with steam.

•Do not lay the unit down when using.

• Always hold the handle on the back of the unit when moving it.

Holding the front panel when carrying may cause it to detach, thus dropping the unit and resulting in

bodily injury.

•Do not operate the unit without the filter.

•Do not wash and reuse HEPA filter .

It not only does not improve filter performance, it may cause electric shock or malfunction.

•Clean the exterior with a soft cloth only.

The unit surface may be damaged or cracked.

In addition, the sensors may malfunction as a result.

IMPORTANT SAFETY INSTRUCTIONS

INSTALLATION GUIDELINES

•During the operation of the product, please place the unit at least 2m away from equipments

which involve electric wave such as televisions, radios or wave clocks, in case electrical

interference occurs to such equipment.

•Avoid a location where the sensor is exposed to direct wind.

The unit may not operate properly.

•Avoid locations where curtains, etc., come into contact with the intake or air outlet.

Curtains, etc., may become dirty or a malfunction may occur.

•Avoid locations where the unit is exposed to condensation, due to drastic temperature changes.

(Use under appropriate conditions between 0 and 35˚C in the room.)

•Place on a stable surface with sufficient air circulation.

When placing the unit on a heavily carpeted area, it may cause the unit to vibrate slightly.

• Do not install when there is generation of lampblack, such as in a kitchen, etc.

The unit surface may crack or the sensor may malfunction as a result.

•Leave about 60cm of space from the wall.

The wall behind the air outlet may become dirty as time passes. When using the unit for extended

period of time in the same location, use a vinyl sheet, etc., to prevent the wall from becoming dirty. In

addition, periodically clean the wall.

FILTER GUIDELINES

•Follow the instructions in this manual for correct care and maintenance of the filters.

E-4

PART NAMES

MAIN UNIT DISPLAY

ILLUSTRATIVE DIAGRAM

Odour SensorDate Label

Main Unit

HEPA Filter

(blue / white)

Filter Support

Front Panel

Washable Active

Carbon Filter

AUTO Operation Indicator Light

Pollen Mode Indicator Light

Fan Speed Indicator Lights

Plasmacluster Ion Mode

Indicator Lights

Plasmacluster Ion Mode

Selection Button

Mode Selection Button

ION SHOWER Indicator Light

ION SHOWER Mode Button

POWE

ENGLISH

E-5

INCLUDED

•Operation manual

BACK

Blue light

When the Plasmacluster ion operation is in Clean Mode, or in AUTO Plasmaclus-

ter Ion Mode and the air in the room is impure, the light will be activated and the

unit will operate in Clean Mode.

Green light

When the Plasmacluster ion operation is in the Ion Control Mode during AUTO

Plasmacluster Ion Mode and the air in the room is clean, this light will be activated

and the unit will operate in Ion Control Mode.

Cycles of blue and green

When the Plasmacluster ion operation is in the ION SHOWER Mode ,

Plasmacluster Indicator Light will repeat its colour cycles between blue and green.

The colour changes according to

the air condition.

ABOUT THE CLEAN-SIGN

•The condition of the CLEAN-SIGN depends on the room air condition detected

by the Dust and Odour Sensors when the plug is inserted into the wall outlet.

•It is possible to have a green CLEAN-SIGN with impurities in the air at the time

that the air purifier was just introduced to the room environment. After a while,

however, the base impurity rate will be adjusted to detect room air condition

correctly.

DETERMINING THE BASE IMPURITY RATE

For the first 30 seconds after the power plug is inserted into the wall outlet, the

unit will check the conditions of the air. If operation is set to ON during this time,

the CLEAN-SIGN LIGHT will alternately flash in green, yellow and red.

Plasmacluster Indicator Light

(Please refer page E-9)

CLEAN - SIGN Light

POWER ON/OFF Button

ENGLISH

Green

Clean Slightly Impure Very Impure

Yellow Red

Air Outlet

Air Inlet

Rating Label

Power Cord

Power Plug

Handle

Dust Sensor

PREPARATION

To maintain the quality of the filters, they are installed in the main unit and packed in

plastic bags. Be sure to remove the filters from the plastic bags before using the unit.

Remove the filters

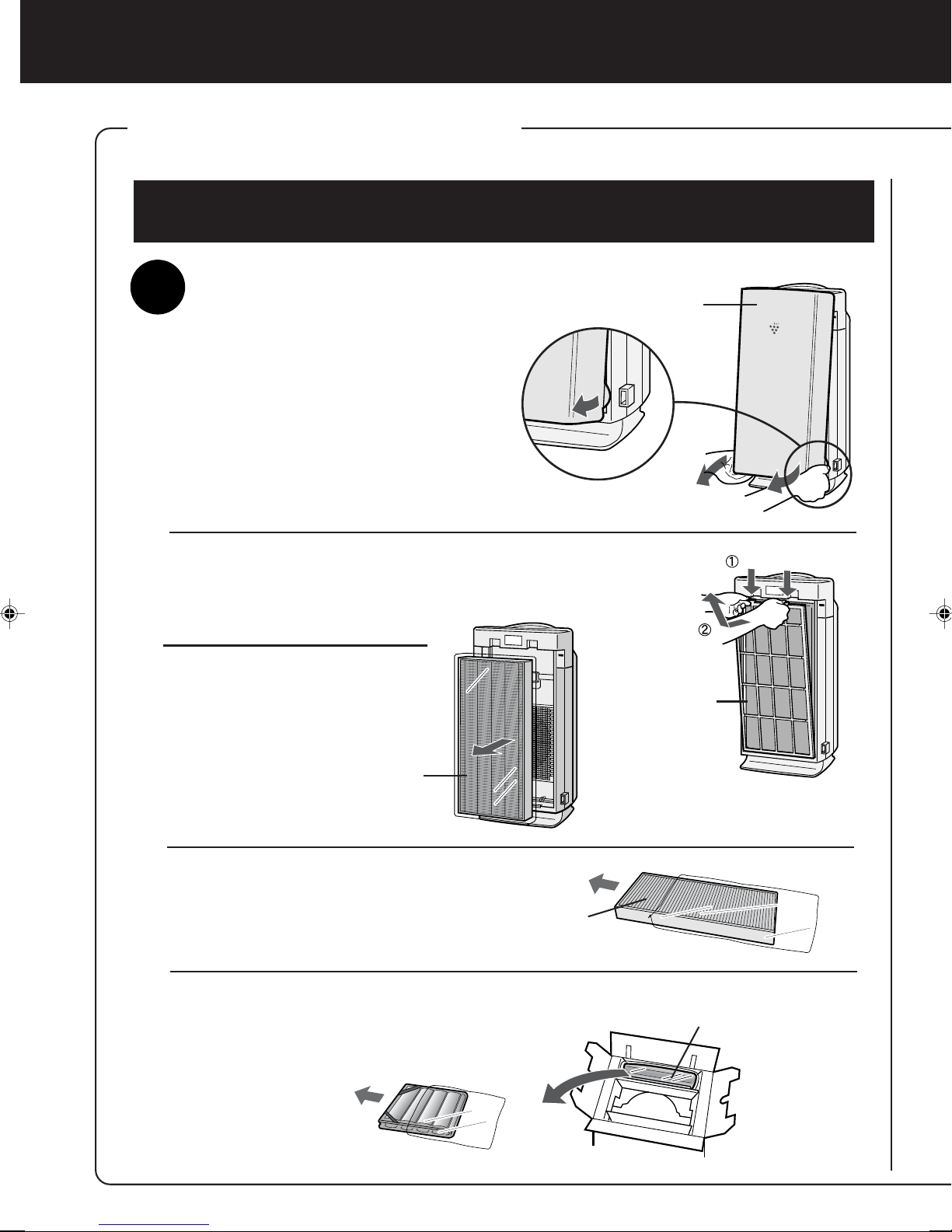

Remove the Front Panel.

E-6

Be sure to remove the power plug from the wall outlet.

FILTER INSTALLATION

Remove the Filter Support.

Pull the Front Panel on the

lower sides, and lift up.

Front Panel

(At open)

Push in the hooks on top, then pull the Filter Support.

Remove the HEPA Filter.

Remove the HEPA Filter from the

plastic bag.

Remove the Active Carbon Filter from

the carton box, and also remove from

the plastic bag.

Filter Support

HEPA Filter

Active Carbon Filter

ENGLISH

Ta b

(blue)

E-7

)

Install the filters

Place the HEPA Filter into the

main unit.

Do not install the filter backwards or the

unit will not operate properly.

Place the Filter Support

through the bands (2 places)

located at the corners of the

Active Carbon Filter.

Replace the Filter Support and Active

Carbon Filter back to the main unit.

Fill in the usage start date on the

Date Label.

Use the date as a guide for the Filter

Replacement schedule.

Replace the Front Panel.

Date Label

HEPA Filter

Filter Support

Band(blue)

Active Carbon Filter

Filter Support

Front Panel

Place the Front Panel from the obliquely upward,

then mount the hooks at the bottom.

Please make sure that the HEPA

Filter(blue) and the tab is placed in

proper direction.

OPERATION

MAIN UNIT OPERATION

E-8

Power ON/OFF Button

• Used to start operation (short beep) and stop operation (long beep)

•Plasmacluster Indicator Light and Fan Speed Indicator Light turn on/off.

•Unless unplug the power cord, the operation starts in the previous mode the

unit was operated in.

•When stop operation during ION SHOWER Operation, the unit will back to the

prior operation of ION SHOWER Operation.

MODE Selection Button

•The operation mode can be switched.

AUTO operation

The fan speed is automatically switched

(HIGH*, MEDIUM, SILENT) depending

on the amount of impurities in the air. The

sensors detect the impurities for efficient

air purification.

POLLEN mode operation

The unit will operate at HIGH* fan speed

for 10 minutes, then will alternate be-

tween MEDIUM and HIGH* for 20 min-

utes.

10 minutes: HIGH fan speed

20 minutes:

MEDIUM fan speed

20 minutes: HIGH fan speed

SILENT operation

The unit will operate quietly

using minimal air intake.

MEDIUM operation

The unit will operate at a fan

speed of MEDIUM.

MAX operation

The unit will operate at a fan

speed of MAX.

*HIGH fan speed is an intermediate speed

between MEDIUM and MAX.

Plasmacluster Ion Mode

Selection Button

Mode Selection Button

Table des matières

Autres manuels Sharp Purificateur d'air

Sharp

Sharp Plasmacluster FU-55SE Manuel utilisateur

Sharp

Sharp UA-PF40E Manuel utilisateur

Sharp

Sharp KC-860EKW Manuel utilisateur

Sharp

Sharp FP-F30U Manuel utilisateur

Sharp

Sharp UA-HG30E Manuel utilisateur

Sharp

Sharp Plasmacluster FP-P40CX Manuel utilisateur

Sharp

Sharp FP-J30E Manuel utilisateur

Sharp

Sharp FP-J40A Manuel utilisateur

Sharp

Sharp Plasmacluster KC-860U Manuel utilisateur

Sharp

Sharp Plasmacluster KC-C100U Manuel utilisateur

Sharp

Sharp FU-W40A Manuel utilisateur

Sharp

Sharp IG-BC2A Manuel utilisateur

Sharp

Sharp Plasmacluster IG-CL15U Guide de configuration

Sharp

Sharp FP-JA30M Manuel utilisateur

Sharp

Sharp Plasmacluster FU-W25AW Manuel utilisateur

Sharp

Sharp KI-A60E Manuel utilisateur

Sharp

Sharp FU-NC01 Manuel utilisateur

Sharp

Sharp KC-D51R Manuel utilisateur

Sharp

Sharp Plasmacluster IG-A10EU Manuel utilisateur

Sharp

Sharp Plasmacluster KC-840E Manuel utilisateur

Sharp

Sharp IG-CH2E Manuel utilisateur

Sharp

Sharp FU-A28TA Manuel utilisateur

Sharp

Sharp FP-K50U Manuel utilisateur

Sharp

Sharp Plasmacluster KC-850E Manuel utilisateur

Manuels Purificateur d'air populaires d'autres marques

IKEA

IKEA UPPÅTVIND Manuel utilisateur

Nash

Nash AP-1 PureSmart Manuel utilisateur

LG PH-U450 Series Manuel utilisateur

DeLonghi

DeLonghi DDSX 220WFA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuel utilisateur

Philips

Philips AC2721 Manuel utilisateur

Hitachi

Hitachi EP-A3000 Manuel utilisateur

TruSens

TruSens Z-2000 Manuel utilisateur

Motorola

Motorola MBP87SN Manuel utilisateur

Beko

Beko ATP 7100I Manuel utilisateur

Carrier

Carrier INFINITY 1620 Manuel utilisateur

AtmosAir

AtmosAir P2002 Manuel utilisateur

Winix

Winix NK300 Manuel utilisateur

Friedrich

Friedrich C-90A Instructions d'utilisation et d'installation

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuel utilisateur

Base aire

Base aire 555 Pro Manuel utilisateur

Champion

Champion CP25 Manuel utilisateur

vollara

vollara Air & Surface Pro+ Manuel utilisateur
