SEWOO WTP-100 Manuel utilisateur

WTP-100

Thermal Receipt printer

Technical manual

TECHNICAL MANUAL

TITLE : WTP-100 Document : 010608C

Revision : 01

06/ 08/ 2001

Page2

SEWOO TECH CO., LTD.

TECHNICAL MANUAL

TITLE : WTP-100 Document : 010608C

Revision : 01

06/ 08/ 2001

Page3

TABLE OF CONTENTS

1. General Specifications

1.1 Printing Specifications

1.2 Character Specifications

1.3 Auto Cutter

1.4 Paper Roll Supply Device

1.5 Paper Specifications

1.6 Printable Area

1.7 Printing and Cutting Positions

1.8 Internal Buffer

1.9 Electrical Characteristics

1.10 EMI and Safety Standards Applied

1.11 Reliability

1.12 Environmental Conditions

2. Configuration

2.1 Interface

2.1.1 RS-232 serial interface

2.1.2 Specifications

2.1.3 Switching between on-line and off-line

2.1.4 Interface connector terminal assignments and signal functions

2.1.5 Serial interface connection example

2.1.6 Centronics parallel interface

2.1.7 Interface Connector

2.1.8 Parallel Interface

2.1.9 Data Receiving Timing(Compatibility Mode)

3. Connectors

TECHNICAL MANUAL

TITLE : WTP-100 Document : 010608C

Revision : 01

06/ 08/ 2001

Page4

3.1 Interface Connectors

3.2 Electrical Characteristics

3.3 Drawer kick-out Connector (Modular Connector)

◈ Control Command Summary

1. General Specifications

1.1 Printing Specifications

1) Printing method: Thermal line printing

2) Dot density: 203dpi × 180dpi. The number of dots per

25.4mm(1")

3) Printing direction: Unidirectional with friction feed

4) Printing width: 72mm(2.83"), 576 dot positions

5) Characters per line(default): Font A: 46

Font B: 61

6) Printed dot dimension: 0.11mm °0.13mm

7) Printing speed: High speed mode:

30.7lines/second maximum

(1/6inch feed) (at 24V, 20℃)

Approximately 130mm/sec maximum

(approximately 5.11inchs/sec maximum)

NOTE: Speeds are switched depending on the applied voltage to the printer and

head temperature conditions automatically.

NOTE: There may be variations in printing after switching the mode of the

printing speed. To prevent this for logo printing with ESC* command, using a

downloaded bit image is recommended. Change in printing speed does not

occur during down loaded bit image printing.

8) Paper feed speed: Approximately 150mm/second

(approximately 5.9 inches/second)

(continuous paper feeding)

9) Line spacing (default): 1/6 inch (4.23mm)

Programmable by control command.

TECHNICAL MANUAL

TITLE : WTP-100 Document : 010608C

Revision : 01

06/ 08/ 2001

Page5

1.2 Character Specifications

1) Number of characters: Alphanumeric characters: 95

Extended graphics 128 × 7 pages

(including one space page)

International characters: 32

① English

② Hangul

③ Chinese (GB2312)

2) Character structure: Font A: 12 ⅹ 24

Font B: 9 ⅹ 24

Hangul,GB: 24 ⅹ 24

Font A is selected as the default

3) Character size:

Standard Double-height Double-width Double-width /

Double-height

W ⅹ

H(mm) CPL W ⅹ

H(mm) CPL

FontA 12ⅹ24 1.25ⅹ

3.39 46 1.25ⅹ

6.77 42 2.5ⅹ

3.39 23 2.5ⅹ

6.77 23

FontB 9ⅹ24 0.875ⅹ

3.39 61 0.875ⅹ

6.77 61 1.75ⅹ

3.39 30 1.75ⅹ

6.77 30

Hangul, GB

24ⅹ24 3ⅹ 3.39 23 3ⅹ6.77 23 6ⅹ3.39 11 6ⅹ6.77 11

Space between characters is not included.

CPL = Characters per line

1.3 Auto Cutter

Partial cut: Cutting with one point center uncut

NOTE: To prevent dot displacement, after cutting, paper must be fed

TECHNICAL MANUAL

TITLE : WTP-100 Document : 010608C

Revision : 01

06/ 08/ 2001

Page6

approximately 1mm(14/360 inches) or more before printing.

1.4 Paper Roll Supply Device

1) Supply method: Drop-in paper roll

2) Near-end sensor:

a) Detection method: Microswitch

b) Paper roll spool diameter: Inside: 12mm(.47″ )

Outside: 18mm(.71″)

c) Near-end adjustment: Adjusting screw

d) Remaining amount: Fixed position #1 (approximately

23mm(0.9″ )) #2 (approximately

27mm(1.06″ ))

NOTE: You can use a command to stop printing upon detection of a

paper near-end.

1.5 Paper Specification

1) Paper type: Specified thermal paper

2) Form: Paper roll

3) Paper width: 79.5 ± 0.5mm(3.13"±0.02")

4) Paper roll size: Roll diameter: Maximum 83mm

Take-up paper roll width: 80 ± 0.5, 1.0mm(3.15"±

0.020", 0.04")

5) Paper roll spool diameter: Inside: 12mm(.47")

Outside: 18mm(.71")

NOTE: Paper must not be pasted to the paper roll spool.

1.6 Printable Area

1) Paper roll

The printable area of a paper with width of 79.5± 0.5mm(3.13"±0.02") is

72.2 ± 0.2mm(2.84"±0.008")(576dots) and the space on the right and left

sides are approximately 3.7 ± 2mm(0.15"±0.079").

a=79.5±0.5mm(3.13"±0.02")

a b=0.125mm±0.05mm(.056"±.002")

c=69mm±0.2mm(2.84±.008")

b d=3.7±0.2mm(0.15"±0.079")

□□ □ ……………□□ e=3.7±0.2mm(0.15"±0.079")

c [All the numeric values are typical.]

d e

< Figure 1.1 Paper Roll Printable Area >

TECHNICAL MANUAL

TITLE : WTP-100 Document : 010608C

Revision : 01

06/ 08/ 2001

Page7

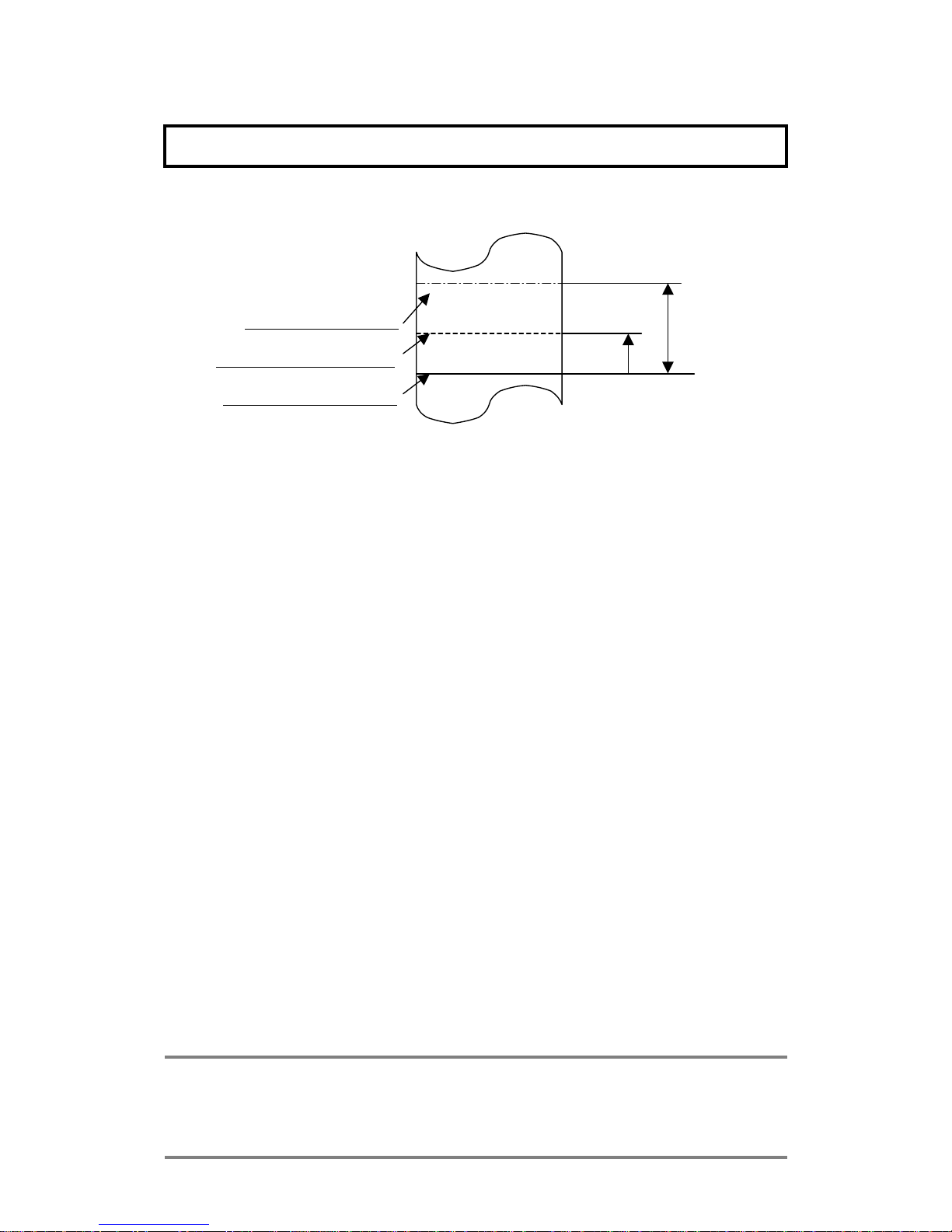

1.7 Printing and Cutting Positions

Manual-cutter position

Auto-cutter blade position

Center of the print dotline

< Figure 1.2 Printing and Cutting Positions >

NOTE: Numeric values used here are typical values; the values may vary slightly

as a result of paper slack or variations in the paper. Take the notice into account

when setting the cutting position of the auto-cutter.

1.8 Internal Buffer

1) Receive buffer: 8kbyte

1.9 Electrical Characteristics

1) Supply voltage: +24 VDC ± 7%

2) Current consumption (at 24V):

Operating: Approx. 1.5A(at ASCII Printing)

Peak: Approx. 10A(at print duty 100%, For 10

seconds or less)

Stand-by: Approx. 0.15A

1.10 EMI and Safety Standards Applied

1) Europe: EMI – EN55022 CLASS A

EMS – EN61000-3-2

EN61000-3-3

EN50082-1

Safety Standard: EN60950

2) North America: EMI - FCC Part#15 Class A

Safety Standards- UL(1950), c-UL(No.950)

1.11 Reliability

1) MCBF: 60 million lines

(based on an average printing rate of 12.5% with paper

TECHNICAL MANUAL

TITLE : WTP-100 Document : 010608C

Revision : 01

06/ 08/ 2001

Page8

thickness in the range 65 ㎛ to 75 ㎛).

25 million lines

(based on an average printing rate of 12.5% with paper

thickness in the range 76 ㎛ to 150 ㎛)

2) Cutter Life: 3.0 million cuttings

(if the paper thickness is between 65 and 100 ㎛)

1.12 Environmental Conditions

1) Temperature: Operating: 5° to 45°C (41° to 113°F)

Storage: -10° to 50°C (14° to 122°F)

(except for paper)

2) Humidity: Operating: 10 to 90%RH

Storage: 10 to 90%RH (except for paper)

[RH]

Relative humidity

40 Operating environment

range

0 0 10 20 30 40 50

Ambient temperature [°C]

< Figure 1.3 Operating Temperature and Humidity Range >

TECHNICAL MANUAL

TITLE : WTP-100 Document : 010608C

Revision : 01

06/ 08/ 2001

Page9

2. Configuration

2.1 Interface

2.1.1 RS-232 serial interface

2.1.2 Specifications

Data transmission: Serial

Synchronization: Asynchronous

Handshaking: DTR/DSR or XON/XOFF control

Signal levels: MARK= -3 to – 15V: Logic “ 1”

SPACE= +3 to +15V: Logic “ 0”

Baud rage: 4800, 9600, 19200, 38400 bps

Data word length: 7 or 8 bits

Parity Settings: None, even, odd

Stop bits: 1 or more

Connector (printer side): Female DSUB-25 pin connector

NOTE: The data word length, baud rate, and parity depend on the

DIPswitch settings.

2.1.3 Switching between on-line and off-line

TECHNICAL MANUAL

TITLE : WTP-100 Document : 010608C

Revision : 01

06/ 08/ 2001

Page10

The printer does not have an on-line/off-line switch.

The printer goes off-line:

• Between when the power is turned on (including reset using the

interface) and when the printer is ready to receive data.

• During the self-test.

•When the cover is open.

• During paper feeding using the paper feed button.

• When the printer stops printing due to a paper-end (in cases when

an empty paper supply is detected by either paper roll end detector

or the paper roll near-end detector with a printing halt feature by

ESC c4).

• During macro executing stand by status.

• When a temporary abnormality occurs in the power supply voltage.

• When an error has occurred.

2.1.4 Interface connector terminal assignments and signal functions

2.1.5 Serial interface connection example

Host side Printer side

TXD ………………………………… RXD

DSR ………………………………… DTR

RXD ………………………………… TXD

DTR ………………………………… DSR

FG ………………………………… FG

SG ………………………………… SG

NOTES: ◦ Set the handshaking so that the transmit data can be

received.

◦ Transmit data to the printer after turning on the power and

initializing the printer.

PIN SIGNAL I/O DESCRIPTION

2 TXD - Printer transmit data line RS-232C level

3 RXD - Printer receive data line RS-232C level

4, 20 DTR Output Printer handshake to host line RS-232C level

6 DSR Input Data Send Ready

1,7 GND - System Ground
