SEWOO LK-P12W Manuel utilisateur

All specifications are subject to change without notice

USER’S MANUAL

MODEL : LK-P12W

SEWOO TECH CO.,LTD.

374-2, Gajang-dong, Osan-si, Gyeonggi-do, 447-210, Korea

TEL : +82-31-459-8200 FAX : +82-31-459-8880

www.miniprinter.com

Rev. 01 07/12

Table of Contents

Unpacking

2. Product overview 3

3. Installation & Usage 4

3-1. Display 4

3-2. Installing the Battery 5

3-3. Removing the Battery 6

3-4. Charging the Battery 7

3-5. Stock Installation 8

3-6. Peel Mode 9

3-7. Diagnostic Test 11

4. Peripherals Connection 13

4-1. Wiﬁ(802.11b/g) Connection 13

4-2. Interface Cable Connection 14

5. Printer Cleaning 15

5-1. PrintHead Cleaning 15

5-2. Platen Roller Cleaning 16

6. Pritner Speciﬁcation 17

6-1. Speciﬁcation 17

7. CPCL Command Compatibilit

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION

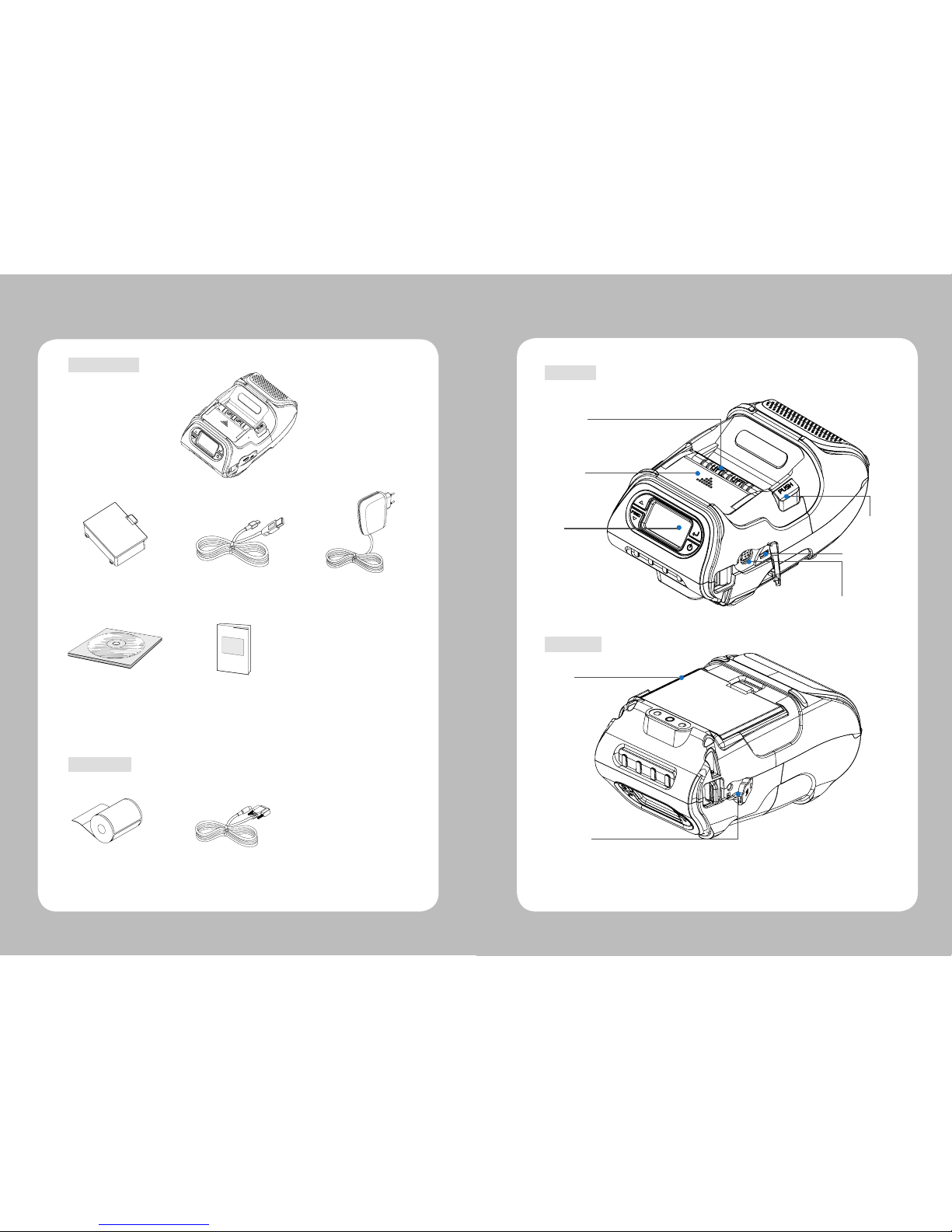

1. Unpacking

Printer

Battery Recharger

Optional

Standard

2. Product overview

CHARGER

CONNECTOR

COVER OPEN

BUTTON

Front

Bottom

USB Cable

Quick Reference

PEELER BODY

PEELER WING

BATTERY

DOOR

SERIAL

USB

DISPLAY

Paper Serial cable

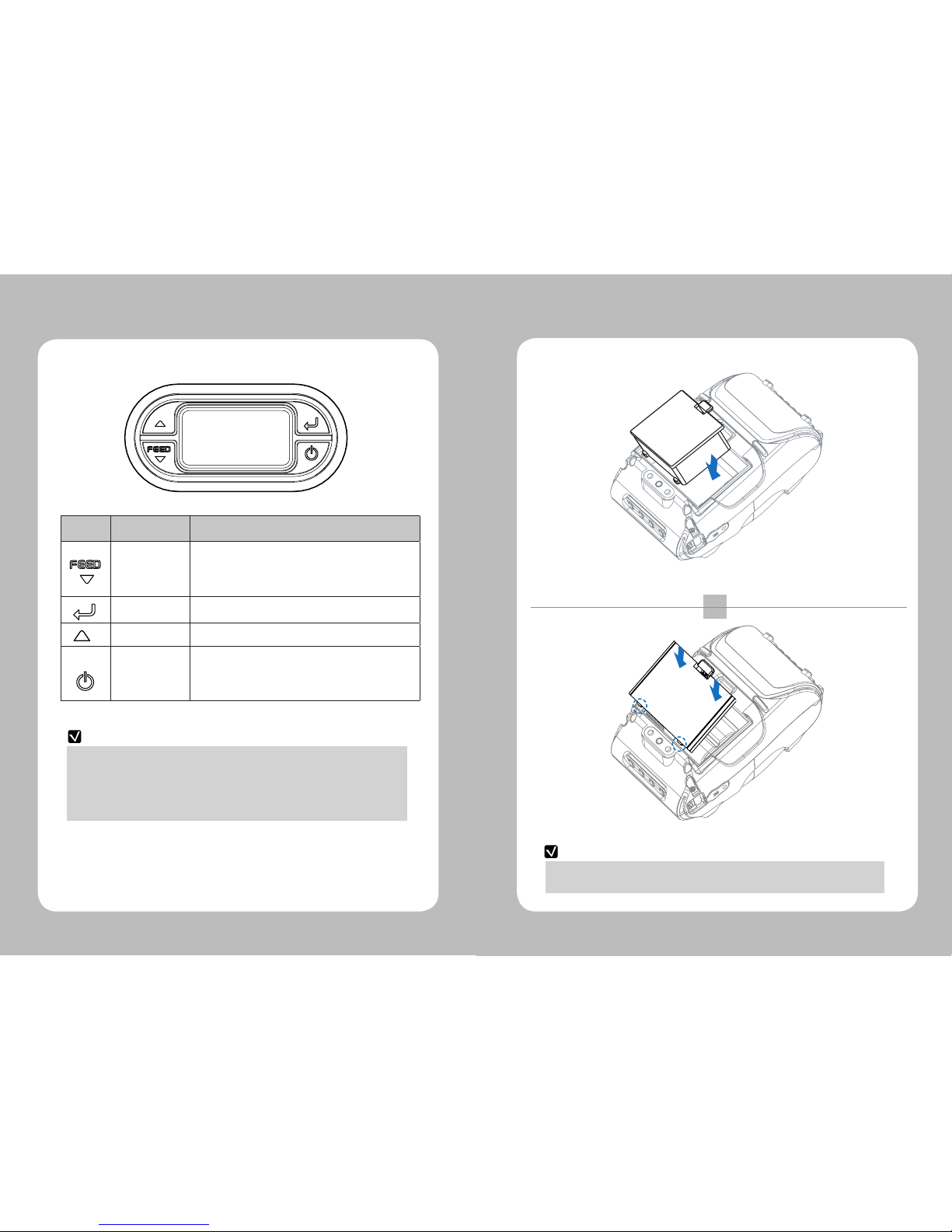

Button Name function

Paper Feed/

Down button

Advances the supply. Clears error message.

Moves down through menu options.

Enter button Selects the highlighted menu option.

Up button Moves up through menu options.

Power button

Turns the printer on and off. Press to turn

power on. Press for three seconds to turn power off.

Wakes the printer from sleep mode.

3-2. Installing the Battery

NOTE

3-1. Display

3. Setting Up the Product

Remove the battery door. Insert the battery as shown.

Replace the battery door.

You must fully charge the battery when you receive the printer.

Batteries can be charged in the printer or in an optional external cradle

1. The battery status LEDs indicate amount of power remaining. Actual run-time

remaining depends on factors such as the contents of output,

distance to computer, etc.

2. When the battery level is very low, high density printing can result in the printer

switching off during printing resulting in possible loss of data.

3-4. Charging the Battery

1. Turn off the printer.

2. Be sure that the AC plug is correct.

If AC plug is wrong, change the plug to the correct one.

3. Open the DC jack by pulling on the rubber cover and insert DC jack into

the printer.

4. Plug the AC plug into an electrical outlet.

5. The charge indicator LED (located on the AC charger as shown) shows red

or green according to the status.

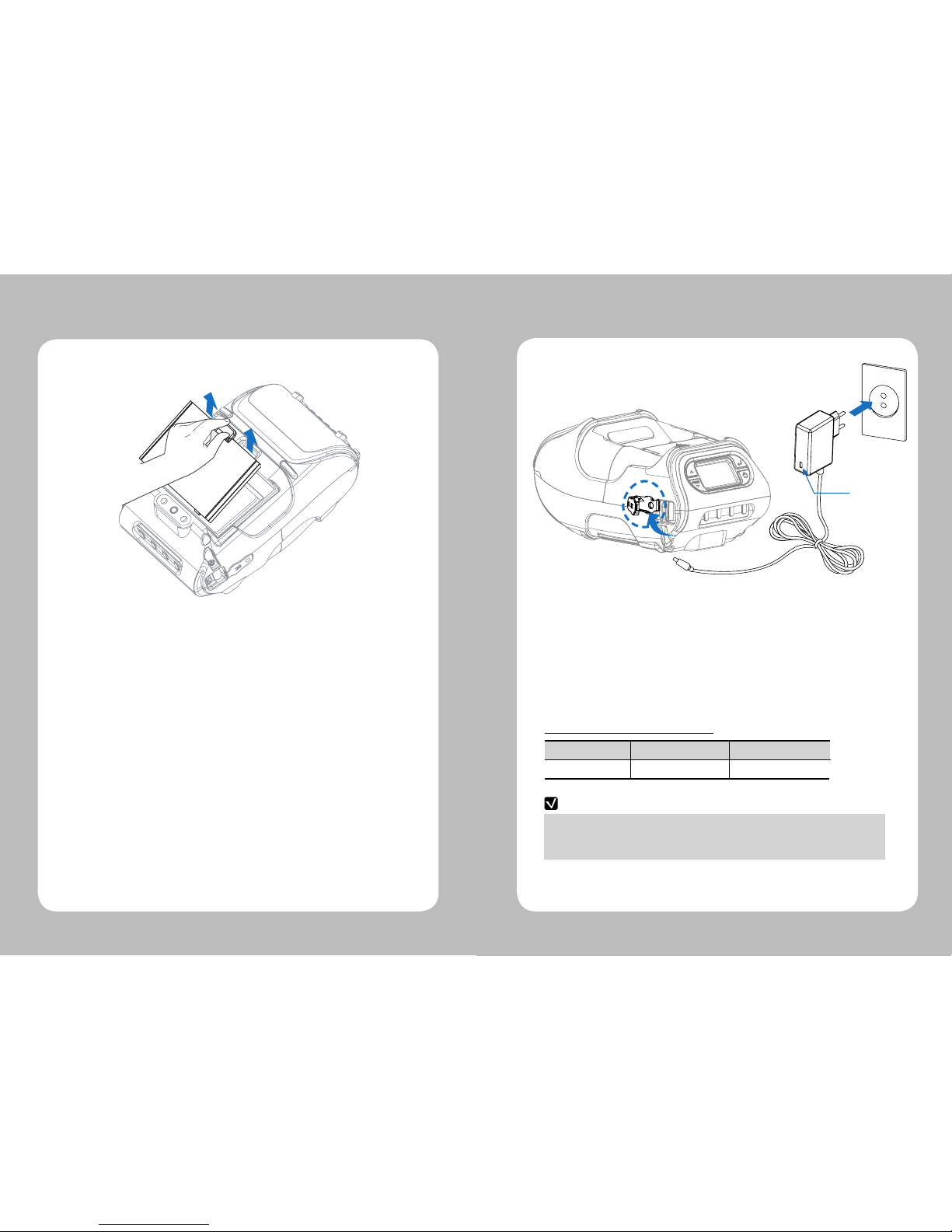

3-3. Removing the Battery

3-4-1 The status of lamp in charging

Status charging charging complete

Charging Lamp Red

Green

Remove the battery door. Lift out the battery.

②

①

LED

If there is trouble while charging the battery, the charge indicator LED blinks green.

Try unplugging and reconnecting charger, charging should resume.

Charging is complete when the LED changes to solid green.

NOTE

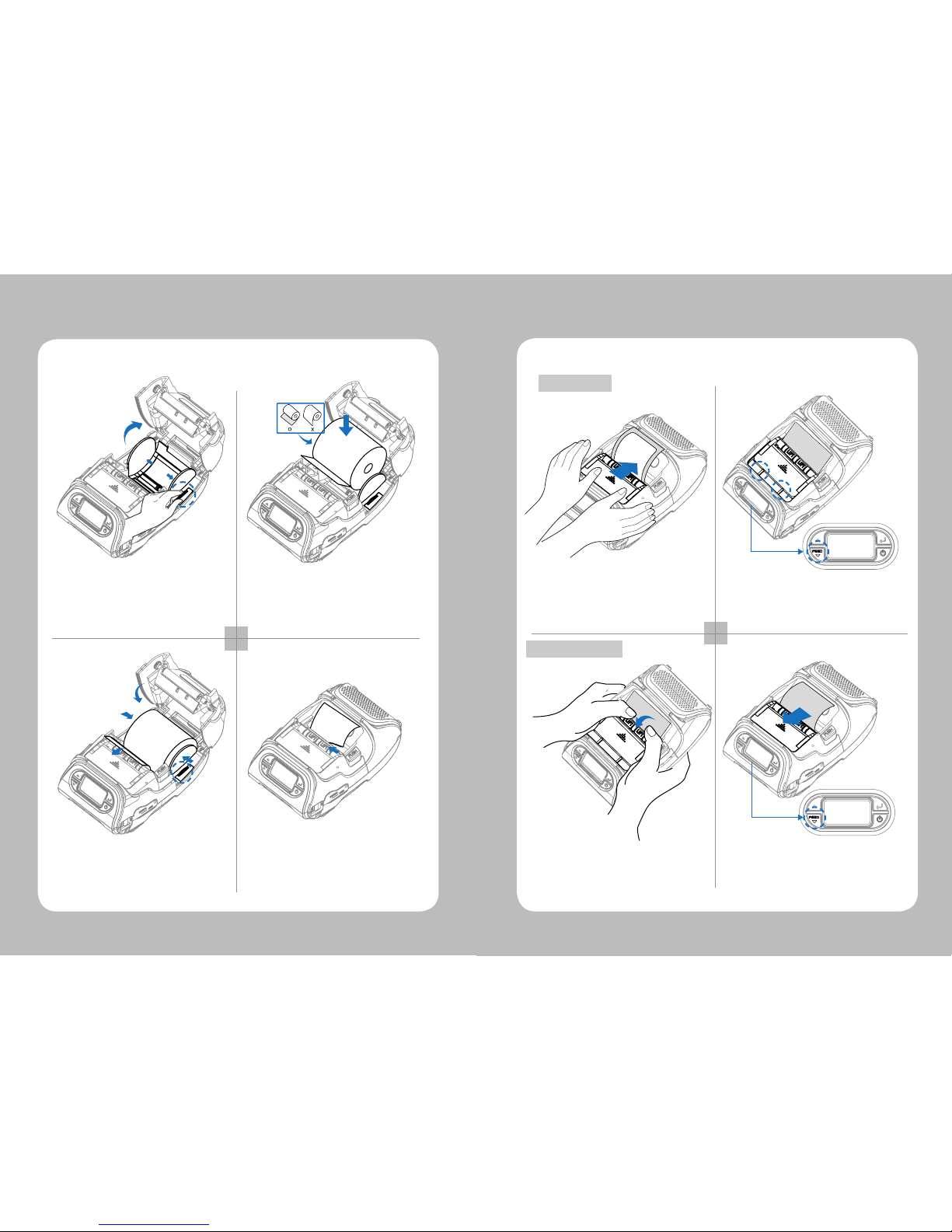

3-5. Stock Installation

1 2

Put the stock in so it unrolls from the

bottom. Remove the stock core when

it is empty. Pull a short length of stock

out of the printer.

Press the Feed Key once to arrange

the paper.

Open the Paper cover by pressing the

Open button and set the width of paper

guide by turning the knob with ﬁnger.

Close the cover.

3-6. Peel Mode

1 2

With a roll of stock installed, slide the

peeler body towards the back of the

printer.

Lift the peeler wing and slide the peeler

body towards the front of the printer.

Press the feed button.

Peel Mode

Non-Peel Mode

10 11

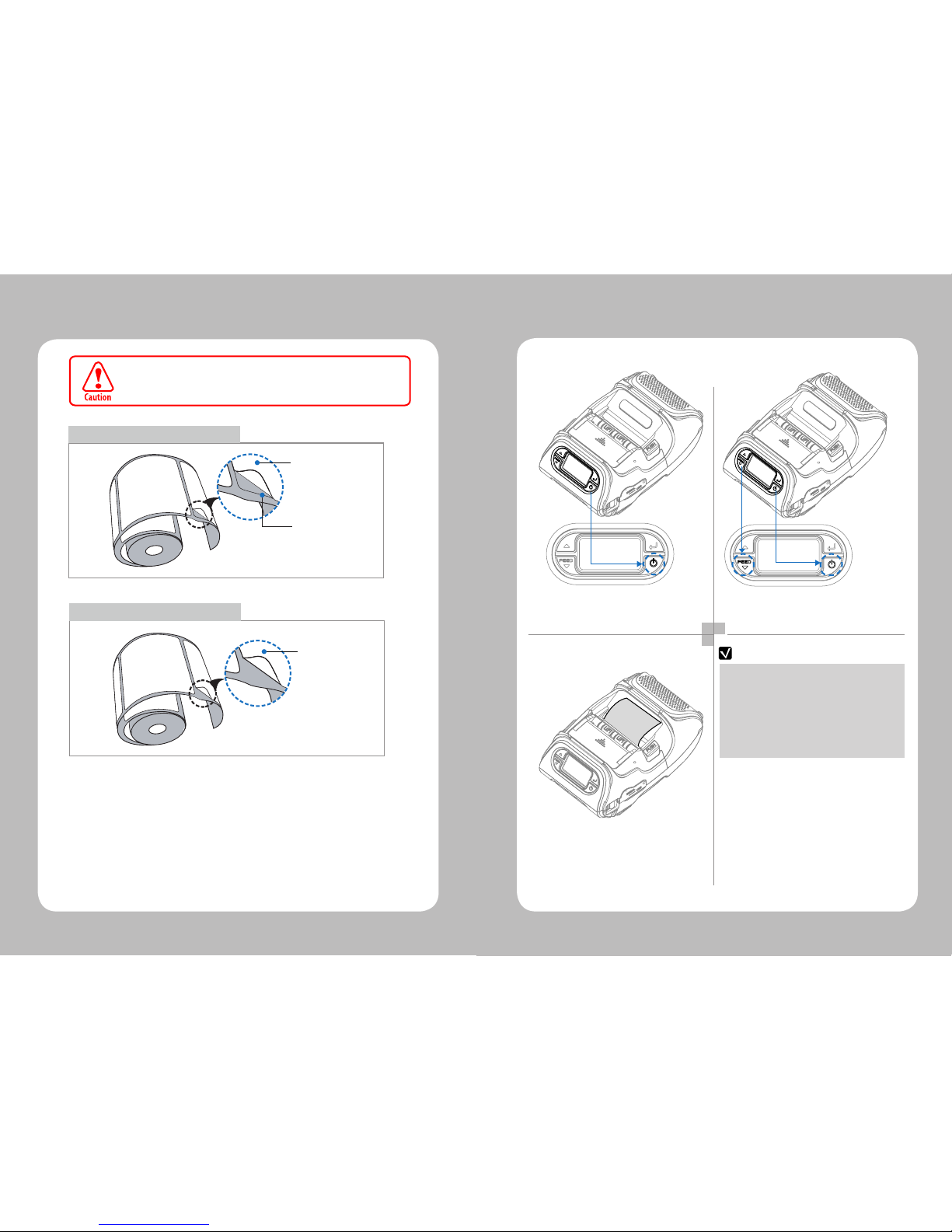

Badness Paper

While Peeler mode is “On”, perhaps engraved lines of the

label paper are cut too deep, peeling error might occur.

Laper Paper

Engraved Line

Normal paper

3-7. Diagnostic Test

1 2

NOTE

Turn off the printer.

The information label prints.

Press and hold the feed

button and power button.

1. For Hex Dump mode, do steps 1-2 then

press the feed button.

2. After printing ASCII pattern,

the diagnostic test is complete.

3. If the feed button is not pressed to go to

Hex Dump mode, the printer exits

diagnostics after three seconds.

12 13

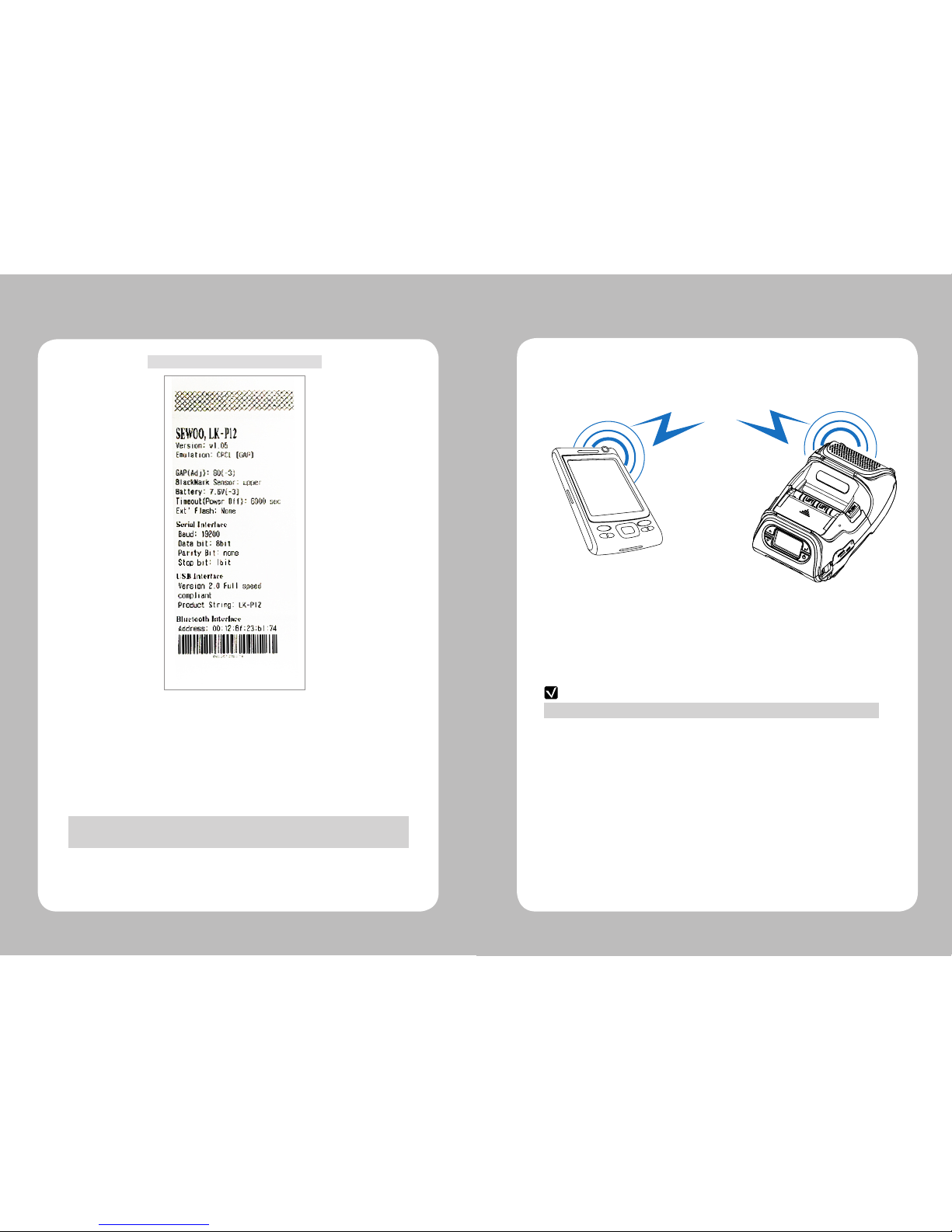

The sample of self test printout

Upon initial installation or for troubleshooting, you can run the diagnostic test to get

information about:

Firmware version, emulation, codepage, sensor settings, interface settings, etc.

If no issues are found with diagnostic test, examine other devices and software.

The diagnostic test is working independent of devices and software.

● Do not overheat the motor

To prevent the motor from overheating, stop the printer for at least 30 seconds

after continuously printing 1.5 meters.

4. Peripherals Connection

NOTE

Refer to the wiﬁ(802.11b/g) Manual for more details on connection.

This printeThis product can communicate with other devices via Wiﬁ(802.11b/g)

communication and cable.

4-1 Wi(802.11b/g) Connection

1. The Printer can be connected to devices equipped with wiﬁ(802.11b/g)

communication capacity (PDAs, PCs, etc.)

2. Use the wiﬁ(802.11b/g) connection function supported by the device to

connect to the printer.

14 15

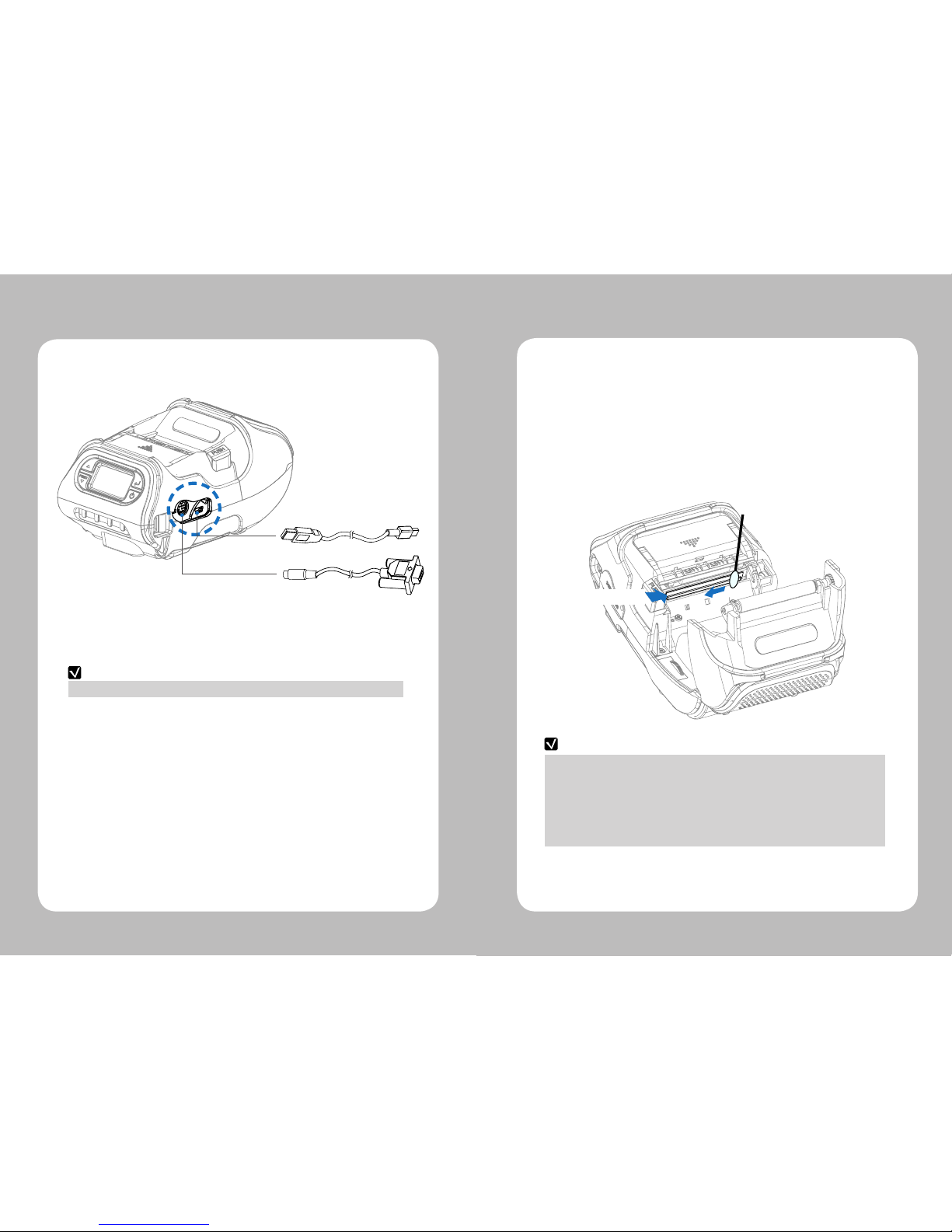

4-2. Interface Cable Connection

1. Connect the USB or Serial cable to the cable connector on the printer.

2. Connect the interface cable into the USB or Serial port of the device

(PDA, PC, etc.)

NOTE

Use only the cables offered by the printer manufacturer.

Serial

USB

5-1. PrintHead Cleaning

5. Printer cleaning

If the interior of the printer is dusty, printing quality can be lowered.

In this case, follow the instructions below to clean the printer.

NOTE

1. Make sure to turn the printer power off prior to cleaning

2. The printhead can become very hot during printing; allow the printer

approximately 10 minutes to cool before cleaning.

3. Do not touch the printhead, it can be damaged by static electricity.

4. Take care not to allow the print head to become scratched and /or

damaged in any way.

1. Use an applicator swab moistened with an isopropyl alcohol to clean

the print head and remove any dust.

2. Once cleaning is complete, allow the printer to dry then install the

stock and close the cover.

PrintHead

16 17

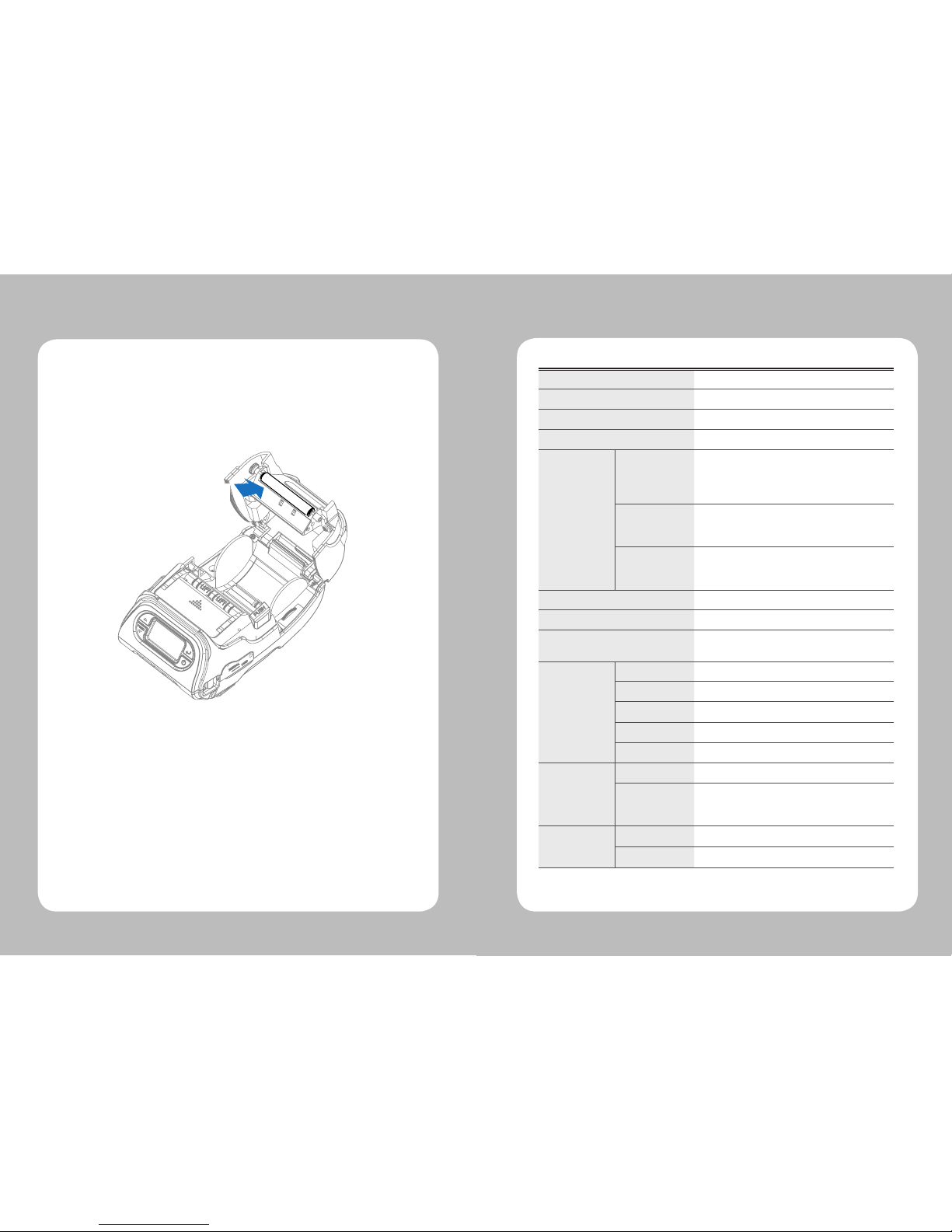

5-2. Platen Roller Cleaning

1.Clean the platen roller with a clean soft cloth moistened with isopropyl

alcohol or a cleaning pen.

2. Turn the platen roller with your ﬁnger to clean the entire surface.

Platen Roller

Printing Method Direct Thermal

Printing Speed 80mm/sec

Resolution 203 DPI X 203 DPI

Character ALPHA NUMERIC Character, Extension Character

Barcode One-Dimensional

Barcodes

UPCA +2/+5, UPCE +2/+5, EAN8 +2/+5, EAN13

+2/+5,

EAN 128, Interleaved 2 of 5, Extended Code 39,

Codabar (NW7), Code 128, Code 93, PostNet

Two-Dimensional

Barcodes

PDF417, MaxiCode, Aztec, QR Code (Quick

Response),

Datamatrix

Stacked One-

Dimensional

Barcodes

GS1 Databar (RSS or Composite Code)

Emulation CPCL, MPCL

Driver Window CE 4.2&5.0, Window Mobile 5.0

Sensor Black-Mark Upper/Lower, Gap, Cover open, Peeler

Detect, Peeler S/W, Media-Width Detect

Paper paper type Thermal Paper

width 56mm

thickness 0.06 ~ 0.16 mm

External Diameter Max. Φ 56mm

Internal Diameter 12.5mm±0.5mm

Reliability TPH 25.4km (1,000,000in)

Battery Continuous Printing 54min

Standby for 11hours

Printing length: 249.8M

Communications standard Serial(RS-232C), USB

Optional Wireless Lan *802.11b/g

6-1. Specication

6. Printer Speciﬁcation
