SENSIT Technologies GOLD CGI Manuel de programmation

Quick-Start Instructions

HINT: As you approach the source of the

leak, keep dialing down the rate of the

audible “tick” by dialing down the thumb

wheel which is located on the right side of

the instrument.

IMPORTANT: When replacing the

gooseneck into the clip on the right side,

wrap the gooseneck in a wide circular

manner counter-clockwise around the back

of the instrument. Bending in the opposite

direction may cause damage over the life of

the product.

WARNINGS:

To prevent ignition of ammable or combustible

atmospheres, disconnect power before servicing.

To reduce the risk of ignition of a ammable

atmosphere, batteries must only be changed in

an area known to be nonammable.

Do not mix batteries of different age or type.

Not for use in atmospheres of oxygen greater

than 21%.

ONLY zero instrument in a gas free environment.

To maintain intrinsic safety, service must be

performed by factory authorized technicians

with approved replacement parts only.

This is not a substitute for the

instruction manual. It is for

reference only.

Read and understand the

instruction manual before use.

MADE IN THE USA

WITH GLOBALLY SOURCED COMPONENTS

Distributed by:

851 Transport Drive

Valparaiso, IN 46383-8432

Phone: 219 465 2700

Web: www.gasleaksensors.com

Innovative Detection Solutions

1. Install the batteries by pushing down

the locking tab and sliding the handle

away from the top of the instrument. When

replacing handle be sure the tab is securely

in place.

2. IMPORTANT: CAREFULLY OBSERVE

POLARITY WHEN CHANGING BATTERIES.

Incorrect installation can damage an internal

“factory service only” fuse.

3. Locate button “A” – push & hold until the

unit powers up, then release the power button.

4. Allow unit to go through the warm up

sequence in clean air. At the end of warm

up, the unit will auto zero and enter the

working display. This requires from 40 up to

180 seconds.

5. If FAIL is displayed for any of the sensor

readings, make sure the instrument is in

clean air; push and hold the “C” button until

AUTO ZERO is displayed. If this process

does not clear the fail on the display, this

could indicate a problem with the instrument

or sensor.

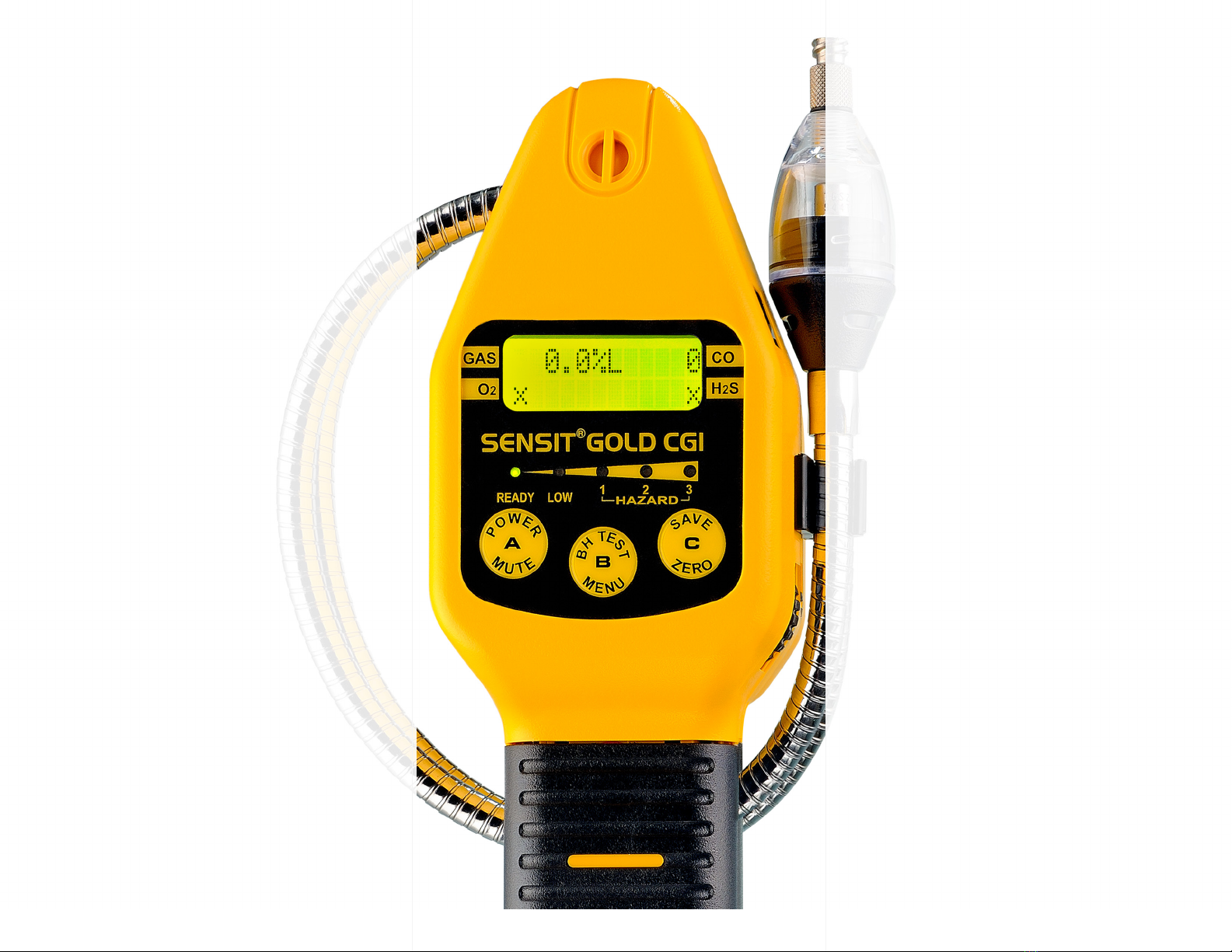

6. Look at the display – Up to four (4) gases

are shown: O2, LEL, H2S and CO. An “X”

appears for sensors not installed.

7. Thecombustible gasscale will automatically

range from %LEL to %Volume.

8. Extend the goose neck (the LEL sensor

and lter cap is at the tip).

9. Place your nger over the inlet and wait ~5

seconds for “FLOW BLOCKED” to appear on

the display. Change cap and “O” rings if it

does not show “FLOW BLOCKED”.

10. You are now ready to use the instrument.

You can now enter the area and detect

gases.

11. Once the environment is determined to

be safe to work in, if the source of an odor

needs to be located, the thumb wheel can

be rotated to be heard at a comfortable tick

rate. Once an investigation is begun, as the

instrument is moved closer to a combustible

source, the tick rate will increase. The

thumb wheel can then be rotated back to

the comfortable rate and the investigation

continued until the source is located.

12. Any “NSR” readings indicate a gas

sensed the instrument is not calibrated to

measure.

14. When your investigation is complete,

roll the thumb wheel back down and click

it to the off position, push button “A” and

hold for 5 seconds until the instrument

displays “POWER OFF” then release to

shut off.

SENSIT®GOLD CGI

QUICK-START INSTRUCTIONS
