Sennetech SCT-1066 Manuel utilisateur
1 SCT-1066 Ver. 1.0
CAMERA CONTROL CODE TRANSLATOR
AD MANCHESTER to KALATEL RS-422 Ver. 1.0
SCT-1066
www.sennetech.net
Sennetech, Inc. 6455 W. Bath Rd. Perry, MI 48872 U.S.A. Ph (517) 675-1150 Fax (517) 675-1151
2
SPECIFICATIONS
SIZE: 5.57"W x 1.52H x 5.45D
WEIGHT: 1.5 lbs.
POWER: 9Volt to 15VoltAC or DC at 75ma
INDICATORS: Front panel LEDs: Power, Rx, & Tx
ADCONNECTION: (1)mating3-pinscrewterminal connector
KALATELCONNECTIONS: (4)mating3-pinscrewterminal connectors
PRODUCTDESCRIPTION
The SCT-1066 is an American Dynamics to Kalatel control code translator designed to permit
controlofKalatelcameras fromADcontrollers.ItreceivesADmanchesterformatcommandsand
transmitstheappropriatecommandsin Kalatel RS-422format.TherearefourindependentKalatel
RS-422outputs.
Internalswitchesareused toconfigurethecodetranslator.TheKalateloutputcode can beDigiplex
III at 2400 or 4800 baud, or it can be Digiplex II at 2400 or 4167 baud.
The camera addresses can be offset by 1 so that instead ofAD camera addresses 1~64 being
convertedto Kalatel addresses1~64, they willbe converted toKalatel addresses 0~63.
Inputandoutputconnectionsare made with mating screw terminal connectors.FrontpanelLEDs
indicatestatusof power, receive, and transmit.
There is an optional 19" rack mount panel (one rack unit high).
3 SCT-1066 Ver. 1.0

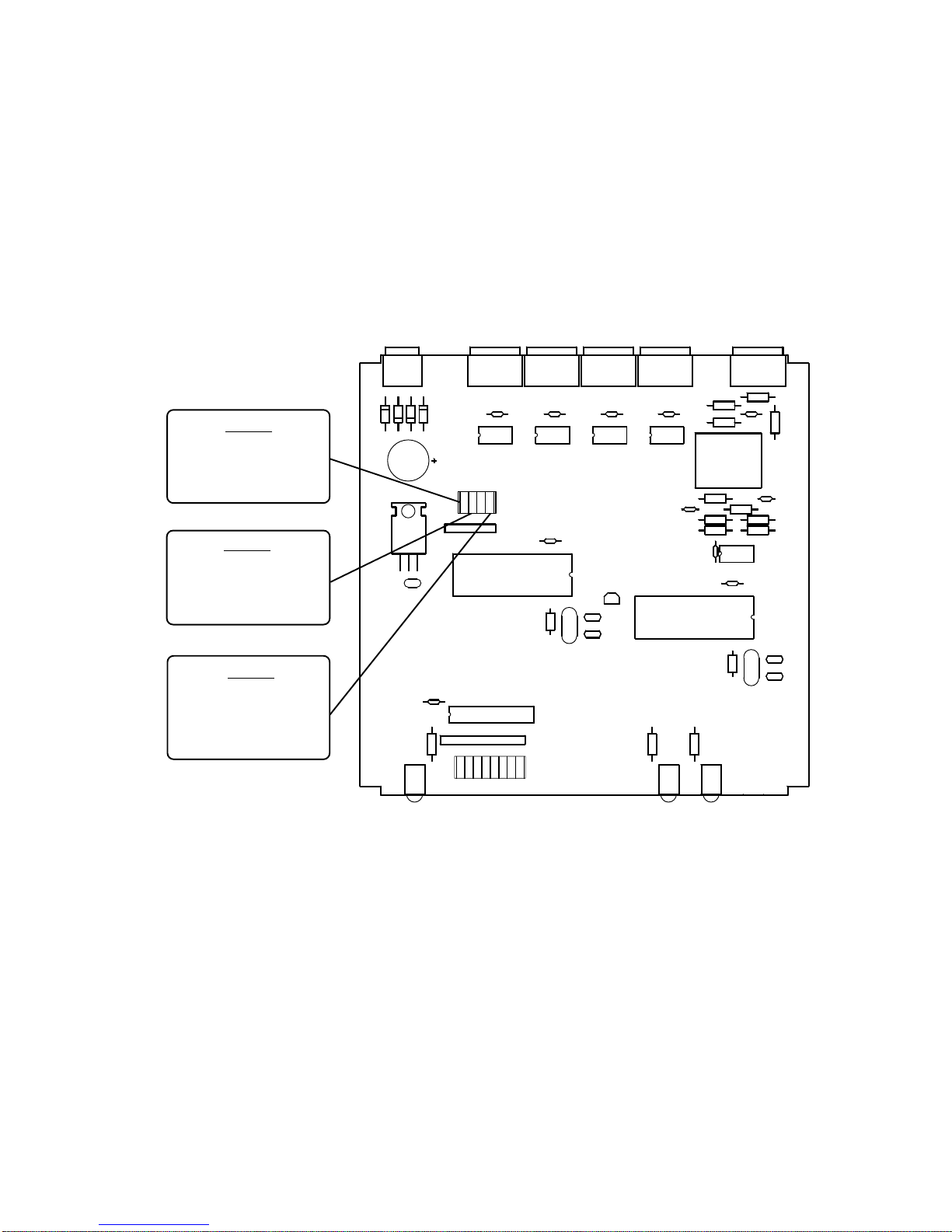

SETTINGTHESWITCHES
To set the configuration switches,remove the backpanel,which is secured by twoscrews.Then
slidethe cover backto expose the switches. The switches can be changed while thecode trans-
lator is powered up and the new settings will take effect immediately.
U1
XT2
T1
U10 U9 U8 U7
U6
Q9
U4
SW1
LED2
U3
CN7 CN6 CN5 CN4 CN2
CN1
U2
LED1 LED3
SW3
21 76543 8 OFF
ON
3412 OFF
ON
ADRECEIVER
KALATELXMTR
SW3-4
ADDRESSOFFSET
ON: ENABLED
OFF: DISABLED
SW3-2
KALATELBAUD
ON: 2400
OFF: 4800/4167
SW3-1
KALATELCODE
ON: Digiplex II
OFF: Digiplex III
(Default)
(Default)
(Default)
4

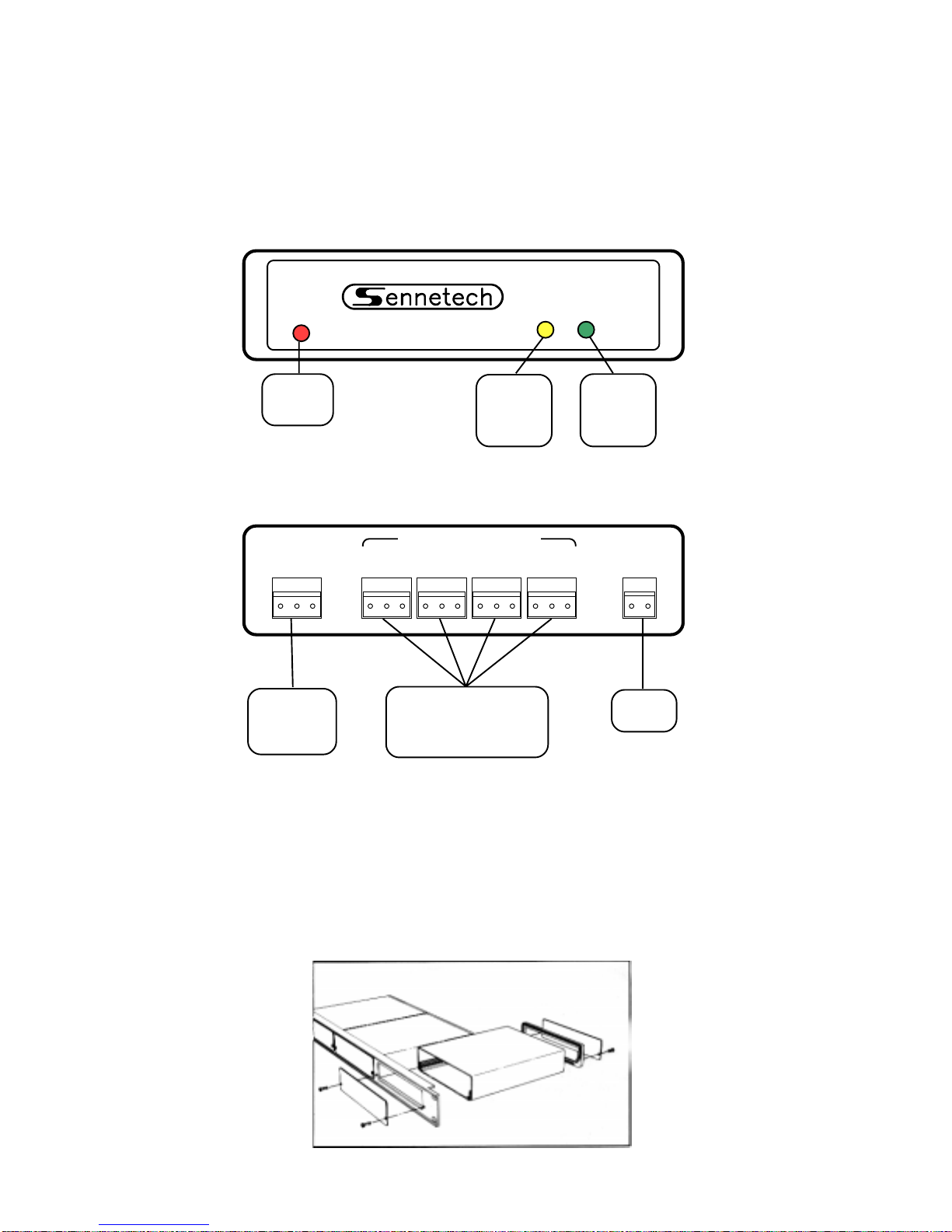

INSTALLATION
Kalatel
transmit
indicator
Power
indicator AD
receive
indicator
FRONTPANEL
Connect output(s) to
Kalatel receiver RS-
422 A & B terminals.
AD
manchester
input
Power
input
REARPANEL
Toinstallthecaseontherackmountframe,removethefrontpanelandtheplasticbezel.The rack
mount frame takes the place of the bezel as shown below.
Power TxRx
CODETRANSLATOR
AD
INPUT POWER
9V to 15V
AC or DC
KALATELDATAOUTPUTS
B W S A B S A B S A B S A B S
5 SCT-1066 Ver. 1.0
OPERATION
AD Pan, Tilt, Zoom, Focus, and Iris commands are converted to the equivalent Kalatel com-
mands.Additional commands will be converted to Kalatel commands according to the following
table.
AD COMMAND KALATEL COMMAND
CallShot 1~64 Find Preset 0~63
Set Shot 1~ 64 ProgramPreset0~63
Note: Kalatel uses some presets for special dome commands.
Set Shot 63 SetAutopan Left Limit
Set Shot 64 SetAutopan Right Limit
Call Shot 66 Activate PresetTour 1
Call Shot 67 Activate PresetTour 2
Call Shot 68 Activate PresetTour 3
Call Shot 69 Activate PresetTour 4
Call Shot 70 Auto Pan
Call Shot 71 Auto Focus
1Off RcvrOff
1 On RcvrOn
2Off Door1Open
2 On Door 2Open
3Off FaceVideo
3 On Badge Video
6
October 2006 SCT-1066 Ver. 1.0
