Securitytronix TVI-AC344-MB Manuel utilisateur

TVI-AC344-MB

TVI-AC344-MB-2.8

User Manual

This manual includes instructions for using and

managing the product. Pictures, charts, images and all

other information hereinafter are for description and

explanation purposes only. The information contained

in the manual is subject to change, without notice.

Please find the latest version on the company

website. Please use this user manual under the

guidance of professionals.

WARNING: THIS PRODUCT CAN EXPOSE YOU

TO POLYBROMINATED BIPHENYLS, WHICH IS

KNOWN TO THE STATE OF CALIFORNIA TO

CAUSE CANCER AND BIRTH DEFECTS OR

OTHER REPRODUCTIVE HARM. FOR MORE

INFORMATION GO TO

WWW.PROP65WARNINGA.CA.GOV

Legal Disclaimer

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE

CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION

BEFORE USING THIS PRODUCT IN ORDER TO ENSURE

THAT YOUR USE CONFORMS TO THE APPLICABLE

LAWS. OUR COMPANY SHALL NOT BE LIABLE IN THE

EVENT THAT THIS PRODUCT IS USED FOR

ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS

MANUAL AND THE

APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a

battery that cannot be disposed of as

unsorted municipal waste in the European

Union. See the product documentation for

specific battery information. The battery is

marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery

to your supplier or to a designated collection point. For

more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”.

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

When using this product, you must be in strict

compliance with the electrical safety regulations of

the nation and region. Please refer to technical

specifications for detailed information.

Input voltage should meet both the SELV (Safety

Extra Low Voltage) and the Limited Power Source

with 12 VDC according to the IEC60950-1 standard.

Please refer to technical specifications for detailed

information.

Do not connect several devices to one power adapter

as adapter overload may cause over-heating or a fire

hazard.

Please make sure that the plug is firmly connected to

the power socket. When the product is mounted on

wall or ceiling, the device should be firmly fixed.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cable, and

then please contact the service center.

Cautions

Make sure the power supply voltage is correct

before using the camera.

Do not drop the camera or subject it to physical

shock.

Do not touch sensor modules with fingers. If

cleaning is necessary, use a clean cloth with a bit of

ethanol and wipe it gently. If the camera will not be

used for an extended period, please cap the lens to

protect the sensor from dirt.

Do not aim the camera at the sun or extra bright

places. Blooming or smearing may occur otherwise

(which is not a malfunction), and affect the

endurance of the sensor at the same time.

The sensor may be damaged by a laser beam, so

when any laser equipment is in use, make sure that

the surface of the sensor will not be exposed to the

laser beam.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

Do not place the camera in extremely hot, cold (the

operating temperature should be -22°F to +140°C),

dusty or damp locations, and do not expose it to

high electromagnetic radiation.

To avoid heat accumulation, good ventilation is

required in the operating environment.

Keep the camera away from liquid while in use.

During transport, the camera should be packed in its

original packing, or packing of the same type.

Improper use or replacement of the battery may

result in explosion hazard. Replace with the same or

equivalent type only. Dispose of used batteries

according to the instructions provided by the battery

manufacturer.

If the product does not work properly, please

contact your dealer or the nearest service center.

Never attempt to disassemble the camera yourself.

(We do not assume any responsibility for problems

caused by unauthorized repair or maintenance.)

1Introduction

1.1 Product Features

The camera is applicable for both indoor and outdoor

conditions, and the application scenarios include road,

warehouse, underground parking lot, bar, etc..

The main features are as follows:

High performance CMOS sensor

Low illumination, 0.005 Lux @ (F2.0, AGC ON), 0 Lux

with IR

IR cut filter with auto switch

OSD menu with configurable parameters

Auto white balance

internal synchronization

SMART IR mode

PoC (with -E)

3-axis adjustment

1.2 Overview

Main Body

Photoresistor

Lens

Bracket

Video Cable

Power Cord

12 VDC

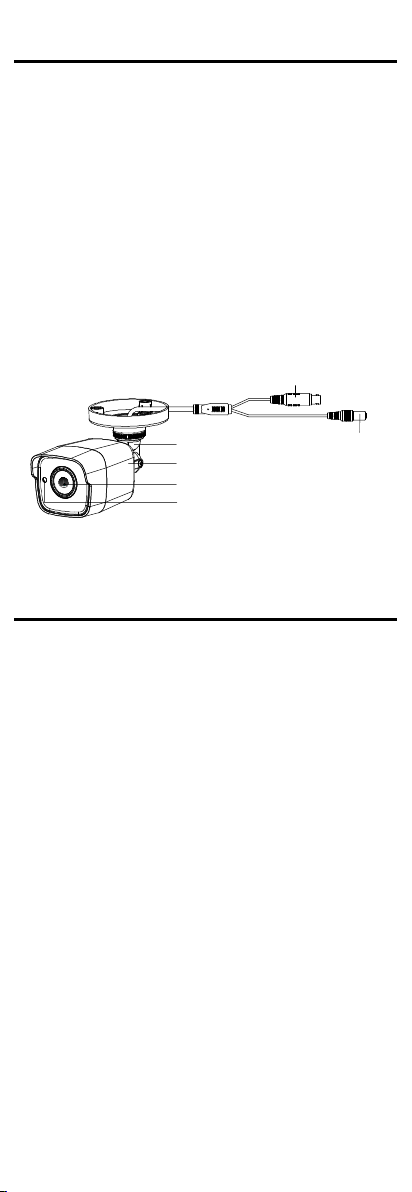

Figure 1-1 Overview

2Installation

Before you start:

Make sure the device in the package is in good

condition and all the assembly parts are included.

The standard power supply is 12 VDC or PoE (802.3

af), please make sure your power supply matches the

camera's.

Make sure all the attached equipment is powered off

during installation.

Make sure that the wall is strong enough to

withstand four times the weight of the camera and

the bracket (if applicable).

If the wall is cement, insert plastic anchors before

installing the camera. If the wall is wooden, use

self-tapping screws to secure the camera.

If the product does not function properly, contact

your dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance.

2.1 Ceiling/Wall Mounting without Junction Box

Steps:

1. Stick the drill template (supplied) to the place

where you want to install the camera.

2. Drill the screw holes and the cable hole (optional)

in the ceiling/wall according to the drill template.

Template

Cable

Hole

Screw

Hole

Side Opening

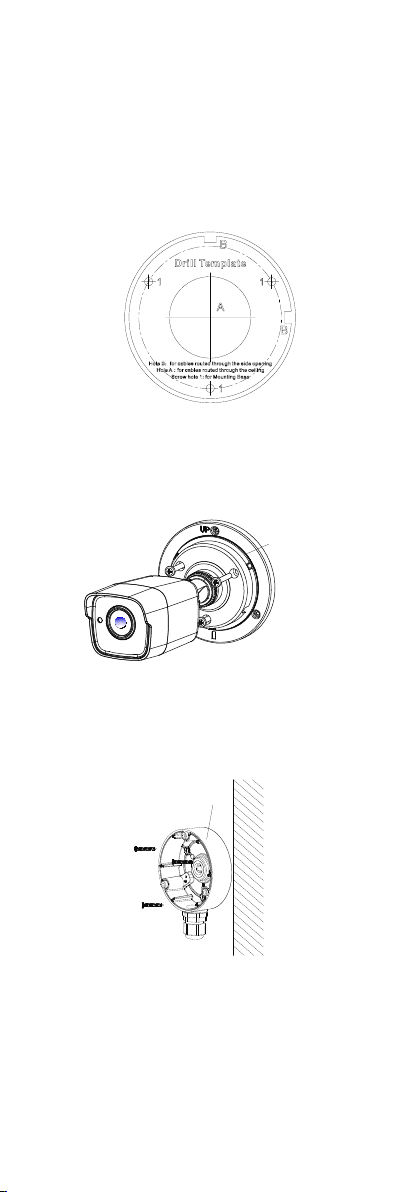

Figure 2-1 Drill Template

Note:

Drill the cable hole if planning to route the cable

through the ceiling/wall.

3. Attach the bracket to the ceiling/wall and secure the

camera with the supplied screws.

Fixing Screw

Adjusting Screws

Figure 2-2 Fix the Camera to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and plastic anchors.

For cement wall/ceiling, plastic anchors are

required to fix the camera. For wooden

wall/ceiling, self-tapping screws are required.

4. Route the cables through the cable hole, or the side

opening.

5. Connect the corresponding power cord, and video

cable.

6. Power on the camera to adjust the viewing angle

(aim). Adjust the camera as needed according to the

figure below to get an optimum angle.

P Screw

T Screw

R Screw

Tilt Position

[0°to 180°]

Pan Position

[0°to 360°]

Rotation Position

[0°to 360°]

Figure 2-3 3-axis Adjustment

1). Loosen the P screw to adjust the pan position [0°

to 360°]. Tighten the screw after completing the

adjustment.

2). Loosen the T screw to adjust the tilt position [0°

to 180°]. Tighten the screw after completing the

adjustment.

3). Loosen the R screw and rotate the camera [0°to

360°]. Tighten the screw after completing the

adjustment.

2.2Ceiling/Wall Mounting with Junction Box

The Junction box is not included in the

package.

Steps:

1. Stick the drill template (supplied) to the

place where you want to install the camera.

2. Drill screw holes and the cable hole in the

ceiling/wall according to the holes of the

drill template.

Figure 2-4 Drill Template of Junction Box

3. Take apart the junction box, and align the screw

holes of the bullet camera with those on the

junction box’ cover.

4. Fix the camera to the junction box’s cover with

the supplied screws.

Junction

Box Cover

Figure 2-5 Fix the Camera on the Junction Box’s Cover

5. Attach the junction box body to the ceiling/wall by

aligning with the screw holes made using the

template.

6. Secure the junction box’s body to the ceiling/wall

with the supplied screws.

Junction Box

Body

Figure 2-6 Fix the Junction Box to the Wall/Ceiling

7. Route the cables through the bottom cable hole,

or the side cable hole of the junction box.

8. Connect the corresponding power cord, and video

cable.

Figure 2-7 Fix junction box cover to body

9. Reattach the junction box cover with

camera to the junction box's body.

10. Adjust the viewing angle (aim).

Refer to step 6 in section 2.1.

3Menu Description

button in PTZ Control,

Purpose:

Call the menu by clicking the

or call preset No.95.

Steps:

1. Connect the camera with the TVI DVR, and the

monitor, as shown in figure 3-1.

Camera

TVI DVR

Monitor

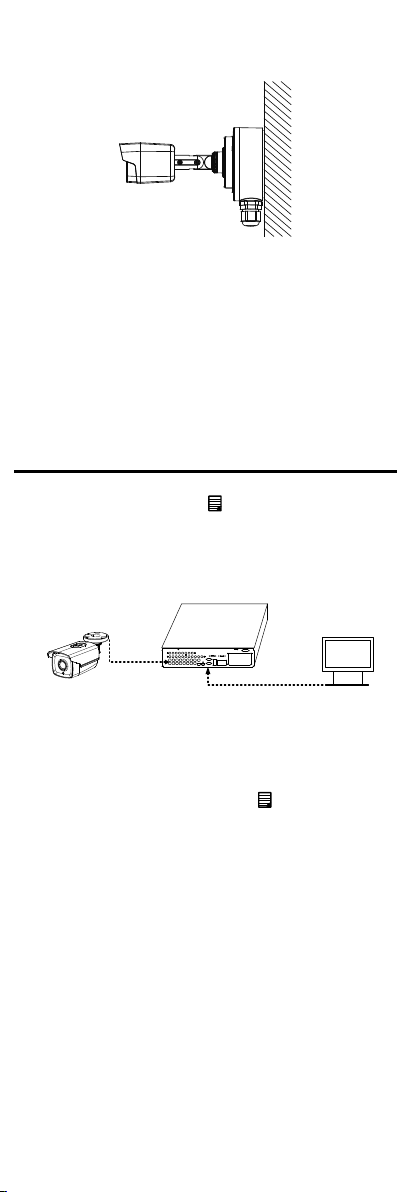

Figure 3-1 Connection

2. Power on the camera, TVI DVR, and the monitor

5. Click the directional arrowsto control the

camera's OSD.

(1) Click up/down direction arrows to navigate

up and down in the menu lists.

(2) Click Iris + to confirm selection.

(3) Click left/right direction button to adjust the

value of selected items.

to view the image on the monitor.

Right-click to access the quick menu, then click PTZ

Control to enter the PTZ Control interface.

Call the camera menu by clicking button, or call

preset No. 95.

BRIGHTNESS

MAIN MENU

FORMAT

LANGUAGE

DAY NIGHT

VIDEO

SETTINGS

FUNC

RESET

SAVE & EXIT

PRIVACY

EXPOSURE MODE

AGC

SENSE UP

MODE

RETURN

MODE

RETURN

CONTRAST

SHARPNESS

COLOR GAIN

3D DNR

MIRROR

RETURN

MOTION

CAM ID

RETURN

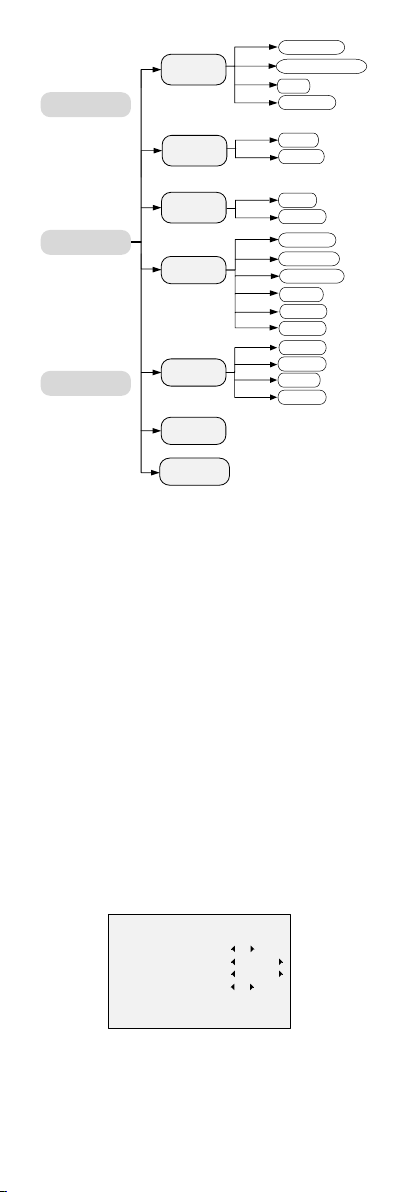

Figure 3-2 Main Menu Overview

3.1 FORMAT

PAL (Phase Alternating Lines)

PAL is a color encoding system for analog television

used in broadcast television systems in most countries.

NTSC: (National Television System Committee)

NTSC is the analog television system that is used in

most of North America, parts of South America,

Myanmar, South Korea, etc.

3.2 LANGUAGE

Available options are English,and Chinese.

3.3 MAIN MENU

3.3.1 AE (AUTO EXPOSURE)

Auto Exposure describes brightness-related

parameters, which can be adjusted in BRIGHTNESS,

EXPOSURE MODE, AGC, and SENSE UP.

EXPOSURE

BRIGHTNESS

EXPOSURE MODE

AGC

SENSE UP 0

RETURN

OBAL

MIDDLE

Figure 3-3 AE

BRIGHTNESS

Brightness refers to the brightness of the image.

You can set the brightness value from 1 to 10 to darken

or brighten the image. The higher the value, the

brighter the image is.

EXPOSURE MODE

You can set the EXPOSURE MODE to GLOBAL, BLC, or

WDR.

GLOBAL

GLOBAL refers to the normal exposure mode which

adjusts lighting distribution, variations, and

non-standard processing.

BLC (Backlight Compensation)

BLC (Backlight Compensation) compensates for bright

lights in backgrounds by automatically adjusting

exposure for darker foreground areas and objects.

This may cause over-exposure of the areas where light

is strong. When BLC is selected as the exposure mode,

the BLC level can be adjusted from 0 to 8.

WDR (Wide Dynamic Range)

Wide dynamic range helps the camera provide clear

images even under backlit circumstances. WDR

balances the brightness level of the whole image and

provides clear images with details.

AGC (Auto Gain Control)

AGC optimizes the clarity of the image in poor light

conditions. The GAIN level can be set as HIGH, MIDDLE,

or LOW. Select OFF to disable the GAIN function.

Note:

Image noise will be amplified when the GAIN is on.

SENSE UP

Sense up increases the exposure on a signal frame,

which makes a camera more sensitive to light so it can

produce images even in low lux conditions. You can set

the SENS-UP as OFF or AUTO as desired for different

lighting conditions.

The SENS-UP function will automatically adjust itself to

x2, x4, x6, x8, x10, x12, x14, and x16according to

different lighting conditions when on AUTO.

3.3.2 WB (White Balance)

White balance is used to to adjust the color

temperature (tints of blues and reds) of the image.,

and can remove unrealistic color casts in the image.

You can set WB mode as ATW, or MWB.

ATW (Auto Tracking White Balance)

Under ATW mode, white balance is adjusted

automatically according to the color temperature of

the image lighting.

MWB (Manual White Balance)

You can set the R GAIN/B GAIN value from 1 to 255 to

adjust the shades of red/blue color of the image.

MODE

R GAIN

B GAIN

RETURN

MWB

Figure 3-4 MWB MODE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Securitytronix Caméra de sécurité

Securitytronix

Securitytronix ST-PTZMINI-IR10XTA Manuel utilisateur

Securitytronix

Securitytronix ST-BT540IR50VFDV-B Manuel utilisateur

Securitytronix

Securitytronix ST-IP4VFB-MZ Manuel utilisateur

Securitytronix

Securitytronix ST-IP2IRPTZ Manuel utilisateur

Securitytronix

Securitytronix ST-DLI6502812-JBX-B Manuel utilisateur

Securitytronix

Securitytronix ST-DWDVF2812-720B/W Manuel utilisateur

Securitytronix

Securitytronix ST-BT1000IRVFDV-B Manuel utilisateur

Securitytronix

Securitytronix ST-DWD1000IRVP2812 Series Manuel utilisateur

Securitytronix

Securitytronix ST-DWD700-3.6-B Manuel utilisateur

Securitytronix

Securitytronix HD-COAXINATOR ST-HD-TD3.6-1MP Manuel utilisateur

Securitytronix

Securitytronix ST-WD600PTZMINI-IR Manuel utilisateur

Securitytronix

Securitytronix ST-PTZIR480-22X Manuel utilisateur

Securitytronix

Securitytronix ST-D600DN2812-DSHB Manuel utilisateur

Securitytronix

Securitytronix ST-D6003.6 –B Manuel utilisateur

Securitytronix

Securitytronix ST-D600VP3.6-B-W Manuel utilisateur

Securitytronix

Securitytronix HD-CoaxinatorTVI ST-HDC2VFB-MZ Manuel utilisateur

Securitytronix

Securitytronix ST-PTZ480-22X Manuel utilisateur

Securitytronix

Securitytronix ST-BT6003.6-W2 Manuel utilisateur

Securitytronix

Securitytronix ST-DWD600IRVP49-S Manuel utilisateur

Securitytronix

Securitytronix ST-PTZIR530-36 Manuel utilisateur

Securitytronix

Securitytronix ST-DWD650IRVP2812-B/W Manuel utilisateur

Securitytronix

Securitytronix ST-BTWD600IR2812 B Manuel utilisateur

Securitytronix

Securitytronix HD-COAXINATORTVI ST-HDC2PTZ Manuel utilisateur

Securitytronix

Securitytronix ST-D700IRVP3.6-B2 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
