INSTALLATION MANUAL

ST-DWD600IRVP49-S

Vandalproof Infrared Dome Color Camera

v2.0 3/10/11

PACKAGE CONTENTS

This package contains:

One ST-DWD600IRVP49-S vandalproof infrared color camera

One installation manual

Note: The ST-DWD600IRVP49-S requires a minimum12VDC 400mA power supply such as the

ST-PS12VDC1A or ST-PS12VDC2A.

PRODUCT DESCRIPTION

The ST-DWD600IRVP49-S is a vandalproof infrared dome color camera designed around a 1/3”

Color SONY CCD with 600TVL of resolution and 21 infrared LEDs providing infrared capability up

to 65 feet. The camera’s 4mm to 9mm manual zoom lens allows an optimal field of view. The

ST-DWD600IRVP49-S’ size and packaging allow it to be easily and discretely installed. Its rich

color, high definition, stability and resistance to jamming make it attractive for CCTV security

applications.

SPECIFICATIONS

ST-DWD600IRVP49-S

Specifications (Typical)

1. Image Sensor

1/3” SONY CCD

2. Pixels (HxV)

811x508

3. Scanning System

NTSC

4. Horizontal Resolution

600TV Lines

5. Synchronization

Internal, Negative Synch

6. Minimum Illumination

0.001Lux, 0Lux (IR LED on)

7. Scanning System

2 :1 interface

8. Auto Electronic Shutter

1/60s ~ 1/100,000s

9. Auto Gain Control

Automatic

10. Lens

4mm -9mm Manual Zoom Lens

11. S/N Ratio

>48dB

12. IR LED

φ5x21PCS

13. IR Viewing Distance

Up to 65 feet

14. Gamma Characteristic

0.45

15. Video Output

1.0Vp-p/75Ω

16. Operation Temperature

14°F -113°F

17. Relative Humidity

95% maximum

19. Power Supply

DC12V 400mA

20. Dimensions

5.9”x3.9”

21. Weight

2.2 lbs

v2.0 3/10/11

INSTALLATION AND OPERATION

CAUTION: To reduce the risk of electrical shock do not remove the cover or back of this

unit. No user serviceable parts are inside.

CAUTION: To prevent electric shocks and risk of fire hazards, do not use other than

specified power source.

1. UNPACKING and HANDLING

Each unit is shipped assembled and factory tested.

Ensure that all accessories are removed from the container before discarding packing material

2. MECHANICAL INSPECTION

Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is

clean, and no connectors are broken, damaged, or loose. If equipment appears to be

damaged or defective please contact your distributor or SecurityTronix at 1-610-429-1511 for

assistance.

3. SPECIAL ATTENTION

a. The installer must comply with electrical safety standards. There must be sufficient

space between the camera’s power supply and video line and any high voltage

equipment and/or cables.

b. To help ensure the camera’s life and proper operation do not point the camera

towards the sun or strong light.

c. Do not install the camera in an environment where the temperature is above 113°F.

d. Do not install the camera near a magnetic field or a high-power motor.

e. Do not mount the camera near a radiator or heater.

f. Only use a dry cloth to clean the camera. If there is dirt that is difficult to remove wipe

gently with a mild detergent. Never use strong or abrasive detergents.

g. A minimum 12VDC 400mA power supply must be used. AC power cannot be applied.

Using an AC or other incorrect power supply will damage the camera.

h. Only qualified installers are allowed to install, test and disassemble the camera.

i. The IR LED angle and lens viewing range are adjusted at the factory. Any change to

the camera’s lens will affect image quality.

j. The camera is a low voltage product. If installed outdoors proper safety and lightening

grounding are required.

4. WIRING CONNECTIONS

This symbol is intended to alert the user to the presence of important operating and

maintenance (servicing) instructions.

This symbol is intended to alert the user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electrical shock.

v2.0 3/10/11

a. Connect the power supply’s DC plug to the camera’s power outlet.

b. Connect the camera to the monitor with a 75Ωcoaxial video cable.

c. Connect power supply’s AC plug to a suitable AC power outlet.

d. Adjust the lens direction according to the required surveillance area and environment.

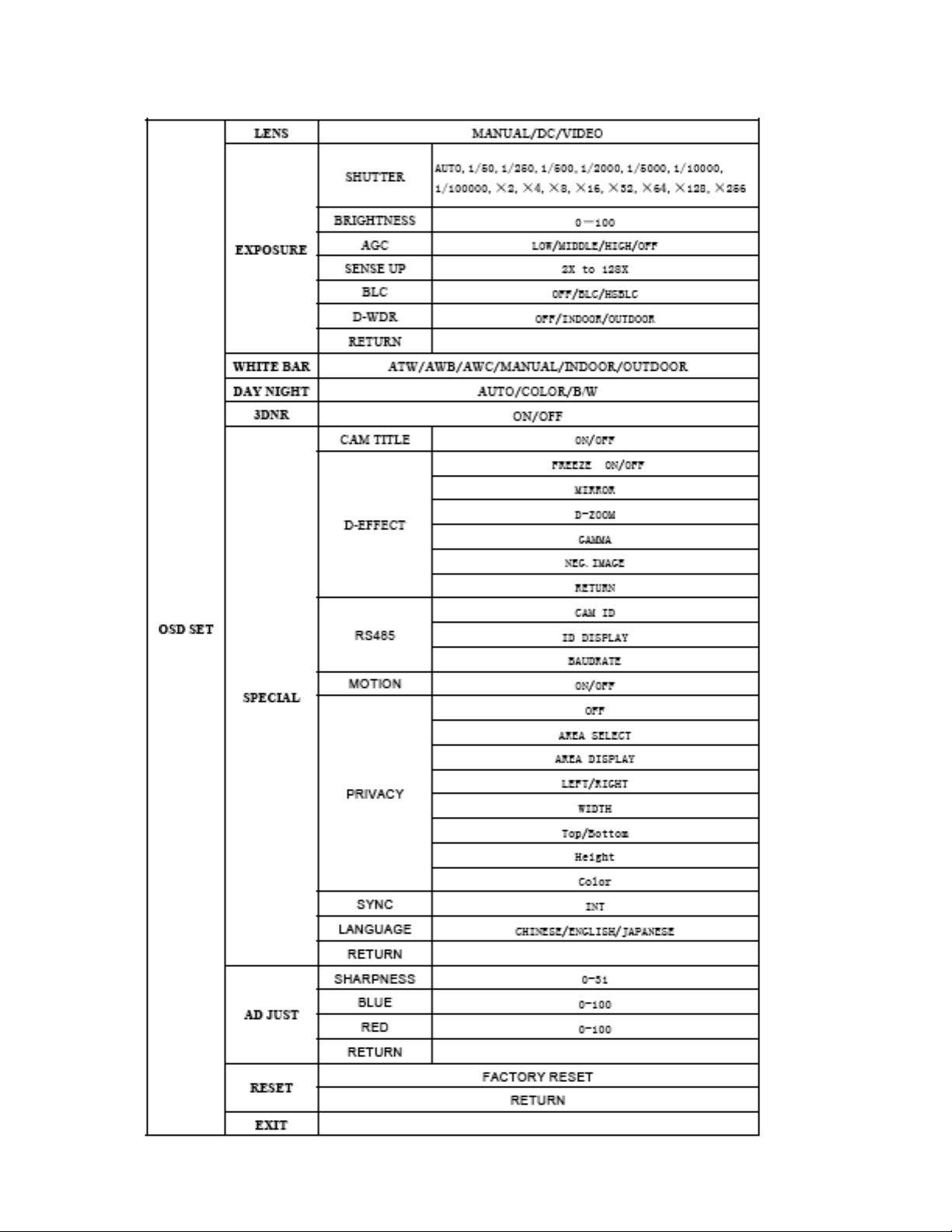

5. OSD SETTINGS

Accessing the camera’s OSD menu and making menu selections is

accomplished using the attached “cursor pad”: UP, DOWN, LEFT, RIGHT

and PUSH center for entering the selection.

v2.0 3/10/11

6. TROUBLESHOOTING

a. No picture after applying power –(i) check all plugs and cables are securely

connected to the proper connectors; (ii) ensure your power supply is providing the

correct voltage and current.

b. The picture has ripples –(i) check to see if the power supply is experiencing AC ripple,

if so a filter may be required; (ii) determine if the monitor is faulty; (iii) determine if

other peripheral equipment is causing ripple and if so make the necessary

adjustments.

c. The picture background continuously changes color –a fluorescent lamp’s magnetic

field may cause color roll, therefore, reduce the number of fluorescent lamps or

increase the distance between the camera and the lamps.

d. The picture appears smeared –(i) the power supply voltage level may be unstable,

therefore, try another power supply; (ii) ensure the cables are correctly connected

and/or the cables are of the correct impedance.

e. Other interference may require a SecurityTronix ground loop isolation filter.

f. Additional troubleshooting assistance can be found on-line at www.securitytronix.com

in addition to support from SecurityTronix sales engineers at 1-610-429-1511.
