INSTALLATION MANUAL

ST-PTZIR650-23

High Speed Intelligent Dome

PTZ Color Camera

WARNINGS AND CAUTIONS

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS

THROUGH VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT.

CAUTION

EXPLANATION OF GRAPHICAL SYMBOLS

The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to

alert the user the presence of non-insulated “dangerous voltage” within the product’s

enclosure that maybe of sufficient magnitude to constitute a risk of electric shock to

different persons.

The exclamation point within an equilateral triangle, is intended to alert the user the

presence of important operating and maintenance (servicing) instructions in the

literature accompanying this product.

PRECAUTIONS:

Persons without technical qualifications should not attempt to operate this

dome device before reading this manual thoroughly.

Remove any power to the dome before attempting any operations or adjustments

inside the dome cover to avoid potential damage to the mechanism.

Inside the dome cover there are precision optical and electrical devices.

Heavy pressure, shock and other sudden adjustments or operations should be

avoided. Otherwise, you may cause irreparable damage to the product.

Please DO NOT remove or disassemble any internal parts of the video camera to

Avoid normal operation and possibly void the warranty. There are no serviceable

parts inside the camera.

All electrical connections to the dome should be made in strict accordance with the

attached labels and wiring instructions in this manual and in accordance with all

local and national electrical codes. Failure to do so may damage the dome

beyond repair and void the warranty.

For outdoor installation especially in high places or poles, it is highly recommended

that the proper lightning arrestors and surge suppressors are installed before the

dome is entered into service.

Please do not use the product under circumstances where the environment

exceeds the maximum specified temperature, humidity or power supply

specifications.

IMPORTANT SAFEGUARDS

1. Read these instructions before attempting installation or operation of this dome.

2. Keep these instructions for future reference.

3. Heed all warnings and adhere to electrical specifications. Follow all instructions.

4. Clean only with non abrasive dry cotton cloth, lint free and approved acrylic cleaners.

5. Should the clear dome of the camera become dirty, use a special lens cleaning cloth and

solution to properly clean it.

6. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions.

7. Use only attachments or accessories specified by the manufacturer.

8. Verify that the surface you are planning to use for attaching the dome can adequately support

the weight of the device and mounting hardware.

9. Protect this device against lighting storms with proper power supplies, surge arrestors and

other protective precautions.

10. Refer all servicing to SecurityTronix service personnel. Servicing is required when the

device has been damaged in any way, when liquid traces are present, or the presence of loose

objects is evident or if the device does not function properly, or has received sever impact or

has been dropped accidentally.

11. Do not use this product under circumstances exceeding specified temperature and humidity

ratings.

12. Avoid pointing the camera directly to the sun or other extremely bright objects for prolonged

period of time avoiding the risk of permanent damages to the imaging sensor.

13. The attached instructions are for use by qualified personnel only. To reduce the risks of

electric shock, do not perform any servicing other than contained in the operating instructions

unless you are qualified to do so.

14. During usage, the user should abide by all electrical safety standards and adhere to

electrical specifications for the operation of the dome. The control cable for RS485

communications as well as the video signal cables should be isolated from high voltage

equipment and high voltage cables.

15. Use supplied power supply transformer only.

1 Product Contents

IR Speed dome 1pc

Wall mount bracket 1pc

Power supply 1pc

Screws kit 1pc

User manual 1pc

1.2 Specification

Horizontal Rotation

Speed

0.02°-200°/s

Tilt Rotation Speed

0.02°-100°/s

Horizontal Rotation

Range

360°

Tilt Rotation Range

93°

Auto Flip

Horizontal 180°, Vertical 90°

Auto control IR LED

PWM

A-B Scan

User programmable

A-B Scan Speed

1-64 levels setting available

360° Scan Speed

1-64 levels setting available

Dwell Preset

5-60s interval

Preset Points

220

Go to Preset Speed

200°/s

Guard Tours

4 groups

Guard Points per tour

Max.16 points, dwell time user selectable

Pattern Scan

4 pcs

Pattern Scan Record

max.15 minutes or 512 commands

Home Pos Time

1-60mins available

PWR on Action

Memory as power off / Pattern / 360° scan / A-B scan / Preset

cruise / Preset 1-8 / No action

Communication

Protocol

Pelco-D,Pelco-P

Communication

RS485 Bus

Baud Rate

1200/2400/4800/9600bps

Privacy Mask

Not supported on this module

3D Location

supported

Time Scheduling

function

Not supported on this module

Alarm

Optional

Auto-tracking

Optional

Operating

Temperature

Outdoor: -10°F ~ +130°F

Operating humidity

≤95% Non Condensing

Heater & Blower

Auto temperature control

Power

24VAC ≤3A

Lightning protection

transient voltage 6000V

IR Illumination

Distance

375 ft

Power Consumption

≤ 20W

Compatible camara

SONY,HITACHI, SAMSUNG etc.

LED Angle of

Illumination

Ø22=6,Ø16=5

1.3 Performance Features

PWM function. Intelligent IR illumination & power consumption is variable, dependent

upon the zoom factor.

3D allocation. The pan and zoom functions are performed simultaneously for faster

target acquisition.

Supported Protocols. Pelco-D/P; Others on special request.

4 path patterns. Each path can record 512 different instructions or 900s of

PTZ instructions.

Manual speed control.At the lowest 0.02º/s speed, the dome provides very

smooth operation .

4 guard groups. Up to 16 preset points can be assigned in each tour. Each of

the 16 points can be adjusted independently for dwell time and travel speed.

Optional IP module (built in provision).

Built-in high density RTC clock supports time management function.

Strong video processing ability supports auto-tracking and motion detecting

alarm function.

Park action. If the user does not operate the dome in a predetermined time, it will

automatically run a preset guard group, trace memory group, pan scan etc.

The dome can remember its current operation before being powered off and return

to its previous operation after power is restored.

Built-in fan and heater can control the temperature automatically.

Heater operates below 32°F and fan operates above 104°F.

Multiple languages for OSD menu, English, Spanish, Chinese etc.

The response of IR illumination to ambient light can be adjustable.

Accurate step motor control provides for stable running, precise location

and sensitive response.

Metal body construction with an environmental rating of IP 66.

Built-in 6000V anti-surge protection equipment.

1.4 Function Description

Auto-adaptive to Protocol and Module

The dome can auto-adapt to multiple protocols and many camera modules without changing

the DIP switchs.

3D Allocation

Allow the camera to operate both the pan and tilt simultaneously while recalling presets, for

faster operation.

Privacy Masking (Not available on this module)

This feature allows the user to set certain areas of the image as un-viewable, such as

manager’s computers, restrooms, etc.

Pattern

Records the user’s operation of the PTZ controls and plays them back exactly as they were

originally performed. Rather than a tour, where the camera moves single point to single point,

the movement of a pattern follows all the nuance of the operator’s input.

This dome camera has 4 path patterns. Each path can record 512 different instructions or the

longest 15mins of path operation, whichever is less.

Zero Alignment

The user can specify a pan-position point to be the camera’s “zero point”. When the dome is in

use, preset drift can occur over time. If this happens, the zero-point can be used as a reference

for the dome to reset its alignment.

Auto Flip

In the manual tracking mode, when a target goes directly beneath the dome, the dome will

automatically rotate 180 degree in horizontal direction to maintain continuity of tracking. When

the dome flips, the camera starts moving upward as long as you hold the joystick in the down

position.

Focus

The auto focus feature enables the camera to focus automatically to maintain clear image. The

user can also use manual focus when conditions require it, such as when there are near and far

objects in the frame at the same time.

Under the following conditions, the camera may not auto focus on the target:

(1) The target is not in the center of the screen;

(2) Attempting to view 2 subjects which are far and near at the same time;

(3) The target is a brightly lit object, such as a neon lamp, etc.;.

(4) The camera’s dome is covered with water droplets or dust;

(5) Targets are moving quickly;

(6) Large area targets without much detail, such as wall;

(7) Targets which are too dark or faint.

BLC Back Light Compensation (Not available on this model)

If a bright backlight is present, the target in the picture may appear dark or as a silhouette. The

BLC function can enhance the target in the center of the picture; the dome uses the center of

the picture to adjust the iris. If there is a bright light source outside this area which tends to

wash out to white, the camera will adjust the iris so that the target in the sensitive area will be

properly exposed.

Iris Control

The camera features automatic camera aperture (iris). The camera senses changes in ambient

light and automatically adjusts the lens aperture to make the brightness of the output image

stable.

Ratio Speed

Intelligent pan and tilt speed is variable dependent on the zoom factor. When zooming in, the

speed will become slower and when zooming out, the speed will become faster.

Pan Scan

The dome continuously scans 360°clockwise at set speed in horizontal direction, under the

condition that the pitch angle remains the same. While scanning, the operator can move the

joystick to exit from the scanning mode.

Preset

Once the camera has been programmed with specific location presets, it can automatically

move to the predefined positions when presets are called from a PTZ controller or DVR.

Guard Tour Scan

The dome runs a patrol according to the specific presets which the user has programmed, in

the order they are set to run.

A-B Scan

The dome scans back and forth between 2 preset points ( A-B points) in both horizontal and

vertical directions, according to the speed the user sets in the menu.

Power Off Memory

This feature allows the dome to resume its previous preset or status after power is restored. By

the default setting, the dome supports power up memory, which improves reliability and avoids

repeated settings of the previous parameters.

Park Action

If the dome is not operated within the user-set time, it will automatically run a specific mode

(pan scan, A-B scan, park action, cruise, preserve action etc.).

Multilanguage OSD Menu

The language used for the on screen menu can be set to one of several available languages -

English, Spanish etc.

2 Installation

2.1 DIP Switch Settings

2.1.1 Preparation

Before installation, make sure that the protocol, baud rate and address code used by the

product is fully consistent with the control system. Corresponding DIP switch settings can be

seen below. The access plate for the DIP switches is located just above the camera lens

opening on the outside of the camera:

NOTE:

It is much easier to set the communication parameters using the on-screen menu rather

than the DIP switches. See page 11 for details.

2.1.2 Address Settings

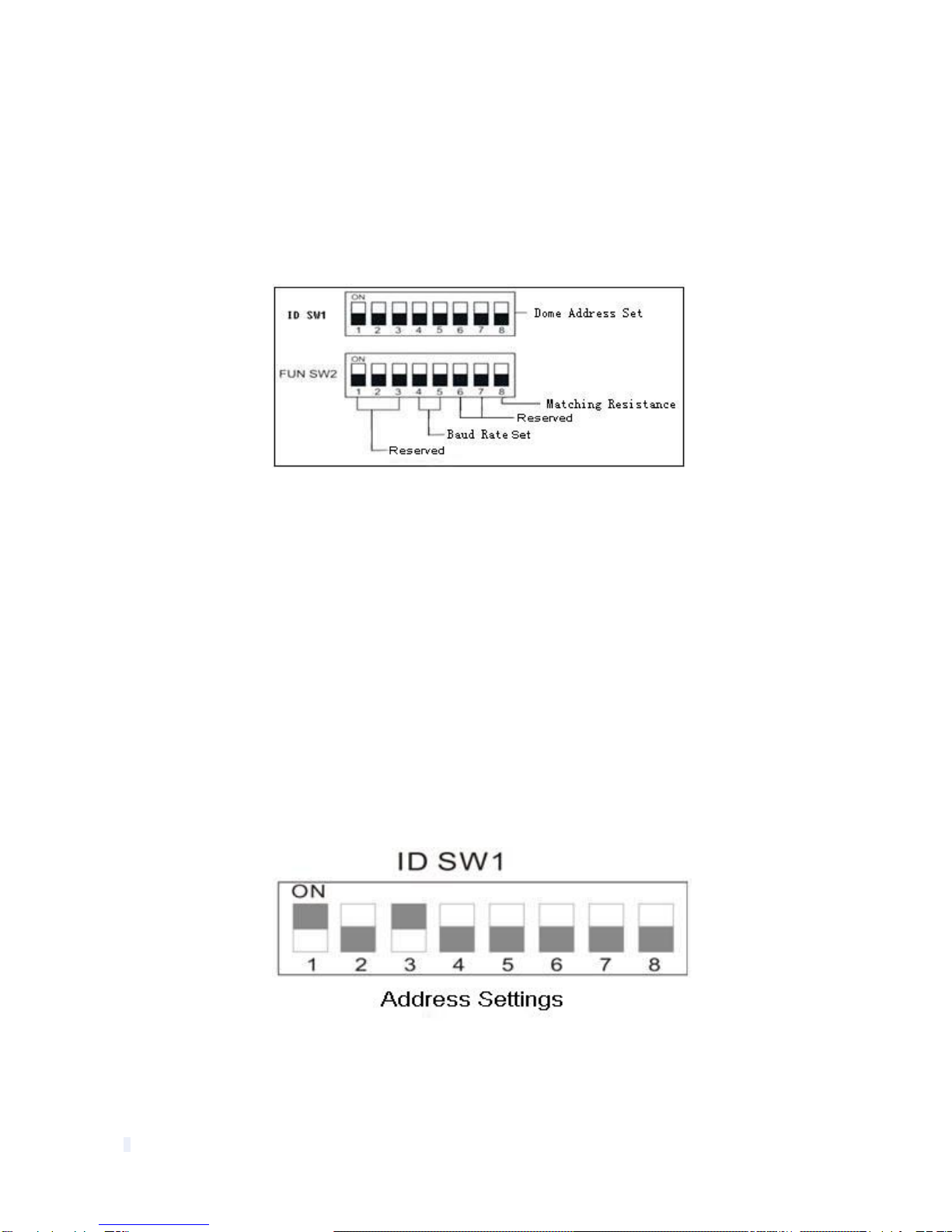

DIP switch SW1 is used to set the address of the camera. It is an 8-bit switch. The number

value of switch 1 = 1, switch 2 = 2, switch 3 = 4, switch 4 = 8, switch 5 = 16, switch 6 = 32,

switch 7 = 64 and switch 8 = 128. The values of all switches which are in the ON position are

added to determine the address. (See illustration below) As an example, if the 1st and 3rd

switches are allocated to the ON position, the binary code is 00000101, so the corresponding

address is 5 (sw1 = 1 + sw3 = 4).

For complete, detailed settings please refer to the “Address Code Mapping Tables” on pages 25

and 26.

Table des matières

Autres manuels Securitytronix Caméra de sécurité

Securitytronix

Securitytronix ST-DLI6502812-JBX-B Manuel utilisateur

Securitytronix

Securitytronix ST-HD-D2812M-2MP Manuel utilisateur

Securitytronix

Securitytronix HD-COAXINATOR TVI ST-HDC2FB-CNV Manuel utilisateur

Securitytronix

Securitytronix ST-DLI540IRVP-B Manuel utilisateur

Securitytronix

Securitytronix ST-PTZ650FM-23X Manuel utilisateur

Securitytronix

Securitytronix ST-PTZIR530-36 Manuel utilisateur

Securitytronix

Securitytronix HD-Coaxinator ST-HD-BT2812-720-G Manuel utilisateur

Securitytronix

Securitytronix ST-BT650IRVFDV –B Manuel utilisateur

Securitytronix

Securitytronix HD-COAXINATOR ST-HD-TD3.6-1MP Manuel utilisateur

Securitytronix

Securitytronix ST-D600IR2812 Manuel utilisateur

Securitytronix

Securitytronix ST-BT1000IR2812-G Manuel utilisateur

Securitytronix

Securitytronix ST-HD-BT3.6-1MP Manuel utilisateur

Securitytronix

Securitytronix ST-PTZMINI-540W Manuel utilisateur

Securitytronix

Securitytronix ST-DLI600VPDV2812-B-W Manuel utilisateur

Securitytronix

Securitytronix ST-D540IRVP2812 Manuel utilisateur

Securitytronix

Securitytronix HD-COAXINATORTVI ST-HDC2FTD Manuel utilisateur

Securitytronix

Securitytronix ST-BT540IR50VFDV-B Manuel utilisateur

Securitytronix

Securitytronix ST-D600DNVP2812 Manuel utilisateur

Securitytronix

Securitytronix ST-DLI420IR6-B Manuel utilisateur

Securitytronix

Securitytronix ST-DWD650IRVP2812-B/W Manuel utilisateur

Securitytronix

Securitytronix ST-IP2FTD Manuel utilisateur

Securitytronix

Securitytronix ST-IP6FE Manuel utilisateur

Securitytronix

Securitytronix ST-CVTMD420-WPIR-W Manuel utilisateur

Securitytronix

Securitytronix ST-BT600SIR –B Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
