QLL23 INSTRUCTION MANUAL
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520. We’re ready to help!
2
Translations start page on 14
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
1 Does your TV weigh more than 100 lbs. (45.3 kg) including accessories?
No
—
Perfect!
Yes
—
This mount is NOT compatible. Visit secura-av.com or call 1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
2 What is
your wall
made of?
3 Do you
have all
the tools
needed?
4 Ready to begin?
Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV owner’s manual to
see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer
Service at 1-800-359-5520 (UK: 0800-056-2853).
CAUTION: Avoid potential personal injuries and property damage!
ƕThis product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
ƕThe wall must be capable of supporting five times the weight of the TV and mount combined
ƕDo not use this product for any purpose not explicitly specified by manufacturer
ƕManufacturer is not responsible for damage or injury caused by incorrect assembly or use
100 lbs.
(45.3 kg)
Solid concrete
or concrete
block?
Perfect!
Drywall with
wood studs?
Perfect!
CAUTION:
DO NOT
install into
drywall alone
Unsure?
Call Customer Service:
1-800-339-5520
(UK: 0800-056-2853)
?
Wood Stud Install
Concrete Install
Tape
Measure Pencil Level Screw
driver
Electric
Drill
Socket
Wrench
Stud
Finder Awl Wood
Drill Bit
Masonry
Drill Bit Hammer
3/8 in.
(10 mm)
1/2 in.
(13 mm) 7/32 in.
(5.5 mm)
Before getting started, let’s make sure this mount is perfect for you!
3
SIDE VIEW - RETRACTED
TV INTERFACE
WALL PLATE
FULLY ASSEMBLED MOUNT
TOP VIEW - RETRACTED
16.73in
[425.05mm]
7.00in
[177.80mm]
27.27in
[692.7mm]
5.00in
[127mm]
17.31in
[439.74mm]
25.31in
[642.94mm] 27.27in
[692.7mm]
4.73in
[120]
1.21in
[30.69mm]
16.69in
[423.95mm]
23.62in
[600mm] 7.87in
[200mm]
Dimensions
4
Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
Parts and Hardware for STEP 1
M6/M8
M6 x 12mm M6 x 35mm
M8 x 16mm M8 x 35mm
M8 x 20mm
22mm
TV Brackets TV Screws
Washers
Spacers
03 x4 06 x4
05 x4 07 x404 x4
08 x4
09 x4
01 x1
02 x1
5
5/16 x 2¾ in.
in.
Fischer UX 10 x 60R
Concrete Anchors
For concrete installations ONLY
CAUTION: Do not use in drywall or wood
Parts and Hardware for STEP 2
Lag Bolt Washers
Lag Bolts
Wall Plate
12 x4
13 x4
11 x4
10 x1
6
STEP 1 Attach Brackets to TV
M6 M8
FLAT BACK ROUND BACK CABLESINSET HOLES
1.1 Select TV
Screw Diameter
1.2 Select TV
Screw Length
Hand thread screws into the threaded inserts
on the back of your TV to determine which
screw diameter (M6 or M8) to use.
ab
If your TV has a flat back, AND you want your TV closer to
the wall, use the shorter screws (a).
Use the spacers and longer screws (b) to accommodate:
• Round/irregular back TVs
• TVs with inset mounting holes
• Extra space needed for cables
Too Short
Too Long
CAUTION:
Verify adequate thread
engagement with your screw/
washer/spacer combination
AND TV bracket (STEP 1.3).
-Too short will not hold the TV.
-Too long will damage the TV.
Correct
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection,
contact Customer Service
at 1-877-689-1665.
7
1.3 Attach TV Brackets
Ensure that your brackets are level and centered as much as possible on the back of the TV.
Install using the screw/washer/spacer combination (a) or (b) you selected for your TV.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this
step. Tighten the screws only enough to secure the TV bracket to the TV. DO NOT overtighten the screws.
IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.
aFlat Back
bRound Back / Extra Space
09
08
06 07
02
01
03 04 05
08
IMPORTANT: After
attaching the brackets,
adjust the straps so
they are level with the
bottom of the TV.
8
1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.
2. Position the wall plate 10 at your desired height and line up the holes with your stud center line and level the wall plate 10 and mark the
holes.
2
1
Max.
5/8 in. (16 mm)
10
Min.
16 in. (406 mm)
STEP 2A Attach Wall Plate Wood Stud Option
CAUTION: Avoid potential personal injury or property damage!
• Drywall covering the wall must not exceed 5/8 in. (16 mm)
• Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
• Stud center must be verified
• Minimum horizontal space between fasteners: 16 in. (406 mm)
9
4
32¾in.
(70 mm)
7/32 in.
(5.5 mm)

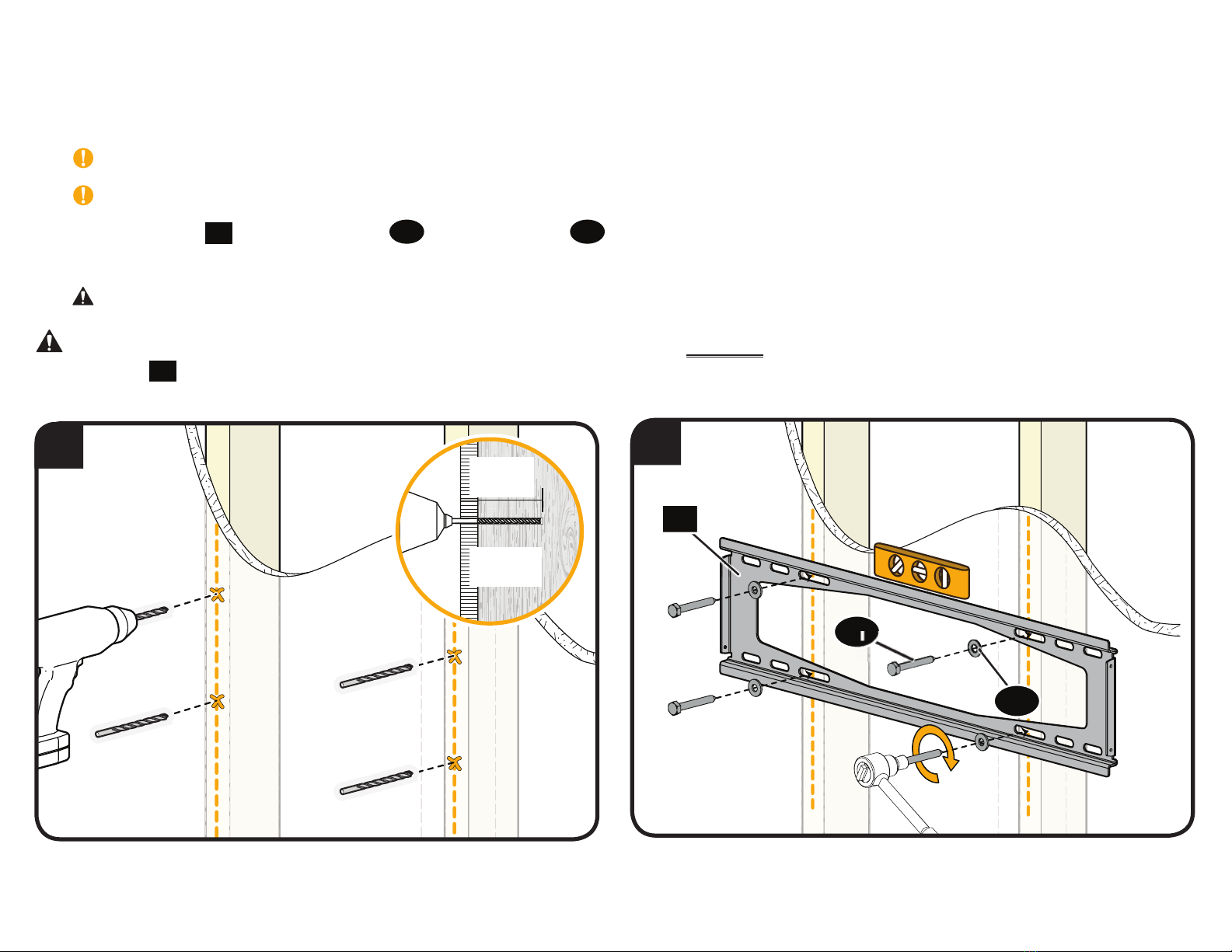

3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Be sure to drill into the center of the studs.
IMPORTANT: Pilot holes must be drilled to a depth of 2 ¾ in. (70 mm).
4. Install wall plate 10 using four lag bolts 11 and four washers 12 . Tighten the lag bolts only until they are pulled firmly against the wall
plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
CAUTION: Avoid potential personal injury or property damage! All lag bolts MUST BE firmly tightened to prevent unwanted movement of
the wall plate 10 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
10
11
12
10
1. Position the wall plate 10 on the wall at your desired height. Level the wall plate and mark the four hole locations.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
21
10
3/8 in.
(10 mm)
3 in. (75 mm)
STEP 2B Attach Wall Plate
Solid Concrete or Concrete Block Option
CAUTION: Avoid potential personal injury or property damage!
• Mount the wall plate 10 directly onto the concrete surface
• Minimum solid concrete thickness: 8 in. (203 mm)
• Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
• Minimum horizontal space between fasteners: 16 in. (406 mm)
