SDC ZY7500 Series Manuel utilisateur

SECURITY DOOR CONTROLS

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861

www.sdcsecurity.com • E-mail: [email protected]

P:\INSTALLATION INST\Electrified Lockset\INST-ZY7500 REV A 11-17 Page 1

Any suggestions or comments to this instruction or

product are welcome. Please contact us through

our website or email eng[email protected]

A. Door Preparation:

1. Measure desired height from finished floor, mark a horizontal line on door and door edge.

2. Align template on edge of door with applicable horizontal at height line. Check the chart for drilling trim

holes on template and mark only holes for lock function being installed.

3. Mortise door edge according to measurements on

installation template and drill proper holes for trim.

4. Recess for face plate, the dimension is:

L 8-1/32" x W 1-5/16" x D 7/32".

Height line

of lever

or knob

7/32"

INSTALLATION INSTRUCTIONS

ZY7500 SERIES MORTISE LOCK

of cylinder

of lockcase

of lever

or knob

Vertical centerline

Installation

template

Lof

door edge

P:\INSTALLATION INST\Electrified Lockset\INST-ZY7500 REV A 11-17 Page 2

B. Install Lockcase

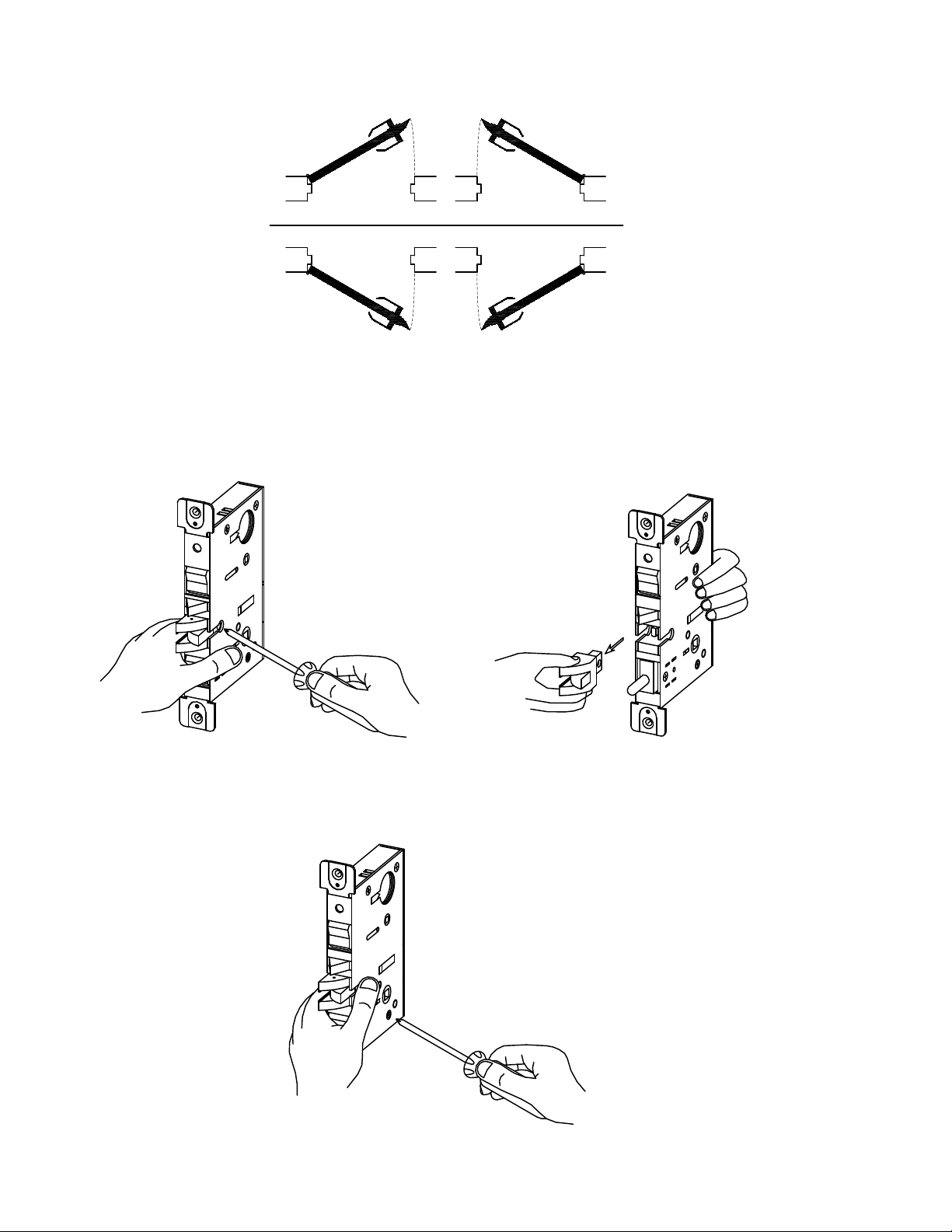

Make sure the lock hand matches the door hand, use the following diagram to determine the hand of door.

Left Hand

LHRB

Left Hand

Reverse Bevel

INSIDE OF DOOR

OUTSIDE OF DOOR

Right Hand

RHRB

Right Hand

Reverse Bevel

INSIDE OF DOOR

OUTSIDE OF DOOR

1. Change latchbolt handing

If the hand of the latchbolt doesn’t match the door hand, remove the fixing screw and pull the latchbolt out from

lock case. Turn the latchbolt 180 ° to change the handling. Position latchbolt back, into case and fasten it.

Instructions for changing lock hand:

Remove screw

Pull out and turn

2. Change hand of lock

For RH and RHRB, the catch screw will be on the lock case side. For LH and LHRB, the catch screw will be on the

lock cover side.

P:\INSTALLATION INST\Electrified Lockset\INST-ZY7500 REV A 11-17 Page 3

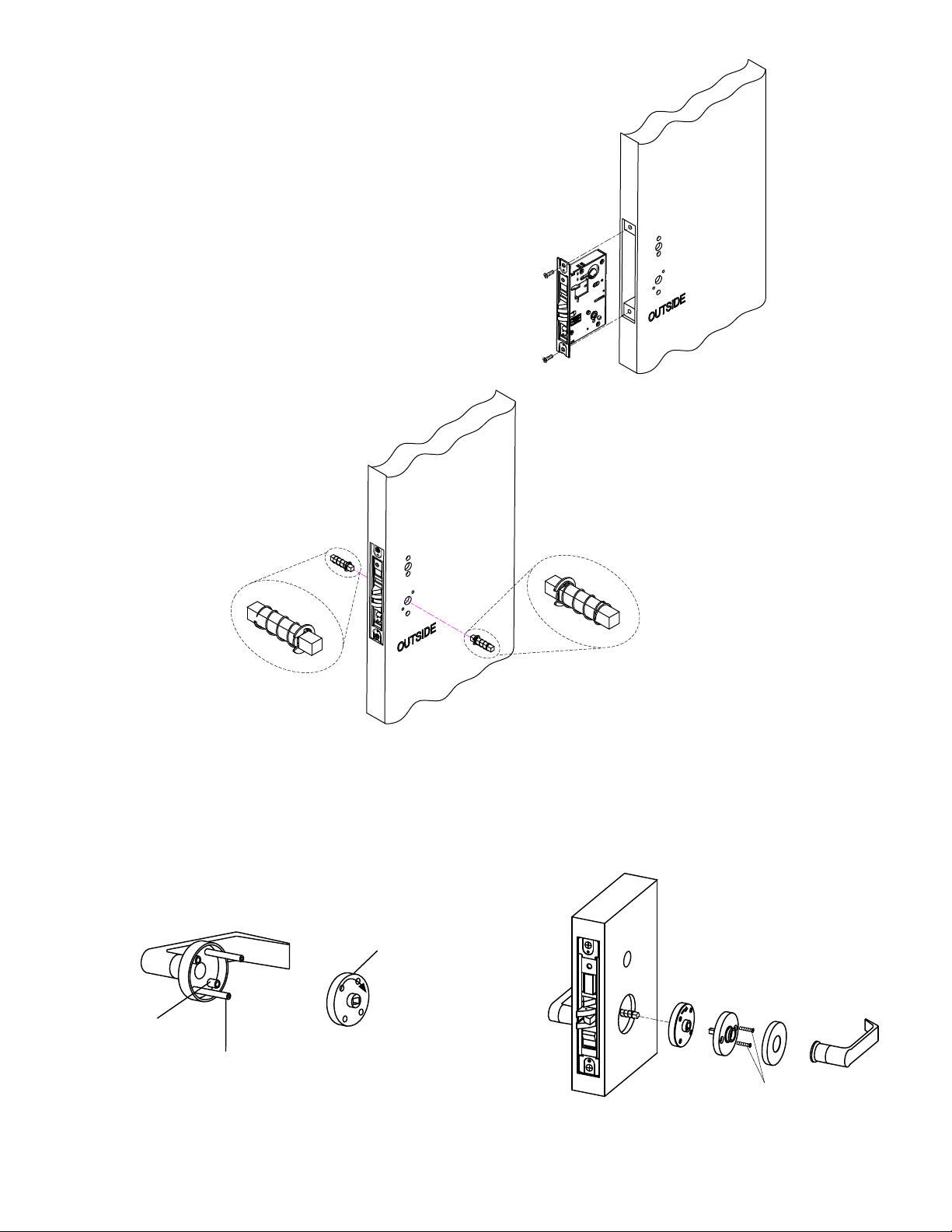

3. Connect wires as shown on the lock cover diagram.

4. Insert lockcase into mortise cut-out and fasten screws to door.

1. Insert spindles as shown

D. Install Lever trim

1. Place the reversible spring cage onto the ferrules with arrow pointing in direction of lever rotation.

2. Install outside trim with mounting posts through door and position lever onto the spindle.

3. Install inside spring cage onto the spindle with the arrow pointing in the direction of inside lever rotation.

4. Install inside mounting plate onto spindle. Tighten with provided screw.

5. Cap inside rose over mounting plate.

C. Install Spindles

B. Install Lockcase (Continued)

Reversible spring cage

Ferrule

Mounting post

Into Mounting post

P:\INSTALLATION INST\Electrified Lockset\INST-ZY7500 REV A 11-17 Page 4

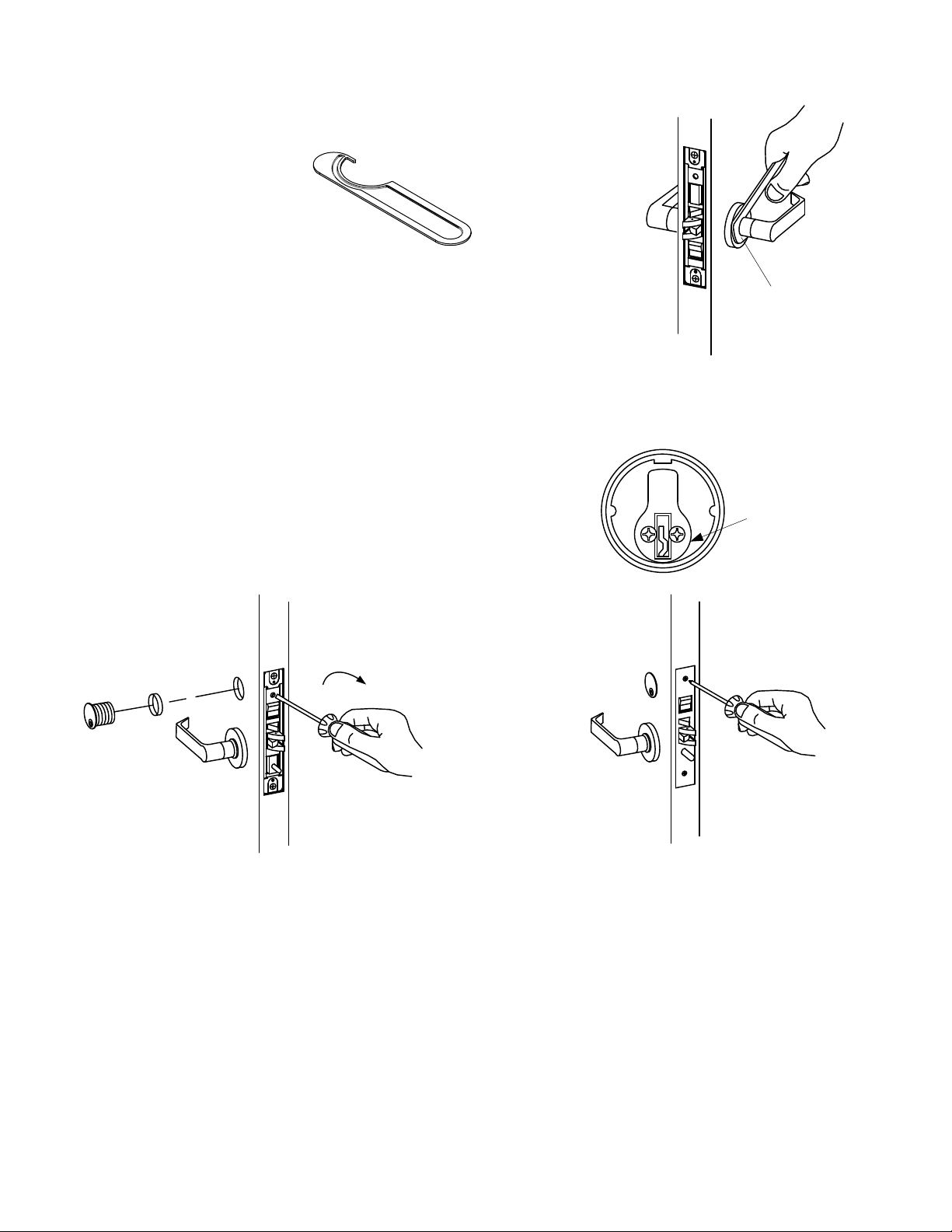

1. Screw cylinder into threaded hole of lock case.

2. Tighten the setting screw against cylinder(s) by turning clockwise as shown.

3. Install face plate onto lock case front and fasten with supplied screws.

E. Install Cylinder and Armor Face Plate

USE THIS CAM.

D. Install Lever trim (continued)

6. Screw inside lever into position and tighten lever collar with supplied spanner wrench.

spanner wrench.

Spanner wrench
