SDC 1190A Series Manuel utilisateur
M:\INS\Temp-1190A REV A 0702 Page 1
Security Door Controls
3580 Willow Lane
Westlake Village, CA 91359
(805) 494-0622
Fax: (805) 494-8861
www.sdcsecurity.com
E-mail: service@sdscecurity.com

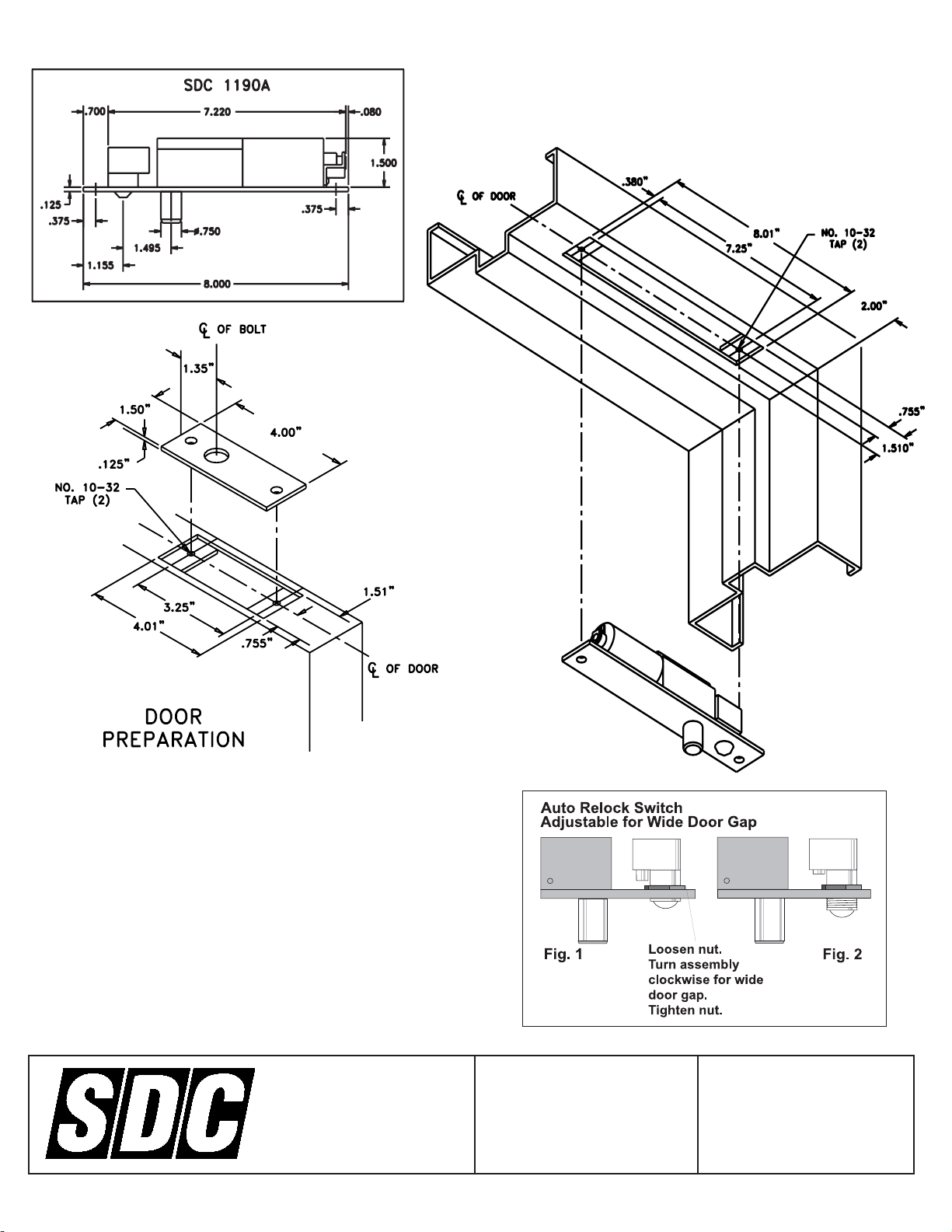

TEMPLATE
1190A
DATE 3/19/01
DRAWING
3293
NOTE: TEMPLATE DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT
NOTICE.
TECHNICAL DATA (for standard unit)
FACE PLATE: 8” X 11/2” X 1/8”
STRIKE: 4” X 11/2” X 1/8”
ID REQUIREMENTS: 8” X 11/2” X 11/2”
FINISH: US28 STANDARD (PLATED FINISHES OPTIONAL)
BOLT: 3/4” DIA. SOLID STAINLESS STEEL
BOLT THROW: 3/4”, ROTATING
FAIL-SAFE: LOCKED WHEN ENERGIZED
AUTO RELOCK SWITCH: ADJUSTABLE BALL TYPE
SOLENOID: CONTINUOUS DUTY
ELECTRICAL DATA: 19 WATTS - .8 AMP MAX AT 24VDC
A RECTIFIER IS SUPPLIED FOR AC
OPERATION
(SPECIFY VOLTAGE REQUIRED)
STATUS SENSORS: BOLT AND DOOR POSITION (OPTIONAL)
NOTE: FOR WOOD INSTALLATION CONSULT FACTORY.
SECURITY DOOR CONTROLS
3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
INSTALLATION INSTRUCTIONS
FS23M, 1090, 1190 SERIES
OVERHEAD INSTALLATION HORIZONTAL
1. Examine the top rail of the door for the most suitable location for the strike. Mark the door for the end of the strike closet to the lock
stile, and make a corresponding mark on the header to line up with the first mark.
2. Locate center line of door thickness on the header and attach adhesive cut out template to header. Lining it up with marks, center
punch the tab-mounting screw locations and counter-sink for #10 screw. Saw or rout out the cutout area.
SIDEJAMB INSTALLATION VERTICAL
3. Examine the lock stile jamb for the point nearest the center of the door height, with space available for the lock and strike. Mark the
door stile horizontal for the top end of the strike and make a corresponding mark on the jamb.
4. Locate center line of door thickness on the jamb and attach adhesive cutout template to jamb, lining up the the top of the cutout with
the horizontal mark on the jamb. Center punch the tab mounting screw locations and counter sink for #10 screw. Saw or rout the
cutout 1-1/2” x 8”.
5. Attach the mounting tabs inside.
6. (FS23M only) bore 5/16” hole for pilot lamp on inside face of frame as shown.
7. Attach power supply leads to lock leads as shown. Handle the lock carefully; do not hang it by the wire leads. Insert wires into the
header cavity carefully so they do not interfere with proper locating of the lock in the cutout.
8. Insert lock. Horizontally, the bolt end is nearest the lock stile. Vertically, the bolt must be at the top end of the cutout. Secure with
10/32 machine screw.
9. Using strike for a template, mark screw hole location and drill holes for screws supplied. Mortise as required. Attach strike.
10. The automatic relock switch is set for 1/8” clearance between the top of the door and transom bar or head jamb. Any additional
gap may be compensated for by loosening the lock nut and turning the switch assembly clockwise until proper adjustment is
reached. Be sure to tighten lock nut when adjustment is satisfactory.
All Space Saver locks are easi-
ly installed in any existing
entrance merely by mortising
out a cutout, attaching the
wiring, inserting the lock, and
bolting it into position with two
attaching tabs. Cutting studs is
no longer a problem or
expense.
Easy Installation or Servicing
M:\INS\INST-90 DEG REV A 0702 Page 1
2. Position screws
for attaching tabs,
drill holes, attach
tabs.
1. Mortise cutout in
tube for face plate
(fits flush with
surface of tube).
3. Connect wiring
to lock.
4. Slide lock into
position, attach
to tabs.
SPECIFICATIONS
FS23M Face plate: 8” x 1-1/2” x 1/8” (203.2mm x 38.1mm x 3.175mm)
I.D. Requirements: 8” x 1-1/2” x 1-1/2”
(203.2mm x 38.1mm x 38.1mm)
Solenoid: Continuous duty
Standard voltage: 24VDC, 0.5 Amp
12VDC, 1 Amp
Strike: M-Mortise 4” x 1-1/2” x 0.125” (101.6mm x 38.1mm x 3.175mm)
For wood 1-3/4” deep (44.45mm)
Bolt: 5/8” (15.88mm) dia. nylon with magnet insert, 5/8” (15.88mm) throw. Red pilot
lamp standard to indicate door locked.
1091A/1091ADC (Deadlocking)
Face plate: 8” x 1-1/2” 0.125” (35.1mm x 35.1mm x 3.175mm)
1091STA: 4-7/8” x 1-1/4” x 0.0937” ANSI
(123.53mm x 31.75mm x 2.28mm)
I.D. Req. 8” x 1-1/2” x 1-1/2”
(203.2mm x 38.1mm x 38.1mm)
Solenoid: Continuous duty
Standard voltage: 24VDC, 0.5 Amp
12VDC, 1 AMP
Strike: M-Mortise 4” x 1-1/2” x 0.125” (101.6mm x 38.1mm x 44.45mm)
Bolt: 5/8” (15.88mm) dia. S.S., 3/4” (6.35mm) throw
1190A
Face plate: 8” x 1-1/2” x 0.125”
(203.2mm x 38.1mm x 3.175mm)
I.D. Requirements: 8” x 1-1/2” x 1-1/2”
(203.2mm x 38.1mm x 38.1mm)
Solenoid: Continuous duty
Standard voltage: 24VDC, 0.7 Amp
Strike: M-Mortise 4” x 1-1/2” x 0.125” (101.6mm x 38.1mm x 3.175mm)
Bolt: 3/4” (6.35mm) dia. S.S., 3/4” (6.35) throw
TROUBLE SHOOTING
Problem Solution
Bolt does not project Check voltage and alignment
of strike.
Bolt projects but chatters Voltage too low.
Bolt will not retract Strike misaligned
BOLT POSITION SENSOR (MAGNETIC)
No. 6 SPDT Indicates bolt locked or unlocked .25 Amp
DOOR POSITION SENSOR (MAGNETIC)
No.9 SPDT Indicates door opened or closed .25 Amp
DOOR POSITION SWITCH (MECHANICAL)
DPS SPDT Indicates door opened or closed 5 Amp
DIMENSIONS: INCHES
MILLIMETER
Drill for Pilot
Lamp on inside
face of frame
M:\INS\INST-90 DEG REV A 0702 Page 2
DOOR IS SHOWN CLOSED AND LOCKED.
UNLOCKING MAY BE CONTROLLED BY
MULTIPLE SWITCH LOCATIONS.
