Product Manual for Ice Dispensers

Models HD22 and HD30

Introduction

To the owner or user: This product manual is a

source of information about the installation, start

up, cleaning, maintenance and repair of the

product.

HD22 and HD30

September 2003

Page 1

Table of Contents

Introduction ················································· Page 1

General Description ············································· Page 2

Specifications & Limitations ········································· Page 3

HD30 Dimensioned Illustration ······································· Page 4

HD22 Dimensioned Illustration ······································· Page 5

Product Description ············································· Page 6

Unpacking ·················································· Page 7

Installation - Plumbing ··········································· Page 8

Installation - Electrical and Ice Machine Assembly ····························· Page 9

Final Check List/Initial Start Up ······································· Page 10

Use ····················································· Page 11

General Care and Cleaning ········································· Page 12

General Care And Cleaning - Continued ·································· Page 13

Maintenance ················································ Page 14

Adjustments ················································· Page 15

Service Diagnosis ·············································· Page 16

General Description

The HD22 is a hotel/motel ice dispenser. It is

designed to use a Scotsman C0322 or C0522

cube ice machine as the source for ice.

The HD30 is a wider version of the HD22 and is

designed to use a Scotsman C0330 or C0530

cuber as its source of ice. Additional models may

be used, see sales information for details. Flaked

or nugget ice is not recommended for use in these

dispensers.

Ice from the cuber falls into the insulated hopper,

where it is stored until needed. When a user

pushes the dispense chute a rotating wheel

scoops the ice up to the top front of the hopper

where there is an outlet to the ice chute.

HD22 and HD30

November 2011

Page 2

Model Dimensions

w”xh”xd”

with 6” leg

Basic Electrical

volts/hertz/phase

Model Description Bin Storage

Capacity, ARI rated

HD22B-1A 22 x 53 x 33 ½ 115/60/1 Basic 22” model, 60 Hz 120 lb

HD22B-6A 22 x 53 x 33 ½ 230/50/1 Basic 22” model, 50 Hz 120 lb

HD30B-1A 30 x 53 x 33 ½ 115/60/1 Basic 22” model, 60 Hz 180 lb

HD30W-1A 30 x 53 x 33 ½ 115/60/1 Water station model 180 lb

HD30B-6A 30 x 53 x 33 ½ 230/50/1 Basic 30” model, 50 Hz 180 lb

All 60 Hz models are supplied with an 11’ power cord, 50 Hz models have a 1.1 meter power cord. Basic

models dispense ice when their chute is pushed. Coin/token models discontinued in 2011.

Cuber Model Fits Dispenser Adapter

C0322 HD22 None Needed

C0522 or CB0522 HD22 None Needed

C0330 or CB0330 HD30 None Needed

C0530 or CB0530 HD30 None Needed

* Higher capacity cubers, C0630 or C0830, may also be used, but they require 230 volt power.

Basic Specifications

Specifications & Limitations

This dispenser is designed to be installed and

operated indoors, in a controlled environment. Its

minimum and maximum operating temperature

limits are the same as those for the ice machine.

Minimum Maximum

Air Temp 50oF. 100oF.

Voltage 60 Hz 104 126

Check the nameplate, located on the back of the

cabinet for specific information.

Scotsman reserves the right to make design

changes and/or improvements at any time.

Specifications and designs are subject to change

without notice.

Scotsman assumes no liability or responsibility of

any kind for products manufactured by Scotsman

that have been altered in any way, including the

use of any parts and/or other components not

specifically approved by Scotsman.

Models

There are twp versions of the HD30 dispensers:

Basic and Water Station. The Basic version is

constructed to deliver ice when the ice chute is

pushed in, and it continues to vend ice as long as

the ice chute is held in.

The Water Station version is a Basic version with a

mechanical water faucet added to the left of the ice

chute. Water is dispensed whenever the faucet

lever is pushed back. The HD30 is available in all

versions, the HD22 is only available as a Basic

model.

50 Hz.

The Basic models of the HD22 and HD30 are

available in 230 volt 50 Hz electrical for those

countries with that type of electrical service.

HD22 and HD30

November 2011

Page 3

HD30 Dimensioned Illustration

HD22 and HD30

September 2003

Page 4

30"

762.4

28"

711.2

10"

WATER VALVE HEIGHT

(WATER FILLER ONLY)

254.8

152.4

53 1/4"

1351.3

ICE FILL STATION

8 3/4 [221.5] HIEGHT

13 1/2 [342.9] WIDTH

8 1/2 [215.9] DEPTH

RIGHT SIDE

FRONT

24"

609.6

81 1/4"

2062.5

25 5/8"

650.5

33 1/2"

849.4

ICE

HEAD

ICE

HEAD

BACK

POWER

CORD

17 3/4"

451.1 1"

24.1

7 1/2"

189.4

179.1

7 1/2"

189.7

17 1/2"

444.4

WATER INLET

3/8 FLARE

(WATER FILLER ONLY)

3/4 FPT

DRAIN

(2) 5/16-18 UNC

ICE HEAD MOUNTING

Note: Ice fill station depth is

curved to match large ice

buckets. Listed number is

the maximum depth.

HD22 Dimensioned Illustration

HD22 and HD30

September 2003

Page 5

28"

711.200

22"

558.8

152.4

53 1/4"

1351.3

ICE FILL STATION

8 3/4 [221.5] HIEGHT

13 1/2 [342.9] WIDTH

8 1/2 [215.9] DEPTH

24"

609.6

81 1/4"

2062.5

33 1/2"

850.1

25 5/8"

650.6

ICE

HEAD

ICE

HEAD

FRONT RIGHT SIDE

16"

406.4 1"

24.1

3 1/2"

88.9

179.1

POWER

CORD

3/4 FPT

DRAIN

BACK

(2) 5/16-18 UNC

ICE HEAD MOUNTING

Note: Ice fill station depth is

curved to match large ice

buckets. Listed number is

the maximum depth.

Product Description

All models consist of a plastic lined, insulated

hopper mounted to a metal base. The hopper

contains a 15 blade plastic dispense wheel and a

stainless steel sweep arm. The top front of the

hopper has a removable door to facilitate

maintenance and cleaning of the hopper without

removal of the ice machine.

The dispense wheel and sweep arm rotate when

the dispense drive motor is actuated. The drive

motors actuation is controlled by the agitation timer

or the vend switch. When the ice dispense chute is

pushed back it moves the actuation lever up. The

actuation lever releases the chute door and

pushes the vend switch arm up. When the vend

switch arm has moved a preset distance the vend

switch contacts close, providing power to the

dispense drive motor. Ice is delivered to the top

end of the ice chute by the dispense wheel and it

slides down the chute to the container below.

The container rests on a grill, the grills

openings are over the ice catch pan,

and any spilled ice goes there. The

grill has a flange at the front to help

contain the ice if it spills during vending.

After the ice dispense chute is

released, the ice chute door closes to

stop ice flow. Ice in the chute will

eventually melt. Melted ice water

is routed to the drain through a

hose attached to the bottom of

the chute. Spilled ice is

contained in an insulated ice

catch pan. Melted ice water

from the ice catch pan is

routed to the drain. User

debris is kept away from the

drain in the catch pan by a

slotted shield.

The side and front exterior panels

are made of corrosion resistant

metallic finish. The vending area and

top panel are made of plastic.

HD22 and HD30

August 2015

Page 6

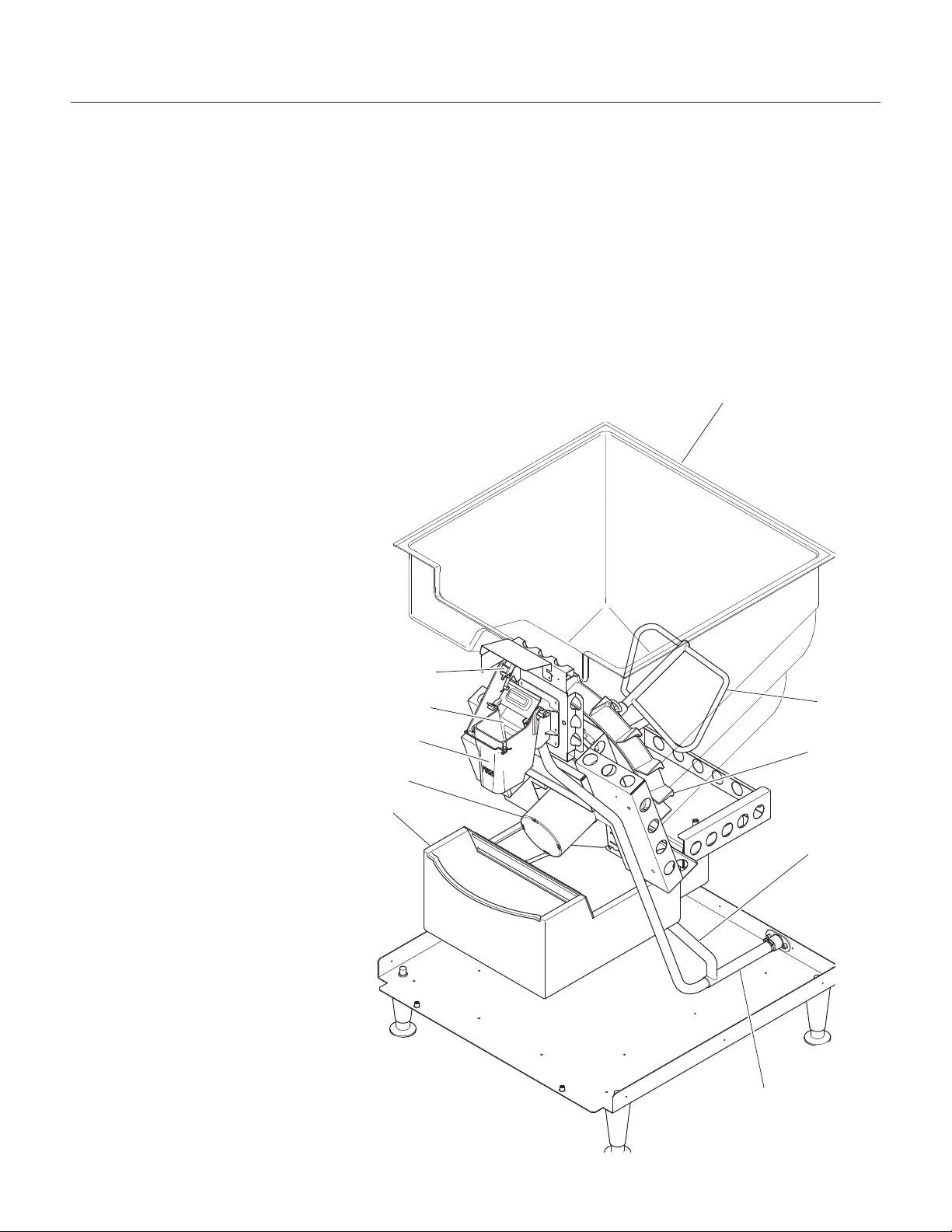

Bin

Vend Switch

Chute Door

Chute

Drive Motor

Ice Catch

Pan

Sweep

Arm

Dispense

Wheel

Drain Hose

to Ice

Catch Pan

Drain Hose

Unpacking

After removing the carton, check for the

loose-shipped parts packed in the storage bin. The

parts will include a carton with four legs. Remove

the leg carton and any other loose-shipped items.

To remove the skid, place part of the carton behind

the unit and tip the unit on its back. Remove the

bolts holding the skid to the base of the HD

dispenser and separate the skid from the unit.

Install the legs into the base of the unit, using the

holes where the skid bolts were. Turn the leg

leveler part of the legs in all the way, adjust them

later after the unit is in its final installed position.

Move the dispenser to an upright position and set it

in the location where it will be installed. Note where

drain lines and electrical connections will be made.

Front Panel Removal

The front panel rests on the base and is located

with pins that stick up from the base. It is retained

to the side panels by strikes and latches. The top

panel keeps the front panel from moving forward.

To remove:

1. Disconnect electrical power.

2. Remove the two screws holding the top panel to

the dispenser. Lift the top panel up and off the

dispenser.

3. Pull the top edge of the front panel forward until

the two snaps disengage.

·If the unit is a coin op model, reach behind the

front panel and disconnect the coin mechanism

harness from the front panel.

·If the unit is a water station model, reach behind

the front panel and shut off the water supply

valve to the water faucet. Then disconnect the

water line from the shut off valve.

4. Lift the front panel up and off the base.

HD22 and HD30

September 2003

Page 7

Top Panel

Front

Panel

Installation - Plumbing

Drain:

All models of the dispenser have a 3/4" FPT drain

fitting at the bottom of the back panel. Connect 3/4"

rigid tubing to this connection, a vent is

recommended for most installations. Route the

drain tubing to the building drain.

Note: Drain fitting material is plastic. If using

copper, sweat the copper tube to copper fitting

together before installing on the dispenser.

Note: Keep PVC solvent away from all plastic parts

of the dispenser.

Follow all applicable plumbing codes.

Because the drain tubing will be very cold,

insulation is recommenced for the tubing.

Water:

HD30 water station models must be

connected to a source of potable water.

The water supply must have adequate

backflow protection to comply with

applicable codes.

Flush the water supply line before

connecting it to the dispenser.

HD22 and HD30

September 2003

Page 8

Drain Connection, Back View of Dispenser

Installation - Electrical and Ice Machine Assembly

The dispenser is supplied with a power cord. Do

not use with an extension cord. The unit must be

plugged into a properly grounded outlet.

The dispenser must be installed so that it is a

separate piece of equipment from the ice machine.

The drains and electrical supply must be separate.

Follow All Local State and National Codes

Ice Machine

All models: Place the dispenser in the location

where it will be used. Level the top edge of the

dispenser front to back and left to right.

Sanitize the dispenser bin with a locally

approved sanitizer. See page 13.

Place the ice machine on the dispenser and secure

it to the dispenser with the hardware and straps

from the ice machine. Install it according to the

instructions in the manual included with the ice

machine.

HD22 and HD30

September 2003

Page 9

Ice Machine

Drain, Keep

Separate

Floor Drain

Back View of HD22 Installation

Back View of HD30 Installation

Fasten Ice Machine to Dispenser

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Scotsman Machine à glaçons

Scotsman

Scotsman CME500 Manuel utilisateur

Scotsman

Scotsman CME2006R Manuel utilisateur

Scotsman

Scotsman DCE33 Series Manuel utilisateur

Scotsman

Scotsman HID312AW1 Manuel utilisateur

Scotsman

Scotsman MDT6N90 Manuel utilisateur

Scotsman

Scotsman FM2402R Manuel utilisateur

Scotsman

Scotsman AFE325 Manuel utilisateur

Scotsman

Scotsman CU0415 Manuel utilisateur

Scotsman

Scotsman DMS21SB Manuel utilisateur

Scotsman

Scotsman CME506 Manuel utilisateur

Scotsman

Scotsman SCCG50M-1SS Manuel utilisateur

Scotsman

Scotsman CMS1002W Manuel utilisateur

Scotsman

Scotsman TouchFree MDT2C12 Manuel utilisateur

Scotsman

Scotsman FME800R Manuel utilisateur

Scotsman

Scotsman MXG 327 Manuel utilisateur

Scotsman

Scotsman FM2402RH Manuel utilisateur

Scotsman

Scotsman FME2404 Manuel utilisateur

Scotsman

Scotsman SCCG30 Manuel utilisateur

Scotsman

Scotsman NH0422 Manuel utilisateur

Scotsman

Scotsman Residential Ice Machines SCC50 Manuel utilisateur

Scotsman

Scotsman AFE400 Manuel utilisateur

Scotsman

Scotsman 300 lb Cube Ice Machine C0322 Manuel utilisateur

Scotsman

Scotsman CU0515GA1 Manuel utilisateur

Scotsman

Scotsman C2648MR-3 Manuel utilisateur

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

U-Line

U-Line UMCR014-SC01A Manuel d'installation

Andrew James

Andrew James AJ000522 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur

Electrolux

Electrolux E15IM60GP Manuel utilisateur

Cornelius

Cornelius UC150 ICE ONLY Manuel utilisateur
