Scosche LPBW15 Manuel utilisateur
1
~
SCDSCUE
" LPBW15
STEREO REPLACEMENT & STEERING WHEEL
CONTROL INTERFACE FOR
SELECT2004-UP
BMW
VEHICLES
This LPBW15 allows you to replace your factory OEM stereo
while retaining factory steering wheel controls and parking
sensor audio/warning tones (ifvehicle is equipped)
DESIGNED
&
ENGINEERED
IN
U.K
CUSTOM
MANUFACTURED
IN
CHINA
APPLICATION
GUIDE
BMW:
MINI:
2006-UP SELECT MINI MODELS
2008-13 1-SERIES (E81/E82/E87/E88)
2006-13 3-SERIES (E90/E91/E92/E93)
2004-10 5-SERIES (E60/E61) For vehicles with BMW Business head units and
Quadlock
(40
Pin) connections
2004-10 6-SERIES (E60/E61)
2002-08 7-SERIES (E65/E66/E67/E68)
2010-16 Z4 (E89)
For
full applications:
Go
to
www.scosche.com
2013-15
X1
(E84)
FEATURES
RETAINS:
-Retains Steering wheel controls (if equipped)
-Retains Parking
sensor
audio/warning tones (if equipped)
~!rJ,ll!iD·l~13!Jl~l~i~
If
you
have
any
further
questions, call
our
toll-free technical help line at:
1-800-363-4490
x1
© Scosche Industries, Inc 2018 LPBW152/18
This LPBW15 instruction manual is based on carefully documented data and research. Scosche Industries Inc.
cannot be held responsible for discrepancies/inconsistencies that may occur due to the vehicle manufacturing
changes or options, or damages that may occur in the vehicle during the installation of components while using
this manual.
WIRING
COLOR
CODES
White=
White/Black=
Green=
Green/Black=
Black=
Left Front Positive (LF+)
Left Front Negative (LF-)
Left Rear Positive (LR+)
Left Rear Negative (LR-)
Chassis Ground
Gray=
Gray/Black=
Violet=
Violet/Black=
Orange=
Right Front Positive (RF+)
Right Front Negative (RF-)
Right Rear Positive (RR+)
Right Rear Negative (RR-)
Illumination
Yellow=
Red=
Blue=
+12V Constant Power
+12VAccessory
+12V PowerAntenna
(Remote Out)
NAVIGATION
CONNECTIONS:
Pink=
VSS Vehicle Speed Pulse Signal
Lt.
Green=
Parking Brake Trigger (-12V when park brake
ON)
Purple/White=
Reverse Signal
Yellow=
Permanent 12v Suppy
NOTES:
The RED accessory output wire from the LPBW15 interface is rated at 10AMax output for most
aftermarket head units.
We
do
NOT recommend connecting additional +12Aswitched accessories to this
output source as that may cause damage to the LPBW15 module itself. If 10Aoutput
is
not sufficient,
then a relay is needed. (Relay not included)
STEERING
WHEEL
WIRING
CODES
SWC WIRING DIAGRAM
~~
;_
;:
___
_
~
Violet, Green, Orange Loops
¥~
"'
"'
3
3
~~
;,;
m
-<
"
1.
Prepare SWC steering wheel connector harness by using the chart below
2. Connect the harness to the interface module.
3. ForAlpine, Clarion, JVC, Panasonic and Sony car stereos, connect the 3.5mm male steering plug
into the steering wheel inputjackat the back
of
the stereo.
4.
For Kenwood and newer JVC stereos, connect the BROWN wire from the steering wheel harness
to the "Remote in" wire at the back
of
the stereo.
STEREO
BRAND
CONFIGURATION
CONNECTION
TO
STEREO
ALIPNE Cut Green Loop 3.5mm
CLARION Cut Violet Loop 3.5mm
JVC Cut Green & Violet Loop 3.5mm or Brown (Key1)
KENWOOD Cut Orange & Green Brown (Key 1)
PANASONIC Cut Orange Brown (Key 1)
PIONEER/ SONY Do Not Cut Loops 3.5mm
OTHER BRANDS Call Tech Support Brown, Gray, Black
r
.,.
I
If
you
have
any
questions
or
need
technical
assistance
with
the
installation,
T
EC
H
or
the
most
current
application
please
call
or
visit
us
on
the
web
at:
SU
PPO
RT
■
(800) 363-4490
x1
Iwww.scosche.com/contact
,J
Continued on Page 3
•
2

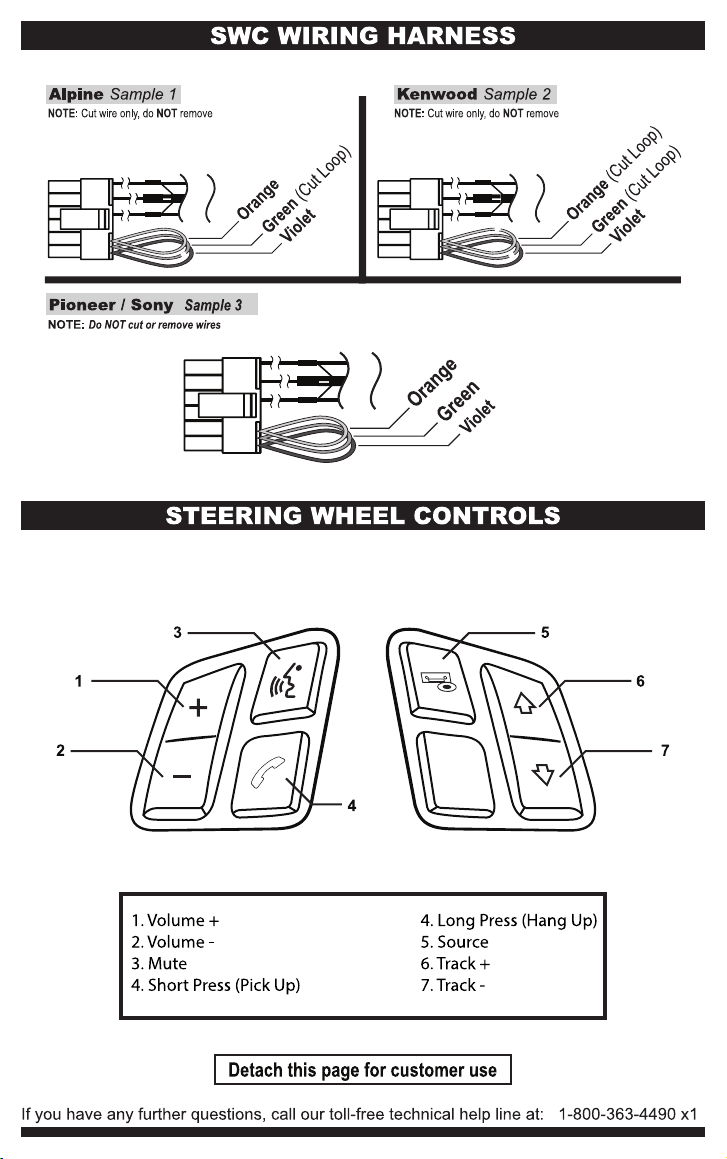

SWC
WIRING
HARNESS
Alpine
Sample 1
NOTE:
Cut
wire
only,
do
NOT
remove
Pioneer
/
Sony
Sample
3
NOTE:
Do
NOT
cut
or
remove
wires
Kenwood
Sample 2
NOTE:
Cut
wire
only,
do
NOT
remove
STEERING
WHEEL
CONTROLS
4
1.
Volume+
4.
Long
Press
(Hang Up)
2.
Volume-
5.
Source
3.
Mute
6.
Track+
4.
Short
Press
(Pick Up)
7.
Track-
Detach
this
page
for
customer
use
Ifyou have any further questions, call our toll-free technical help line at: 1-800-363-4490
x1
3
LPBW15 WIRING DIAGRAM
STEREO BRAND CONFIGURATION
CONNECTION
TO
STEREO
ALPINE Cut Green Loop 3.5mm
CLARION
CutViolet Loop 3.5mm
JVC Cut Green & Violet Loop
3.5mm
or
Brown
(Key
1)
KENWOOD Cut Orange & Green Brown (Key 1)
PANASONIC
Cut Orange Brown (Key
1)
PIONEER f SONY
Do
Not Cut Loops 3.5mm
OTHER
BRANDS
Call
Tech
Support Brown, Gray, Black
Chime Retention
Audio Retention Interface
Key 2 to Aftennarket Radio
a=
:o-
---------,
Key 1 to Aftermarket Radio
cr
-=u-
---------,1
3.5MM to Aftermarket Radio
GND to Aftermarket Radio
=
[)-
--------,111
Navigation
Connections:
LPBW15
Pink=
VSS
Vehicle
Speed
Pulse
Signal
LT.
Green=
Parking
Brake
Trigger
Purple=
Reverse
Signal
Yellow=
12v
Permanent
Pink/Black=
Telephone
Mute
To
Vehicle
Harness
C
4
