Scosche BFTAK Manuel utilisateur

BFTAK

HANDS-FREE BLUETOOTH®INTERFACE FOR SELECT

2005-UP SELECT TOYOTA, SCION, LEXUS VEHICLES

iPhone is a trademark of Apple Inc., registered in the US and other countries.

SI 02/10-BFTAK (3000493)

SAT-READY RADIO IS REQUIRED FOR

ALL APPLICATIONS LISTED BELOW

APPLICATIONS HARNESS APPLICATIONS

Scosche’s BFTAK Bluetooth Interface will allow you to wirelessly communicate with your

Bluetooth enabled celular phone and Stereo Bluetooth transmitters. The BFTAK communi-

cates directly with your factory radio allowing you direct control of hands-free, voice dialing,

and A2DP functionality. These interfaces maintain the original integrity of important diagnostic

and safety systems within the vehicle. For up-to-date applications or any Technical asistance

with this product, call Scosche Tech support at (800) 621-3695 Ext 3.

LEXUS

GS 2006-07

IS250/350 2006-08

RX350 2005-08

SCION

tC 2005-06

xA 2005-06

xB 2005-06

xB 2008-09

xD 2008-09

TOYOTA

4RUNNER 2005-09

AVALON 2005-09

CAMRY 2007-09

COROLLA 2005-09

FJ CRUISER (PREMUIM/JBL RADIOS ONLY) 2007-09

HIGHLANDER 2005-09

LAND CRUISER 2005-07

MATRIX (NON-JBL RADIOS ONLY) 2009

MATRIX 2005-08

PRIUS W/NAVIGATION ONLY 2005-08

RAV4 2006-09

SEQUOUIA 2006-09

SIENNA 2005-09

SOLARA 2005-09

TACOMA (NON-JBL RADIOS ONLY) 2009

IMPORTANT CELL PHONE DISCLAIMER: READ FIRST!

• SomecellularphonemanufacturersutilizeaBluetooth microprocessor that

unfortunately is not compatible with the BlueFusion system. Some phones

from Palm, LG (Envy/Envy2), Samsung (Impression) and HTC (Omni) have

exhibited operating difficulties with the BlueFusion system. If you own these

models or other models from these manufacturers call Scosche Tech Support

for the latest updated phone incompatibility list. (800) 621-3695.

• ThisBlueFusiondevicewillpairtoONEphoneattime.

• Duetovariancesincellphonemanufacturing,CallerIDfunctionsmayvary

from what is printed in this manual.

• BlueFusiondoesnotsupportphonebookprofiles.

• Scoschedoesnotguarantee100%compatibilitywithallBluetooth

cellphones.

PWR

SAT1MainMenu ch001

CH 001

1VoiceCmd

CH 002

2Incoming

CH 003

3Redial CH 100

6->SAT

CH 005

5Outgoing

CH 004

4Missed

TEXT

TYPE

SEEK TYPE

SCAN

TYPE

SOUND ASL

BLUEFUSION

WORKS WITH

NAVIGATION RADIOS AND

NON-NAVIGATION RADIOS

PWR

SAT1MainMenu ch001

CH 001

1VoiceCmd

CH 002

2Incoming

CH 003

3Redial CH 100

6->SAT

CH 005

5Outgoing

CH 004

4Missed

TEXT

TYPE

SEEK TYPE

SCAN

TYPE

SOUND ASL

BLUEFUSION

RADIO COMPATABILITY

INSTALLATION

NOTE: RADIO ILLUSTRATIONS ABOVE ARE OF TYPICAL. THERE ARE ADDITIONAL

RADIO MODEL/ STYLES THAT ARE COMPATIBLE WITH BLUEFUSION.

YOUR CAR MAY DIFFER.

TECH TIP: When mounting the BFTAK make sure to be clear of all moving

mechanical device that may hit or damage the interface. Keep away from any

hot surface areas like heater ducts direct sun light and metal surface areas that

have the potential of getting hot.

BFTAK INTERFACE INSTALLATION

1. Carefully remove the radio from the dash of the vehicle (For assistance you

can contact Scosche Tech Support at 800-361-3695).

2. Plug the male 12-pin connector of the BFTAK harness into the female 12-pin

port on the back of the radio, then connect the factory male 12-pin connector

into the female 12-pin connector on the BFTAK harness.

3. Plug the male 20-pin connector of

the BFTAK harness into the female

20-pin port on the back of the radio,

then connect the factory male

20-pin connector into the female

20-pin connector on the BFTAK

harness.

4. Plug the male 24-pin connector of

the BFTA harness into the BFTAK

interface.

12 Pin Male Plug

To Factory Harness

12 Pin Factory Male Plug

12 Pin Female Plug

FACTORY

RADIO

Microphone

3 Pin Male Plug

20 Pin Male Plug

20 Pin Female Plug

TECH TIP: Aim the microphone in the direction of the driver’s headrest.

MICROPHONE INSTALLATION:

1. Attach the microphone to the headliner above the rear view mirror.

2. Carefully route the microphone cable behind the headliner and down the “A”

(front most) pillar. Use caution when routing cable and avoid sharp edges or

moving metal parts.

3. Route the cable to the BlueFusion interface location and plug it into the 3-pin

connector on the Scosche “T “harness.

PAIRING YOUR CELLULAR PHONE

MICROPHONE INSTALLATION

IMPORTANT NOTE: Your Bluetooth cellular phone must be paired with the

BlueFusion system before use. Once the initial pairing process has been

completed, your phone should easily connect and disconnect to BlueFusion

during normal use.

PAIRING INSTRUCTIONS:

1. Once the hardware has been properly installed, insert the key and start the

vehicle. The BlueFusion interface needs to read the vehicle’s ignition codes to

properlyinitialize.

2. Press the “AM/SAT”, or “SAT” button on the radio to get to the XM Sat radio

source. NOTE: On Toyota Highlander: PRESS FM2 then AM to access the

SAT Radio source.

3A.Vehicle’s with Satellite Radio installed: Press #6 preset button or touch

the “->Bluefusion” button on Navigation radios to get to BlueFusion screen.

3B. Vehicle’s without Satellite Radio installed. BlueFusion menu screen will

be displayed at this step. You do not have to use Preset #6 Button or the

“->Bluefusion” touch screen button to switch between Satellite and

BlueFusion screens.

4. Once in the BlueFusion mode, you will hear a beep tone indicating that

BlueFusion is in pairing mode. (BlueFusion enters pairing mode automatically

when the Ignition is turned on and no phone is currently paired.)

5. From your phone’s Bluetooth menu, perform a search for new devices (refer

to your cell phone user manual). The phone should display “BlueFusion”

6. Select [pair to] BlueFusion and enter pin code 0000 when prompted. This will

complete the pairing process. (Once your phone paired with BlueFusion, the

beep tones should stop and BlueFusion is now ready for use.)

USING THE STEERING WHEEL CONTROL

ADDITIONAL PARING NOTES:

•Ifpairingisunsuccessful,repeatsteps1-6above.Ifyouareunabletopair,

please call Tech Support (800) 621-3695 Ext. 3

•AfteryourphonehasbeeninitiallypairedwithBlueFusion,itshouldeasily

re-connect for future use. Many phones will automatically re-connect to the

BlueFusion system as long as you keep

your phones Bluetooth feature active. If your phone does not freely connect

and disconnect to BlueFusion, consult your phones owner’s manual to check

for addition options that may require enabling.

MODE

NOTE: The MODE or any other steering wheel

controls are defaulted to send the conversation to

switch back to privacy mode (route the call back

to the cellualar phone).

ANSWER/TRACK FORWARD

END/IGNORE/TRACK BACK

ANSWER/END - Press the track forward button once.

IGNORE - Press and hold the track forward button for 3 sec.

TRACK FORWARD - Press the track forward button once.

TRACK BACK - Press and hold the back button for 3 sec.

AM / SAT

SAT

BAND

Seek Forward

ANSWER CALL / SELECT ITEM

MULTI

SELECTOR

(Scroll knob)

FOLDER/TYPE

Multi-Function Knob OR Buttons

SCROLL THROUGH

BLUEFUSION MENUS

SWITCHES BETWEEN XM/SAT

AND BLUEFUSION (from SAT radio source)

ACCESS XM/SAT

BAND (BLUEFUSION)

OR OR

Seek Back

END CALL / BACK TO PREVIOUS MENU

PRESET

NOTE: On Toyota Highlander

PRESS AM-FM_AM to ACCESS

SAT/BLUEFUSION

USING THE RADIO CONTROLS/ NON-NAV

NOT REQUIRED ON VEHICLES WITHOUT SAT RADIO OR SAT TUNER

/ Up

/ Down

USING THE RADIO CONTROLS/ NAV SCREEN

NOTE: The radio controls and illustrations in this manual may vary between

vehicle models, years and trim levels. This section is provided as a guide; your

vehicle may differ.

AM / SAT

SAT

BAND

PRESET #6 SWITCHES BETWEEN XM/SAT

AND BLUEFUSION (from SAT radio source)

ACCESS XM/SAT

BAND (BLUEFUSION)

OR OR

NOTE: On Toyota Highlander

PRESS FM2-AM to ACCESS

SAT/BLUEFUSION

CH 100

6->SAT or MainMenu

TOUCHSCREEN BUTTON

DIRECT ACCESS BLUEFUSION MAIN MENU OPTIONS USING

THE TOUCHSCREEN BUTTONS:

CH 001

1VoiceCmd

PRESET #1 ACTIVATES VOICE DIAL ON

PHONE (Requieres phone with voicedial

capability)

CH 002

2Incoming

PRESET #2 SELECTS INCOMING CALL

LIST

CH 003

3Redial

PRESET #3 ACTIVATES REDIAL

(Redials last # automatically)

CH 004

4Missed PRESET #4 SELECTS MISSED CALL LIST

CH 005

5Outgoing PRESET #5 SELECTS OUTGOING CALL

LIST

TOUCHSCREEN BUTTON

TYPETYPE

TOUCHSCREEN BUTTONS

USE FWD/BACK TO SCROLL THROUGH

NUMBER or SELECTABLE LISTS

USING THE RADIO CONTROLS

ACTIVE CALL MENU OPTIONS: (Displayed when phone call is connected):

PRESET #6 ENDS CALL AND SWITCHES

BACK TO RADIO BAND

CH 100

62Radio/End

TOUCHSCREEN BUTTON

CH 001

1Vol+

PRESET BUTTONS #1 & #4 ADJUST

PHONE CALL VOLUME

CH 004

4Vol-

CH 003

3EndCall PRESET #3 ENDS ACTIVE CALL

CH 005

5Transfer-to-Headset PRESET #5 TRANSFERS CALL TO

HANDSET (Privacy mode)

TOUCHSCREEN BUTTON

CH 002

2Toggle

PRESET #2 TOGGLES (Switch) BETWEEN

TWO ACTIVE CALLS

TOUCHSCREEN BUTTON

HANDS-FREE OPERATION

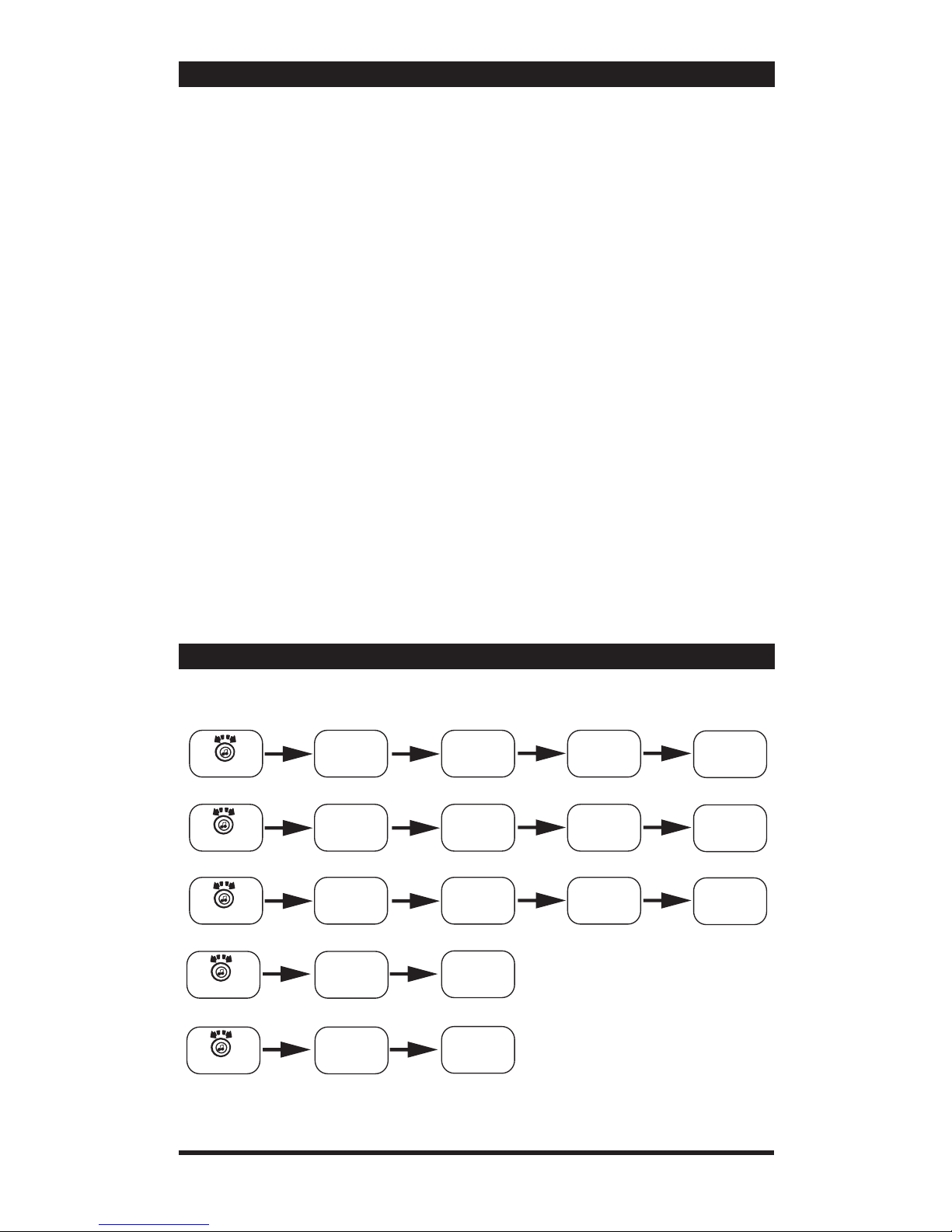

SWITCHING BETWEEN SOURCES

Your BlueFusion system appears as an XM source to the Factory radio. This is

why it is required to go to the XM Radio band first to your BlueFusion screen

While using other sources other than XM (BlueFusion) the interface will

automatically switch to the XM source when you have an incoming phone call.

The radio switches through the sources to find the XM source on the radio,

some audio may bleed through while switching sources. When a phone call

is ended, your radio will NOT automatically switch back to the original source

you were previously on, this feature only works when previously listening to XM

radio. Use the source buttons to switch back to the original source you were

using previously on.

FM CD DVD/

NAV

XM Sat

BlueFusion

AUX

AUTO-CONNECT/ DISCONNECT (ENTERING AND LEAVING THE VEHICLE)

When the vehicle is started, BlueFusion will automatically to the phone which it

was last paired. Some cellular phones may not freely disconnect and re-connect

without user input. If you are having difficulty with this process there may be

additional setting required in your particular phone that will set BlueFusion as a

“trusted” device. This operation may vary between phone brands and models.

If you are already on an active call and you enter and start the vehicle,

BlueFusion will automatically switch the call to hands-free mode.

If you are on an active call and the vehicle is turned off, BlueFusion will

automatically transfer the call to the handset.

VOICE DIALING:

NOTE: This feature activates the Voice Dial within your cell phone. (Your phone

must be voice dial compatible). Voice tags or entries are stored in your phone,

not BlueFusion.

TO ACTIVATE VOICE DIAL ON RADIO:

Scroll to Voice dial in BlueFusion main menu and:

FOR NAV RADIOS - Press Preset 3 once to activate voice dial.

FOR NON-NAV RADIOS - Press Preset 2 once to activate voice dial.

HANDS-FREE OPERATION

INCOMING CALLS:

When receiving an incoming call the Factory radio will automatically switch to the

BlueFusion source and display caller number. The BlueFusion system is designed to

display caller ID only. (Some phones may provide additional

message string information and provide a name in place of the calling number. Your

results may vary). BlueFusion does not support Phonebook profile.

TO ANSWER A CALL:

Press Seek Forward once on the steering wheel controls.

Press Seek Forward once from the radio controls.

INCOMING CALLS (BLOCKED NUMBER):

When receiving an incoming call the Factory radio will automatically switch to the

BlueFusion source, however a number WILL NOT display on the screen. Answer the

call using the same buttons as Incoming calls above.

OUTGOING CALLS:

When making an outgoing call directly from the phone, the factory radio will

automatically switch to the BlueFusion source and send hands-free audio through the

factory speakers.

TO MAKE AN OUTGOING CALL FROM BLUEFUSION:

Enter incoming, outgoing, or missed call menus from BlueFusion main menu, scroll to

selected number and press Seek Forward to initiate a call to the chosen number.

FOR NAV RADIOS - Press menu then use the buttons to scroll through

numbers, then simply touch the number on the screen you wish to dial.

ENDING A CALL:

Press Seek Back once on the radio.

Press Seek Back once on the Steering Wheel Control.

FOR NAV RADIOS - Press Preset 3 once to end a call.

IGNORING A CALL:

Press Seek Back once from the Steering Wheel Control.

Press Seek Back once from the radio.

REDIAL LAST NUMBER:

Scroll to redial in BlueFusion main menu and press Seek Forward once to initiate a call

to the last dialed number.

FOR NAV RADIOS - Press Preset 3 once to redial the last number dialed.

TRANSFER TO HANDSET:

To transfer a call to privacy mode you can:

Change the audio source of the radio or power off the radio ONCE THE CALL HAS

BEEN ACCEPTED.

FOR NAV RADIOS - Press Preset 5 once durring an active call.

SECONDARY AND CONFERENCE CALL HANDLING

BLUEFUSION MAIN FEATURE MENU MAP

When receiving a second call while in an active call the BlueFusion display a

new menu with a list of second call handling functions.

TO ANSWER THE SECOND CALL AND PLACE ACTIVE CALL ON HOLD:

Press Seek forward once on radio.

SWAP CALLS:

(option only present with 2 active phone calls)

From radio scroll to “swap calls” in the menu and press seek forward once.

RELEASE HELD CALL:

On the radio scroll to “Release held call” in the menu and press seek forward

once.

CONFERENCE TWO CALLS:

On the radio scroll to “Conference” in the menu and press seek forward once.

END CURRENT CALL AND ANSWER THE SECOND CALL:

On the radio scroll to “End and receive” in the menu and press seek forward

once.

TO END THE SECOND CALL:

Press Seek Back once on the radio.

Press Seek Back once on Steering wheel control.

(Depending on your phone, when the second call is ended the held call will

either automatically reconnect or it will ring back as a new call.)

for steering wheel control layout)

Note: This flow chart is for visual purposes only. It is NOT a representation of a BlueFusion

video screen or graphics.

Incoming

Calls

Redial

Seek fwd

to list

numbers

Scroll

*Voice dailing feature with voice dial enabled cell phones only. Consult your phone’s user guide.

to determine if your phone is capable. Some phones may require additional setup within the phone

before using this feature.

Seek fwd

to list

numbers

Seek fwd

to list

numbers

Select

number to

call

Seek fwd

dials

number

Outgoing

Calls

Select

number to

call

Seek fwd

dials

number

Missed

Calls

Select

number to

call

Seek fwd

dials

number

Seek fwd

redials last

number

Scroll

*Voice

Dial

Seek fwd

to activate

Scroll

*NOTE: Touchscreen navigation

versions omits same MENU

steps.

A2DP/AVRCP STREAMING AUDIO

A2DP STREAMING AUDIO/ AVRCP REMOTE CONTROLS:

Important Cell Phone Disclaimer: READ FIRST!

BlueFusion will support audio streaming until it is in paired with a cell phone

(whether this is within the same device supporting multiple profiles or two

separate device.

-While streaming A2DP, redial and voice dial functions are DISABLED.

-Volume output through A2DP will vary from device to device, some may have

distortion at full volume and some level control at the device may be necessary.

-The A2DP Audio stream output from Apple iPhone 3GS is too high for the

BlueFusion system and will sound distorted.

PAIRING A2DP FROM YOUR PHONE:

Most phones capable of streaming audio through the A2DP profile will automati-

cally pair to this profile when pairing with the hands free profile, otherwise refer

to your phones user manual for pairing instructions.

PAIRING A2DP FROM A SEPERATE DEVICE:

To pair a separate device, such as the Scosche TZ4 or other Bluetooth device,

there must first be a phone paired to the Hands Free profile. Ensure that the

phone is paired only to handsfree profile and not A2DP, refer to your phones

manual for selective pairing functions. Once the phone is paired only to the

hands-free profile you may activate the pairing process from your second

device. Music will start playing once the device has paired.

TRACK FORWARD

TRACK BACK

MODE

AVRCP CONTROLS:

TRACK FORWARD - Press the track forward button once.

Press the track forward button once on the steering wheel.

TRACK BACK - Press the track back button once.

Press the track back button once on the steering wheel.

Table des matières

Autres manuels Scosche Accessoires automobiles

Scosche

Scosche ITCGM01AB Manuel utilisateur

Scosche

Scosche MA1535 Manuel utilisateur

Scosche

Scosche HY1602 Manuel utilisateur

Scosche

Scosche DO2110 Manuel utilisateur

Scosche

Scosche GM1593 Manuel utilisateur

Scosche

Scosche BlueFusion BFCL2K Manuel utilisateur

Scosche

Scosche GM1593 Manuel utilisateur

Scosche

Scosche MA2030 Manuel utilisateur

Scosche

Scosche GM1482 Manuel utilisateur

Scosche

Scosche MAGICMOUNT PRO MPDBASE-BP0 Manuel utilisateur

Scosche

Scosche motorMOUTH IIBTAXM Manuel utilisateur

Scosche

Scosche VENTMOUN HVM2 Manuel utilisateur

Scosche

Scosche FDQ01 Manuel utilisateur

Scosche

Scosche MAGICGRIP MGQDWD-CPO Manuel utilisateur

Scosche

Scosche reVOLT USBC202M Manuel utilisateur

Scosche

Scosche BTFREQ BTFM Manuel utilisateur

Scosche

Scosche MAGIC GRIP MGQWDDP Manuel utilisateur

Scosche

Scosche GM1482 Manuel utilisateur

Scosche

Scosche MagicMount MAGDBASE-2PKBP0 Manuel utilisateur

Scosche

Scosche STUCKUP IUHW9R Manuel utilisateur

Scosche

Scosche POWERUP 400 Manuel utilisateur

Scosche

Scosche BT1000 Manuel utilisateur

Scosche

Scosche MAGICMOUNT CHARGE Manuel utilisateur

Scosche

Scosche ITCLS01B Manuel utilisateur

Manuels Accessoires automobiles populaires d'autres marques

James Baroud

James Baroud Odyssey Manuel utilisateur

Motorola

Motorola i50sx Manuel utilisateur

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manuel utilisateur

Feniex

Feniex T3 Manuel utilisateur

Renault

Renault 77 11 423 180 Manuel utilisateur

Kia

Kia E8300-4D000 Manuel utilisateur

Brink

Brink 756843 Manuel utilisateur

Whispbar

Whispbar K085W Manuel utilisateur

v.link

v.link CI-VL2-PC-HSD Manuel utilisateur

Viking

Viking Stack-Rack Guide de configuration rapide

Aries

Aries 203015 Manuel utilisateur

Choetech

Choetech AT0005 Manuel utilisateur

ZZ2

ZZ2 ZZAIR-PRO Manuel utilisateur

Holman

Holman 4A80L Manuel utilisateur

Thule

Thule 2075 Manuel utilisateur

Motorola

Motorola T325 Manuel utilisateur

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guide d'installation

DV8

DV8 FBJL-02 Manuel utilisateur
