Scosche CR1277 Manuel utilisateur

FOR MORE INFORMATION VISIT www.scosche.com

OR CALL SCOSCHE INDUSTRIES, INC. AT 800-363-4490

2002-2003

CHRYSLER

PT CRUISER

4-DR

NOTE: THISMANUALISBASED ONCAREFULLY DOCUMENTEDRESEARCH.ABSOLUTE

ACCURACY IS ATTEMPTED BUT NOT GUARANTEED. USETHIS MANUAL AS A REFERENCE

GUIDE. SCOSCHE, INC. CANNOT BE RESPONSIBLE FOR INCONSISTENCIES THAT MAY OCCUR..

Year: 2001-2003 Make: Chrysler Model: PT Cruiser

IN-DASHAPPLICATION:

Dash Type: Chrysler Contoured DIN+1/2

Kit: CR1277

Harness: CR02

AntennaAdapter:CRA Antenna:CR301

CD Changer Interface: DCCHYAS

FRONT SPEAKERS:

Door: 7" Chrysler 3-tab speaker mounted to steel Depth 3”

WHENINSTALLING AN AFTERMARKET5 ¼OR 6½”SPEAKER,A SPEAKER ADAPTERISREQUIRED. WERECOMMENDTHE SCOSCHESA656 SPEAKER

ADAPTER.

REAR SPEAKERS:

Pillar: Standard 6x8" speaker mounted to steel depth 2 3/4”

When installing an aftermarket 5 ¼ or 6 ½” speaker, a speaker adapter is required. We recommend the

Scosche SA68 speaker adapter.

WIRE COLOR CODES:

+12V Constant = Pink

+12V Accessory Switched = Red/White

-12V Chassis Ground = Black

+12V Dimmer = Orange

LF+ = Green/Violet

LF- = Brown/Blue

RF+ = Violet

RF- = Blue/Red

LR+ = Brown/Yellow

LR- = Brown/Blue

RR+ = Blue/White

RR- = Blue/Black

FOR MORE INFORMATION VISIT www.scosche.com

OR CALL SCOSCHE INDUSTRIES, INC. AT 800-363-4490

NOTE: THIS MANUAL IS BASED ON CAREFULLY DOCUMENTED RESEARCH. ABSOLUTE

ACCURACY IS ATTEMPTED BUT NOT GUARANTEED. USETHIS MANUAL AS A REFERENCE

GUIDE. SCOSCHE, INC.CANNOT BE RESPONSIBLE FOR INCONSISTENCIES THAT MAY OCCUR..

2000CHRYSLERPTCRUISER

4-DR Sedan

PRELIMINARY: Disconnectthe negative batterycable.

ANTENNA: Thefactory antennais located atopthe rightfront

fenderpanel

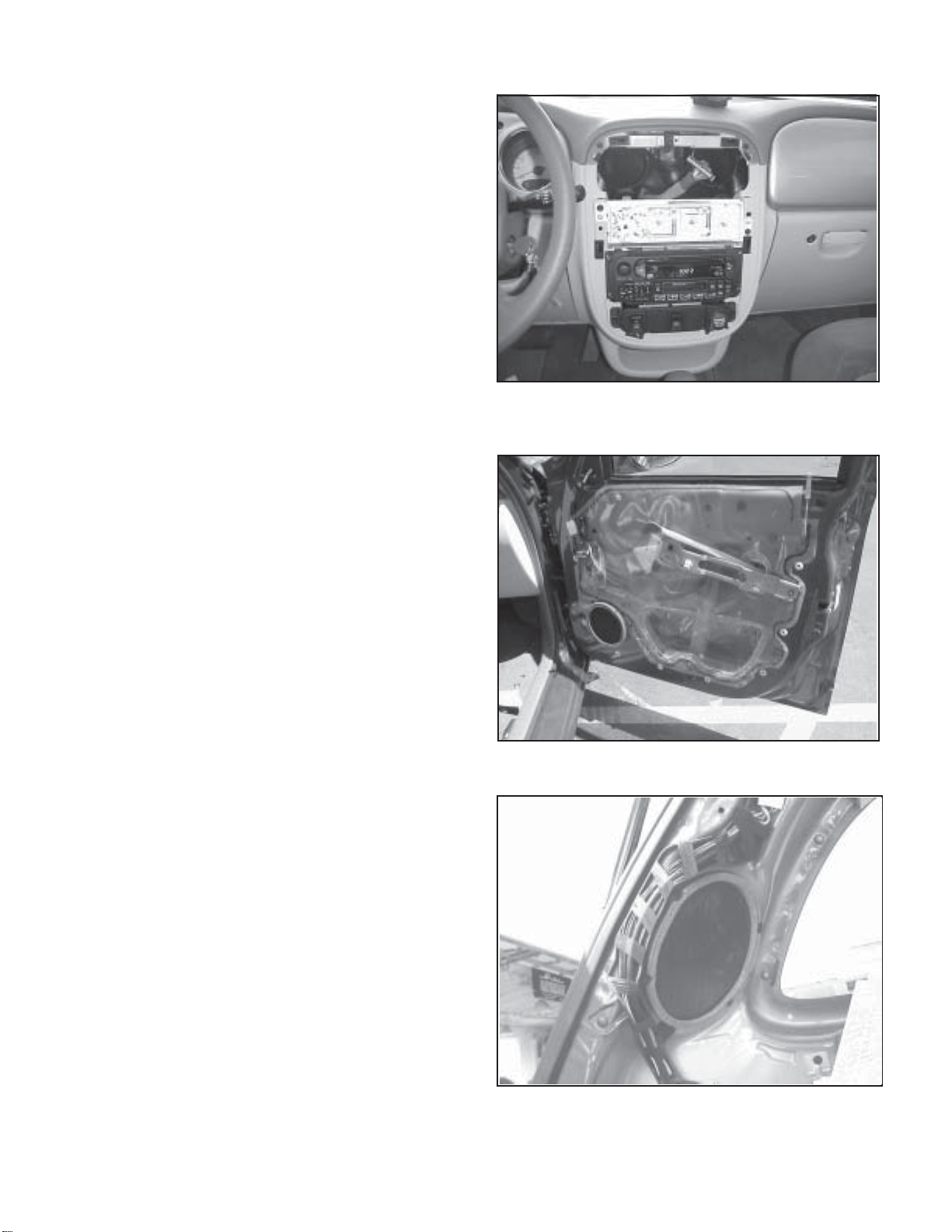

RADIOREMOVALANDIN-DASH INSTALLATION:

Note: The factory radio provision is for a Chrysler

contoured radio. An installation kit is necessary

when using an aftermarket radio. We

recommend the use of a Scosche CR1277

installationkit.

1. Using a small pick tool, unsnap power window control.

Extract (1) Phillips head screw from behind, lift away,

disconnectandremove.

2. Usinga panel removaltool, carefullyremove dash bezel.

3. Extract (4) Phillips head screws securing radio, lift away,

disconnectandremove.

FRONTDOOR SPEAKER INSTALLATION:

Note: The factory speaker provision is for a 7" Chrysler 3-

tab speaker. When installing an aftermarket 5 ¼ or 6

½” speaker, a speaker adapter is required. We

recommend the use of a Scosche SAC656 speaker

adapter.

1. Extract (3) Phillips head screws perimeter of door panel

and(1) Phillipshead screwfrom doorrelease cup.

2. Extract (2)Torx screws from bottom of door handle.

3. Usinga panel removaltool, unsnapfastenersalong

perimeterof doorpanel,lift awayand remove doorpanel.

4. Extract (3) Phillips head screws securing speaker, lift

away, disconnectandremove

REARPILLAR SPEAKER INSTALLATION:

Note: The factory speaker provision is for a standard 6 x

8" speaker. When installing an aftermarket 5 ¼ or 6 ½”

speaker, a speaker adapter is required. We recommend

the use of a Scosche SAC68 speaker adapter.

1. Usinga panelremovaltool, unsnapandremove rearpillar

panel.

2. Extract (4) Phillips head screws securing speaker, lift

away, disconnectandremove.
